Week 7 Challenge - Assembly Workbench
Step 1: Creating 2D Drawing Each drawing must be made under geometrical sets. All drawings must be started by choosing positioned sketch. Figure must be drawn as per given drawing by using the profile commands. The Drawings must be iso-constraint using proper dimensions. Step 2: Creation of 3D 2D Drawing is converted…
Adviteeya Gupta
updated on 29 May 2023
Step 1: Creating 2D Drawing
- Each drawing must be made under geometrical sets.
- All drawings must be started by choosing positioned sketch.
- Figure must be drawn as per given drawing by using the profile commands.
- The Drawings must be iso-constraint using proper dimensions.
Step 2: Creation of 3D
- 2D Drawing is converted into 3D figure using sketch-based feature commands.
- By using dress up feature command the final edit on the 3D figure is obtained.
- All the 3D figure must be worked in part body.
- By using Boolean Operations final body can be obtained.
Step 3: Creation of Assembly
- By using part command insert the product.
- In product generate the skeleton reference as the base for the assembly.
- Use existing component and insert the parts already been manufactured.
- Using move command separate the all body as they may set upon each other.
- Generate reference elements as point and axis for making them parents of constraints.
- By using constraint command apply the constraints and assemble the products.
- Use the save management command to save all the files.
Step 4: Creation of Drawing Sheet
- Select the new in file option and then select drawing a new interface will be opened.
- This interface is for generation of drawing sheets select A3 format and scale of drawing can also be chosen as per requirement.
- In view command select front view switch back to original interface select a surface and project back for obtaining the view.
- From front view obtain the other views using projection view command.
- In edit command switch from sheet background to workings views and insert title block.
- Complete the title block and using save management save the drawing.
- Using save command it can be saved as pdf or image format.
Model Drawing 1

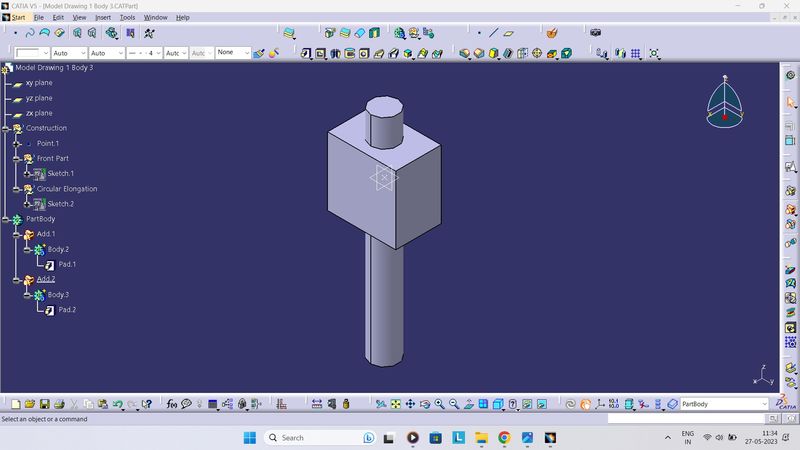

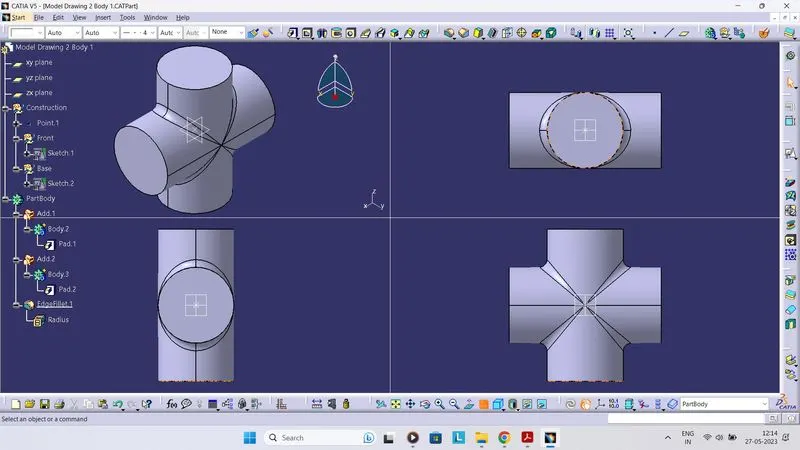

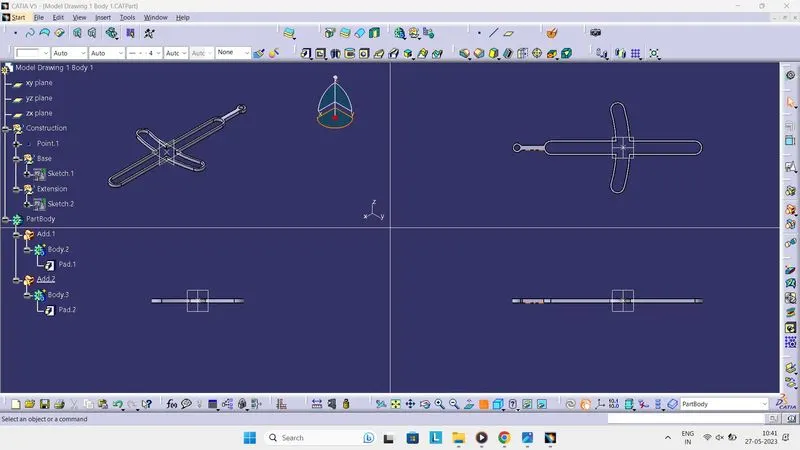

Body 1

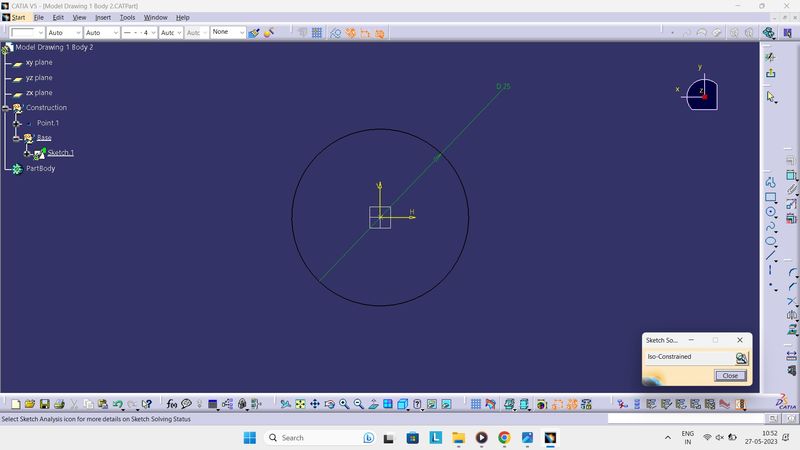

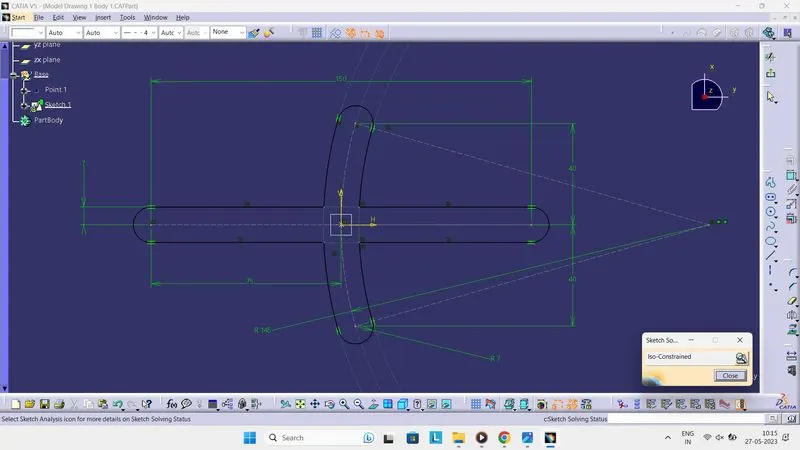

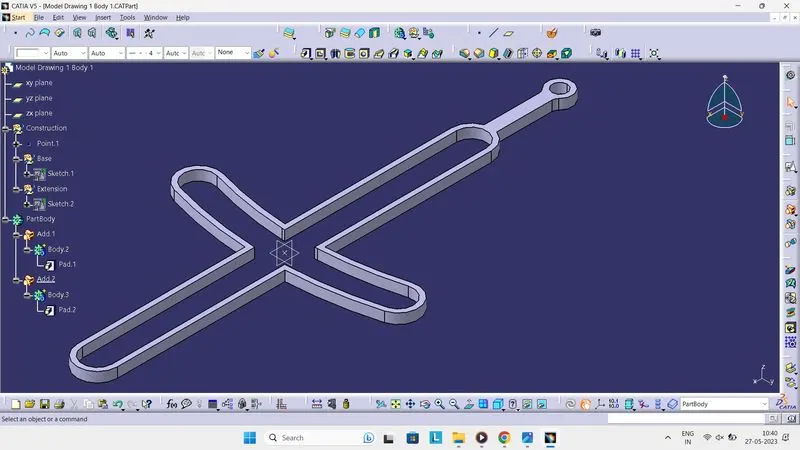

Body 1 Drawing 1 Sketch Solving Status
Body 1 Drawing 2 Sketch Solving Status

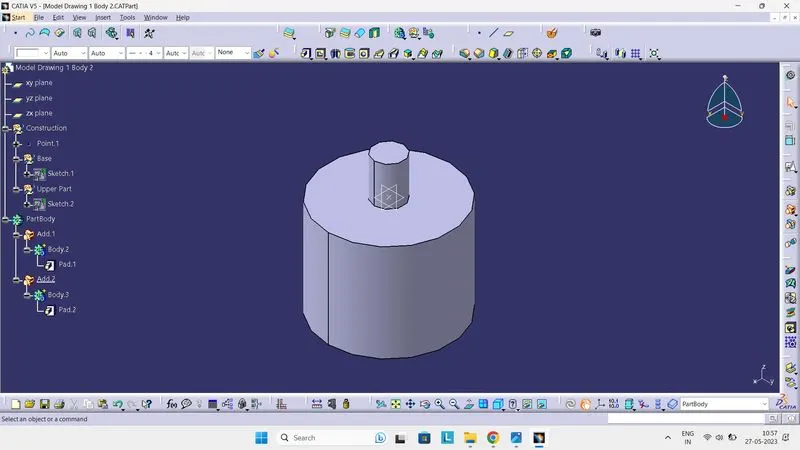

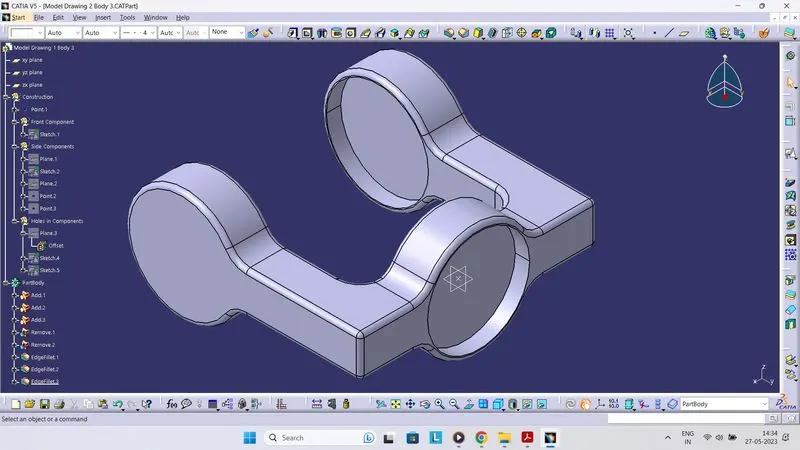

Isometric View
Multi View

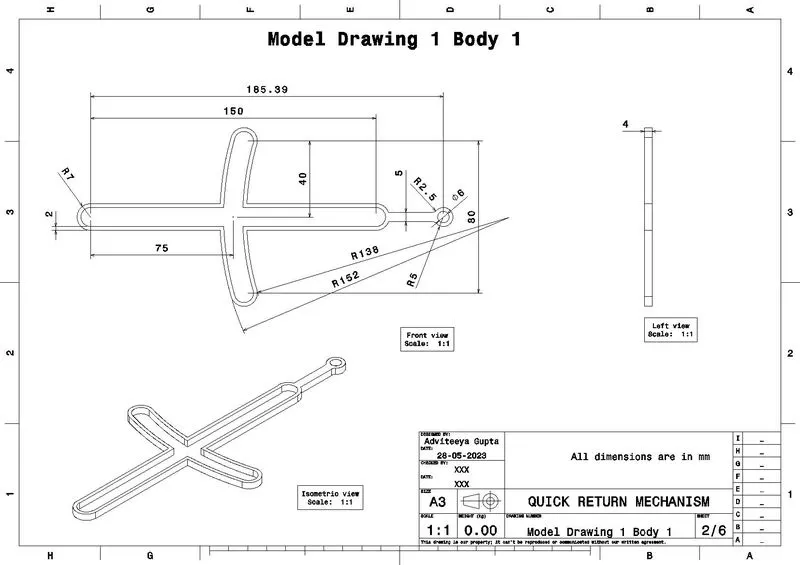

Drawing Sheet

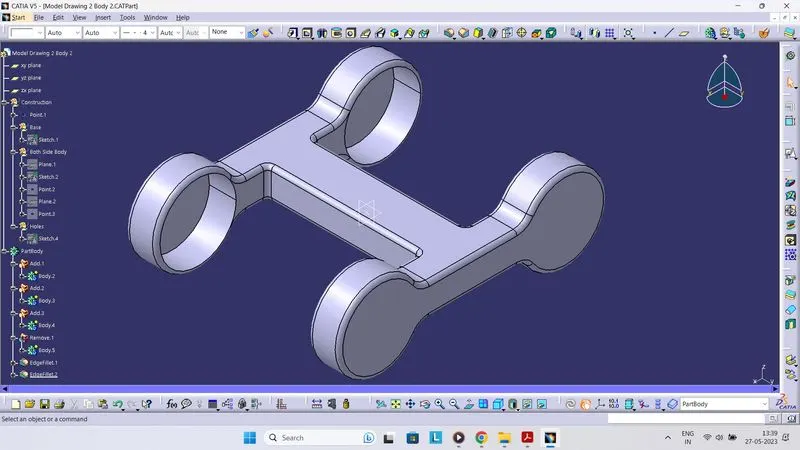

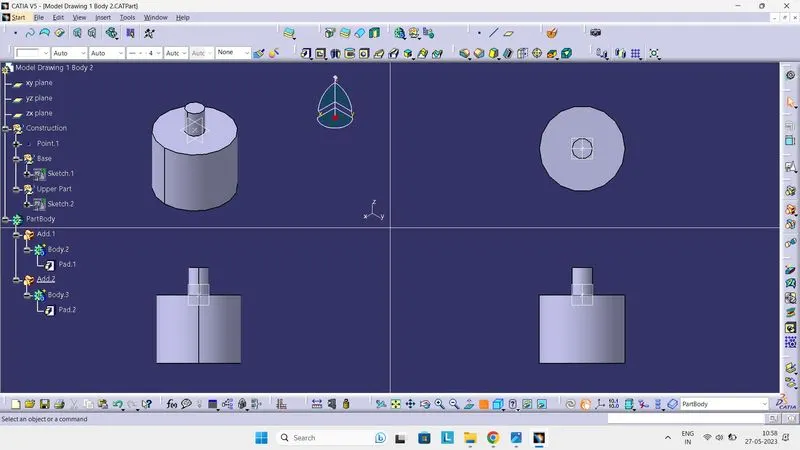

Body 2

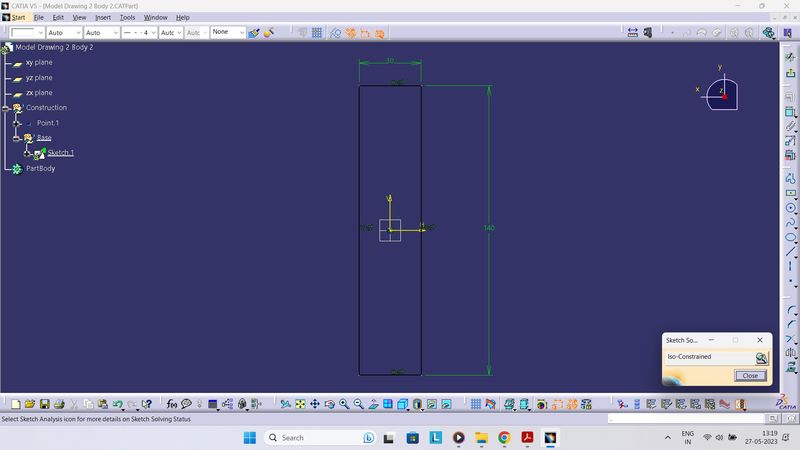

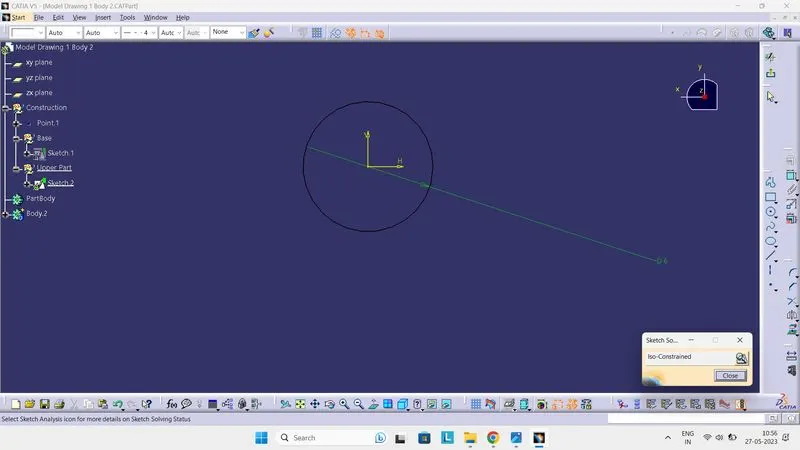

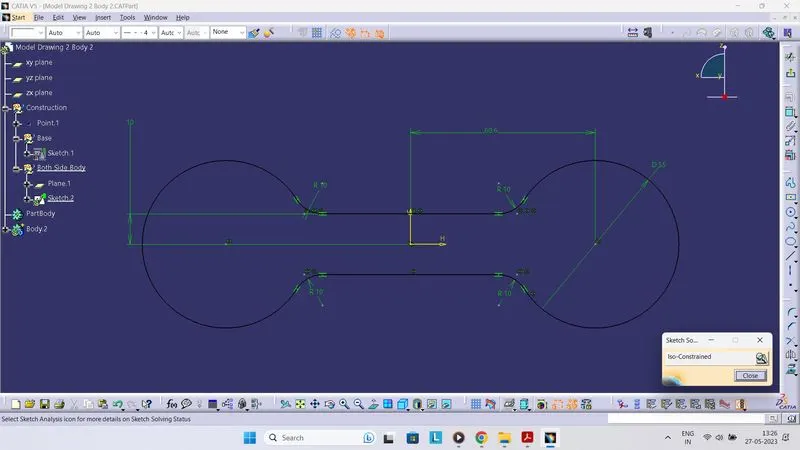

Body 2 Drawing 1 Sketch Solving Status
Body 2 Drawing 2 Sketch Solving Status
Isometric View
Multi View

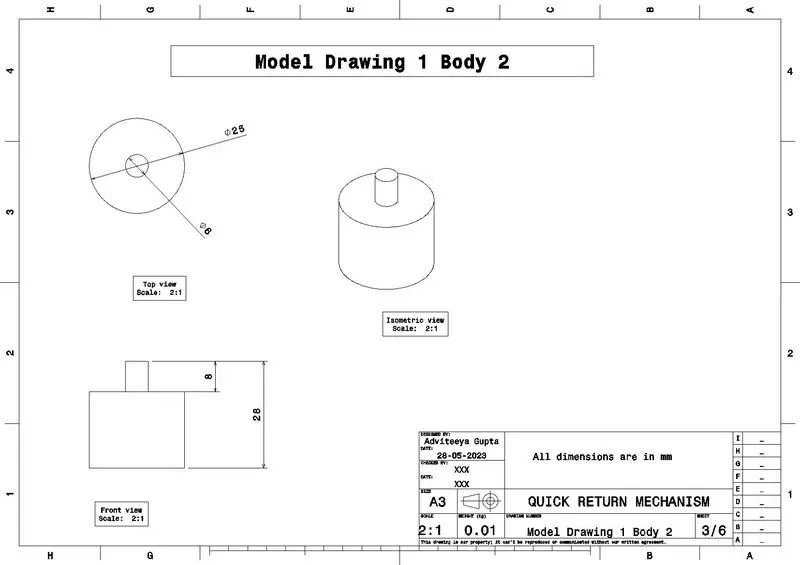

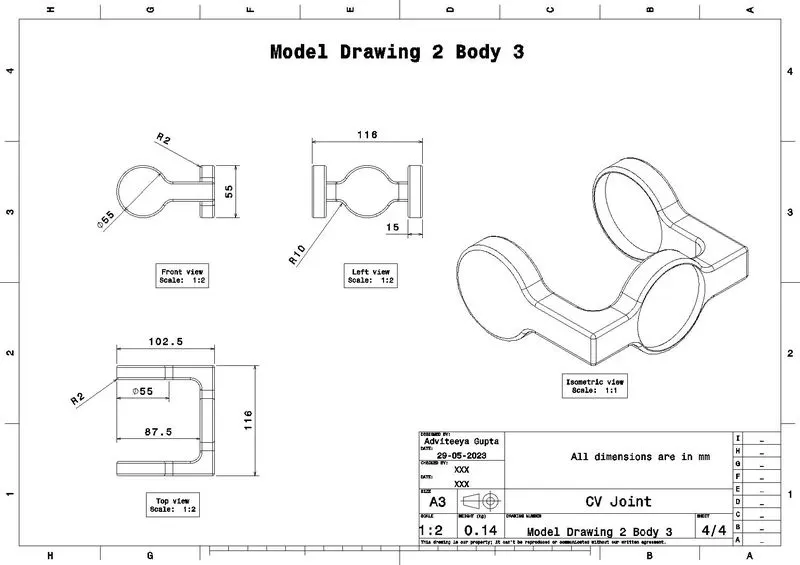

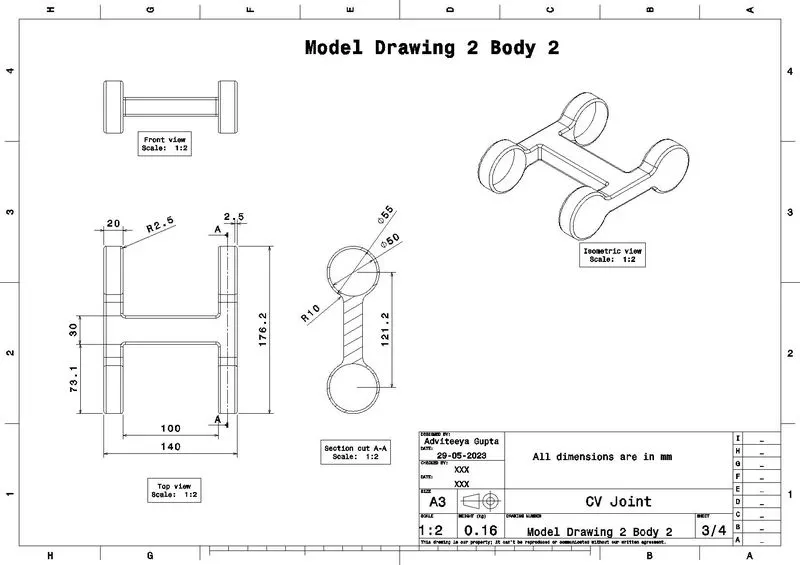

Drawing Sheet

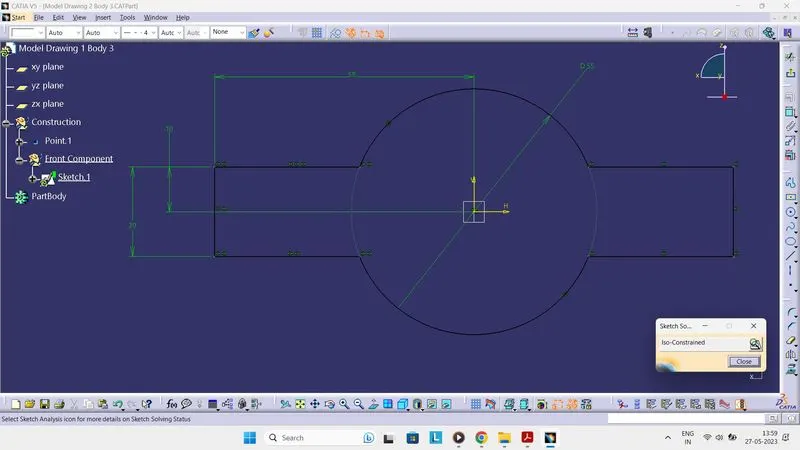

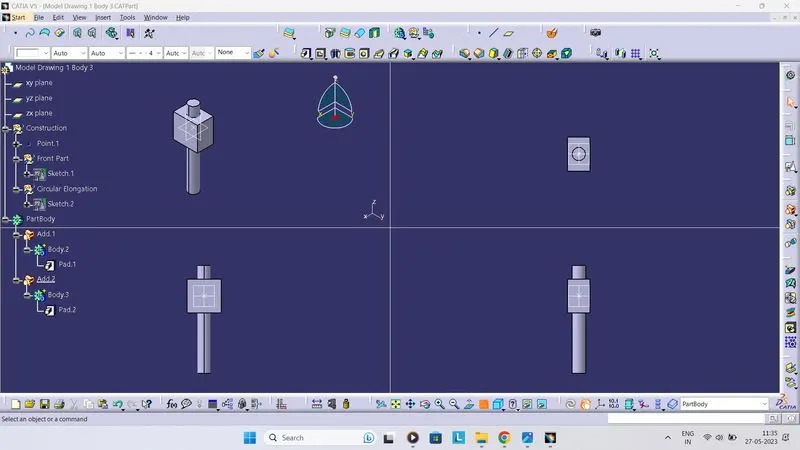

Body 3

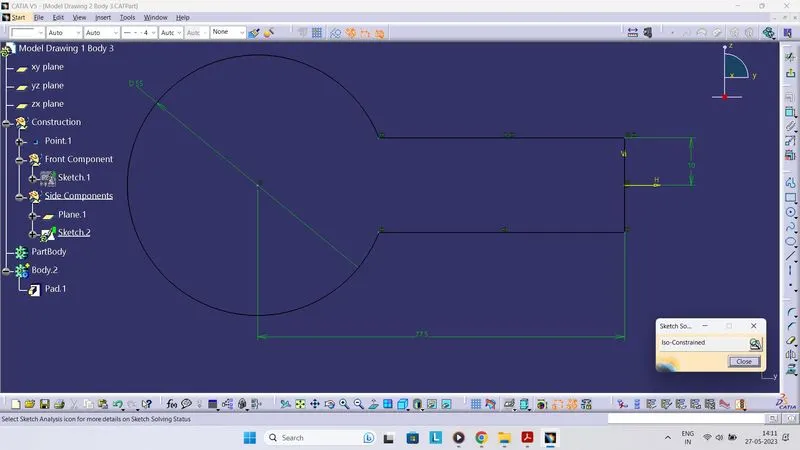

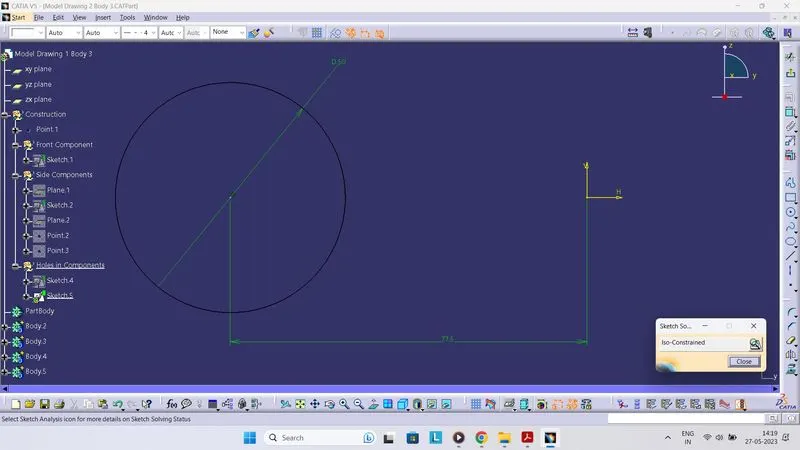

Body 3 Drawing 1 Sketch Solving Status
Body 3 Drawing 2 Sketch Solving Status

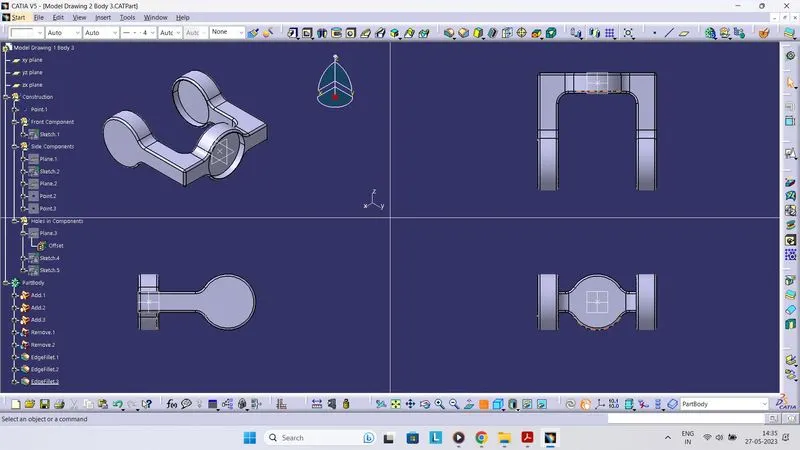

Isometric View
Multi View

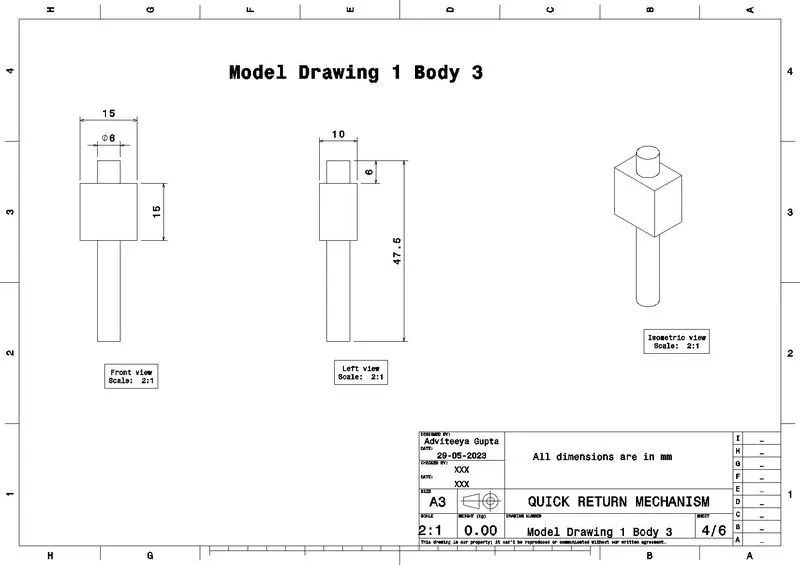

Drawing Sheet

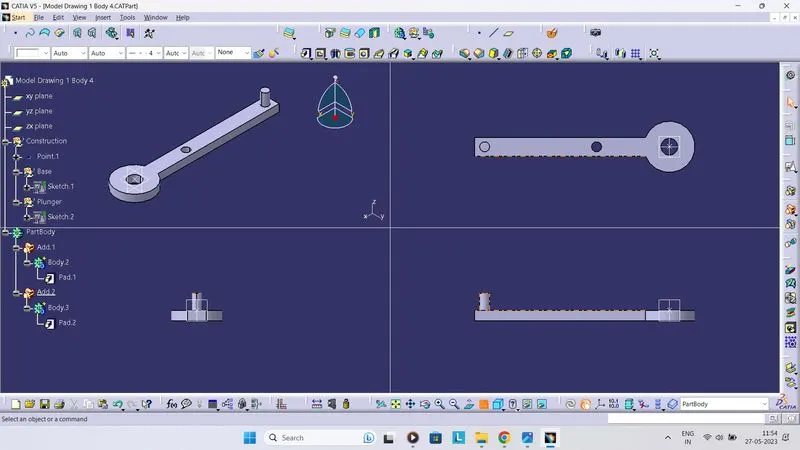

Body 4

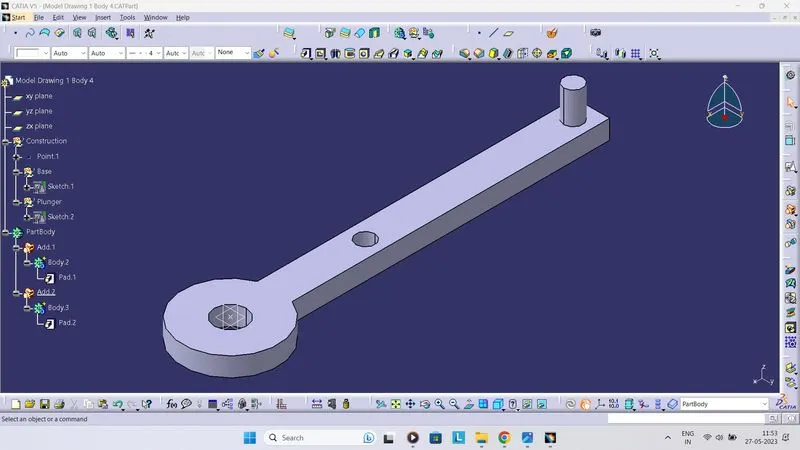

Body 4 Drawing 1 Sketch Solving Status
Body 4 Drawing 2 Sketch Solving Status
Isometric View
Multi View

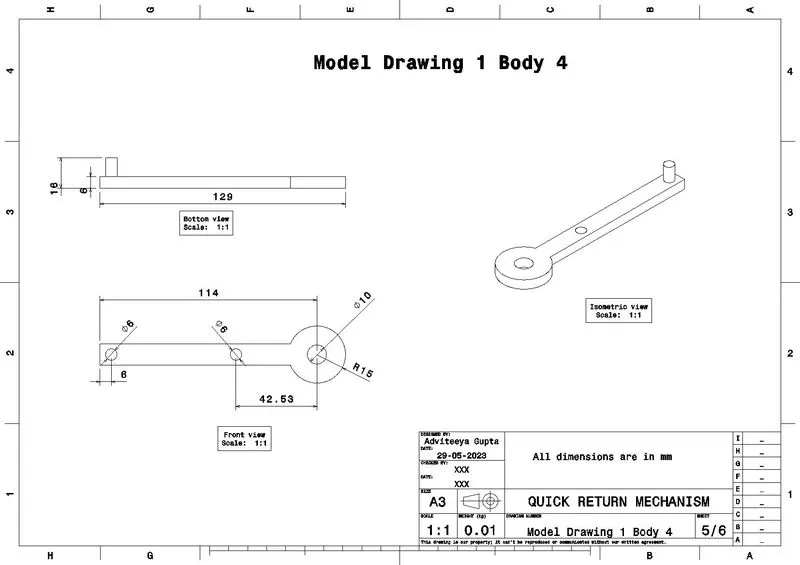

Drawing Sheet

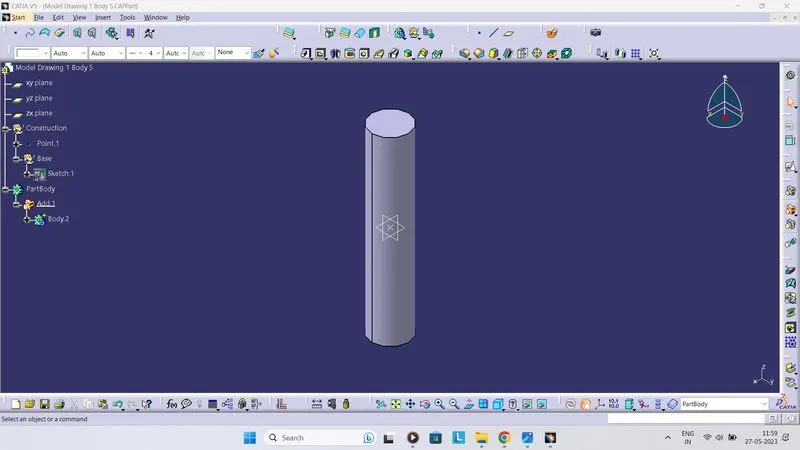

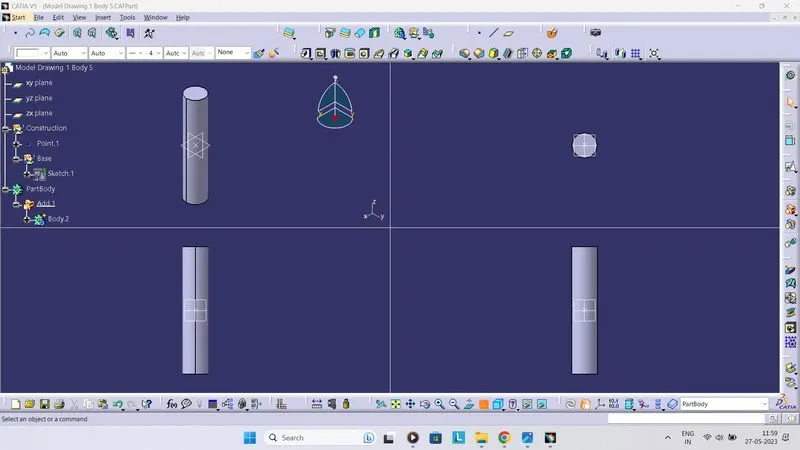

Body 5
Body 5 Drawing 1 Sketch Solving Status
Isometric View
Multi View

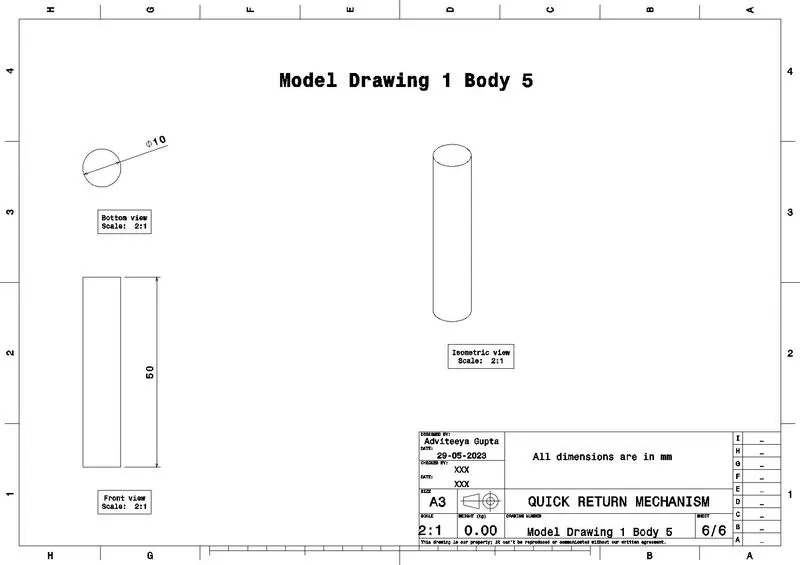

Drawing Sheet

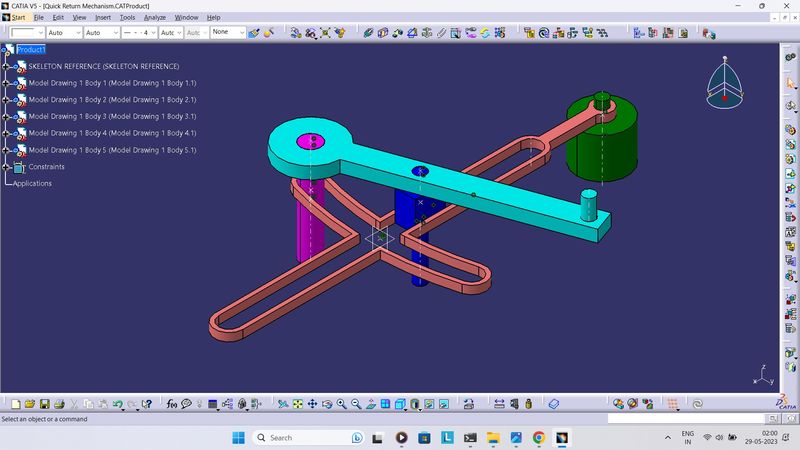

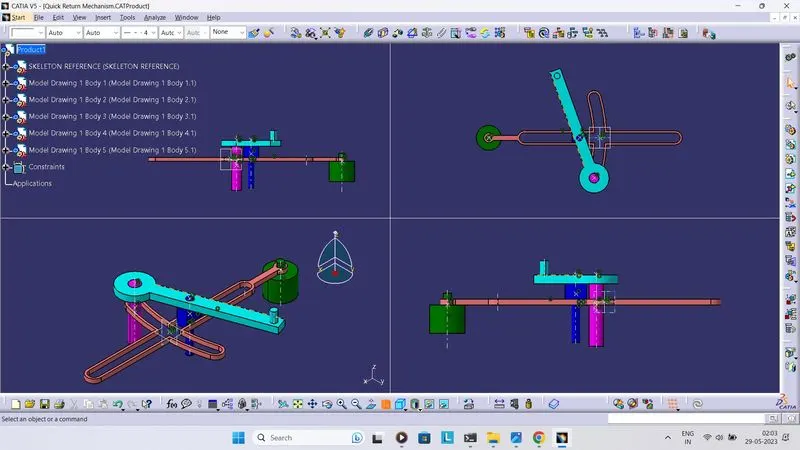

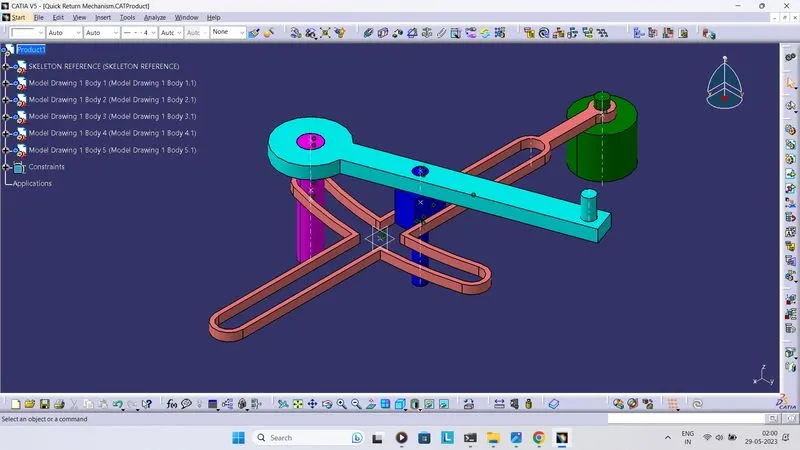

Assembly
Isometric View
Multi View

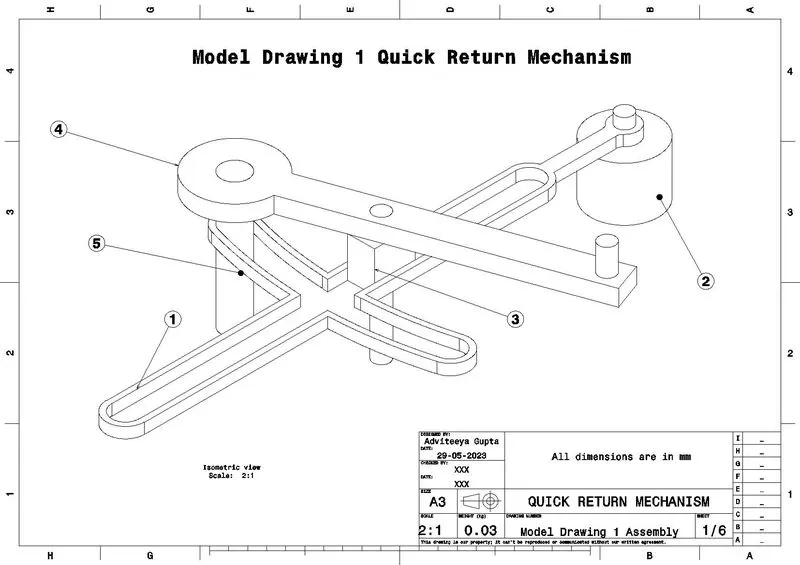

Drawing Sheet
Model Drawing 2

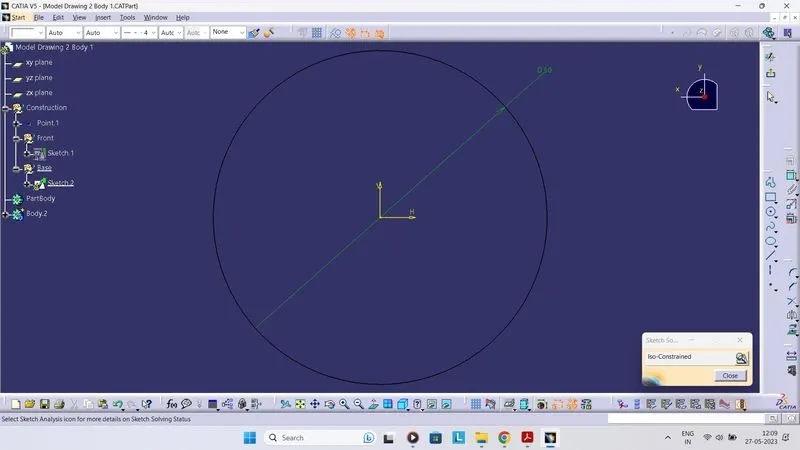

Body 1
Body 1 Drawing 1 Sketch Solving Status
Body 1 Drawing 2 Sketch Solving Status

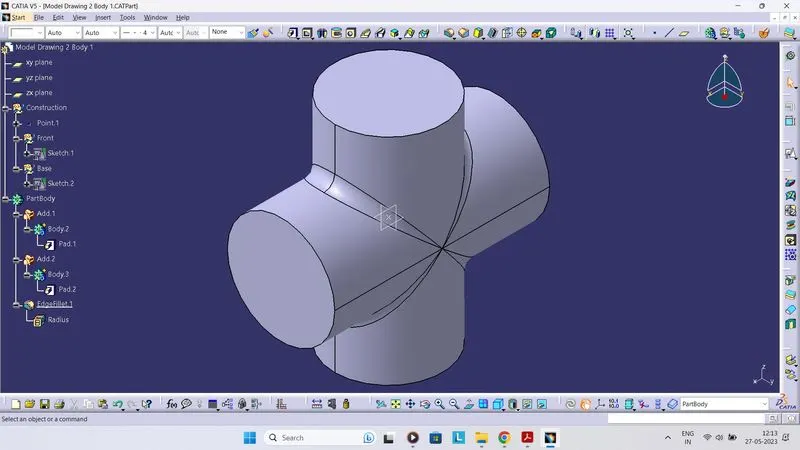

Isometric View
Multi View
Drawing Sheet
Body 2
Body 2 Drawing 1 Sketch Solving Status
Body 2 Drawing 2 Sketch Solving Status
Body 2 Drawing 3 Sketch Solving Status

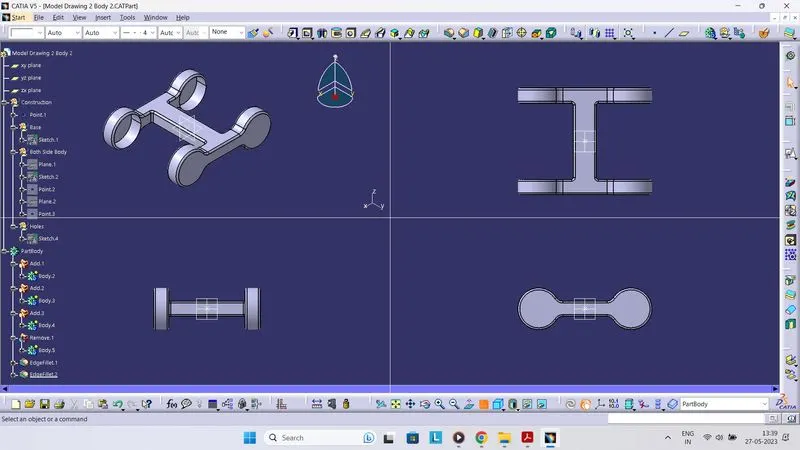

Isometric View
Multi View

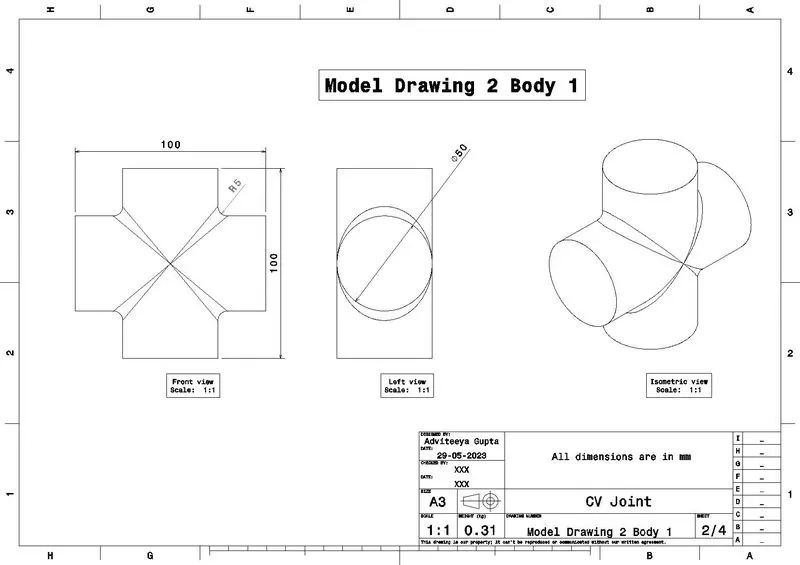

Drawing Sheet
Body 3
Body 3 Drawing 1 Sketch Solving Status
Body 3 Drawing 2 Sketch Solving Status
Body 3 Drawing 3 Sketch Solving Status
Body 3 Drawing 4 Sketch Solving Status
Isometric View
Multi View
Drawing Sheet

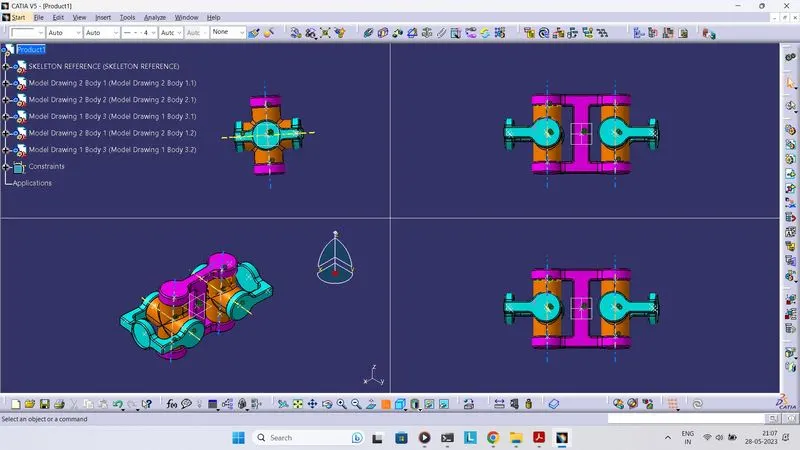

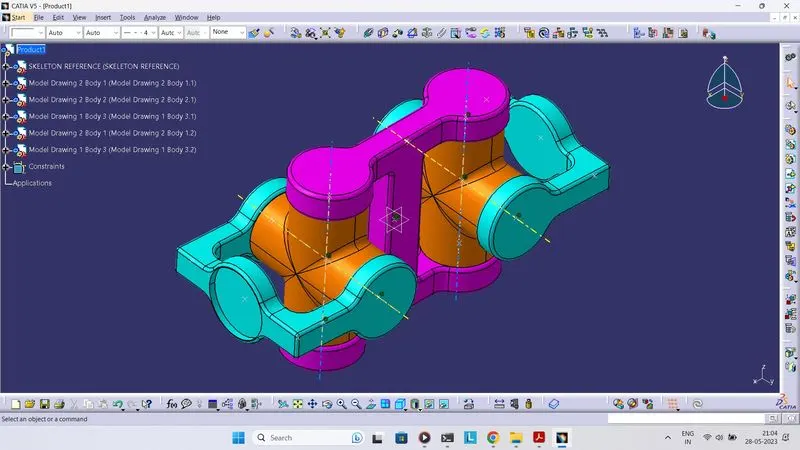

Assembly
Isometric View
Multi View

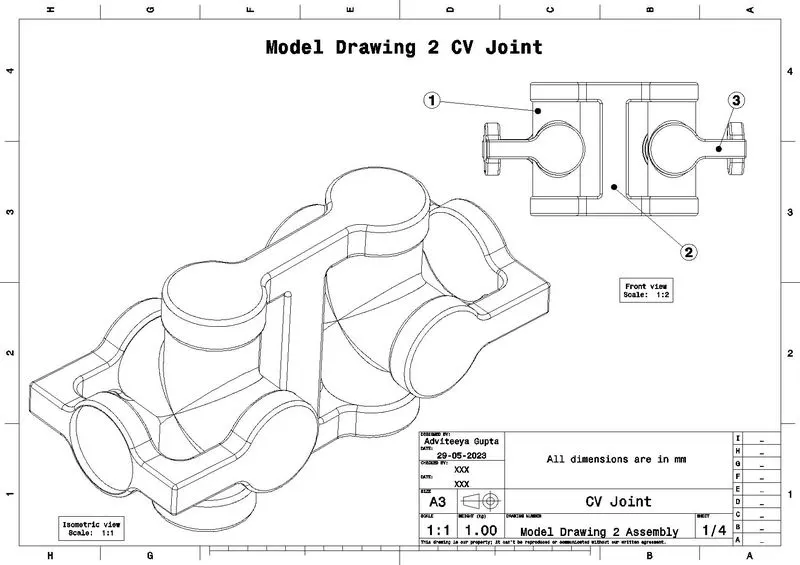

Drawing Sheet
