  3. Creation of geometries by Coordinate system methods using AutoCad

Creation of geometries by Coordinate system methods using AutoCad

Procedure to draw p-1 :By absolute coordinate system Give a LINE command in autocad; LINE Specify first point : 2,1 Specify next point: 8,1 Specify next point : 8,2 Specify next point : 3,2 Specify next point : 3,6 Specify next point : 8,6 Specify next point : 8,7 Specify next point : 2,7 Specify next point : 2,1 or c…

    • AMOL KHEDEKAR

      updated on 14 Aug 2022

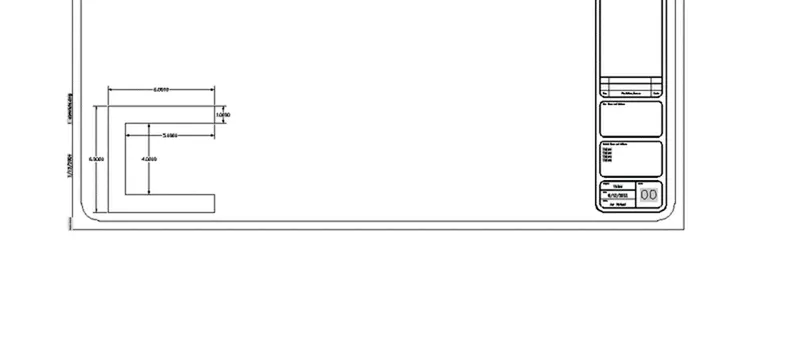

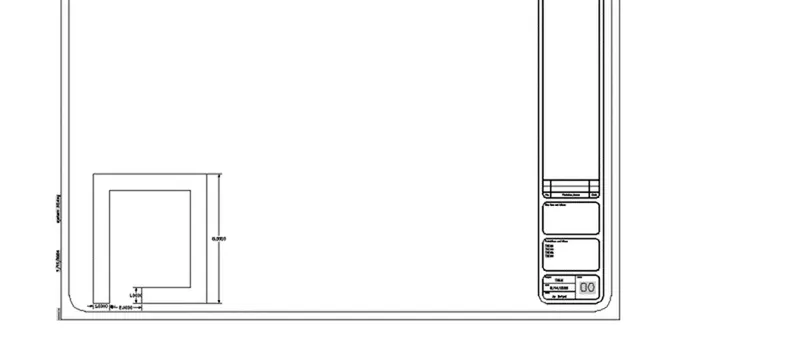

    • Procedure to draw p-1

    :By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: 8,1

    Specify next point : 8,2

    Specify next point : 3,2

    Specify next point : 3,6

    Specify next point : 8,6

    Specify next point : 8,7

    Specify next point : 2,7

    Specify next point : 2,1 or c for close

    Then escape from command.

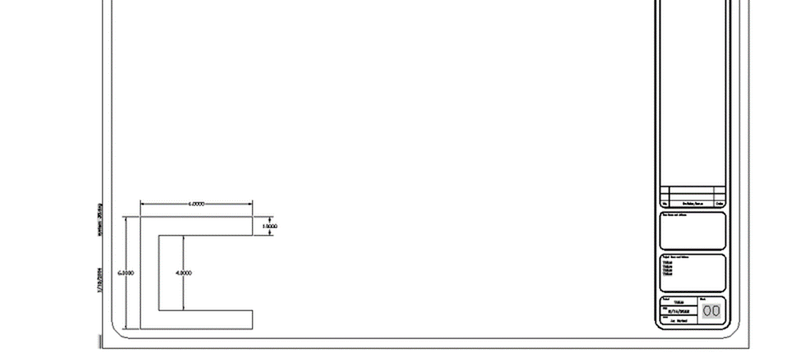

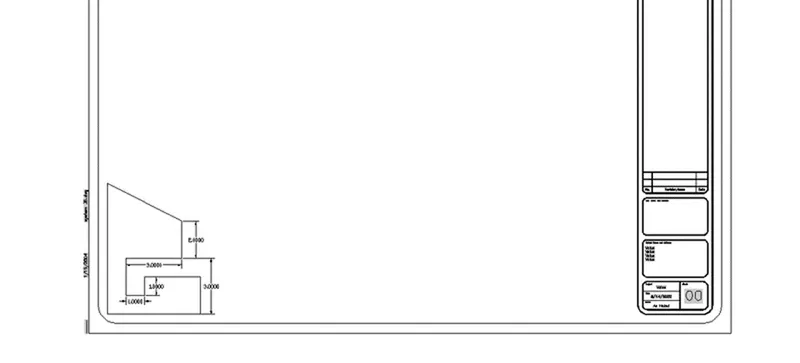

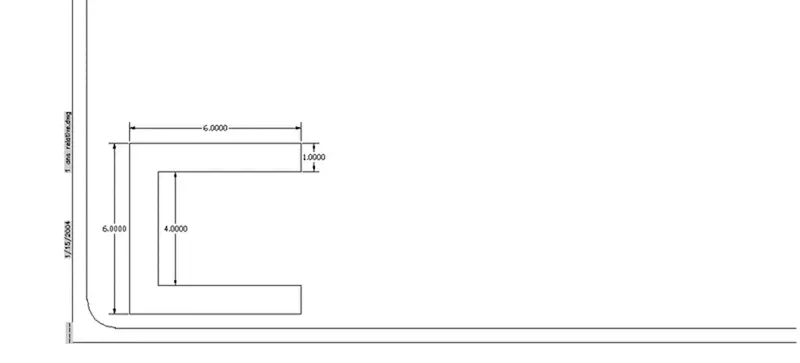

    Result in below drawing;

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point:@ 6,0

    Specify next point : @0,1

    Specify next point : @-5,0

    Specify next point : @0,4

    Specify next point : @5,0

    Specify next point : @0,1

    Specify next point : @-6,0

    Specify next point : @0,-6 or c for close

    Then escape from command.

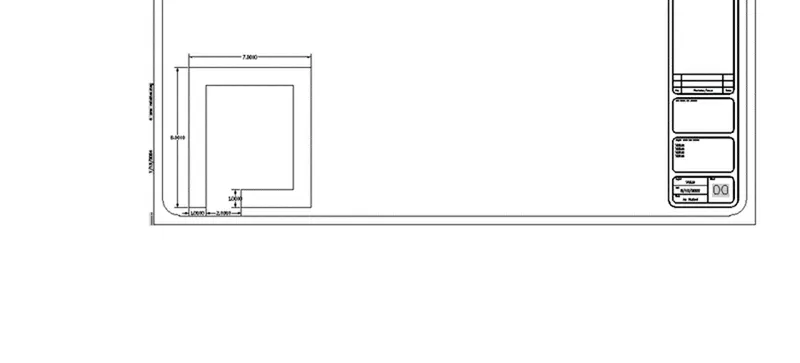

    Result in below drawing;

    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: @6<0

    Specify next point : @1<90

    Specify next point : @5<180

    Specify next point : @4<90

    Specify next point : @5<0

    Specify next point : @1<90

    Specify next point : @6,180

    Specify next point : @6<270 or c for close

    Then escape from command.

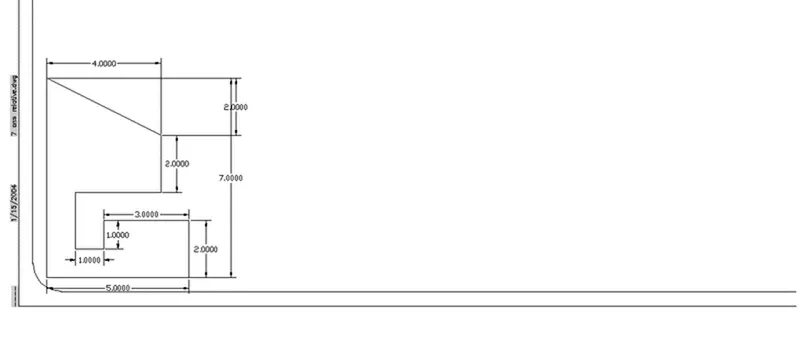

    Result in below drawing;





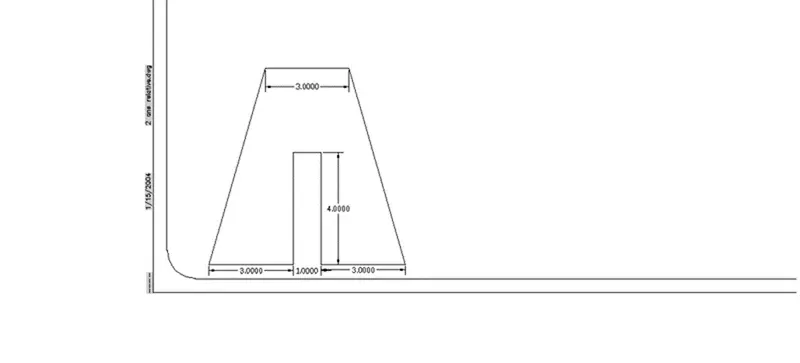

    • Procedure to draw p-2

    : By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: 5,1

    Specify next point : 5,5

    Specify next point : 6,5

    Specify next point : 6,1

    Specify next point : 9,1

    Specify next point : 7,8

    Specify next point : 4,8

    Specify next point : 2,1 or c for close

    Then escape from command.

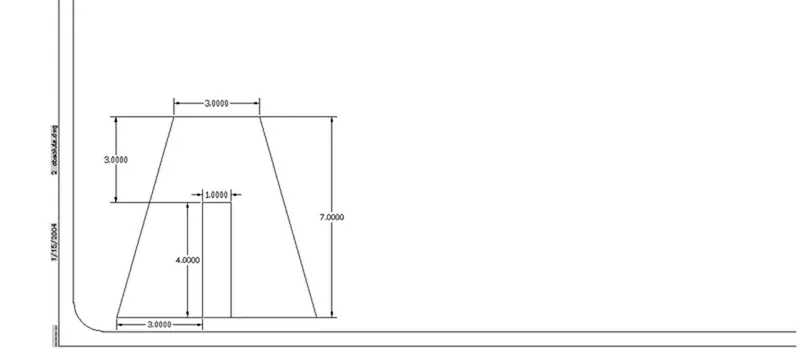

    Result in below drawing;

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point:@ 3,0

    Specify next point : @0,4

    Specify next point : @1,0

    Specify next point : @0,-4

    Specify next point : @3,0

    Specify next point : @-2,7

    Specify next point : @-3,0

    Specify next point : @-2,-7 or c for close

    Then escape from command.

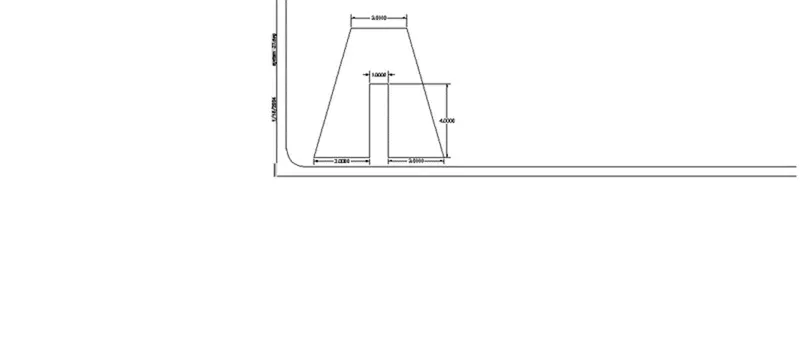

    Result in below drawing;



    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: @3<0

    Specify next point : @4<90

    Specify next point : @1<0

    Specify next point : @4<270

    Specify next point : @3<0

    Specify next point : @7<106

    Specify next point : @3<180

    Specify next point : @7<254 or c for close

    Then escape from command.

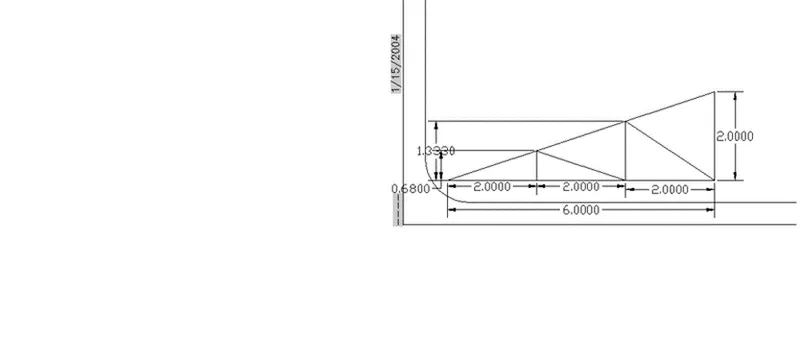

    Result in below drawing;



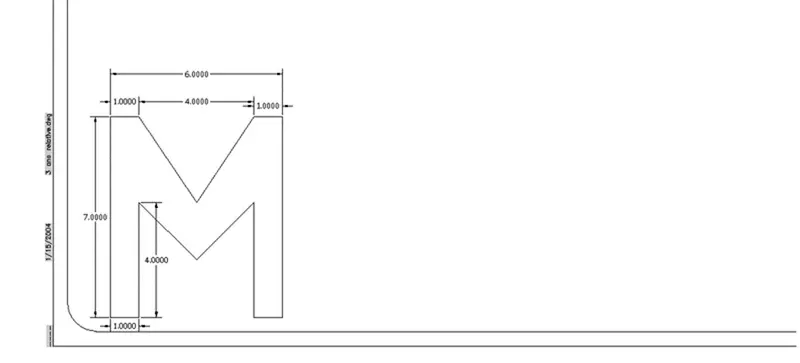

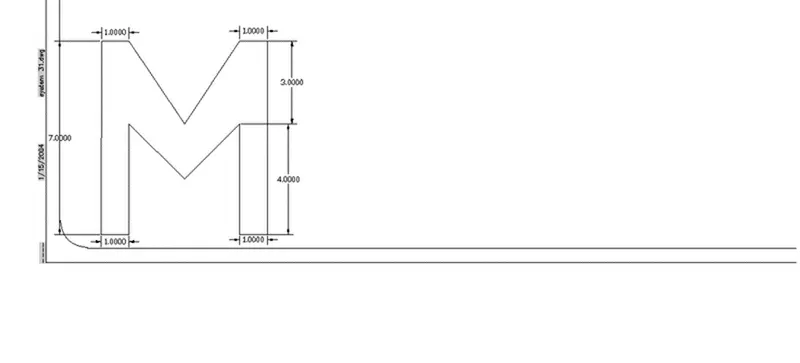

    • procedure to draw p-4

    : By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: 3,1

    Specify next point : 3,5

    Specify next point : 5,3

    Specify next point : 7,5

    Specify next point : 7,1

    Specify next point : 8,1

    Specify next point : 8,8

    Specify next point : 7,8

    Specify next point : 5,5

    Specify next point : 3,8

    Specify next point : 2,8

    Specify next point : 2,1 or c for close

    Then escape from command.

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point:@ 1,0

    Specify next point : @0,4

    Specify next point : @2,-2

    Specify next point : @2,2

    Specify next point : @0,-4

    Specify next point : @1,0

    Specify next point : @0,7

    Specify next point : @-1,0

    Specify next point : @-2,-3

    Specify next point : @-2,3

    Specify next point : @-1,0

    Specify next point : 0,-7 or c for close

    Then escape from command.

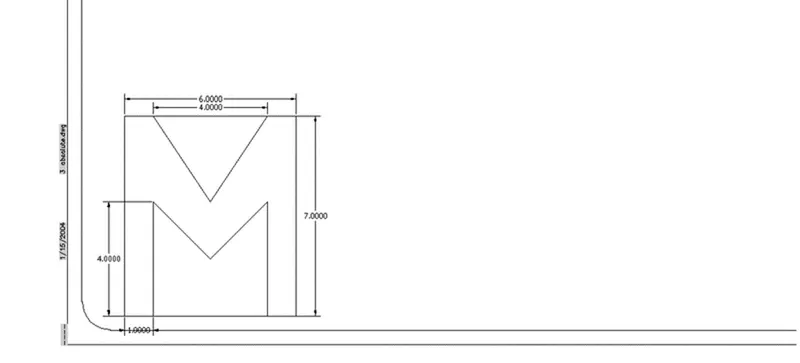

    Result in below drawing;



    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: @1<0

    Specify next point: @4<90

    Specify next point: @2.828<315

    Specify next point: @2.828<45

    Specify next point: @4<270

    Specify next point: @1<0

    Specify next point: @7<90

    Specify next point : @1<180

    Specify next point : @3.60<236.3

    Specify next point : @3.60<123.7

    Specify next point : @1<180

    Specify next point : @7<270 or c for close

    Then escape from command.

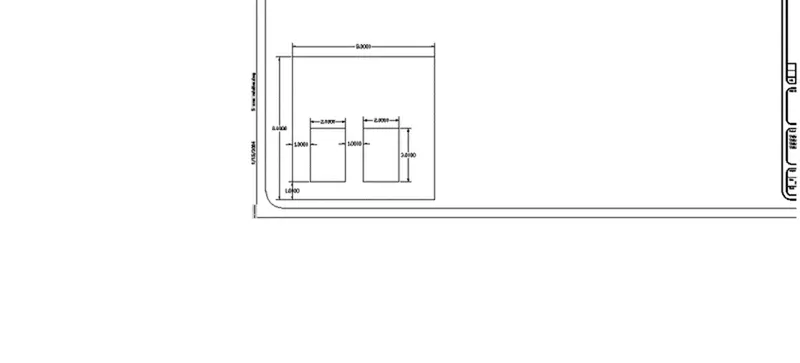

    Result in below drawing;



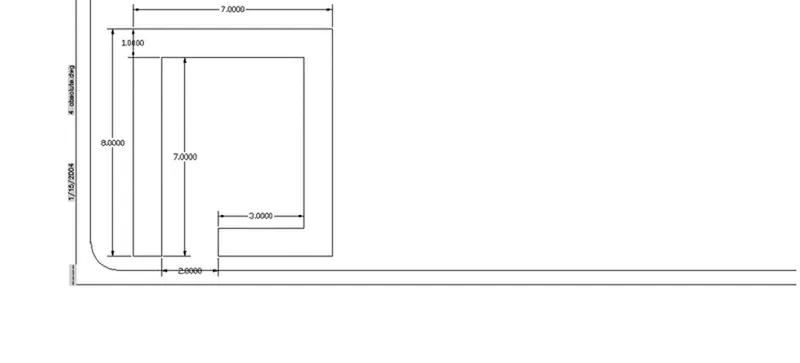

    • Procedure to draw p-5

    :By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: 3,1

    Specify next point : 3,8

    Specify next point : 8,8

    Specify next point : 8,2

    Specify next point : 5,2

    Specify next point : 5,1

    Specify next point : 9,1

    Specify next point : 9,9

    Specify next point : 2,9

    Specify next point : 2,1 or c for close

    Then escape from command.

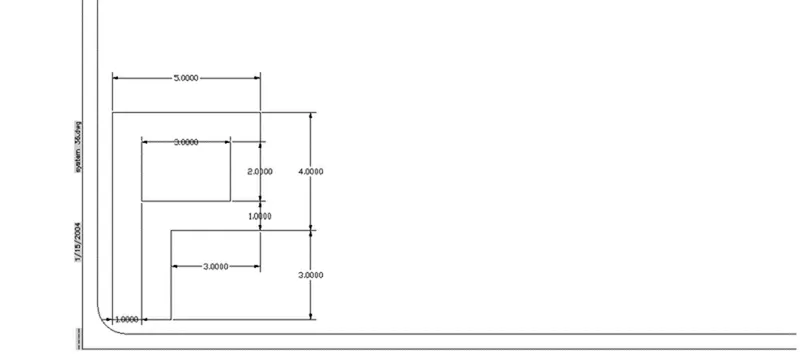

    Result in below drawing;

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point:@ 1,0

    Specify next point : @0,7

    Specify next point : @5,0

    Specify next point : @0,-6

    Specify next point : @-3,0

    Specify next point : @0,-1

    Specify next point : @4,0

    Specify next point : @0,8

    Specify next point : @-7,0

    Specify next point : @0,-8 or c for close

    Then escape from command.

    Result in below drawing;

    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: @1<0

    Specify next point : @7<90

    Specify next point : @5<0

    Specify next point : @6<270

    Specify next point : @3<180

    Specify next point : @1<270

    Specify next point : @4<0

    Specify next point : @8<90

    Specify next point : @7<180

    Specify next point : @8<270 or c for close

    Then escape from command.

    Result in below drawing;





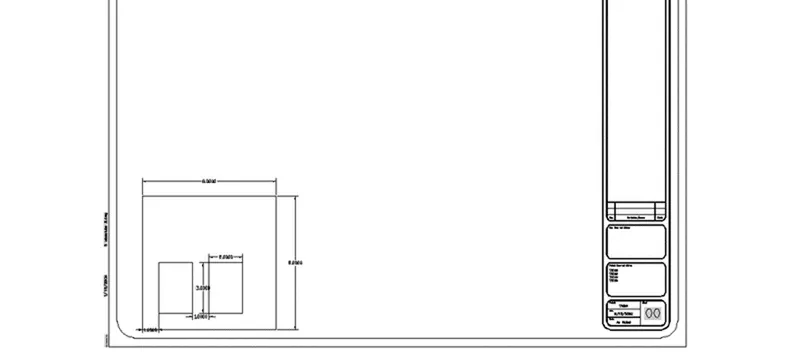

    • Procedure to draw p-7

    :By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: 10,0

    Specify next point : 10,9

    Specify next point : 2,9

    Specify next point : 2,1 or c for close

    LINE command

    Specify first point :3,2

    Specify next point : 5,2

    Specify next point : 5,5

    Specify next point : 3,5

    Specify next point : 3,2 or c for close

    LINE command

    Specify first point : 6,2

    Specify next point : 8,2

    Specify next point : 8,5

    Specify next point : 6,5

    Specify next point : 2,1 or c for close

    Then escape from command.

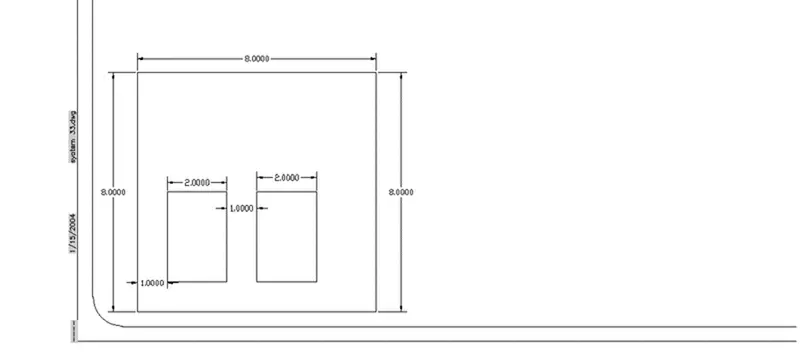

    Result in below drawing;

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point:@ 8,0

    Specify next point : @0,8

    Specify next point : @-8,0

    Specify next point : @0,-8 or c for close

    LINE command

    Specify first point : 3,2

    Specify next point : @2,0

    Specify next point : @0,3

    Specify next point : @-2,0

    Specify next point : @0,-3 or c for close

    LINE command

    Specify first point : 6,2

    Specify next point : @2,0

    Specify next point : @0,3

    Specify next point : @-2,0

    Specify next point : @0,-3 or c for close

    Then escape from command.

    Result in below drawing;

    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 2,1

    Specify next point: @8<0

    Specify next point : @8<90

    Specify next point : @8<180

    Specify next point : @8<270 or c for close

    LINE command

    Specify first point : 3,2

    Specify next point : @2<0

    Specify next point : @3<90

    Specify next point : @2<180

    Specify next point : @3<270 or c for close

    LINE command

    Specify first point : 6,2

    Specify next point : @2<0

    Specify next point : @3<90

    Specify next point : @2<180

    Specify next point : @3<270 or c for close

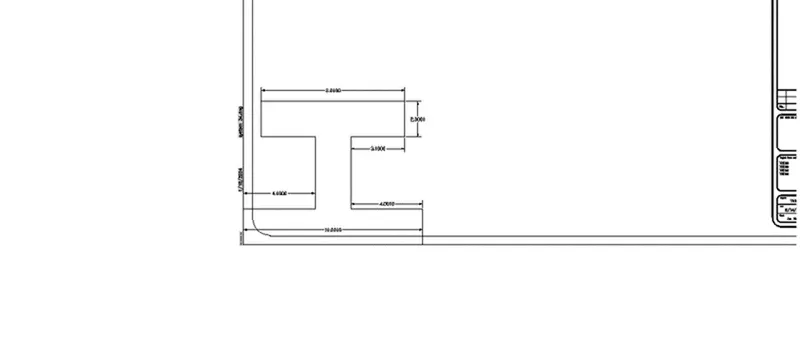

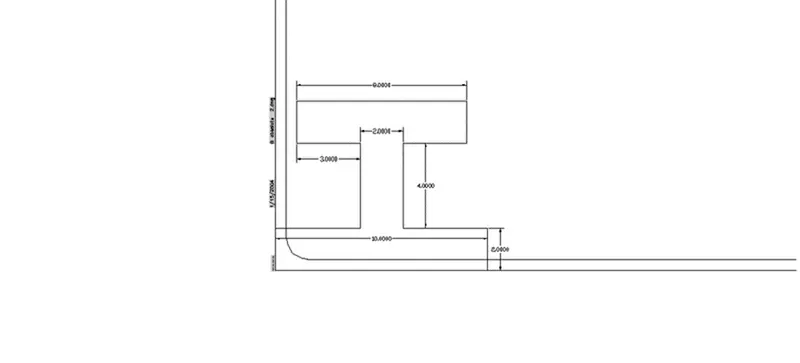

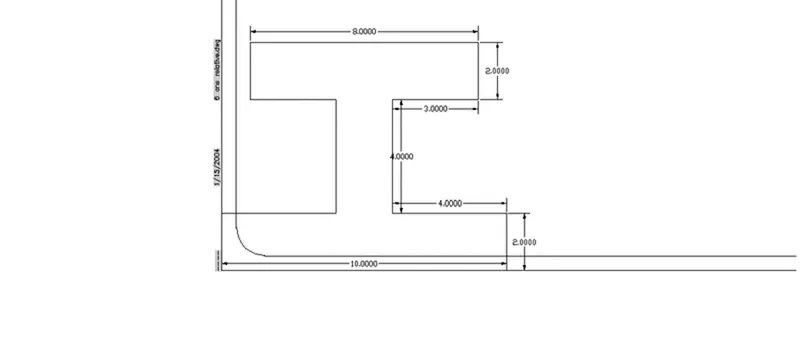

    • Procedure to draw p-8

    : By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 0,0

    Specify next point: 10,0

    Specify next point : 10,2

    Specify next point : 6,2

    Specify next point : 6,6

    Specify next point : 9,6

    Specify next point : 9,8

    Specify next point : 1,8

    Specify next point : 1,6

    Specify next point : 4,6

    Specify next point : 4,2

    Specify next point : 0,1

    Specify next point : 0,0 or c for close

    Then escape from command.

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 0,0

    Specify next point:@ 10,0

    Specify next point : @0,2

    Specify next point : @-4,0

    Specify next point : @0,4

    Specify next point : @3,0

    Specify next point : @0,2

    Specify next point : @-8,0

    Specify next point : @0,-2

    Specify next point : @3,0

    Specify next point : @0,-4

    Specify next point : @-4,0

    Specify next point :@ 0,-1 or c for close

    Then escape from command.

    Result in below drawing;



    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 0,0

    Specify next point: @10<0

    Specify next point: @2<90

    Specify next point: @4<180

    Specify next point: @4<90

    Specify next point: @3<0

    Specify next point: @2<90

    Specify next point : @8<180

    Specify next point : @2<270

    Specify next point : @3<0

    Specify next point : @4<270

    Specify next point : @4<180

    Specify next point : @1<270 or c for close

    Then escape from command.

    Result in below drawing;



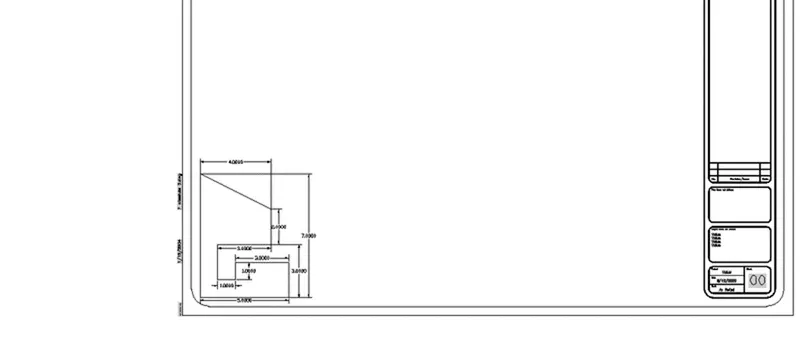

    • Procedure to draw p-9

    : By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point: 6,1

    Specify next point : 6,3

    Specify next point : 3,3

    Specify next point : 3,2

    Specify next point : 2,2

    Specify next point : 2,4

    Specify next point : 5,4

    Specify next point : 5,6

    Specify next point : 1,8

    Specify next point : 1,1 or c for close

    Then escape from command.



    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point:@ 5,0

    Specify next point : @0,2

    Specify next point : @-3,0

    Specify next point : @0,-1

    Specify next point : @-1,0

    Specify next point : @0,2

    Specify next point : @4,0

    Specify next point : @0,2

    Specify next point : @-4,2

    Specify next point : @0,-7 or c for close

    Then escape from command.

    Result in below drawing;



    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 0,0

    Specify next point: @5<0

    Specify next point: @2<90

    Specify next point: @3<180

    Specify next point: @1<270

    Specify next point: @1<180

    Specify next point: @2<90

    Specify next point : @4<0

    Specify next point : @2<90

    Specify next point : @4.4721<153

    Specify next point : @7<270 or c for close

    Then escape from command.

    Result in below drawing;

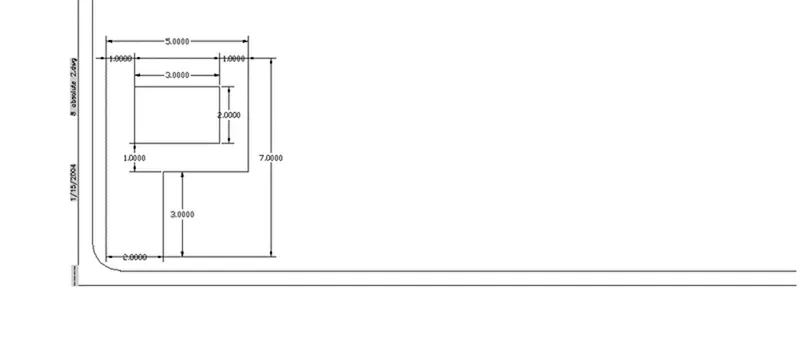

    • Procedure to draw p-10

    : By absolute coordinate system

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point: 3,1

    Specify next point : 3,4

    Specify next point : 6,4

    Specify next point : 6,8

    Specify next point : 1,8

    Specify next point : 1,1 or c for close

    LINE command

    Specify first point : 2,5

    Specify next point : 5,5

    Specify next point : 5,7

    Specify next point : 2,7

    Specify next point : 2,5 or c for close

    Then escape from command.

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point:@ 2,0

    Specify next point : @0,3

    Specify next point : @3,0

    Specify next point : @0,4

    Specify next point : @-5,0

    Specify next point : @0,-7 or c for close

    LINE command

    Specify first point : 2,5

    Specify next point : @3,0

    Specify next point : @0,2

    Specify next point : @-3,0

    Specify next point : @0,-2 or c for close

    Then escape from command.

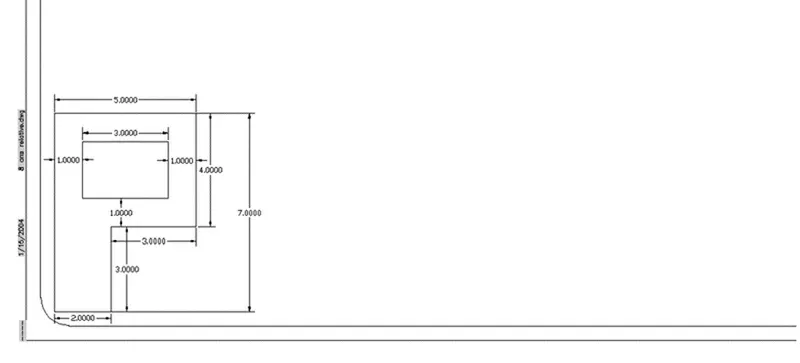

    Result in below drawing;



    : By polar coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point: @2<0

    Specify next point: @3<90

    Specify next point: @3<0

    Specify next point: @4<90

    Specify next point: @5<180

    Specify next point: @7<270 or c for close

    LINE command

    Specify first point :2,5

    Specify next point : @3<0

    Specify next point : @2<90

    Specify next point : @3<180

    Specify next point : @2<270 or c for close

    Then escape from command.

    Result in below drawing;



    Civil Drawings

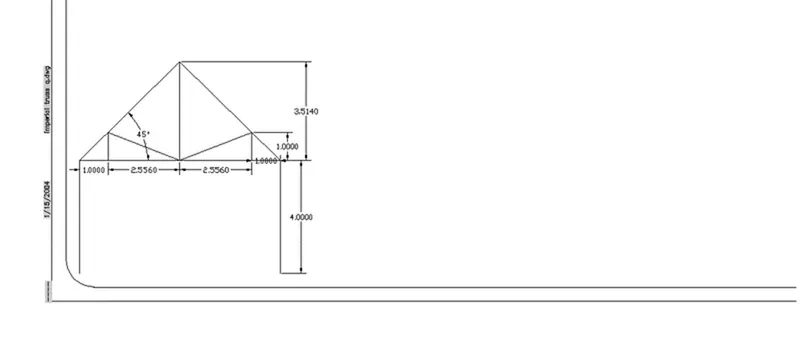

     Queen post truss:  Procedure to draw

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point:@ 0,4

    Specify next point : @3.556,3.514

    Specify next point : @3.556,-3.514

    Specify next point : @0,-4 or c for close

    LINE command

    Specify first point : 1,5

    Specify next point : @7.112,0 or c for close

    LINE command

    Specify first point : 2,5

    Specify next point : @0,1

    Specify next point : @2.556,-1

    Specify next point : @2.556,1

    Specify next point : @0,-1 or c for close

    Then escape from command.

    Result in below drawing;

    • Profile wood : Procedure to draw

    : By Relative coordinate system;

    Give a LINE command in autocad;

    LINE Specify first point : 1,1

    Specify next point:@ 6,0

    Specify next point : @0,2

    Specify next point : @-6,-2 or c for close

    LINE command

    Specify first point : 3,1

    Specify next point : @0,0.667

    Specify next point : @2,-0.667

    Specify next point : @0,1.333

    Specify next point : @2,-1.333 or c for close

    Then escape from command.

    Result in below drawing;



    • Mono pitch roof :Procedure to draw

    : By Relative coordinate system;

    Give a LINE command in autocad;

      Specify first point : 1,1

    Specify next point:@ 10,0

    Specify next point : @0,1

    Specify next point : @-2,0

    Specify next point : @0,4

    Specify next point : @2,0

    Specify next point : @0,1

    Specify next point : @-5,3

    Specify next point : @-5,-3

    Specify next point : @2,0

    Specify next point : @0,-5

    Specify next point : @-2,0

    Specify next point : @0,-1 or c for close

    Then escape from command.

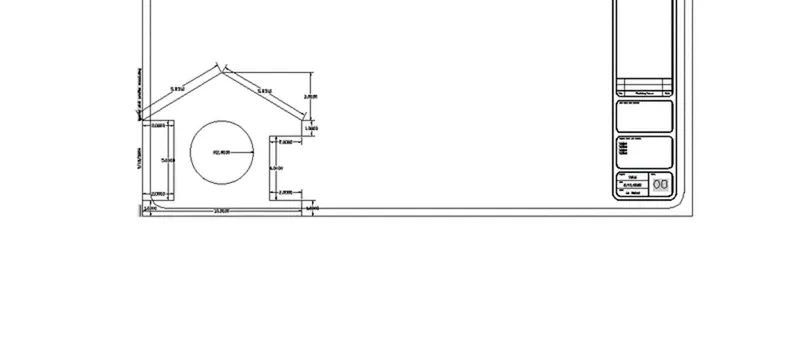

    Result in below drawing.



    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by AMOL KHEDEKAR (28)

    Reinforcement Detailing of Beams from ETABS output

    Objective:

    Reinforcement Detailing of Beams from ETABS output Question: Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams in the 1st floor.         1) 3 span continuous…

    calendar

    17 Dec 2022 05:21 PM IST

    • ETABS
    Read more

    Project 1_Comparative study of different storey buildings for Seismic forces

    Objective:

      Project 1 on _ Comparative study of different storey buildings for Seismic forces Factors influencing the dynamic characteristics of a building Answer:- Buildings oscilate during the earthquake shaking. The oscilation causes the inertia force to be induced in the building. The intensity and the duration of the oscilation…

    calendar

    09 Dec 2022 09:55 AM IST

    • BIM
    • Buildings
    • CAE
    • CFD
    • CSS
    • DEM
    • FEA
    • GIS
    • HEV
    • HTML
    Read more

    Modelling of 25 storey building with the specified properties using ETABS

    Objective:

      Challenge on: Modelling of 25 storey building with the specified properties using ETABS   Model a 25 storey building on ETABS with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey…

    calendar

    06 Dec 2022 09:37 AM IST

    • Buildings
    • ETABS
    • HTML
    Read more

    Conceptual design of a building with columns and shear walls

    Objective:

    CHALLENGE ON:-Conceptual design of a building with columns and shear walls Question 1:The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional…

    calendar

    03 Dec 2022 02:07 AM IST

      Read more

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      Related Courses

      coursecard

      Design loads considered on bridges

      Recently launched

      10 Hours of Content

      coursecard

      Design of Steel Superstructure in Bridges

      Recently launched

      16 Hours of Content

      coursecard

      Design for Manufacturability (DFM)

      Recently launched

      11 Hours of Content

      coursecard

      CATIA for Medical Product Design

      Recently launched

      5 Hours of Content

      coursecardcoursetype

      Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

      Recently launched

      0 Hours of Content

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      logo

      Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

      https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

      Our Company

      News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
      map
      EpowerX Learning Technologies Pvt Ltd.
      4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
      mail
      info@skill-lync.com
      mail
      ITgrievance@skill-lync.com

      Top Individual Courses

      Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

      Top PG Programs

      Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

      Skill-Lync Plus

      Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

      Trending Blogs

      Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

      © 2025 Skill-Lync Inc. All Rights Reserved.

                  Do You Want To Showcase Your Technical Skills?
                  Sign-Up for our projects.
