3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
REVIT CHALLENGE 4:
3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created in week 3
- Click > open
- File will be open
Step 2:
- Do some changes like, provide stairs, railings columns .. etc.
- To provide the stairs
- Click on stairs form the Architectural tab
- Go with the u shaped stairs
- Provide the stairs as per the requirements
- Similarly create the columns from the Architectural tab
- Click on the column
- Select the Architectural column
- Provide the columns on the required place
- To provide the railing
- Click on the railing
- Go with the line option
- Create the path of the railing by line and click on the finish
- Similarly create the railings around the boundary of the porch provide in front of the
Step 3:
- To provide the ceiling
- Go to the architectural tab
- Click on the ceiling option
- Create the ceiling boundary for the building

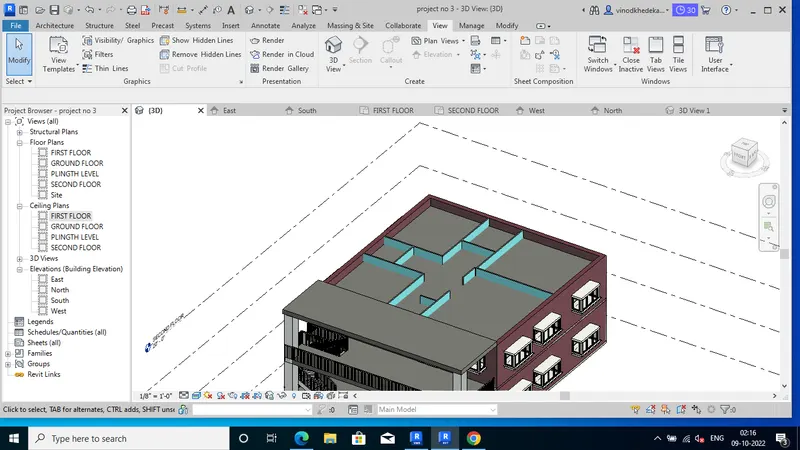

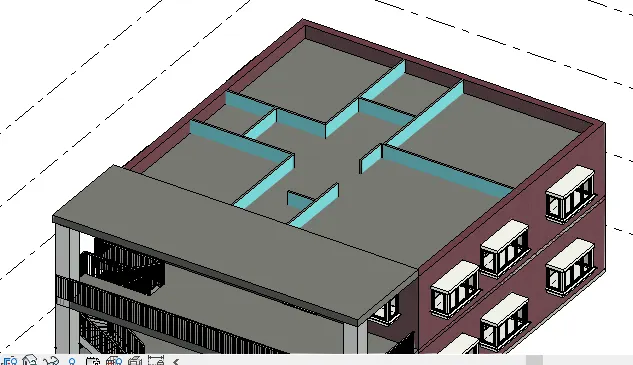

- It will shows following result
Result:
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created in week 3
- Click > open
- File will be open
Step 2:
- Add the levels and renamed as Roof level
- The roof level is get created
Step 3:
- Go to the Architectural tab
- Click on the Roof

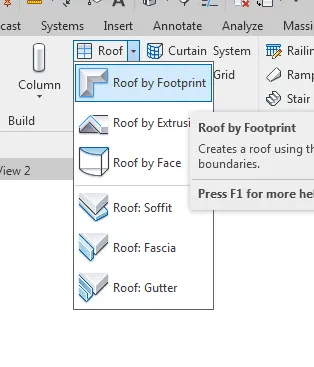

- Select the Roof by footprint from dropdown
- Select base level as Roof level
- Click on the boundary lines
- Select pick lines and create the boundary for the roof
- Give the Checkmark on the Defined slope
- Click on finish

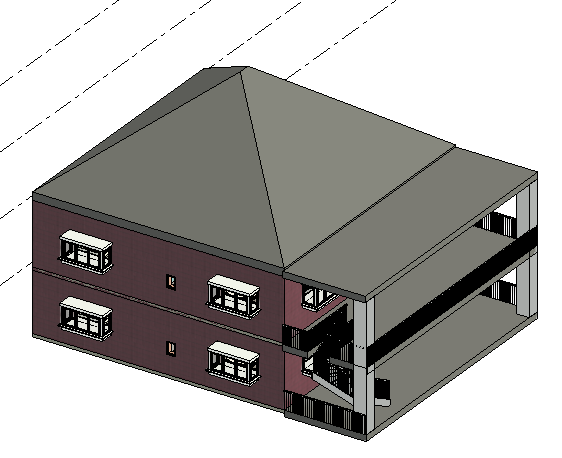

- Finally Roof is created
Step 3:
- To change the Degree of the slope
- First off all click on the project unit from the Manage tab
- Dialogue box will be open

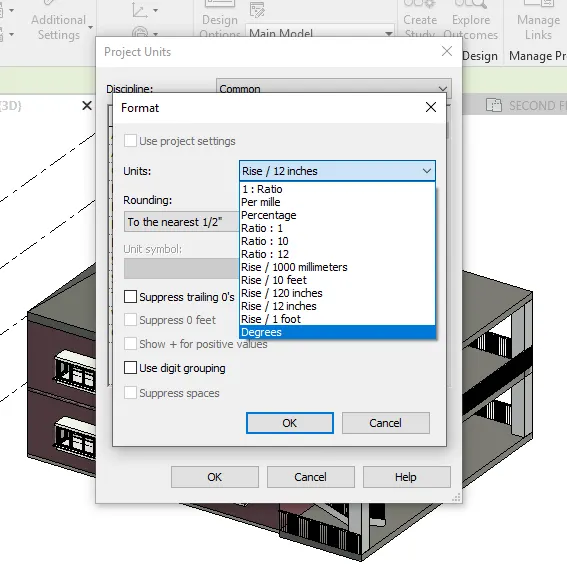

- From that click on the slope option
- Change the unit as Degree
Step 4:
- Then click on the roof
- Go to the properties browser
- Click on slope

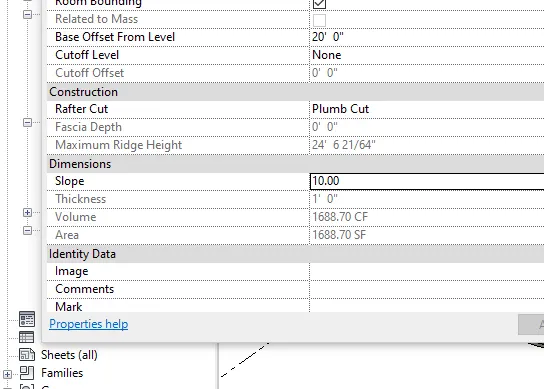

- Change it as 10 degree
- Click on Apply
- Slope is get created in 10 degree successfully.
- Then assign the material for the roof as you have.

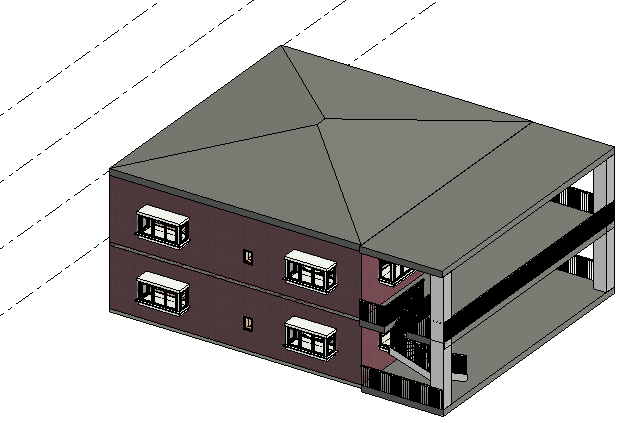

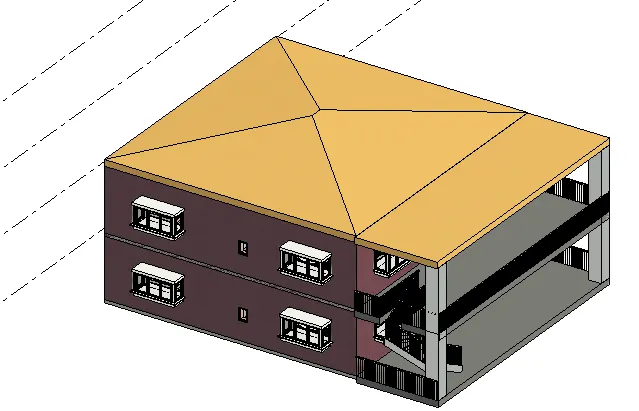

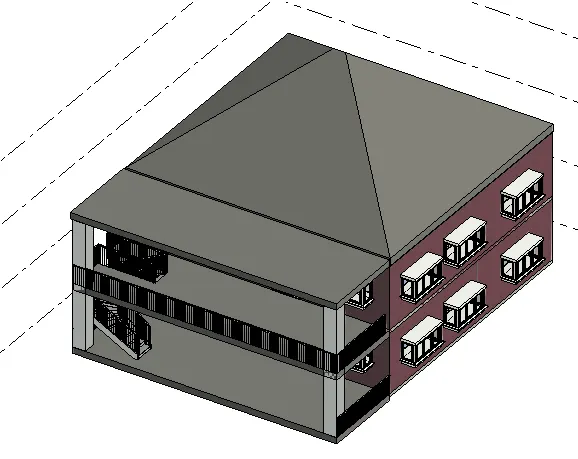

Result:
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
PROCEDURE :
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for the week 2 to 4
- Click > open
- File will be open
Step 2:
- The Architectural plan include the walls, floors and other components placed in the buildings
- To show the architectural plan of the ground floor
- Go to the properties browser
- Click> ground floor
- Go to the view tab

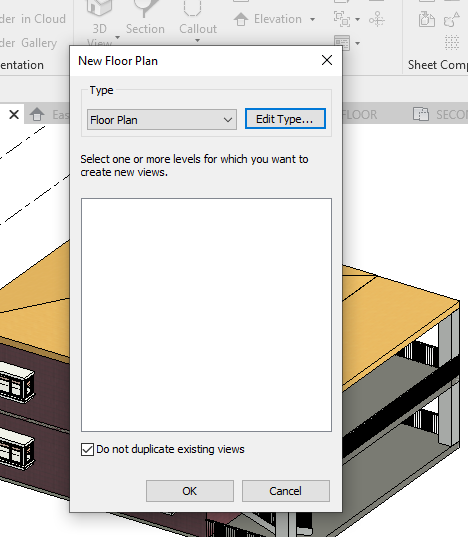

- Click on tha plan view option
- Click on the Architecture plan
- Edit type , click ok , click on
- It will shows following results.
Similarly create the Architectural plan for the First floor
Step 3:
- Go to the properties browser
- Click> ground floor
- Go to the view tab
- Click on the plan view option

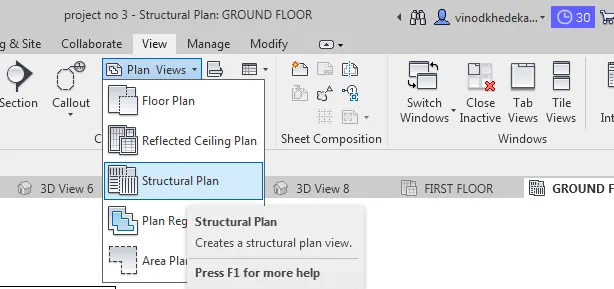

- Click on the Structural plan
- It will shows following result
- Similarly create the Structural plan for the First floor
Results:

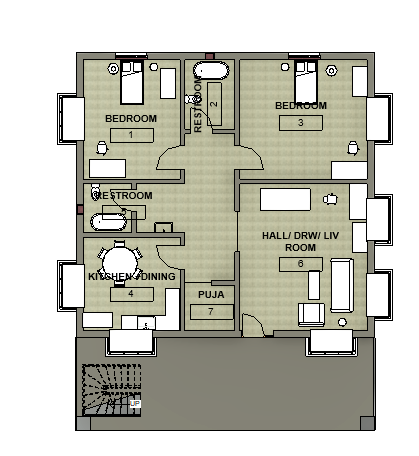

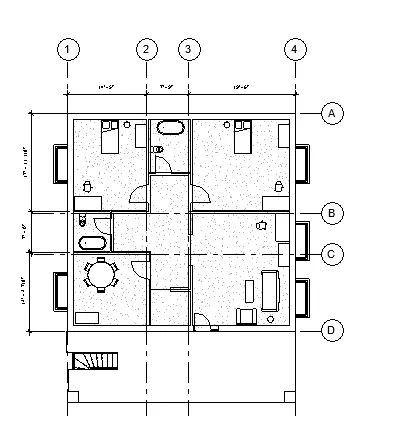

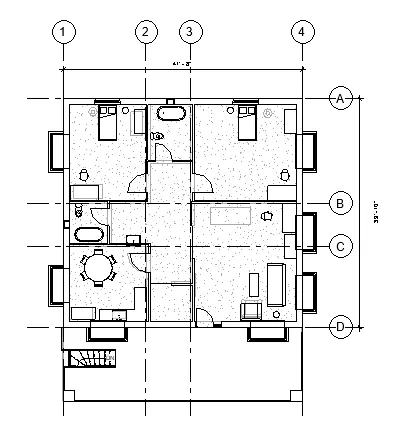

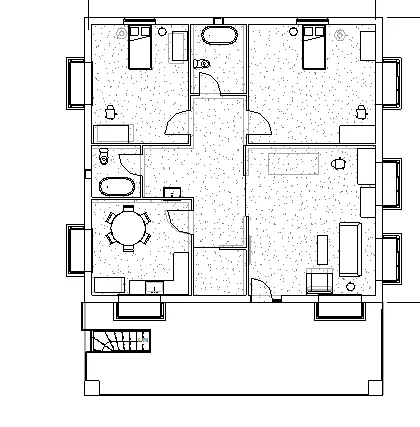

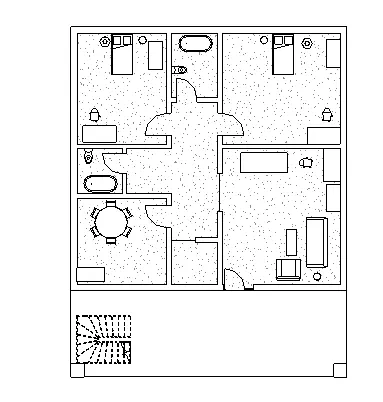

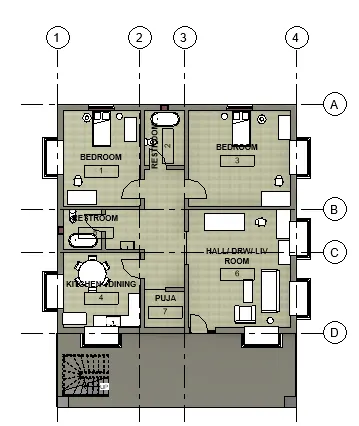

1.Architectural ground floor plan
2. Architectural first floor plan

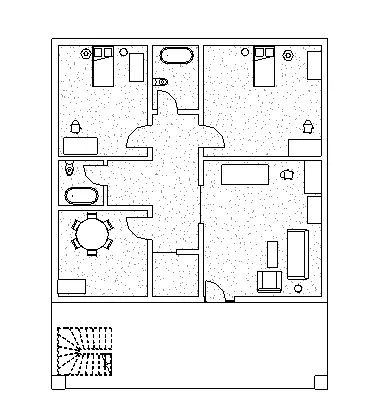

3. Structural Ground floor plan
4. Structural First Floor plan
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Open the Architectural floor plan
- Open Ground floor plan
- Go to Architectural
- Click on the grid

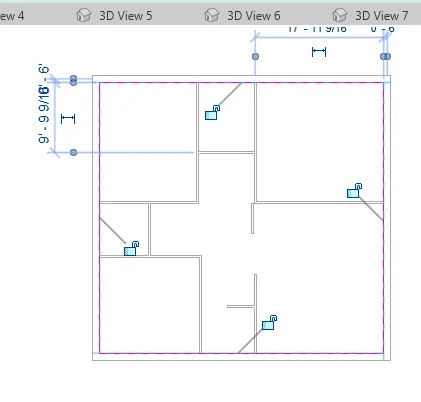

- Create the grids on transverse and longitudinal directions
- And renamed it as A,B,C,D…. AND 1,2,3,4… ETC.
- Go to the Annotate tab
- Click on the linear option
- Give the dimensions with the grids

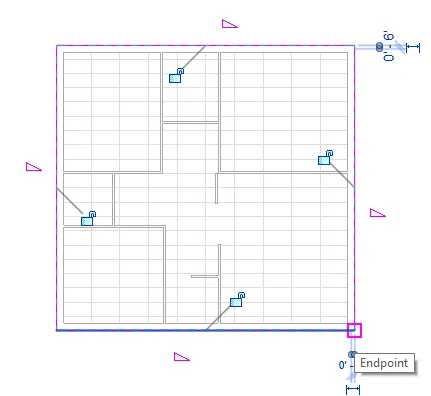

- The result is shown below:
Step3:
- Simillarly take all the dimensions to the Architectural first floor,
- For the structural plans- 1. Ground floor and 2. First floor
Result:

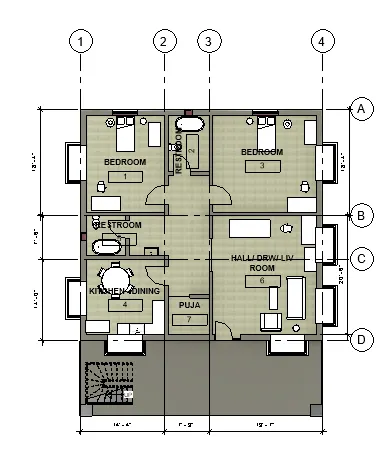

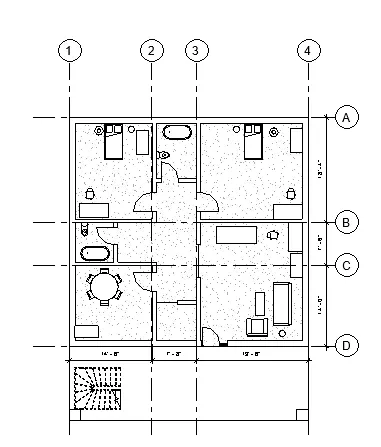

1.Architecture Ground Floor
2. Architecture First Floor
3. Structural Ground Floor
4. Structural First Floor
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Firstly go to the view tab
- Click on 3D view
- select camera from dropdown
- place the camera on the particular room let take in living room

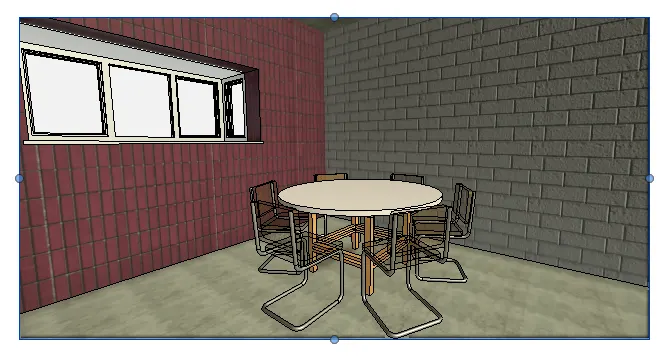

- view will be created.
- and then adjust the Eye level and the target level from the properties browser
- make it visual > realistic
Step 3:
- Simillarly create view for all the rooms in the building by placing the camera at required positions.
- and renamed it as following
Step 4:
- To create the sheet template
- Go to the view tab

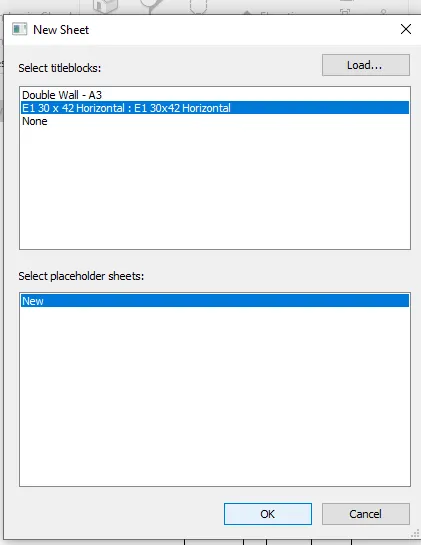

- Click on the sheet
- Click on size , ok
- Sheet will be appear on the screen
- Renamed it by double clicking on it or edit it from properties browser
- Drag the camera views on the sheet that u created
- And adjust the scale of appropriate view

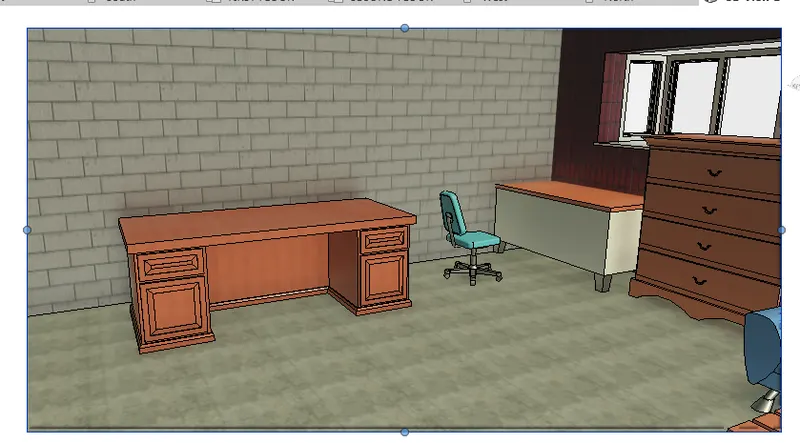

- See in below image
- Simillarly drag all the views that you created.
Result:
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Go to the view tab

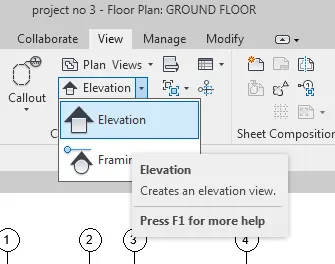

- Click on the elevation
- Drag it and placed on North, South, East, West direction
- After creating the elevation
- Renamed all the elevations as > North, South, East, West
Step 3:
- See the particular elevation by double clicking on it . let i want to see the North elevation , Double click > North Elevation
Result:

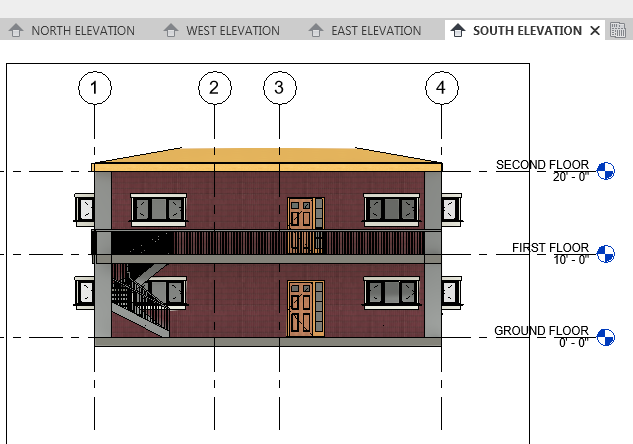

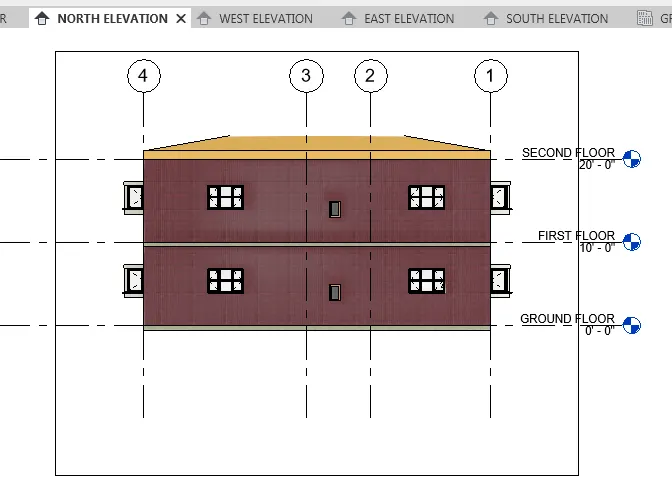

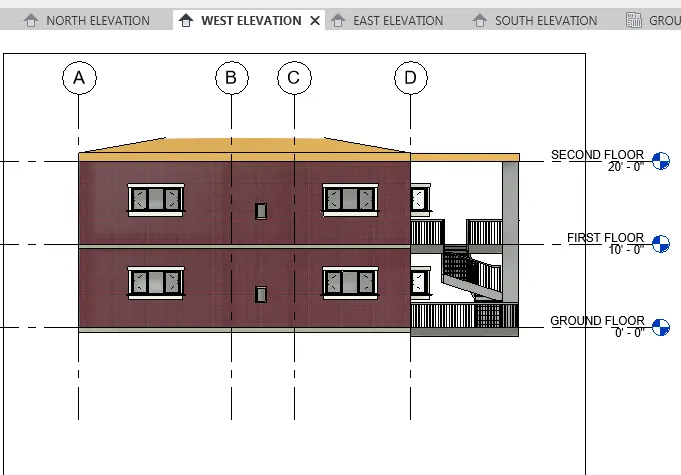

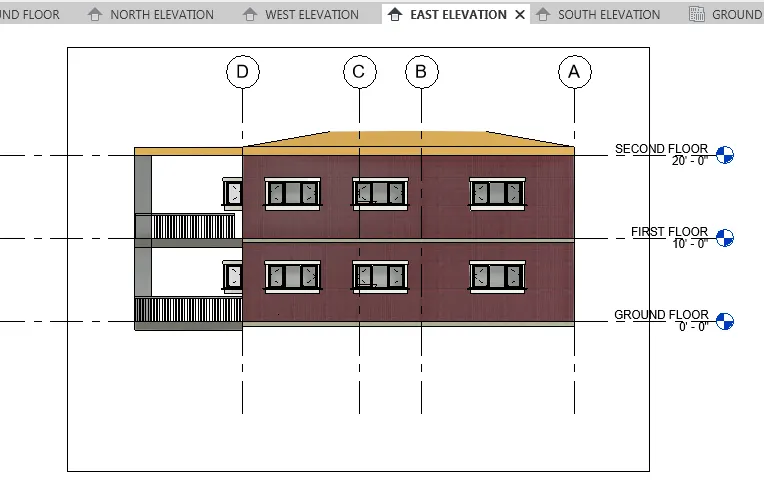

1. North Elevation
2. South Elevation
3. East Elevation

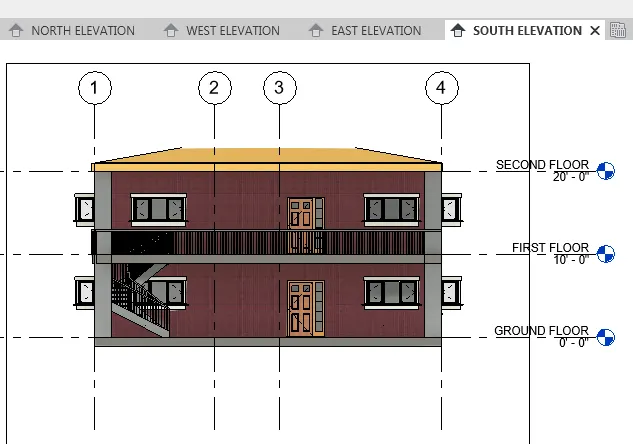

4. West Elevation
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Go to the properties browser
- Open ground floor window
- Go to the view tab
- Click on the section
- Create the transverse section
- And create the longitudinal section
Step 3:
- Renamed the sections
- And see the sections by double clicking on the appropriate section views to see them.
- let i want to see the Transverse section 1 view , Double click>Transverse section 1 view
Result:

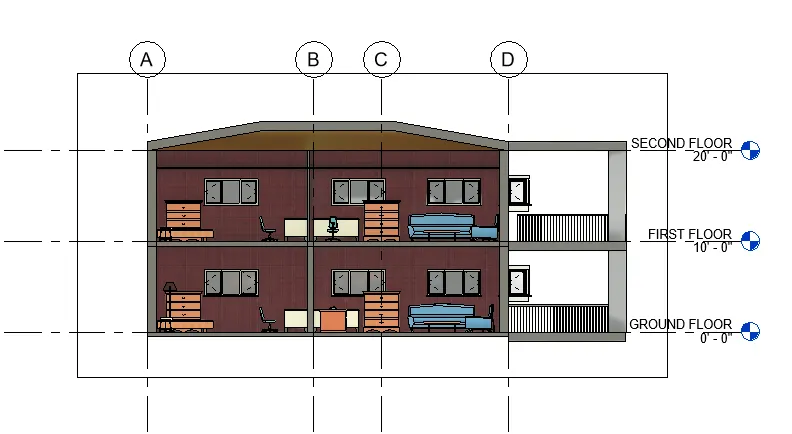

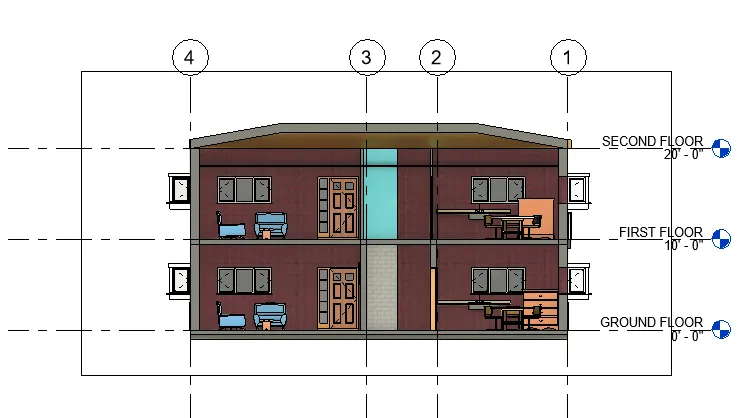

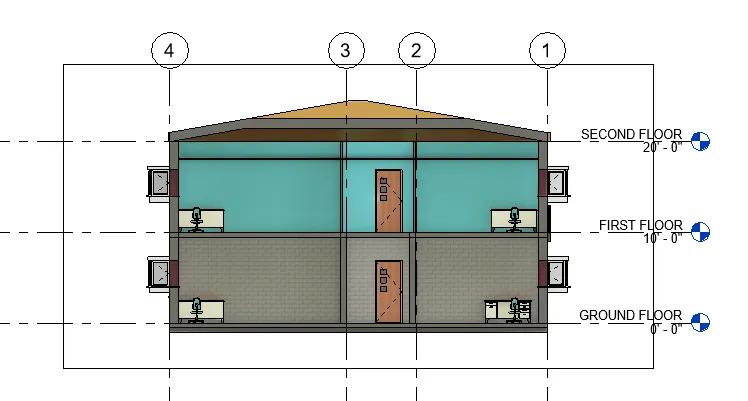

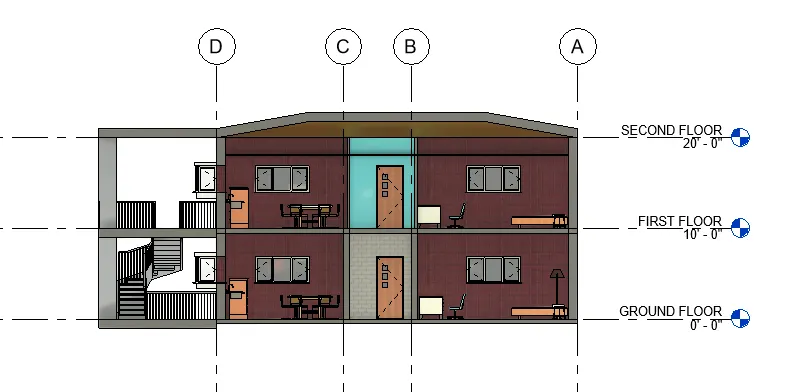

1. Transverse section 1 view
2. Transverse section 2 view
3. Longitudinal section 1 view
4. Longitudinal section 2 view
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Go to the properties browser

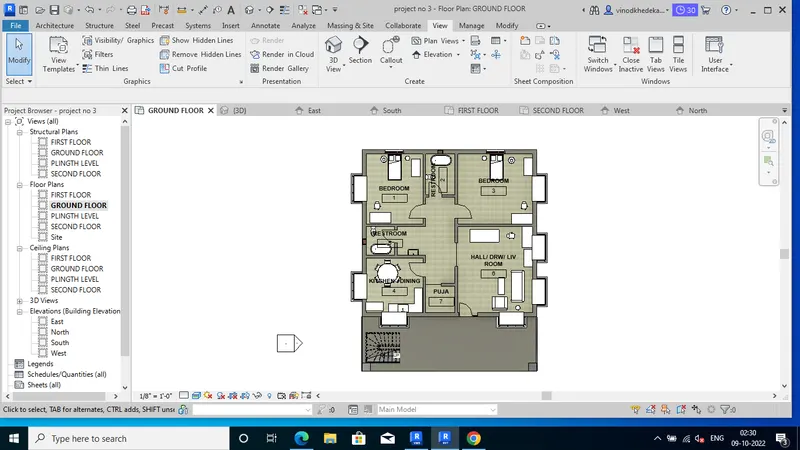

- Expand the floor views, Elevation views, and section views as shown below
Step 3:
- To show the floor plans
- Go to the properties browser
- Double click> Ground floor
- It will create the window
- The window contains a following view
- Go to the properties browser
- Double click> first floor
- It will create the window
- The window contains a following view
- Go to the properties browser
- Double click> Roof level
- It will create the window
- The window contains a following view
Step 4:
- To show the Elevation view
- Go to the properties browser
- Click > +Elevation
- Double click> East
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > +Elevation
- Double click> West
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > +Elevation
- Double click> North
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > +Elevation
- Double click> South
- It will create the window
- The window contains a following view
Step 5:
- To show the Section view
- Go to the properties browser
- Click >Section
- Double click> Transverse section 1 view
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > Section
- Double click> Transverse section 2 view
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > Section
- Double click> Longitudinal section 1 view
- It will create the window
- The window contains a following view
- Go to the properties browser
- Click > Section
- Double click> Longitudinal section 2 view
- It will create the window
- The window contains a following view
Results:
Plan views:-
Ground Floor:
First floor:
Roof level:
#Elevation views:-
North Elevation:
South Elevation:
East Elevation:
West Elevation:
#Section views:-
Section 1:
Section 2:
Section 3:
Section 4:
9) Using the sheet template produced create multiple sheets as follows

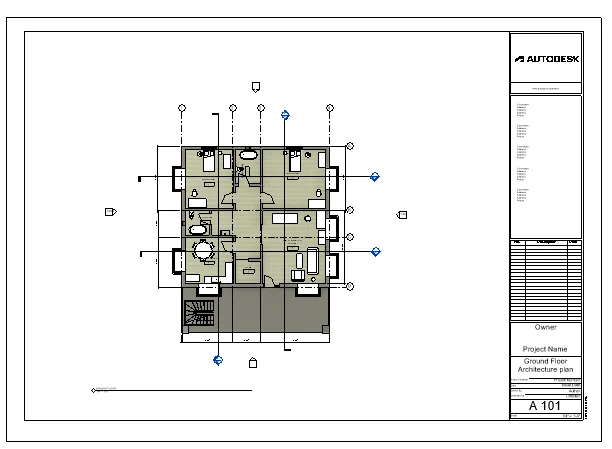

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

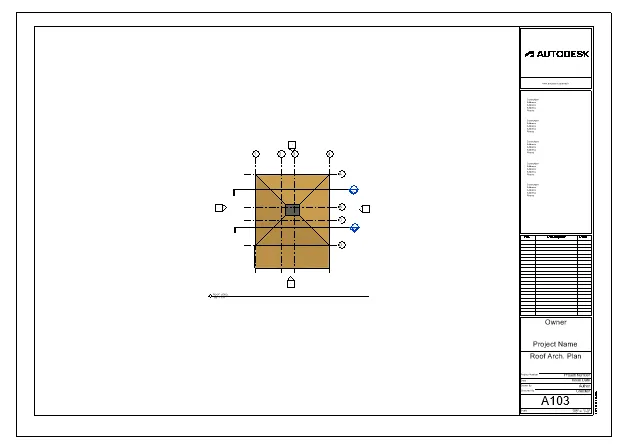

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Go to the view tab
- Click on the sheet
- Click ok
- Sheet will be appear on the screen

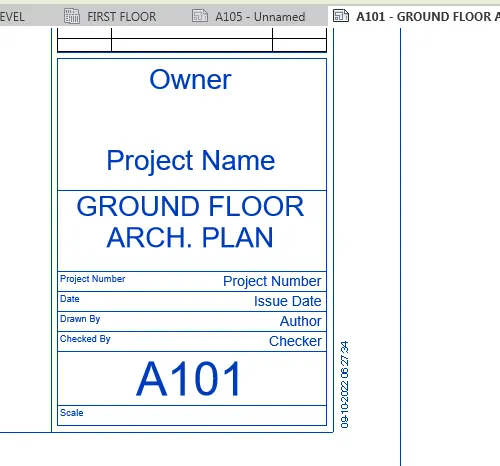

- Renamed it as > A 101- Ground floor Architectural plan
- Go to the floor plan> Ground floor
- Drag it on the sheet
- Adjust the view , and adjust the scale of view
- See the result in below image:
Step 3:
- By this similar ways create all the sheets as per the requirements
- It will shows the following results
Results:

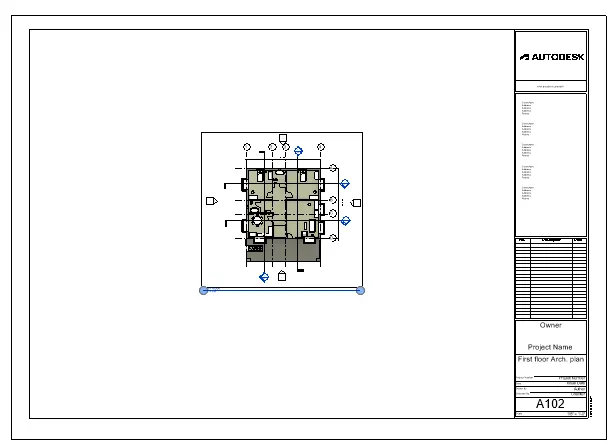

- A 101- Ground Floor Architectural plan
- A 102- First Floor Architectural plan
- A 103- Roof Plan

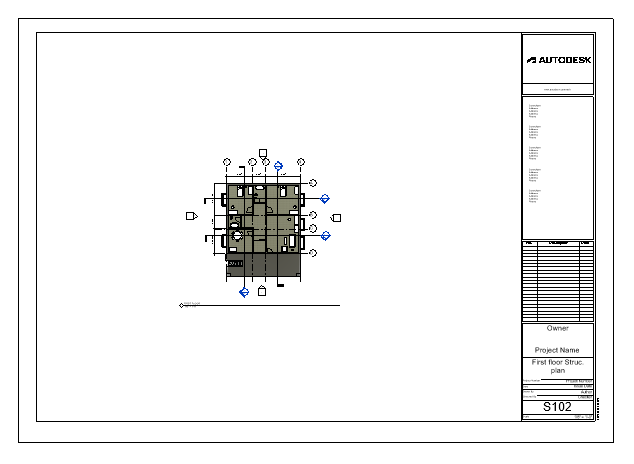

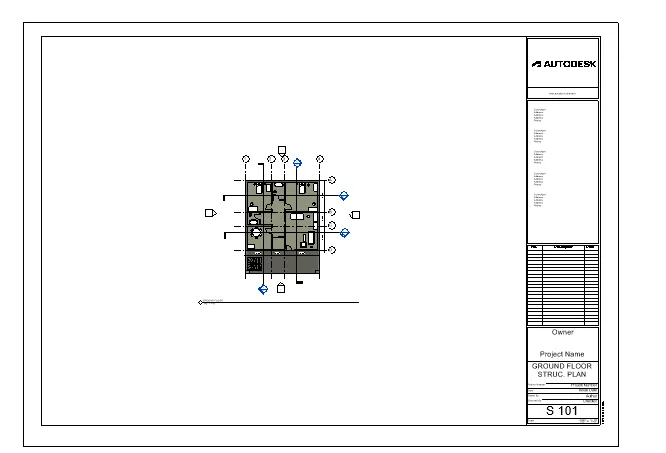

- S 101- Ground Floor Structural plan
- S 102- First Floor Structural plan

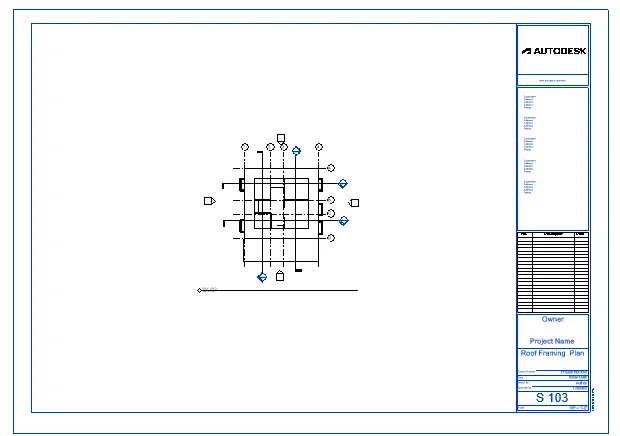

- S 103- Roof Framing plan

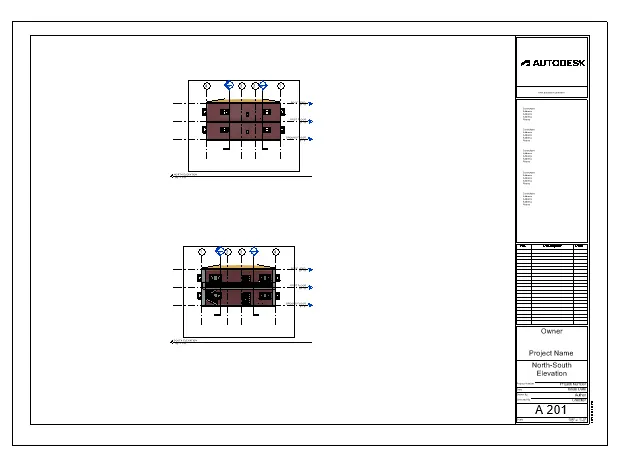

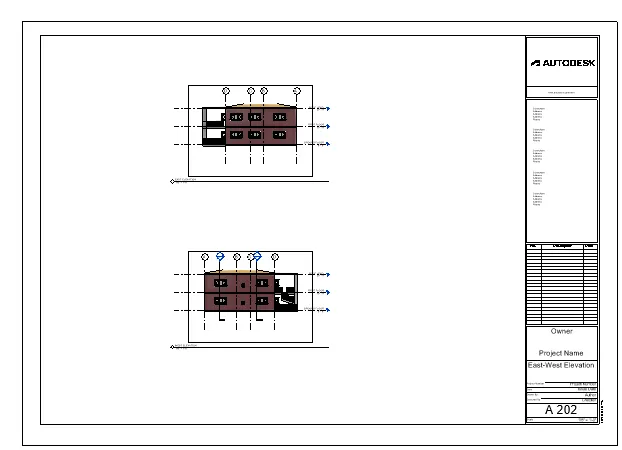

- A 201- North-South Elevation
- A 202- East-West Elevation

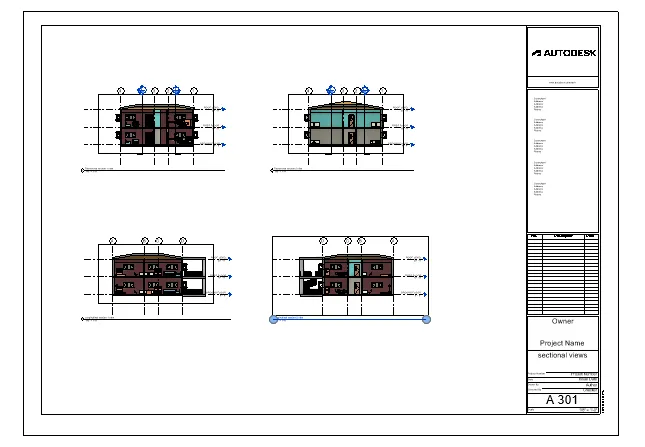

- A 301- Section views
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
PROCEDURE:
Step 1:
- Open the Revit 2023 software
- Open file> Project 3 as created for above problem
- Click > open
- File will be open
Step 2:
- Go to the view tab
- Click on the sheet
- Click ok
- Sheet will be appear on the screen
- Renamed it as > A 501- Living room view
- Drag the living room view into the sheet and adjust it by proper scaling
Step 3:
- By following above same process
- Create all the sheets for the particular camera views
- Then it will shows following results
Result:

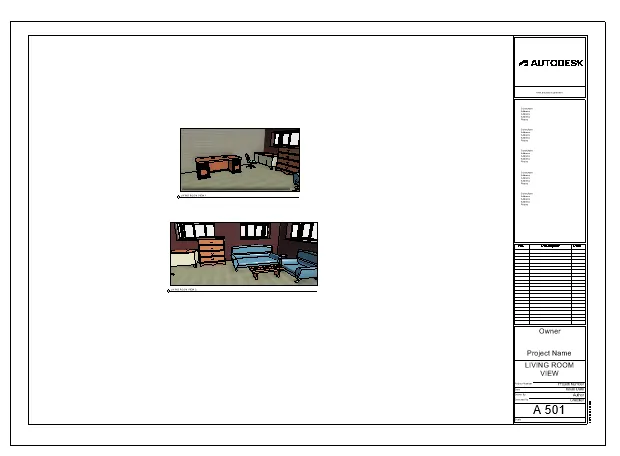

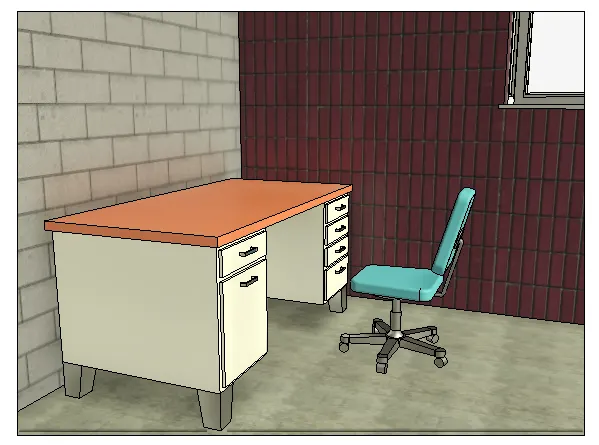

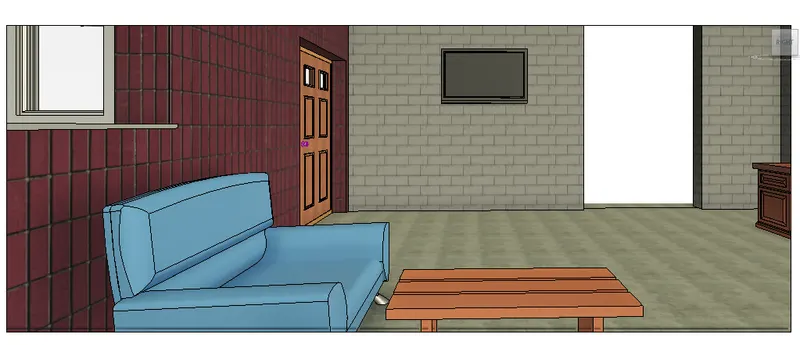

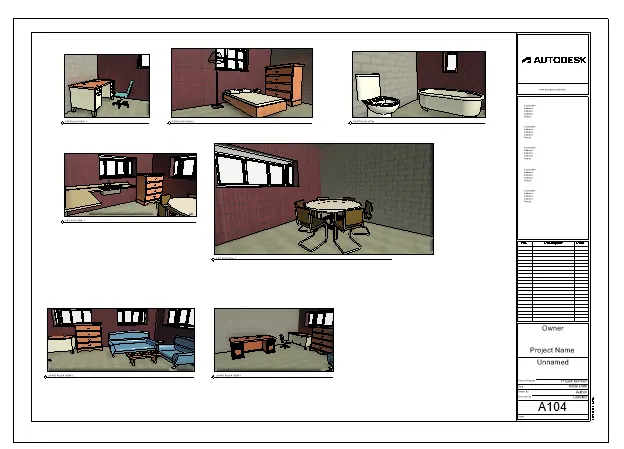

1. A 501- Living room:

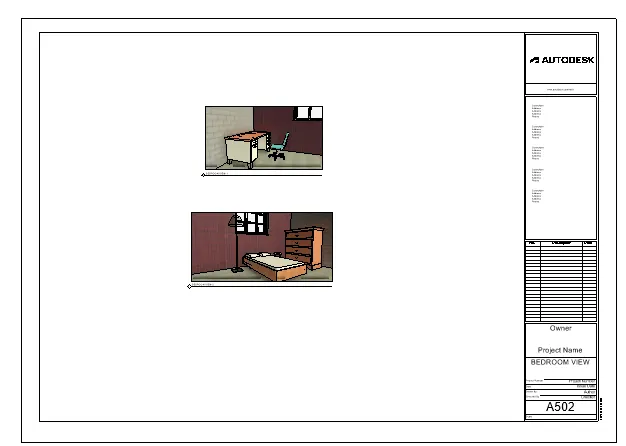

2. A 502- Bedroom :

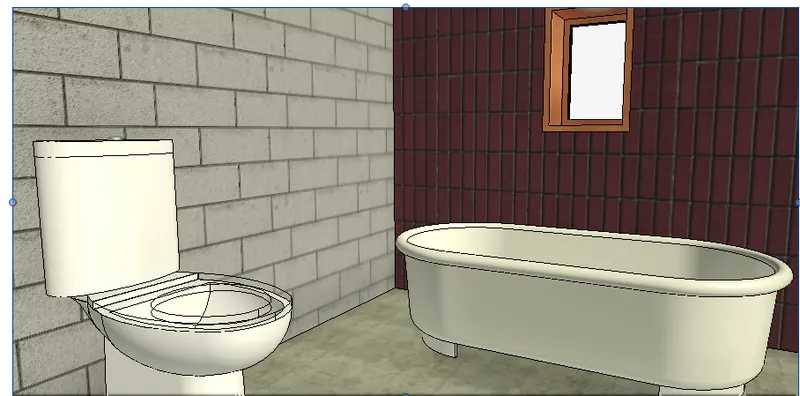

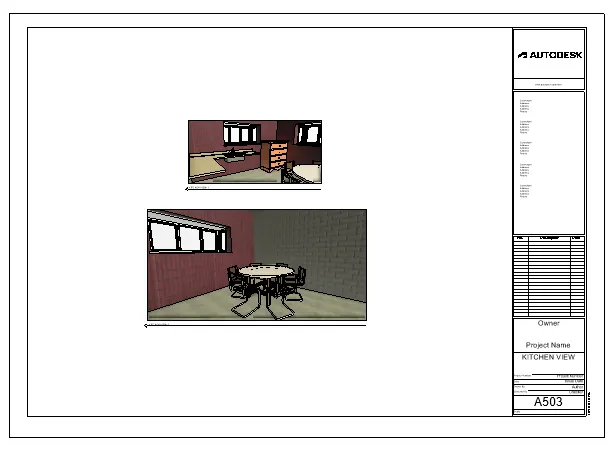

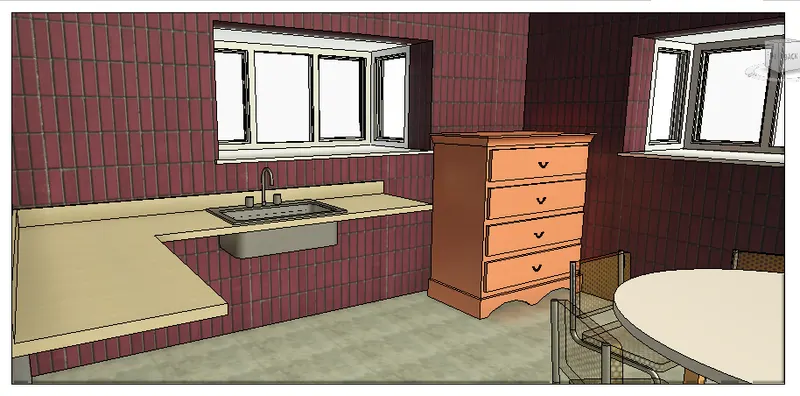

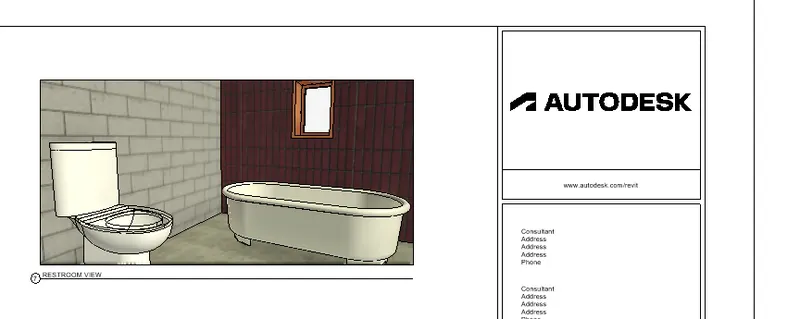

3. A 503- Kitchen:

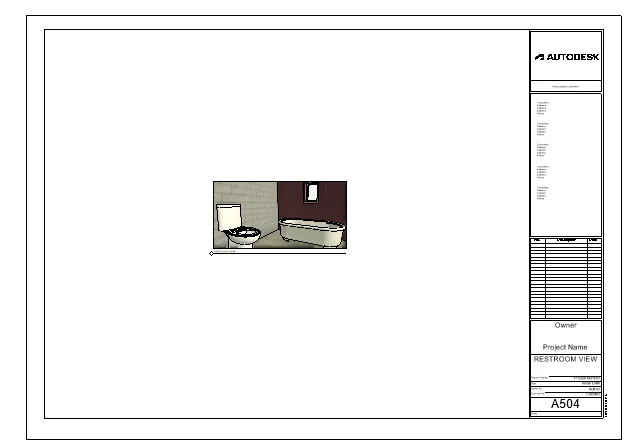

4. A 504- Restroom:
