Week 7- Meshing of Backdoor Challenge

AIM: Mesh the backdoor model as per the given quality criteria using Hypermesh.

OBJECTIVE:

•  Extract the mid surface
• Geometry cleanup
• Meshing given hood model using the given quality criteria checks
• Good mesh flow.
• Assign thickness

PROCEDURE :

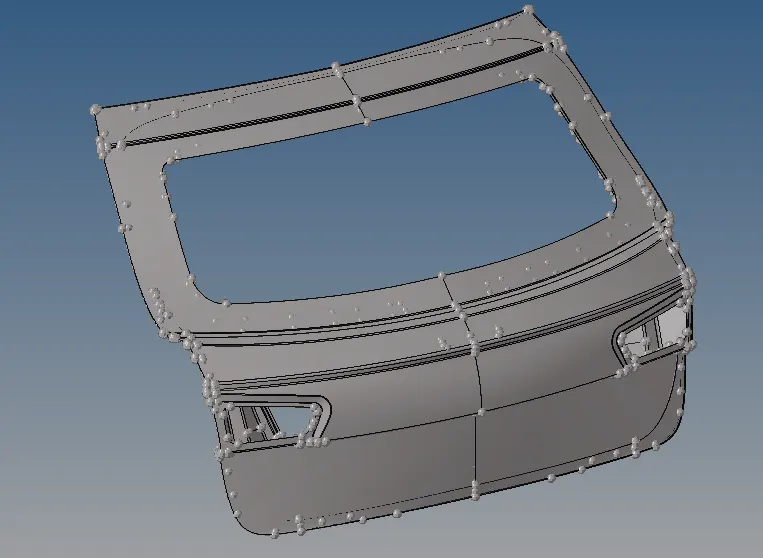

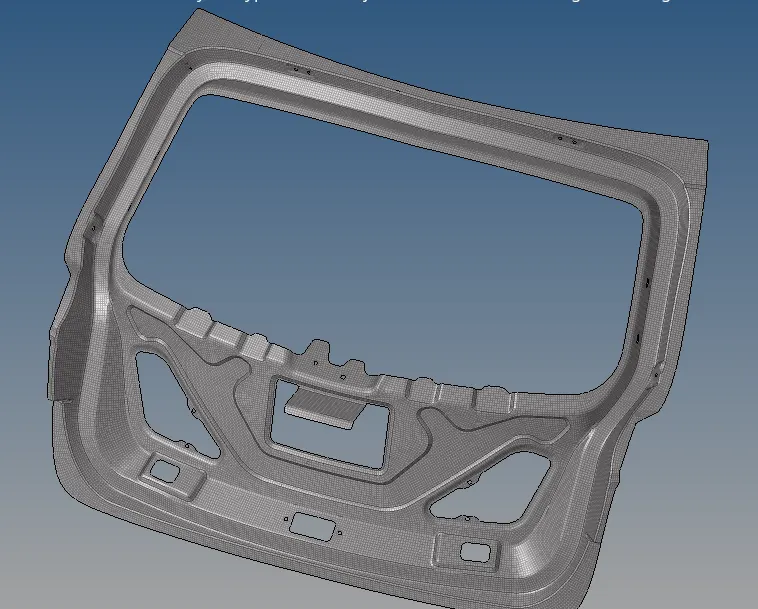

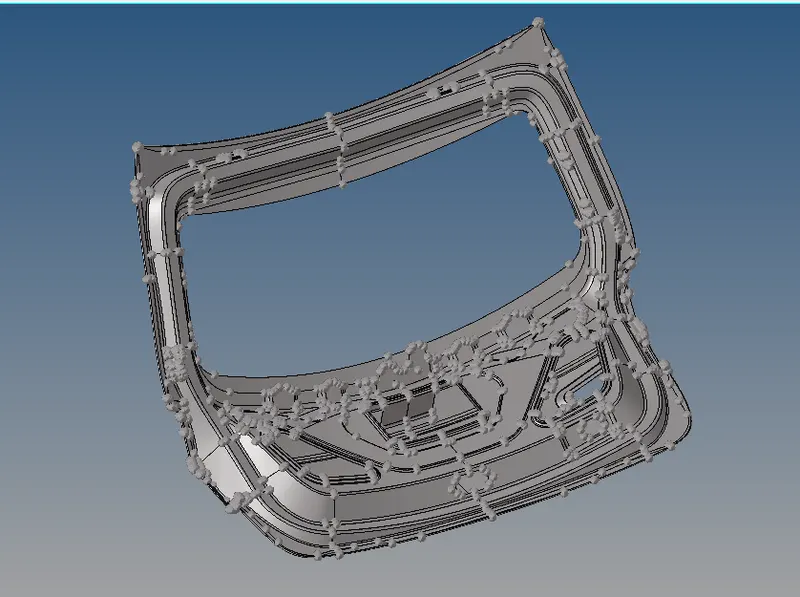

• Import the component and click F to see the component in the GUI area as shown below.

As door model has thickness less then 6 mm we can use 2D meshing.

• Next step to generate Mid-surface for lower body of model

• Generate Mid-surface & geometry clean-up for all parts, saved in diff. components :-

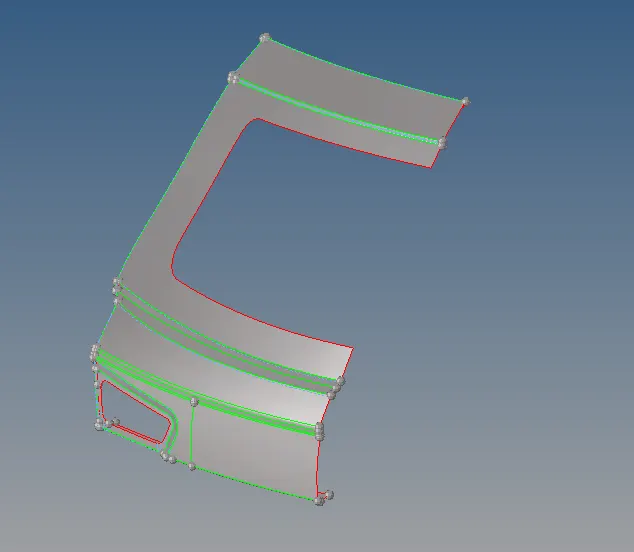

• view in topo mode for looking for any free edge present in model

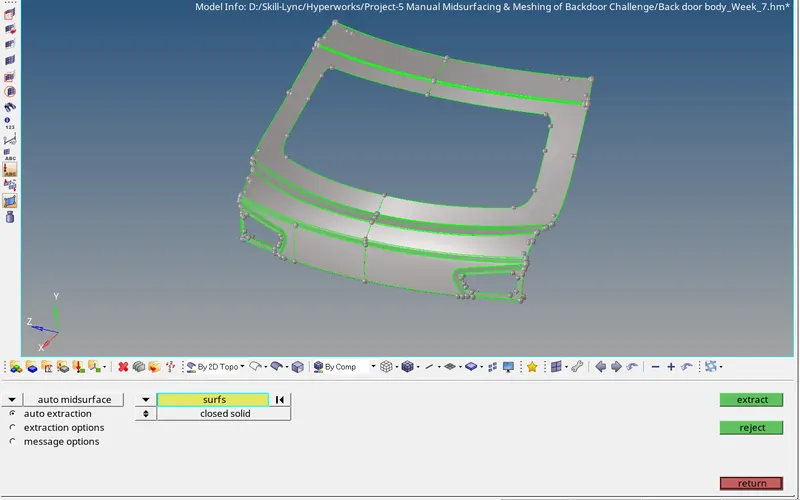

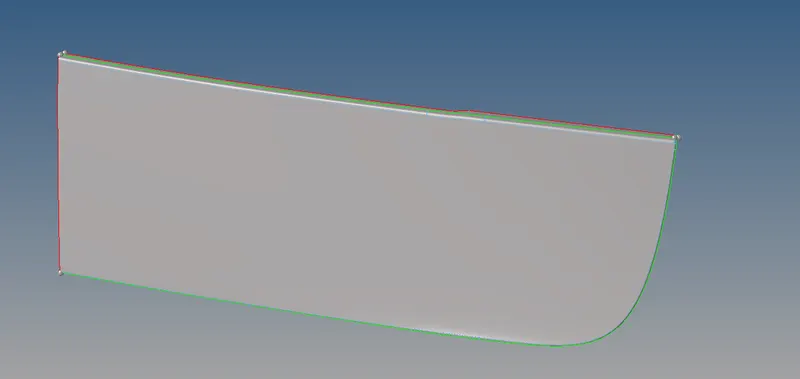

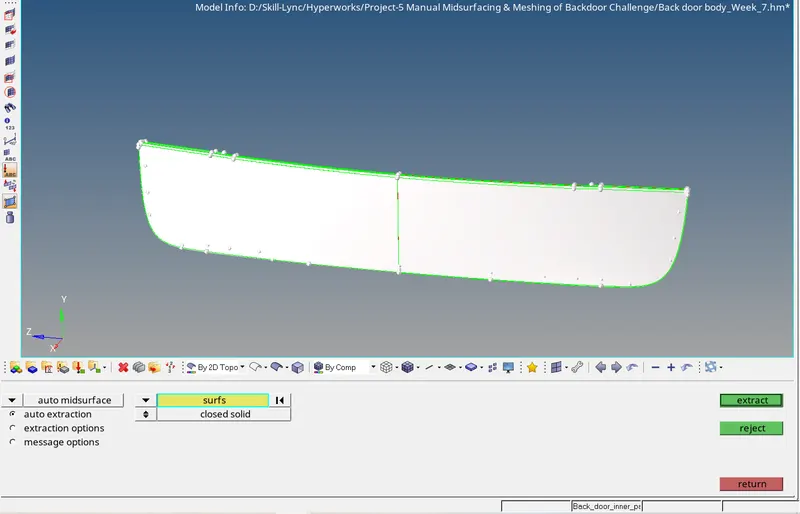

• Geom-midsurface

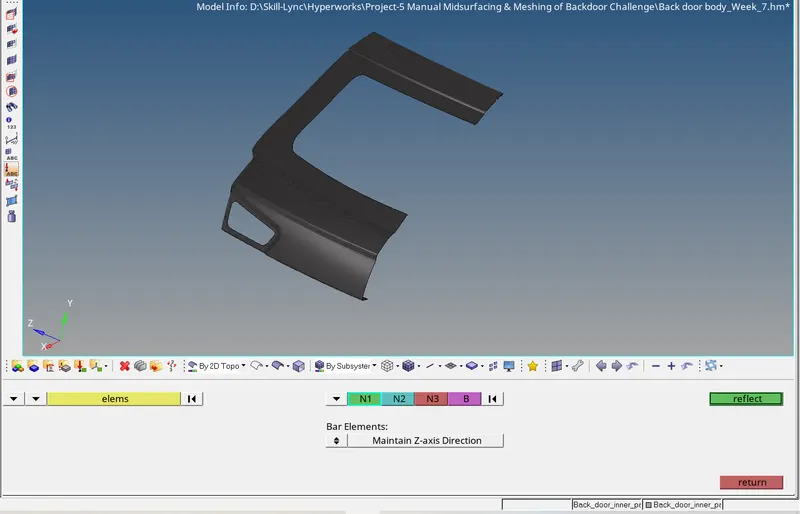

As outer ectract is symmentric about X-axis we can delete half section for reduce time.

• Next step to generate Mid-surface for upper body of model
• As outer ectract is symmentric about X-axis we can delete half section for reduce time.

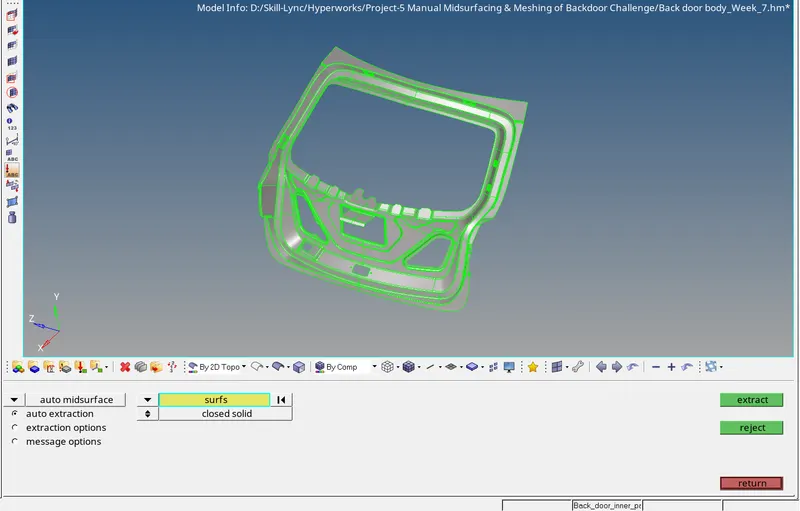

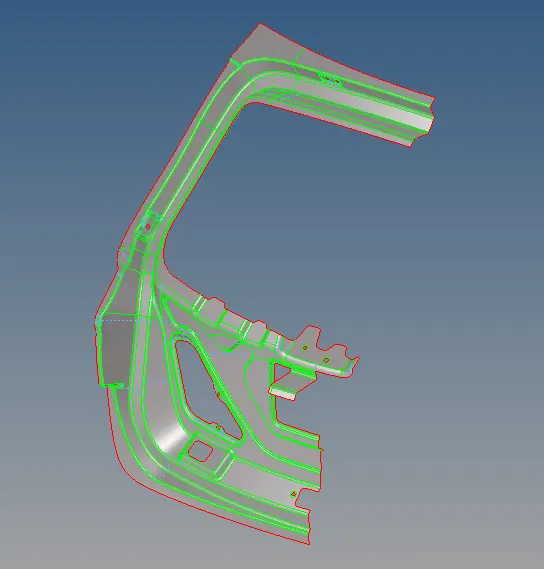

• Next step to generate Mid-surface for Inner body of model
• As outer ectract is symmentric about X-axis we can delete half section for reduce time.

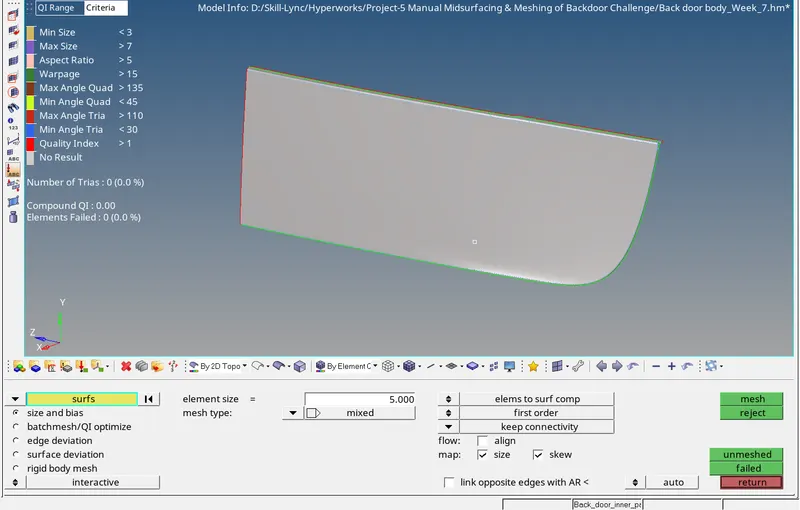

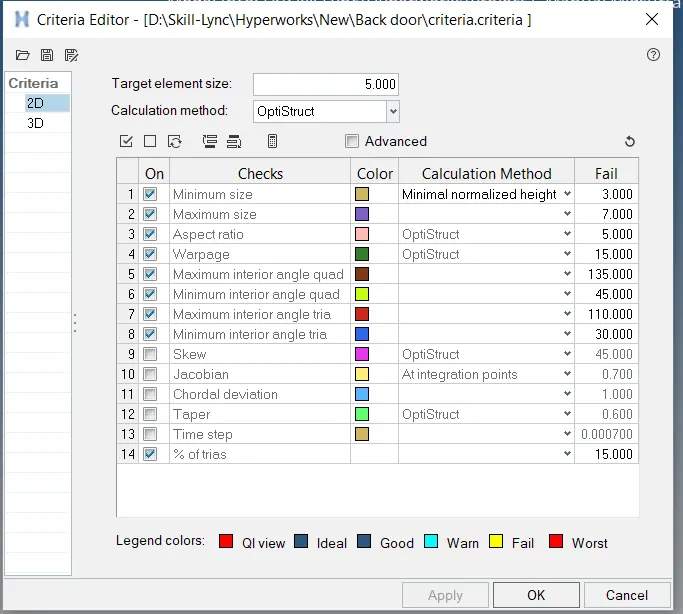

• Next step is to set Meshing criteria

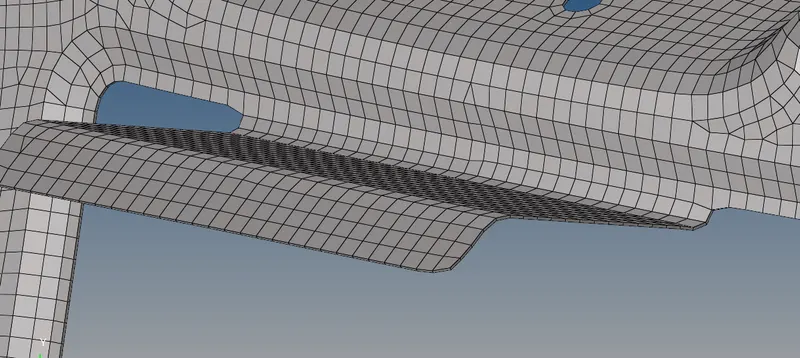

Next step is Mesh the model surface by surface :-

Option used :-

2D-automesh

2D-Rebuilt mesh

2D- Quaility index

2D-edit element

2D-replace

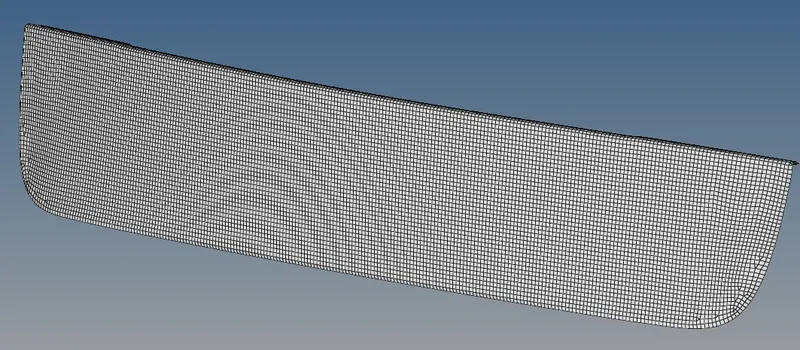

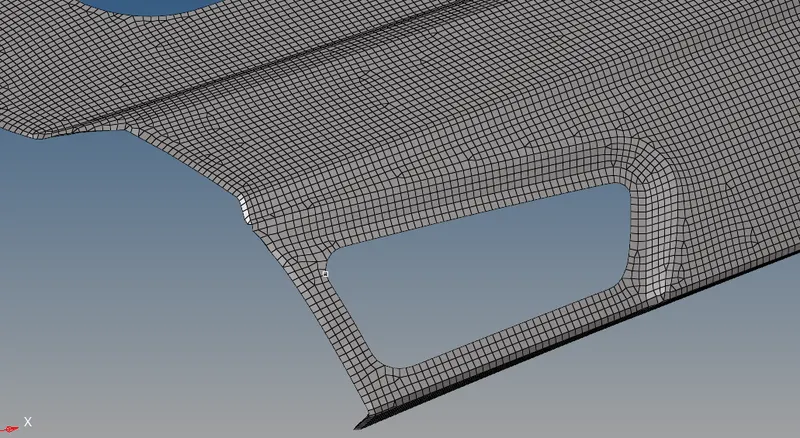

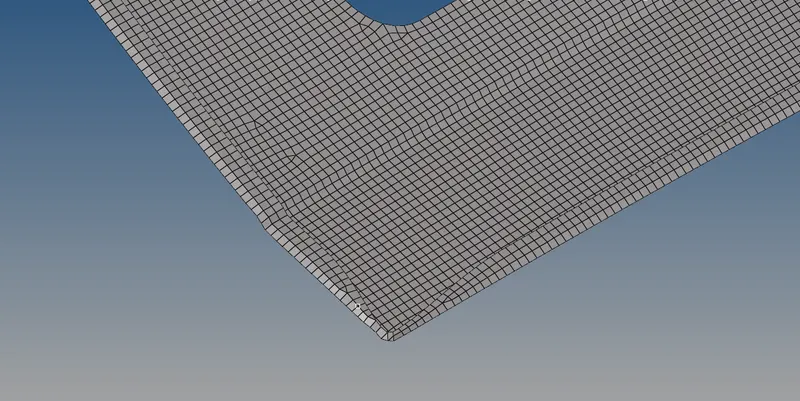

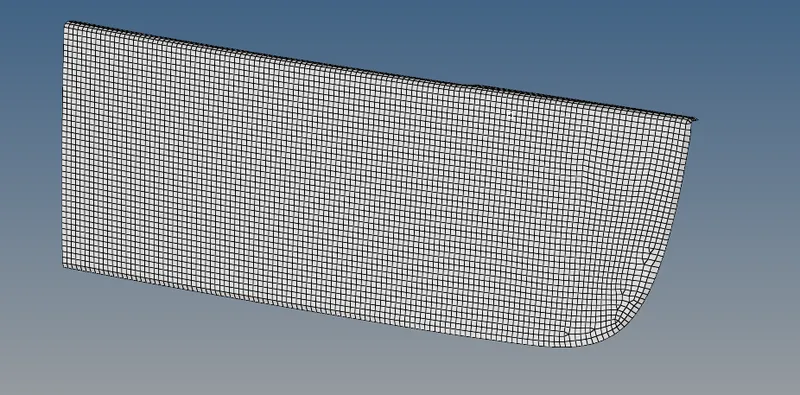

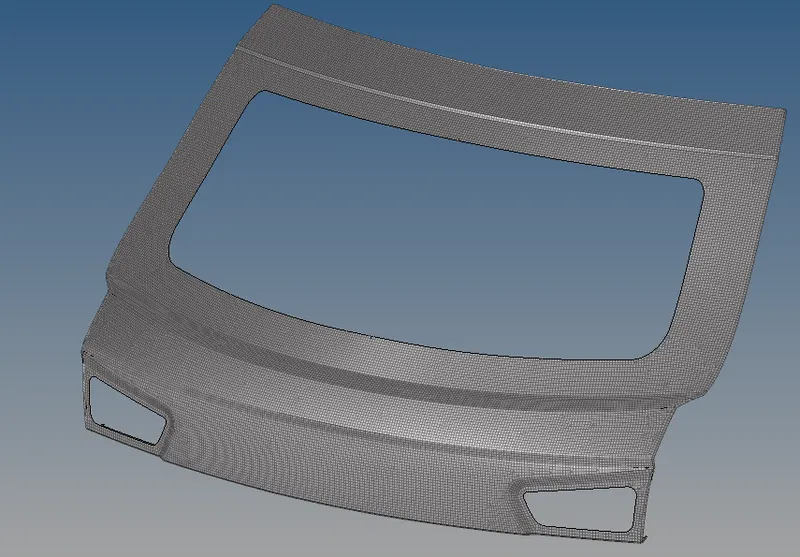

Final Snap of Mesh model :-

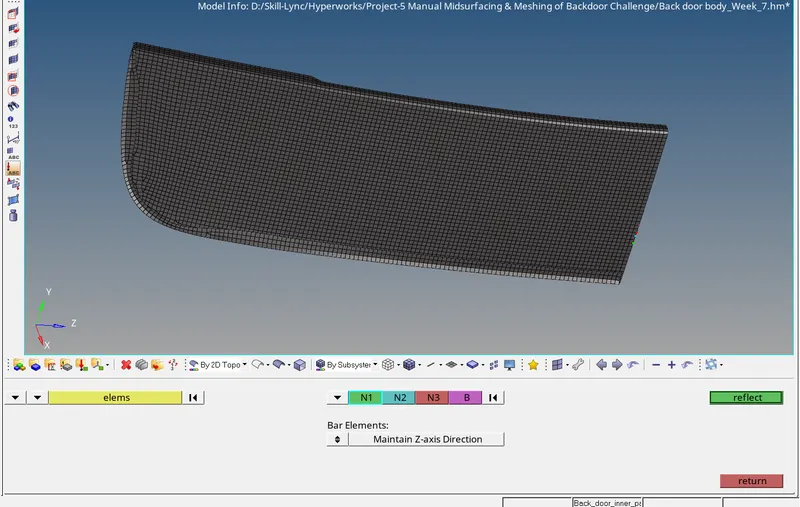

Use reflect to copy all elements

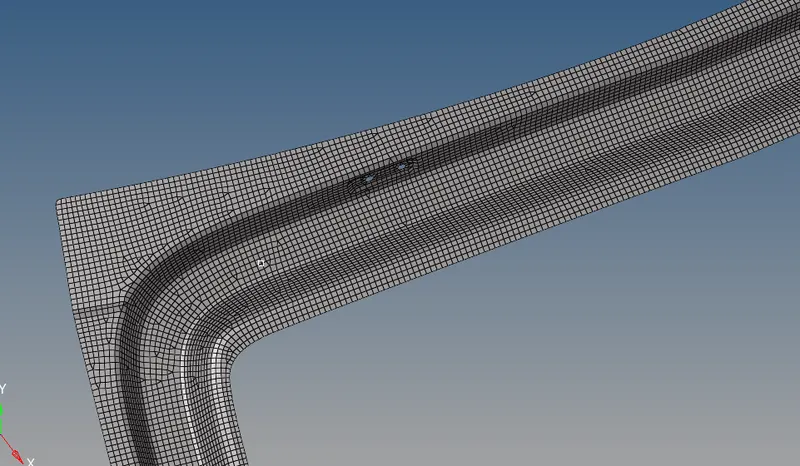

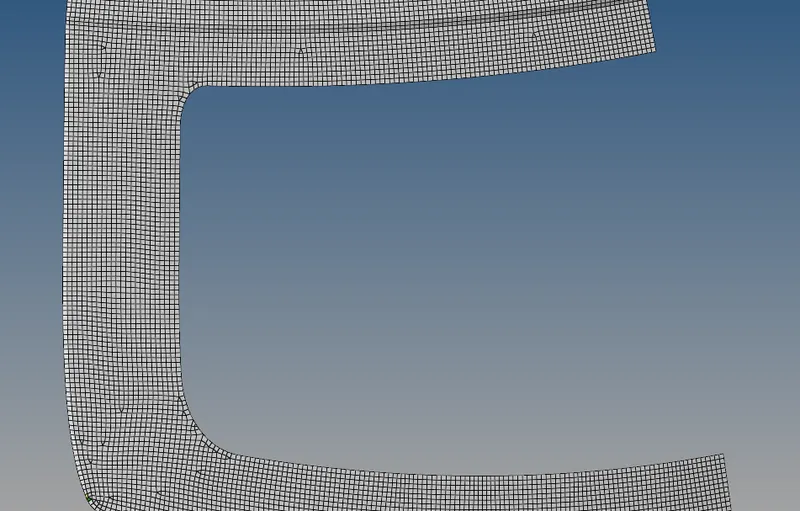

Next step is to generate mesh foe upper panel

Use reflect to copy all elements

Next step is to mesh inner panel of door

2D-automesh

2D-Rebuilt mesh

2D- Quaility index

2D-edit element

2D-replace

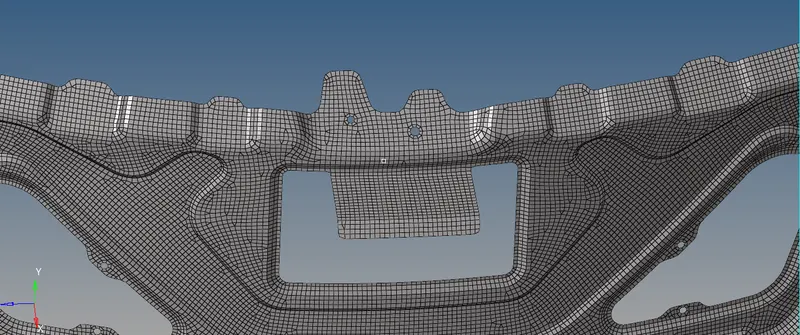

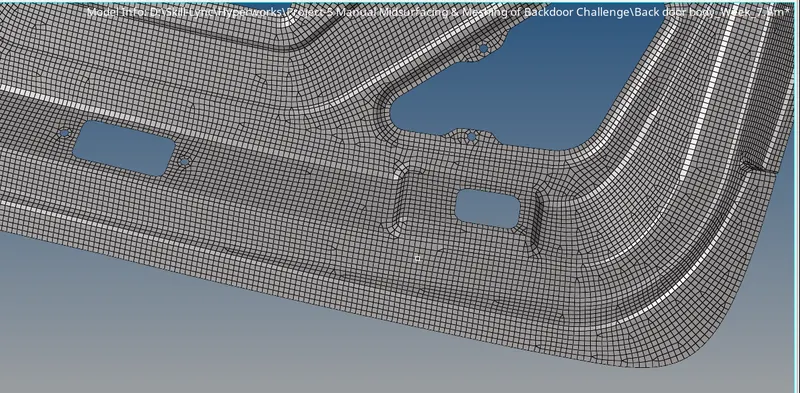

Final Snap of Mesh model :-

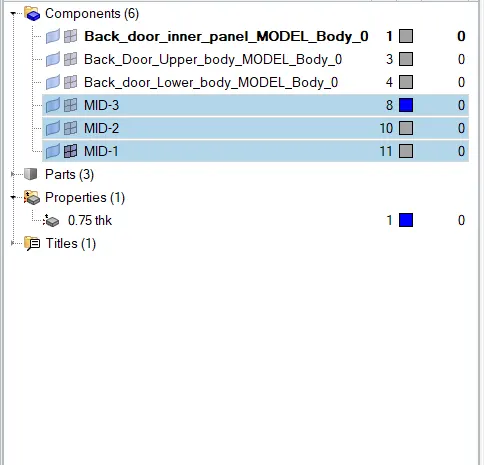

• Next step is to assign to thickness

CONCLUSION: The extraction of midsurface is done for the given model and the meshing is done.
