Week 3.5 - Deriving 4th order approximation of a 2nd order derivative using Taylor Table method

  USING THE CENTRAL DIFFERENCE METHOD: IN central difference method numerical stencil will be    (i-2)  (i-1)  (i)  (i+1)  (i+2) for fourth order approximation at point (i) we have to take information from both side right& left and the distance between them will be ∆x. our hypothesis…

    • Arun Reddy

      updated on 01 Jan 2022



    USING THE CENTRAL DIFFERENCE METHOD:

    IN central difference method numerical stencil will be

       (i-2)  (i-1)  (i)  (i+1)  (i+2)

    for fourth order approximation at point (i) we have to take information from both side right& left and the distance between them will be ∆x.

    our hypothesis equation will be :

        ∂²u/∂x² = af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2)...............(1)

    to find the value of (a,b,c,d,e) we are gone a use taylor table series method.

    (a)f(i-2)= (a)f(i)-(a)f'(i)(2∆x)/1! +(a)f''(i)(2∆x)^2/2! - (a)f'''(i)(2∆x)^3/3! +(a)f''''(i)(2∆x)^4/4! - (a)f'''''(i)(2∆x)^5/5! + (a)f''''''(i)(2∆x)^6/6!+.............



    (b)f(i-1)= (b)f(i)-(b)f'(i)(∆x)/1! + (b)f''(i)(∆x)^2/2! - (b)f'''(i)(∆x)^3/3! + (b)f''''(i)(∆x)^4/4! - (b)f'''''(i)(∆x)^5/5! + (b)f''''''(i)(∆x)^6/6!+ ..............



    (c)f(i)=(c)f(i)



    (d)f(i+1)=(d)f(i)+(d)f'(i)(∆x)/1! - (d)f''(i)(∆x)^2/2! + (d)f'''(i)(∆x)^3/3! - (d)f''''(i)(∆x)^4/4! + (d)f'''''(i)(∆x)^5/5! - (d)f''''''(i)(∆x)^6/6!+..........



    (e)f(i+2)= (e)f(i)+(e)f'(i)(2∆x)/1! - (e)f''(i)(2∆x)^2/2! + (e)f'''(i)(2∆x)^3/3! - (e)f''''(i)(2∆x)^4/4! + (e)f'''''(i)(2∆x)^5/5! - (e)f''''''(i)(2∆x)^6/6!+........



    arranging above terms in taylor tyabel:

      f(i) ∆xf(i) ∆x^2f''(i) ∆xf^3'''(i) ∆x^4f''''(i) ∆x^5f'''''(i) ∆x^6f''''''(i)
    (a)f(i-2) a -2a 4a/2 -8a/6 16a/24 -32a/120 64a/240

    (b)f(i-1)

    		 b -b b/2 -b/6 b/24 -b/120 b/240
    (c)f(i) c 0 0 0 0 0 0
    (d)f(i+1) d d d/2 d/6 d/24 d/120 d/240
    (e)f(i+2) e 2e 4e/2 8e/6 16e/24 -32e/120 64e/240
    sum of above all 0 0 1 0 0 ? ?



    from above this we can write in matrix form AX=B

    [1 1 1 1 1 ; -2 -1 0 1 2 ; 2 1/2 0 1/2 2 ; -8/6 -1/6 0 1/6 8/6 ; 16/24 1/24 0 1/24 16/24] [a b c d e ]=[0 0 1 0 0 ]

    after solving above matrix the values we get

    a=-0.083333

    b=1.333333

    c=-2.500000

    d=1.333333

    e=-0.83333

    dividing both the side by equation (1) by (∆x^2) we get

    ∂²u/∂x² = af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2) /  (∆x^2)      %we can put the above vlues(a b c d e) in it

    after this to get the second order deravative the coeficient of f''(i) has to be 1 so as to get 1 we have to ignore others or set it as 0.

    here we can also see that a is equal to e and b is equal to d we can aslso deravie that and solve the equation and get to the final equation.



    USING THE SKEWED RIGHT SIDED DIFFERENCE:

    In this skewed right hand side difference method we have to define the five points on the right of (i).

    the numerical stencil will be

      (i)  (i+1)  (i+2)  (i+3)  (i+4)   (i+5)

    the hypothesis eqquation will be

        ∂²u/∂x² = af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)

    writing taylor series expansion for each term

     af(i)=af(i)

    (b)f(i+1)= (b)f(i)+(b)f'(i)(∆x)/1! + (b)f''(i)(∆x)^2/2! + (b)f'''(i)(∆x)^3/3! + (b)f''''(i)(∆x)^4/4! + (b)f'''''(i)(∆x)^5/5! + (b)f''''''(i)(∆x)^6/6!+.........

    (c)f(i+2)=(c)f(i)+(c)f'(i)(2∆x)/1! + (c)f''(i)(2∆x)^2/2! + (c)f'''(i)(2∆x)^3/3! + (c)f''''(i)(2∆x)^4/4! + (c)f'''''(i)(2∆x)^5/5! + (c)f''''''(i)(2∆x)^6/6!+.......

    (d)f(i+3)=(d)f(i)+(d)f'(i)(3∆x)/1! + (d)f''(i)(3∆x)^2/2! + (d)f'''(i)(3∆x)^3/3! + (d)f''''(i)(3∆x)^4/4! + (d)f'''''(i)(3∆x)^5/5! + (d)f''''''(i)(3∆x)^6/6!+..........

    (e)f(i+4)= (e)f(i)+(e)f'(i)(4∆x)/1! + (e)f''(i)(4∆x)^2/2! + (e)f'''(i)(4∆x)^3/3! + (e)f''''(i)(4∆x)^4/4! + (e)f'''''(i)(4∆x)^5/5! + (e)f''''''(i)(4∆x)^6/6!+........

    (g)f(i+5)= (g)f(i)+(g)f'(i)(5∆x)/1! + (g)f''(i)(5∆x)^2/2! + (g)f'''(i)(5∆x)^3/3! - (g)f''''(i)(5∆x)^4/4! + (g)f'''''(i)(5∆x)^5/5! + (g)f''''''(i)(5∆x)^6/6!+........



    arranging taylor series expansion in taylor term:

      f(i) ∆xf(i) ∆x^2f''(i) ∆x^3f'''(i) ∆x^4f''''(i) ∆x^5f'''''(i) ∆x^6f''''''(i)
     af(i) a 0 0 0 0 0 0
    (b)f(i+1) b b b/2 b/6 b/24 b/120 b/720
    (c)f(i+2) c 2c 4c/2 8c/6 16c/24 32c/20 64c/720
    (d)f(i+3) d 3d 9d/2 27d/6 81d/24 243d/120 729d/720
    (e)f(i+4) e 4e 16e/2 64e/6 256e/24 1024e/120 4096e/720
    (g)f(i+5) g 5g 25g/2 125g/6 625g/24 3125g/120 15625g/720
    sum of above all 0 0 1 0 0 0 ?



    from above this we can write in matrix form AX=B

    [1 1 1 1 1 1 ; 0 1 2 3 4 5 ; 0 1/2 2 9/2 8 25/2 ; 0 1/6 8/6 27/6 64/6 125/6 ; 0 1/24 16/24 81/24 256/24 1024/120 ; 0 1/120 32/120 243/120 1024/120 3125/120 ] [a b c d e g] = [ 0 0 1 0 0 0]

    after solving the matrix the value we get:

    a=3.75000

    b=-12.83333

    c= 17.83333

    d=-13.00000

    e=5.08333

    g=-0.83333

    dividing both the side by equation (1) by (∆x^2) we get

      ∂²u/∂x² = af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)      %we can put the above vlues(a b c d e g) in it

    putting the above all values we can get the equation.



    USING SKEWED LEFT SIDED DIFFERENCE:

    In this skewed left hand side difference method we have to define the five points on the left of (i).

    the numerical stencil will be:

      (i-5)  (i-4)  (i-3)  (i-2)  (i-1)   (i)

    the hypothesis eqquation will be

        ∂²u/∂x² = af(i-5)+bf(i-4)+cf(i-3)+df(i-2)+ef(i-1)+gf(i)

    writing taylor series expansion for each term

    (a)f(i-5)= (a)f(i)-(a)f'(i)(5∆x)/1! + (a)f''(i)(5∆x)^2/2! - (a)f'''(i)(5∆x)^3/3! + (a)f''''(i)(5∆x)^4/4! - (a)f'''''(i)(5∆x)^5/5! + (a)f''''''(i)(5∆x)^6/6!+.........

    (b)f(i-4)=(b)f(i)-(b)f'(i)(4∆x)/1! + (b)f''(i)(4∆x)^2/2! - (b)f'''(i)(4∆x)^3/3! + (b)f''''(i)(4∆x)^4/4! - (b)f'''''(i)(4∆x)^5/5! + (b)f''''''(i)(4∆x)^6/6!+.......

    (c)f(i-3)=(c)f(i)-(c)f'(i)(3∆x)/1! + (c)f''(i)(3∆x)^2/2! - (c)f'''(i)(3∆x)^3/3! + (c)f''''(i)(3∆x)^4/4! - (c)f'''''(i)(3∆x)^5/5! + (c)f''''''(i)(3∆x)^6/6!+..........

    (d)f(i-2)= (d)f(i)-(d)f'(i)(2∆x)/1! + (d)f''(i)(2∆x)^2/2! - (d)f'''(i)(2∆x)^3/3! + (d)f''''(i)(2∆x)^4/4! - (d)f'''''(i)(2∆x)^5/5! + (d)f''''''(i)(2∆x)^6/6!+........

    (e)f(i-1)= (e)f(i)-(e)f'(i)(∆x)/1! + (e)f''(i)(∆x)^2/2! - (e)f'''(i)(∆x)^3/3! + (e)f''''(i)(∆x)^4/4! - (e)f'''''(i)(∆x)^5/5! + (e)f''''''(i)(∆x)^6/6!+........

    (g)f(i)=(g)f(i)

    arranging taylor series expansion in taylor term:

      f(i) ∆xf(i) ∆x^2f''(i) ∆x^3f'''(i) ∆x^4f''''(i) ∆x^5f'''''(i) ∆x^6f''''''(i)
     af(i-5) a -5a 25/a -125a/6 625a/24 -3125a/120 15625a/720
    (b)f(i-4) b -4b 8b -64b/6 256b/24 -1024b/120 4096b/720
    (c)f(i-3) c -3c 9c/2 -27c/6 81c/24 -243c/120 729c/120
    (d)f(i-2) d -2d 2d -8d/6 16d/24 32d/120 64d/720
    (e)f(i-1) e -e e/2 -e/6 e/24 -e/120 e/720
    (g)f(i) g 0 0 0 0 0 0
    sum of above all 0 0 1 0 0 0 ?

    from above this we can write in matrix form AX=B

    [1 1 1 1 1 1 ; -5 -4 -3 -2 -1 0 ; 25/2 8/2 9/2 2 1/2 0 ; -125/6 -64/6 -27/6 -8/6 -1/6 0 ; 625/24 256/24 81/24 16/24 1/24 0 ; -3125/120 -1024/120 -243/120 -32/120 -1/120 0 ] [ a b c d e g]=[ 0 0 1 0 0 0]



    solving the above matrix we get the values

    a= -0.83333

    b= 5.08333

    c=-13.00000

    d=17.83333

    e=-12.83333

    g=3.75000



    dividing both the side by equation (1) by (∆x^2) we get

    ∂²u/∂x² = af(i-5)+bf(i-4)+cf(i-3)+df(i-2)+ef(i-1)+gf(i)        %we can put the above vlues(a b c d e g) in it

    putting the above all values we can get the equation.



    % function for central difference error

    % creating the fuction for 4order approximation
function  difference_central_order =central_difference(x,dx)

%analytical function f(x)= exp(x)*cos(x);
% f''(x)=-2*exp(x)*sin(x);

analytical_deravative= -2*exp(x)*sin(x);
% values of coefficients from  taylor table
a=-0.083333;
b=1.333333;
c=-2.500000;
d=1.333333;
e=-0.83333;

%central differencing
%((a*f(x-2*dx))+(b*f(x-dx))+(c*f(x))+(d*f(x+dx))+(e*f(x+2*dx)))/dx^2;

central_differencing_fourth_order=((a*exp(x-2*dx)*cos(x-2*dx))+(b*exp(x-dx)*cos(x-dx))+(c*exp(x)*cos(x))+(d*exp(x+dx)*cos(x+dx))+(e*exp(x+2*dx)*cos(x+2*dx)))/dx^2;
difference_central_order= abs(central_differencing_fourth_order-analytical_deravative)
end



    % function for skewed right side

    % creating 4 order approximation using 2 order deravative by skewed right side difference
function error_skewed_right_side=skewed_right_side(x,dx)

%analytical function f(x)= exp(x)*cos(x);
% f''(x)=-2*exp(x)*sin(x);

analytical_deravative= -2*exp(x)*sin(x);
% values of coefficients from  taylor table
a=3.75000;
b=-12.83333;
c= 17.83333;
d=-13.00000;
e=5.08333;
g=-0.83333;

skewed_right_side_fourth_order=((a*exp(x)*cos(x))+(b*exp(x+dx)*cos(x+dx))+(c*exp(x+2*dx)*cos(x+2*dx))+(d*exp(x+3*dx)*cos(x+3*dx))+(e*exp(x+4*dx)*cos(x+4*dx))+(g*exp(x+5*dx)*cos(x+5*dx)))/dx^2;

error_skewed_right_side=abs(skewed_right_side_fourth_order-analytical_deravative)
end



    %function for skewed left side

     % creating 4 order approximation using 2 order deravative by skewed left side difference
function error_skewed_left_sided= skewed_left_side(x,dx)
%analytical function f(x)= exp(x)*cos(x);
% f''(x)=-2*exp(x)*sin(x);

analytical_deravative= -2*exp(x)*sin(x);
% values of coefficients from  taylor table
a= -0.83333;
b= 5.08333;
c=-13.00000;
d=17.83333;
e=-12.83333;
g=3.75000;

skewed_left_side_fourth_order=((a*exp(x-5*dx)*cos(x-5*dx))+(b*exp(x-4*dx)*cos(x-4*dx))+(c*exp(x-3*dx)*cos(x-3*dx))+(d*exp(x-2*dx)*cos(x-2*dx))+(e*exp(x-dx)*cos(x-dx))+(g*exp(x)*cos(x)))/dx^2;
error_skewed_left_sided=abs(skewed_left_side_fourth_order-analytical_deravative);
end



    %programing

    clear all
clc
close all
 x=pi/3;
 dx=linspace(pi/4,pi/4000,30);

 for i=1:length(dx)
    central_difference_error (i) =central_difference(x,dx(i));
     skewed_right_side_error (i) =skewed_right_side(x,dx(i));
     skewed_left_side_error (i) =skewed_left_side(x,dx(i));
 end
 % plotting graph of dx vs error

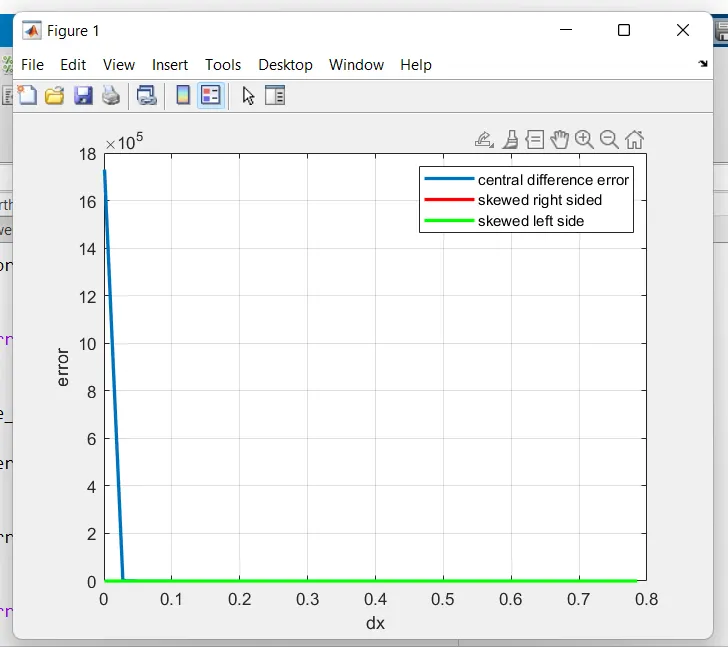

 figure(1)
 plot(dx,central_difference_error,'LineWidth',2)
 hold on
 plot(dx,skewed_right_side_error,"Color",'r','LineWidth',2)
 hold on
 grid on
 plot(dx,skewed_left_side_error,"Color",'g','LineWidth',2)
 xlabel('dx')
 ylabel('error')
 legend('central difference error','skewed right sided','skewed left side')

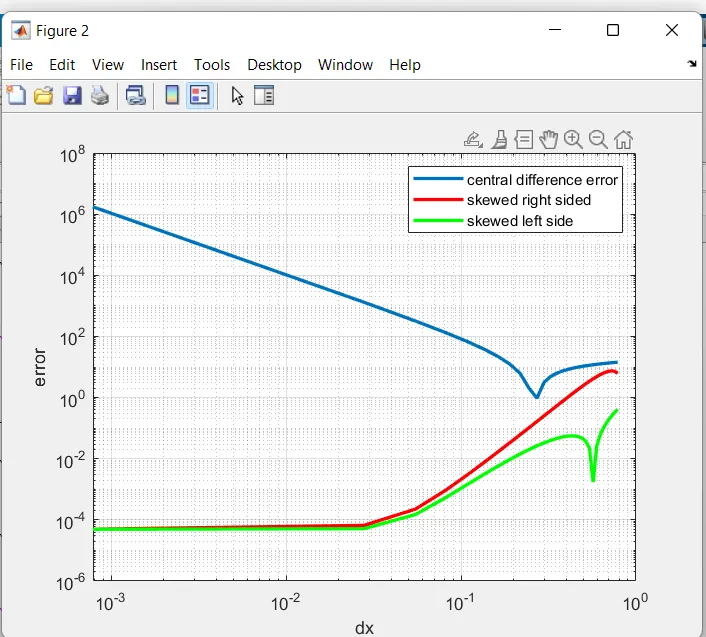

 figure(2)
  loglog(dx,central_difference_error,'LineWidth',2)
 hold on
 loglog(dx,skewed_right_side_error,"Color",'r','LineWidth',2)
 hold on
 grid on
 loglog(dx,skewed_left_side_error,"Color",'g','LineWidth',2)
 xlabel('dx')
 ylabel('error')
 legend('central difference error','skewed right sided','skewed left side')

    %result graph

    here we can easily notice central difference approximation produce more accurate solution.

























































    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Arun Reddy (42)

    Project 1-Meshing of Rear Wheel Holder challenge

    Objective:

    Aim :- Meshing of Rear Wheel Holder with mentioned quality criteria. OBJECTIVE:  Extract the mid surface Geometry cleanup Meshing given door model using the given quality criteria checks Good mesh flow. Assign thickness PROCEDURE : Import the component and click F to see the component in the GUI area as shown below. As…

    calendar

    10 Jun 2023 03:22 PM IST

      Read more

      Week 7- Meshing of Backdoor Challenge

      Objective:

      AIM: Mesh the backdoor model as per the given quality criteria using Hypermesh. OBJECTIVE:  Extract the mid surface Geometry cleanup Meshing given hood model using the given quality criteria checks Good mesh flow. Assign thickness  PROCEDURE : Import the component and click F to see the component in the GUI area as shown…

      calendar

      10 Jun 2023 03:21 PM IST

        Read more

        Week 6-Meshing of Hood Challenge

        Objective:

        AIM: To extract the mid surface of the given component individually, mesh the obtained mid surface, and assign the thickness. The given model has to be imported and auto cleanup has to be done on the component then the mid surface has to be extracted from the components and have to be meshed individually with an average…

        calendar

        22 Jan 2023 12:06 PM IST

          Read more

          Week 4-1D Element Creation Challenge

          Objective:

          THEORY: PROJECT METHODOLOGY:  1. MID SURFACE: Auto mid surface has been used to extract the midsurface for this simple bracket. Components has been created and assigned to the particular mid surfaces. 2. ASSIGN MATERIAL: Create material. Here I have created a material and assigned to steel.  …

          calendar

          04 Jan 2023 11:52 AM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
