CREATE 1-D CONNECTIONS FOR REAR DOOR OF THE CAR



 AIM:

    To perform connection's for a given FE model of the car with different connection technique's by using NASTRAN



 THEORY:

    REAR DOOR:

      A car door is a type of door typically hinged, but sometimes attached by other mechanisms, guide rails etc.. the door is used for entering and exiting a vehicle . the vehicle door is open to provide access to the opening or closed to secure it.

    NASTRAN DECK:

      NASTRAN is a finite element analysis program that was originally developed form NASA in 1960.

    CONNECTIONS:

      Connections that are used to connect the two parts of the system

      i.e Rigid body connections

      RBE2 by many nodes

      RBE2 by two nodes

      RBE2 by single node



 PROCEDURE:

    STEP 1: IMPORT FE MODEL TO ANSA

    STEP 2: ASSIGNING DIFFERENT PID

    STEP 3: CONNECTIONS

    STEP 4: MANUAL METHOD OF CONNECTIONS

    STEP 5: WELD JOINTS

    STEP 6: DOOR HANDLE CONNECTIONS

    STEP 7: WINDOWS CONNECTIONS

    STEP 8: PROPER ALIGNING OF CO-ORDINATES

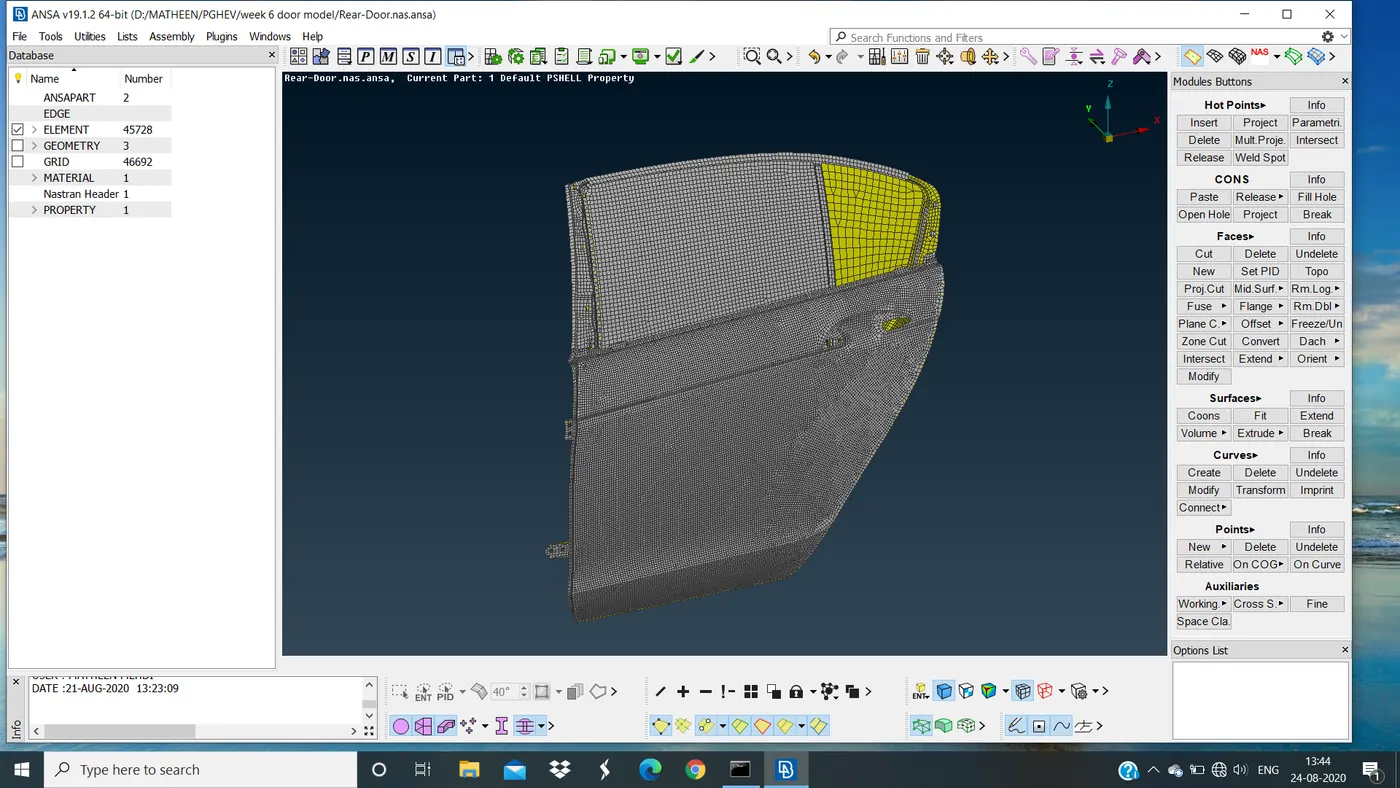

      STEP 1: IMPORT FE MODEL TO ANSA

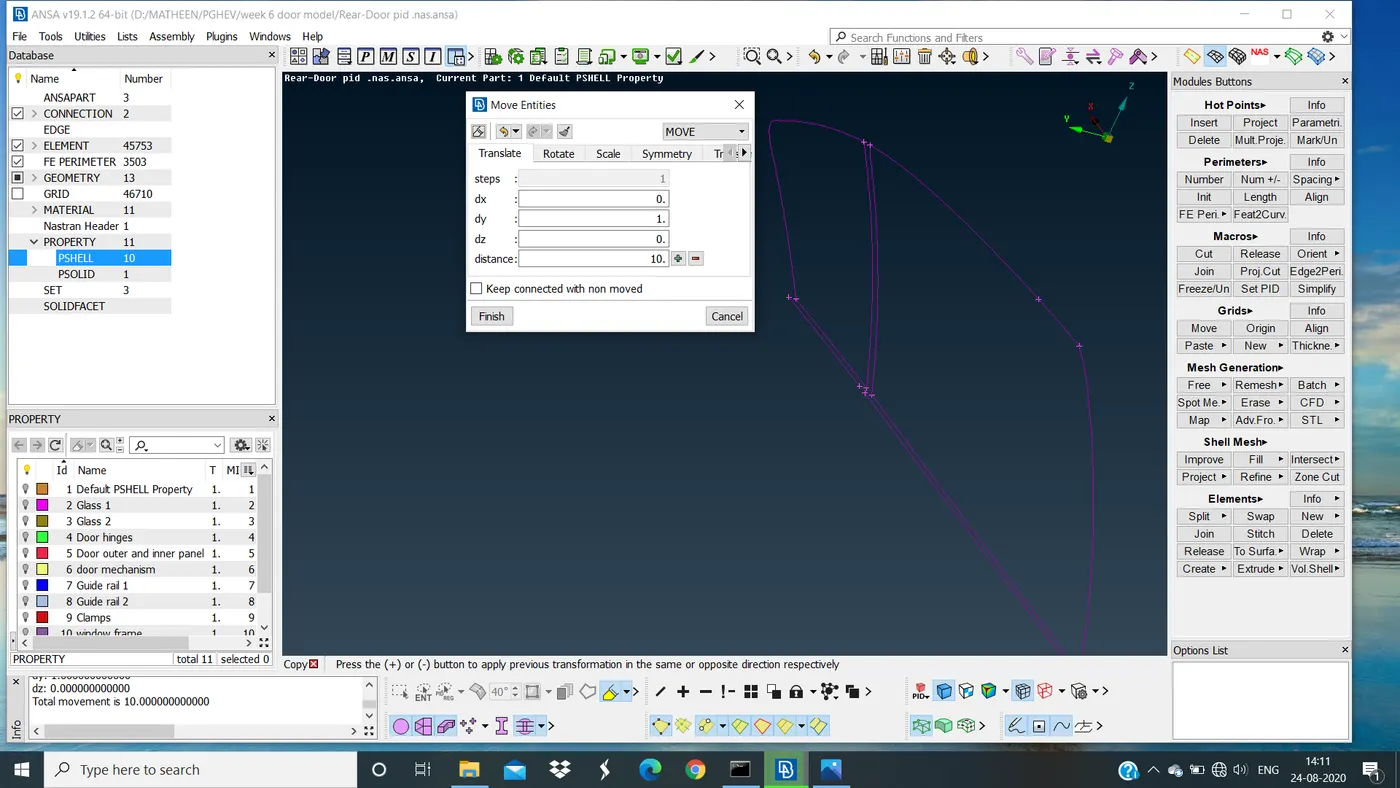

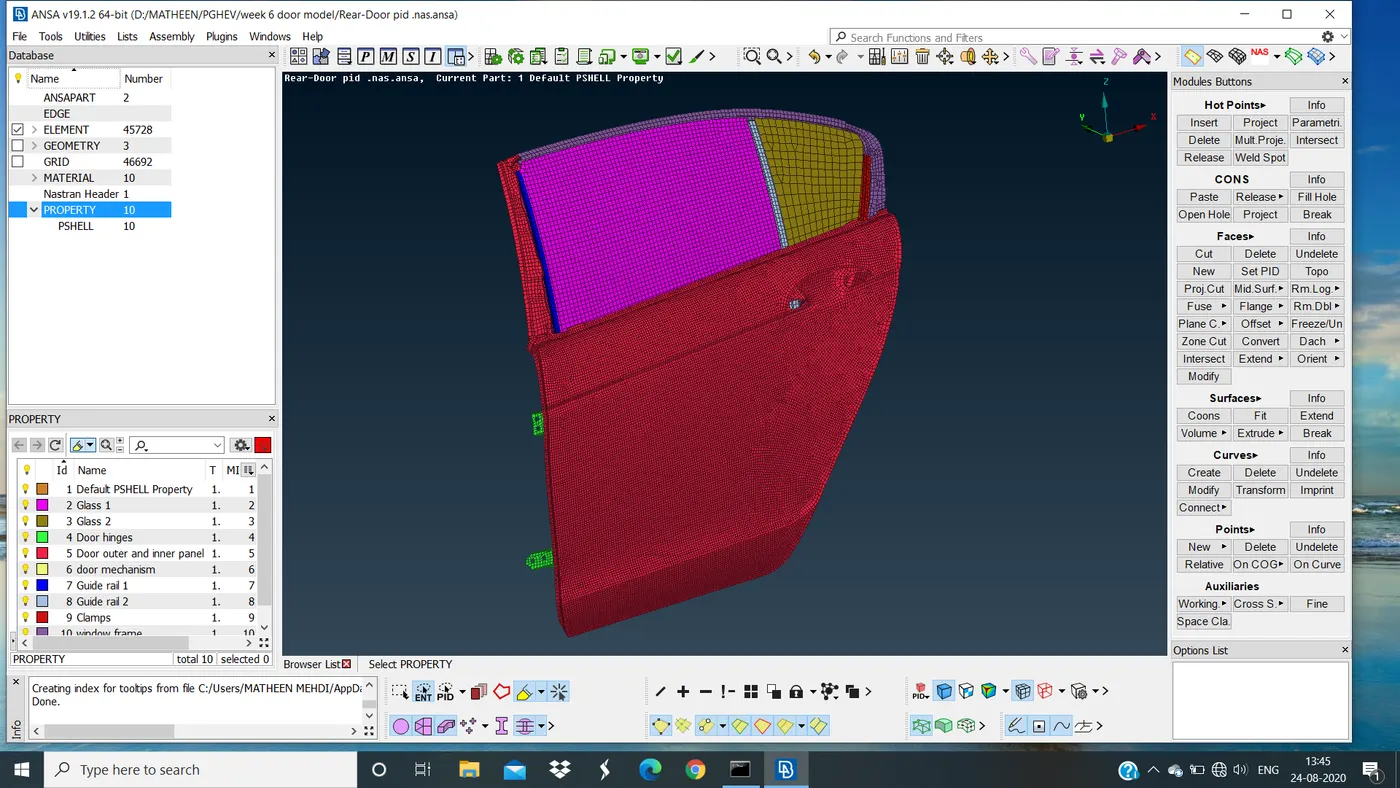

          Import the given FE model into ansa

          FILE<<INPUT<<NASTRAN



      STEP 2: ASSIGNING NEW PID

          Assign a seperate PID's for each part of the given FE model



      STEP 3: CONNECTIONS

          Check the holes area that where the bolts connections has to made visualize the parts first then by using COG under points create a COG and covert that COG point to bolt after conversion give connections by auto method

          GOTO TOPO MODE >> POINTS>> COG >> OK

          Convert command is on top in assembly panel

          CONVERT>>COG POINT>>BOLT>>OK

          Then goto connection manager

          CONNECTION MANAGER>>SELECT BOLT>>SELECT THE PARTS TO DO CONNECTIONS >> SELECT FEP REP>> BOLT>> GIVE SEARCH DISTANCE>> APPLY > REALIZE

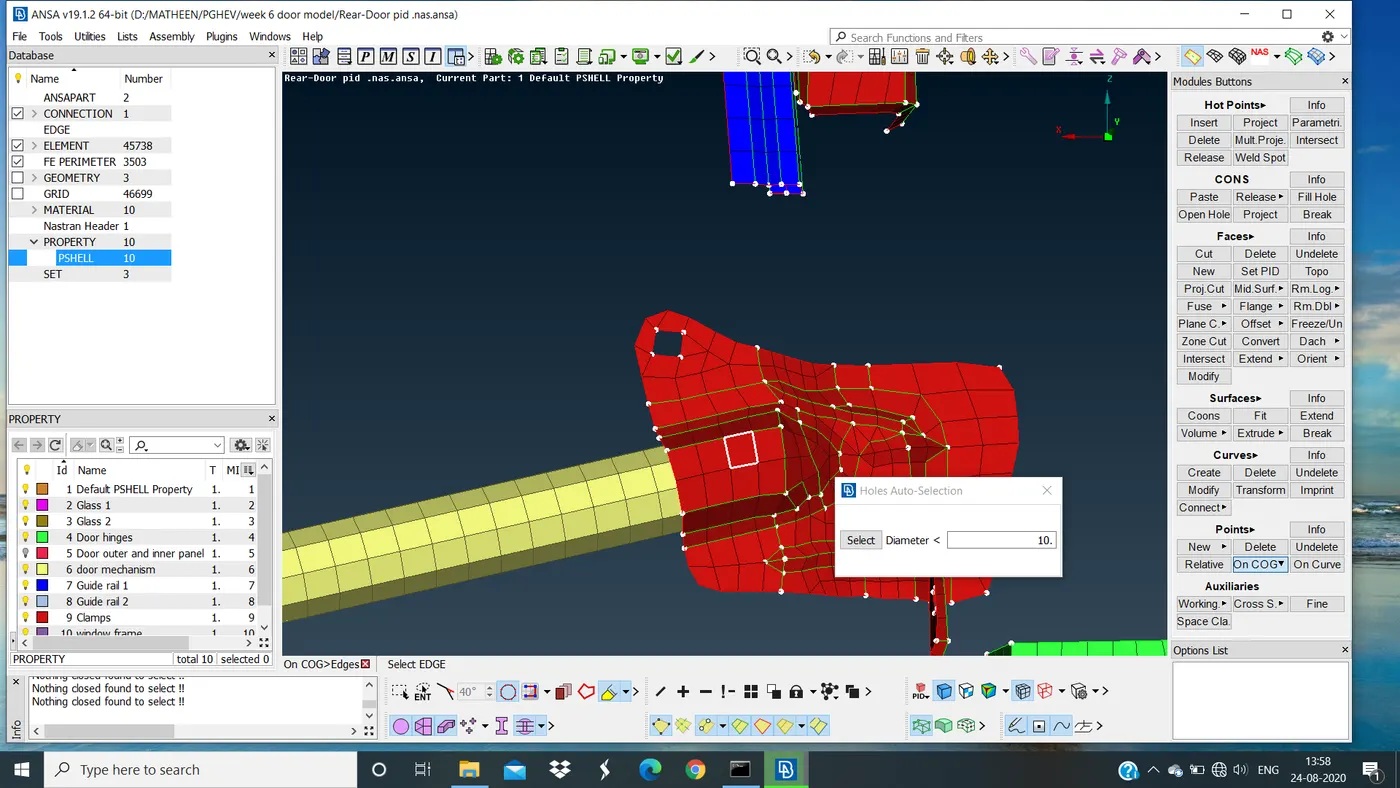

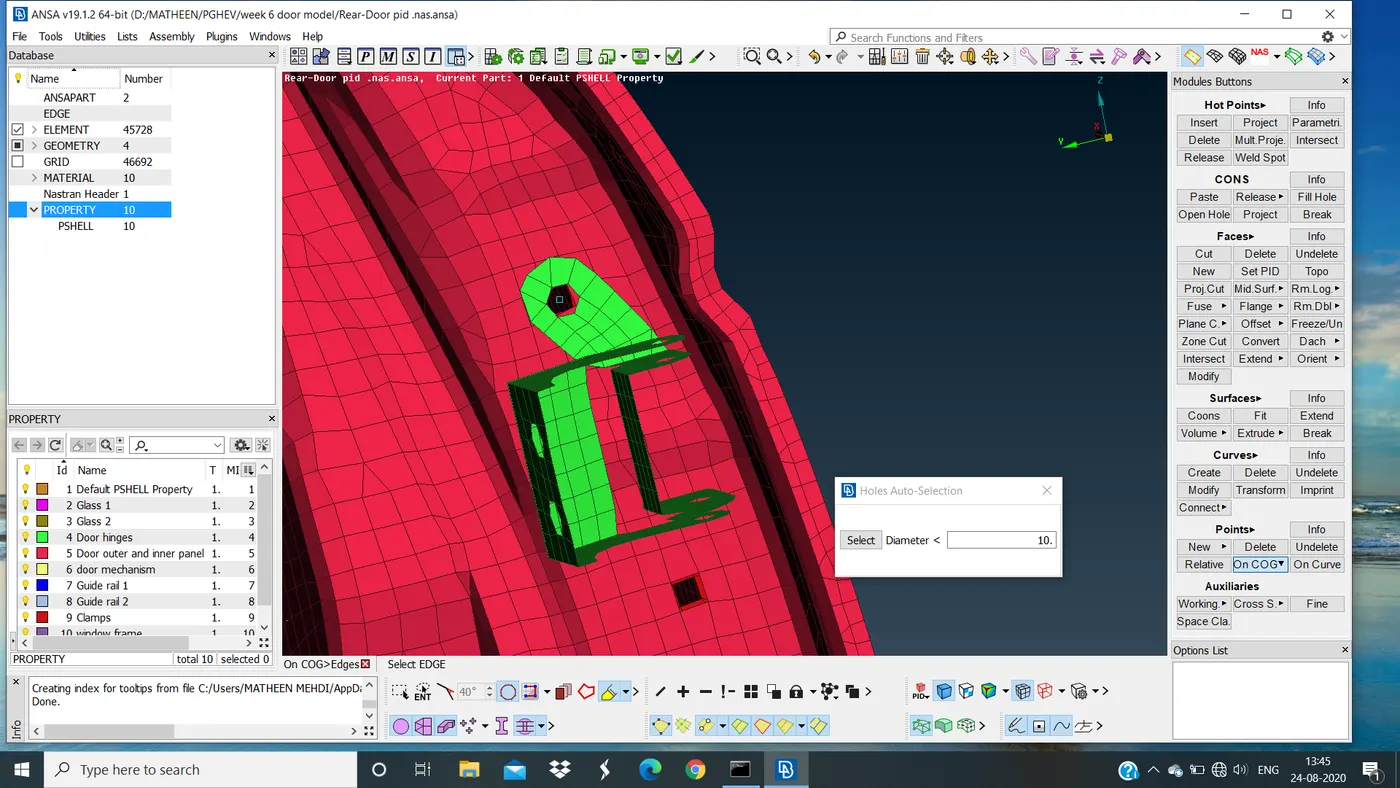

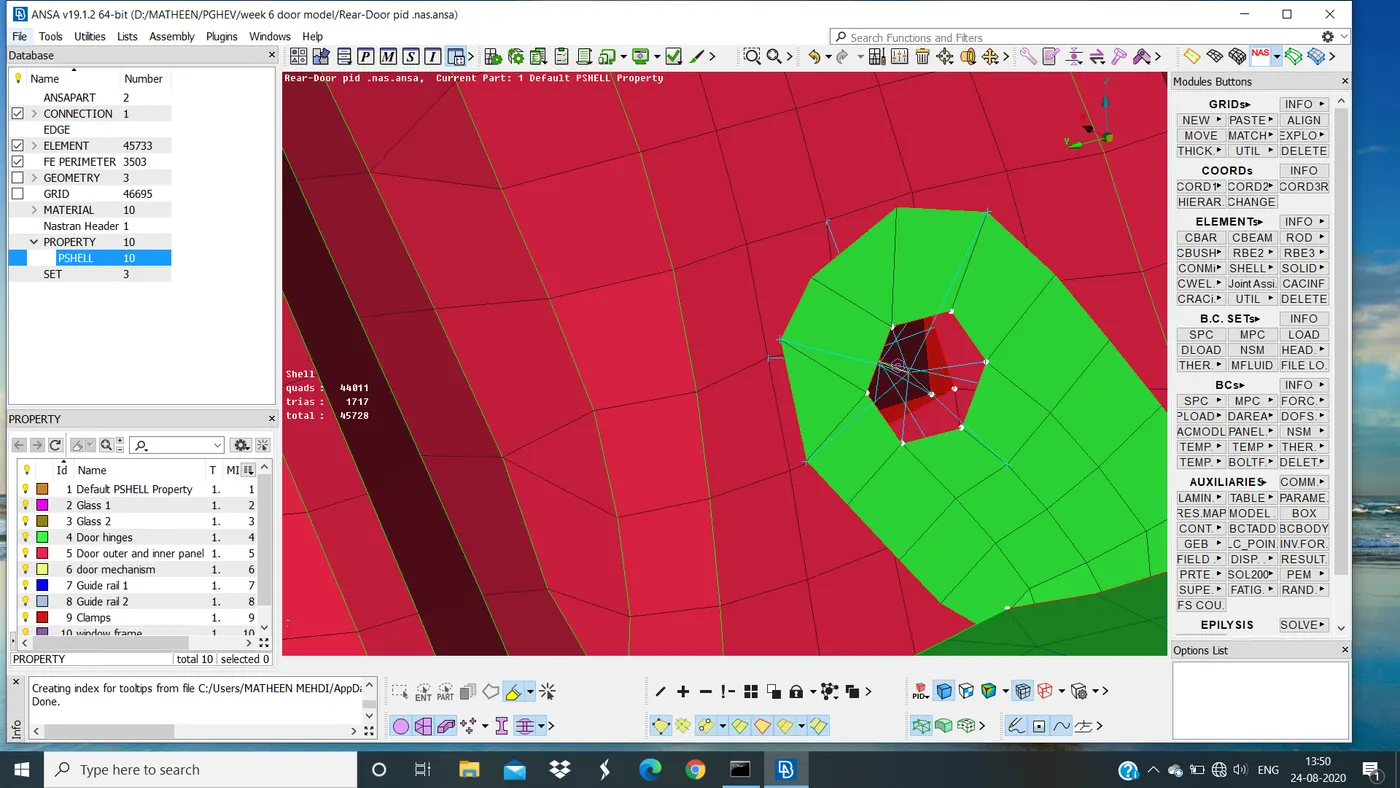

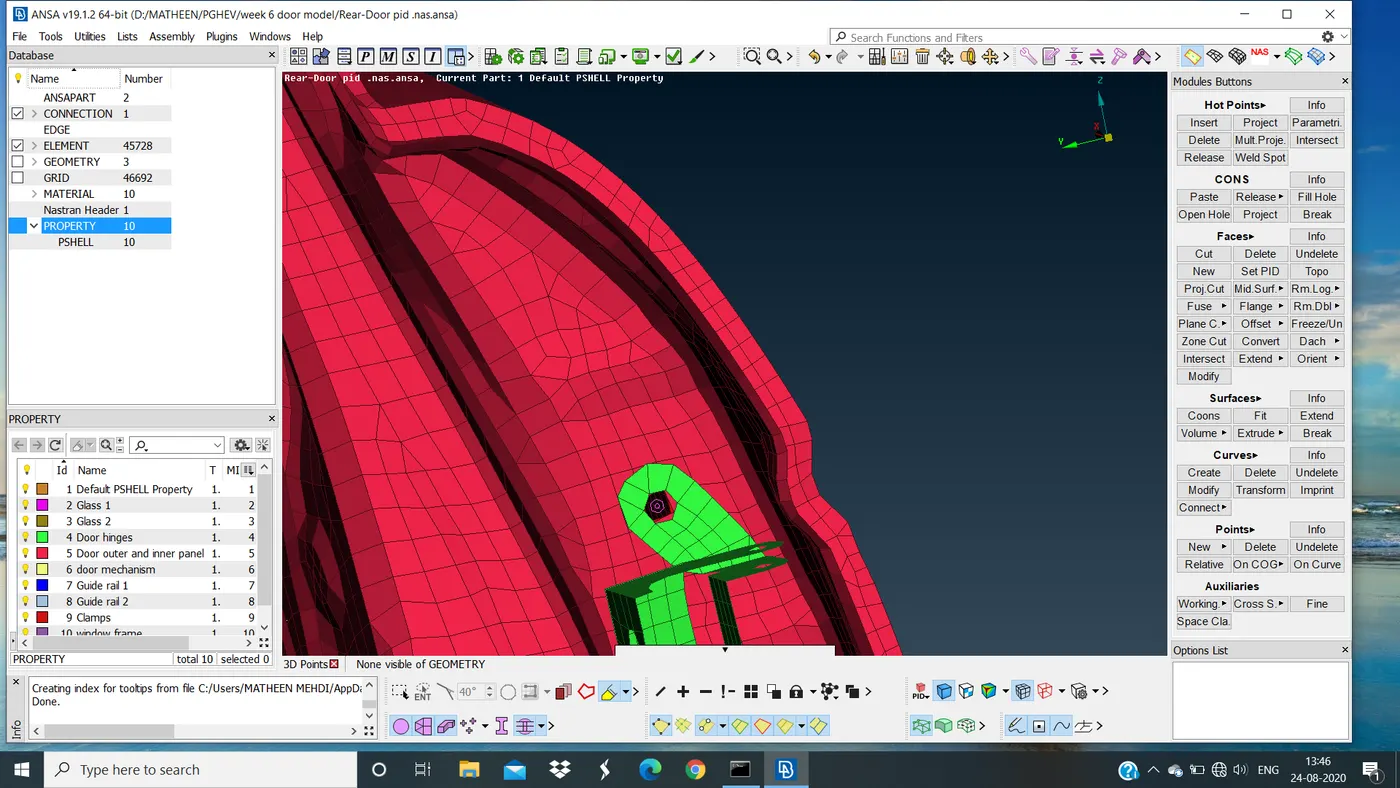

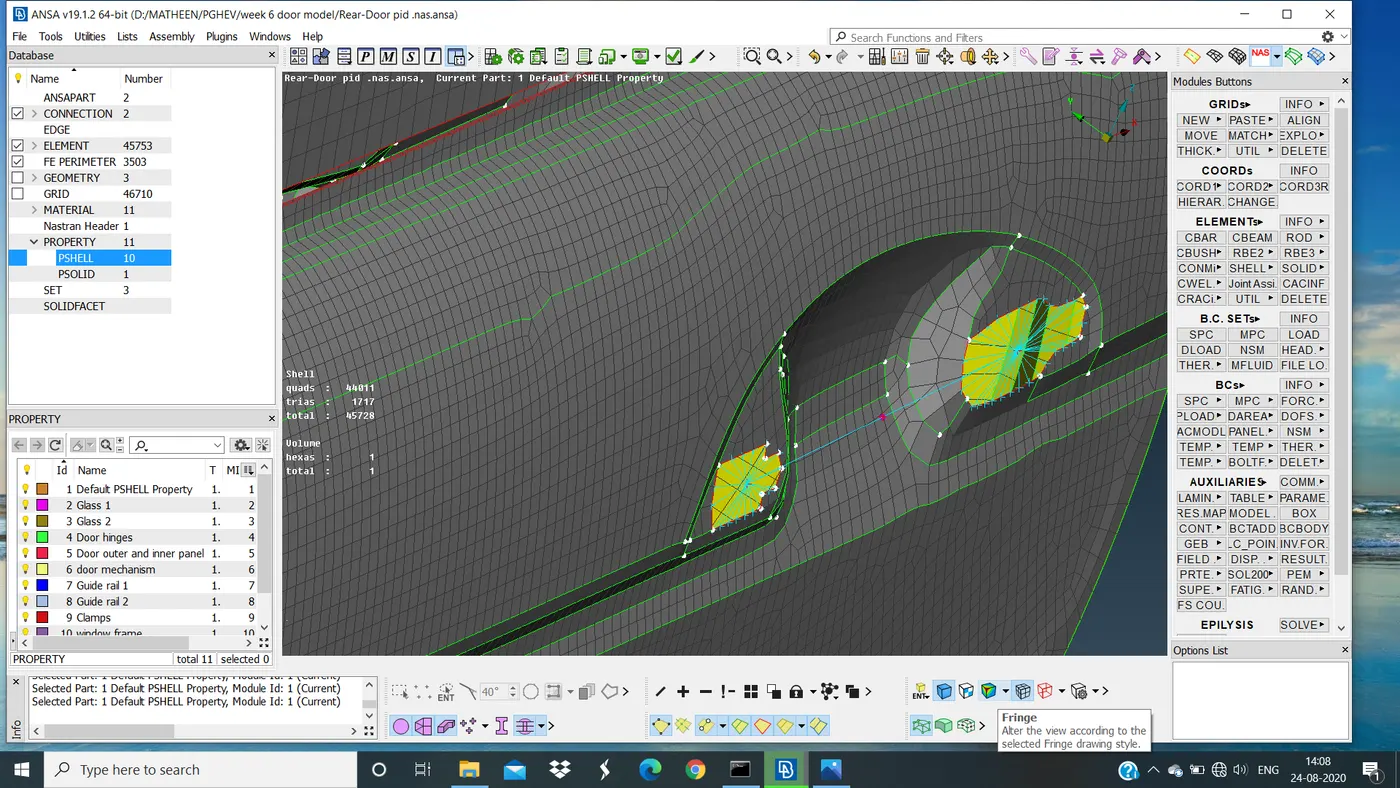

                                                                                   CREATE COG

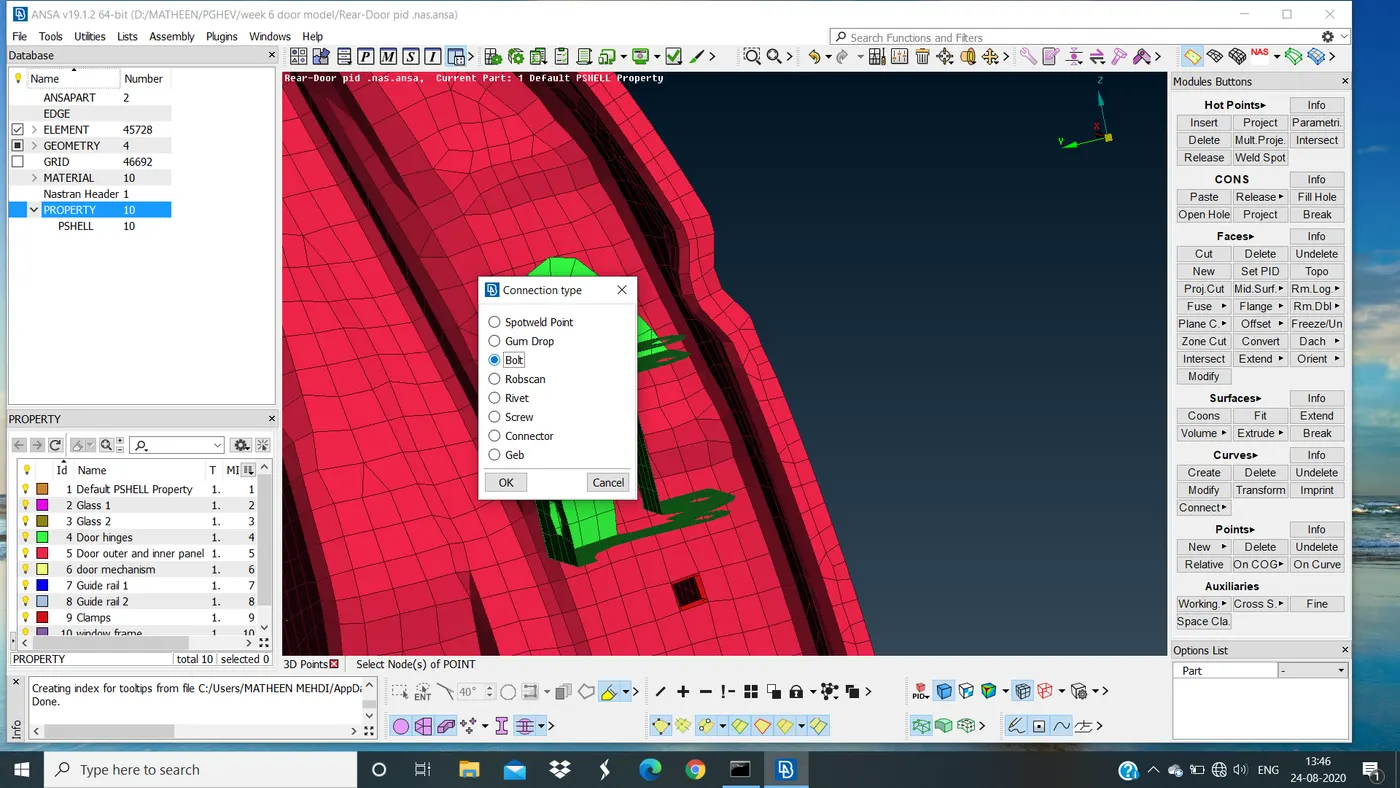

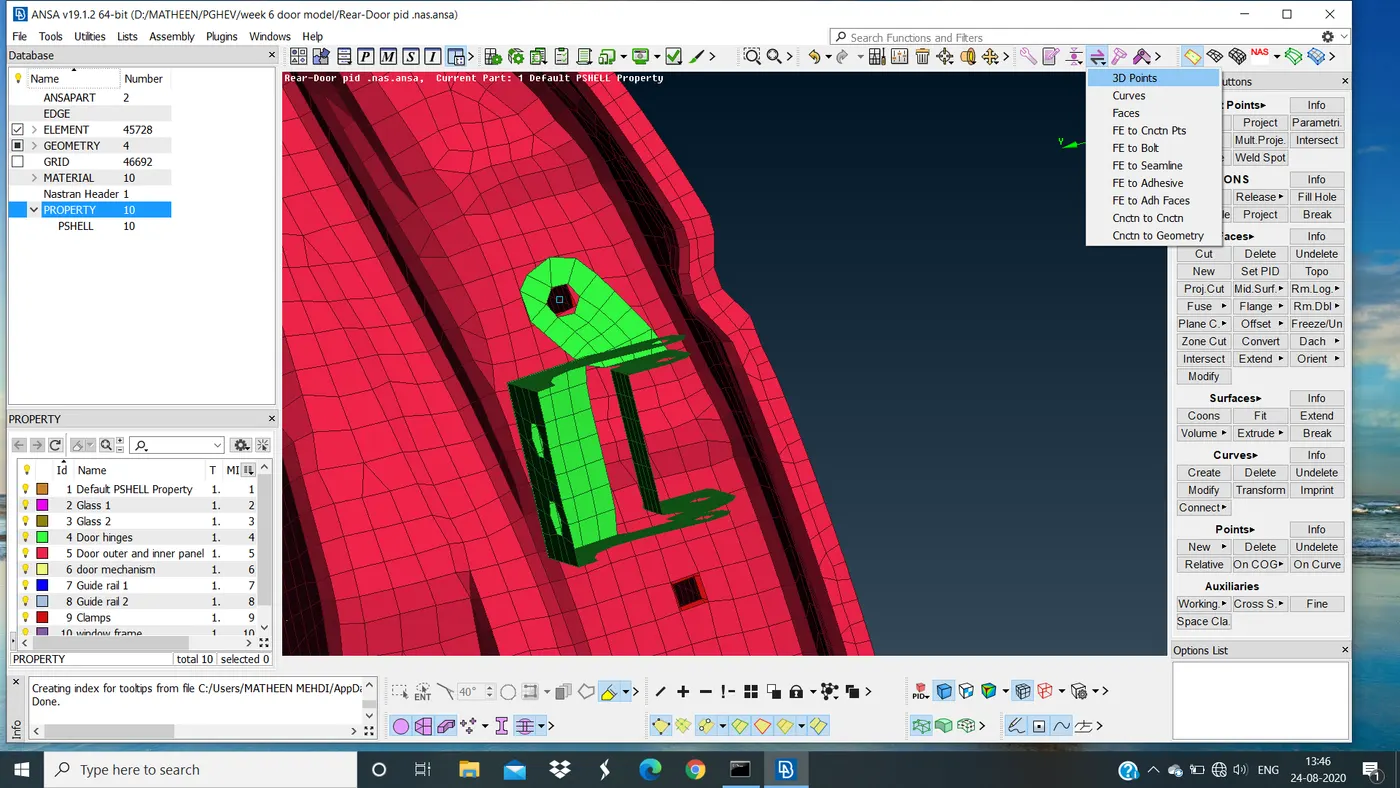

                                                                      CONVERTING COG POINT TO BOLT





                                                                           CONVERTED INTO BOLT

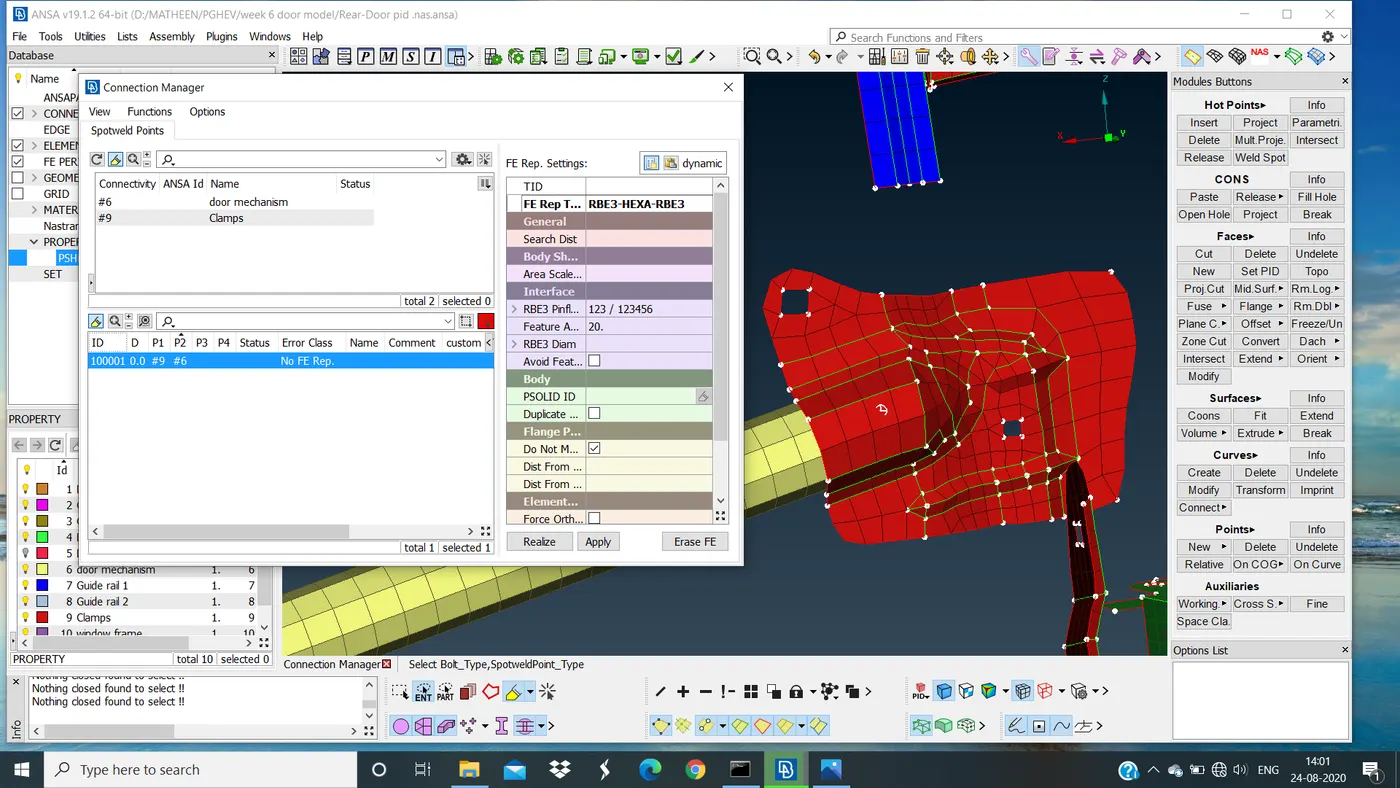

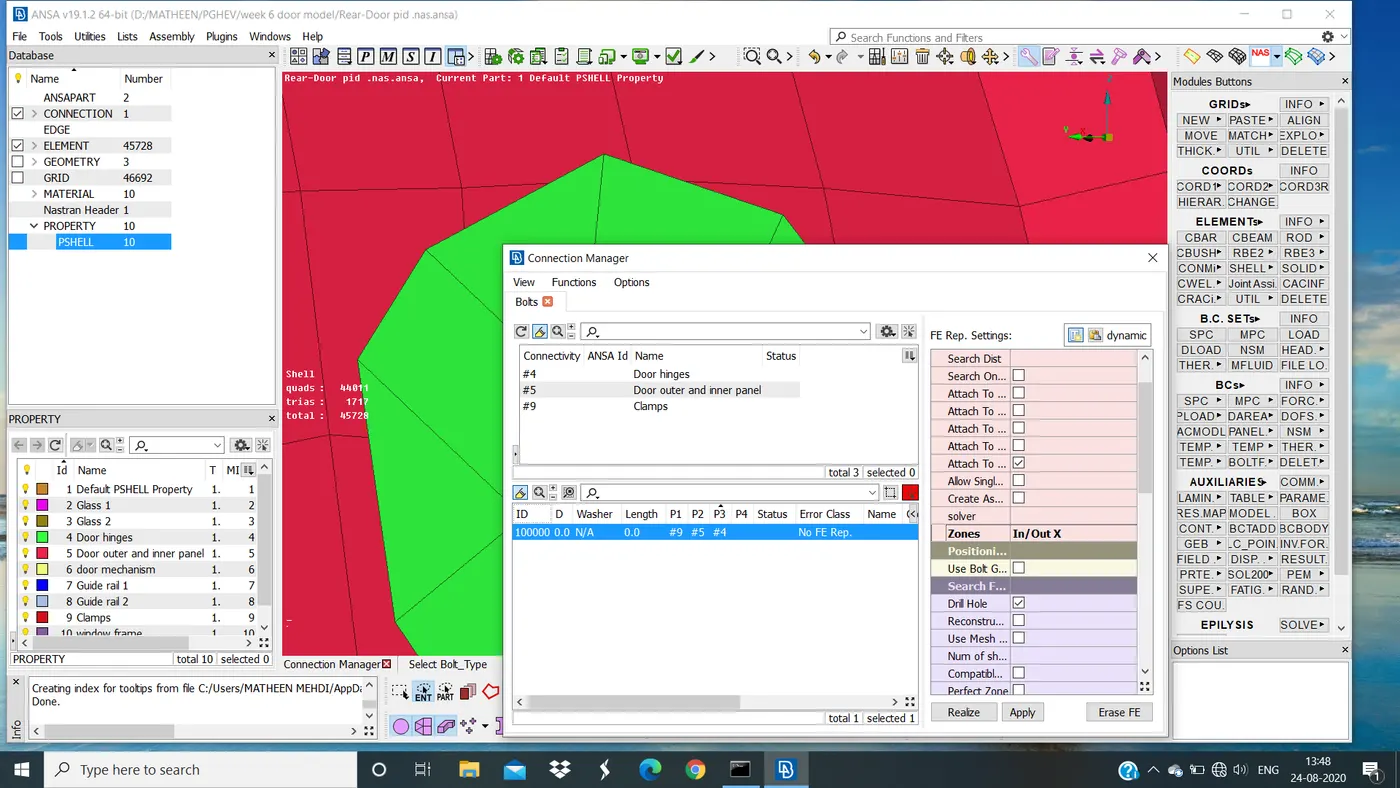

                                                                         ASSIGNING P1 AND P2



                                                          FINAL CONNECTION OF BOLT BY AUTO METHOD



    This is auto method in this method the maximum of 4 parts can be connected.



      STEP 4: MANUAL METHOD OF GIVING CONNECTIONS

          Here first visualize the bolts parts and where to give rigid connection and all

          Then by using RBE2 under NASTRAN deck select the nodes in the hole or connection region

          Select RBE2 by many node or

          Select RBE2 by single node for node selection.

          RBE2 by many nodes :

                 Select the nodes by loop selection then click ok cluster formation of connection will be formed as shown in below fig

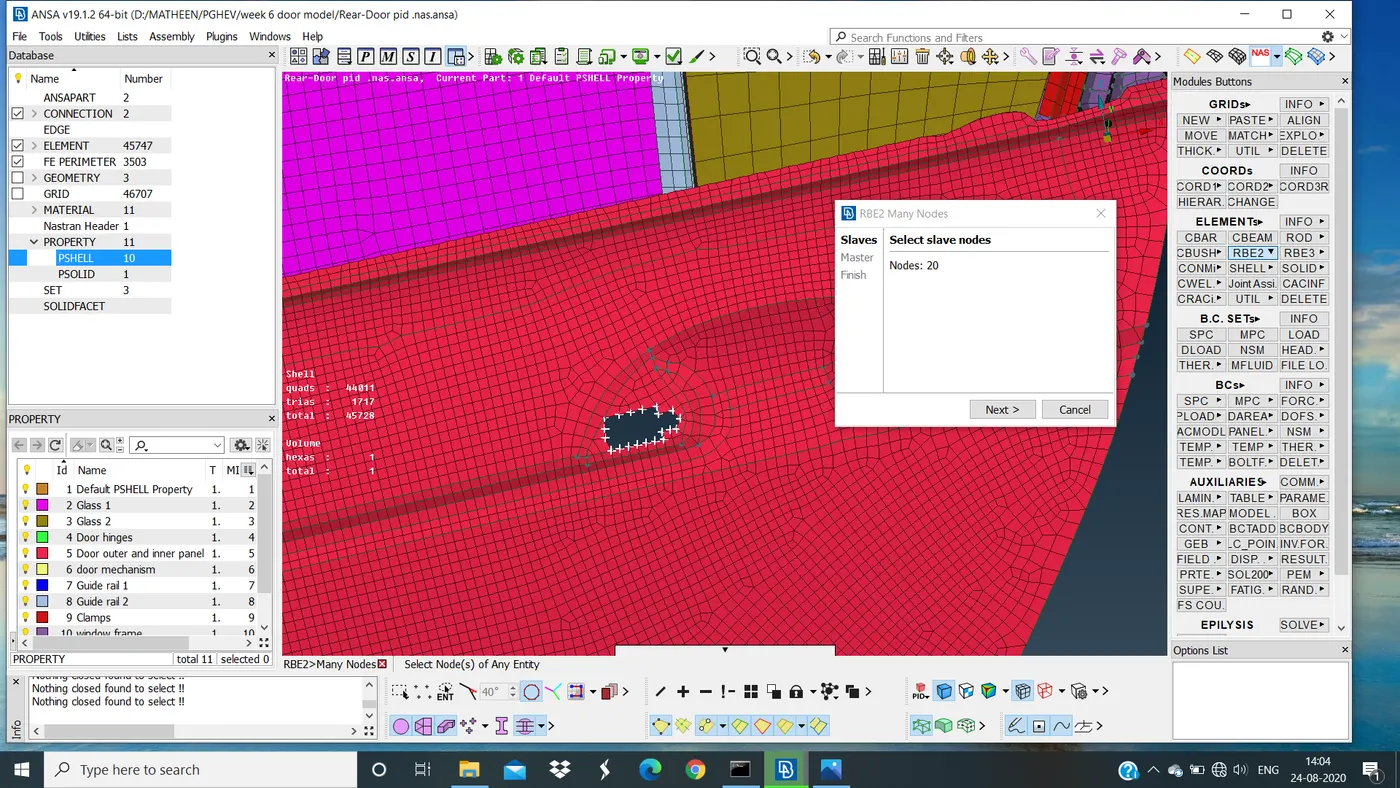

                                                                        CLUSTER CONNECTION



     ELEMENTS>>RBE2 MANY NODE >> SELECT SLAVE NODES>> SELECT MASTER NODES>>OK



     RBE2 by two nodes selection:

         In this type we use to connect to rigid elements by using two-node RBE2

         First select nodes and create rigid connection and do same to another hole region

         After giving connection use RBE2 two nodes connection select master nodes 1 and 2 and connect those with 2 nodes RBE2 connection

         ELEMENT>>SELECT ONE MASTER NODE >> SELECT ANOTHER MASTER NODE >> OK

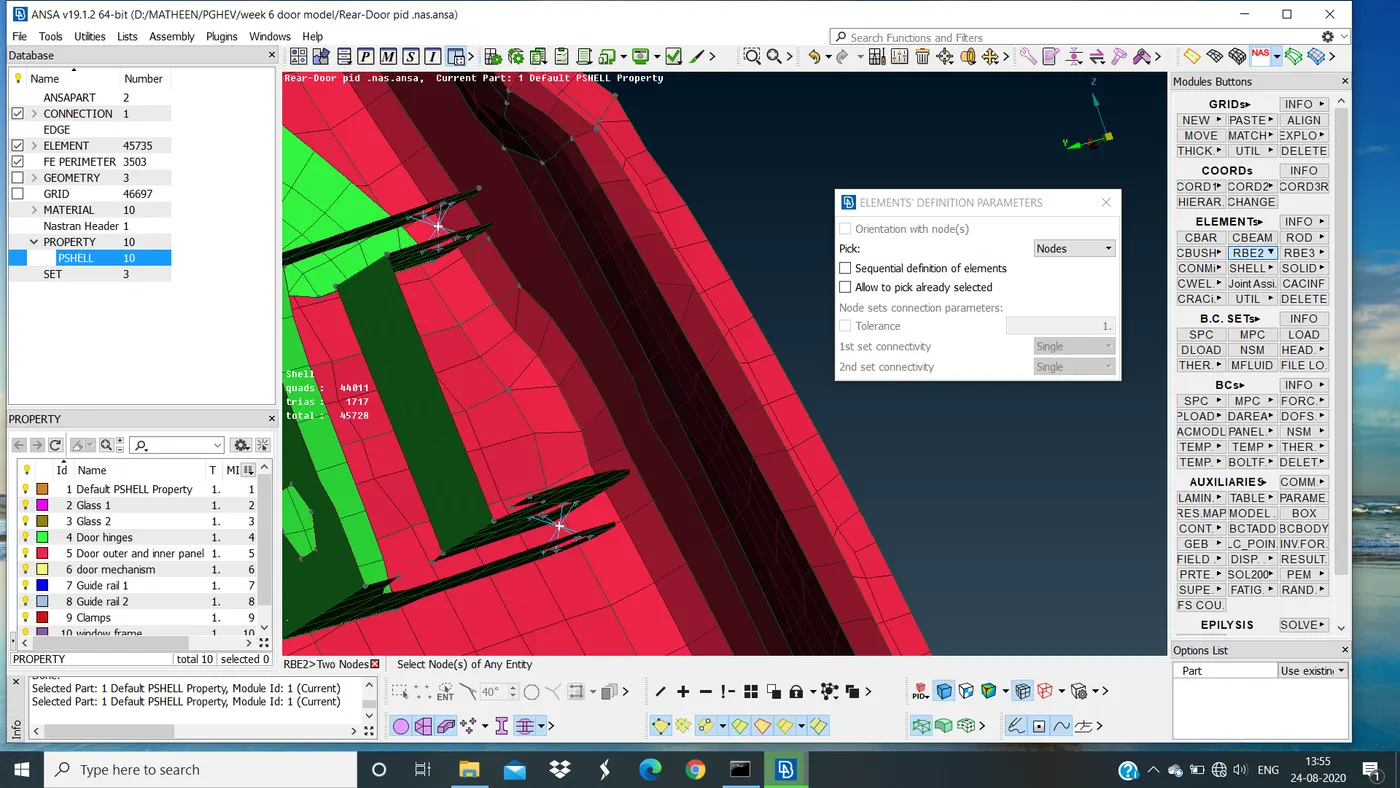

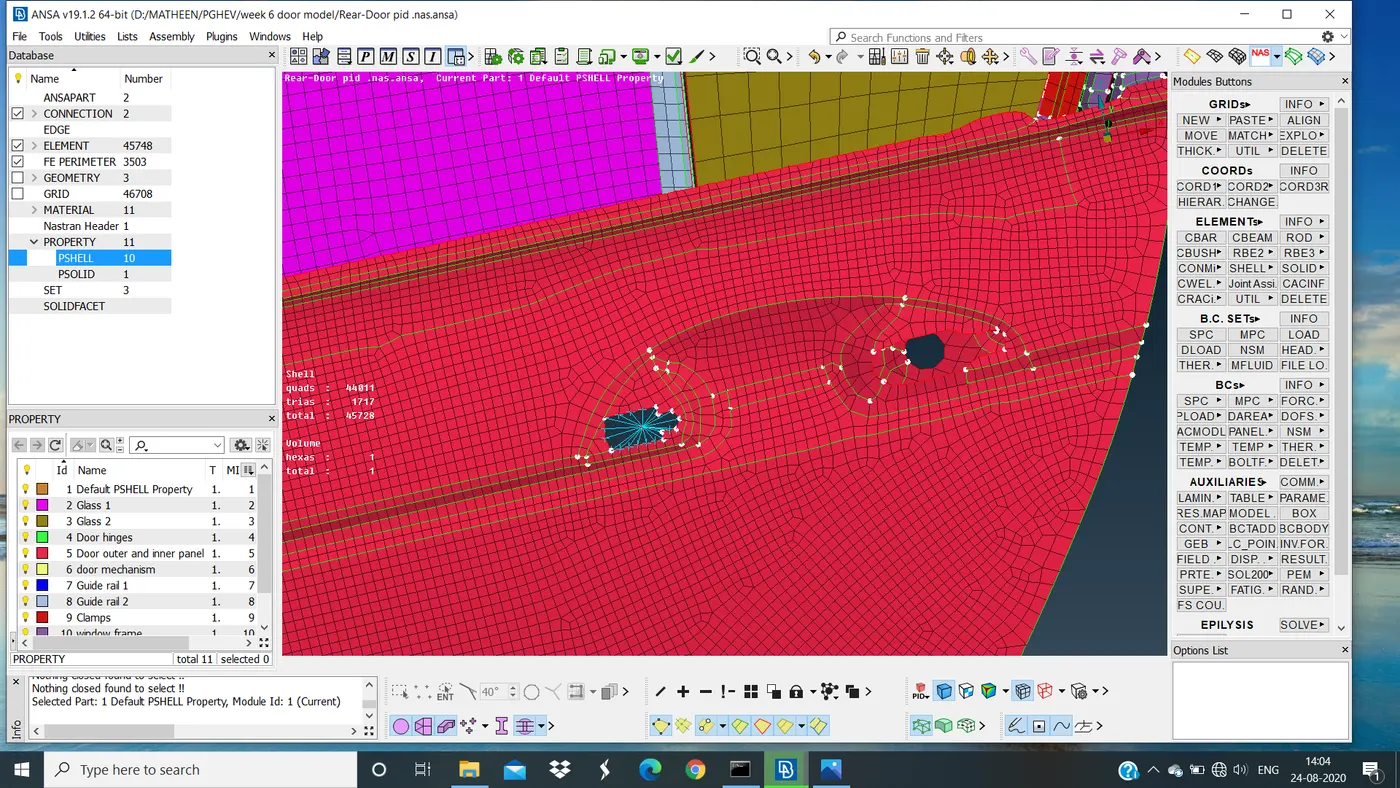

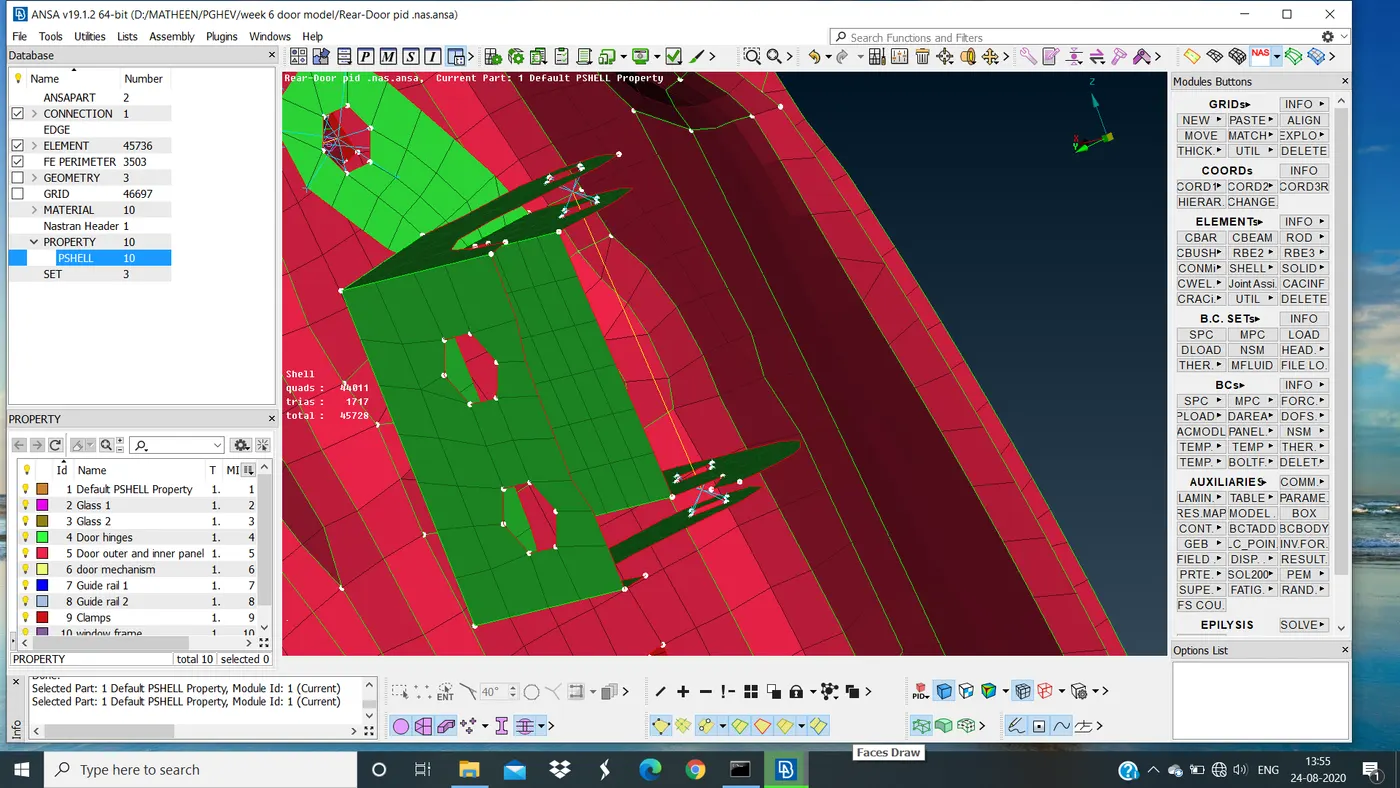

                                                       SELECTION OF FIRST AND SECOND MASTER NODE

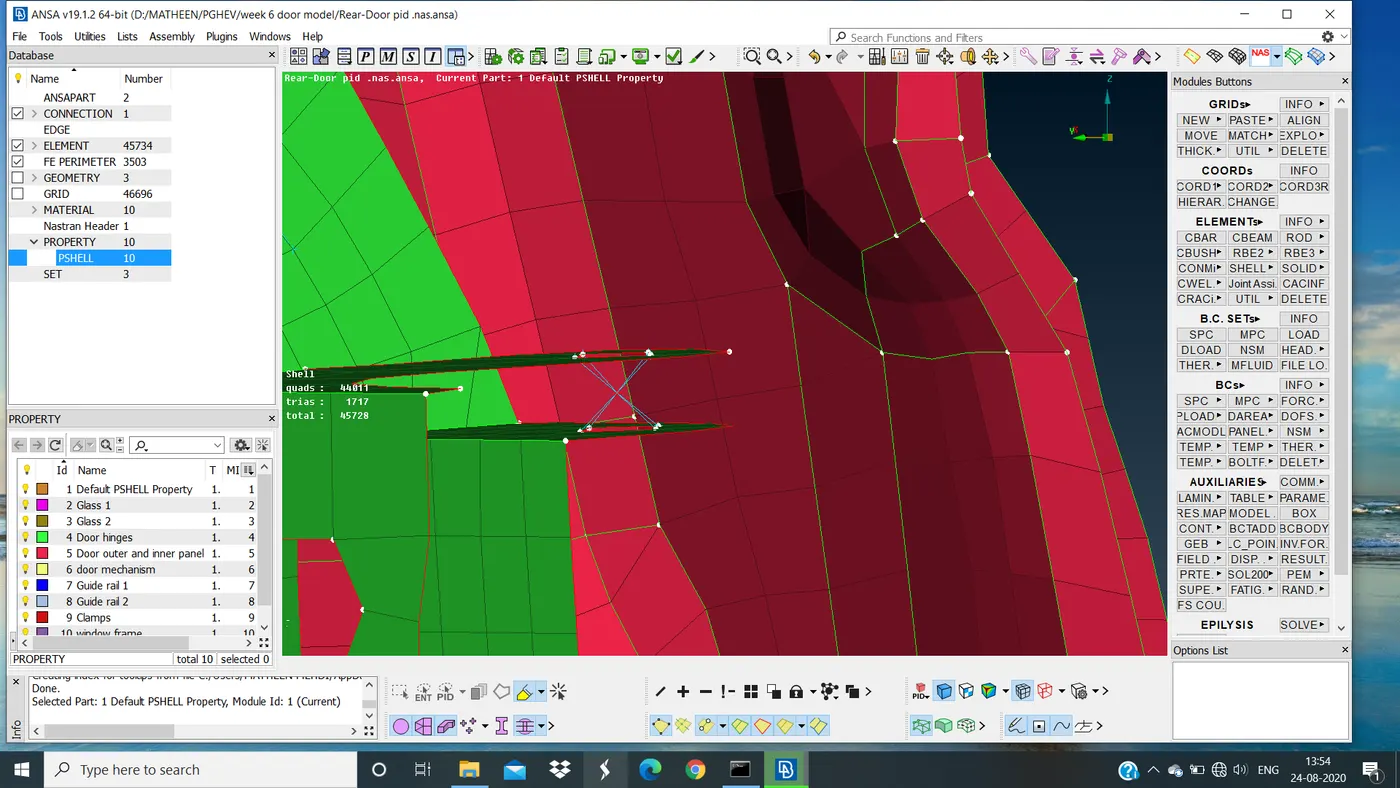

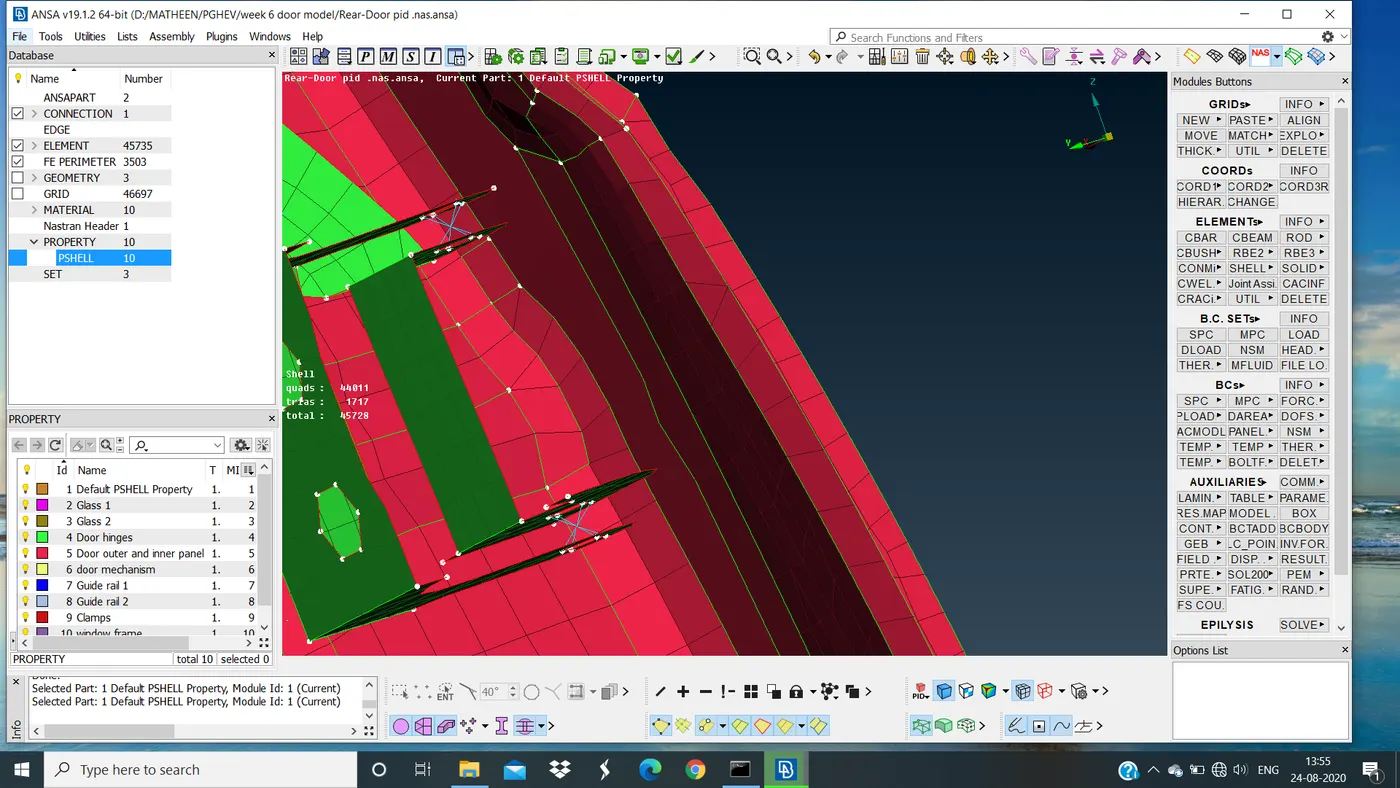

                                                                     TWO NODE RBE2 IS CREATED

      STEP 5: WELD JOINTS

          Weld joints data are generally given suppose if its not mention any data in such cases the weld connections can be given as per geometry design by visualising

          For this first GOTO TOPO MODE>>POINTS>>COG>>SELECT AN ENTITIES BY MESH BOX>>COG IS GENERETED>>CONVERT THE COG BY SELECTING 3D POINTS>>SPOT WELD>>DESFINE CONNECTIONS>>SELECT FE REP>>RBE3-HEXA-RBE3>>ENTER SEARCH DISTANCE>> RBE3 PIN FLAG 123456>>OK

          123456 degree of freedom it means that the weld is fixed constraint in all the direction of movements.



                                                                               BOX SELECTION

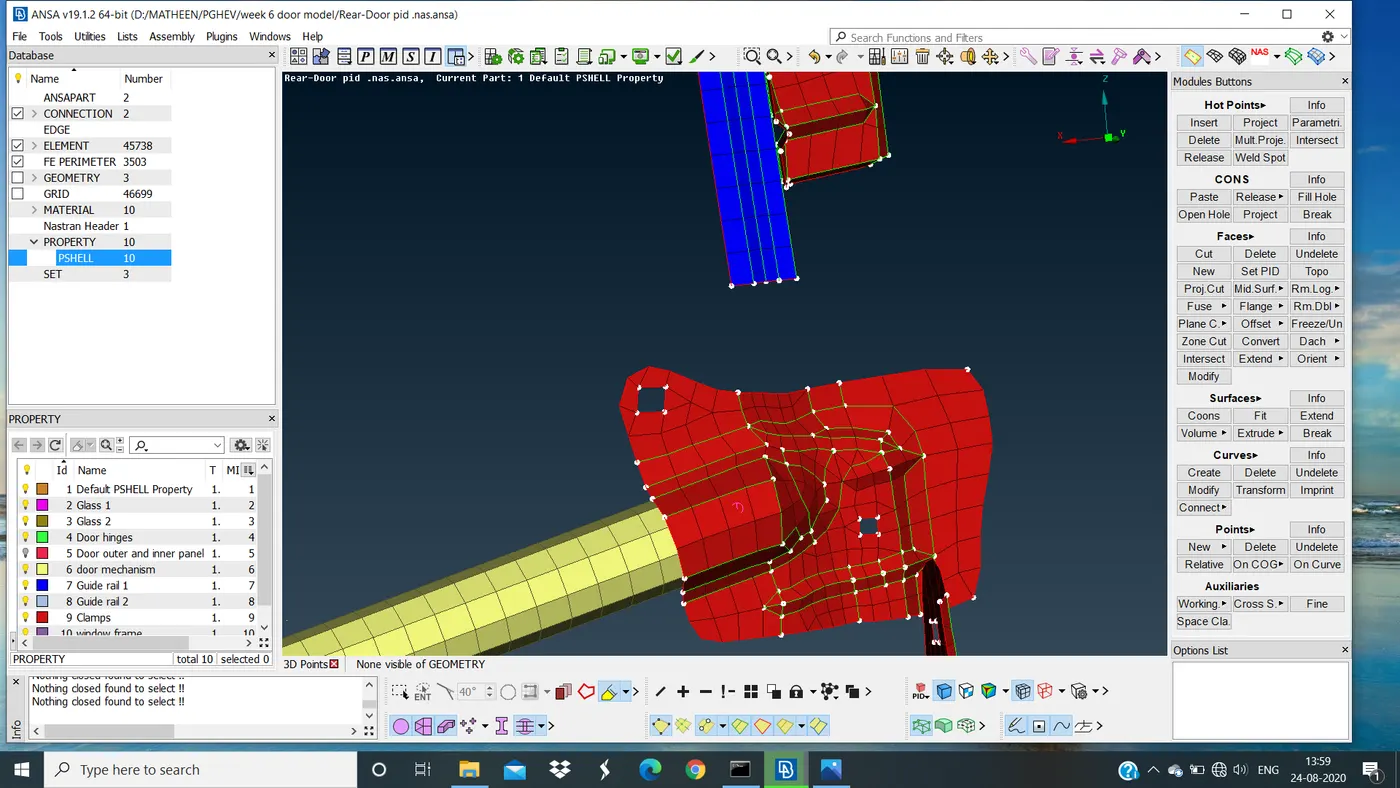

                                                                                 COG CREATED

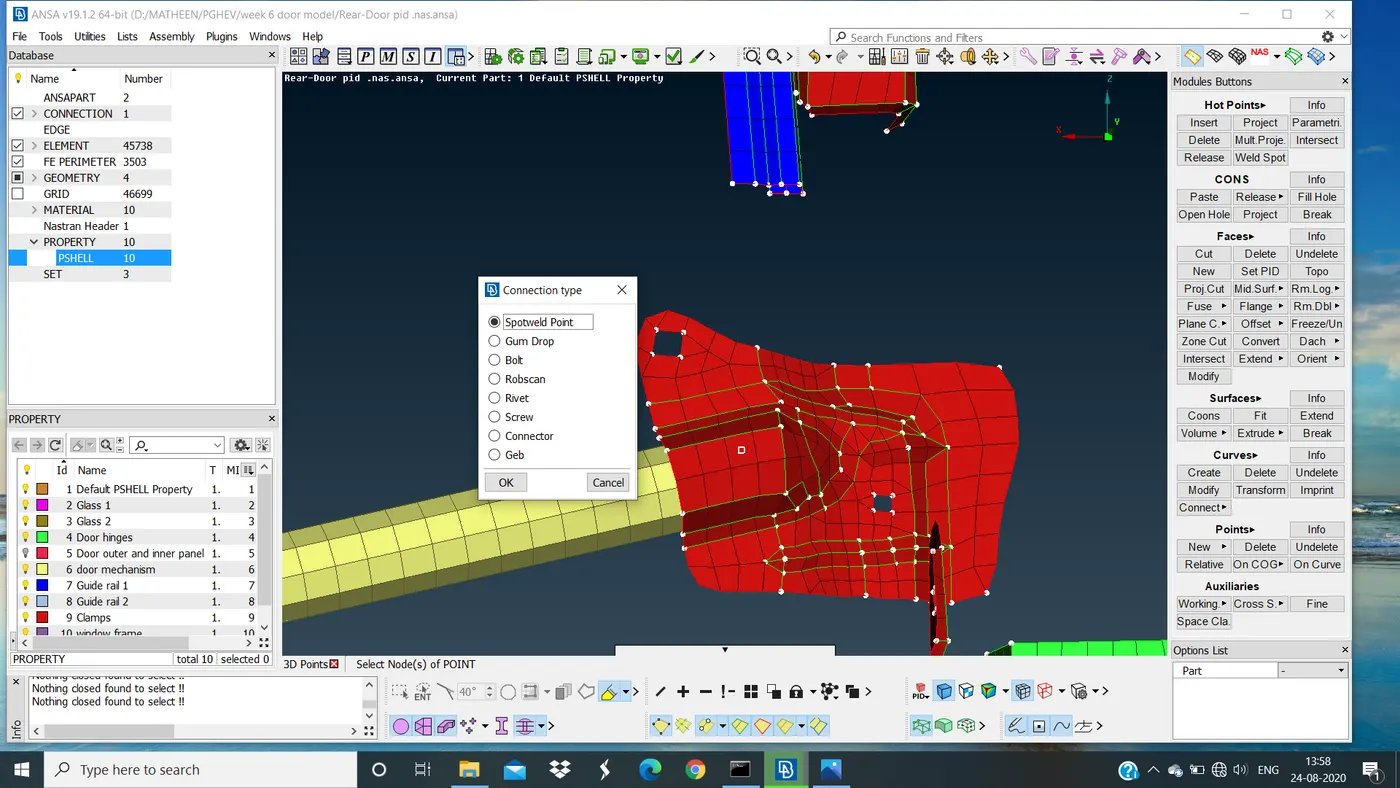

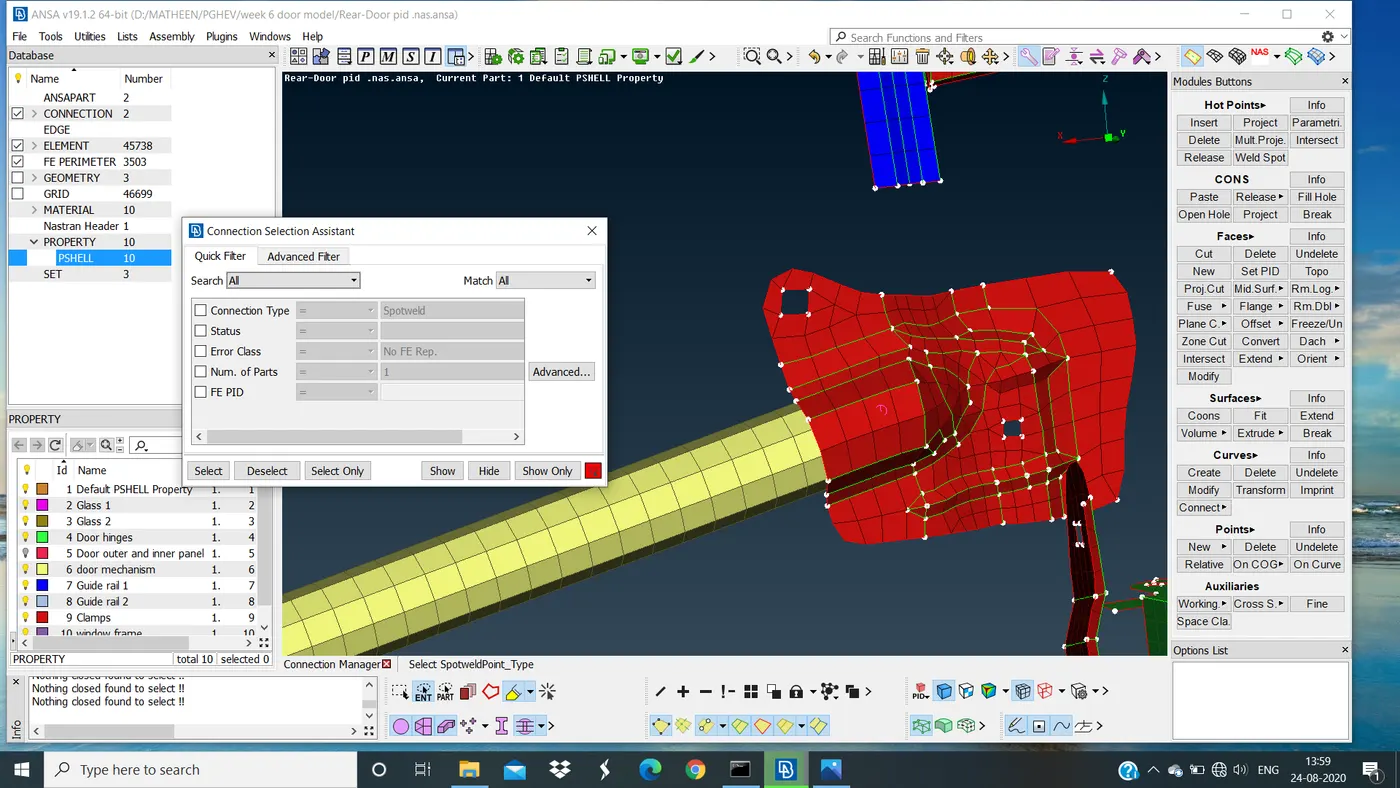

                                                                          SPOT WELD SELECTION

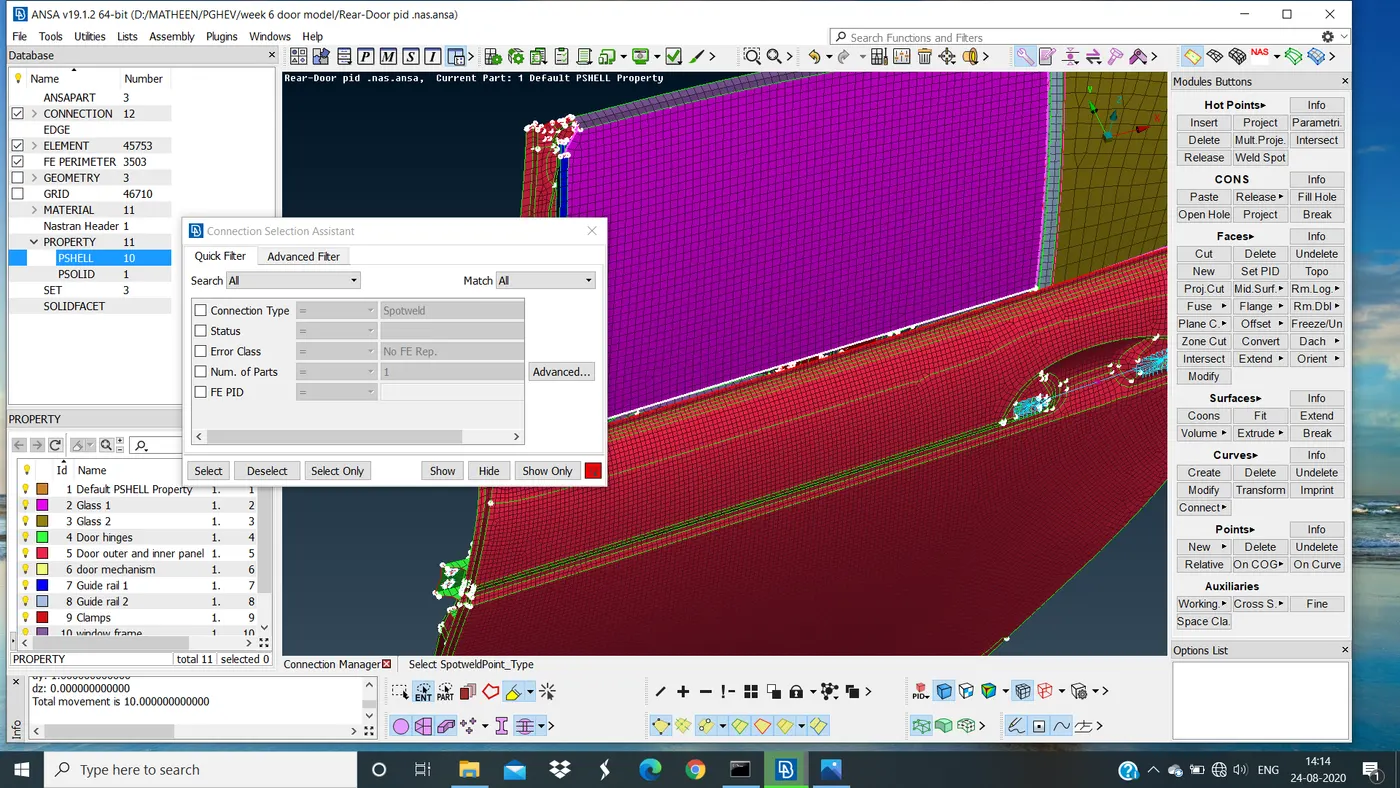

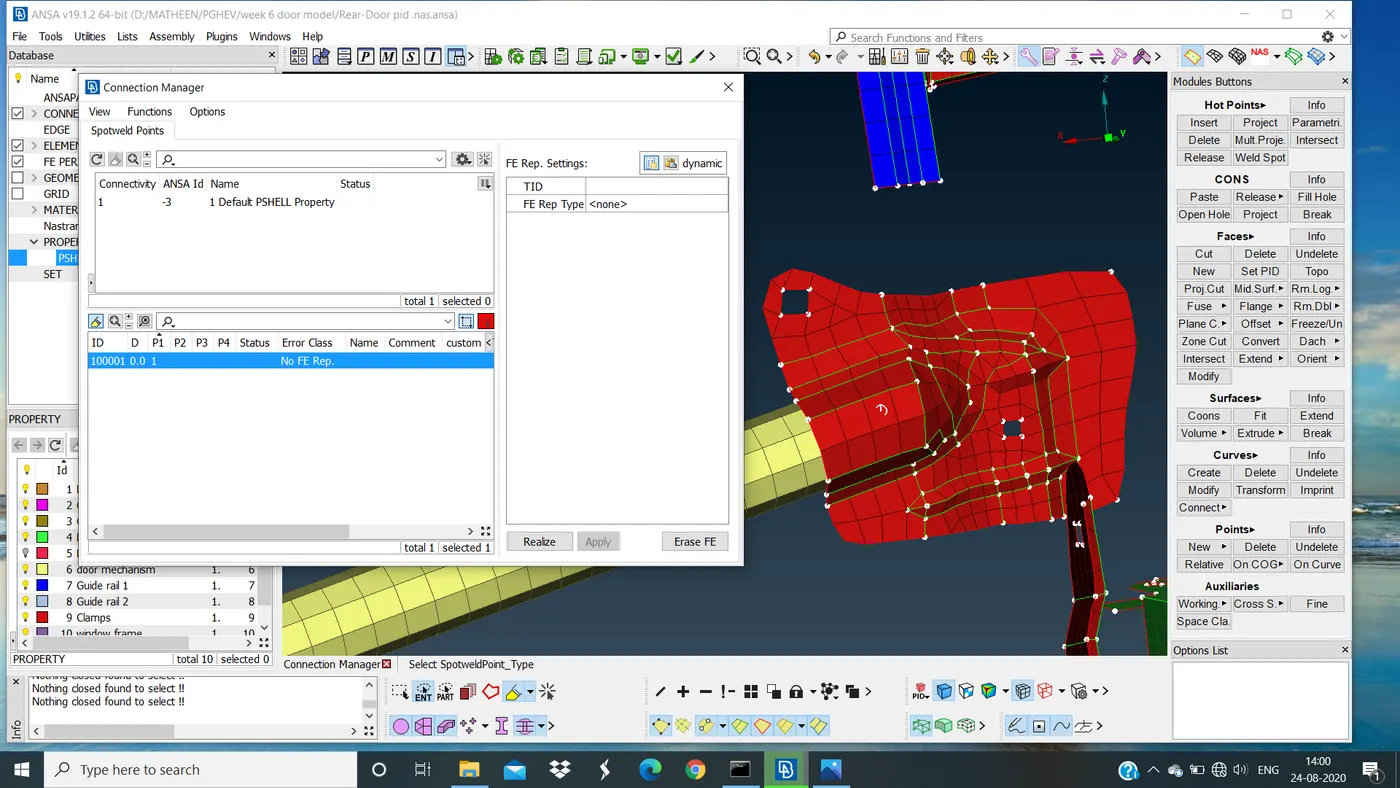

                                                                          CONNECTION MANAGER



                                                                          DETAILS OF SPOT WELD



                                                                           ASSIGNING P1 AND P2

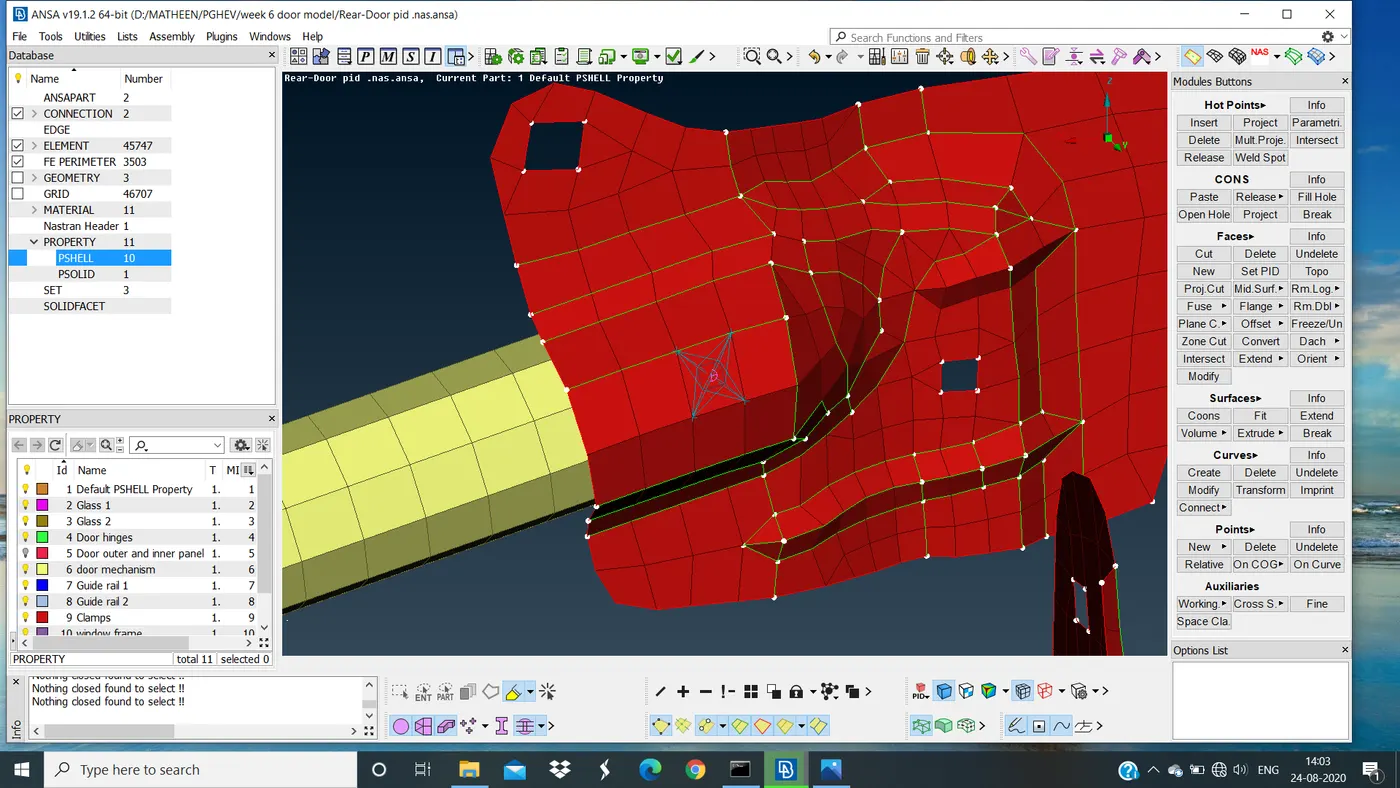

                                                                           SPOT WELD GENERATED



      STEP 6: DOOR HANDLE CONNECTION

          Door handle part is mass containing so here we need give rigid connections to two holes then again we need to connect those master nodes by using RBE2 two nodes after connecting those two master nodes . one center node will form at the mid of the handle there we need to give mass connection by using CONMI 2

          To give the mass following procedure to be used

          GOTO NASTRAN>>ELEMENTS>>CONMI>>CONMI2>>NODES>>NEW PROPERTY TAB WILL OPEN>>GIVE MASS VALUE (mass in tonnes 1000=0.001)>>OK



                                                                NODES FORMATION AT FIRST HOLE



                                                                RIGID CONNECTION AT FIRST NODE



                                                             NODE FORMATION ON SECOND HOLE

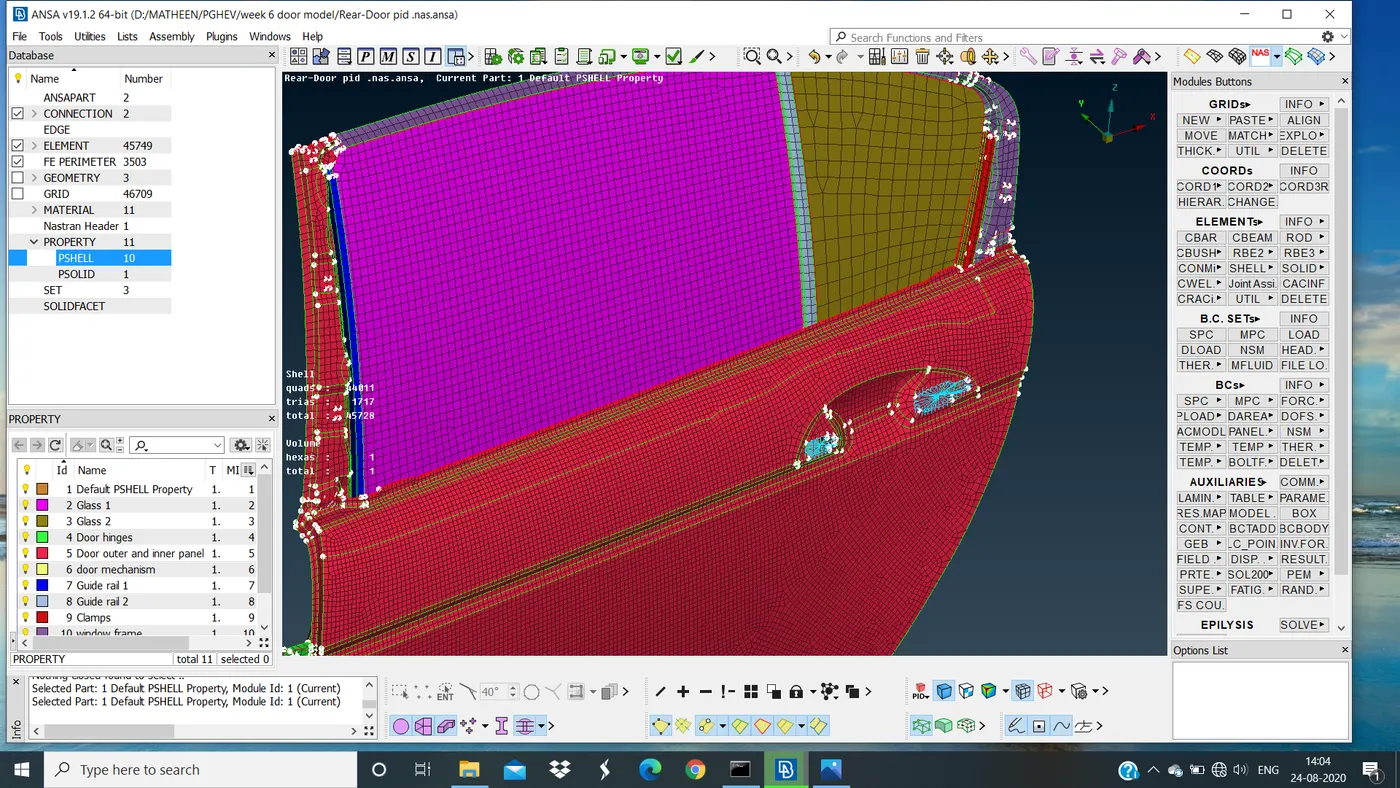

                                                             CONNECTING TWO MASTER NODES

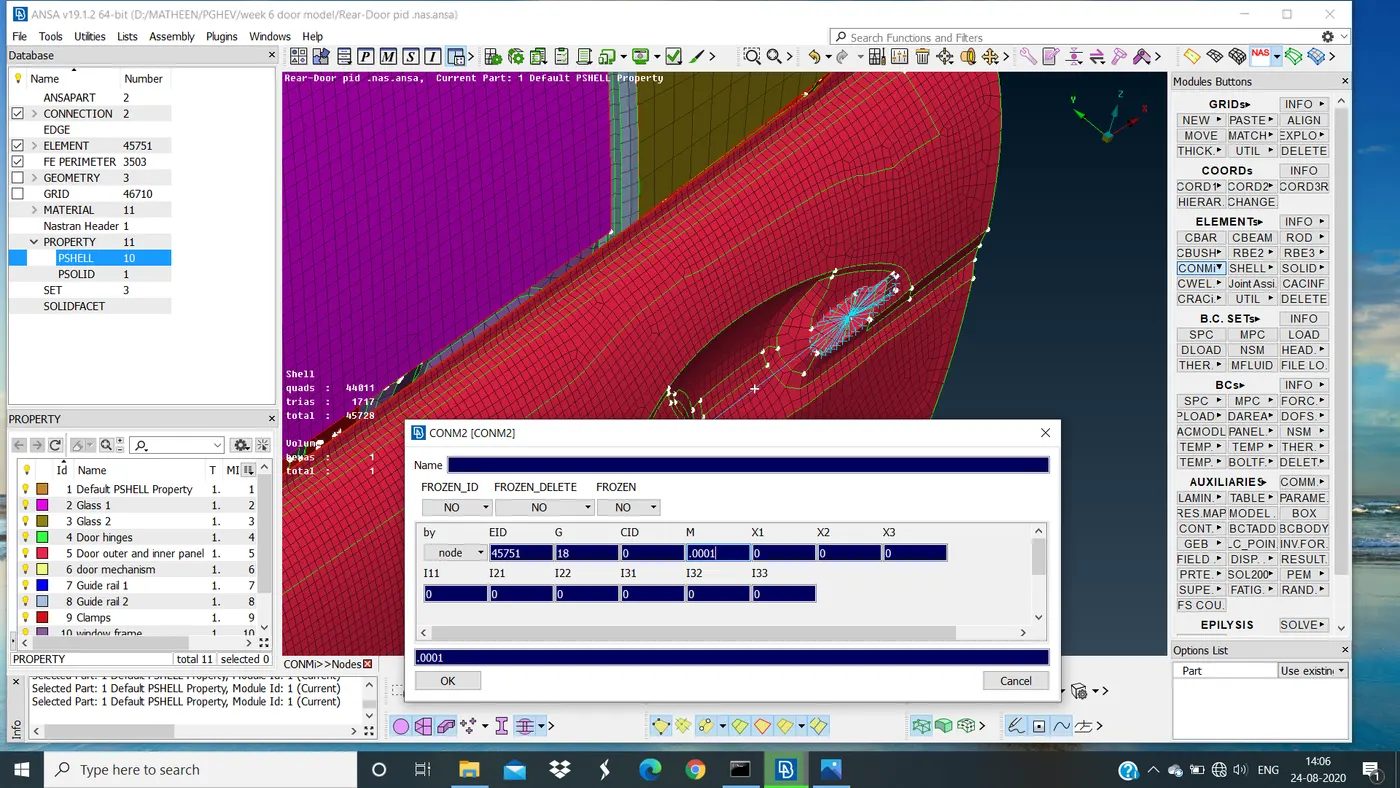

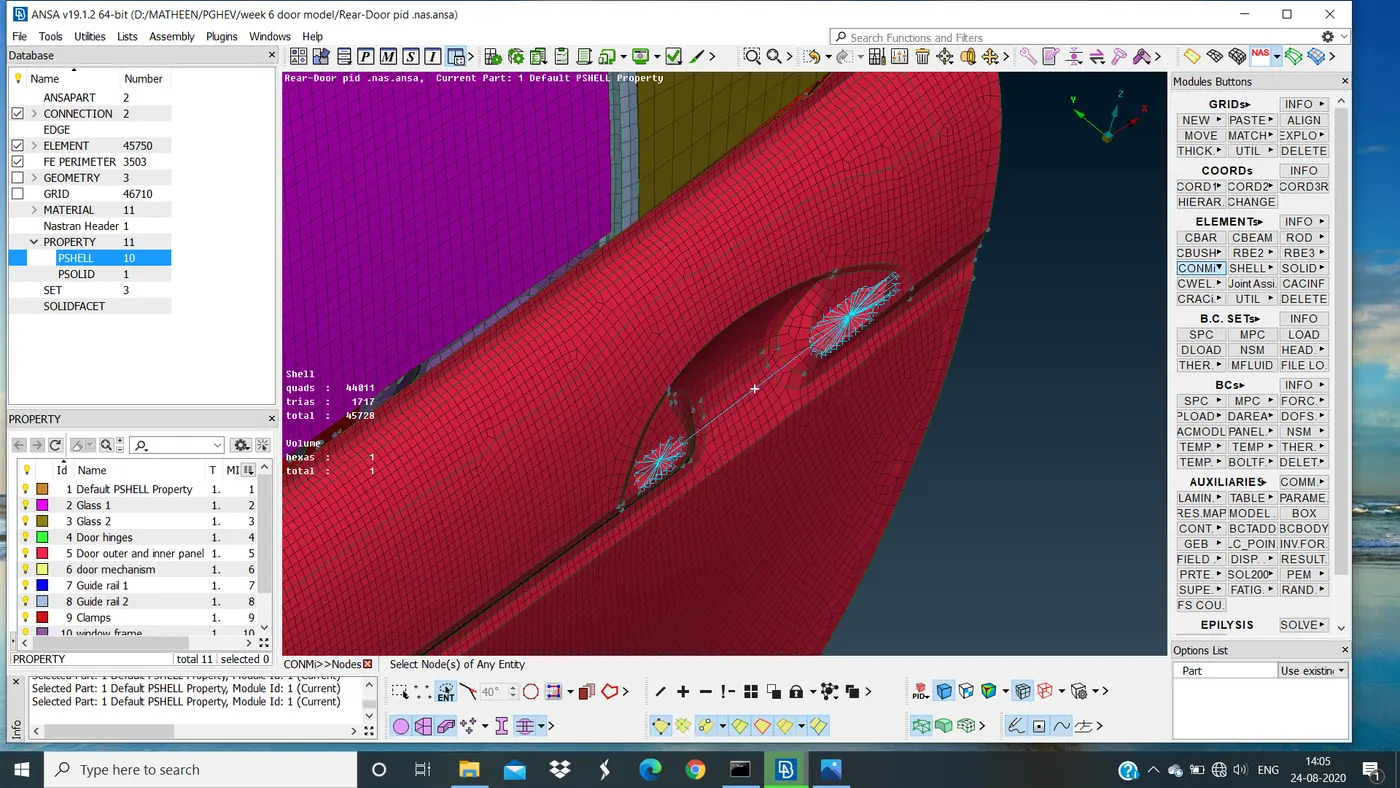

                                                                 APPLYING MASS AT THE MID NODE



                                                             MASS IS GENERATED AT MID OF HANDLE



      STEP 7: WINDOWS CONNECTION

          To perform connection to the window parts there is some procedure to be followed

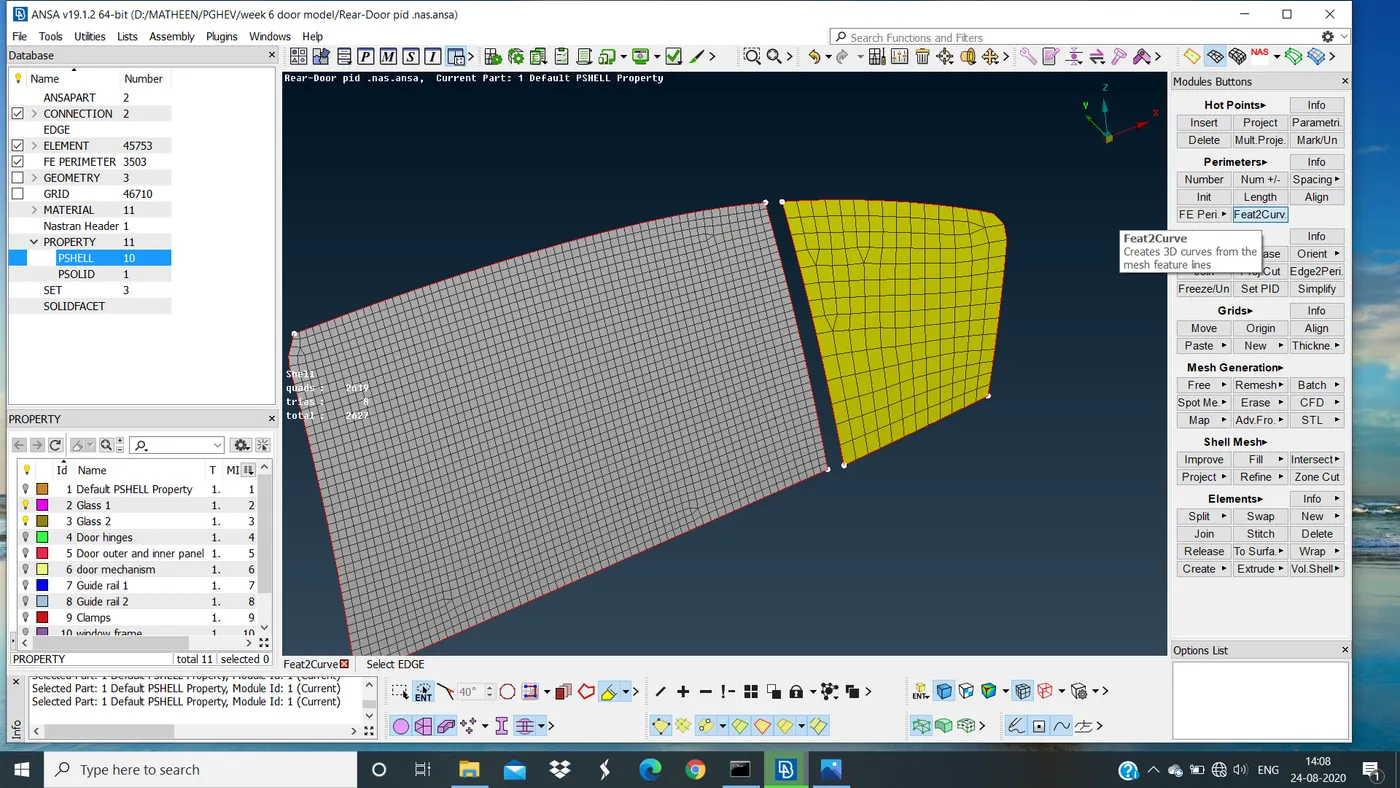

          First create curve on windows border by using FEAT 2 CURVE under mesh mode

          MESH MODE>>PERIMETER MODULES>>FEAT 2 CURVES>>CREATE A CURVE BY SELECTING ENTITIES

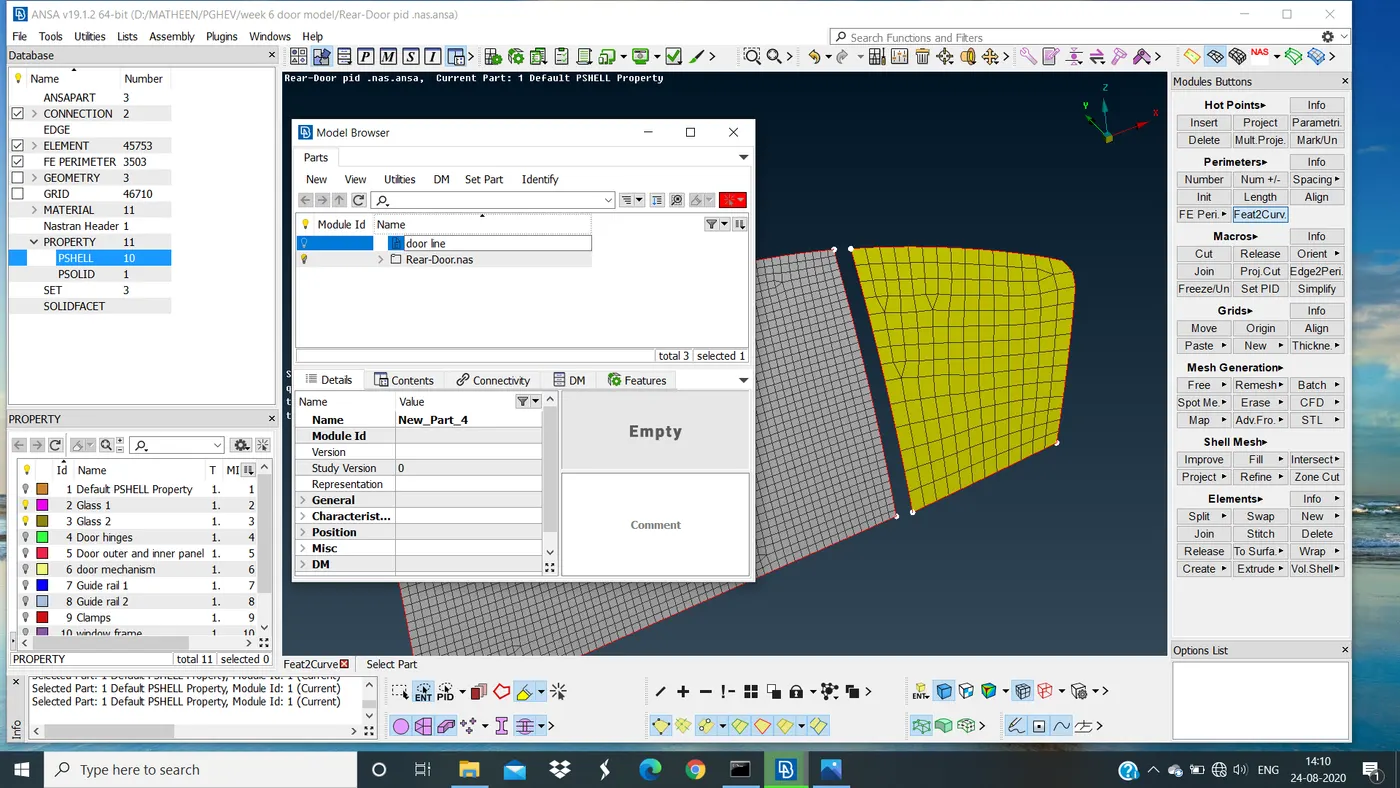

                                                              CREATE NEW PART IN MODEL BROWSER

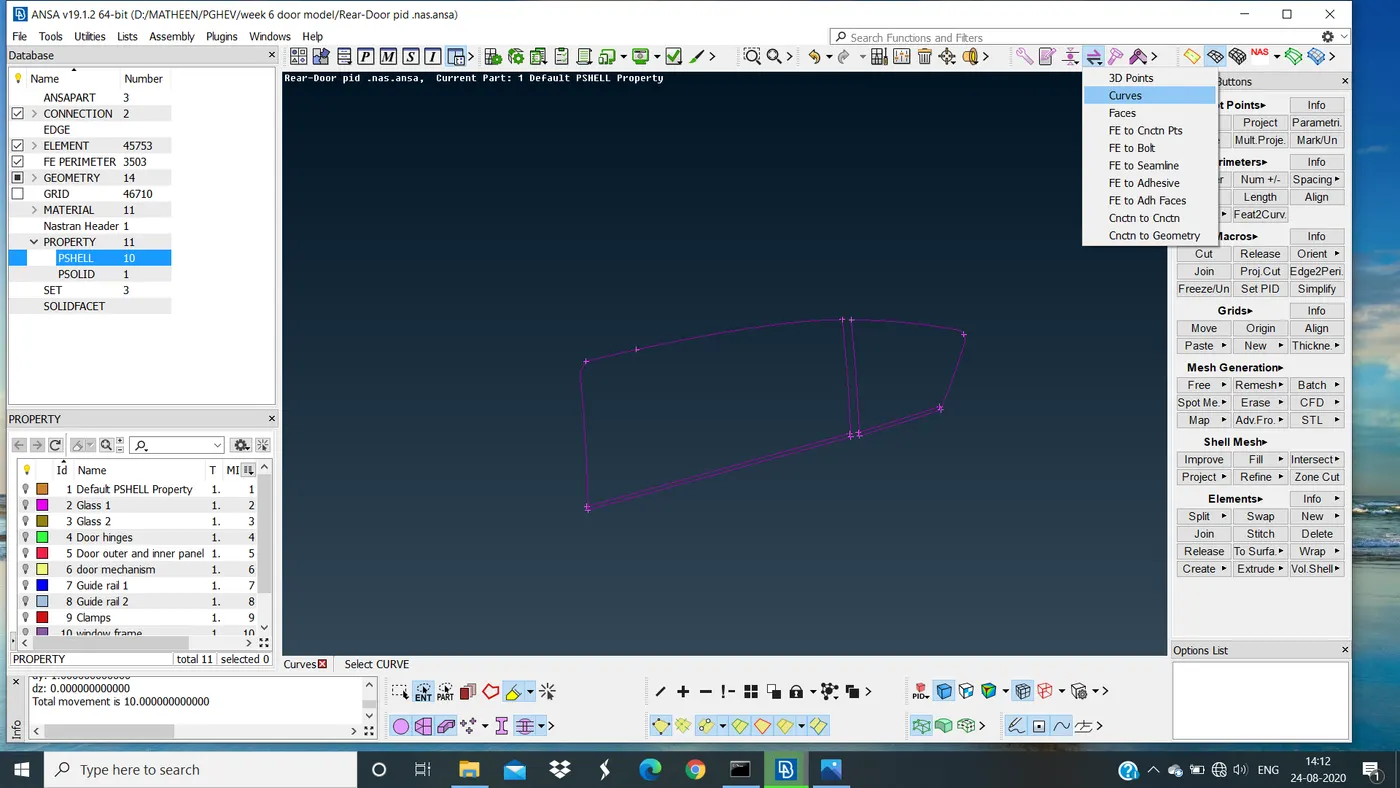

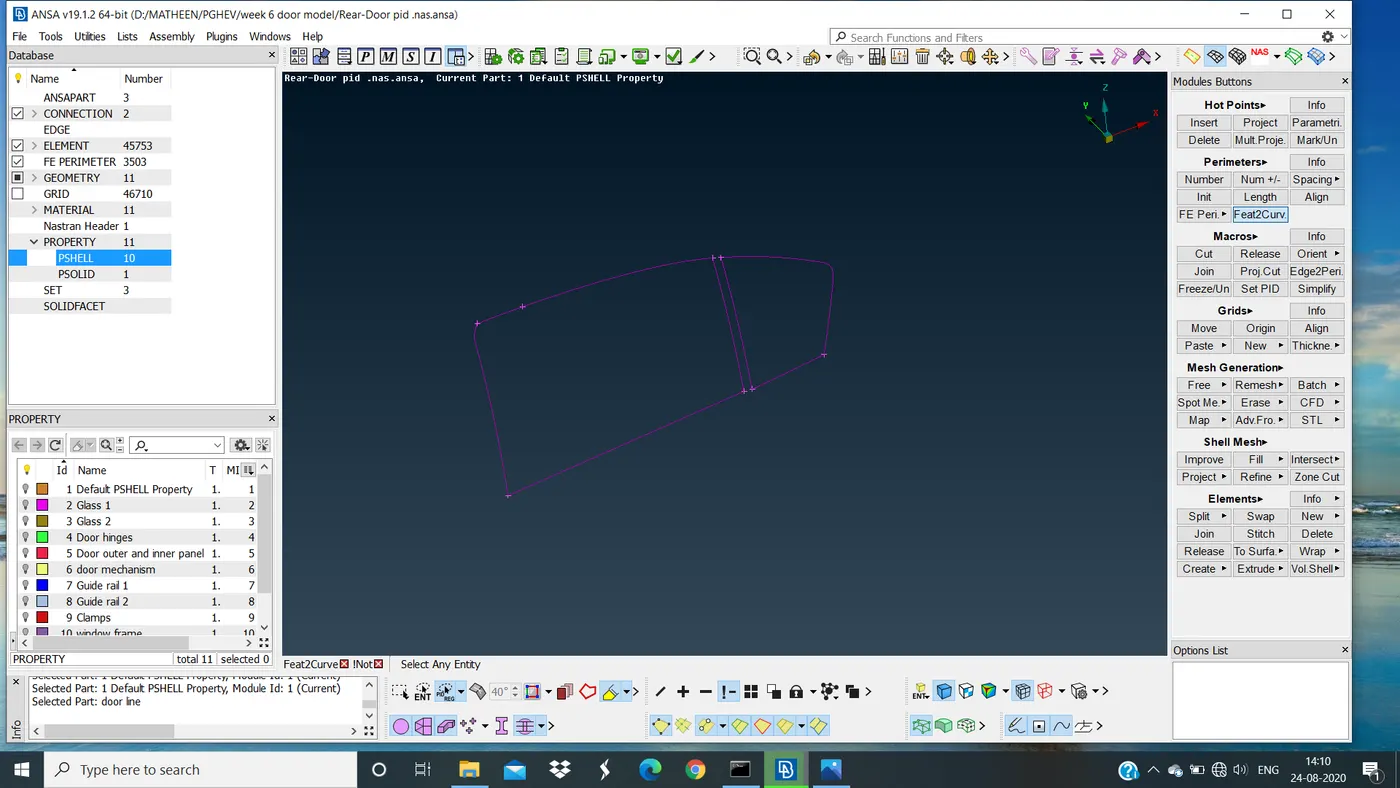

                                                                               CURVES CREATED



      After creating a curve

      Convert curve to spot line

      GOTO CONVERT>>SELECT CURVE>> SPOT LINE

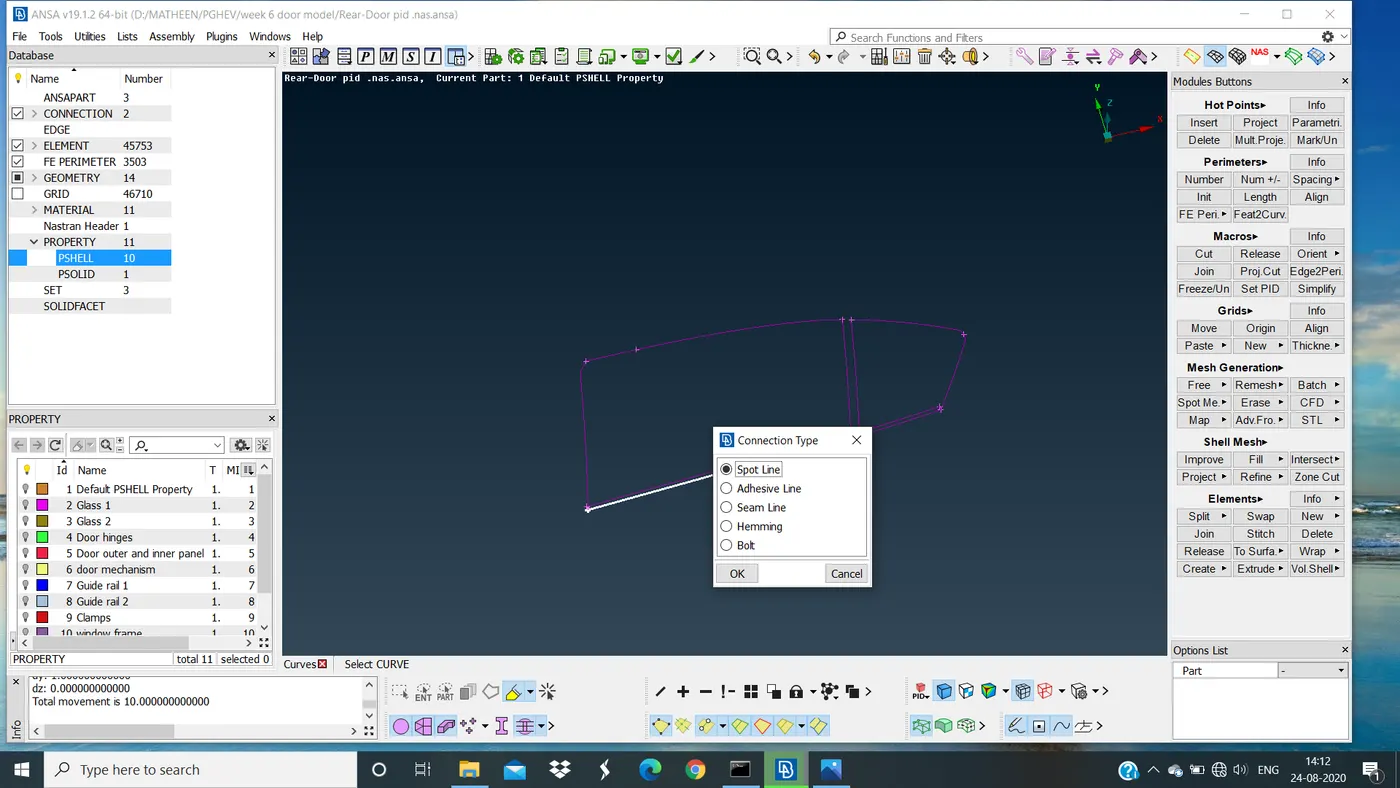

                                                        SELECTING CURVE TO CONVERT SPOT LINE





                                                                             SPOT LINE CREATED

      After creating a spot line

      GOTO CONNECTION MANAGER>>SELECT THE SPOT LINE>>ASSIGN P1 AND P2 >>SELECT FE REP>> RBE3-CBUSH-RBE3>>GIVE SEARCH DISTANCE 50>>ENABLE (keep all branches)>> CREATE NEW PID(CONTROL+SHIFT+?)>>NEW WINDOW OPENS>>CREATE NEW PART ID>> DOUBLE CLICK>>APPLY REALIZE

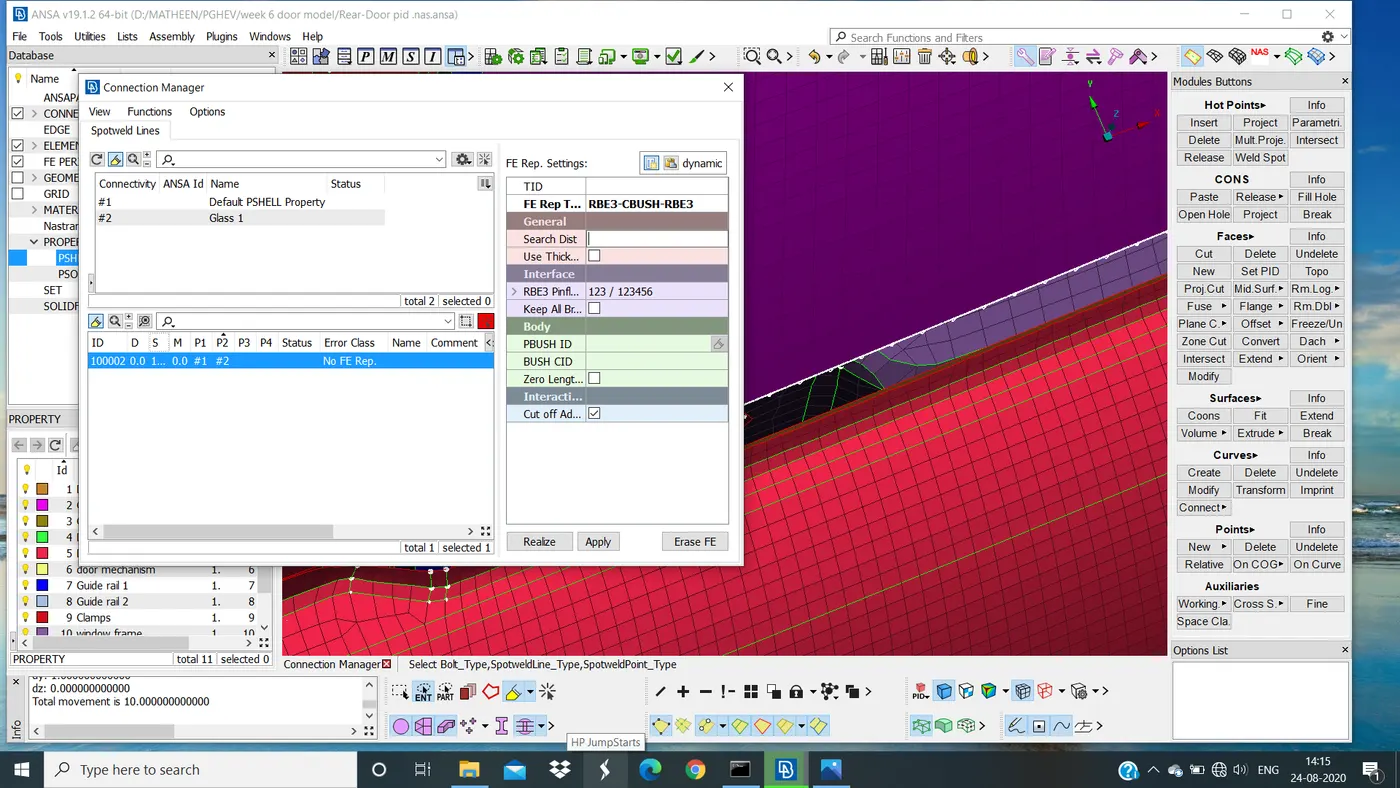

                                                                         CONNECTION MANAGER



                                              ASSIGNING P1 AND P2 AND FE REP AS RBE3-CBUSH-RBE3

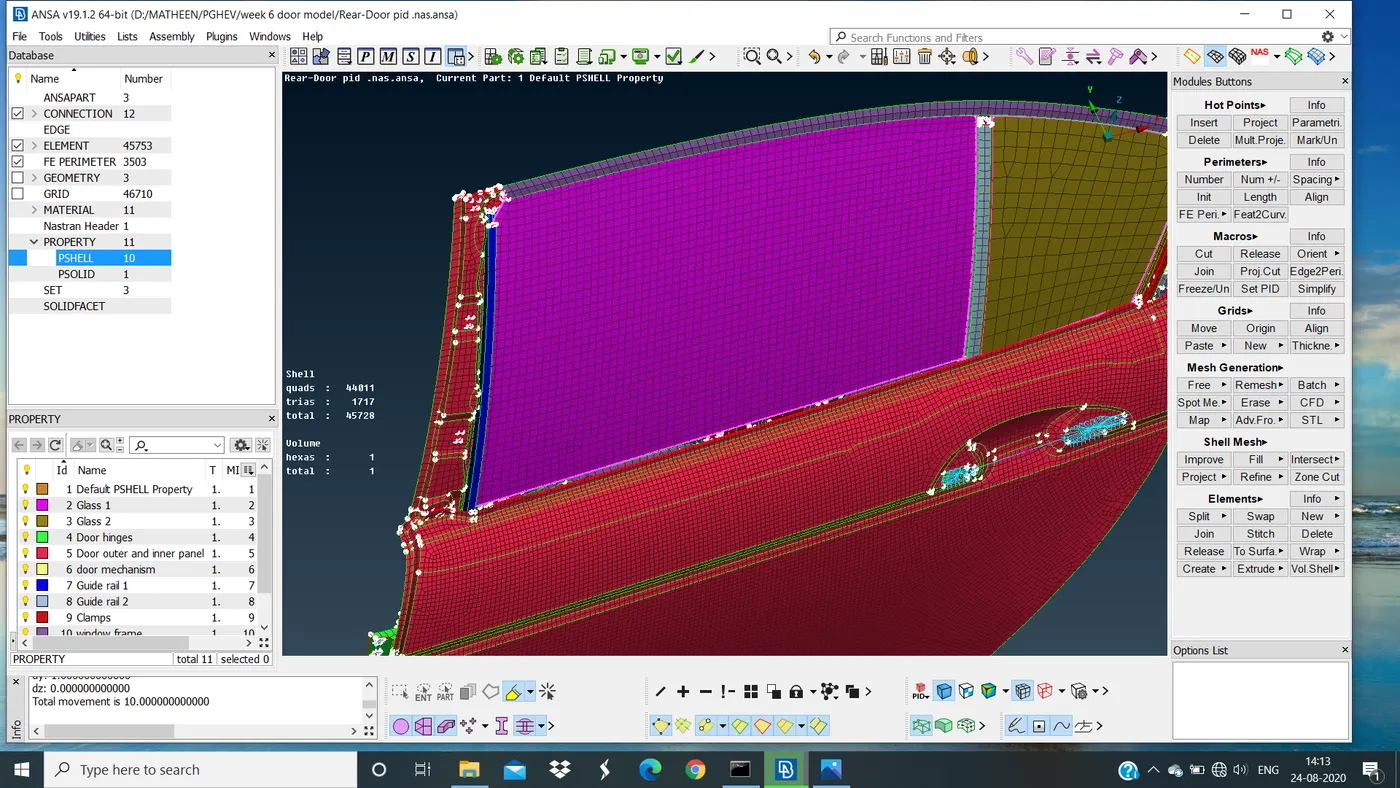

                                                                            CBUSH GENERATED

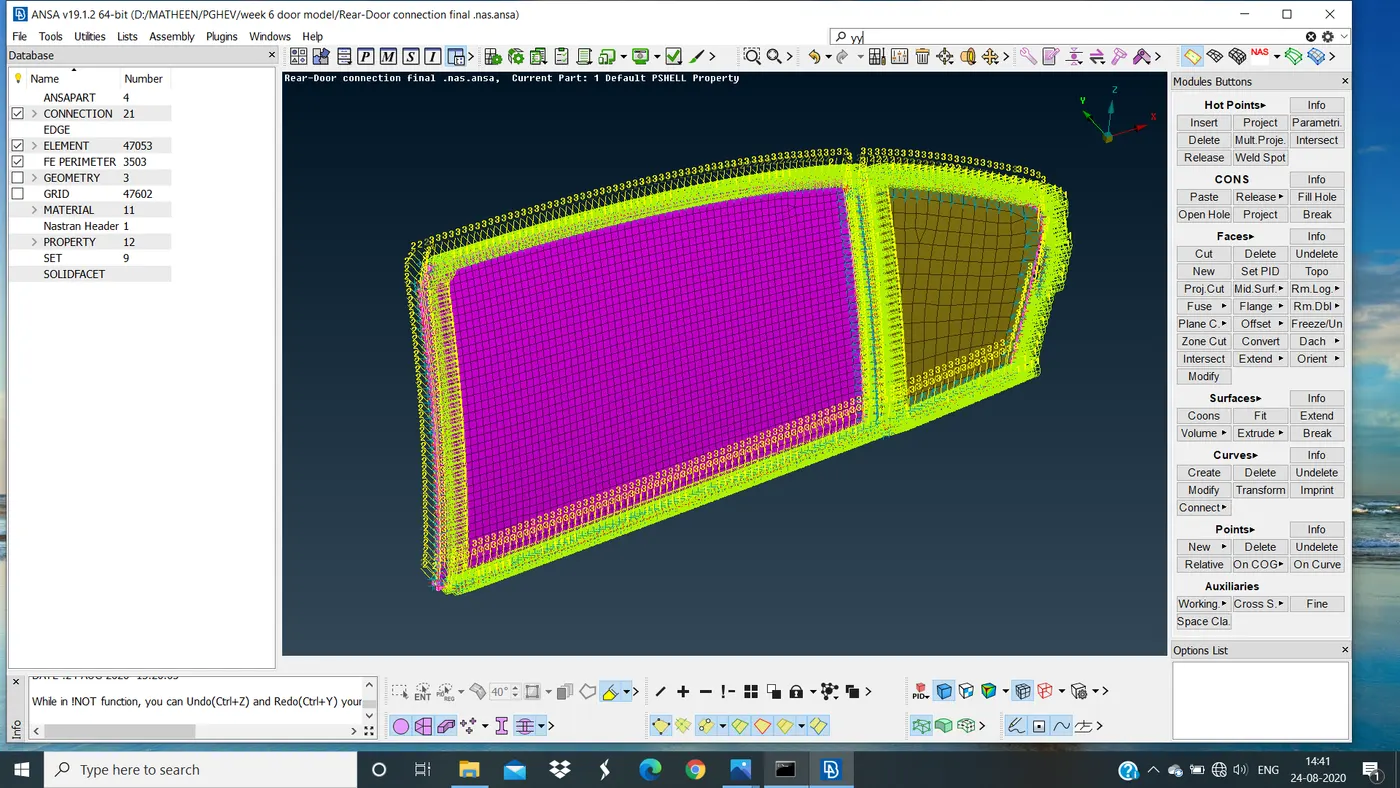

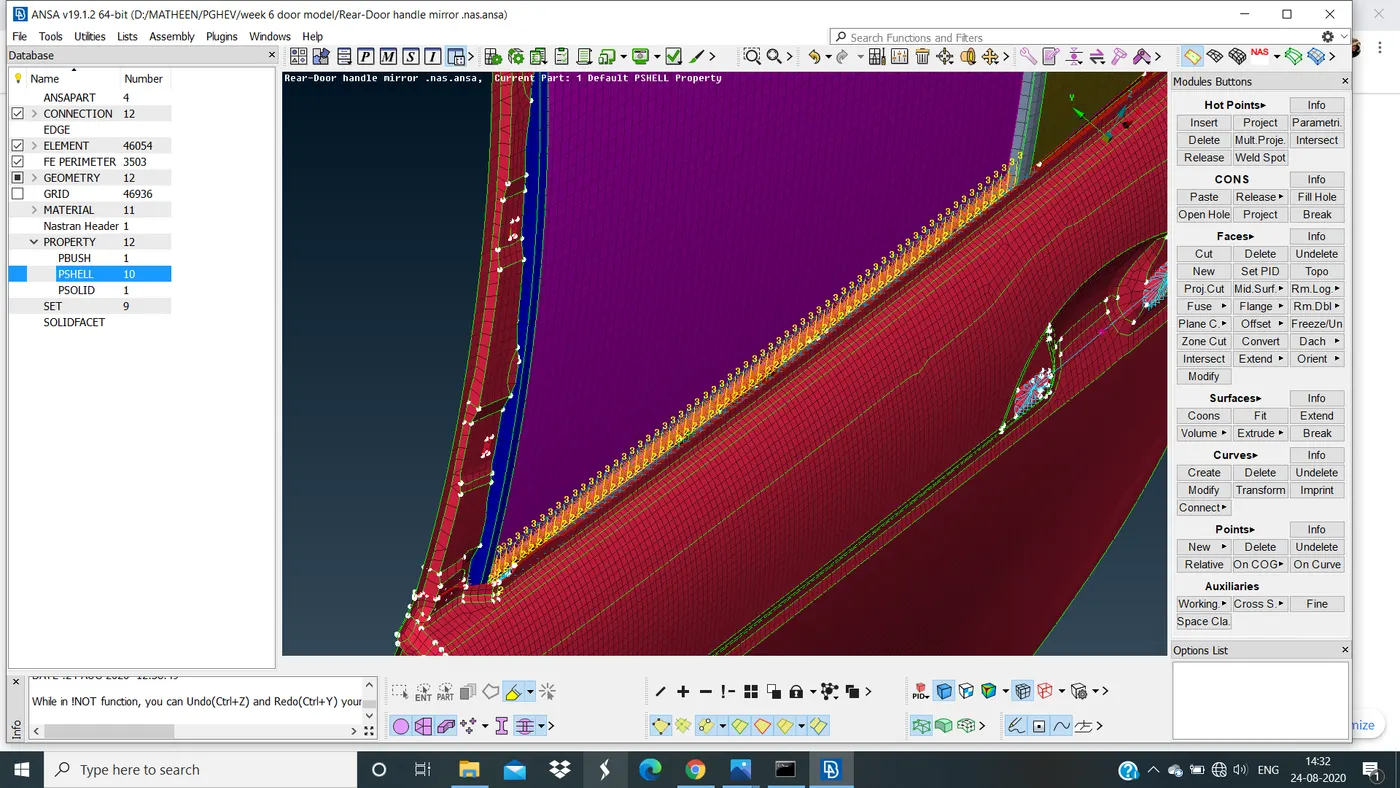

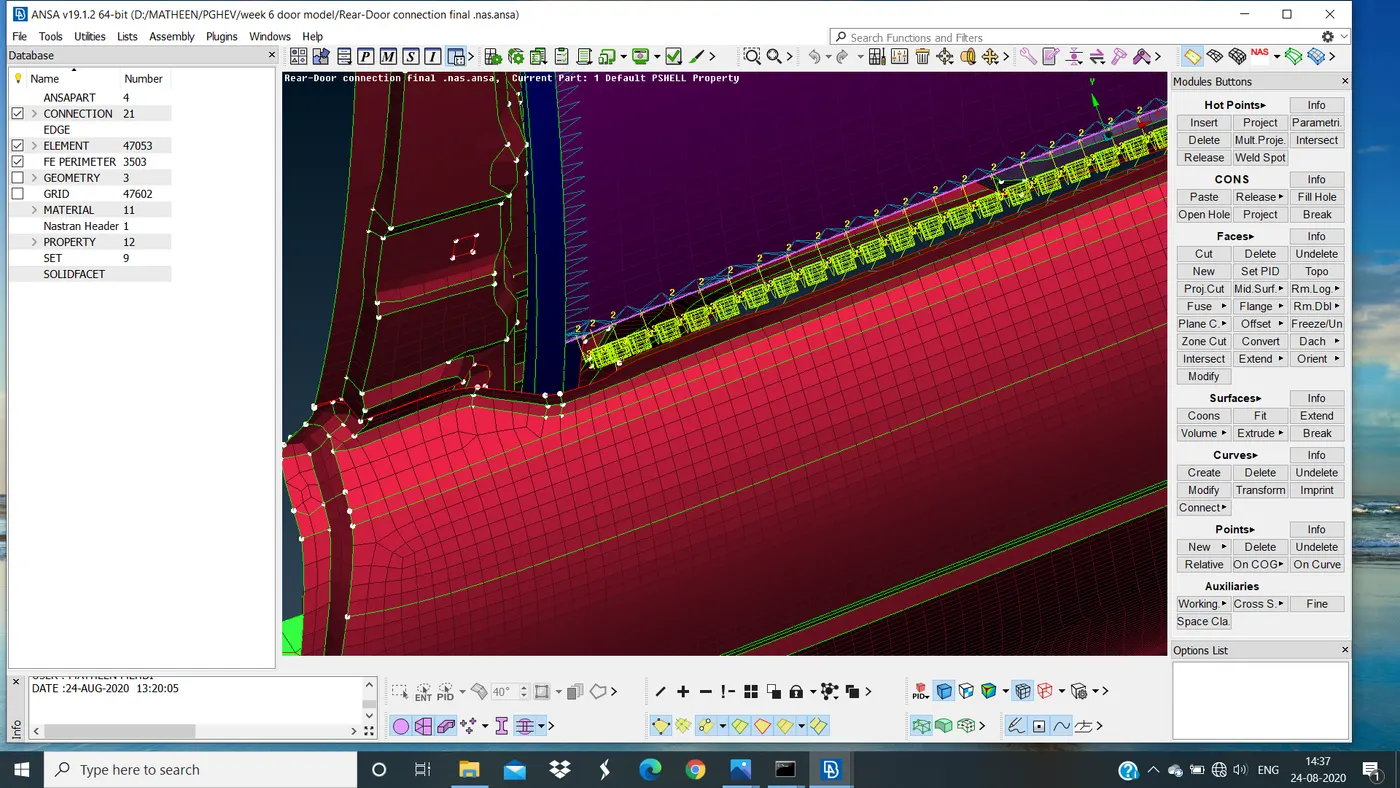

                                                                  FINAL CONNECTION OF CBUSH



      STEP 8: PROPER ALIGNING OF CO-ORDINATES

          Once the connection is done the alignment is to be made according to global co-ordinate to make stable.

          GOTO DATABASE LEFT SCREEN>>SELECT ELEMENTS>>OPEN CBUSH>>ENABLE ORIENT>>SELECT ALL THE ELEMENTS OF CBUSH>>RIGHT CLICK>>MODIFY>>ORIENT WITH CORD>>CID=0>>OK

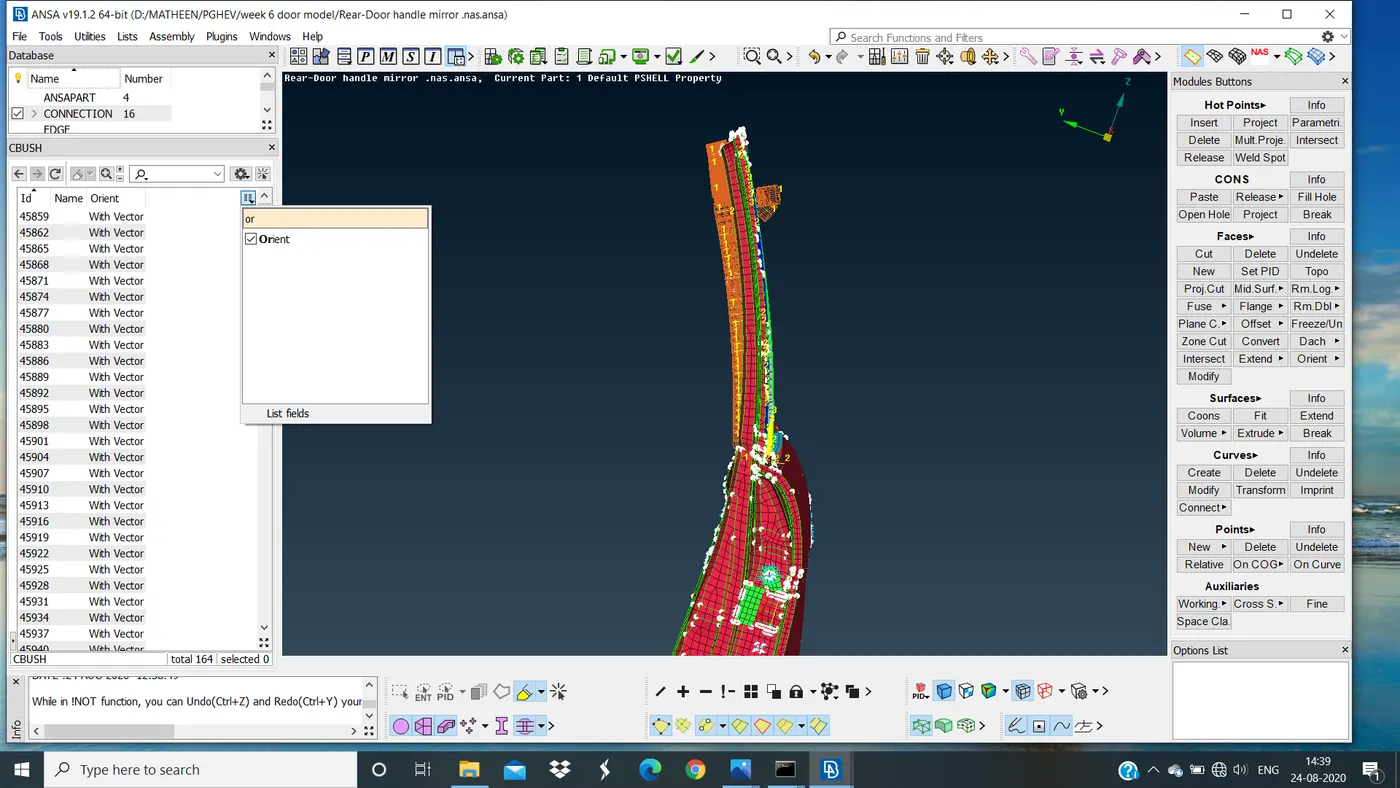

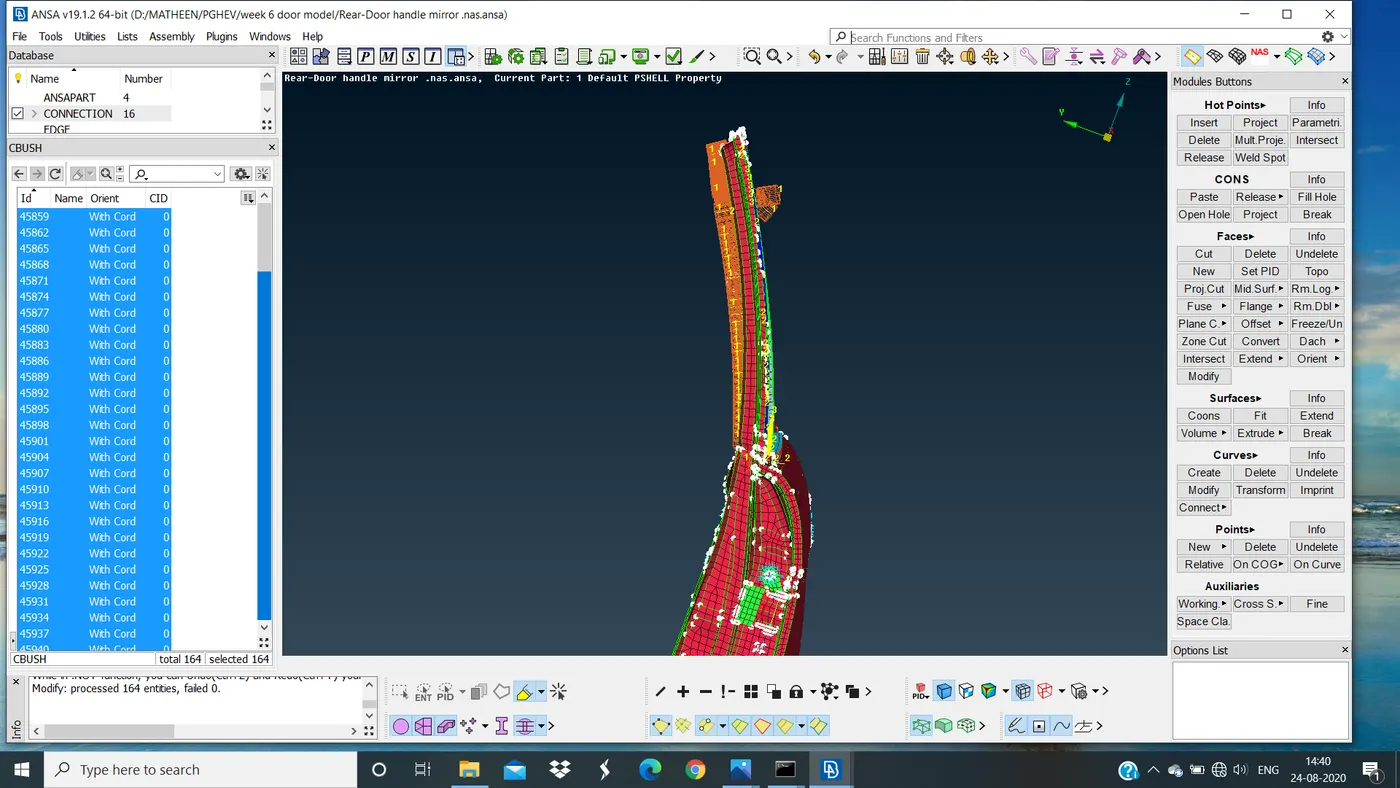

                                                                            ENABLING ORIENT

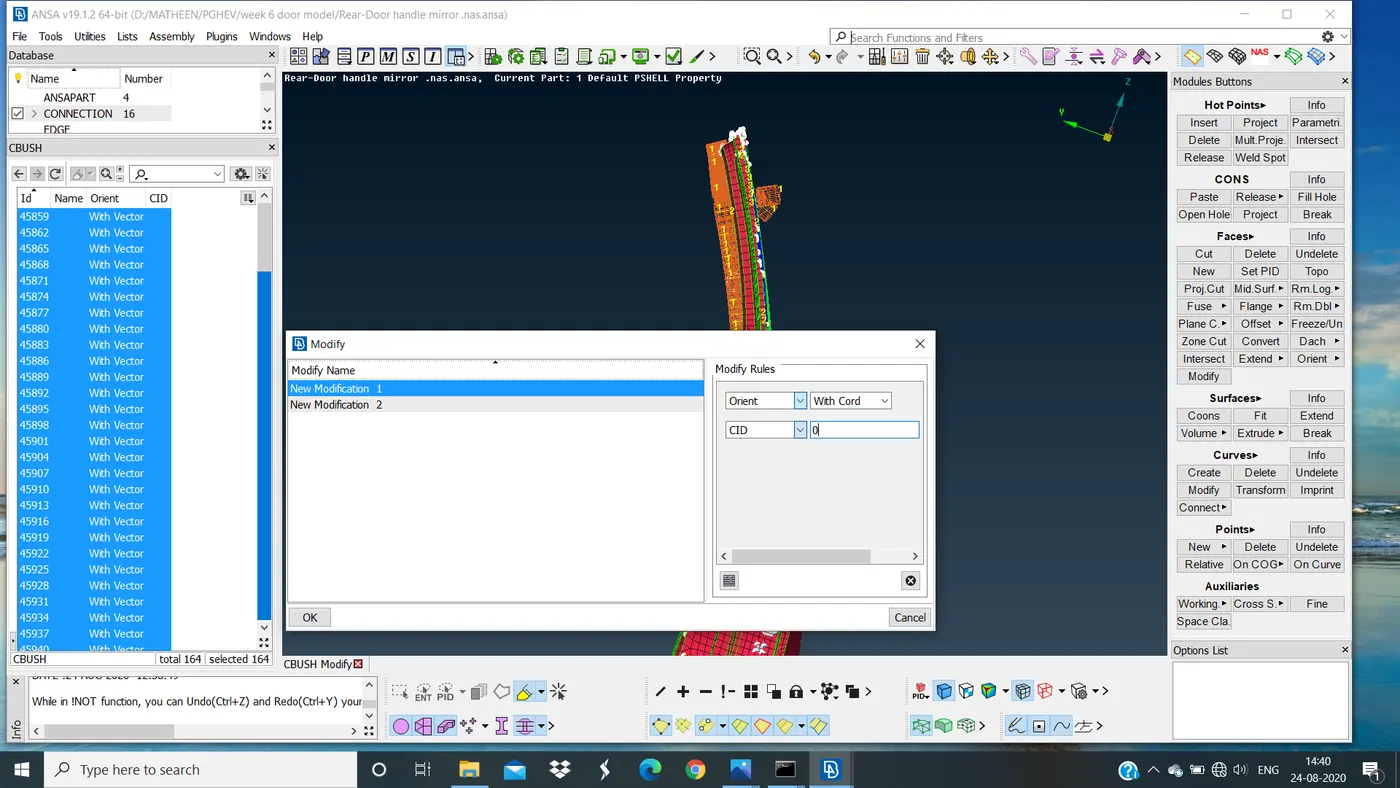

                                                                               MODIFYING





                                                  FINAL ALIGNED ACCORDING TO GLOBAL CO-ORDINATE



      RESULT: THE CONNECTIONS HAS BEEN MADE TO THE GIVEN FE REAR DOOR MODEL

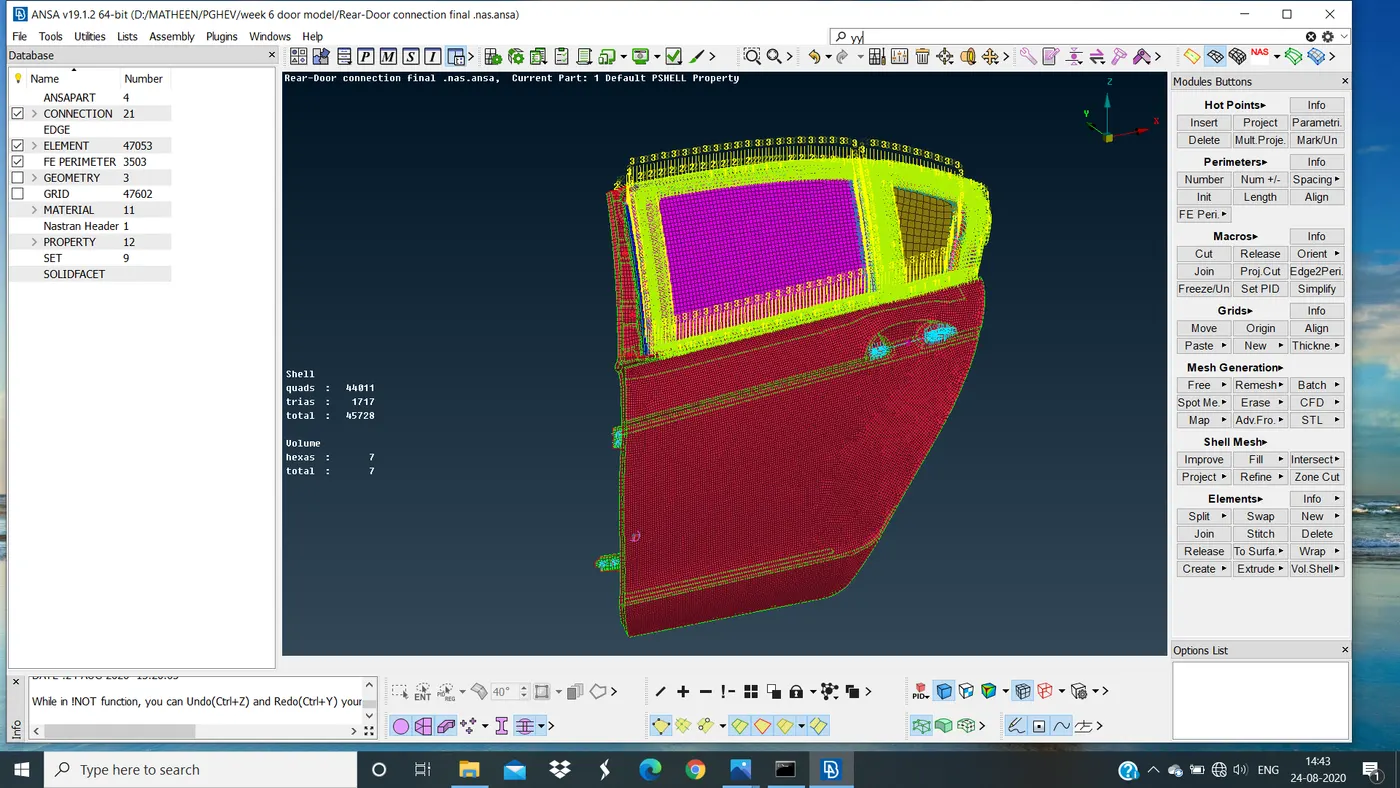

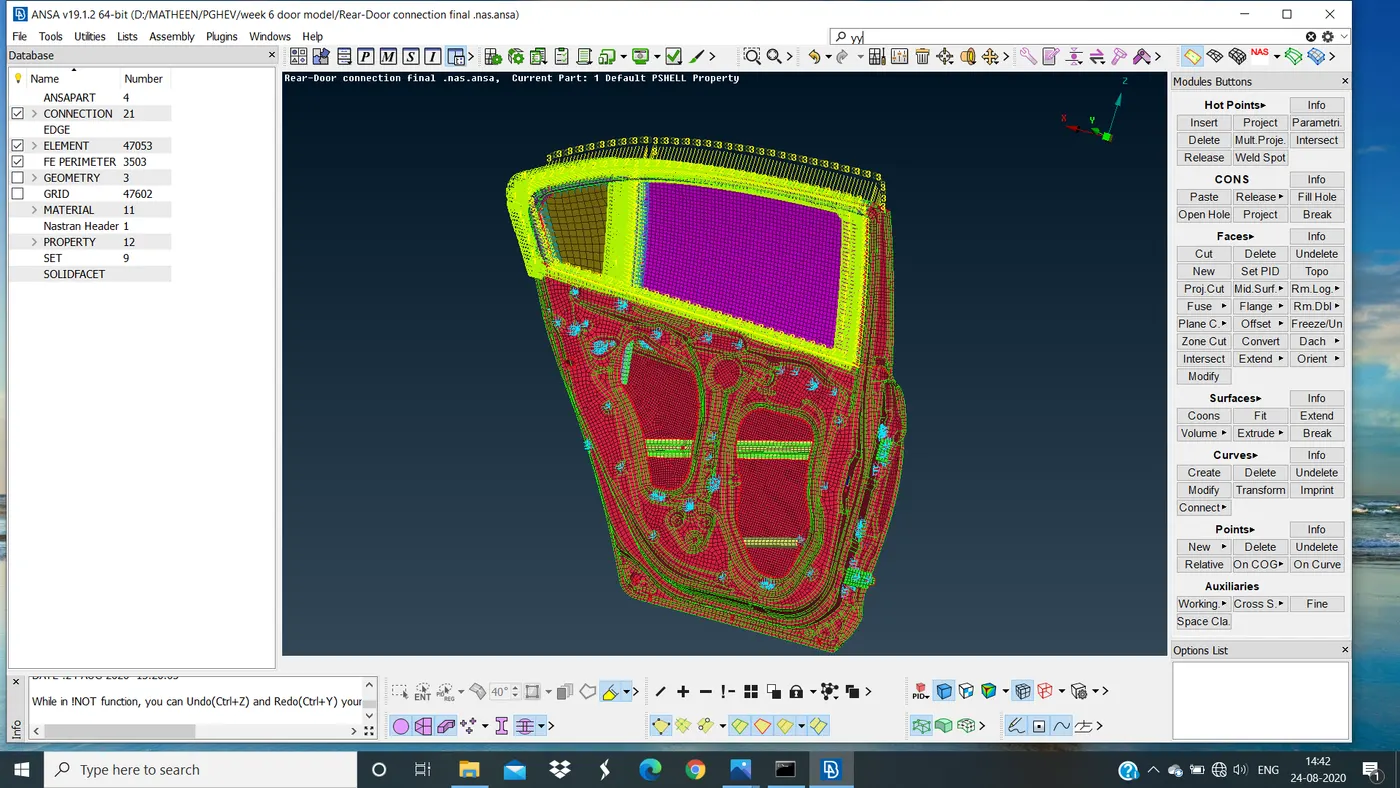

                                                  FINAL CONNECTIONS HAS DONE FORGIVEN MODEL



      LEARNING OUTCOMES:

1. Learned how to import the NAS, file into ANSA.
2. Learned how to assign the different PID's for door model.
3. Learned how to make connections of bolt by using RBE2 by many nodes,RBE2 by two nodes'
4. Learned how to create a bolt by auto method.
5. Learned how to visualise the weld spot where the data is not given.
6. Learned how to give weld connection.
7. Learned how to apply mass by using CONMI.
8. Learned how to make windows connections by using RBE3-CBUSH-RBE3.



      CONCLUSION:

              The given car rear model is done with connections here visualizing the parts where to weld and where to give connection is very much important before giving the connection first we need to visualize and the model is ready with all connection .
