Week 3: Flow over a backward facing step
Aim:
• To simulate the airflow over a backward-facing step using converge studio.
• To study the turbulent flow characteristics downstream to backward-facing step. • To compare the flow over backward-facing step for different mesh grading of 2e-3, 1.5e-3, and 1.0e-3.
Theory:
Flow separation:
Flow separation or boundary layer separation is the detachment of a boundary layer from a surface into awake. Separation occurs inflow that is slowing down, with pressure increasing, after passing the thickest part of a streamlined body. or It is a point at which the velocity gradient at the surface in a direction normal to the wall decreases to zero.

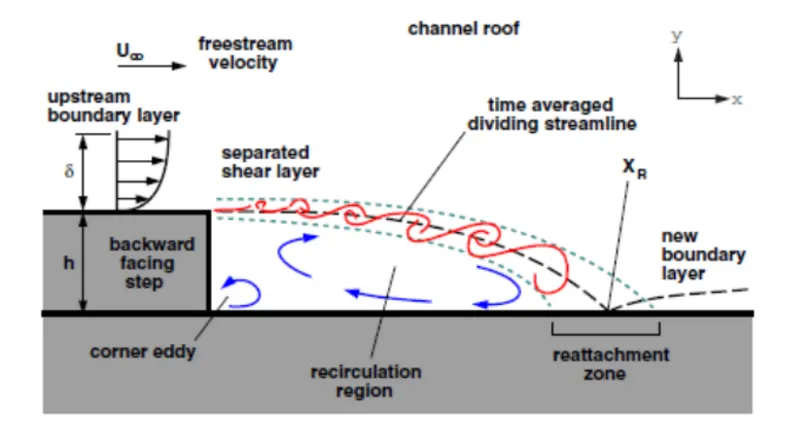

This separation happens due to the presence of either viscosity or pressure gradient or due to abrupt change in geometry. In most times it occurs due to the change in the geometry at sharp edges. From the below figure the flow was separated due to a change in the geometry. It shows the recirculation zone which happens due to flow separation. In this type of zones, zone eddies form i.e flow flows in a circular fashion. After that the recirculation zone is reattached and flow again happens over the surface.
Procedure:

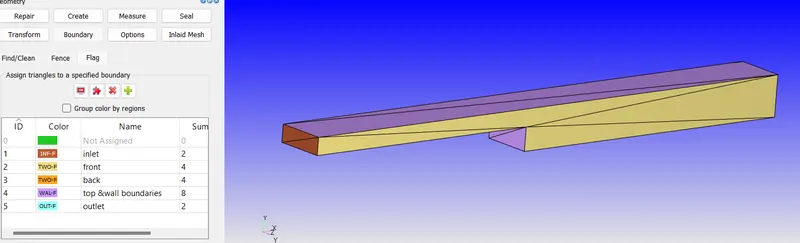

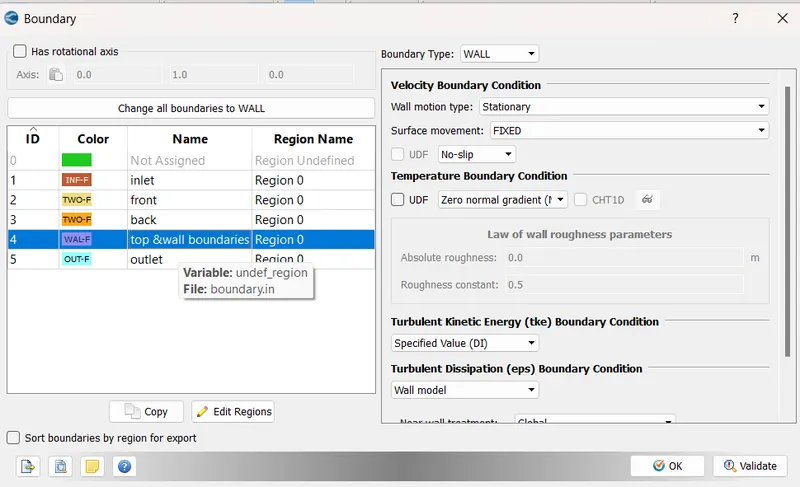

1. Load the geometry and assign the boundaries and check the direction of the normals. Actually, the normals should be pointed towards the flow of fluid or air in the channel. Enable the normals by clicking the normal toggle icon which is located on the bottom side in the left panel. If the normals are pointed reverse then select any triangle on the face whose normal is pointed away from the flow and select transform in the geometry toolbox > normal > click on propagate change from single triangle and press apply.

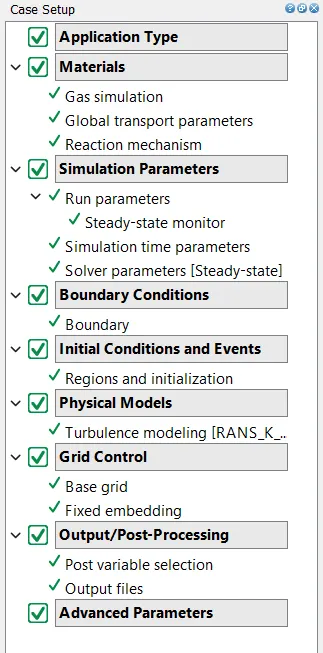

2. case setup
2.1 select application type as time-based. In materials select premixed mixture as air.

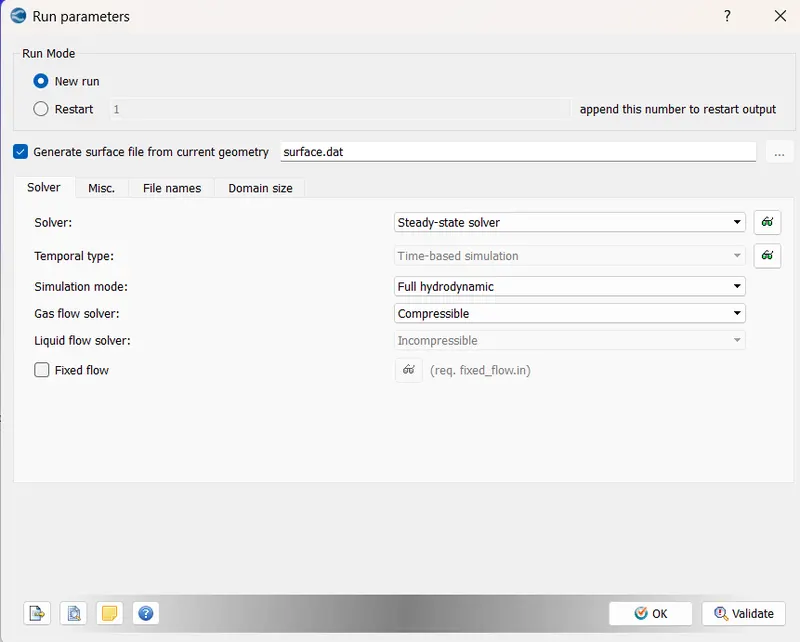

2.2 Run Parameters: Select steady-state solver in the solver and under Misc. uncheck the use shared memory and check the steady-state monitor and click on ok.

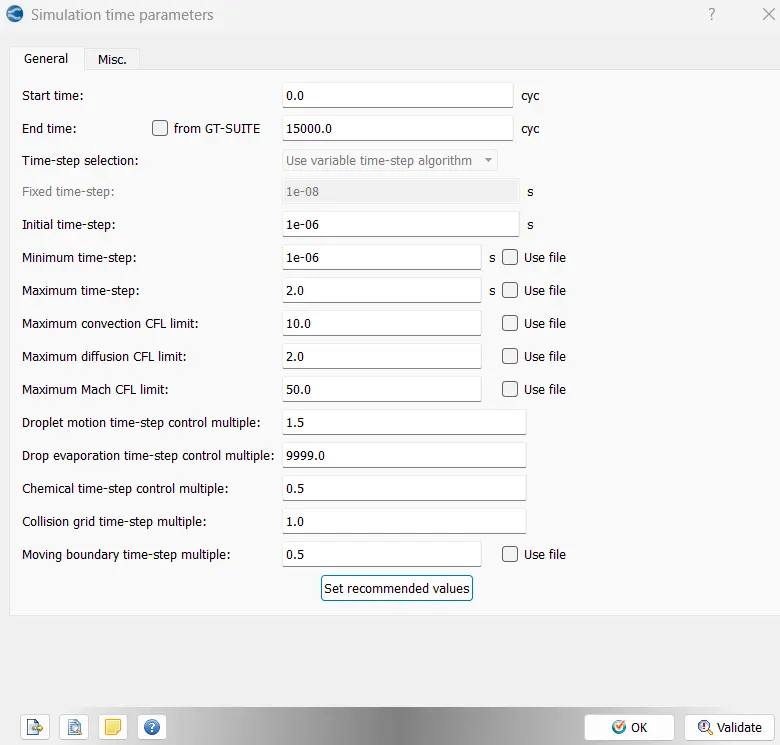

2.3 sumulation time parameter

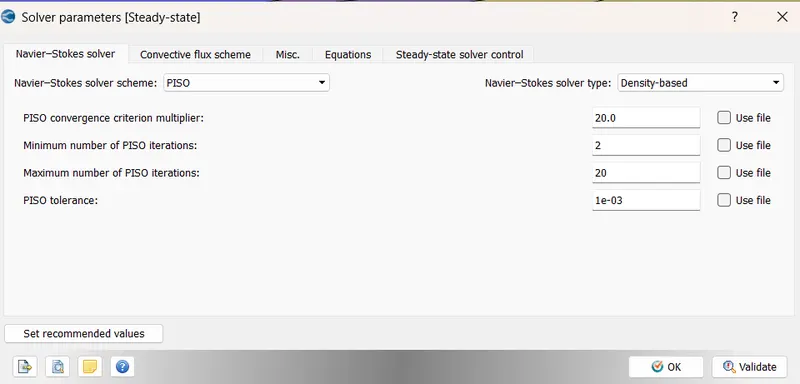

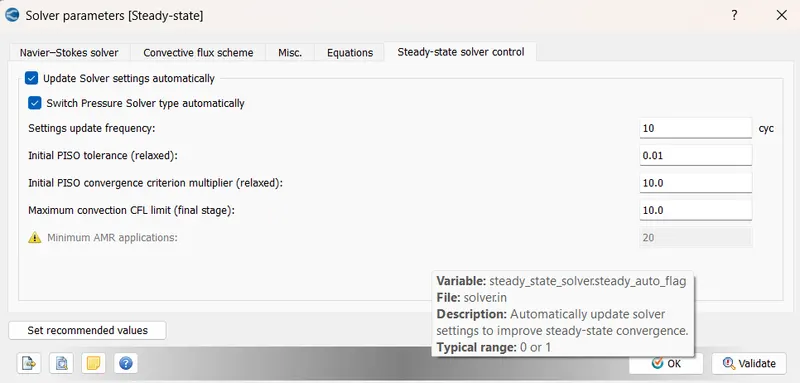

2.4 solver parameter

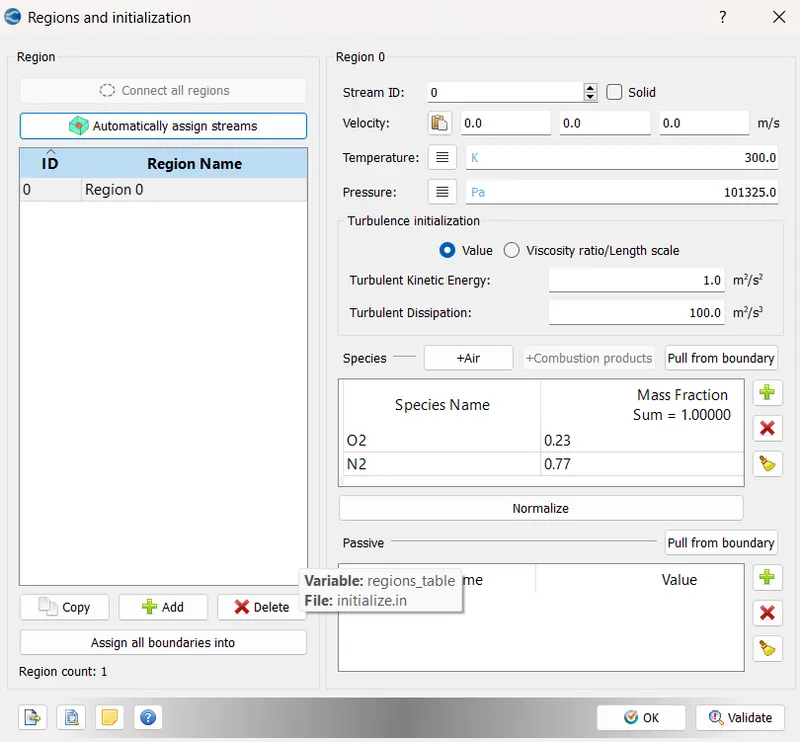

3.Region and initialisation

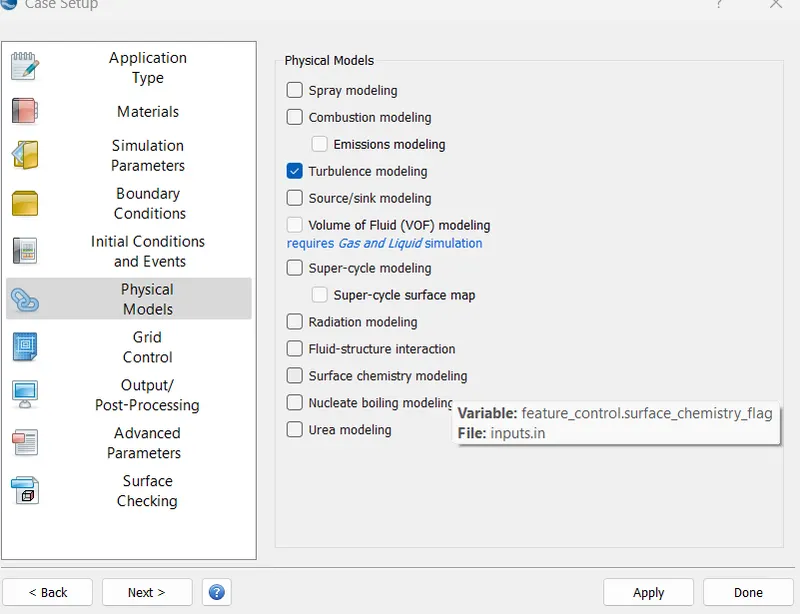

4.Physical modeling

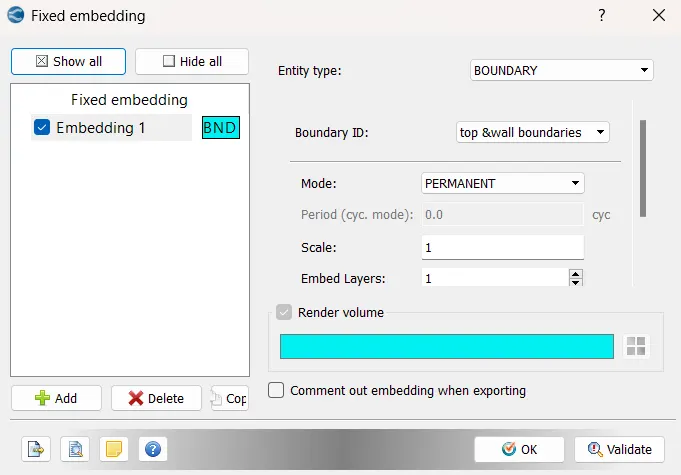

5. Grid control: Enable the fixed embedding check and click on ok. By using fixed embedding, we can get finer mesh around the top and bottom walls. This case study using 3 different mesh grid sizes. So, the different mesh grids are dx dy dz= 2e-3, 1.5e-3, and le-3.
6. output/Postprocessing
6.1 Post variable selection:Keep all default setting and press ok

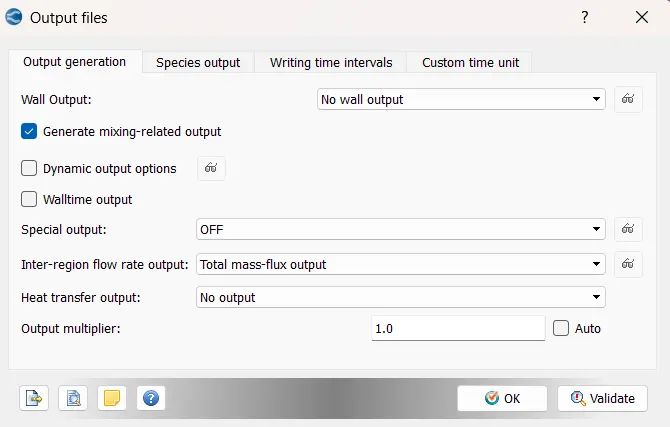

6.2 Output files

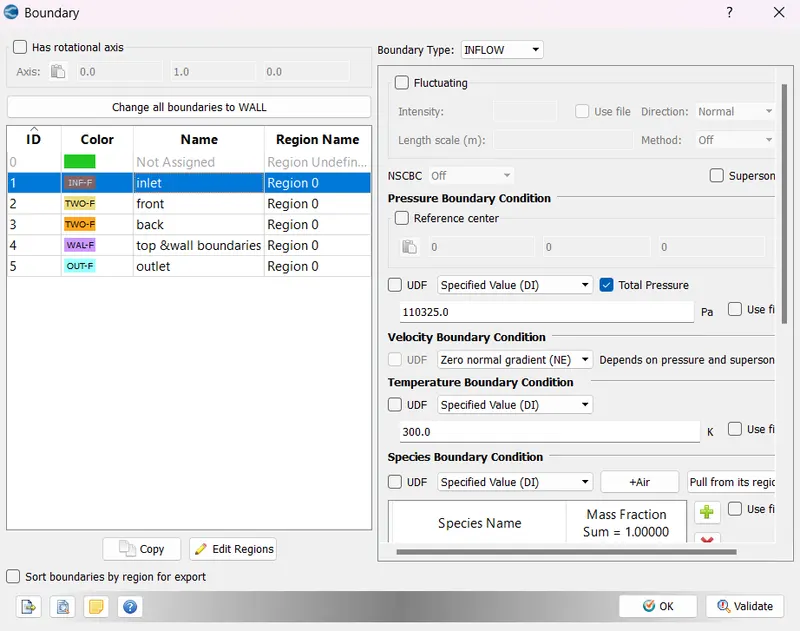

7 Boundary conditon:

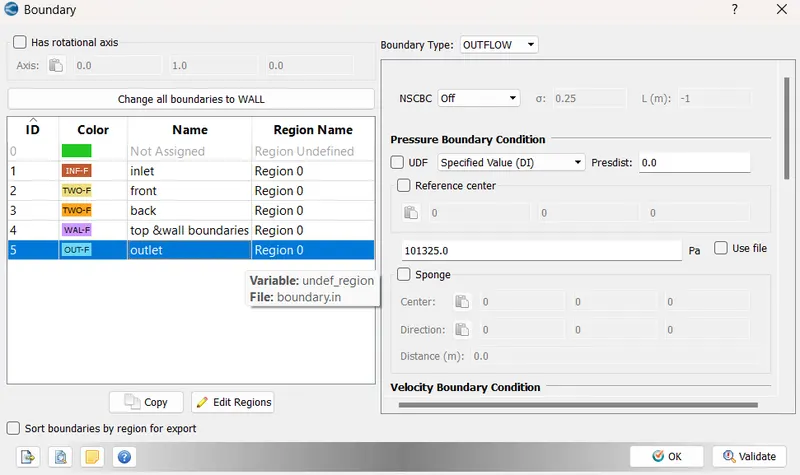

And for back-2d and front-2d select boundary type as TWO-D.
8. Now export all input files: Click on files > Export > Export input files > choose the path and select all files and press ok.
9. Run the simulation and post-convert the files: Copy and paste the mpiexec.exe file and converge.exe file to the folder in which the input files are exported to run the simulation in Cygwin. Copy the
post_convert_30_msmpi_64.exe file and paste it into the output folder. Now open Cygwin and go to the output folder and type mpiexec.exe -n 4 post_convert_30_msmpi_64.exe > enter the case name (as casel) > select file type as Paraview VTK in-line binary format > type all for files and cell variables and click enter (or) we can convert those
files in converge studio.
10. Post-processing the files:
To post-process the files lanch paraview and open the file location as casel which is saved in output > casel.. vtm (this is a group file which is formed during post-converting the files) > click on apply > create a slice along the z axis.
Results:
For 2e-3:

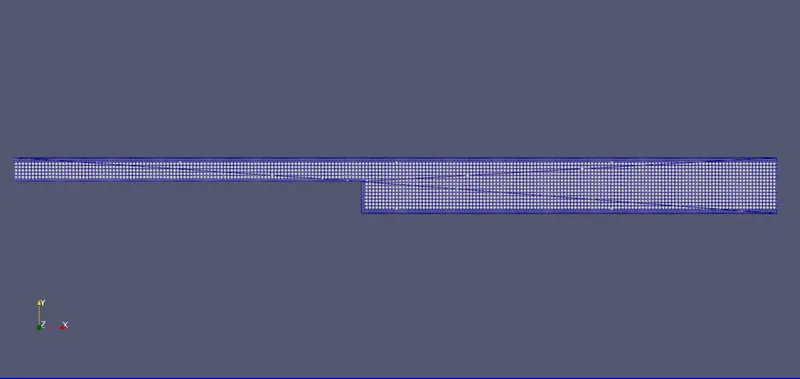

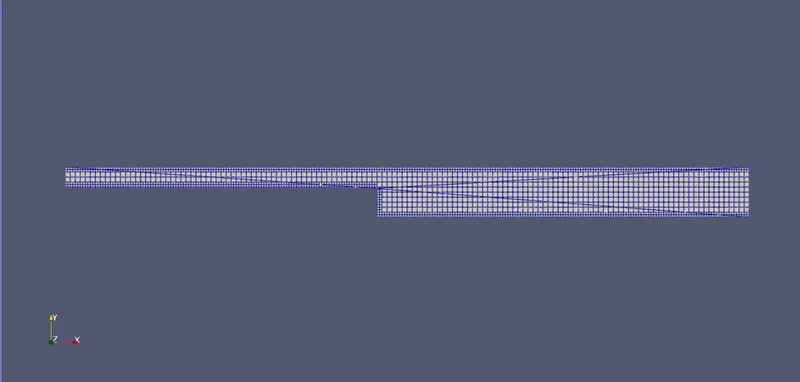

mesh:

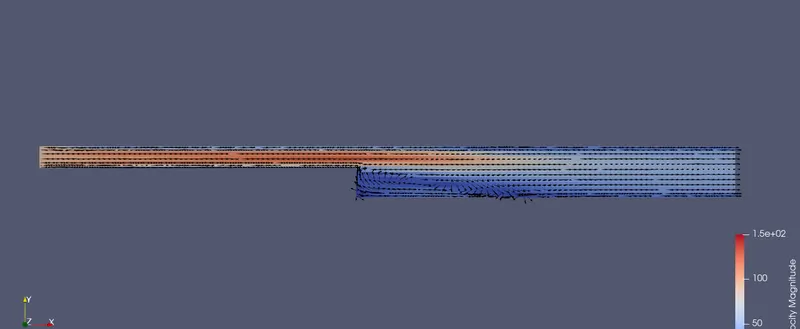

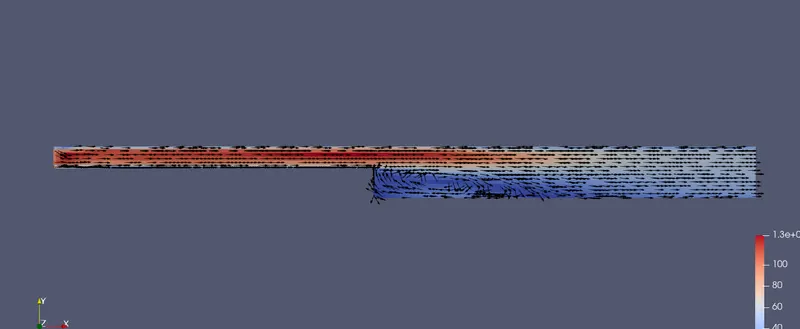

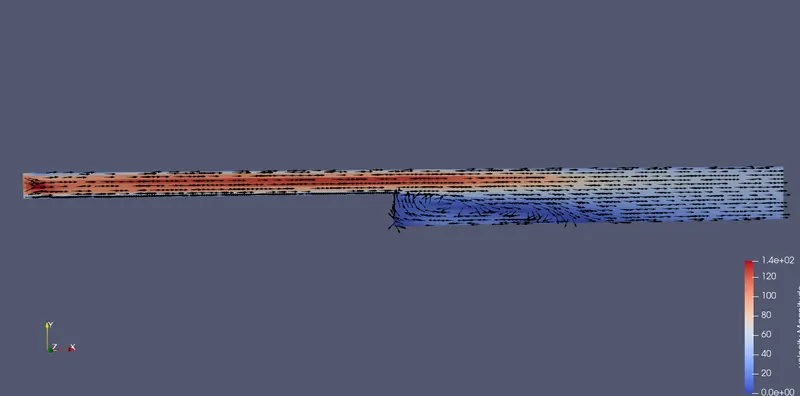

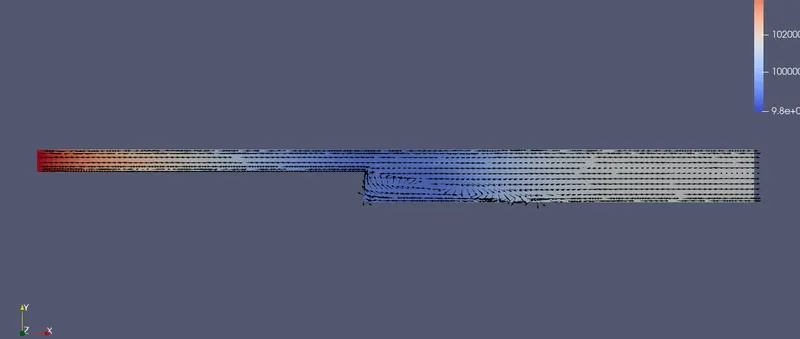

velocity

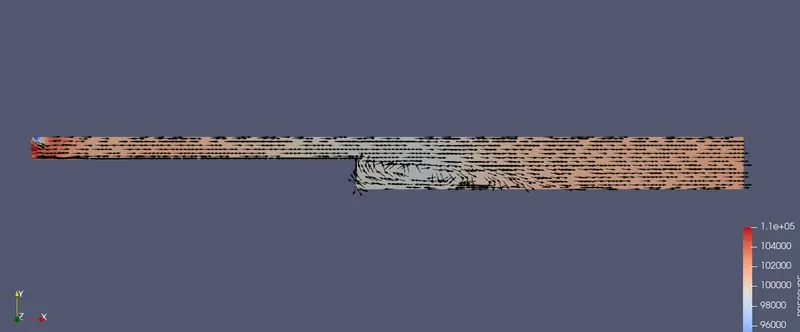

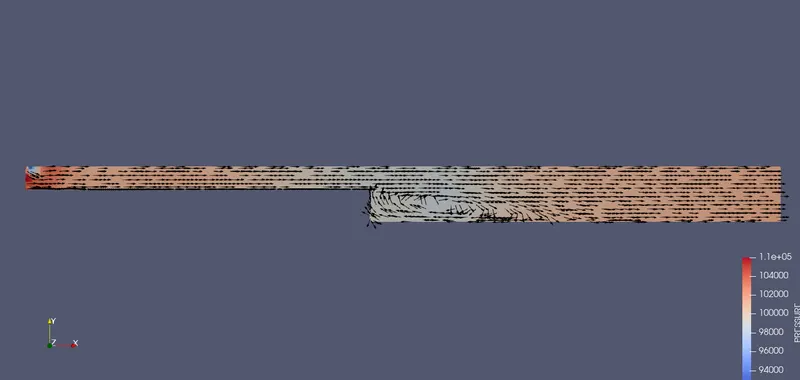

pressure

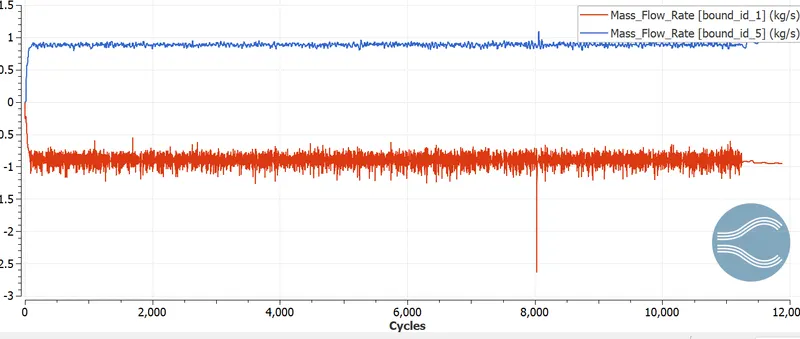

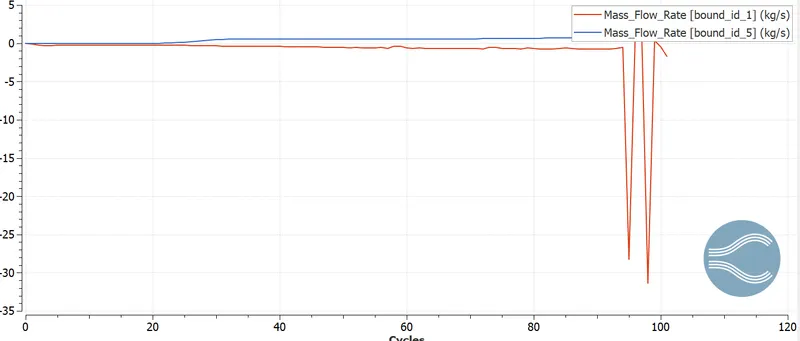

Average mass flow rate:

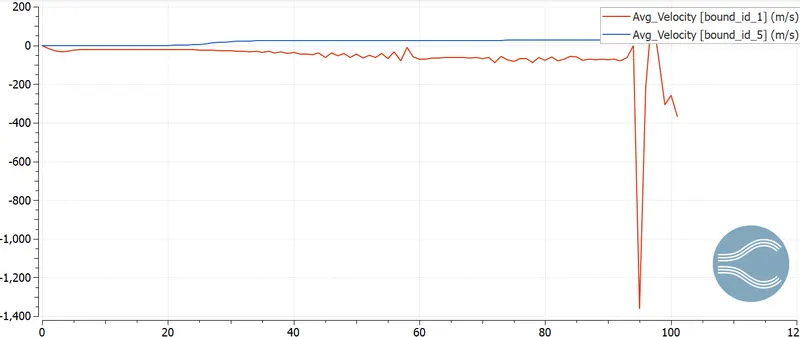

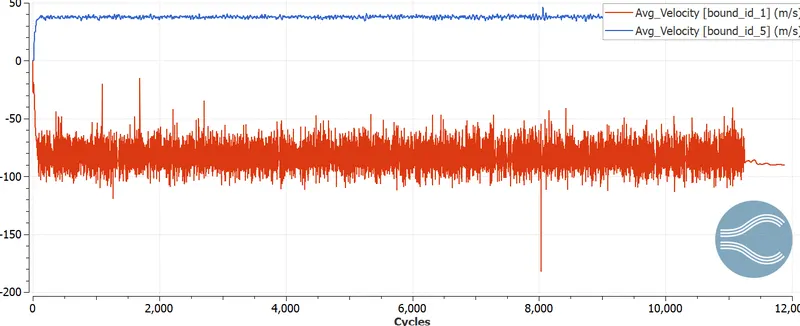

Average velocity

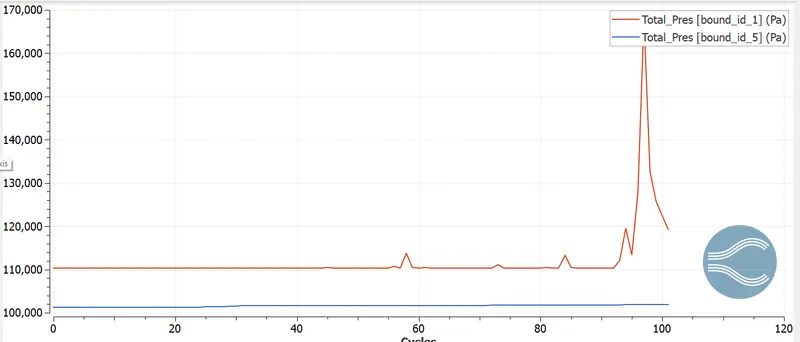

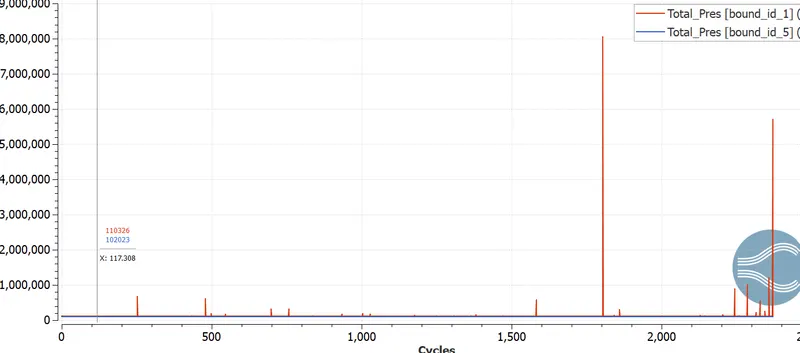

Total pressure
For 1.5e-3m

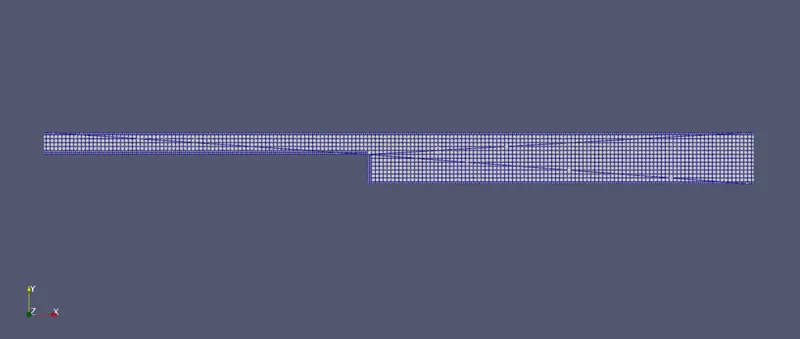

mesh
velocity
Pressure

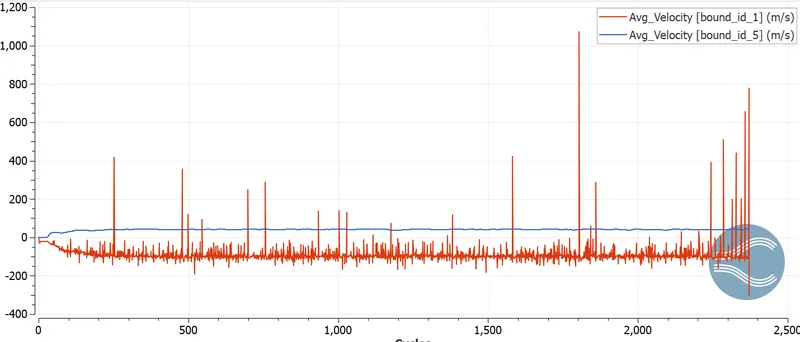

Average velocity

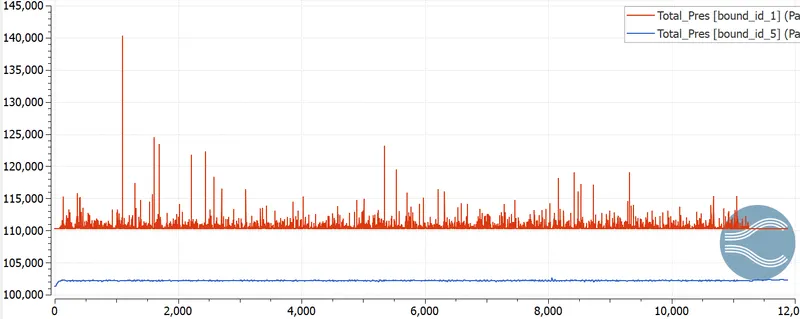

Total pressure
For 1.2e-3m
mesh
velocity
pressure
average mass flow rate
average velocity
total pressure:
Discussions:
1. Backward facing step can help in analysing the physics near the boundary level.
2. Flow separation results in 0 wall shear stress this inturn creates a pressure increaing and resulting in the opposite flow velocity and causing an adverse pressure gradient.
3. When the Pressure tends to increase after the flow separation point, potential energy develops at the local boundary layer and this causes the reduce the kinetic energy and therefore the velocity reduces.
4. Flow separation can be reduced by modifying the geometry of the object induced to flows where boundary layer is continous and separation occurs at a minimum amount.
5. Flow separation tends to reduce lift and increase static pressure, which can lead to stall for aerodynamic structures.
6. Flow separation creates a wake region at the flow end which causes a recirculation region due to the adverse pressure gradient, creating turbulence and formation of eddies.
