Week 11:- 2D Detailing Challenge 2
AIM To Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly and to Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8. INTRODUCTION…
Teja V
updated on 04 Apr 2023
AIM
To Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly and to Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.
INTRODUCTION
The fixture design after the 3D finishing process has to be done with 2D finishing before it is sent for manufacturing. All the dimensions of the fixture units and their child parts have to clearly mentioned in the drawing sheets. The detailing can be changed as per the requirement of the customer and company standards. GD&T must be used in order to reduce the cost of manufacturing.
All the views must be clearly visible and provided with dimensions in the drawing sheets.
2D Detailing of the Swivel Clamp unit With Pin 1
It is saved as P001_Z01_ST010_06_00_SWIVEL_CLAMP_UNIT_PIN.CATDrawing
_1680327073.png)

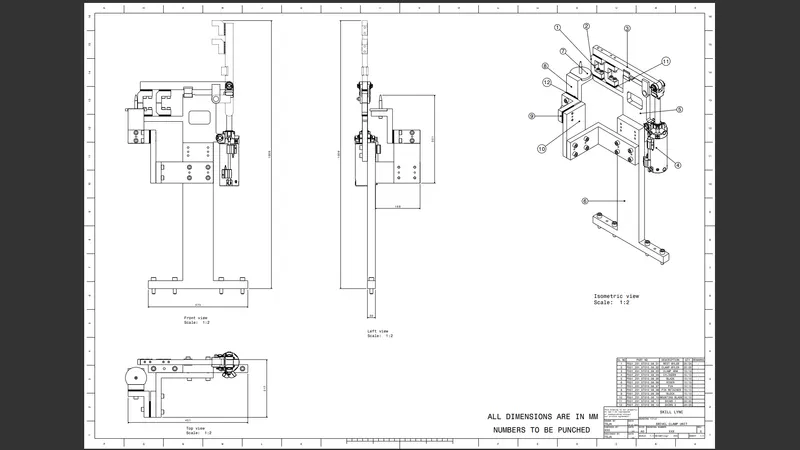

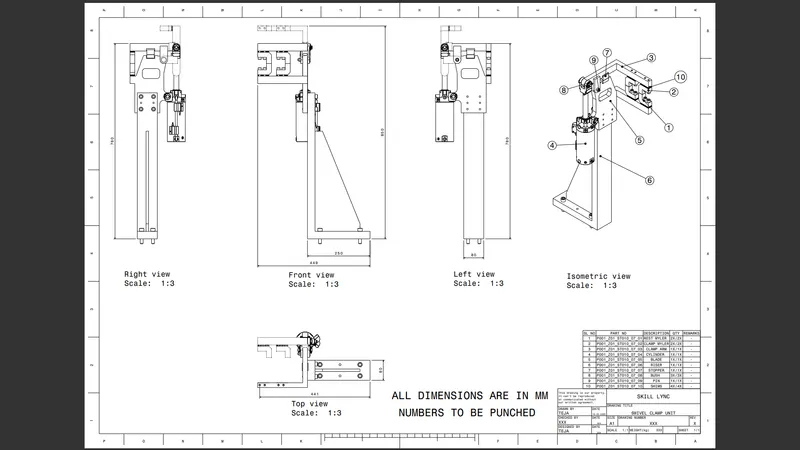

The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680327326.png)

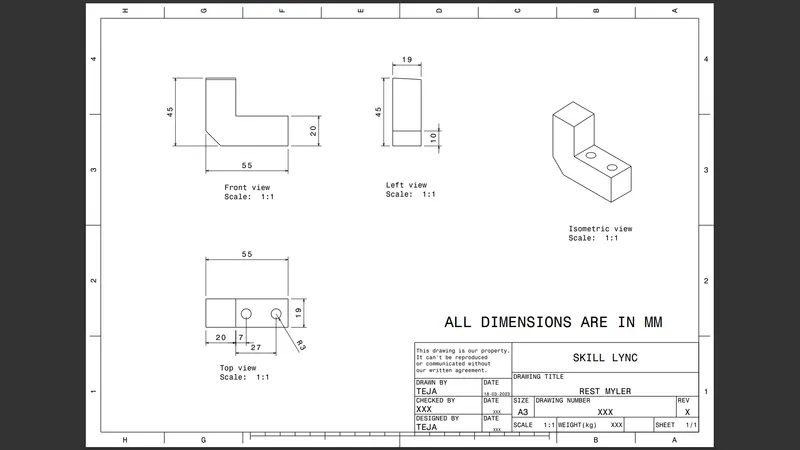

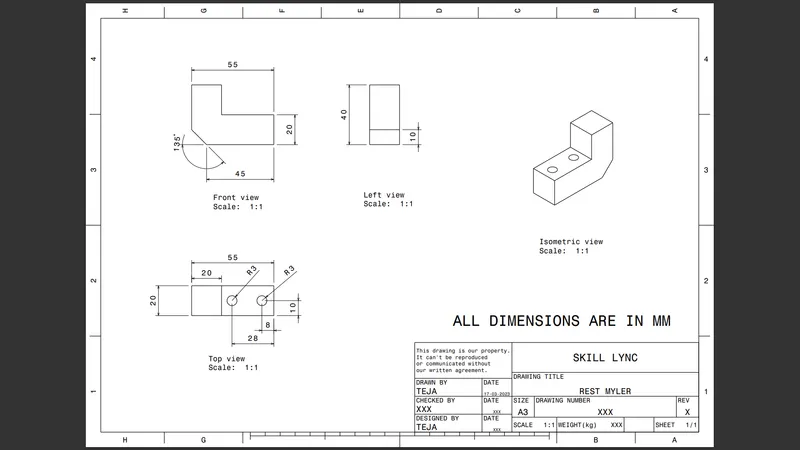

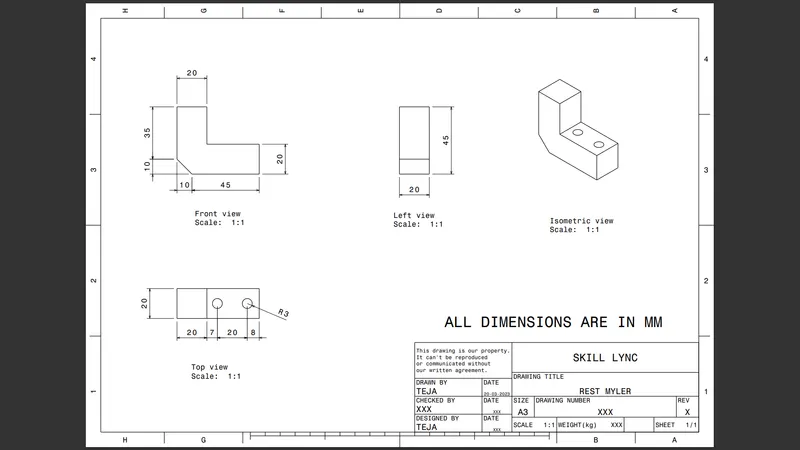

Detailing of the Rest Mylar.
_1680327235.png)

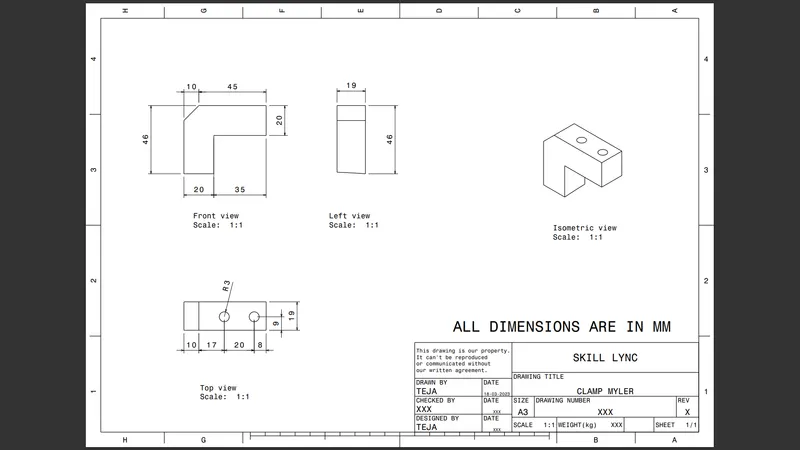

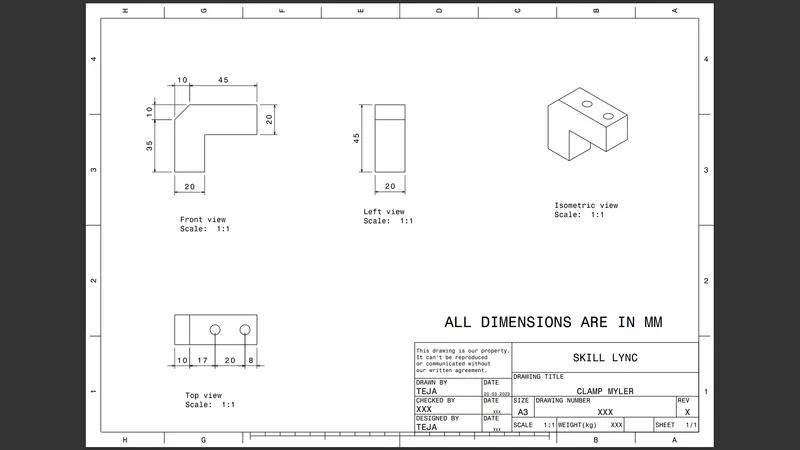

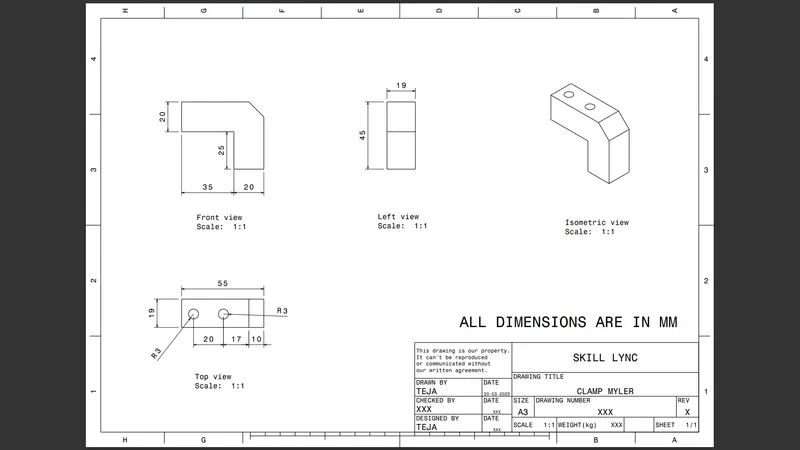

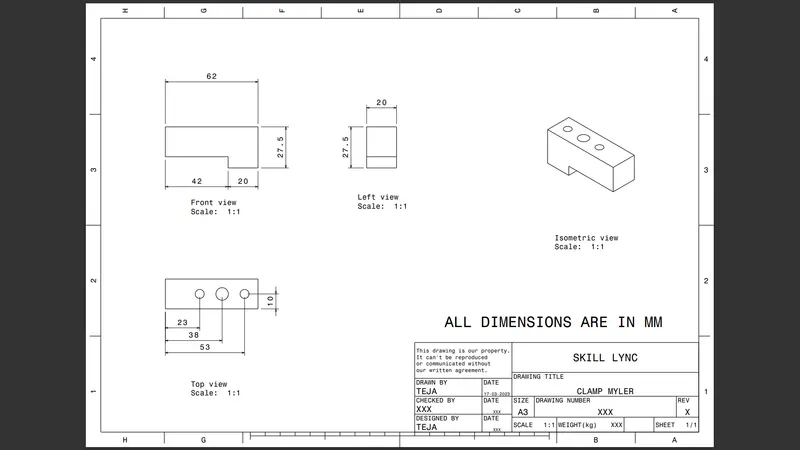

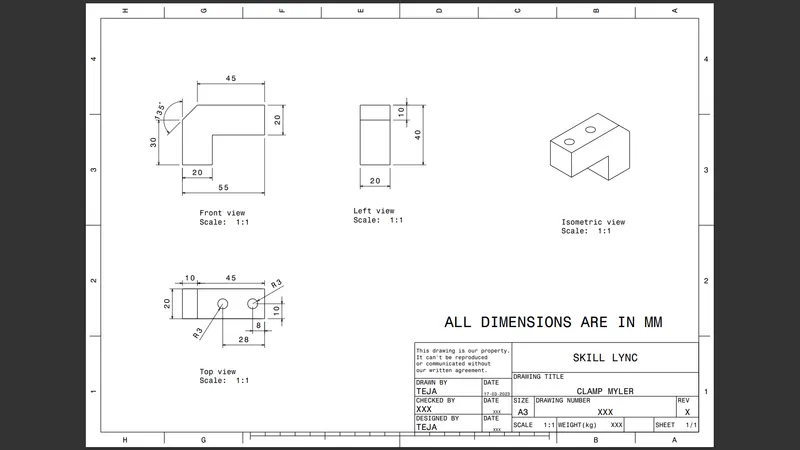

Detailing of the Clamp Mylar.
_1680327731.png)

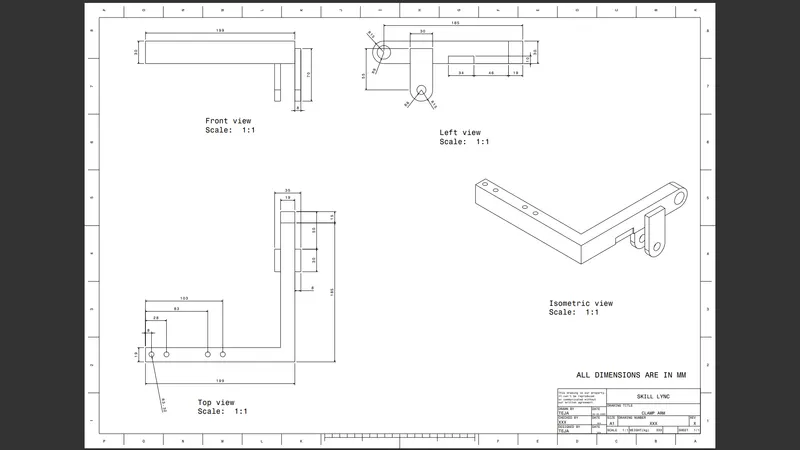

Detailing of the Clamp arm
_1680327802.png)

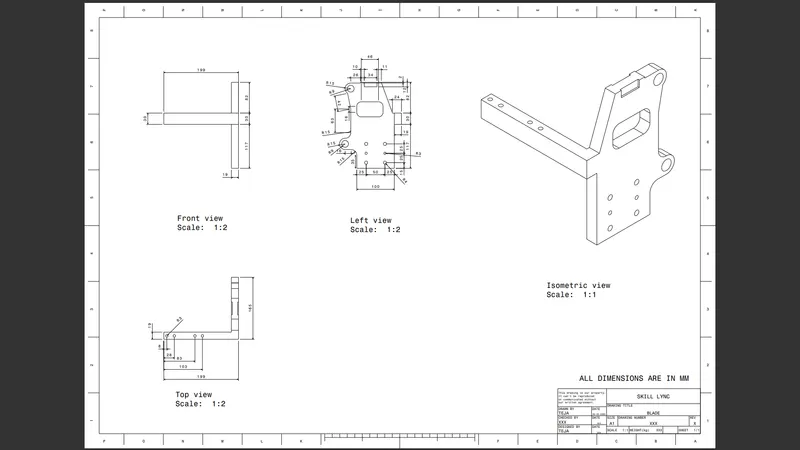

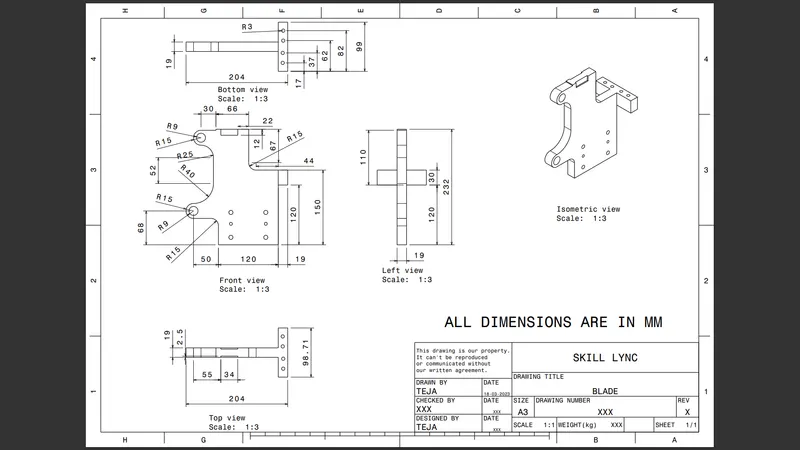

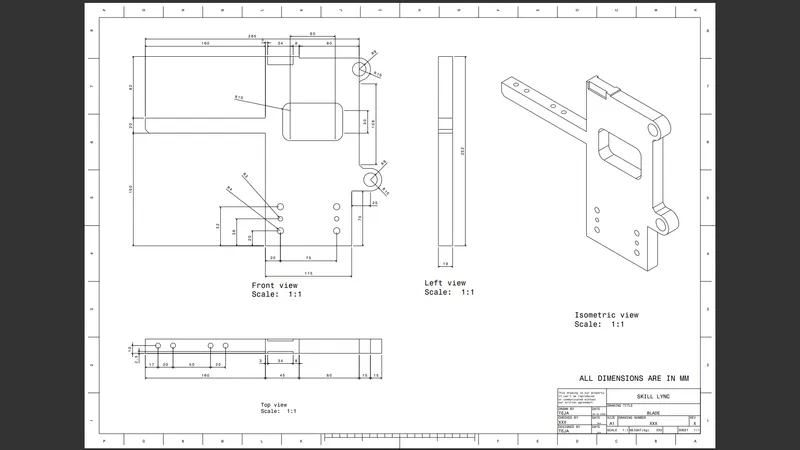

Detailing of Blade
_1680327890.png)

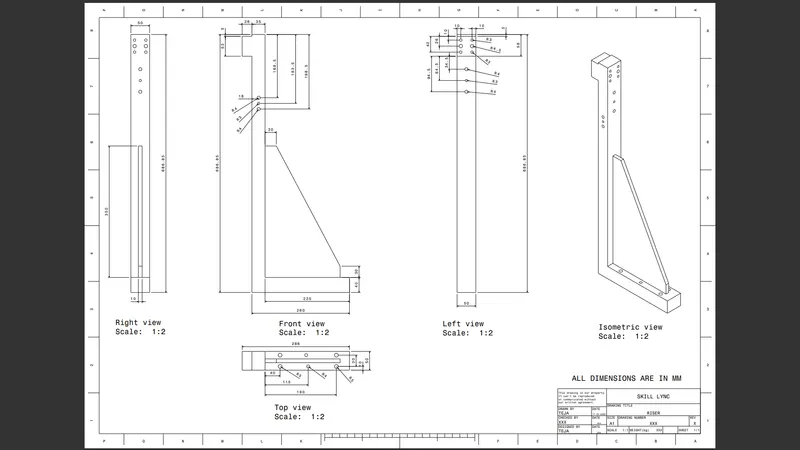

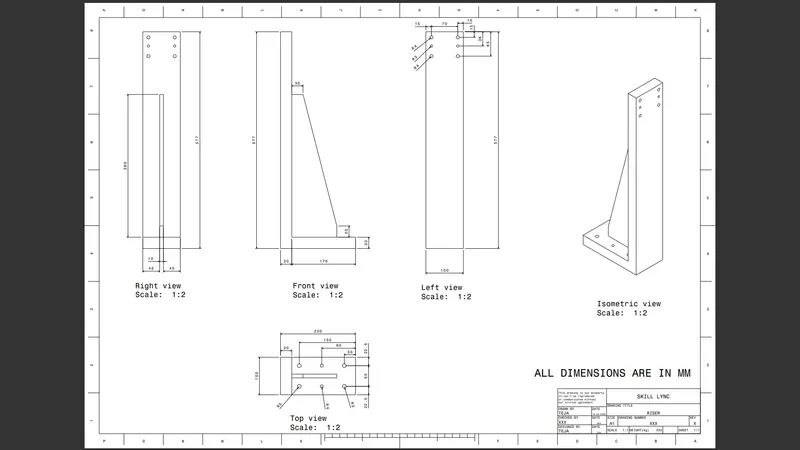

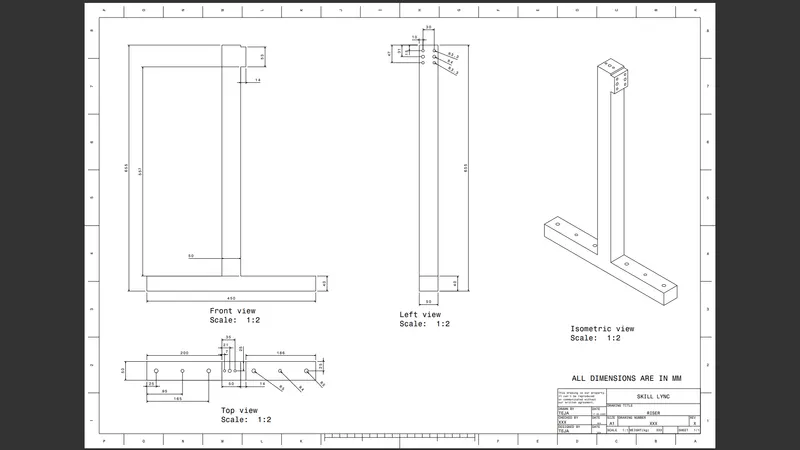

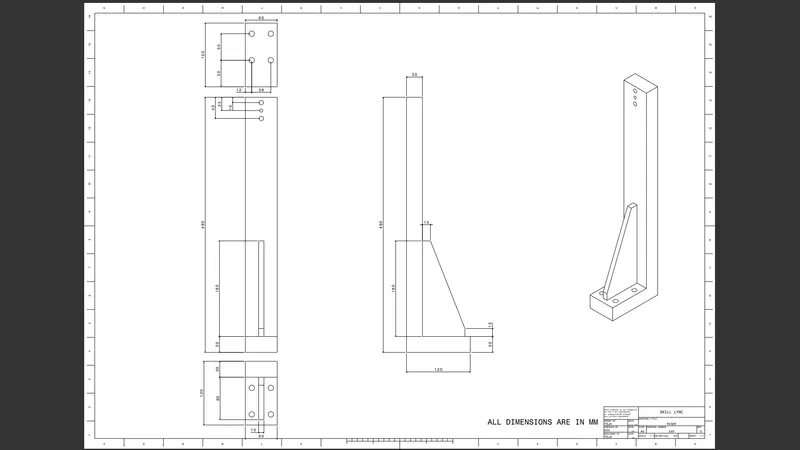

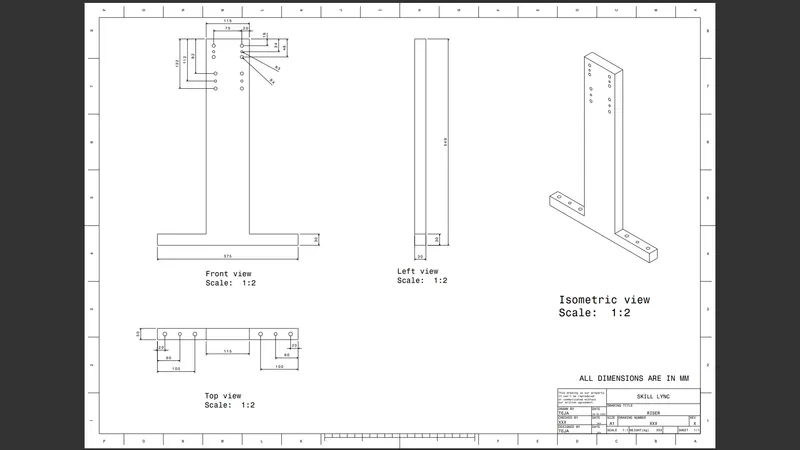

Detailing of the Riser.
_1680327922.png)

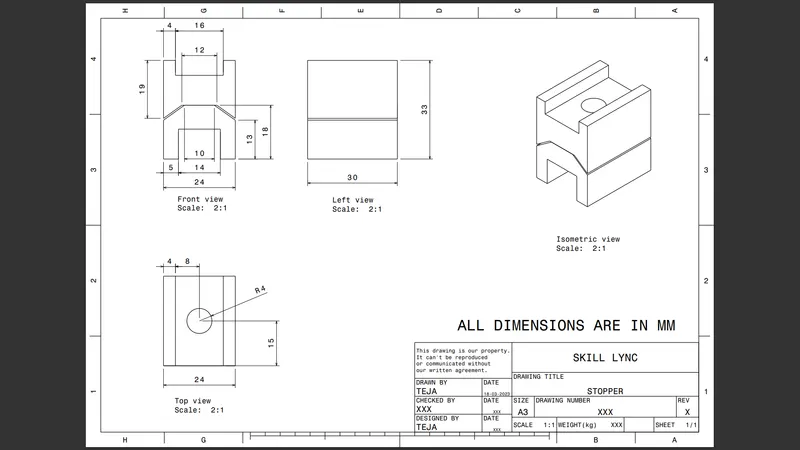

Detailing of Stopper
_1680327958.png)

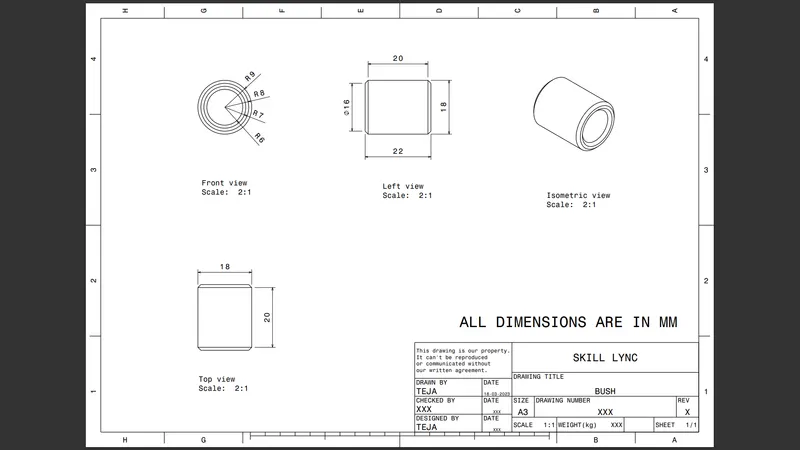

Detailing of Bush
_1680328602.png)

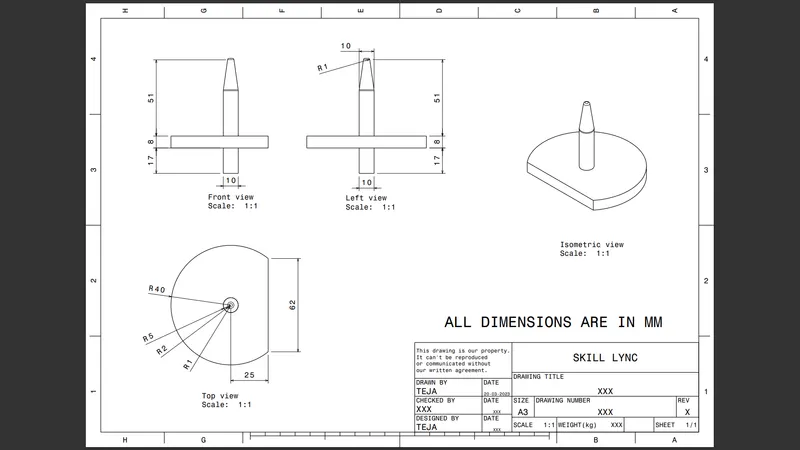

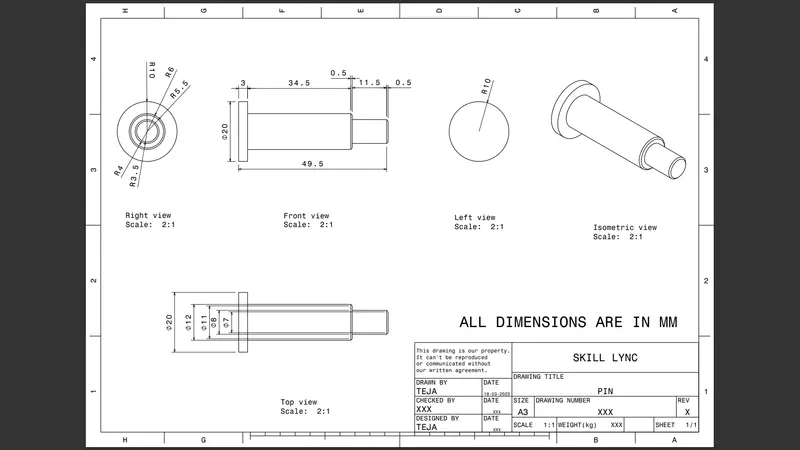

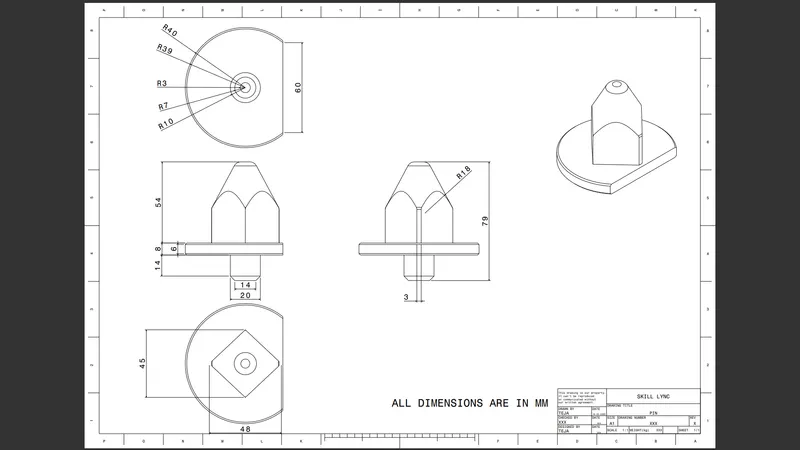

Detailing of Pin
_1680327990.png)
Detailing of Pin
_1680327306.png)

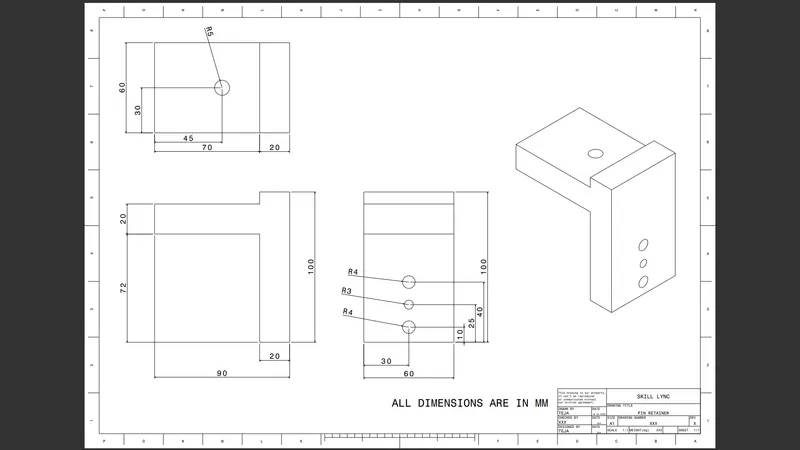

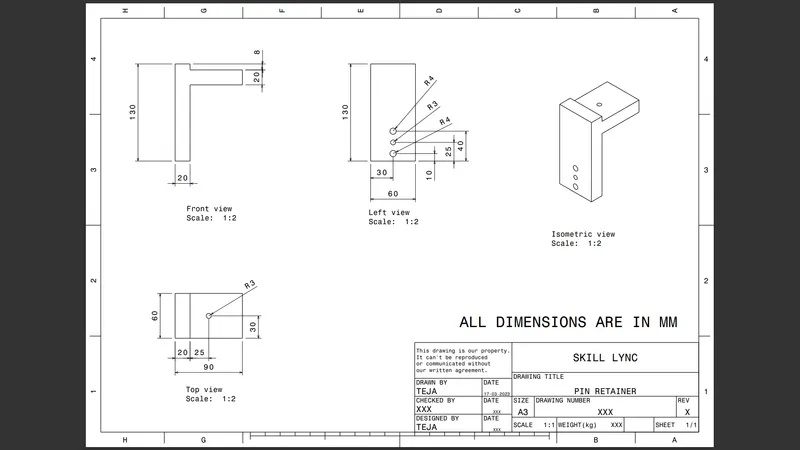

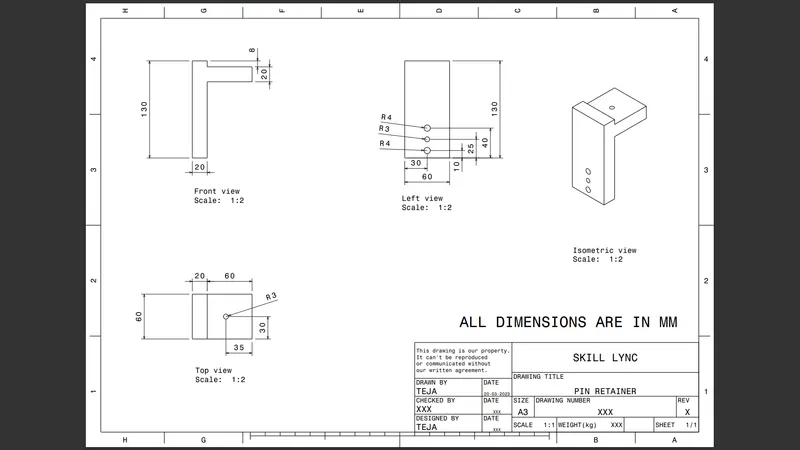

Detailing of Pin retainer
_1680327211.png)

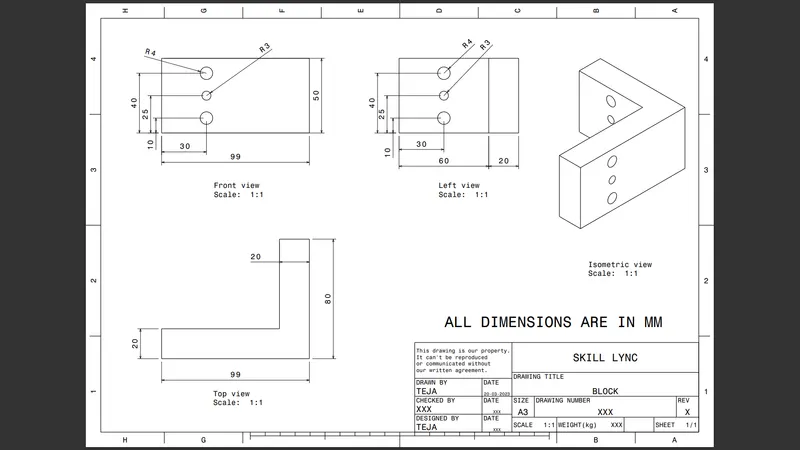

Detailing of Block
_1680327296.png)
Detailing of Mounting blade
_1680327359.png)

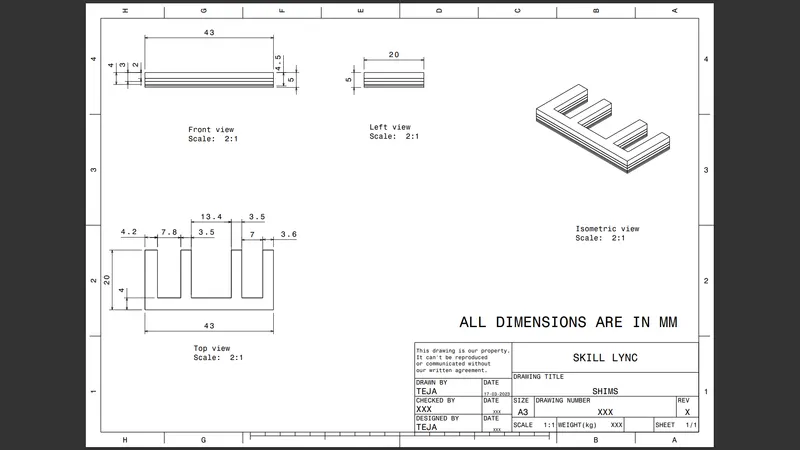

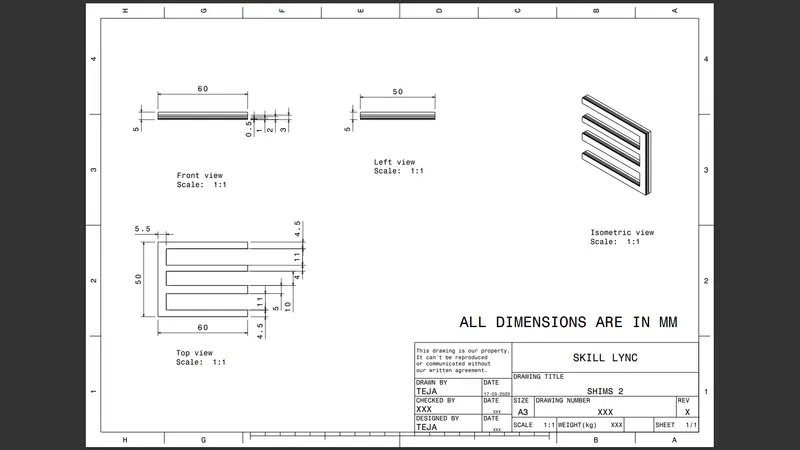

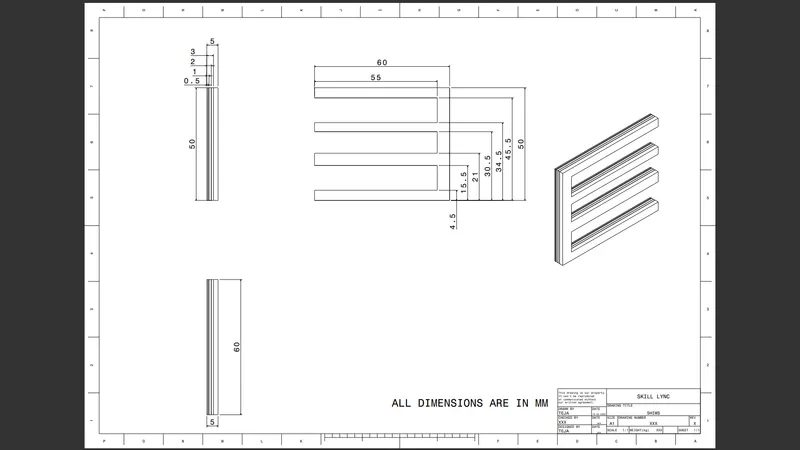

Detailing of Shims
2D Detailing of the Swivel Clamp unit 2
It is saved as P001_Z01_ST010_07_00_SWIVEL_CLAMP_UNIT_2.CATDrawing.
_1680328277.png)

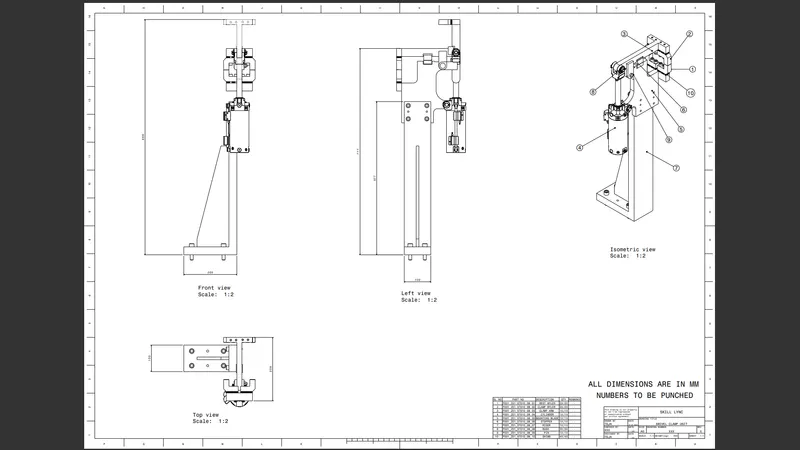

The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680328308.png)
Detailing of the Clamp Mylar.
_1680328328.png)

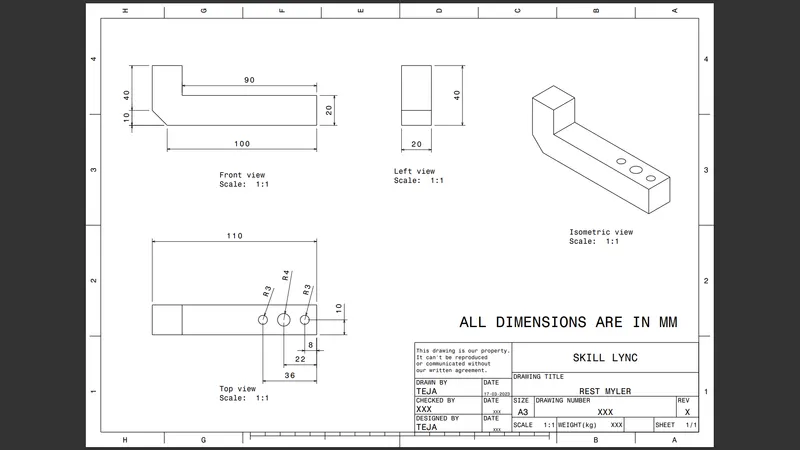

Detailing of the Rest Mylar.
_1680328359.png)
Detailing of Clamp Arm
_1680328464.png)

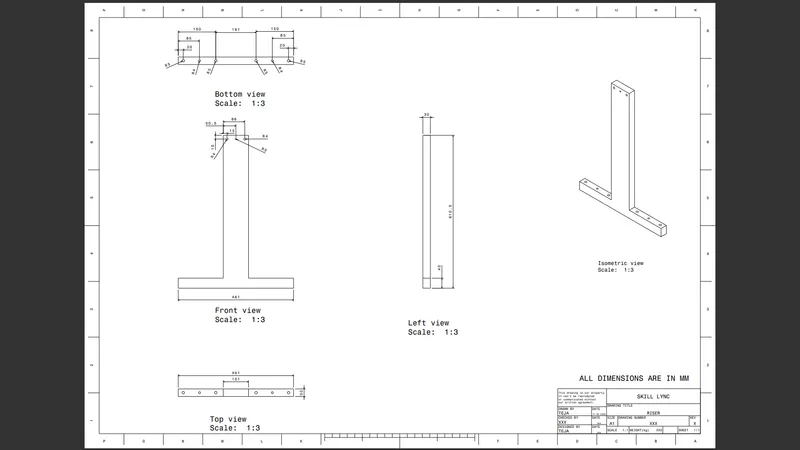

Detailing of the Riser.
_1680328486.png)
Detailing of the Blade.
Detailing of Stopper
Detailing of Bush
Detailing of Pin

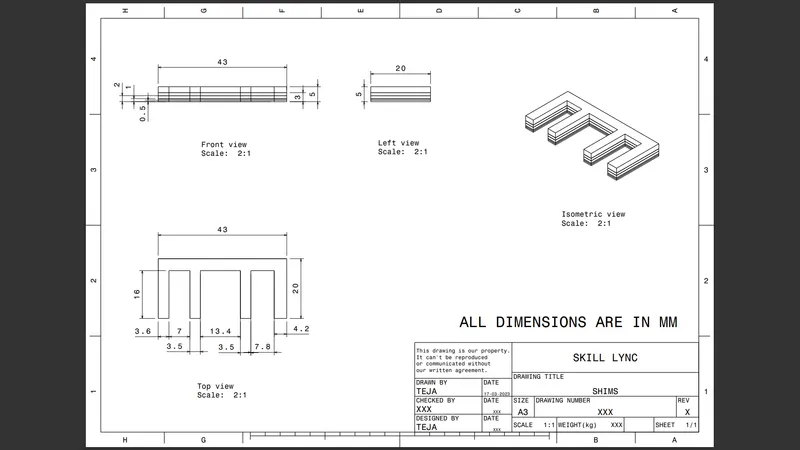

Detailing of Shims
2D Detailing of the Swivel Clamp unit 3
It is saved as P001_Z01_ST010_08_00_SWIVEL_CLAMP_UNIT_3.CATDrawing.
The quantity of this Clamp unit is 2, i.e it is used in two places in the fixture assembly, and below is the detailing.
_1680328799.png)
The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680328827.png)

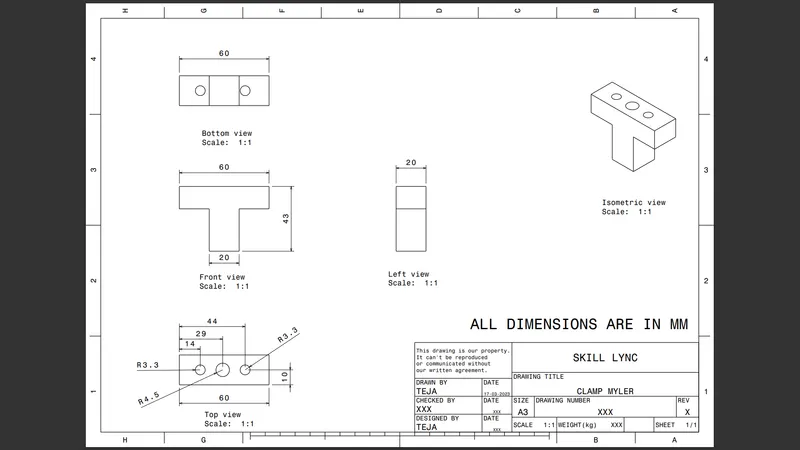

Detailing of the Clamp Mylar. The dimensions are the same as the clamp mylar of clamp unit 2.
_1680328848.png)
Detailing of the Rest Mylar.
_1680328874.png)
Detailing of the Riser.
_1680328894.png)
Detailing of the Blade.
Detailing of Stopper
Detailing of Bush
Detailing of Pin
Detailing of Shims
2D Detailing of the Power Clamp unit 1
It is saved as P001_Z01_ST010_09_00_POWER_CLAMP_UNIT.CATDrawing
_1680329174.png)

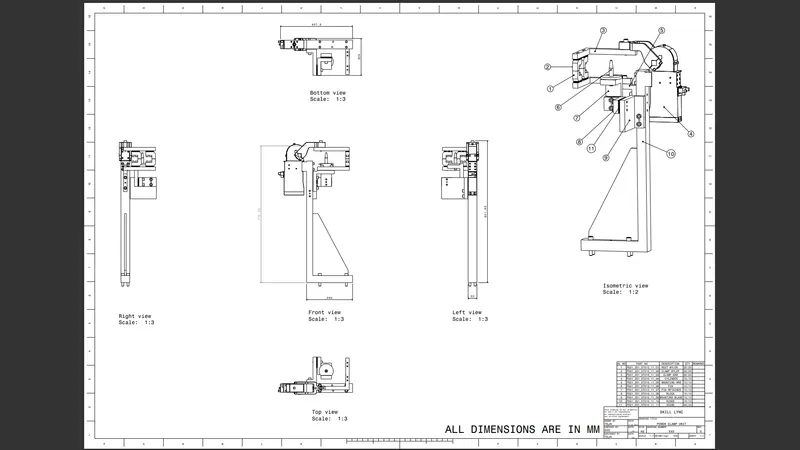

The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680329243.png)
Detailing of the Rest Mylar.
_1680329207.png)
Detailing of the Clamp Mylar.
_1680329339.png)
Detailing of the Riser.
_1680329402.png)
Detailing of Shims
2D Detailing of the Power Clamp unit 2
It is saved as P001_Z01_ST010_11_00_POWER_CLAMP_UNIT_2.CATDrawing
_1680329561.png)
The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680329590.png)

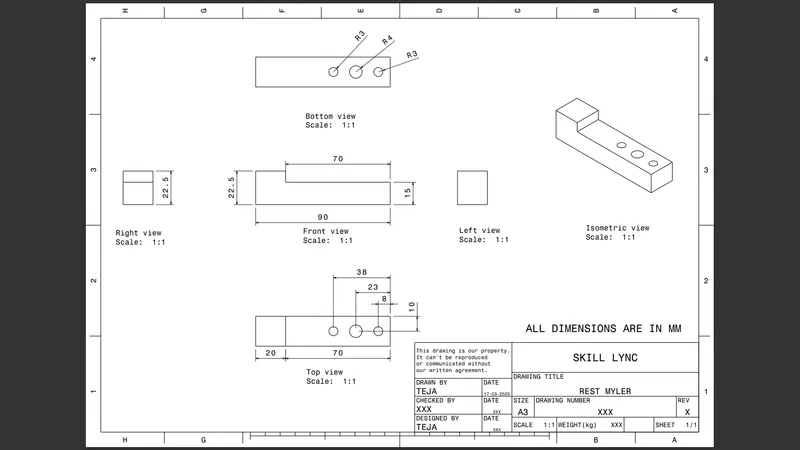

Detailing of the Rest Mylar.
_1680329616.png)
Detailing of the Clamp Mylar.
_1680329654.png)

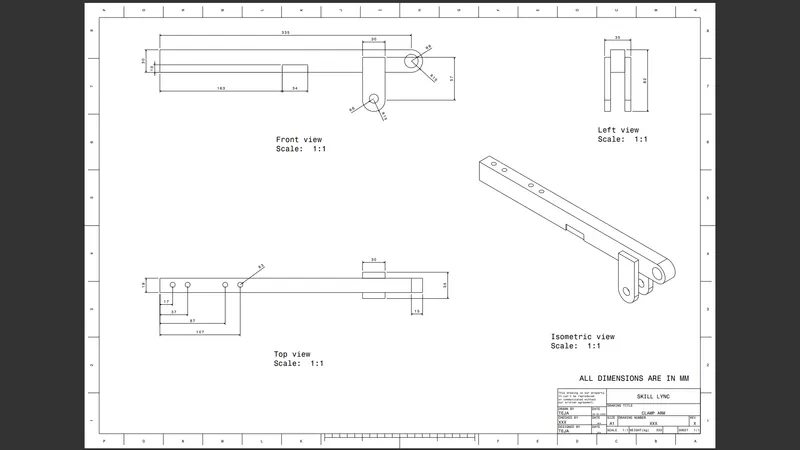

Detailing of the Clamp Arm.
_1680329793.png)

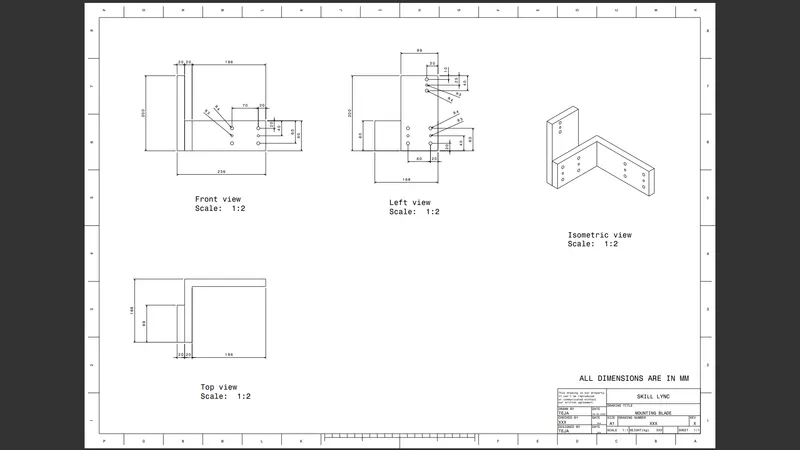

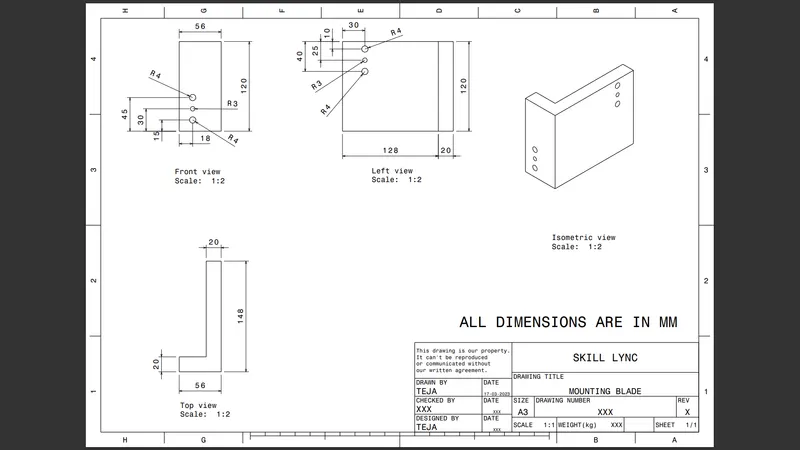

Detailing of the Mounting Blade.
_1680329814.png)

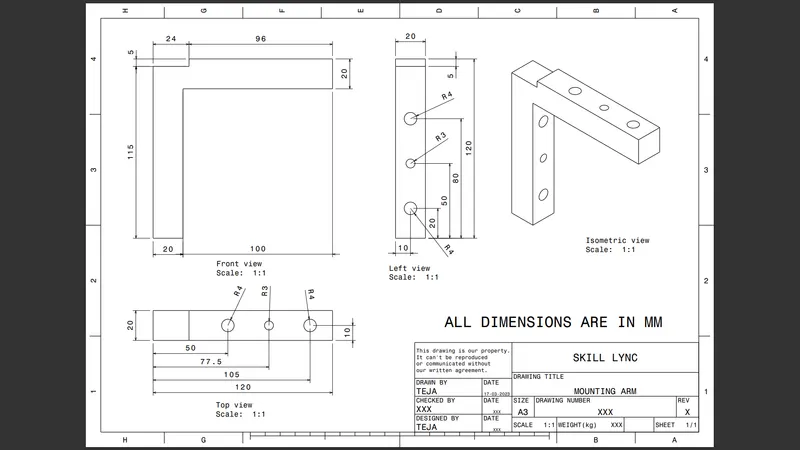

Detailing of Mounting Arm
_1680329716.png)
Detailing of the Riser.
_1680329749.png)
Detailing of Pin
_1680329768.png)
Detailing of Pin Retainer
_1680329696.png)
Detailing of Block
_1680329978.png)
Detailing of Shim
2D Detailing of the Power Clamp unit 3
It is saved as P001_Z01_ST010_12_00_POWER_CLAMP_UNIT.CATDrawing
_1680330083.png)

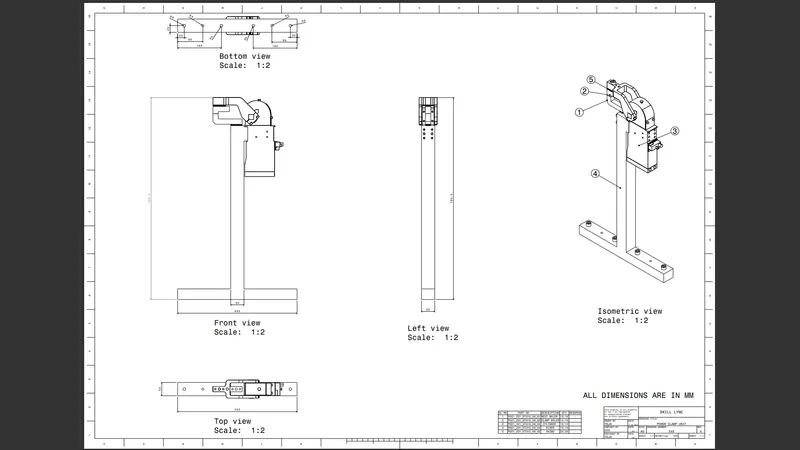

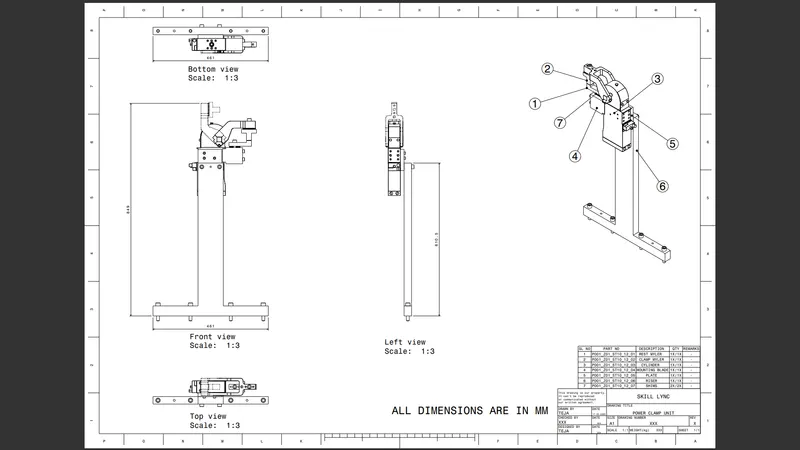

The front view, top view, and right side view are shown for the clamp unit. The overall dimensions are provided also with the Isometric view of the Clamp Unit with all the subparts marked.
_1680330126.png)

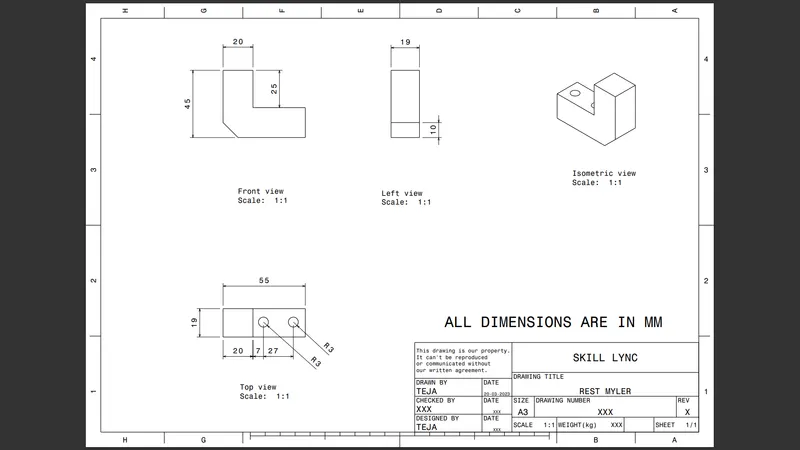

Detailing of the Rest Mylar.
_1680330144.png)
Detailing of the Clamp Mylar.
_1680330166.png)
Detailing of the Mounting Arm.
_1680330202.png)

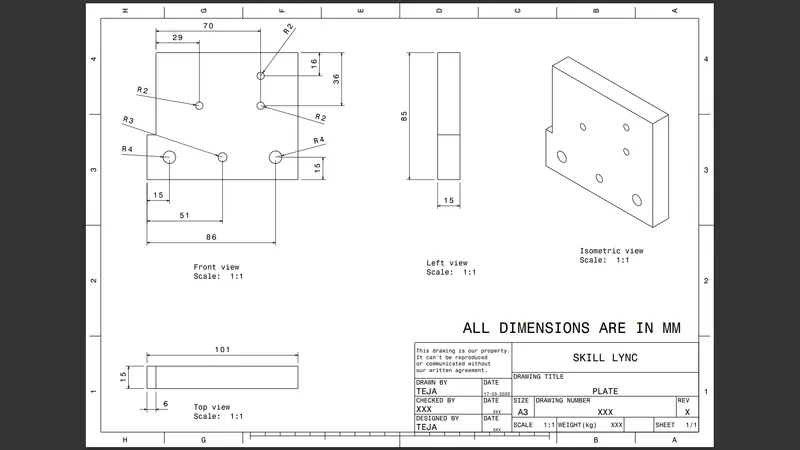

Detailing of the Plate.
_1680330235.png)
Detailing of the Riser.
_1680330254.png)

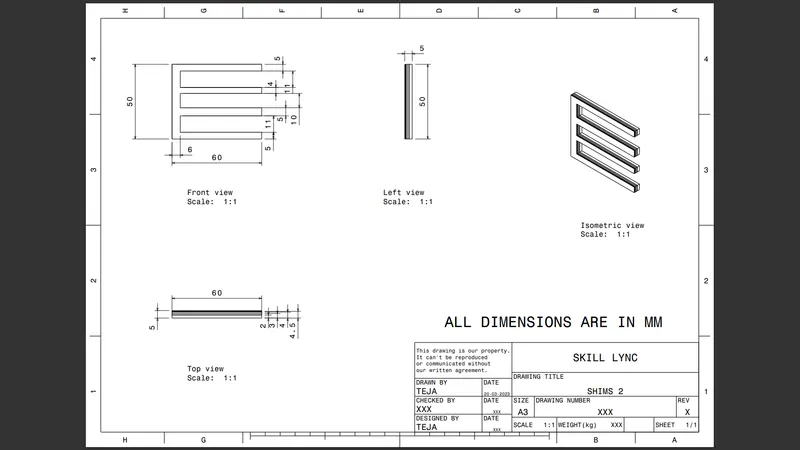

Detailing of Shim
2D Detailing of the Pin Unit.
It is saved as P001_Z01_ST010_02_00_PIN_UNIT.CATDrawing.
_1680330350.png)

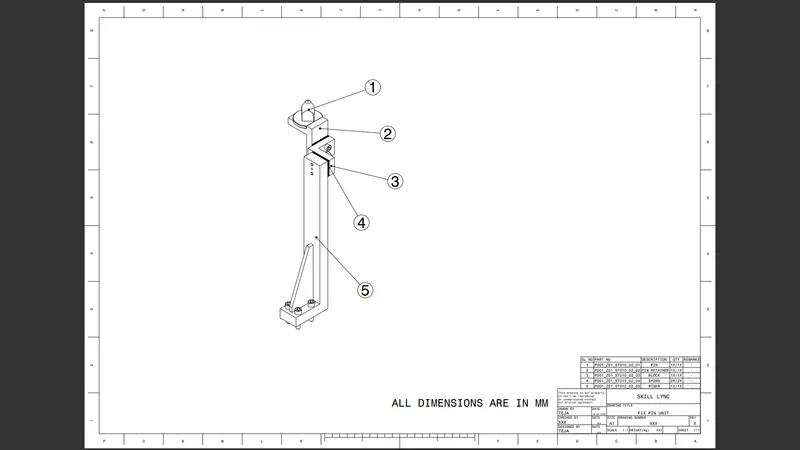

The front view, top view, and right side view are shown for the pin unit. The overall dimensions are provided also with the Isometric view of the pin Unit with all the subparts marked.
_1680330370.png)

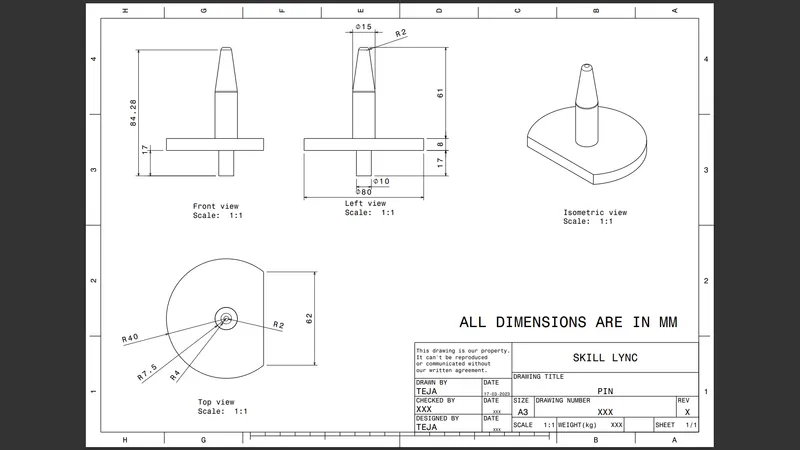

Detailing of the Pin.
_1680330394.png)
Detailing of Pin Retainer

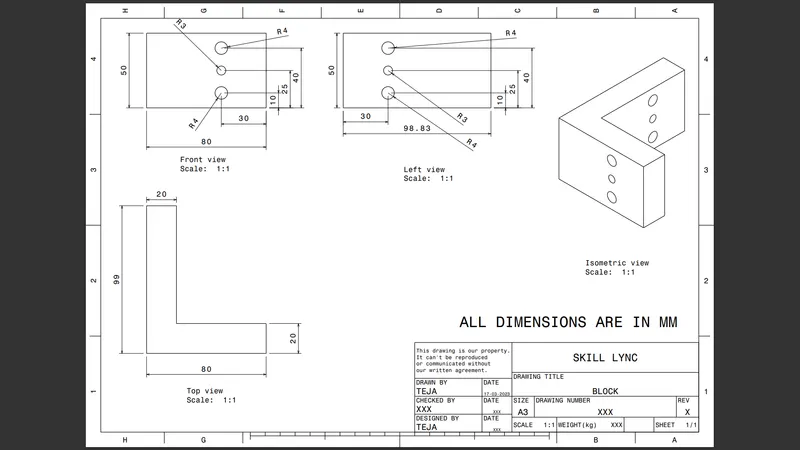

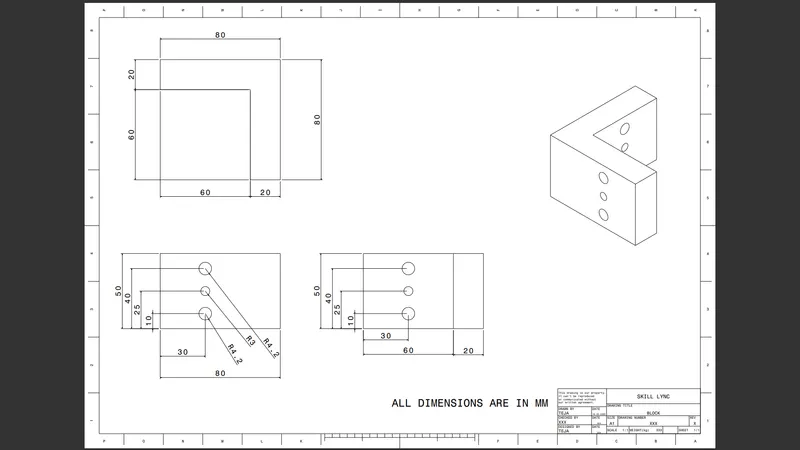

_1680330428.png)
Detailing of the Block.
_1680330470.png)
Detailing of the Riser.
_1680330495.png)
Detailing of Shim
CONCLUSION
Hence, the Clamp unit drawings with all the child parts and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly was completed.
