Week 9 - Project - A pillar Design with Master Section

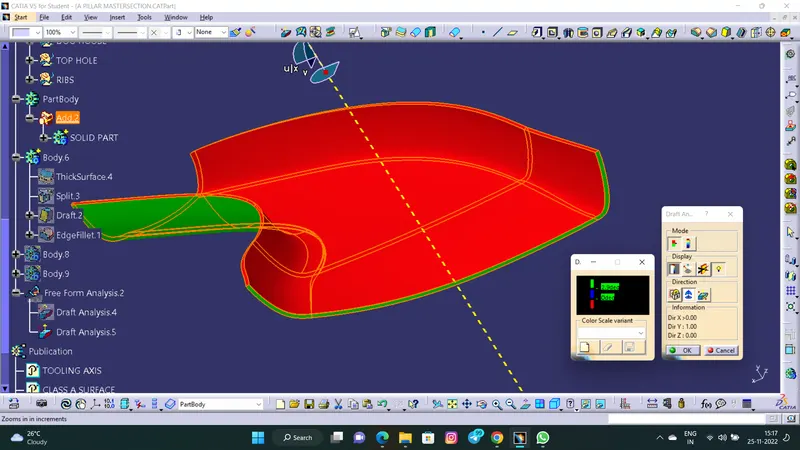

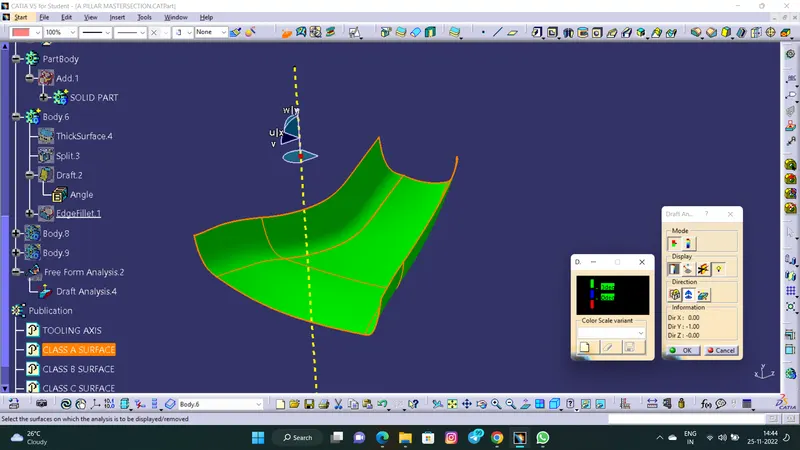

1. CLASS A DRAFT ANALYSIS -

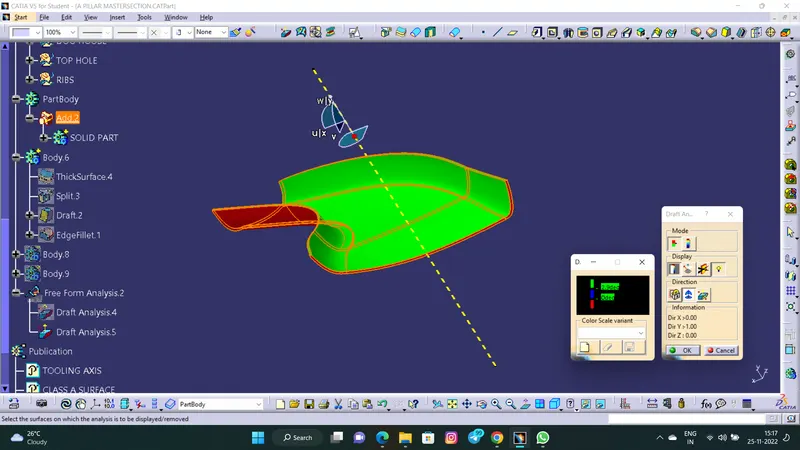

2. FINAL DRAFT ANALYSIS -

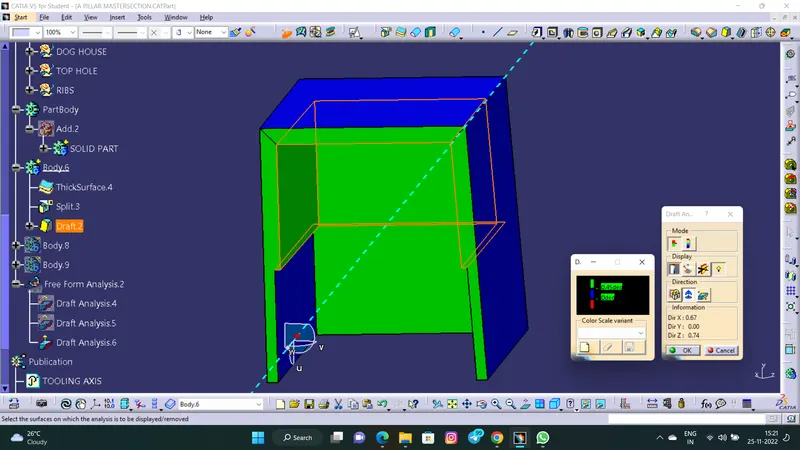

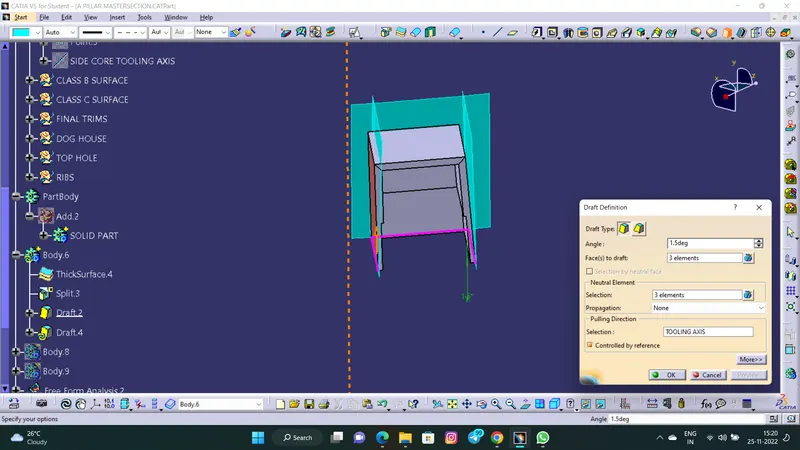

3. DOG HOUSE DRAFT ANALYSIS -

BY CREATE THE DRAFT ON THE OUTSIDE OF THE DOG HOUSE IT'S NOT CORECTLY FORMED . THEN I AM ASKING ONE OF THE SUPPORT ENGINEER ACCORDING TO THAT I AM CREATING THE DOG HOUSE AS PER THE MASTER SECTIONS BUT IT CANNOT BE FORMED HE SAID THERE IS A ERROR ON THE CLASS A THAT'S WHY WE CANNOT CREATE THE DRAFT . HENCE HE SAID THAT PLEASE GO THROUGH THE FURTHER PROCESS FOR CREATING THE DOG HOUSE . HE SAID THAT NO PROBLEM PLEASE GO THROUGH THAT.

4. DOG HOUSE SIDE CORE DRAFT ANALYSIS -

5. SOLID PART -

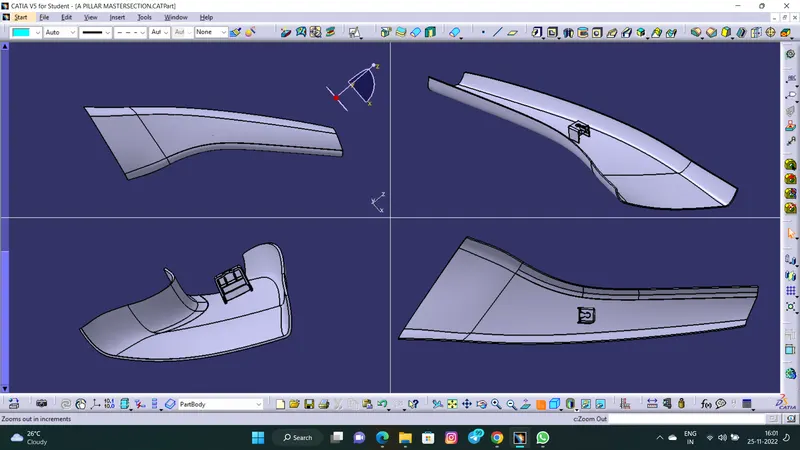

6. VARIOUS VIEWS -

DETAIL REPORT -

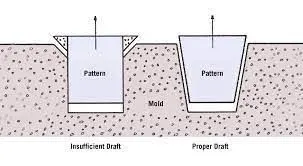

DRAFT - THE DRAFT IS PROVIDING ANGLES OR TAPERS ON PRODUCT FEATURES SUCH AS WALLS,RIBS,POSTS AND BOSSES THAT LIE TO THE DIRECTION OF RELEASE FROM THE MOLD EASES PART EJECTION.

THE MINIMUM DRAFT IS SHOULD RANGE BETWEEN 0.5 DEGREE TO 1 DEGREE . THE NOMINAL DRAFT FOR A COMPONENT OR PART IS 3 DEGREE.

IN CATIA WE USE THE DRAFT ANALYSIS OPITION TO CREATE THE DRAFT TO THE PART OR COMPONENT. WE CREATE THE DRAFT ANALYSIS WE SHOULD REQUIRE THE TOOLING AXIS .

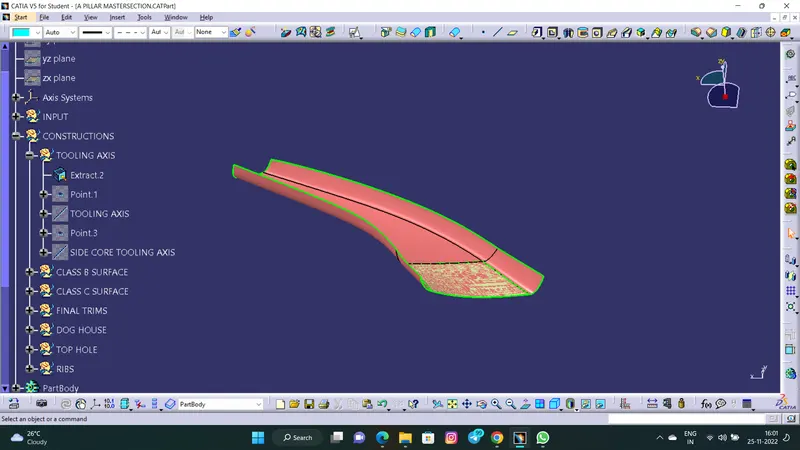

TO CREATE A TOOLING AXIS -

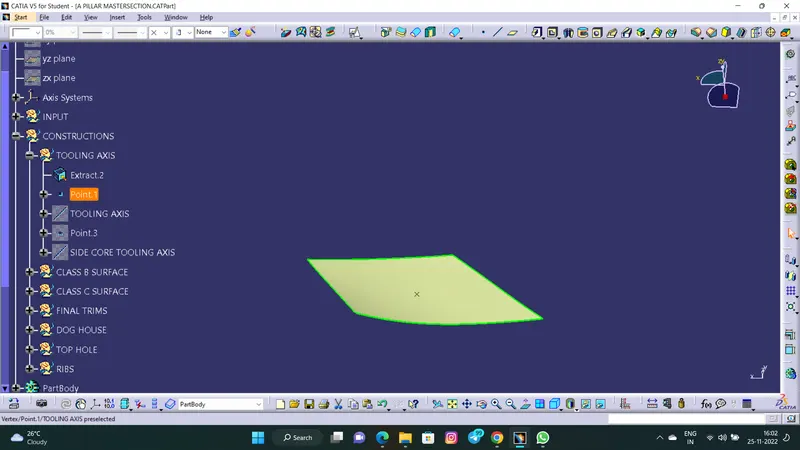

STEP 1 : FIRSTLY TO SELECT A SUTIABLE AXIS FOR THE PART AND EXTRACT THE SURFACE FROM CLASS A .

STEP 2 : CREATE A POINT ON THE SURFACE AND CREATE A AXIS SYSTEM ON THAT POINT .

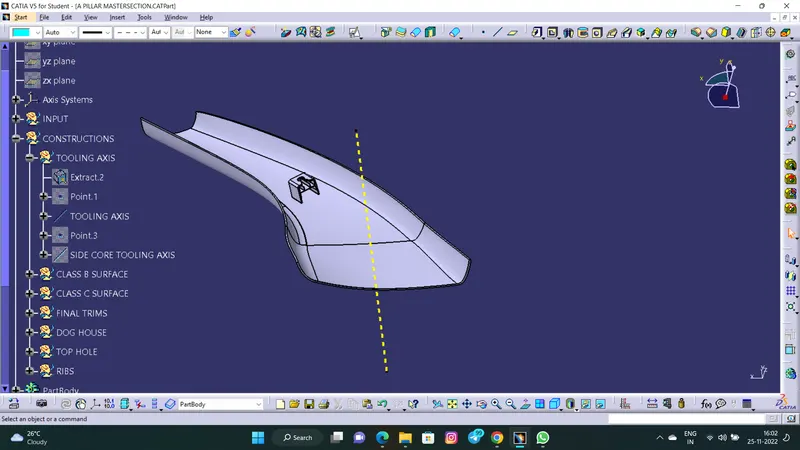

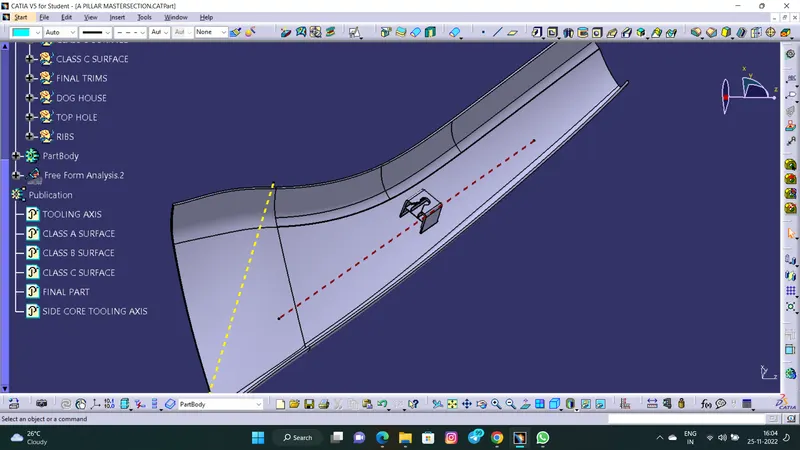

STEP 3 : SELECT THE POINT AND CREATE A LINE THAT LINE IS USED AS THE TOOLING AXIS. BUT WE CREATING A DOG HOUSE WE REQUIRED TWO TOOLING AXIS ARE MAIN TOOLING AXIS AND SIDE TOOLING AXIS . THE SIDE TOOLING AXIS IS USED TO CLEAR DRAFT ANALYSIS ON THE IN SIDE OF DOG HOUSE AND THE MAIN TOOLING AXIS IS USED TO CLEAR THE DRAFT ANALYSIS ON THE OUTER SIDES OF THE DOG HOUSE.

STEP 4 : BY THE USING THE TOOLING AXIS LINES TO CREATE THE DRAFT ANALYSIS.
