Radar Mast & Final Assembly of Yacht
Yacht:
A yacht is a type of boat which is mainly used for recreation.It usually has a cabin, so it does not need to return to the harbour overnight. Originally, yachts were sailing boats, but now there are also motor yachts. The name comes from the dutch word jachtschip, which originally meant hunting-boat or fast boat. Yachts have a fixed keel.
A yacht can vary in size from about 20 feet (6 metres) to 200 feet (60 metres) or more.
Most privately owned yachts fall in the range of about 7 metres (23 ft)-14 metres (46 ft); the cost of building and keeping a yacht rises quickly as length increases. In the United States, sailors tend to refer to smaller yachts as sailboats, while referring to the general sport of sailing as yachting. In sailboat racing, a yacht is any sailing vessel taking part in a race.
Objective:
The main objective of the project is to sketch and build a complete "Sunseeker Predator Yacht" using Solidworks and adding the appearences as suitable and required decals to the assembled yacht.
Introduction:
SolidWorks is asolid modelling computer aided design (CAD) and computer aided engneering (CAE) computer program that runs primarily on microsoft windows. While it is possible to run SolidWorks on MacOS, it is not supported by SolidWorks. SolidWorks is published by dassault systems.
SOLIDWORKS is used to develop mechatronics systems from beginning to end. At the initial stage, the software is used for planning, visual ideation, modeling, feasibility assessment, prototyping, and project management. The software is then used for design and building of mechanical, electrical, and software elements.
Design Methodology:
SolidWorks is a parasolid-based solid modeler, and utilizes a parametric feature-based approach to create models and assemblies.
Parameters refer to constraints whose values determine the shape or geometry of the model or assembly. Parameters can be either numeric parameters, such as line lengths or circle diameters, or geometric parameters, such as tangent, parallel, concentric, horizontal or vertical, etc. Numeric parameters can be associated with each other through the use of relations, which allows them to capture design intent.
Design intent is how the creator of the part wants it to respond to changes and updates. For example, you would want the hole at the top of a beverage can to stay at the top surface, regardless of the height or size of the can. SolidWorks allows you to specify that the hole is a feature on the top surface, and will then honor your design intent no matter what the height you later gave to the can.
Features refer to the building blocks of the part. They are the shapes and operations that construct the part. Shape-based features typically begin with a 2D or 3D sketch of shapes such as bosses, holes, slots, etc. This shape is then extruded or cut to add or remove material from the part. Operation-based features are not sketch-based, and include features such fillets, chamfers, shells, applying draft to the faces of a part, etc.Screen shot captured from a SolidWorks top-down design approach.
Building a model in SolidWorks usually starts with a 2D sketch (although 3D sketches are available for power users). The sketch consists of geometry such as points, lines, arcs, conics (except the hyperbola), and splines. Dimensions are added to the sketch to define the size and location of the geometry.
Relations are used to define attributes such as tangency, parallelism, perpendicularity, and concentricity. The parametric nature of SolidWorks means that the dimensions and relations drive the geometry, not the other way around. The dimensions in the sketch can be controlled independently, or by relationships to other parameters inside or outside of the sketch.
SolidWorks pioneered the ability of a user to roll back through the history of the part in order to make changes, add additional features, or change the sequence in which operations are performed.Later feature-based solid modeling software has copied this idea.
In an assembly, the analog to sketch relations are mates. Just as sketch relations define conditions such as tangency, parallelism, and concentricity with respect to sketch geometry, assembly mates define equivalent relations with respect to the individual parts or components, allowing the easy construction of assemblies. SolidWorks also includes additional advanced mating features such as gear and cam follower mates, which allow modeled gear assemblies to accurately reproduce the rotational movement of an actual gear train.
Finally, drawings can be created either from parts or assemblies. Views are automatically generated from the solid model, and notes, dimensions and tolerances can then be easily added to the drawing as needed.

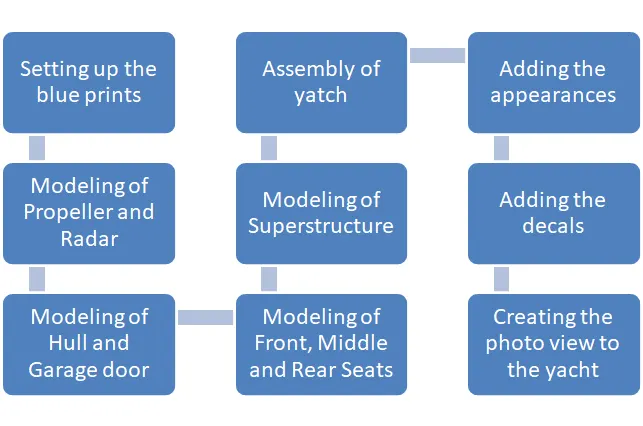

Flow diagram of yatch modeling:

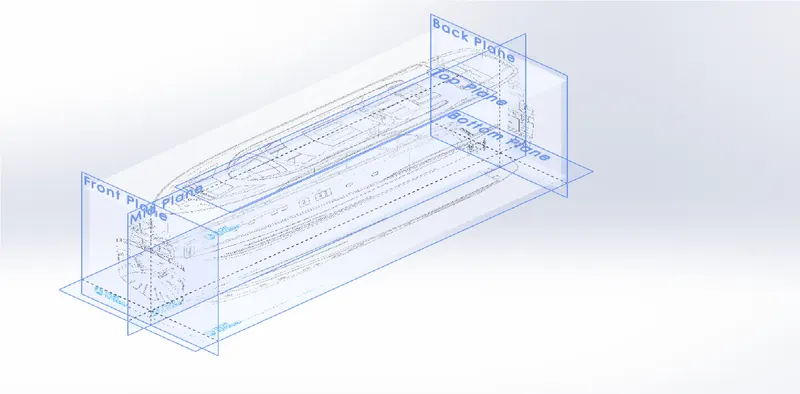

Blue print set up:
Different parts in yatch:
Propeller
Radar
Hull
Garage door
Front seat
Middle seat
Rear seat
Superstructure
Radar mast
Description of the parts:
#Propeller:
A propeller is a rotating fan-like structure which is used to propel the ship by using the power generated and transmitted by the main engine of the ship.
A propeller is a device with a rotating hub and radiating blades that are set at a pitch to form a helical spiral, that, when rotated, performs an action which is similar to archimidies screw. It transforms rotational power into linear thrust by acting upon a working fluid, such as water or air.The ratational motion of the blades is converted into thrust by creating a pressure difference between the two surfaces. A given mass of working fluid is accelerated in one direction and the craft moves in the opposite direction. Propeller dynamics, like those of aircraftwings, can be modelled by bernoulli's and newton's third law.Most marine propellers are screw propellers with helical blades rotating on a propller shaft with an approximately horizontal axis.
Some import tools used to model the propeller is line, circle, corner rectangle, revolve, surface loft, boss base extrude, cut extrude, fillets, circular patterns etc.,

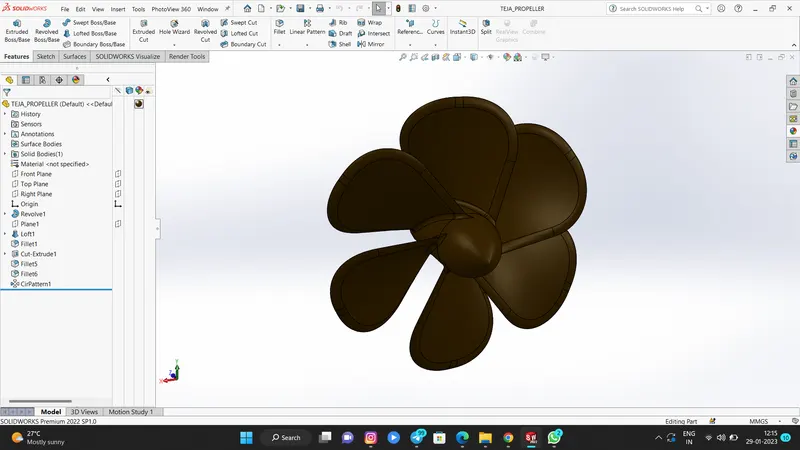

Modeling of the Propeller:

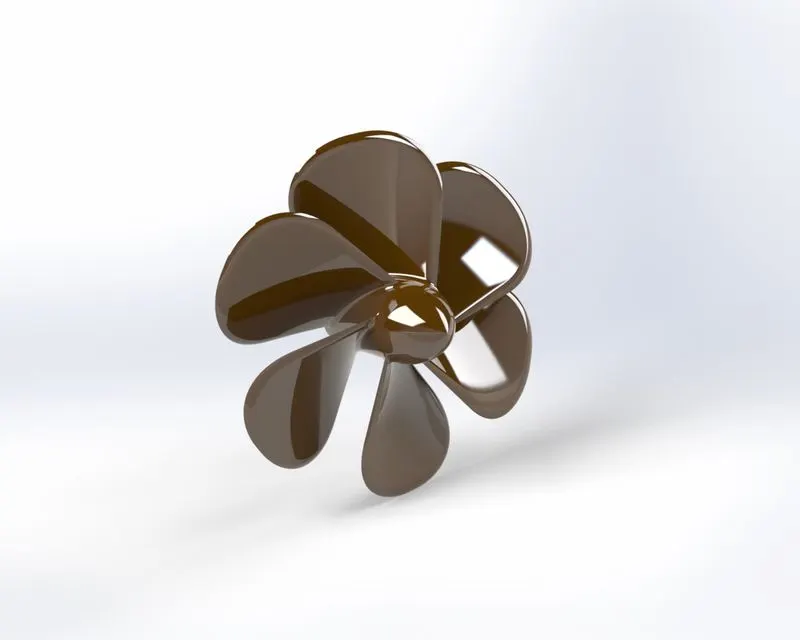

Rendering of Propeller:
#Radar:
Marine Radar - Radio Detection and Ranging, is used to detect objects and their position relative to your current location. ... A marine radar device acts as a major navigation aid for boaters. It helps in detecting boats, birds, landmasses, and weather systems - even if the visibility is less than usual.
Some import tools used to model the Radar is line, spline, circular pattern, boss extrude, cut extrude, fillet, sketch pattern, mirror etc.,

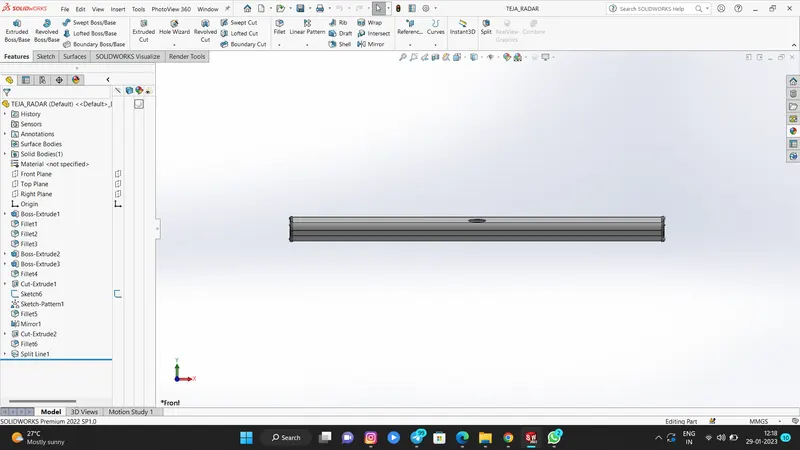

Modeling of the Radar
Rendering of Radar
#Hull:
The hull of a ship is the most notable structural entity of the ship. To define the hull, it can be said that it is the watertight enclosure of the ship, which protects the cargo, machinery, and accommodation spaces of the ship from the weather, flooding, and structural damage.
some important tools used to model the hull is splines, projected curve, surface loft, surface trim, surfae extrude, surface knit, boss extrude, fillet, chamfer, sweep, revolve, helical spring, revolve, linear pattern, mirror, etc

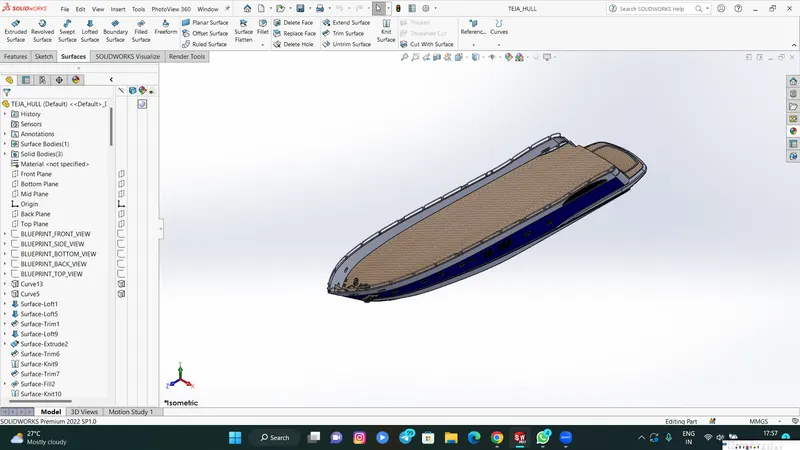

Modeling of the Hull:

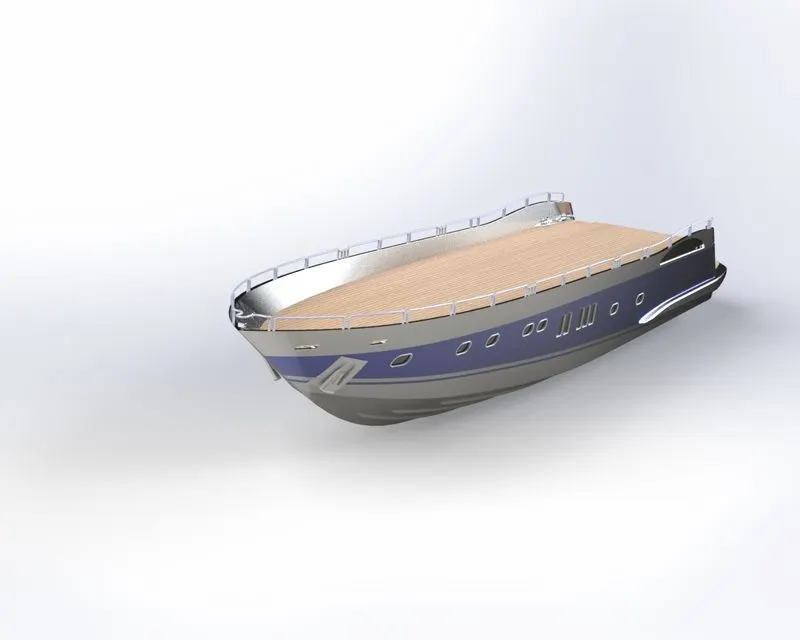

Rendering of Hull:
#Garage door:
The main purpose of the garage door is to open and close the hull inside body.
In the garage, there are two door types; there is the door that goes from the inside of the garage to the outside yard, this is just a regular exterior door you can buy easily. Then you have the door that goes from inside the garage to inside the house, this door is special, and it's called a fire door.
Some of the import tools used to model the garage door are line, spline, mirror, split line, fillet, cut extrude, shell etc.,

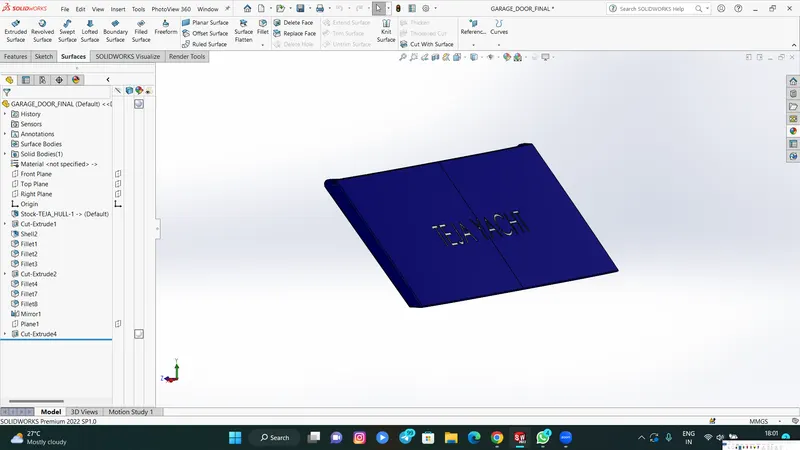

Modeling of the Garage door

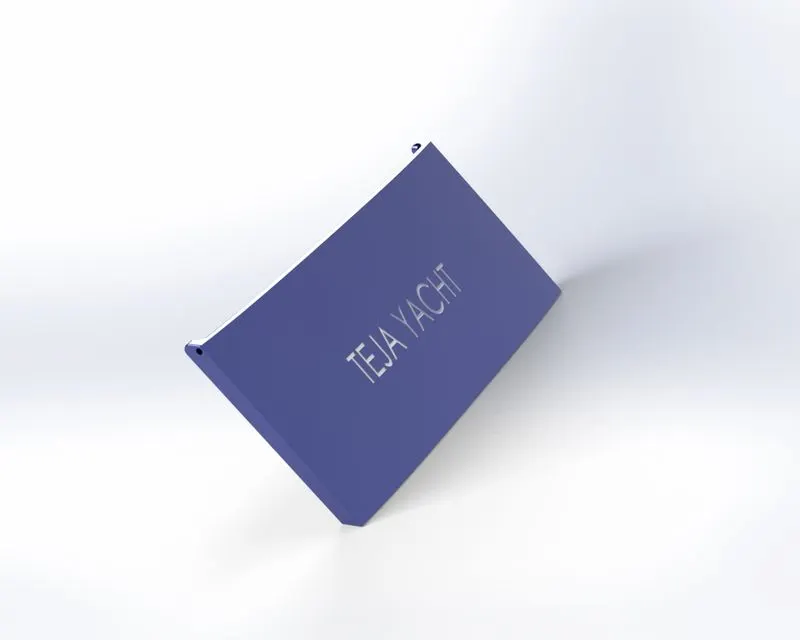

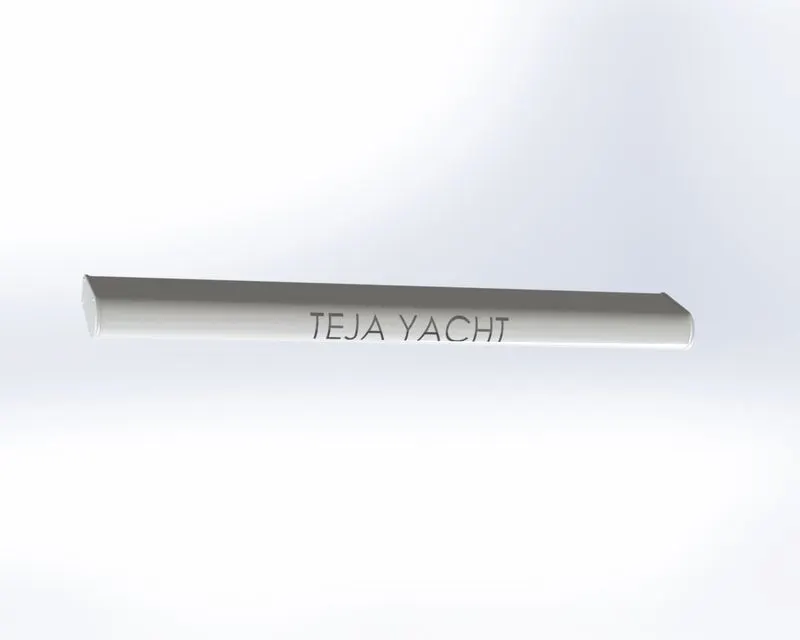

Rendering of the Garage door
#Front, middle and rear seats:
The yacht seats are mainly used for the passenger comfort and their luxuary.
Some important tools whicha are required for model the yacht are surface swwep, surface fill, surface trim, surface loft, chamfer, revolve, cut extrude, mirror, fillet, cut extrude etc.,

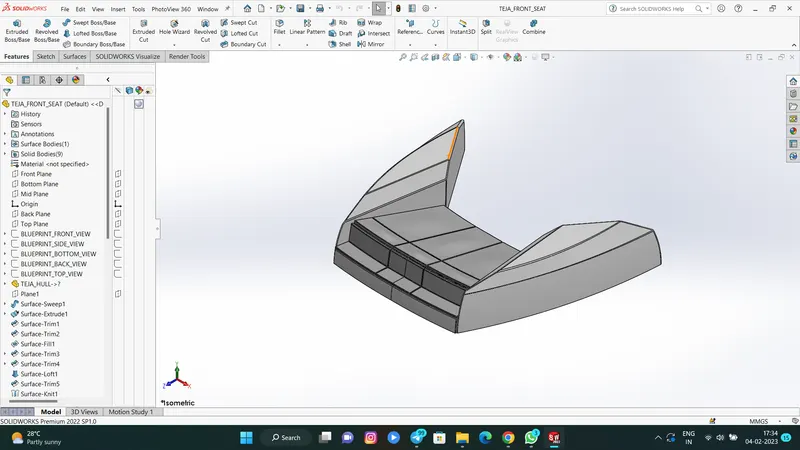

Modeling of the Front seat

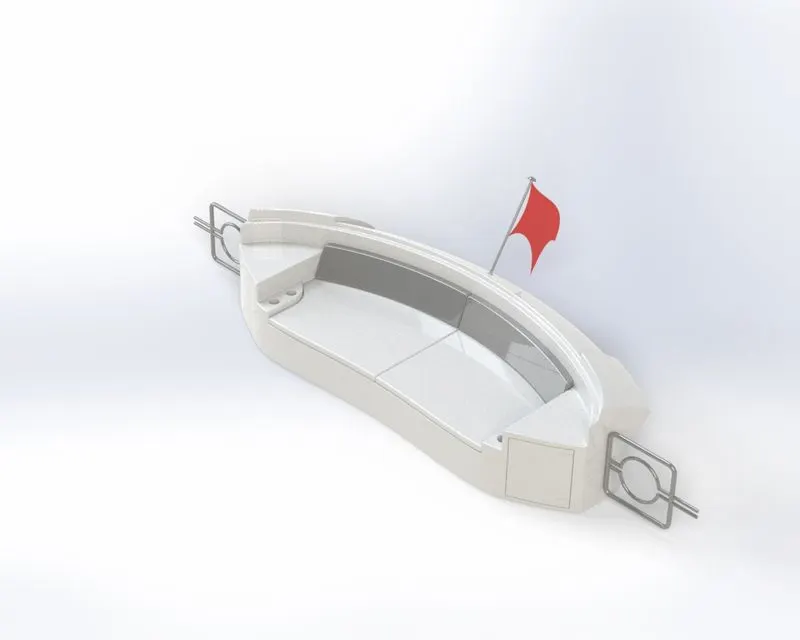

Rendering of Front Seat

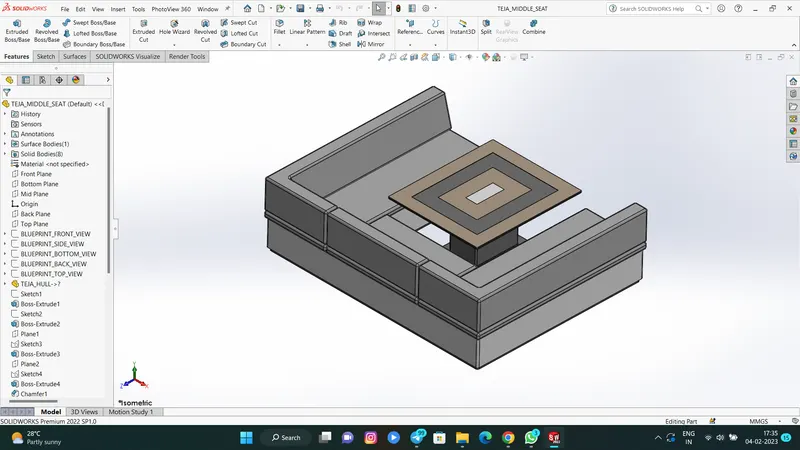

Modeling of the Middle seat

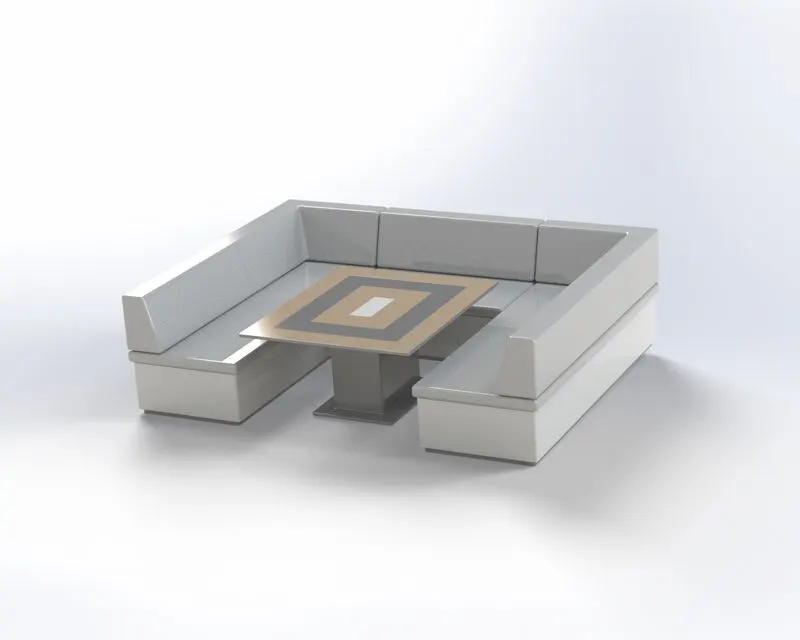

Rendering of Middle seat

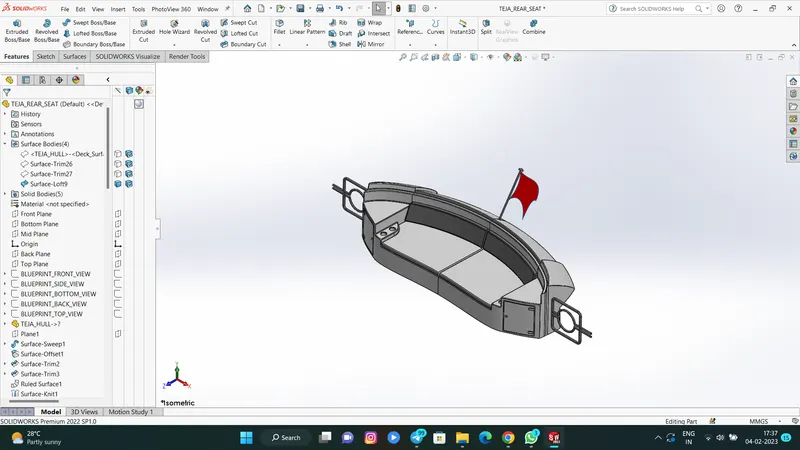

Modeling of the Rear seat

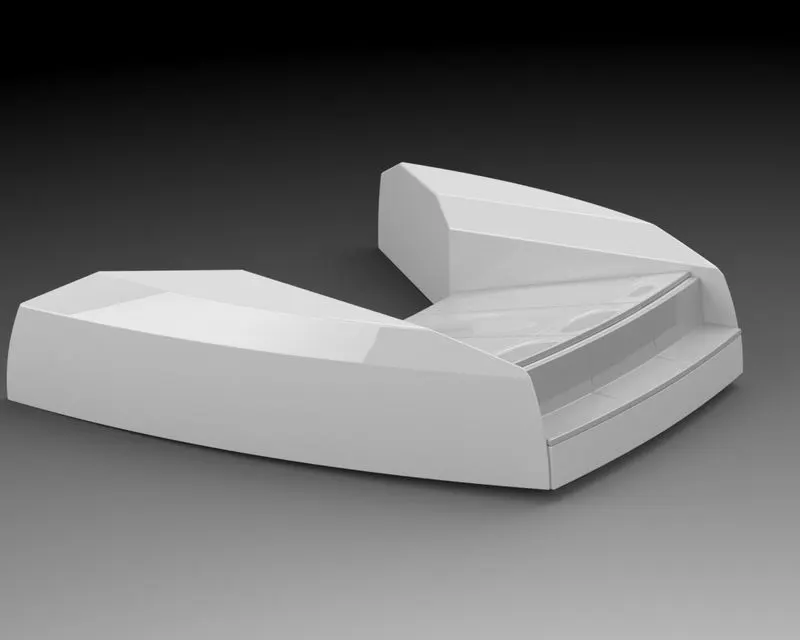

Rendering of Rear seat
#Superstructure
The superstructure covers everything above the substructure, from walls to floors to roofing. The purpose of the superstructure is to enclose and divide space, as well as spread loads safely into the substructure.
A superstructure is an extended construction of any building or platform that rises above the rest of the building or platform in a distinct manner. The word comes from a combination of two Latin words, the Latin prefix ‘super’ means in addition or above or in excess of, whereas the stem word ‘structure’ means to build or to heap up. Thus, superstructure means to add a construction to an already existing structure. In ships this is the name given to the part of the ship that emerges from the deck. However any mast, sails, any armaments or arsenal are not included in this category.
The size of the superstructure has a great influence on the mobility of the vessels. They are designed in a manner, so that, they add value and hinder the speed and mobility in the least. The superstructure is mostly designed in fashion as well. This is because it is the most easily visible part of the ship, in fact it is the identification of the ship, and so the designers try to provide it with the identity that is unique.
Some important tools used to build the superstructure is line, circle, corner rectangle, surface extrude, surface sweep, surface knit, surface loft, surface trim, projrctive curve, ruled surface, surface extend, sweep, boss extrude, cut extrude, chamfer etc.,

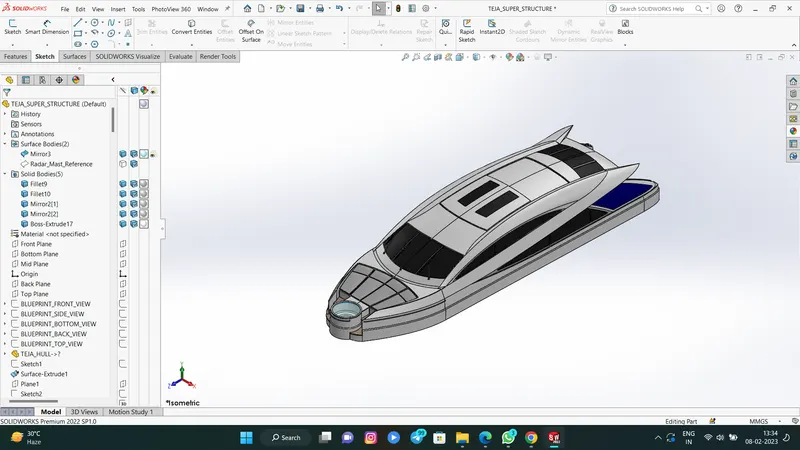

Modeling of the Superstructure

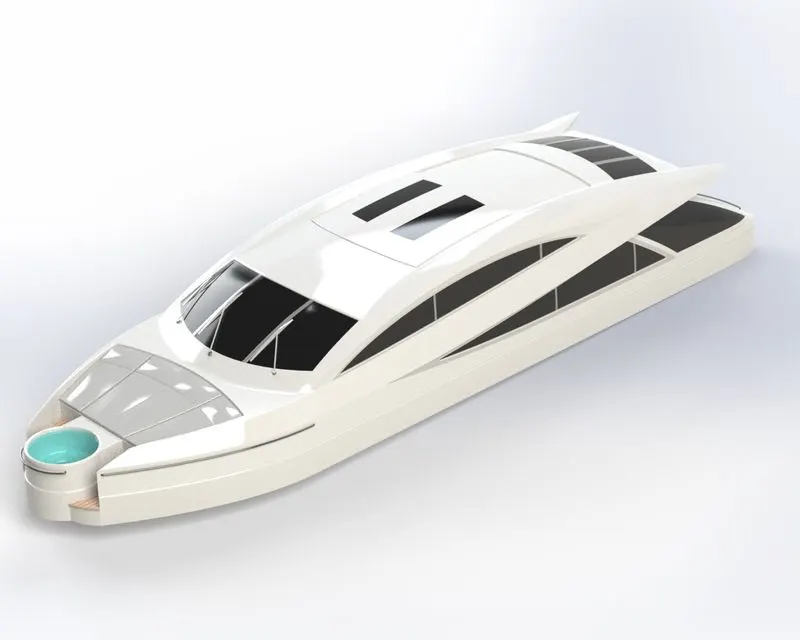

Rendering of the Superstructure
#Radar mast:
Its purposes include carrying sails, spars, and derricks, and giving necessary height to a navigation light, look-out position, signal yard, control position, radio aerial or signal lamp. Large ships have several masts, with the size and configuration depending on the style of ship.
Some important tools which are required for build the yacht are line, mirror, sweep, chamfer, fillets, revolve, boss extrude, shell etc.,

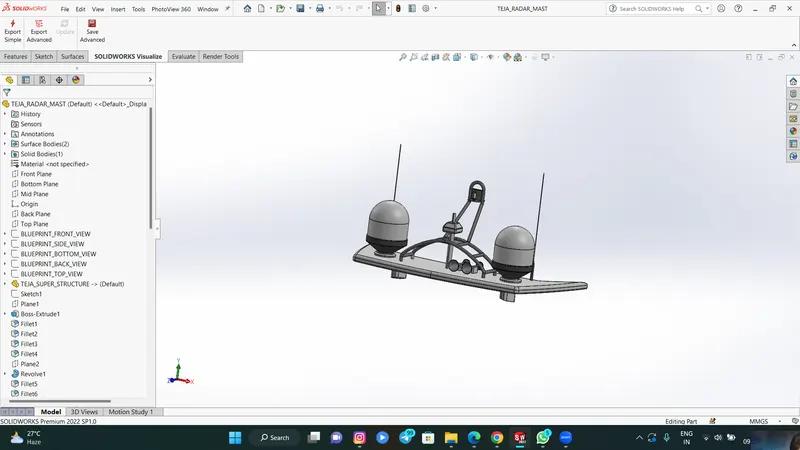

Modeling of the Radar Mast

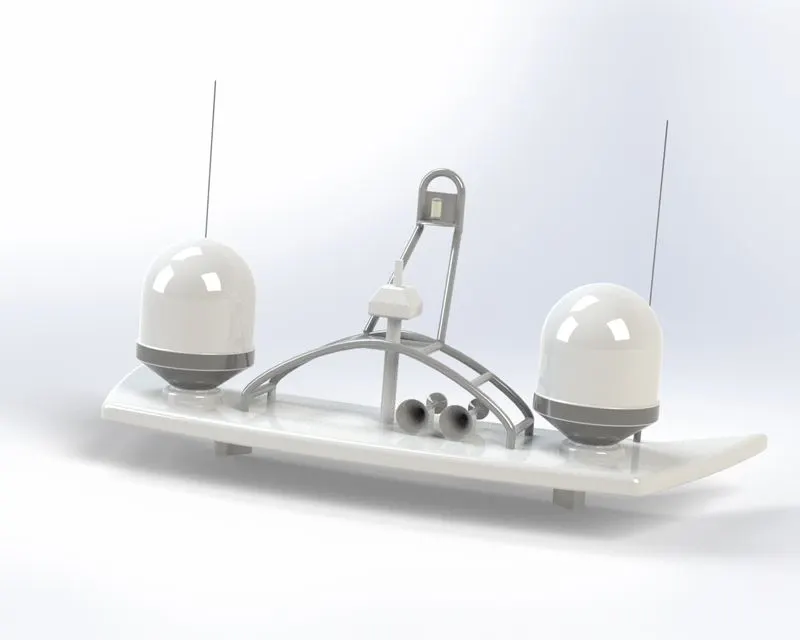

Rendering of the Radar Mast

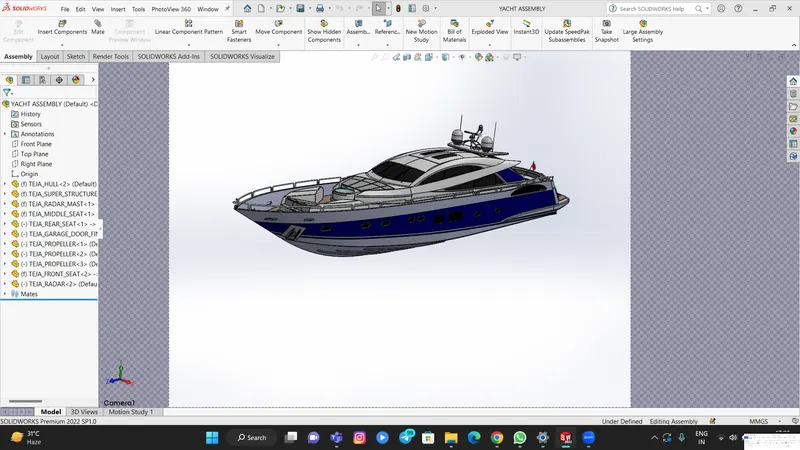

Assembly:

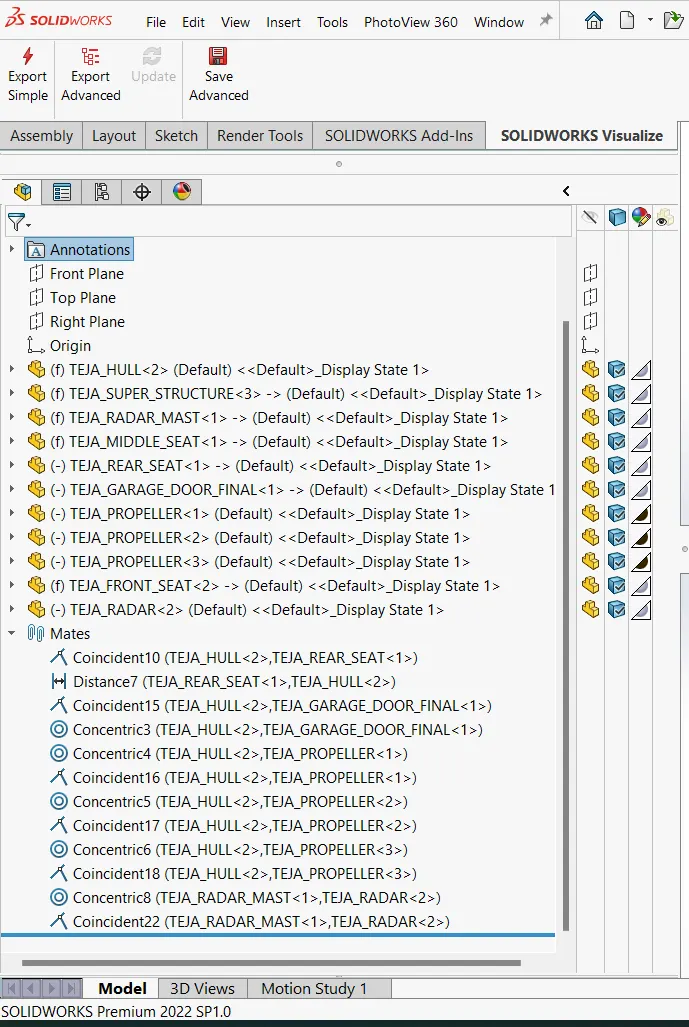

Assembling is the process of combaning the different parts with a sequence of joining through advanced mates like coincident, distance, angle, concentric, parallel, width, limit angle, etc.,

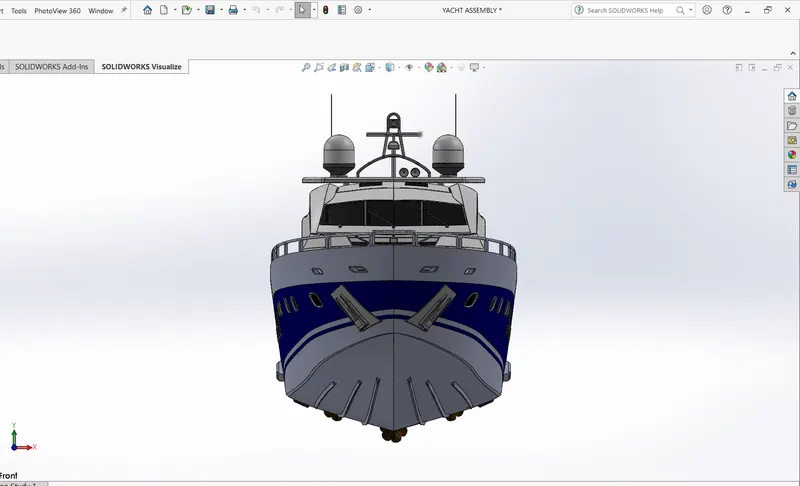

Front view of yacht assembly

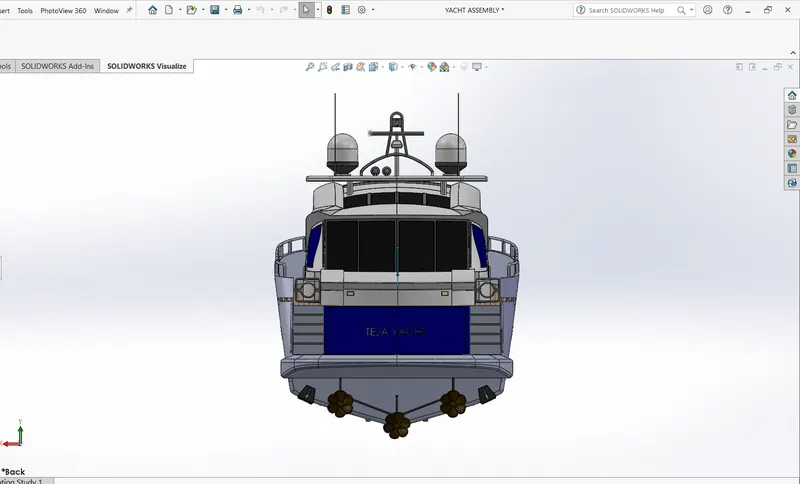

Back side view of yacht assembly

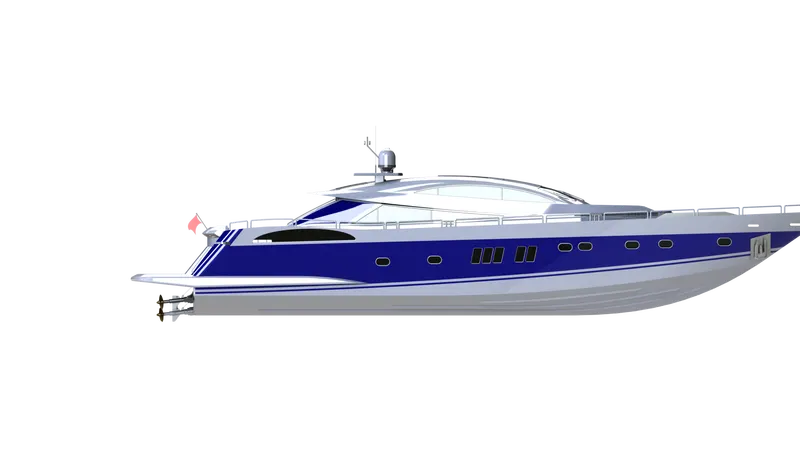

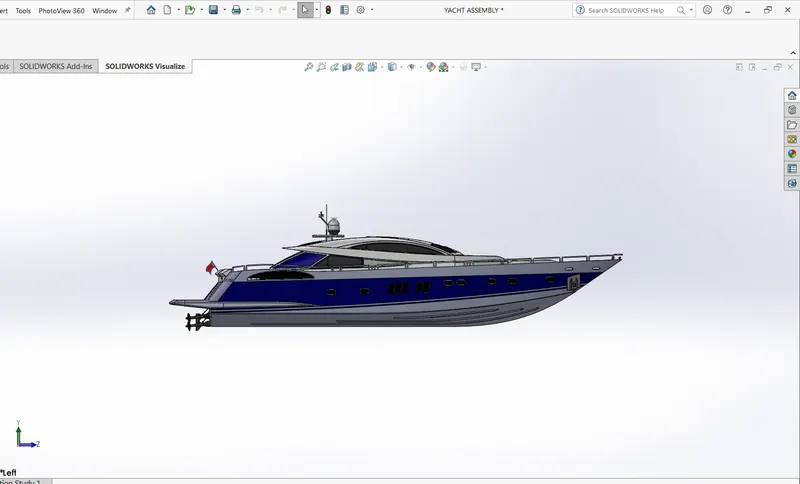

Side view of yacht assembly

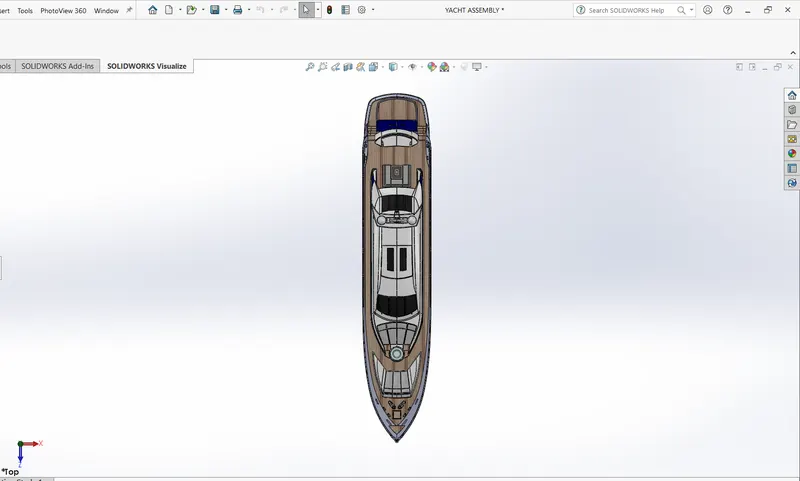

Top view of yacht assembly

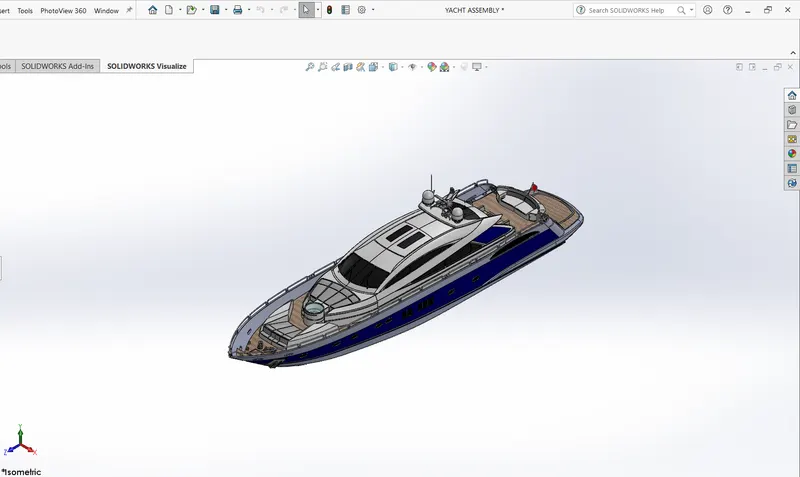

Isometric view of yacht assembly
Camera view of yacht assembly
Rendering of yacht assembly

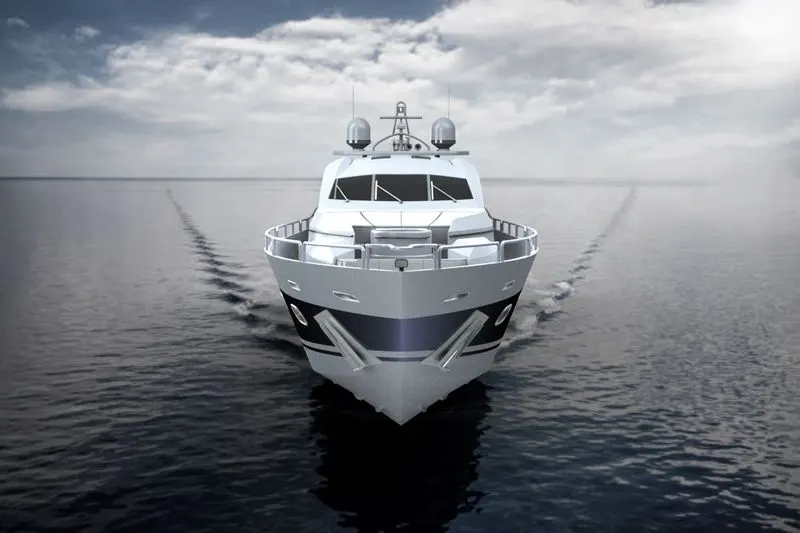

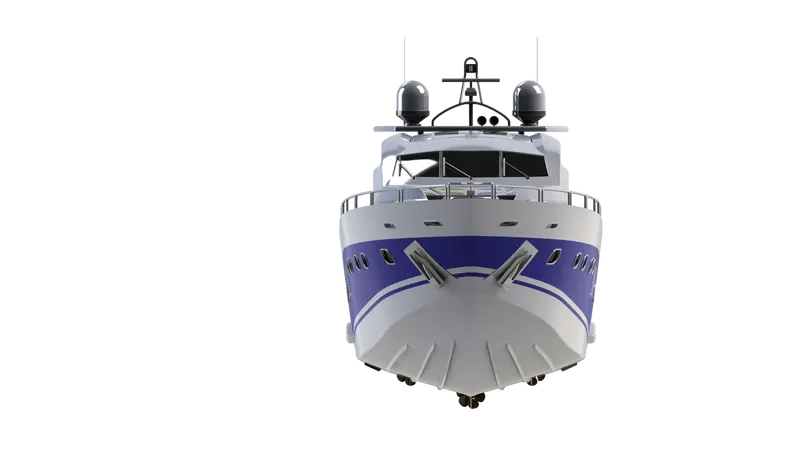

Front view

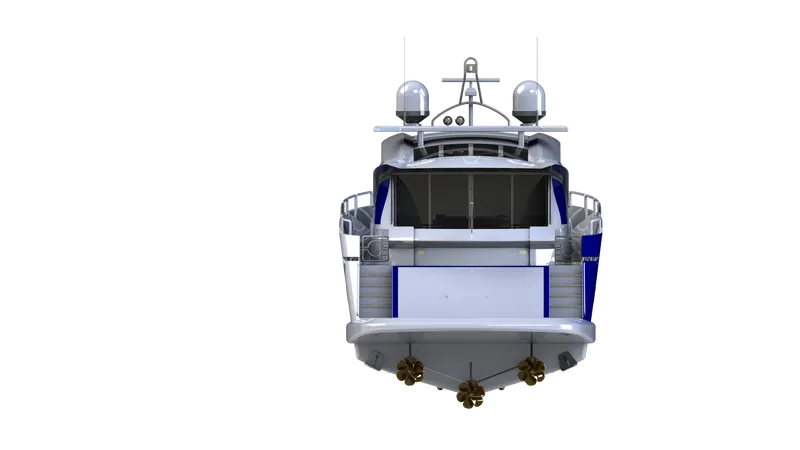

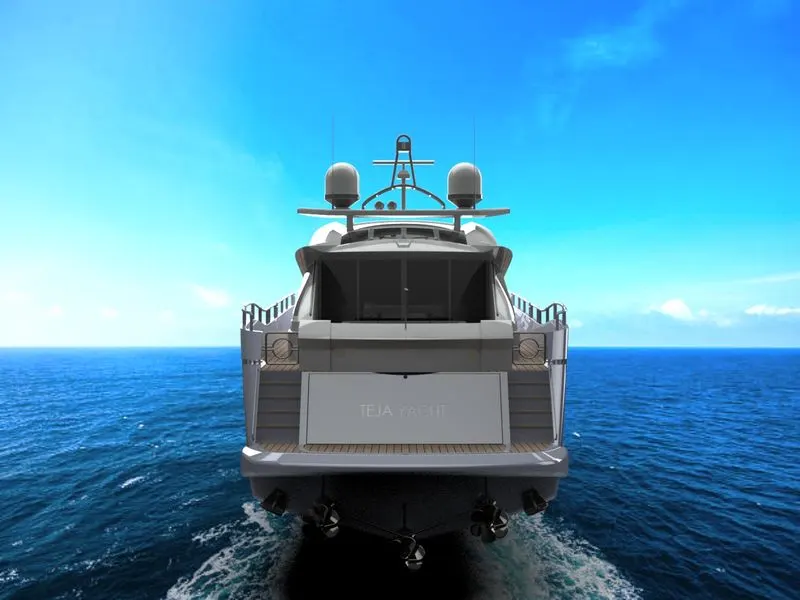

Back side view
Side view

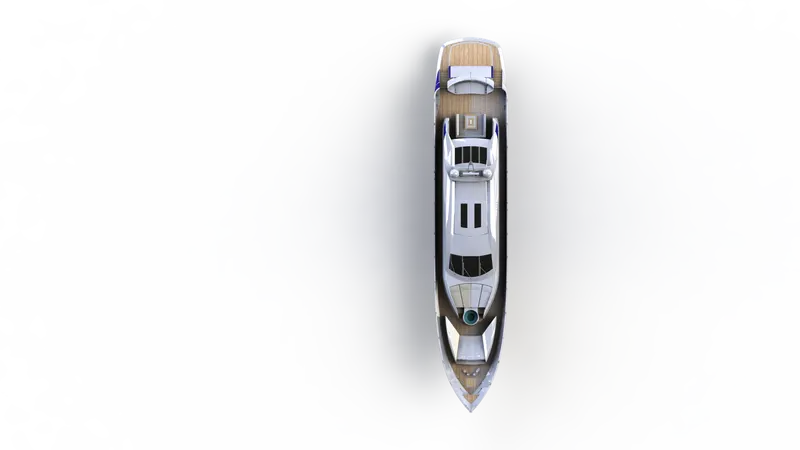

Top view

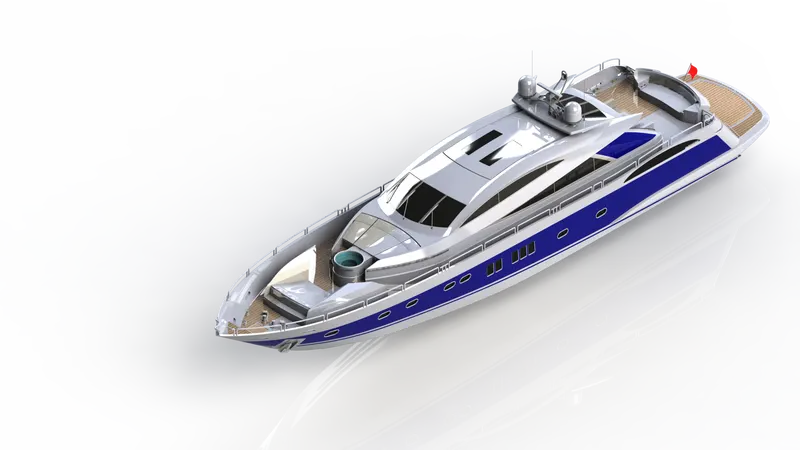

Isometric view
Camera View

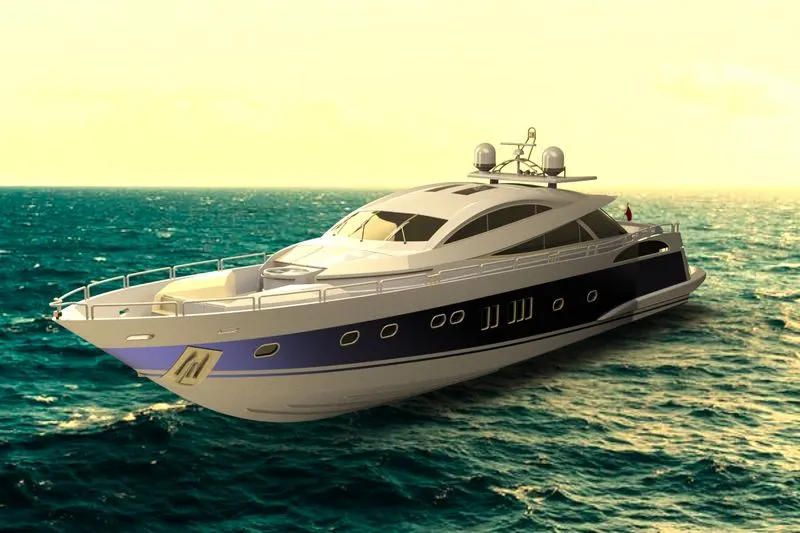

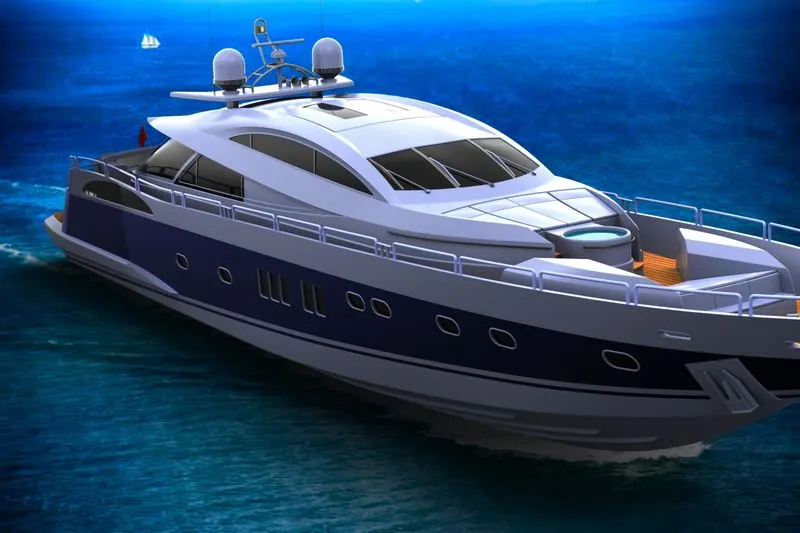

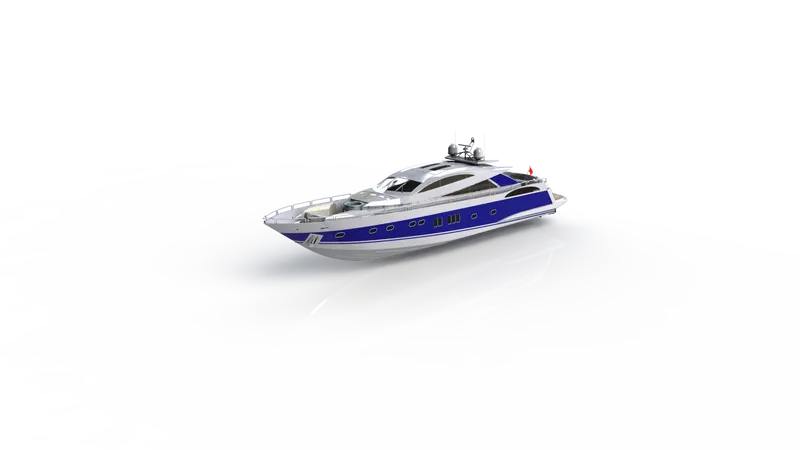

Photo Realistic Rendering of yacht assembly:
Photorealistic rendering is highly driven by the real lights that create the actual shapes and textures when the 3D design is photographed.Rendering or image synthesis is the process of generating a photorealistic or non-photorealistic image from a 2D or 3D model by means of a computer program. The resulting image is referred to as the render. Multiple models can be defined in a scene file containing objects in a strictly defined language or data structure. The scene file contains geometry, viewpoint, texture, lighting, and shading information describing the virtual scene.
Conclusion:
By this project i am able to learn how to design the component in the solidworks, how to assemble the different parts by using the advanced mates, how to modeled the component and how to create the photo realistic rendering for yacht. Finally the required views and documentation is provided.
