Week 11 - Final project

BEFORE SUBMITTING THE PROJECT I SHOUD VERIFY THE PROJECT WITH ONE OF THE SUPPORT ENGINNER HE SAID ALL GOOD PLEASE SUBMIT THE CHALLANGE.

DOOR PANEL

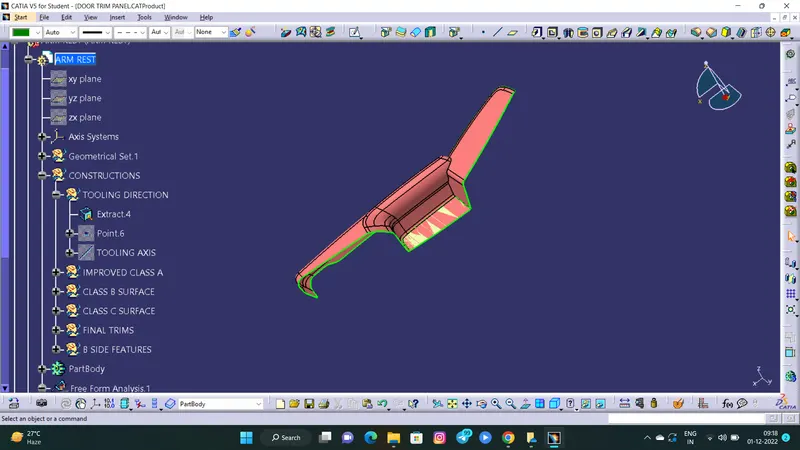

1. ARM REST -

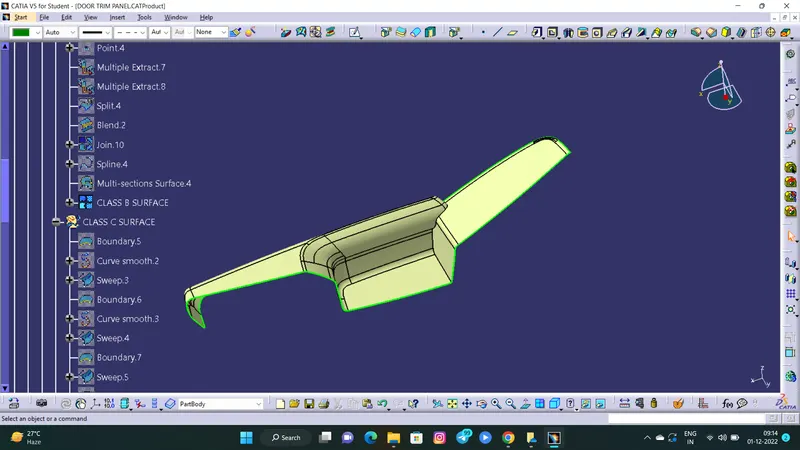

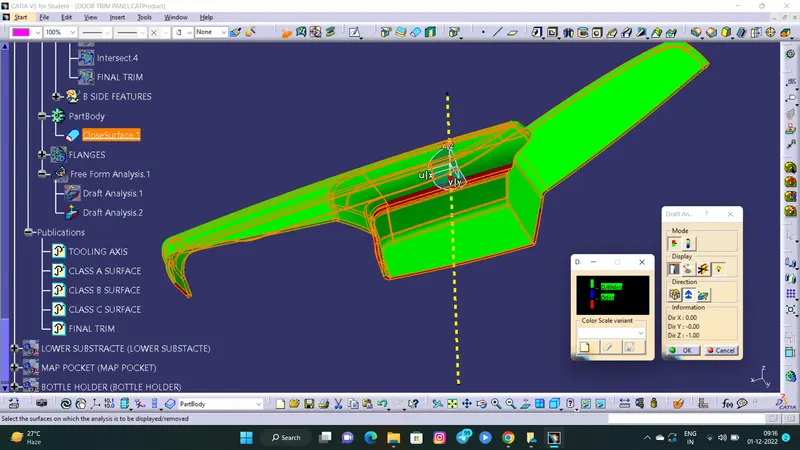

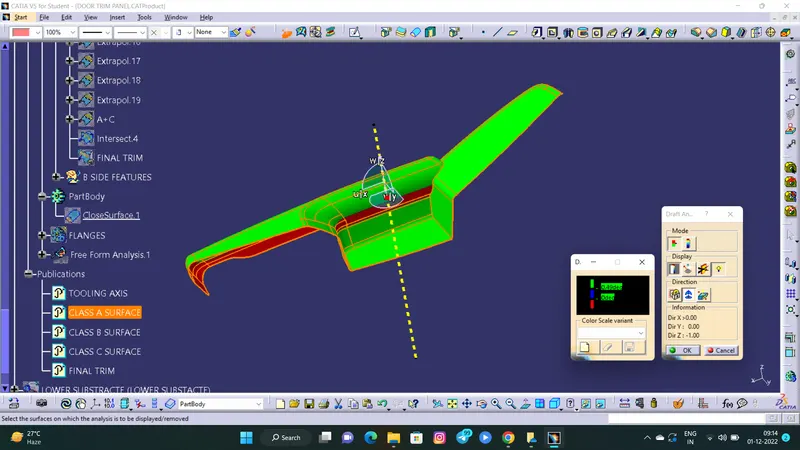

CLASS A SURFACE DRAFT ANALYSIS -

FINAL DRFAT ANALYSIS-

BY CREATE THE DRAFT ANALYSIS  ON THE CLASS A SURFACE AND FINAL PART IT'S NOT CORECTLY FORMED . THEN I AM ASKING ONE OF THE SUPPORT ENGINEER ACCORDING TO THAT I AM CREATING THE DRAFT ANALYSIS ON THE CLASS A SURFACE AND FINAL PART BUT IT CANNOT BE FORMED HE SAID THERE IS A ERROR ON THE CLASS A THAT'S WHY WE CANNOT CLEAR THE  DRAFT ANALYSIS . HENCE HE SAID THAT PLEASE GO THROUGH THE FURTHER PROCESS FOR CREATING THE OTHER FEATURES . HE SAID THAT NO PROBLEM PLEASE GO THROUGH THAT.

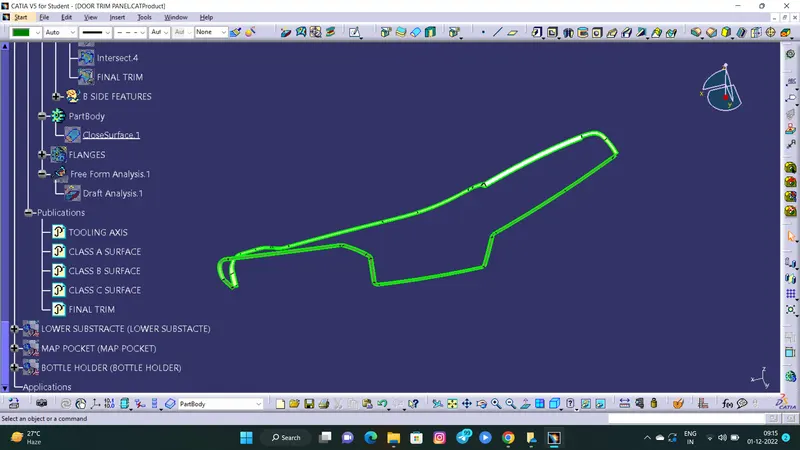

CLASS A SURFACE -

CLASS B SURFACE -

CLASS C SURFACE -

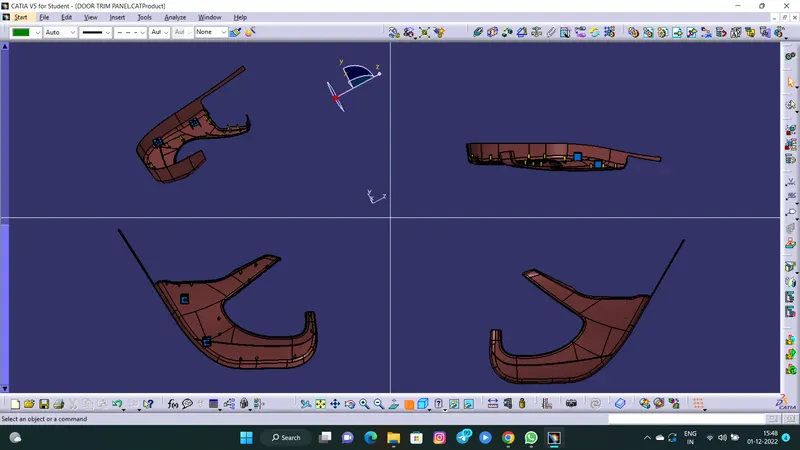

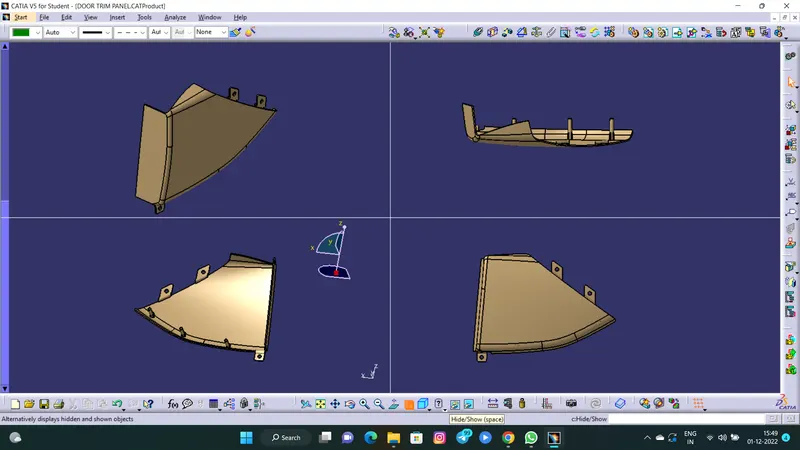

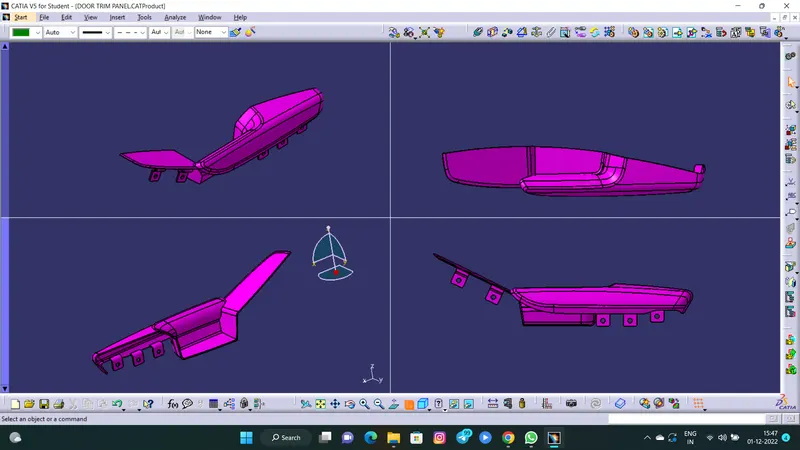

VARIOUS VIEWS -

DETAIL REPORT -

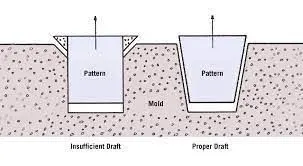

DRAFT - THE DRAFT IS PROVIDING ANGLES OR TAPERS ON PRODUCT FEATURES SUCH AS WALLS,RIBS,POSTS AND BOSSES THAT LIE TO THE DIRECTION OF RELEASE FROM THE MOLD EASES PART EJECTION.



THE MINIMUM DRAFT IS SHOULD RANGE BETWEEN 0.5 DEGREE TO 1 DEGREE . THE NOMINAL DRAFT FOR A COMPONENT OR PART IS 3 DEGREE.

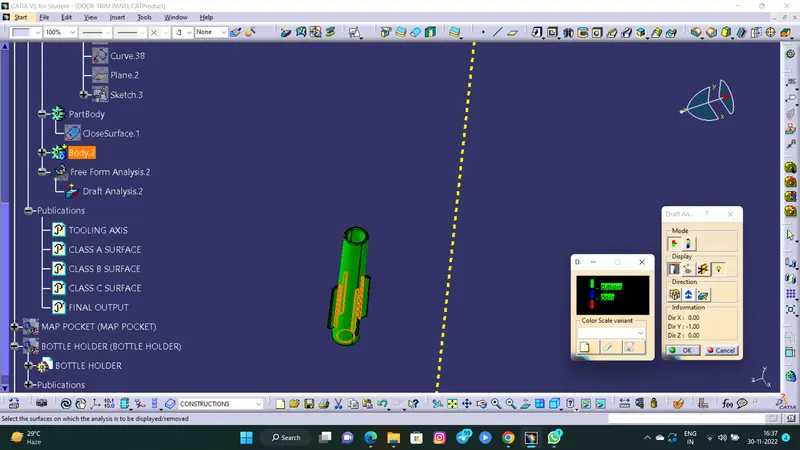

IN CATIA WE USE THE DRAFT ANALYSIS OPITION TO CREATE THE DRAFT TO THE PART OR COMPONENT. WE CREATE THE DRAFT ANALYSIS WE SHOULD REQUIRE THE TOOLING AXIS .

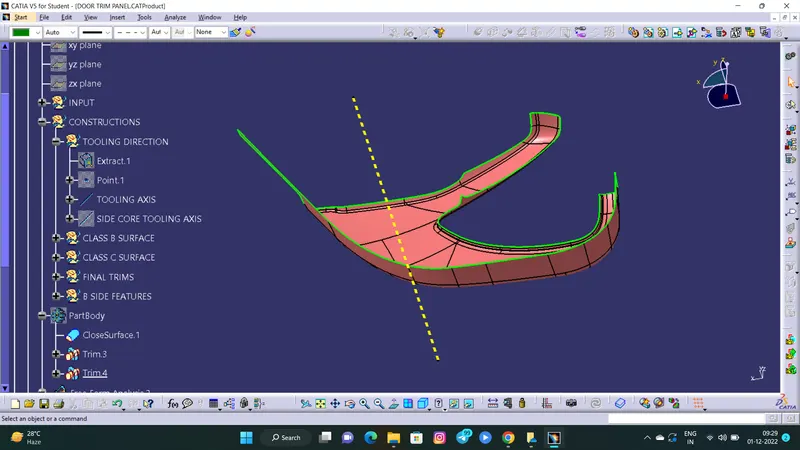

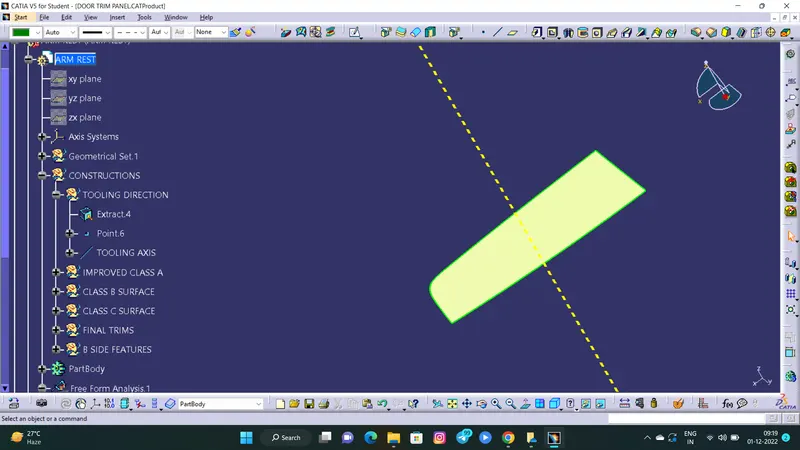

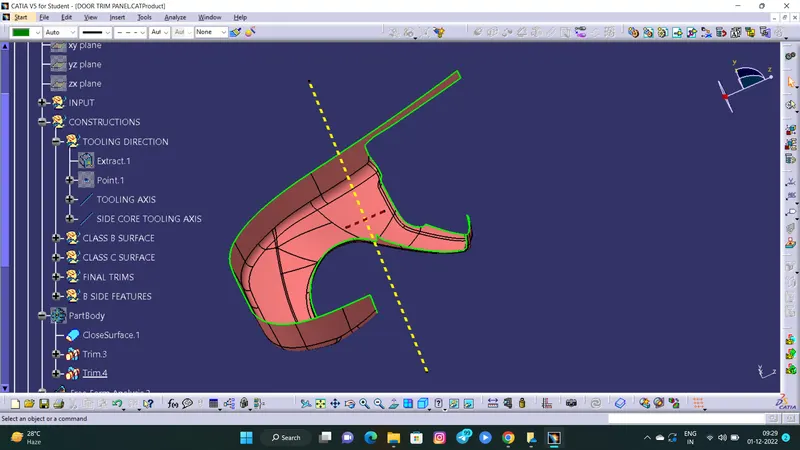

TO CREATE A TOOLING AXIS -

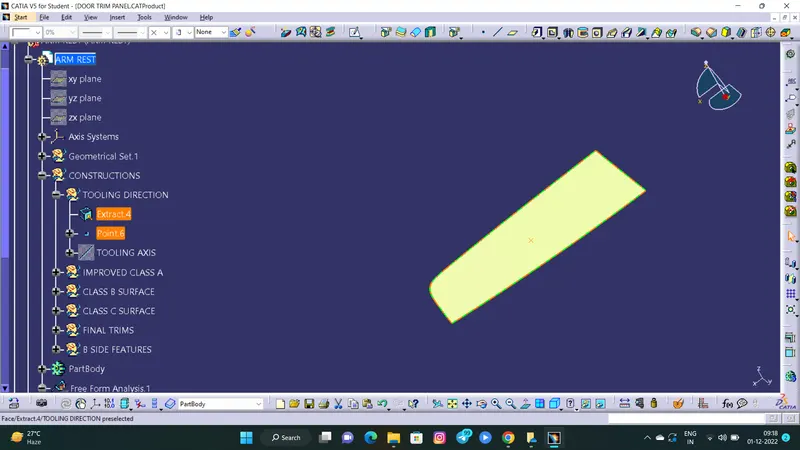

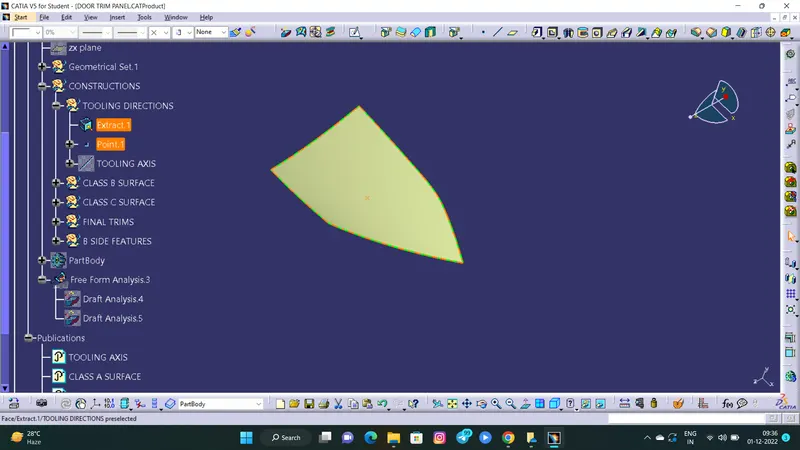

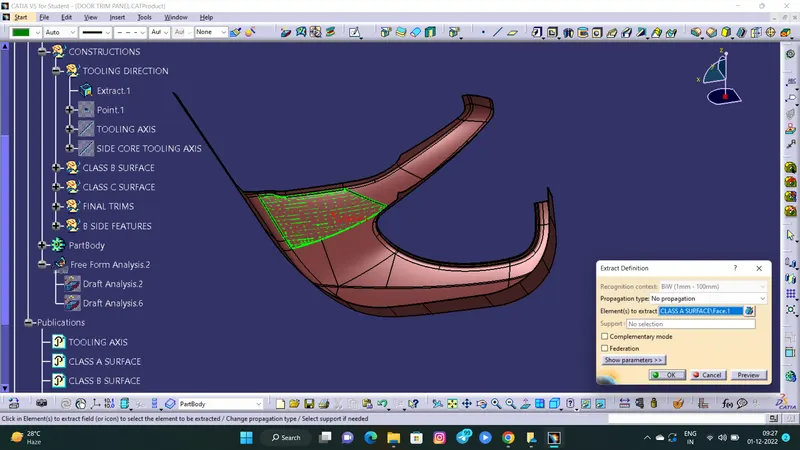

STEP 1 : FIRSTLY TO SELECT A SUTIABLE AXIS FOR THE PART AND EXTRACT THE SURFACE FROM CLASS A .

STEP 2 : CREATE A POINT ON THE SURFACE AND CREATE A AXIS SYSTEM ON THAT POINT .

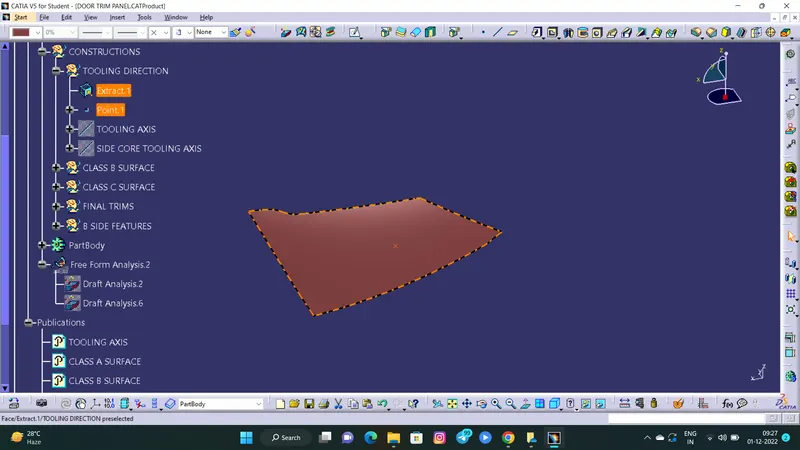

STEP 3 : SELECT THE POINT AND CREATE A LINE THAT LINE IS USED AS THE TOOLING AXIS.

STEP 4 : BY THE USING THE TOOLING AXIS LINE TO CREATE THE DRAFT ANALYSIS.

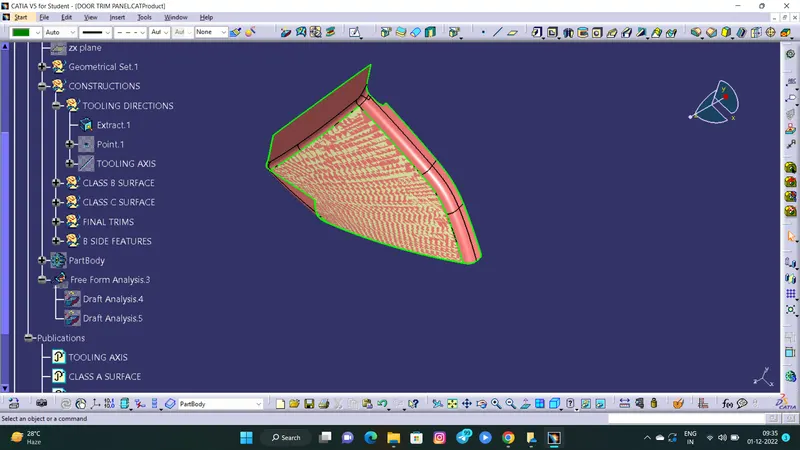

2. LOWER SUBSTRACTE -

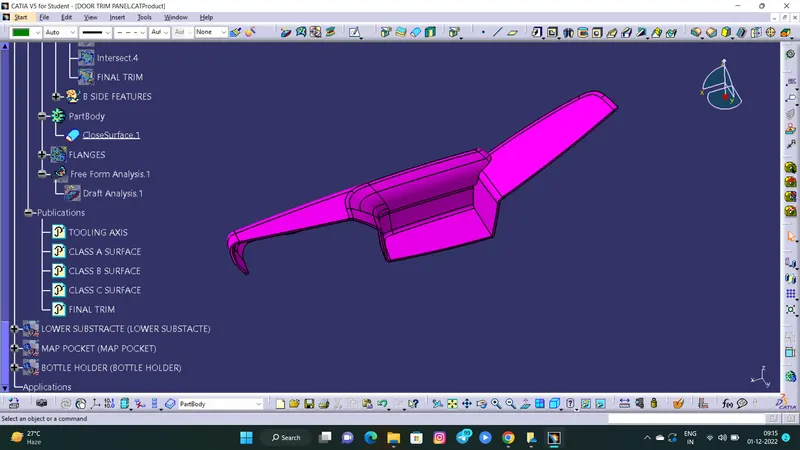

CLASS A SURFACE DRAFT ANALYSIS -

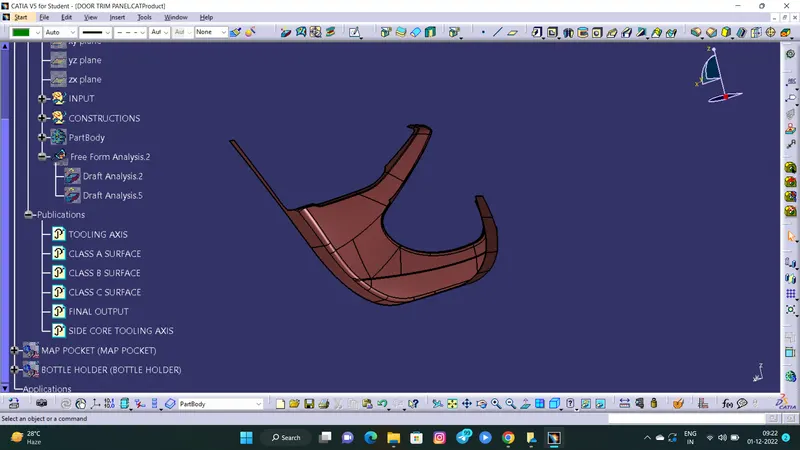

FINAL DRAFT ANALYSIS -

CLASS B SURFACE -

CLASS C SURFACE -

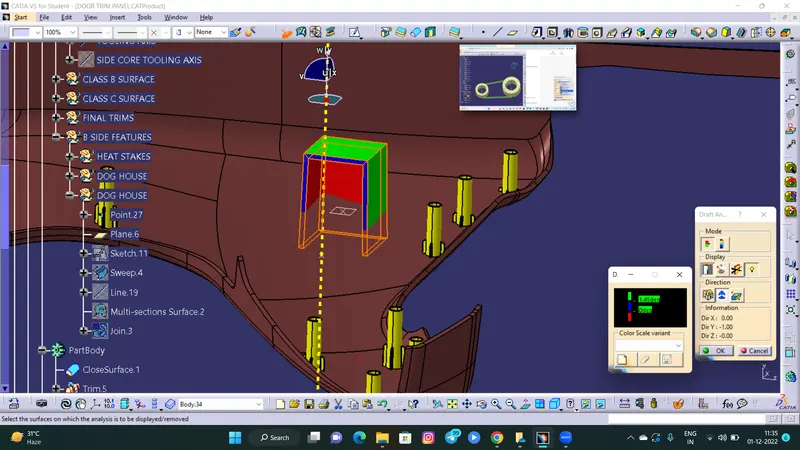

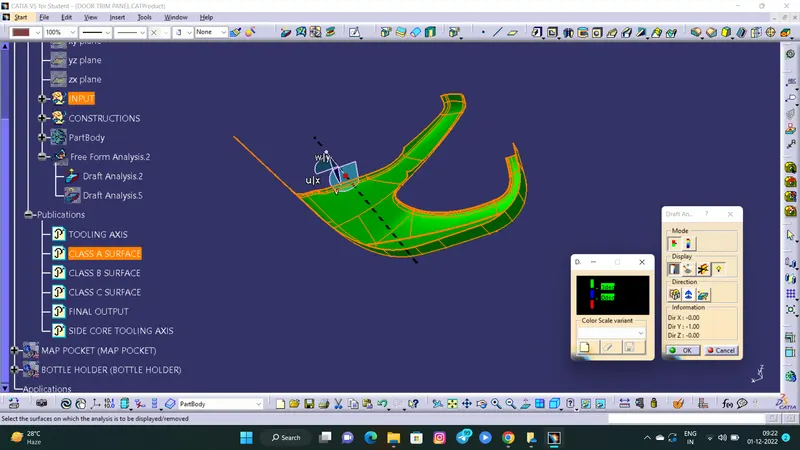

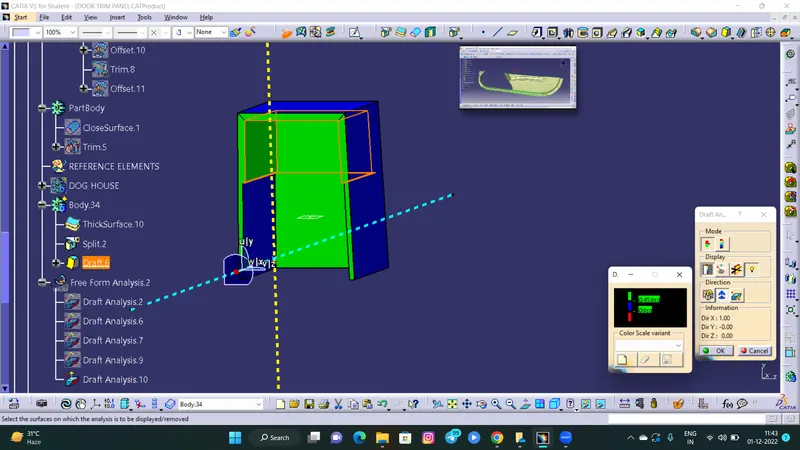

DOG HOUSE DRAFT ANALYSIS -

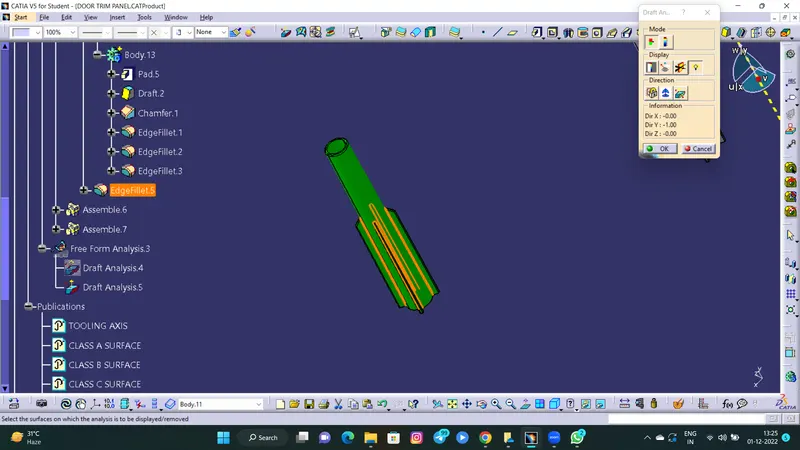

HEAT STAKE DRAFT ANALYSIS -

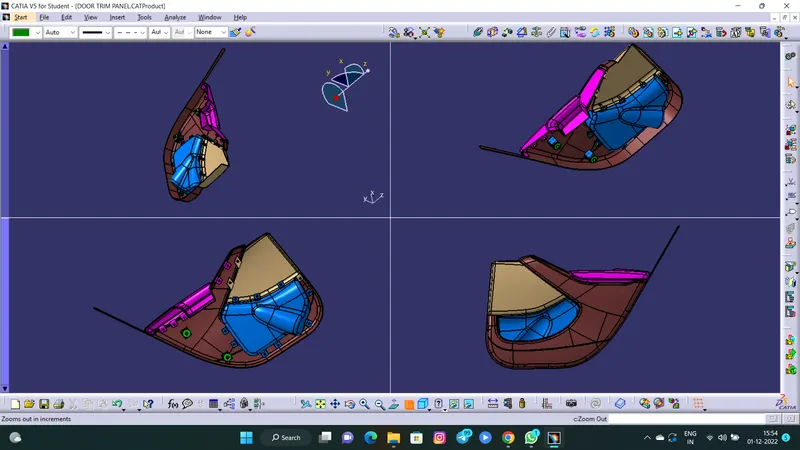

VARIOUS VIEWS -

DETAIL REPORT -

DRAFT - THE DRAFT IS PROVIDING ANGLES OR TAPERS ON PRODUCT FEATURES SUCH AS WALLS,RIBS,POSTS AND BOSSES THAT LIE TO THE DIRECTION OF RELEASE FROM THE MOLD EASES PART EJECTION.



THE MINIMUM DRAFT IS SHOULD RANGE BETWEEN 0.5 DEGREE TO 1 DEGREE . THE NOMINAL DRAFT FOR A COMPONENT OR PART IS 3 DEGREE.

IN CATIA WE USE THE DRAFT ANALYSIS OPITION TO CREATE THE DRAFT TO THE PART OR COMPONENT. WE CREATE THE DRAFT ANALYSIS WE SHOULD REQUIRE THE TOOLING AXIS .

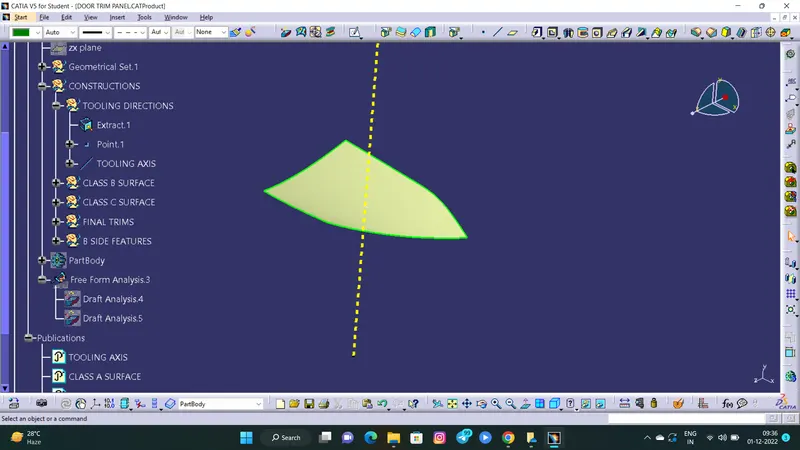

TO CREATE A TOOLING AXIS -

STEP 1 : FIRSTLY TO SELECT A SUTIABLE AXIS FOR THE PART AND EXTRACT THE SURFACE FROM CLASS A .

STEP 2 : CREATE A POINT ON THE SURFACE AND CREATE A AXIS SYSTEM ON THAT POINT .

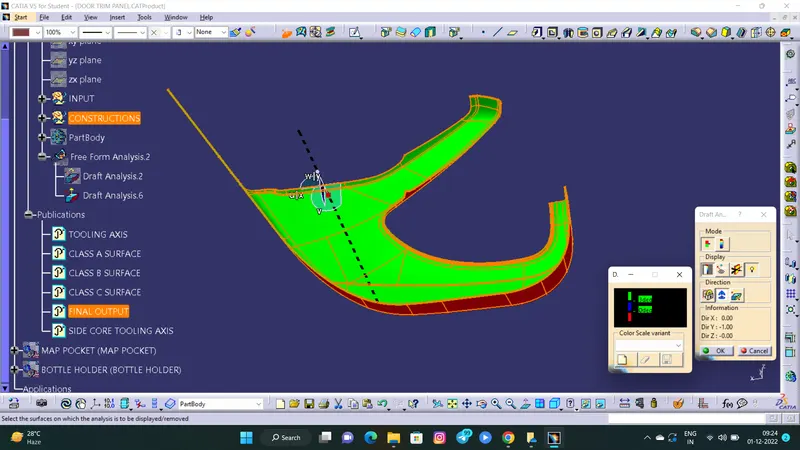

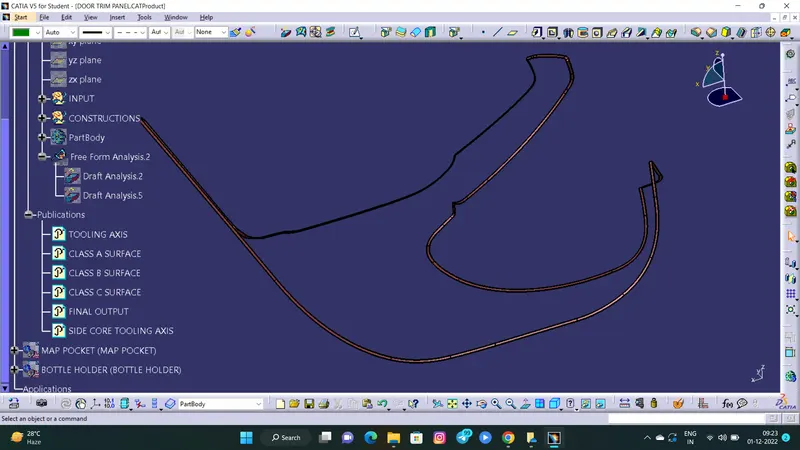

STEP 3 : SELECT THE POINT AND CREATE A LINE THAT LINE IS USED AS THE TOOLING AXIS. BUT WE CREATING A DOG HOUSE WE REQUIRED TWO TOOLING AXIS ARE MAIN TOOLING AXIS AND SIDE TOOLING AXIS . THE SIDE TOOLING AXIS IS USED TO CLEAR DRAFT ANALYSIS ON THE IN SIDE OF DOG HOUSE AND THE MAIN TOOLING AXIS IS USED TO CLEAR THE DRAFT ANALYSIS ON THE OUTER SIDES OF THE DOG HOUSE.

STEP 4 : BY THE USING THE TOOLING AXIS LINE TO CREATE THE DRAFT ANALYSIS.

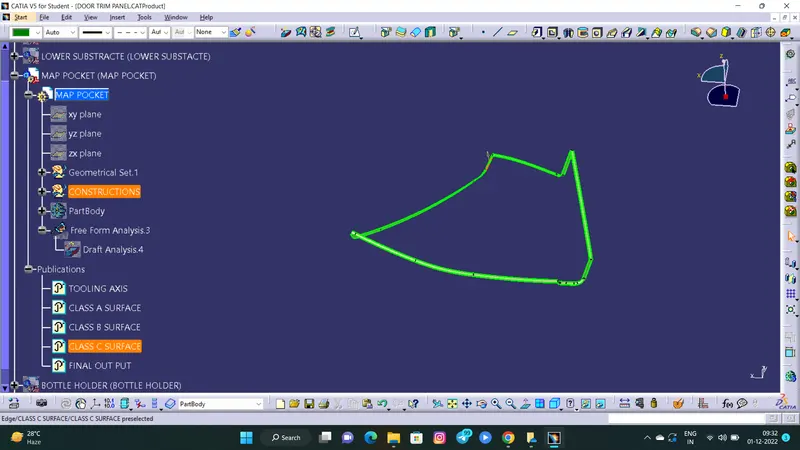

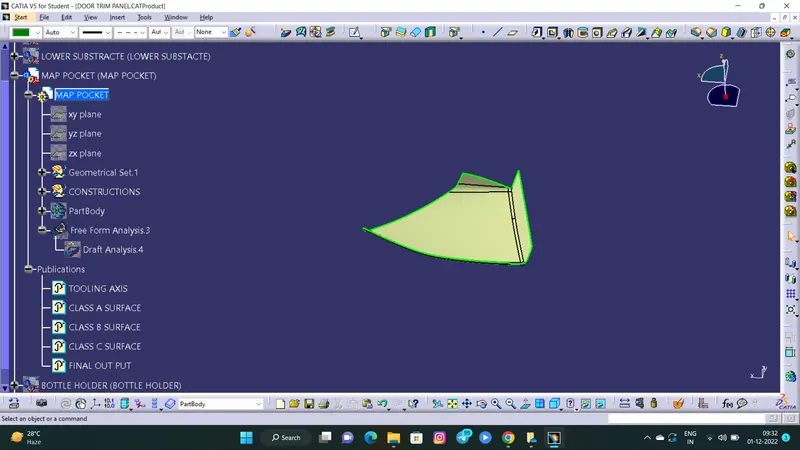

3. MAP POCKET -

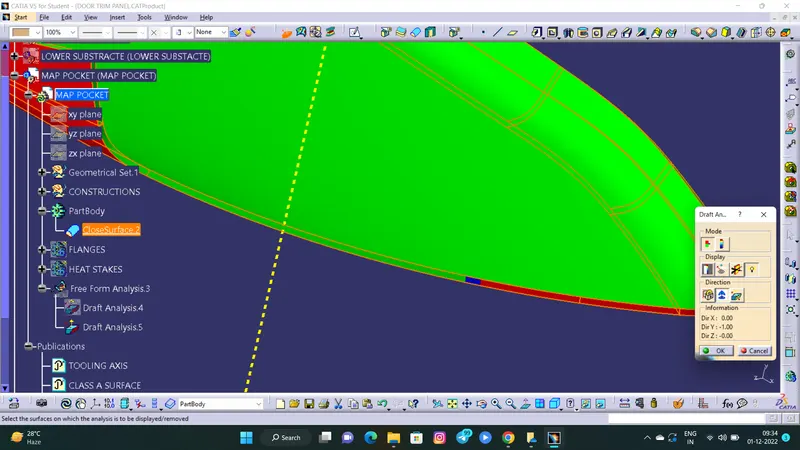

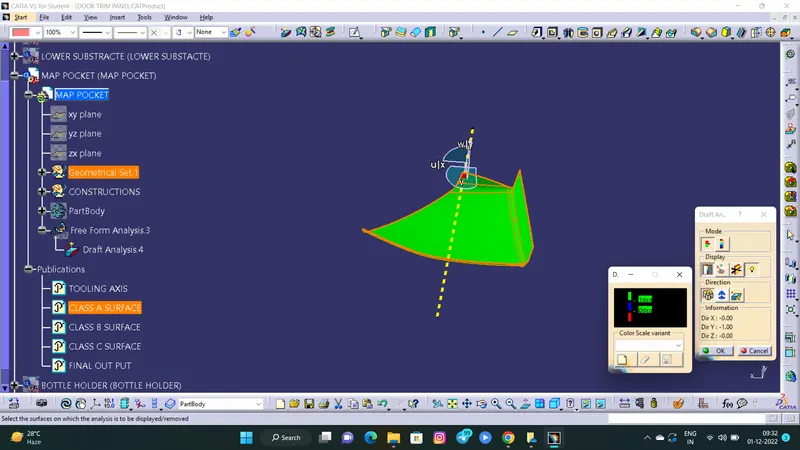

CLASS A DRAFT ANALYSIS -

FINAL DRAFT ANALYSIS -

BY CREATE THE DRAFT ANALYSIS  ON THE CLASS A SURFACE AND FINAL PART IT'S NOT CORECTLY FORMED . THEN I AM ASKING ONE OF THE SUPPORT ENGINEER ACCORDING TO THAT I AM CREATING THE DRAFT ANALYSIS ON THE CLASS A SURFACE AND FINAL PART BUT IT CANNOT BE FORMED HE SAID THERE IS A ERROR ON THE CLASS A THAT'S WHY WE CANNOT CLEAR THE  DRAFT ANALYSIS . HENCE HE SAID THAT PLEASE GO THROUGH THE FURTHER PROCESS FOR CREATING THE OTHER FEATURES . HE SAID THAT NO PROBLEM PLEASE GO THROUGH THAT.

CLASS B SURFACE -

CLASS C SURFACE -

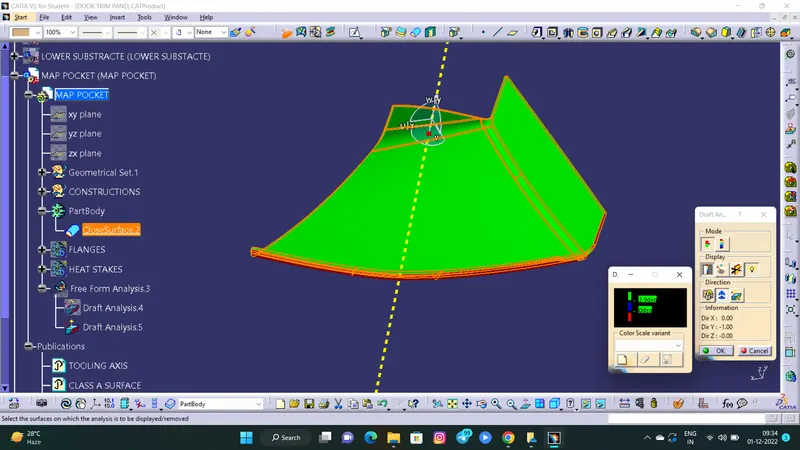

HEAT STAKE DRAFT ANALYSIS -

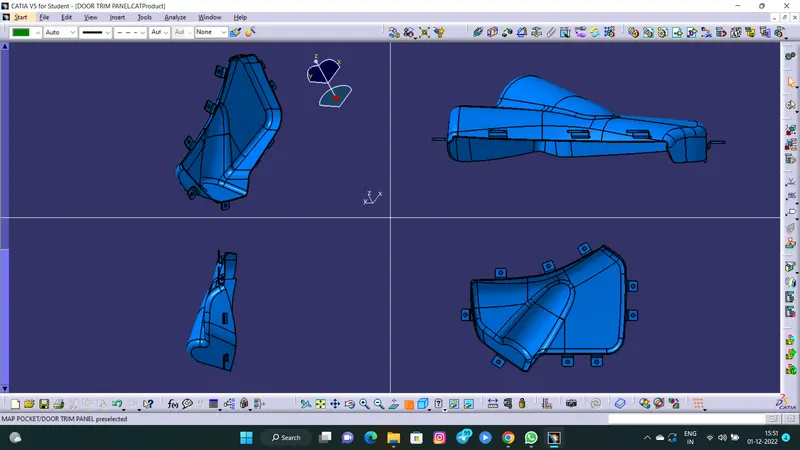

VARIOUS VIEWS -

DETAIL REPORT -

DRAFT - THE DRAFT IS PROVIDING ANGLES OR TAPERS ON PRODUCT FEATURES SUCH AS WALLS,RIBS,POSTS AND BOSSES THAT LIE TO THE DIRECTION OF RELEASE FROM THE MOLD EASES PART EJECTION.



THE MINIMUM DRAFT IS SHOULD RANGE BETWEEN 0.5 DEGREE TO 1 DEGREE . THE NOMINAL DRAFT FOR A COMPONENT OR PART IS 3 DEGREE.

IN CATIA WE USE THE DRAFT ANALYSIS OPITION TO CREATE THE DRAFT TO THE PART OR COMPONENT. WE CREATE THE DRAFT ANALYSIS WE SHOULD REQUIRE THE TOOLING AXIS .

TO CREATE A TOOLING AXIS -

STEP 1 : FIRSTLY TO SELECT A SUTIABLE AXIS FOR THE PART AND EXTRACT THE SURFACE FROM CLASS A .

STEP 2 : CREATE A POINT ON THE SURFACE AND CREATE A AXIS SYSTEM ON THAT POINT .

STEP 3 : SELECT THE POINT AND CREATE A LINE THAT LINE IS USED AS THE TOOLING AXIS.

STEP 4 : BY THE USING THE TOOLING AXIS LINE TO CREATE THE DRAFT ANALYSIS.

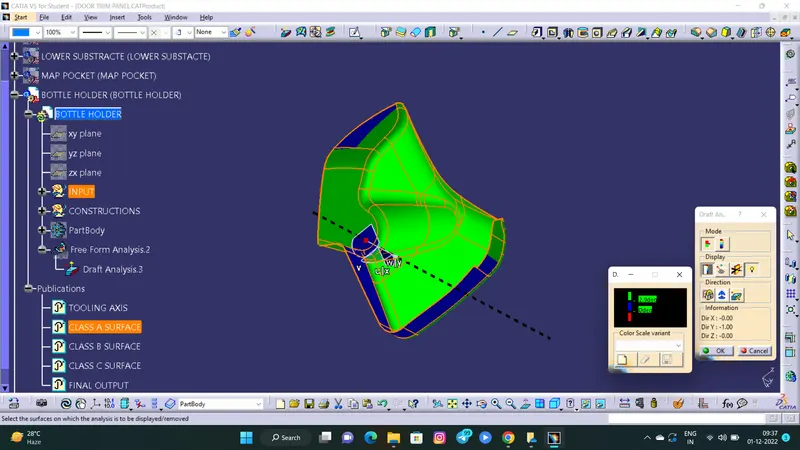

4. BOTTLE HOLDER -

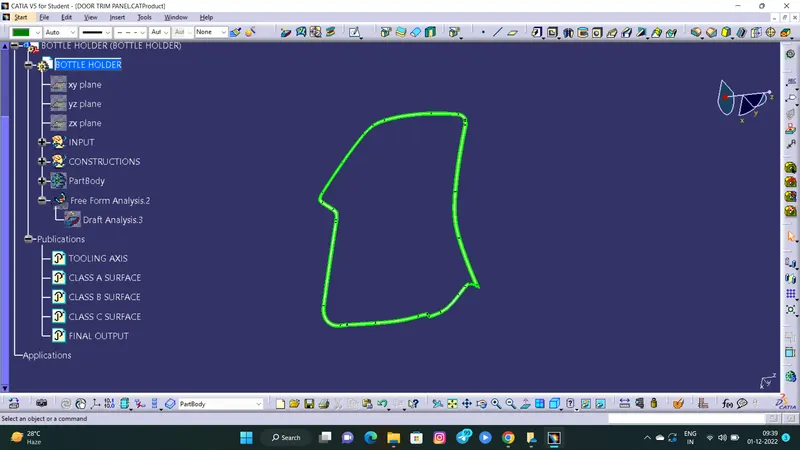

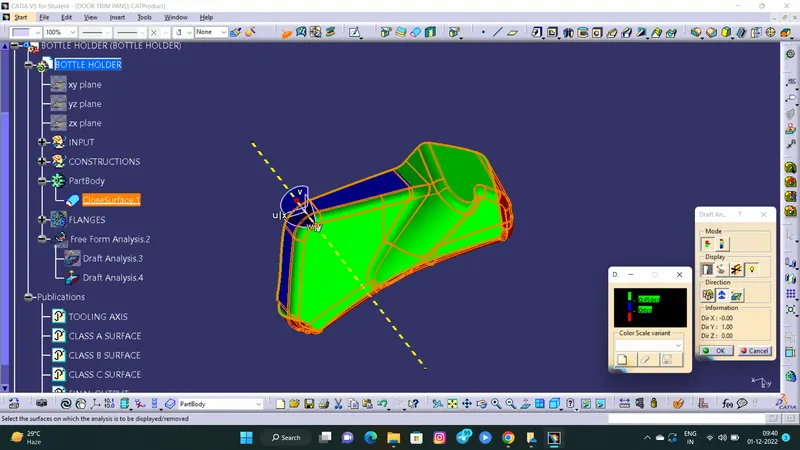

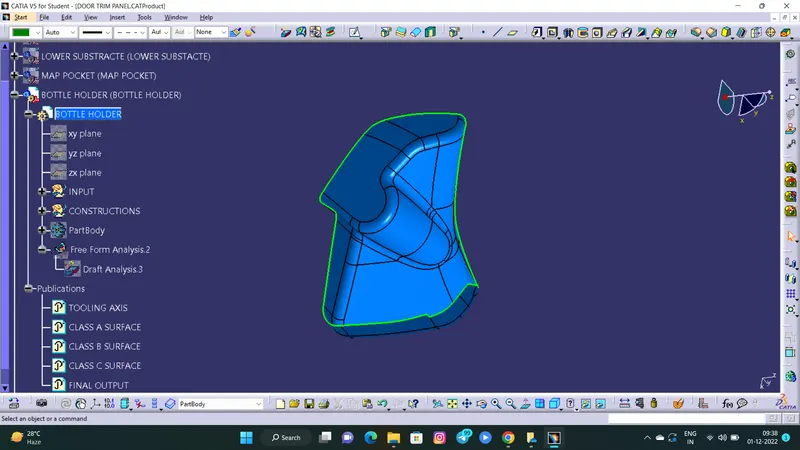

CLASS A DRAFT ANALYSIS -

FINAL DRAFT ANALYSIS -

BY CREATE THE DRAFT ANALYSIS  ON THE CLASS A SURFACE AND FINAL PART IT'S NOT CORECTLY FORMED . THEN I AM ASKING ONE OF THE SUPPORT ENGINEER ACCORDING TO THAT I AM CREATING THE DRAFT ANALYSIS ON THE CLASS A SURFACE AND FINAL PART BUT IT CANNOT BE FORMED HE SAID THERE IS A ERROR ON THE CLASS A THAT'S WHY WE CANNOT CLEAR THE  DRAFT ANALYSIS . HENCE HE SAID THAT PLEASE GO THROUGH THE FURTHER PROCESS FOR CREATING THE OTHER FEATURES . HE SAID THAT NO PROBLEM PLEASE GO THROUGH THAT.

CLASS B SURFACE -

CLASS C SURFACE -

VARIOUS VIEWS -

DETAIL REPORT -

DRAFT - THE DRAFT IS PROVIDING ANGLES OR TAPERS ON PRODUCT FEATURES SUCH AS WALLS,RIBS,POSTS AND BOSSES THAT LIE TO THE DIRECTION OF RELEASE FROM THE MOLD EASES PART EJECTION.



THE MINIMUM DRAFT IS SHOULD RANGE BETWEEN 0.5 DEGREE TO 1 DEGREE . THE NOMINAL DRAFT FOR A COMPONENT OR PART IS 3 DEGREE.

IN CATIA WE USE THE DRAFT ANALYSIS OPITION TO CREATE THE DRAFT TO THE PART OR COMPONENT. WE CREATE THE DRAFT ANALYSIS WE SHOULD REQUIRE THE TOOLING AXIS .

TO CREATE A TOOLING AXIS -

STEP 1 : FIRSTLY TO SELECT A SUTIABLE AXIS FOR THE PART AND EXTRACT THE SURFACE FROM CLASS A .

STEP 2 : CREATE A POINT ON THE SURFACE AND CREATE A AXIS SYSTEM ON THAT POINT .

STEP 3 : SELECT THE POINT AND CREATE A LINE THAT LINE IS USED AS THE TOOLING AXIS.

STEP 4 : BY THE USING THE TOOLING AXIS LINE TO CREATE THE DRAFT ANALYSIS.

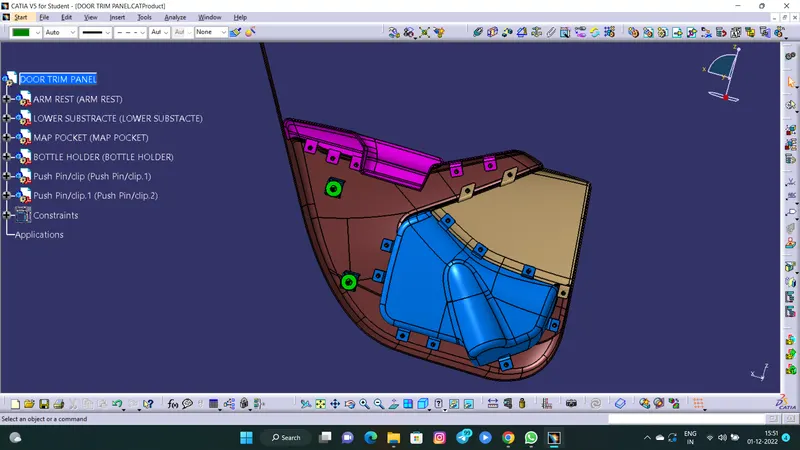

FINAL OUTPUT -
