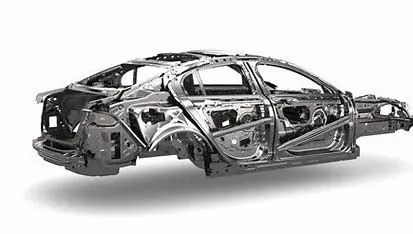

Week 1:- Introduction to BiW and Fixtures Challenge

Sure, here are some additional details on the types of BIW stations used in automotive manufacturing:

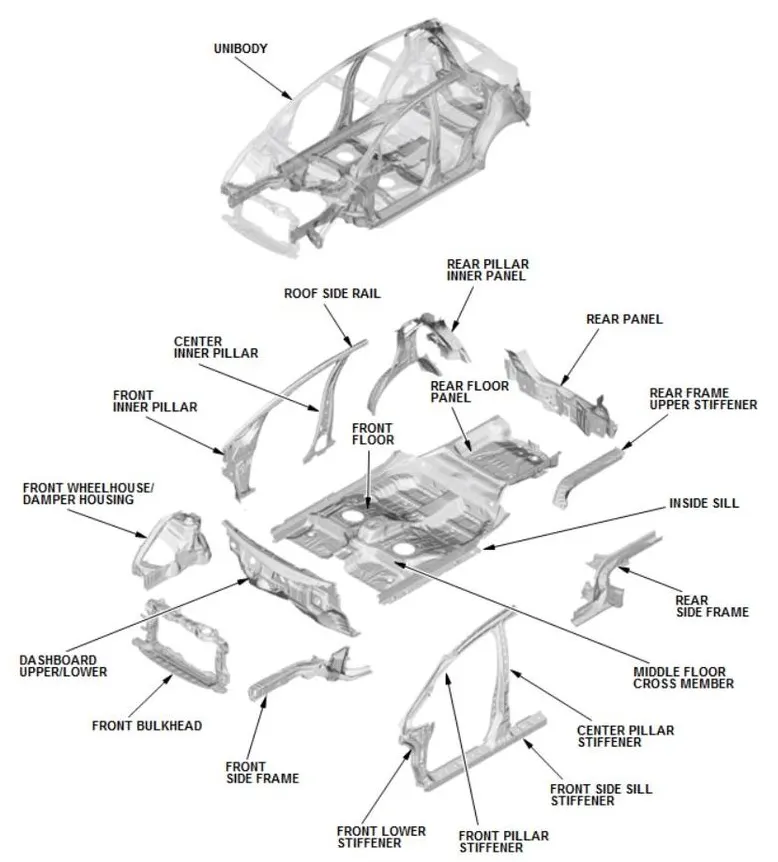

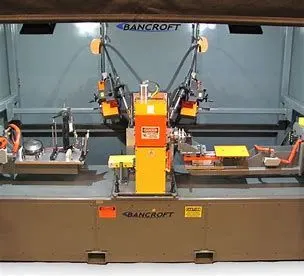

1. Welding stations: Welding is a critical process in BIW manufacturing, as it involves joining the individual components of the car body structure together to form a cohesive unit. Welding stations can use a variety of welding techniques, depending on the materials being used and the specific requirements of the manufacturing process. For example, spot welding is a common technique used in automotive manufacturing, as it allows for quick and precise joining of metal components. Laser welding is another technique that is becoming more popular, as it can provide high-quality welds with minimal distortion.

2. Assembly stations: Assembly stations are where the various components of the car body structure are assembled together to form the complete structure. This can include attaching doors, hoods, fenders, and other body panels to the main body structure, as well as installing the windows, interior trim, and other components. Assembly stations can use a combination of manual and automated processes, with robots performing tasks such as lifting and positioning heavy components.

3. Measurement stations: Measurement stations are used to ensure that the car body structure is being produced to the required specifications. This is critical for ensuring that the final product is safe and reliable, as well as visually appealing. Measurement stations can use a variety of tools, such as CMMs, laser scanners, or other precision measurement devices, to take accurate measurements of the car body structure. This data can then be used to make any necessary adjustments to the manufacturing process.

4. Material handling stations: Material handling stations are used to move the various components of the car body structure from one workstation to another. This can include moving body panels from the stamping station to the welding station, or moving the completed car body structure from the welding station to the painting station. Material handling stations can use a variety of equipment, such as overhead cranes, conveyors, or AGVs, to move the components.

5. Tooling stations: Tooling stations are responsible for creating and maintaining the various tools and fixtures used in the BIW manufacturing process. This can include designing and building new welding fixtures, stamping dies, or other types of tooling. Tooling stations may use equipment such as CNC machines, lathes, grinders, and other types of machine tools to create the required tooling components.

6. Painting stations: Painting stations are used to apply the primer and final paint coatings to the car body structure after it has been assembled. The painting process is critical for achieving the desired visual appearance of the car, as well as protecting the car body structure from rust and corrosion. Painting stations can use a variety of techniques, such as electrostatic painting or powder coating, to apply the paint.

Overall, the types of BIW stations used in automotive manufacturing work together to ensure that the car body structure is produced accurately, efficiently, and with high quality. By carefully designing and integrating these stations into the manufacturing process, automotive manufacturers can produce cars that are safe, reliable, and visually appealing.

      6. What are the basic terminologies used in the BIW fixture?

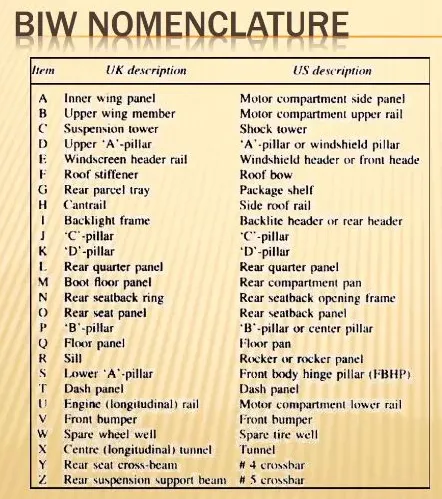

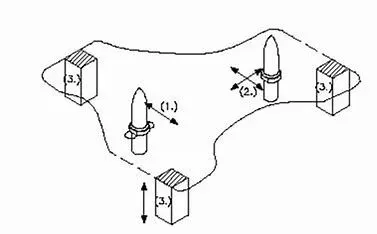

1. Locator: A locator is a feature of a fixture that ensures that the workpiece is positioned accurately and securely in the fixture. Locators can take many forms, such as pins, holes, or pads, and are typically designed to match the shape and geometry of the workpiece.

2. Clamp: A clamp is a device used in a fixture to hold the workpiece in place during machining or other operations. Clamps can be manual or automated and can use a variety of mechanisms, such as screws, hydraulic pressure, or pneumatic pressure, to hold the workpiece securely in place.

3. Rest: A rest is a support surface provided by the fixture to help stabilize the workpiece during machining or other operations. Rests can take many forms, such as pads, blocks, or pins, and are typically designed to match the shape and geometry of the workpiece.

4. Bushing: A bushing is a cylindrical component used in a fixture to guide the cutting tool during machining or other operations. Bushings are typically made of hardened steel or other high-strength materials and can be designed to fit tightly around the cutting tool to provide precise guidance.

5. Pallet: A pallet is a component of a fixture that holds the workpiece during machining or other operations. Pallets can be designed to be interchangeable, allowing for multiple workpieces to be machined on the same fixture, or they can be fixed, allowing for a single workpiece to be machined repeatedly.

6. Jig: A jig is a specialized type of fixture that is used to guide the cutting tool during a specific machining operation, such as drilling or tapping. Jigs can be designed to be used with multiple workpieces, allowing for high-volume production of parts with consistent quality.

7. Fixture base: The fixture base is the foundation of the fixture and provides a stable platform for the other fixture components. The base can be made of various materials, such as steel or aluminum, and can be designed to be modular, allowing for easy reconfiguration of the fixture for different workpieces.

8. CMM Points: CMM (Coordinate Measuring Machine) points are used to locate the fixture on the production line and to align the fixture with other fixtures in the assembly line. These points are used to ensure that the fixture is accurately positioned and that the workpiece is held securely in place during machining or other operations.

9. Datum: A datum is a reference surface or point used to establish a coordinate system for the fixture. The datum is typically located on the workpiece and is used to ensure that the workpiece is properly oriented and positioned in the fixture.

10. Zero reference: A zero reference is the starting point for all measurements taken on the workpiece during machining or other operations. This reference point is typically established by the CMM points or by the datum and is used to ensure that all measurements are accurate and consistent.

11. Support structure: The support structure is the framework of the fixture that provides the necessary support and rigidity to hold the workpiece securely in place during machining or other operations. The support structure is typically made of high-strength materials, such as steel or aluminum, and is designed to withstand the forces generated during the machining process.

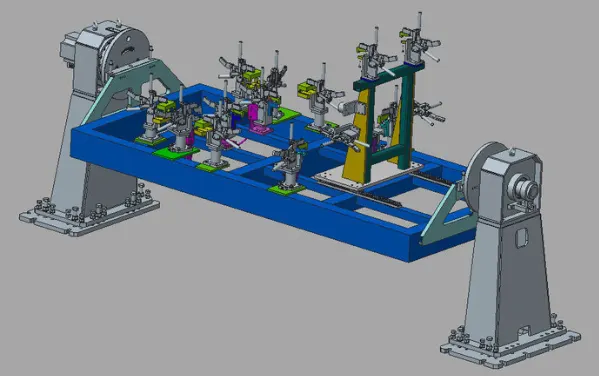

12. Weld fixtures: Weld fixtures are specialized fixtures used for welding operations in BIW. These fixtures are designed to hold the workpiece securely in place during welding and to ensure that the welding is done accurately and consistently.
