  3. Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules Week 3 Challenge

QUESTION 1: DOWNLOAD FOLLOWING  CAD DATA (P CLAMP) AND DEFINE IT AS ELECTRTICAL SUPPORT USING ELECTRICAL PART DESIGN WORKBENCH .DEFINE ALL THE NECESSARY PROPERTIES. STEP 1: DOWNLOAD THE CAD DATA FROM THE GIVEN LINK . PICTURES SHOWN BELOW SHOWS THE DOWNLOADED DATA  PICTURES OF P CLAMP. STEP 2: AFTER DOWNLOADING…

  • DESIGN

  • Rajesh Kumar

    updated on 27 Nov 2022

QUESTION 1: DOWNLOAD FOLLOWING  CAD DATA (P CLAMP) AND DEFINE IT AS ELECTRTICAL SUPPORT USING ELECTRICAL PART DESIGN WORKBENCH .DEFINE ALL THE NECESSARY PROPERTIES.

STEP 1:

DOWNLOAD THE CAD DATA FROM THE GIVEN LINK .

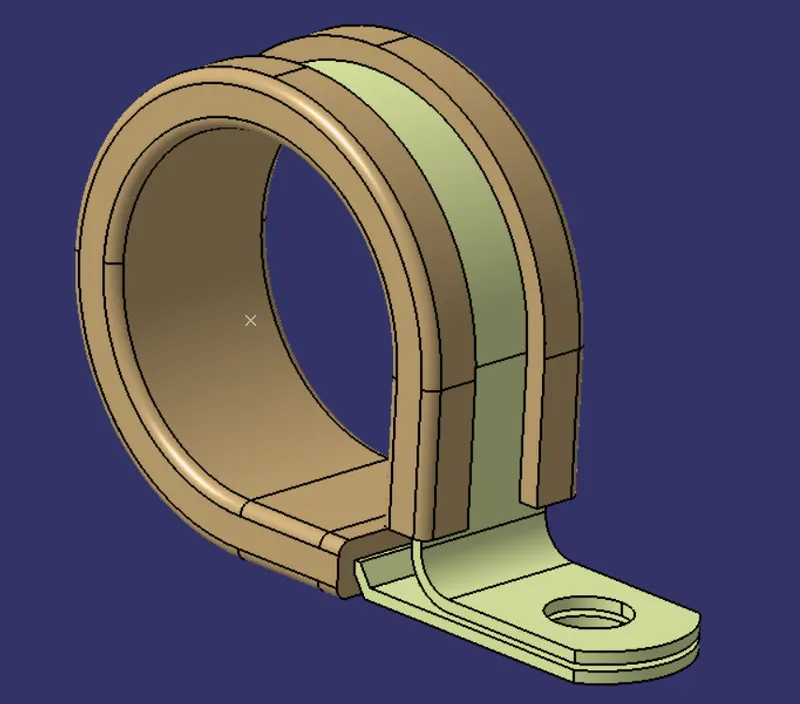

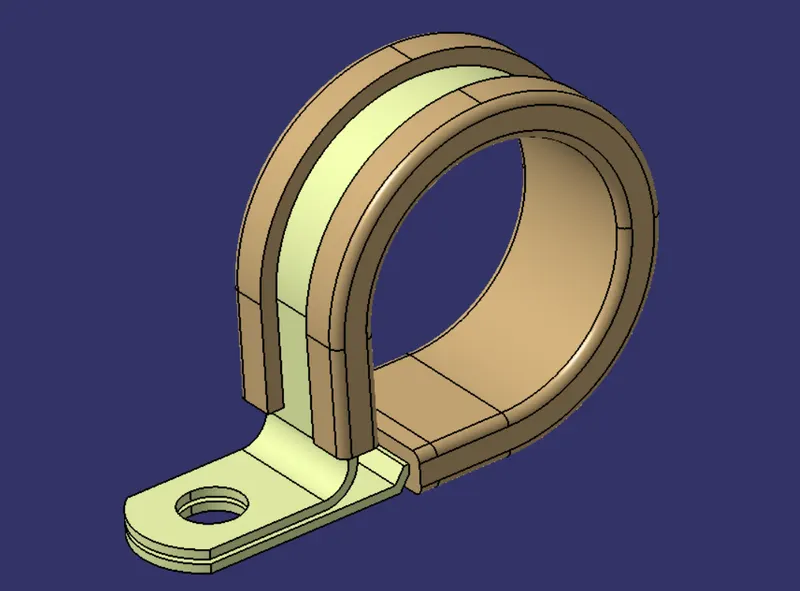

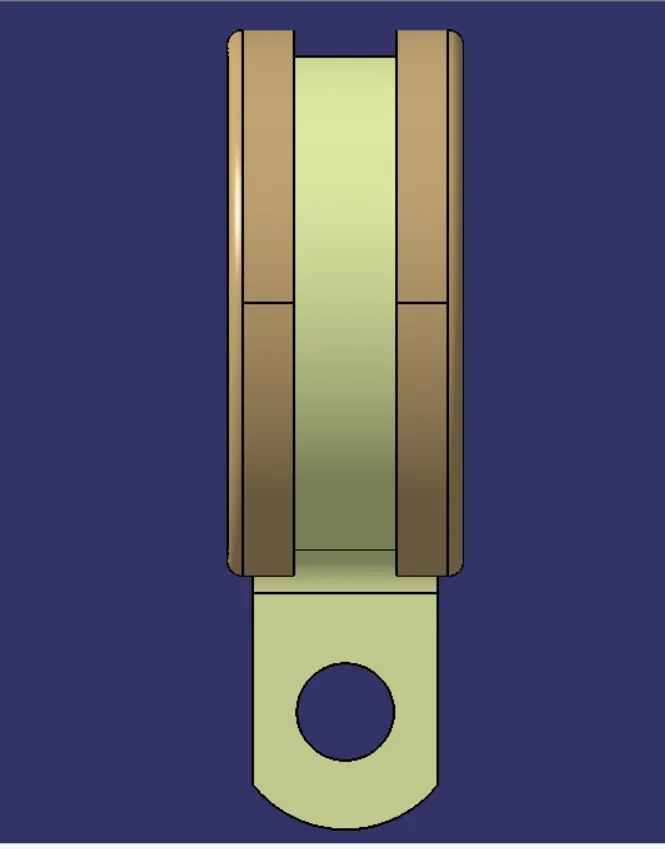

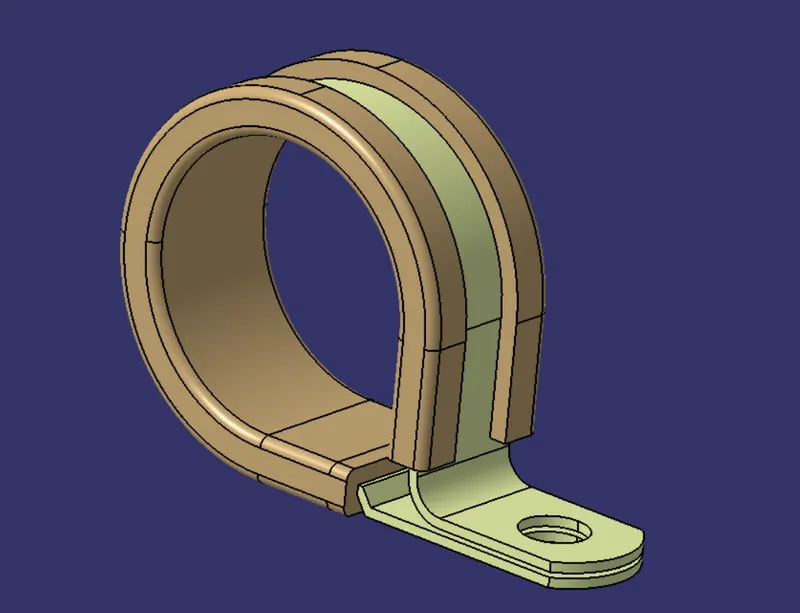

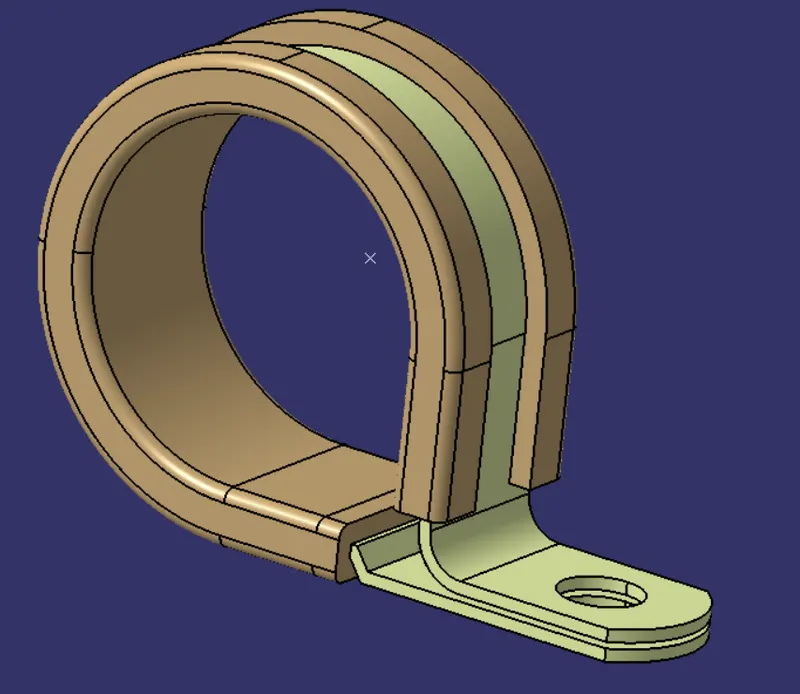

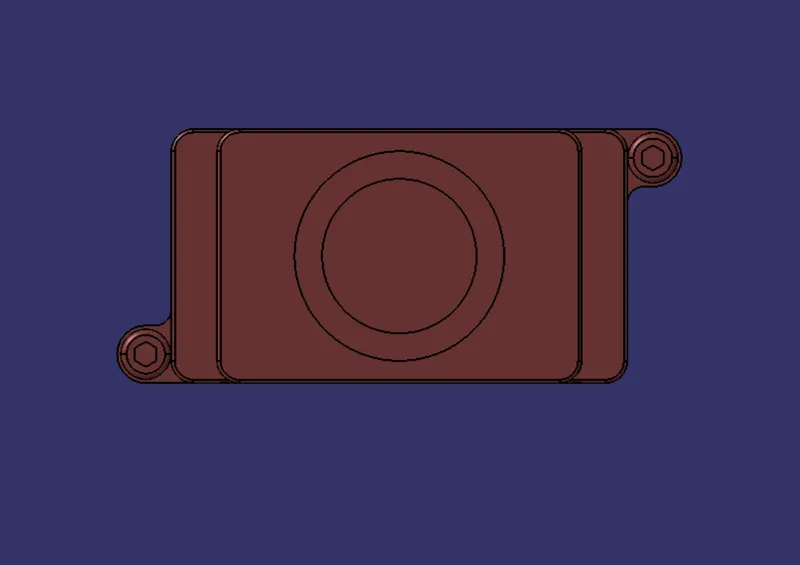

PICTURES SHOWN BELOW SHOWS THE DOWNLOADED DATA  PICTURES OF P CLAMP.

STEP 2:

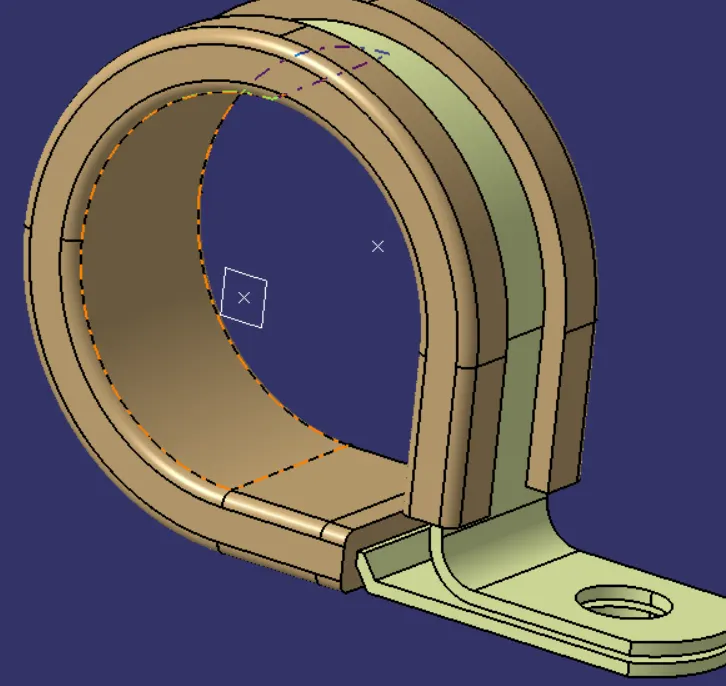

AFTER DOWNLOADING WE HAVE TO DEFINE TWO POINTS WHIH WILL WORK AS ENTRY AND THE EXIT POINT .POINTS ARE SHOWN BELOW.

STEP 3:

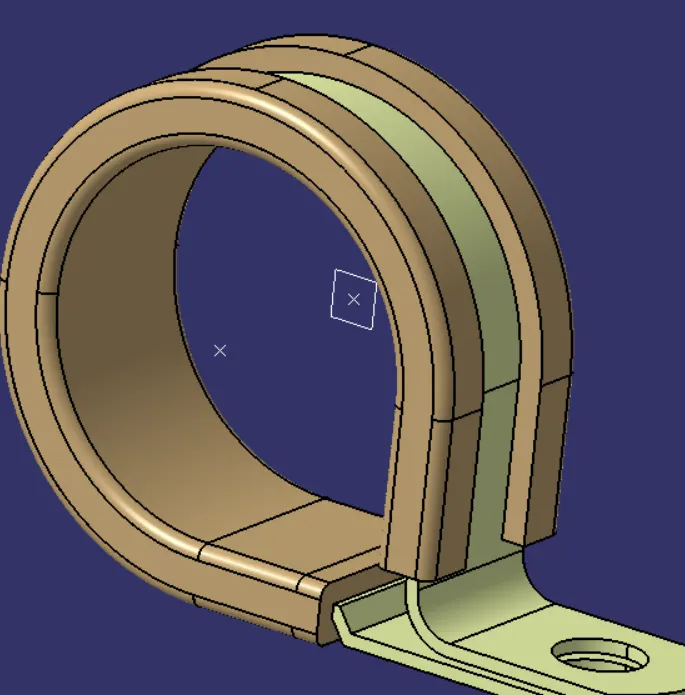

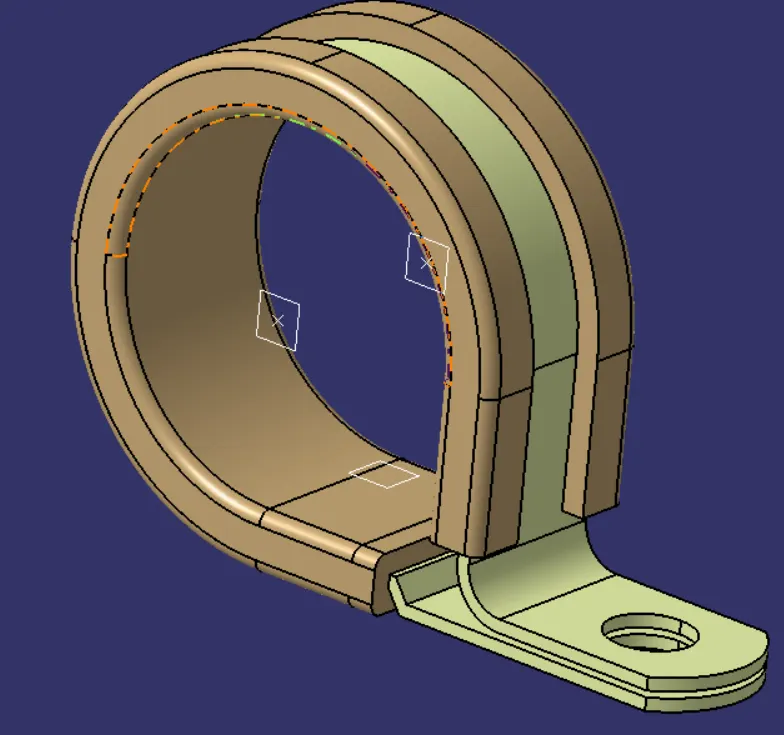

THEN PLANE HAS TO BE DEFINED AT BOTH THE POINTS .AS SHOWN BELOW.

STEP 4:

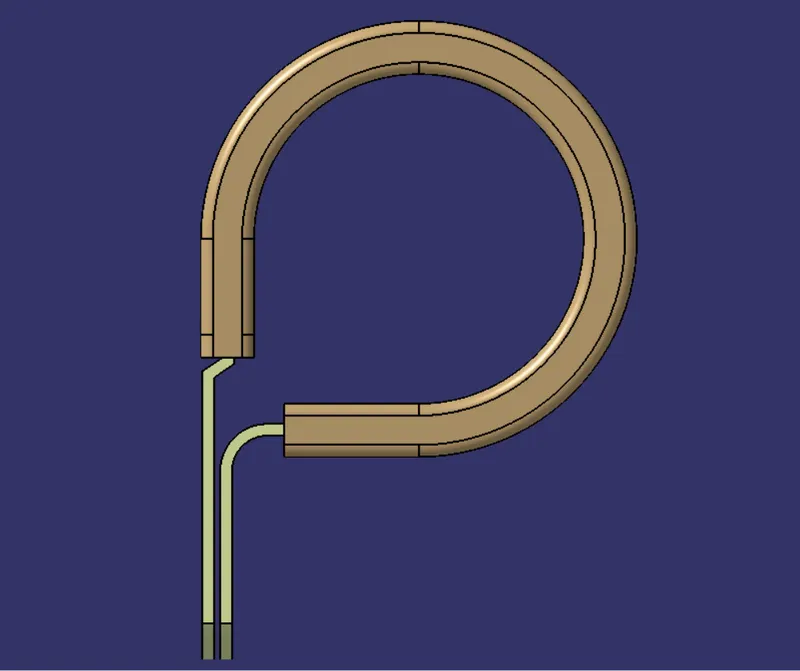

WE HAVE TO MAKE A BASE PLANE 2 TO 3 MM FORM THE CLAMP.

STEP 5:



QUESTION 2:DOWNLOAD FOLLOWING  CAD DATA (BACKSHELL) AND DEFINE IT AS ELECTRTICAL BACKSHELL USING ELECTRICAL PART DESIGN WORKBENCH .DEFINE ALL THE NECESSARY PROPERTIES.

STEP 1:

DOWNLOAD THE GIVEN DATA FROM THE GIVEN LINK .

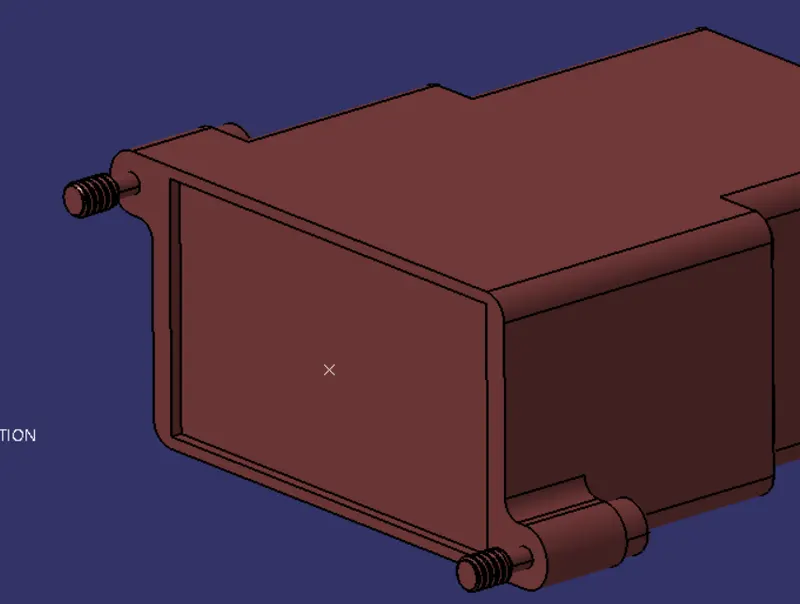

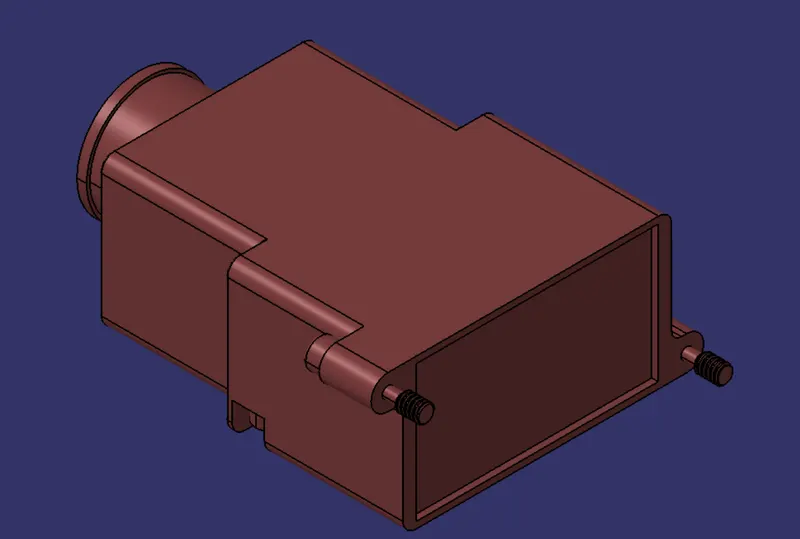

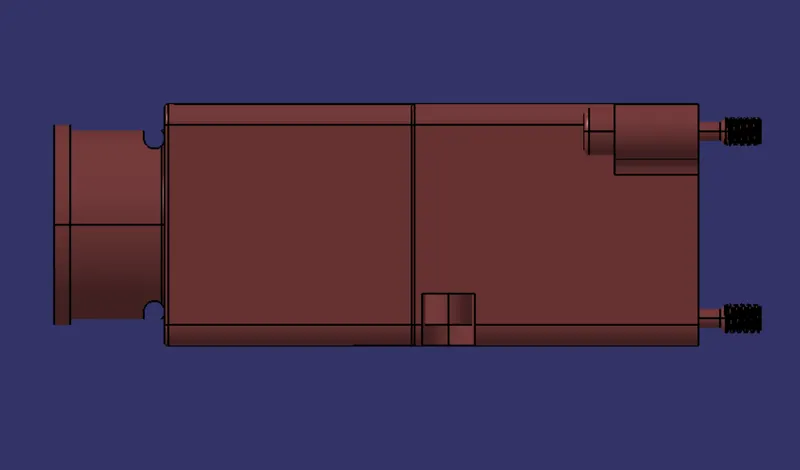

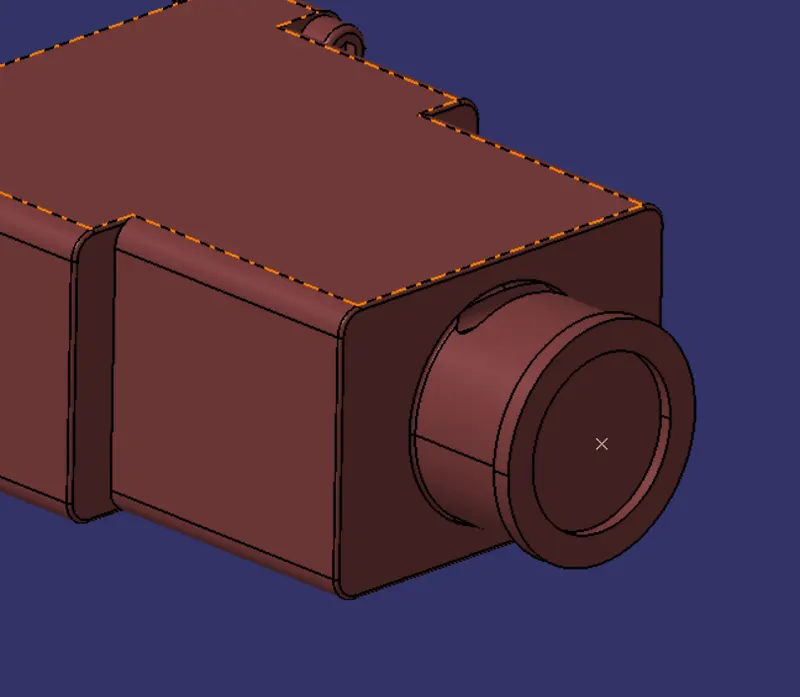

PICTURES SHOWN BELOW SHOWN THE GIVEN DATA OF BACKSHELL.

STEP 2 :CREATE BUNDLE CONNECTION POINT.

STEP 3:

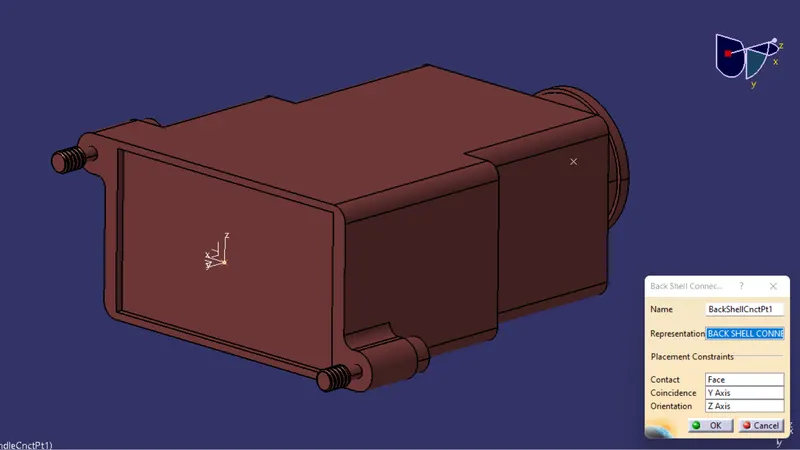

CREATE BACKSHELL CONNECTION POINT

STEP 4:

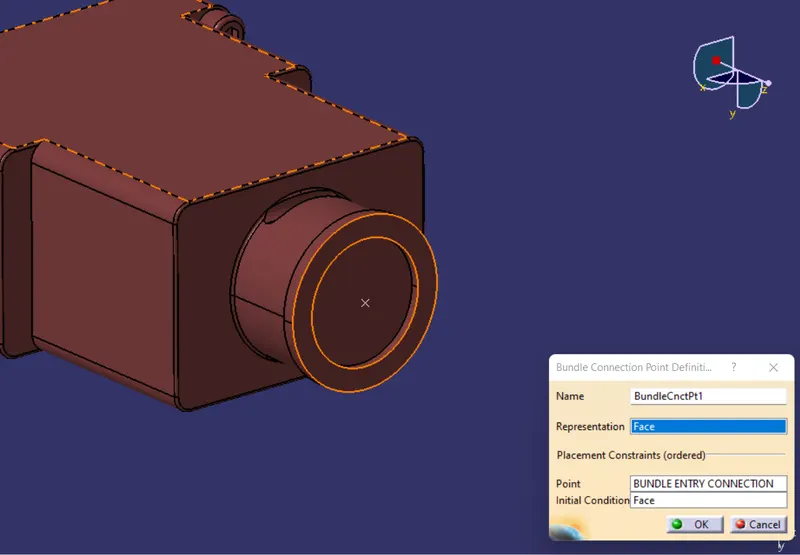

DEFINE BUNDLE CONNECTION POINT

STEP 5:DEFINE BACKSHELL CONNECTION POINT.

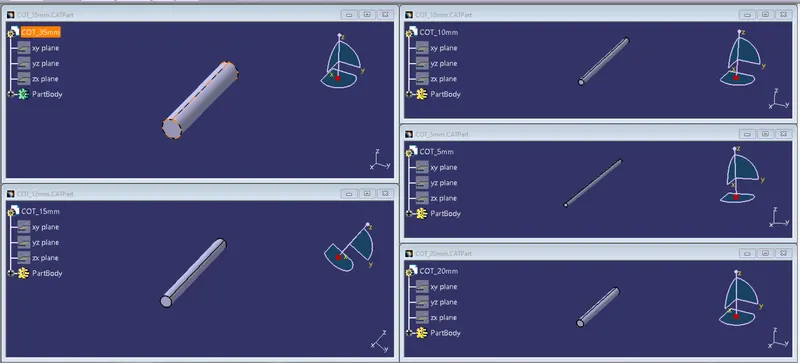

QUESTION 3:CREATE FOLLOWING CORRUGATED TUBES AND THEM IN THE CATALOUGE UNDER "SLIT COT " FAMILY.





Leave a comment
