Week 9 - Attachment Feature Creation - Challenge 2

OBJECTIVE:CREATE THE PLASTIC COMPONENT AND THEN CREATE  DOGHOUSE FOR THE DOOR TRIM CONSIDERING THE DESIGN RULES . CLASS A SURFACE: CREATION OF THE TOOLING AXIS: (A) EXTRACT THE SURFACE WHERE WE WANT TO MAKE THE TOOLING DIRECTION. (B) MAKE A POINT IN MIDDLE OF THAT SURFACE. (C) OBTAIN INTERSECTION WHERE WE THINK THAT THE…

  • DESIGN

  • Rajesh Kumar

    updated on 09 Nov 2022

OBJECTIVE:CREATE THE PLASTIC COMPONENT AND THEN CREATE  DOGHOUSE FOR THE DOOR TRIM CONSIDERING THE DESIGN RULES .

CLASS A SURFACE:

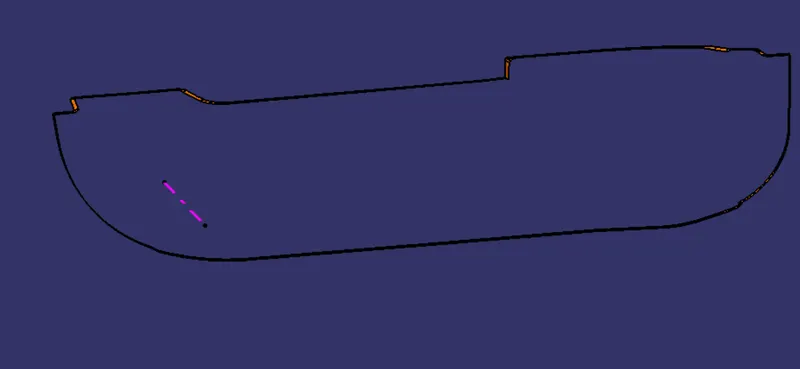

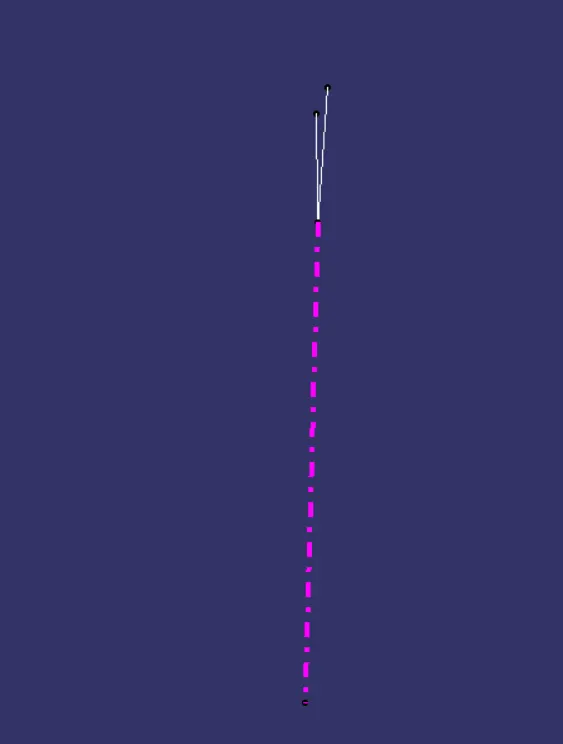

CREATION OF THE TOOLING AXIS:

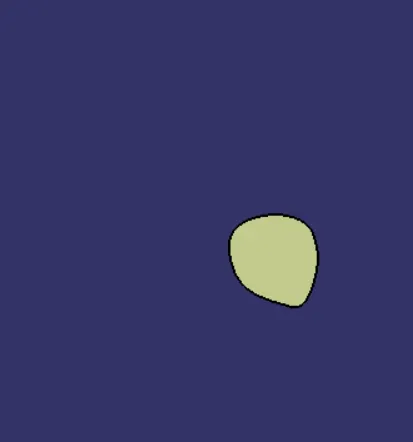

(A) EXTRACT THE SURFACE WHERE WE WANT TO MAKE THE TOOLING DIRECTION.

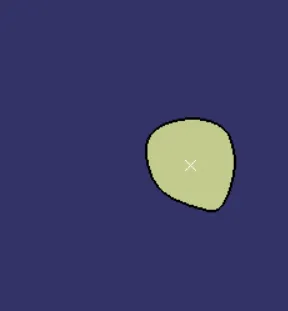

(B) MAKE A POINT IN MIDDLE OF THAT SURFACE.

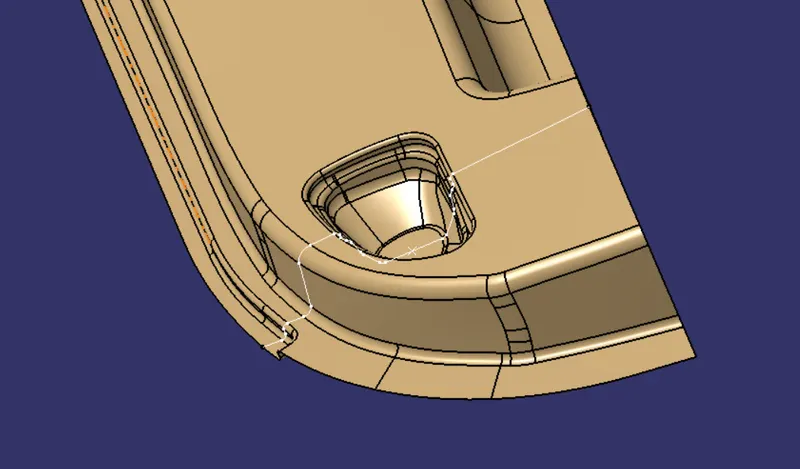

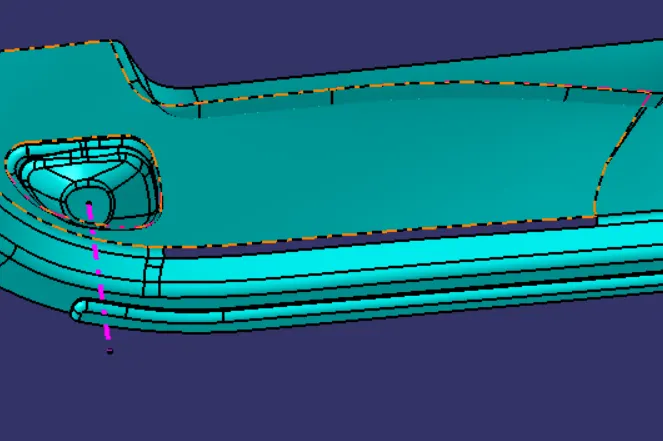

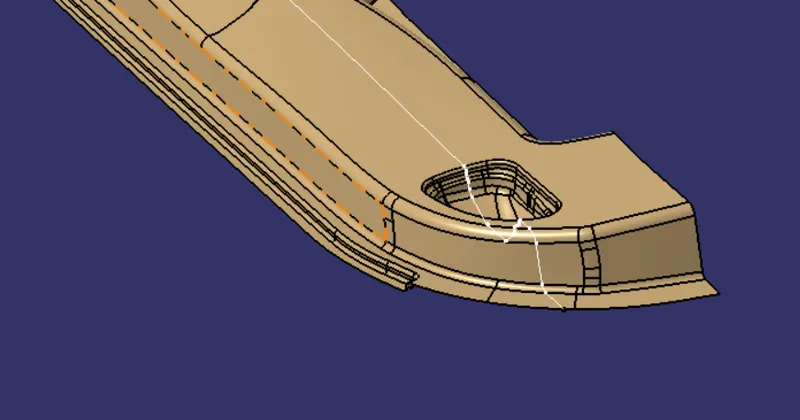

(C) OBTAIN INTERSECTION WHERE WE THINK THAT THE FACES WILL MAKE PROBLEM DURING DRAFT .

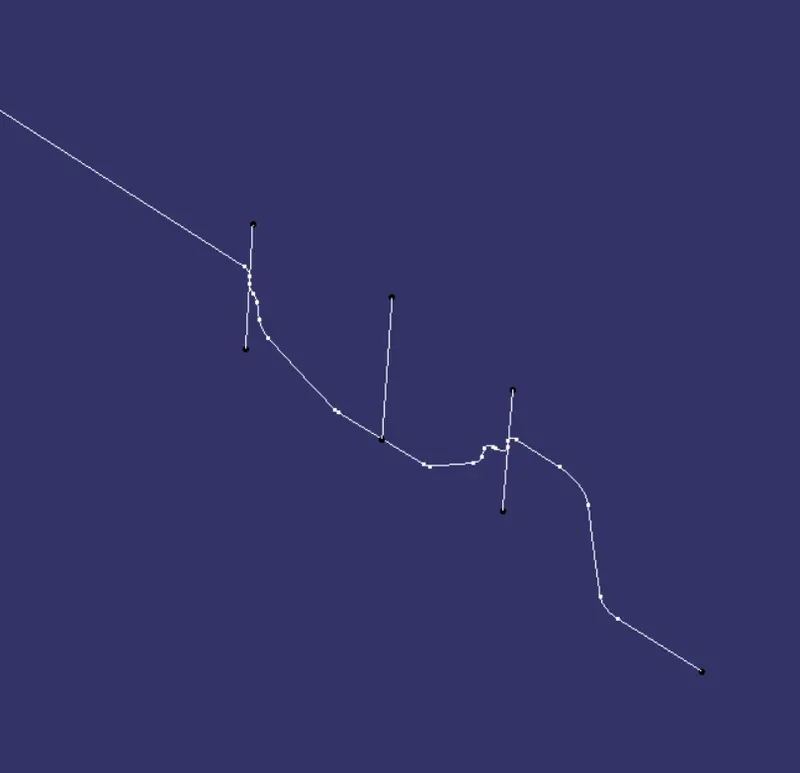

(D) DRAW LINES ON BOTH THE FACE .

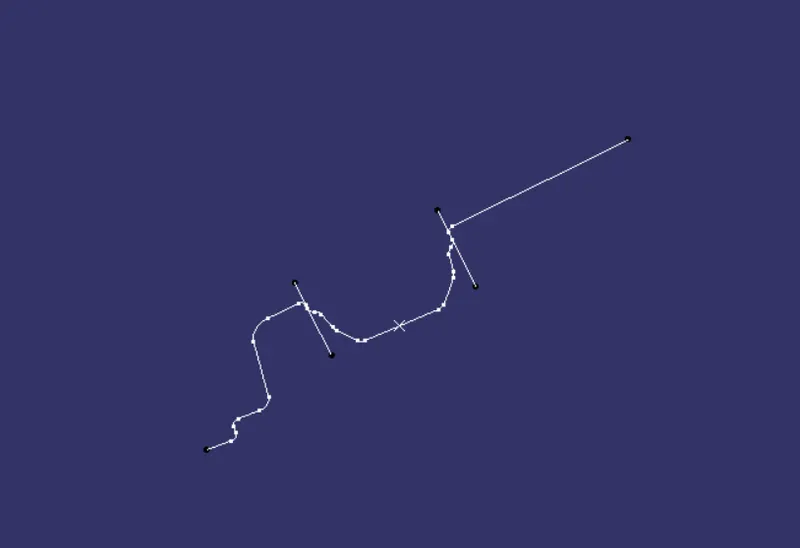

(E) MAKE A LINE BISECTING EACH OTHER .

(F) GET INTERSECTION OF OTHER FACES TOO.

(F)MAKE LINE ON OTHER FACE TOO.

(G) MAKE LINE BISECTING THE TWO LINE ALSO.

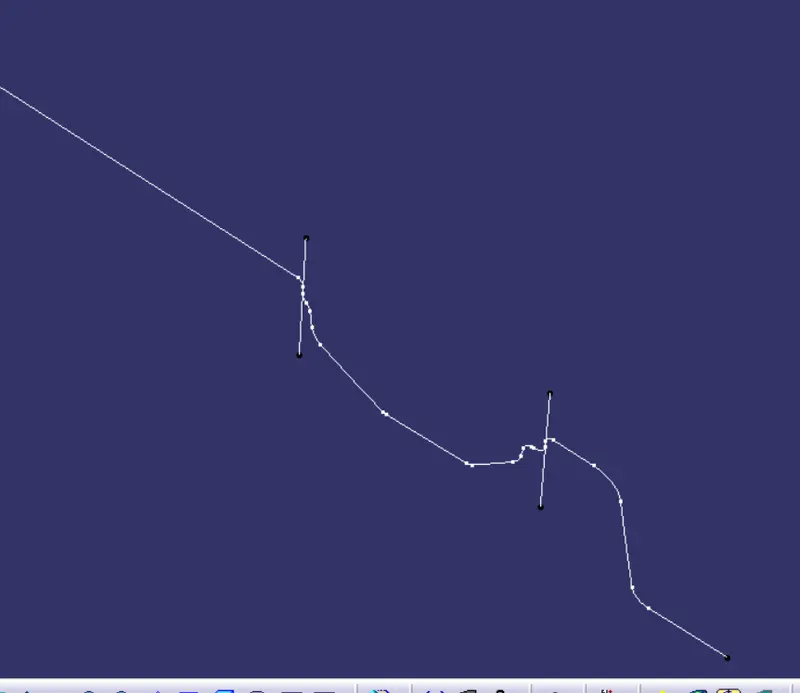

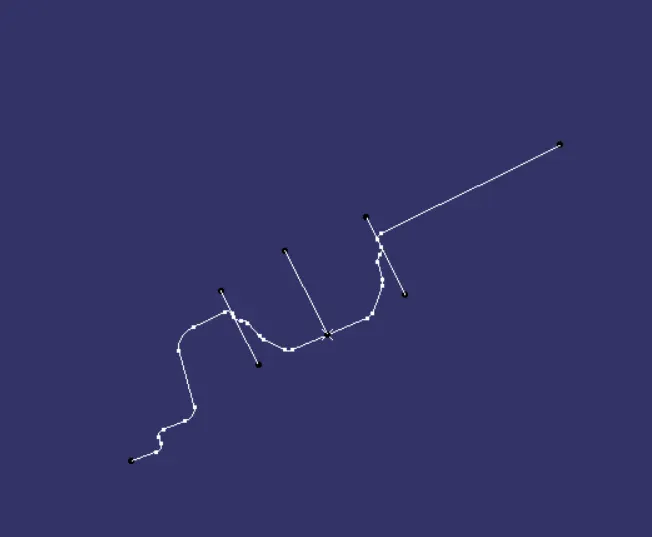

(H) DRAW A LINE THAT IS BISECTING THE TWO LINES WHICH WE GET..THIS IS THE TOOLING AXIS

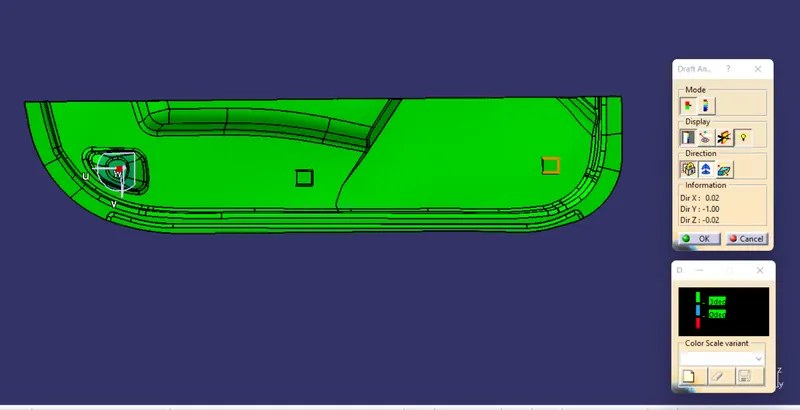

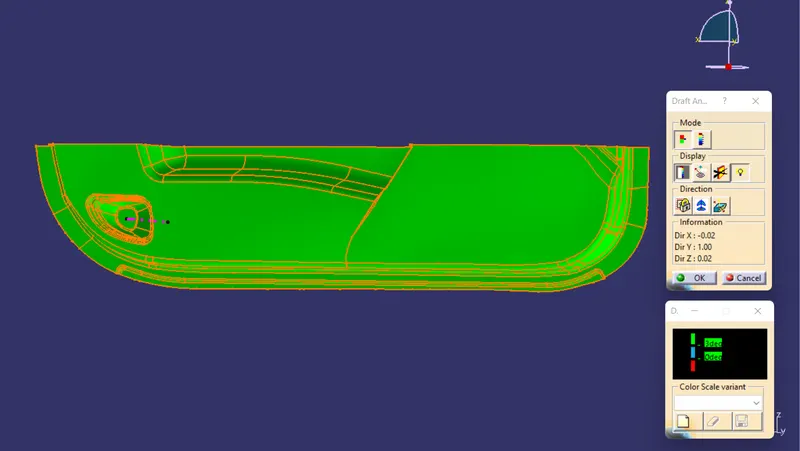

DRAFT ANALYSIS.

CREATION OF B SURFACE:

(A) OFFSET THE CLASS A SURFACE

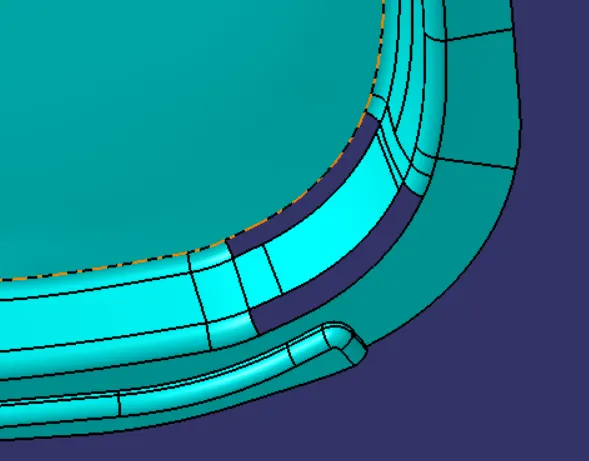

PATCHES

PATCHES WE WILL GET, HAVE TWO MAKE THE SURFACE

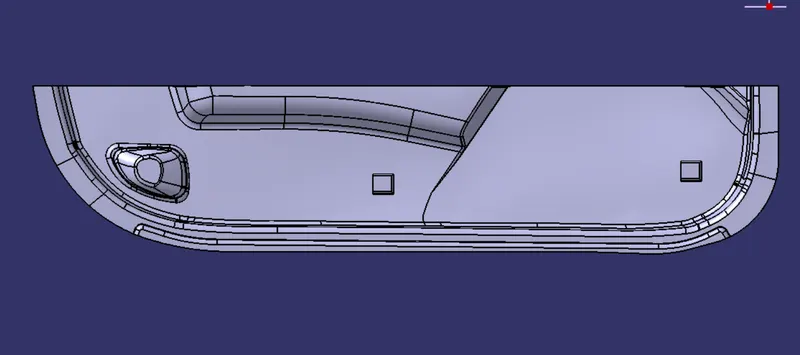

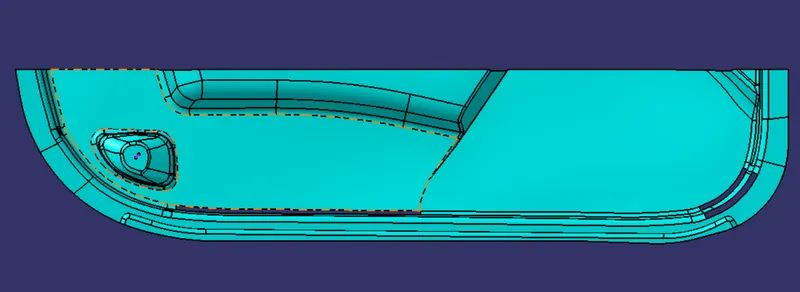

B SURFACE

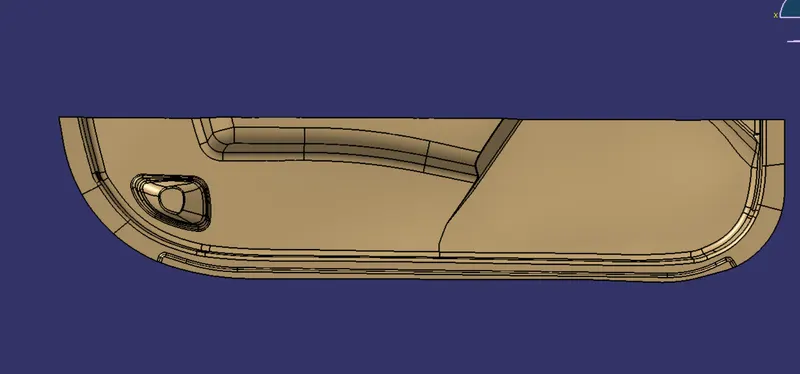

C SURFACE

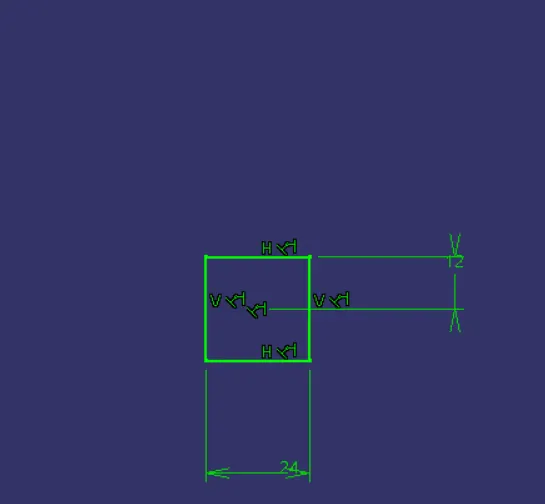

CREATION OF DOGHOUSE

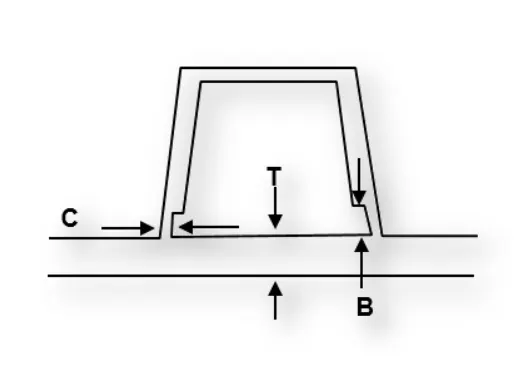

RULES TO CONSIDER WHILE DESIGNING THE DOGHOUSE .

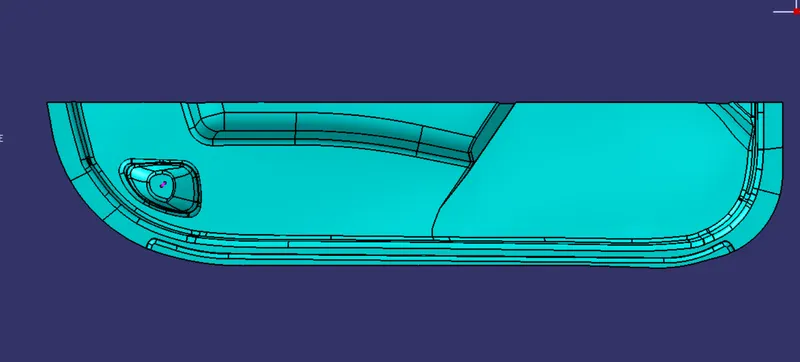

FINAL COMPONENT WITH DOGHOUSE

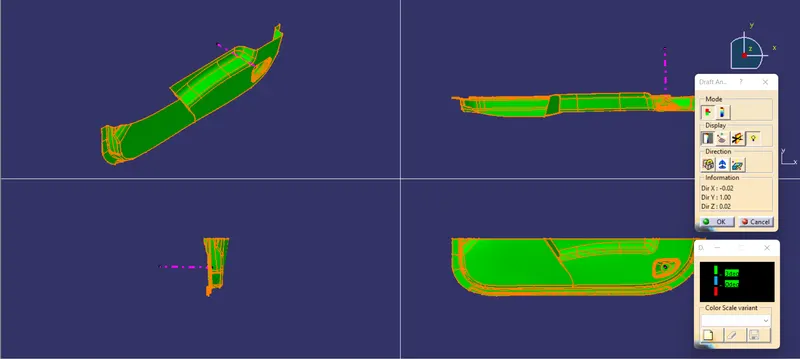

DRAFT ANALYSIS OF FINAL COMPONENT

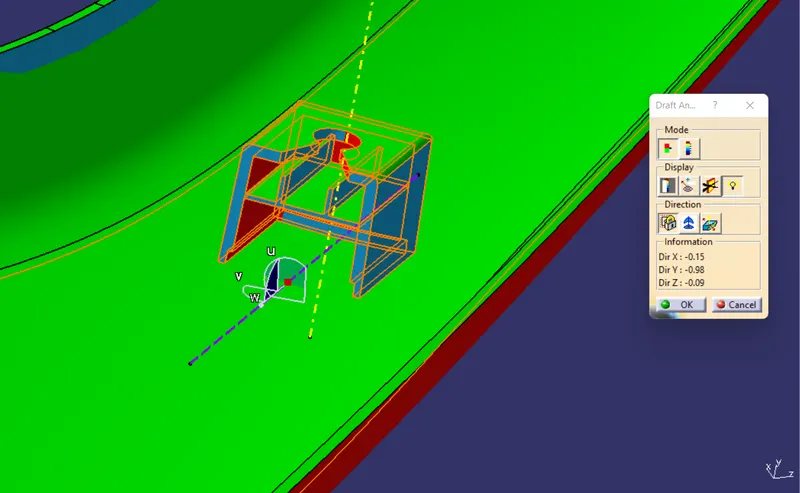

DRAFT ANALYSIS OF DOGHOUSE WITH THE SIDE CORE AXIS
