Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

 AIM: TO DEFINE THE CONNECTOR AND THE CLIP ELECTRICALLY .

OBJECTIVE:

TO DOWNLOAD THE FILES FROM THE TE.COM AND DEFINE THE COMPONENTS ELECTRICALLY..

CONNECTOR DEFINATION

1. DEUTSCH DT06-08SA

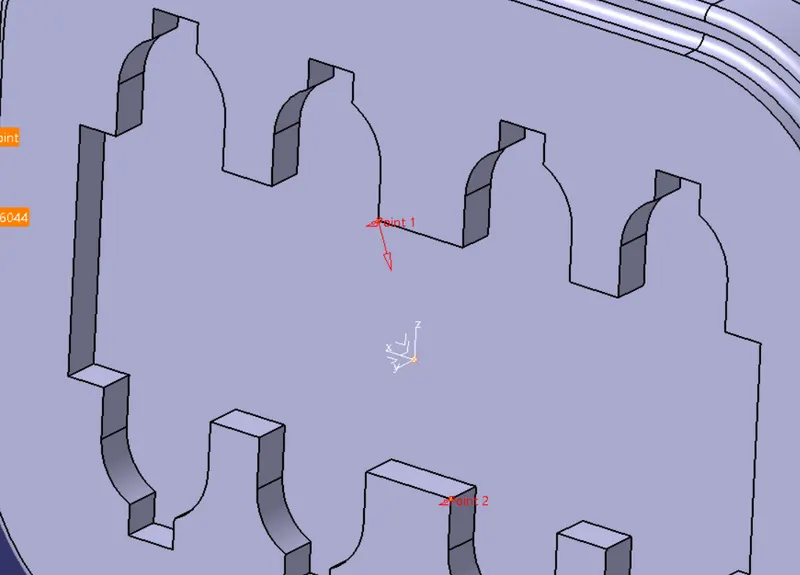

(A) FIRST WE HAVE TO MAKE AXIS SYSTEM FOR THE CONNECTOR MATING SURFACE (  CONNECTOR CAVITY AXIS) . FOR THAT WE MAKE A POINT IN  MIDDLE OF THE SURFACE OF THE CONNECTOR MATING SURFACE. WHICH WILL BECOME THE ORIGIN OF THE AXIS SYSTEM.

IN THIS WE MAKE THE Y DIRECTION IN THE MATING DIRECTION.X IN THE LEFT DIRECTION AND Z IN THE TOP.  AS SHOWN IN THE FIGURE ABOVE.

(B) CREATING CONNECTOR CONNECTION POINTS.

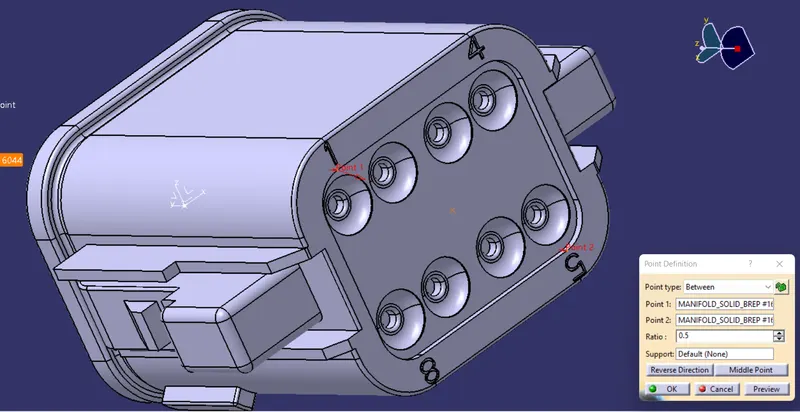

HERE WE DEFINE A POINT FOR THE BUNDLE ENTRY. FIRST WE MAKE A POINT EXACTLY IN CENTRE OF THE SURFACE. AT THE END OF THE CONNECTOR FOR THE BUNDLE ENTRY.

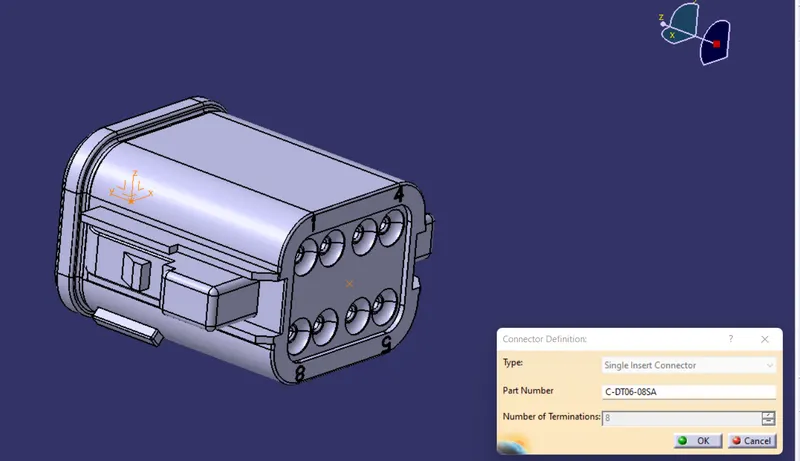

(C) DEFINE CONNECTOR.

1. SWITCH TO ELECTRICAL PART DESIGN.

2.CHOOSE COMMAND DEFINE CONNECTOR.

THEN CLICK ON THE COMPONENT

CHOOSE THE NUMBER OF TERMINATION. IN THIS CASE IT IS 8.

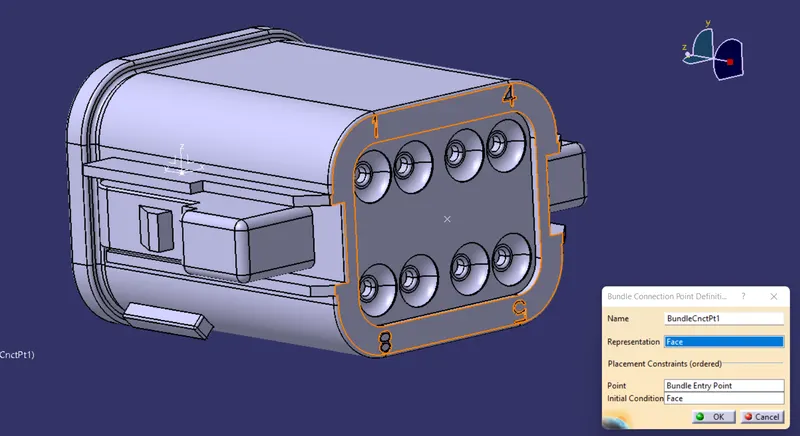

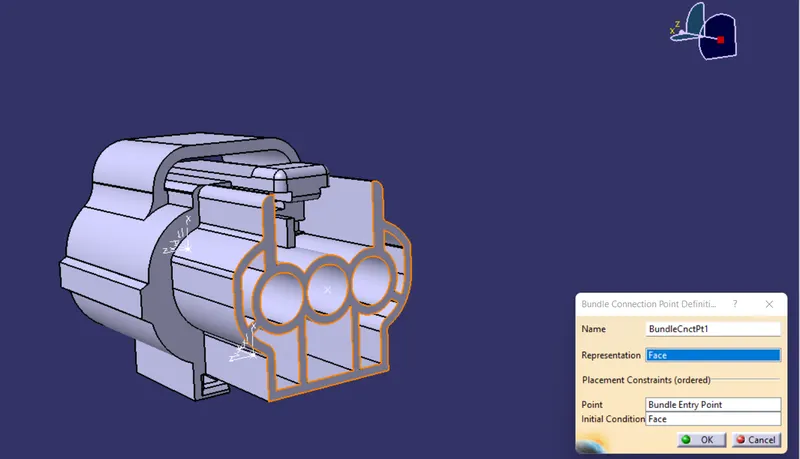

(D)DEFINE BUNDLE CONNECTION POINT.

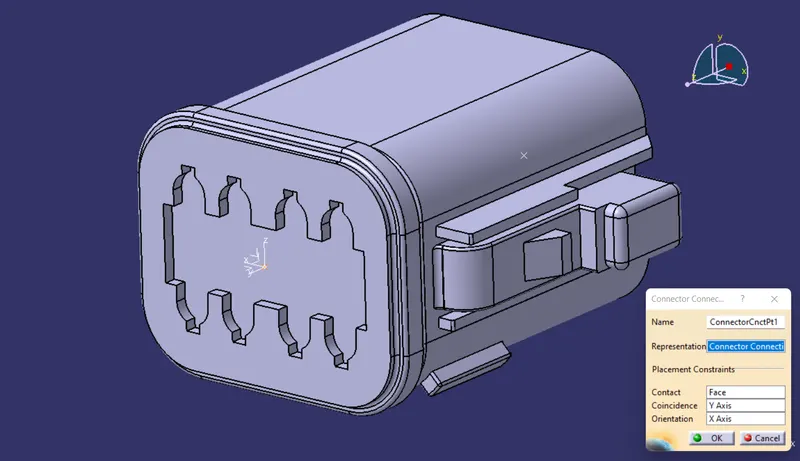

(E)DEFINE CONNECTOR CONNECTION POINT.

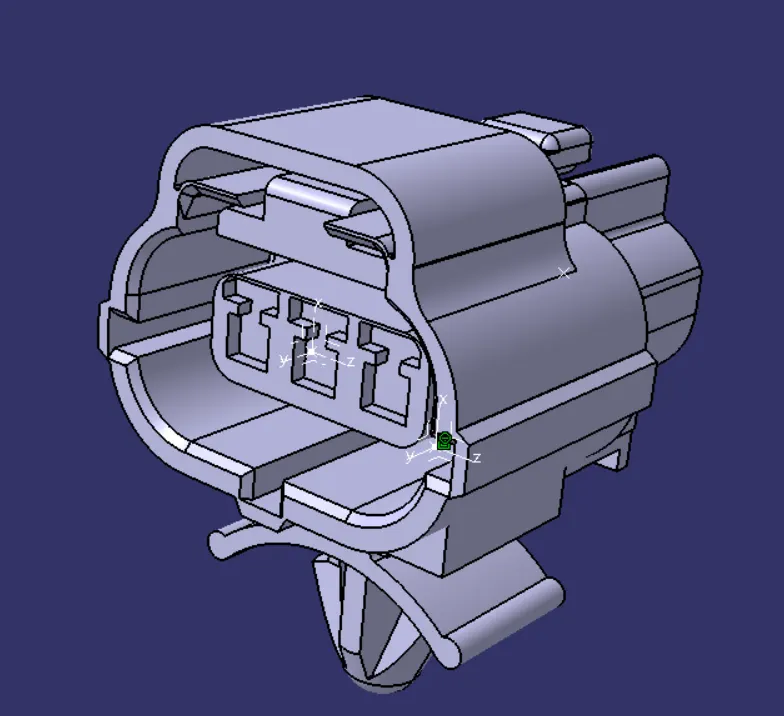

2ND CONNECTOR

(A) DEFINE CONNECTOR.

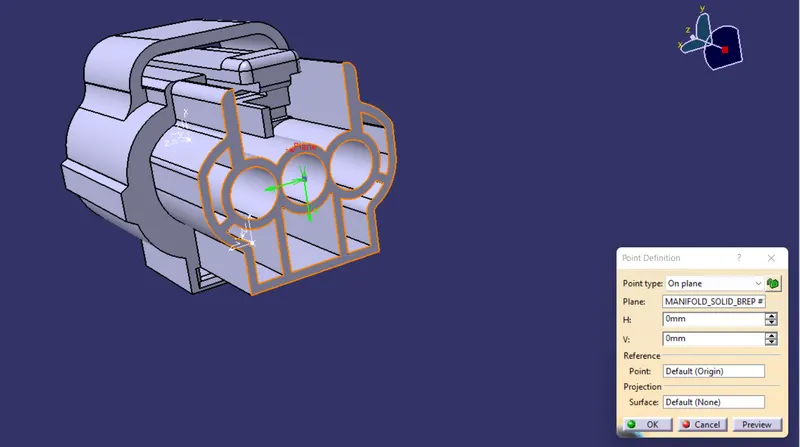

(B) BUNDLE POINT

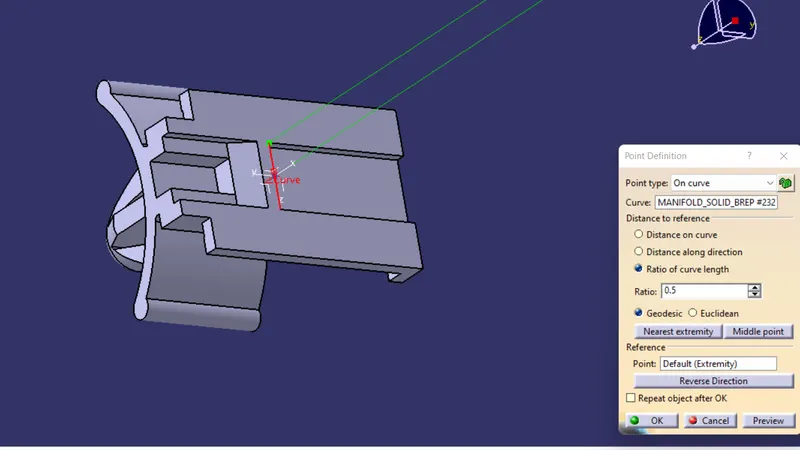

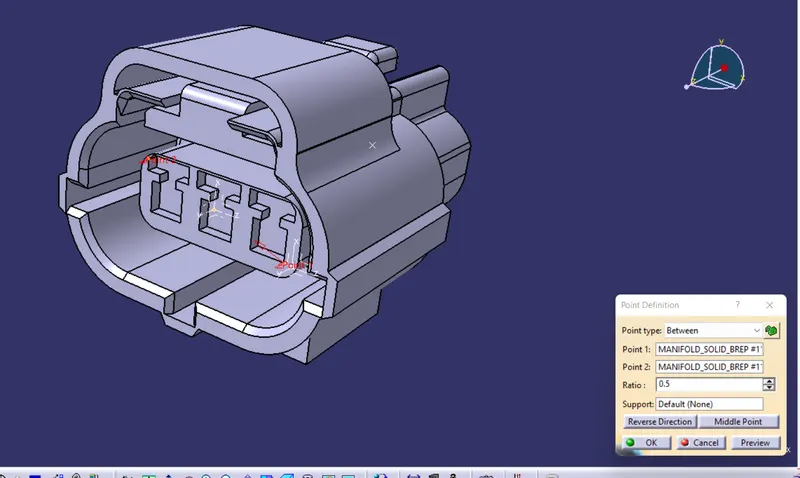

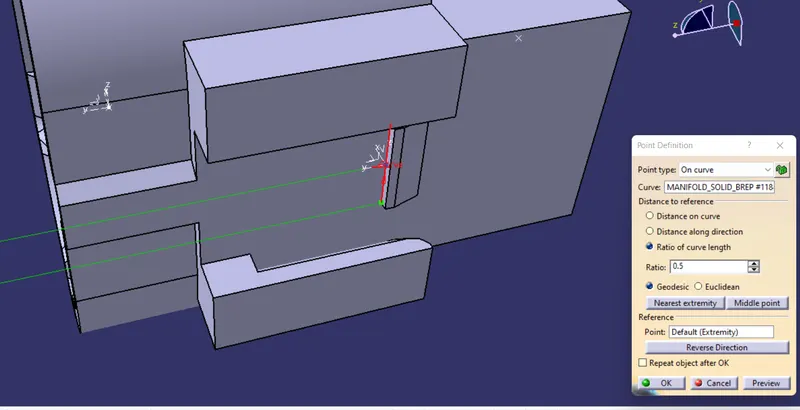

(C)CAVITY POINT

(D)DEFINE  BUNDLE CONNECTION POINT

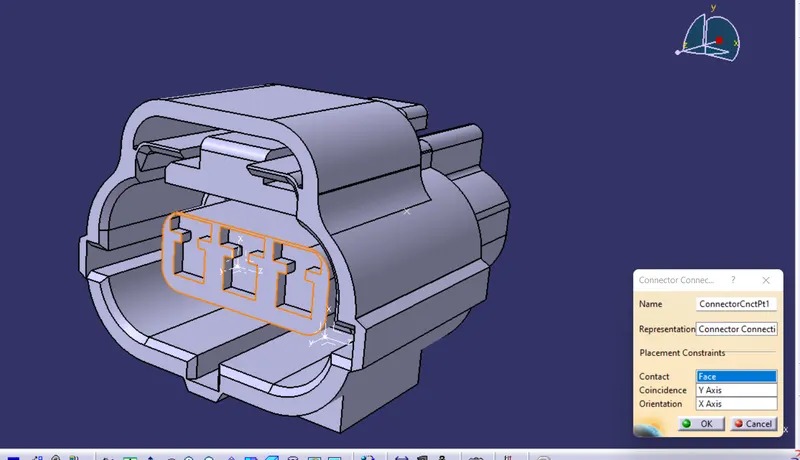

(E) DEFINE CONNECTOR CONNECTION POINT.

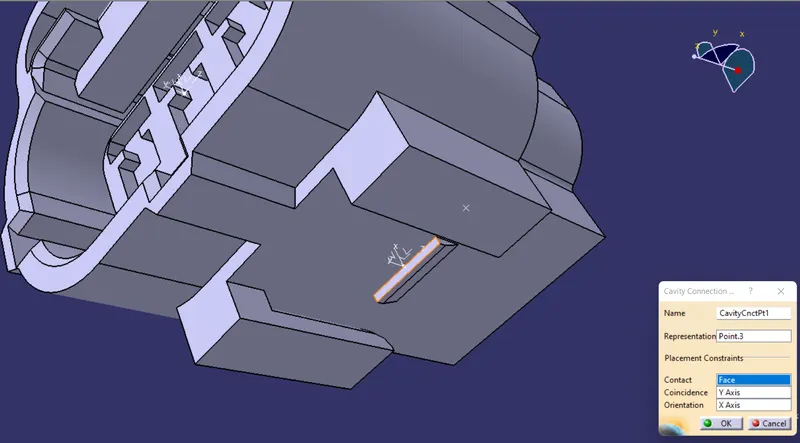

(F) INN THIS WE ALSO HAVE TO DEFINE THE CAVITY CONNECTION POINT. AS WE HAVE TO ASSEMBLE THE CLIP HERE.

CLIP

(A) DEFINE CONNECTOR.

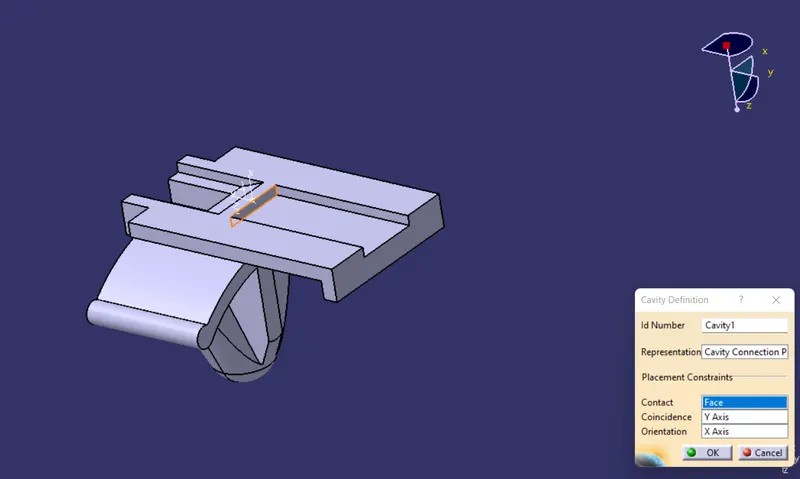

(B)CAVITY CONNECTION POINT.

ASSEMBLY .

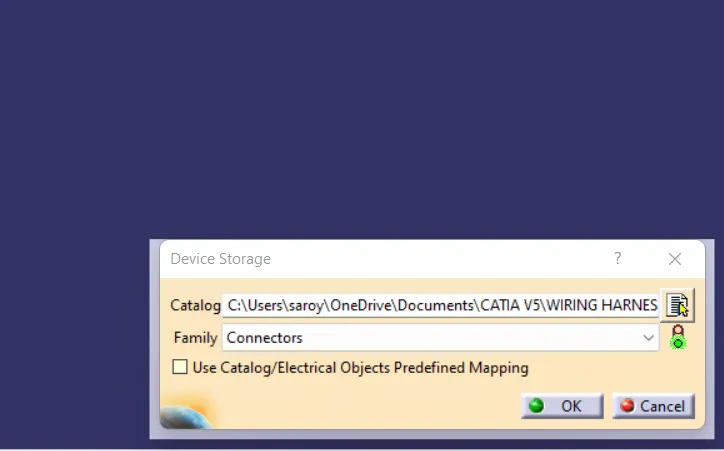

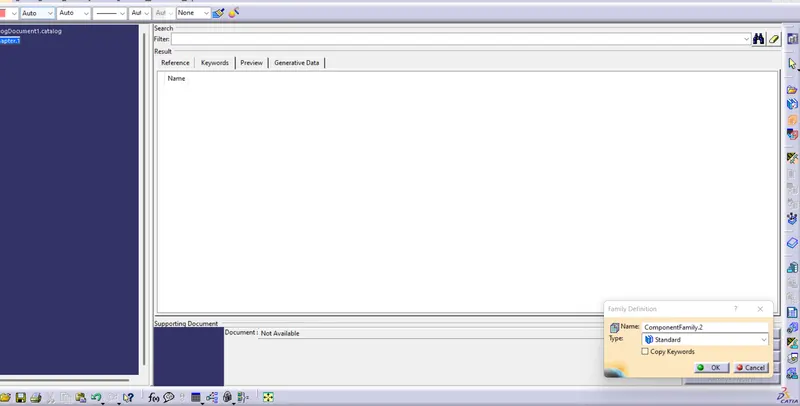

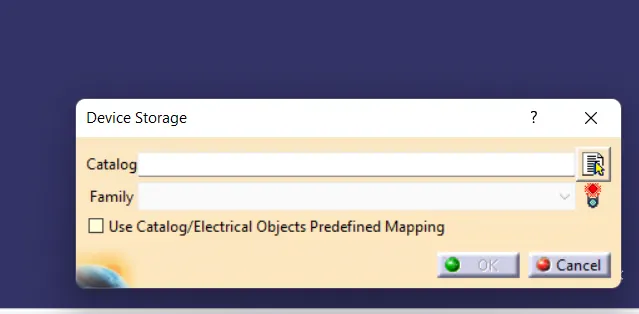

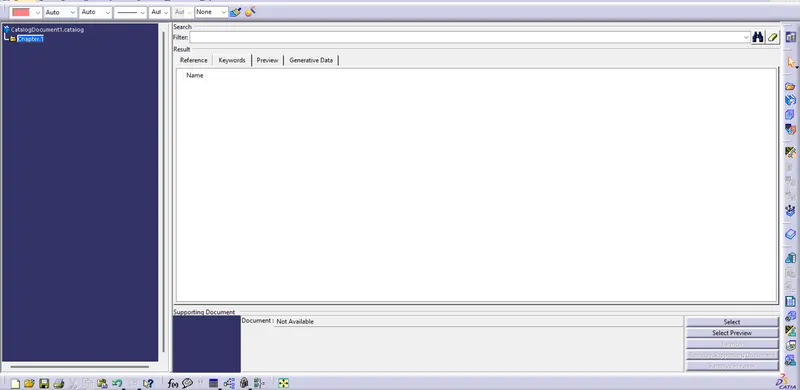

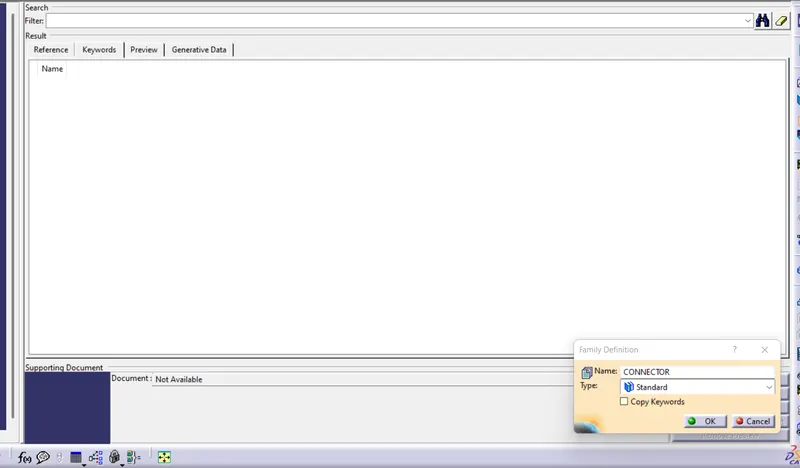

MAKING OF CATALOUGE DOUMENT.
