Week 9 - Project 1 - Door Trim Lower with Engineering Features

OBJECTIVE: TO CREATE THE TOOLING AXIS ,DOOR TRIM LOWER PLASTIC COMPONENT AND THE HEAT STAKES ON THE POINTS WHICH HAVE GIVEN AS AN INPUT .AND THE LOCATORS THROUGH THE GIVEN CLASS A SURFACES FOR THE DOOR APPLIQUES.

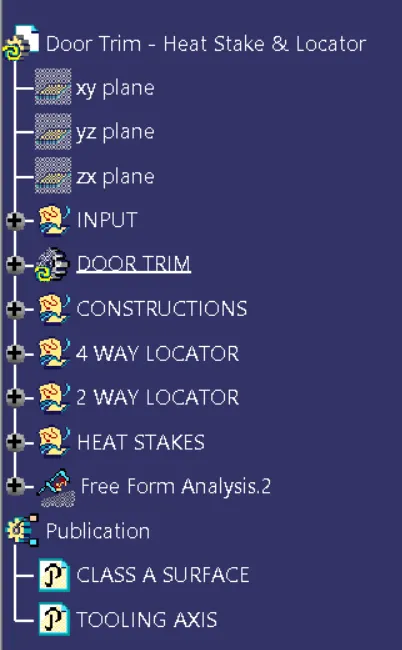

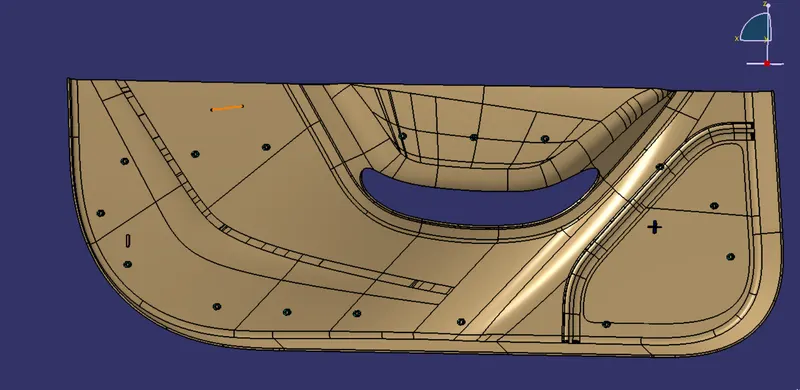

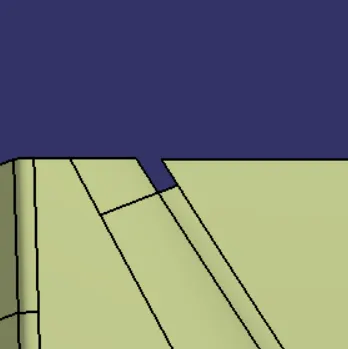

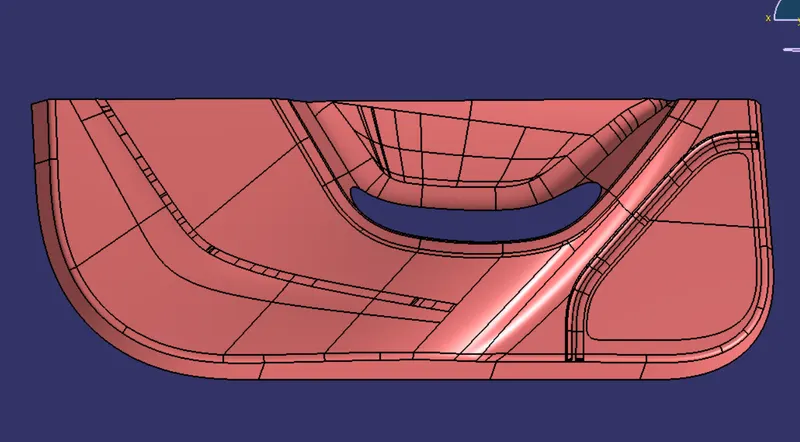

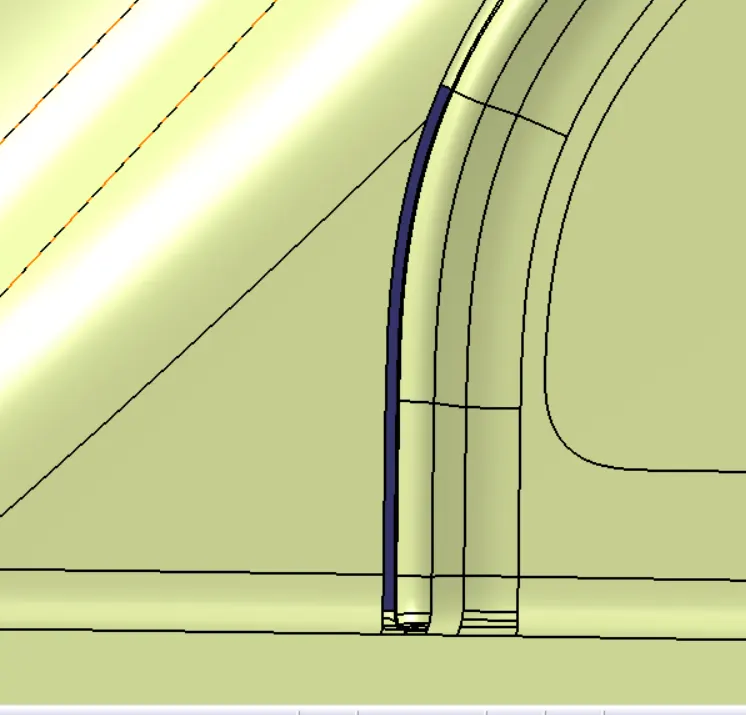

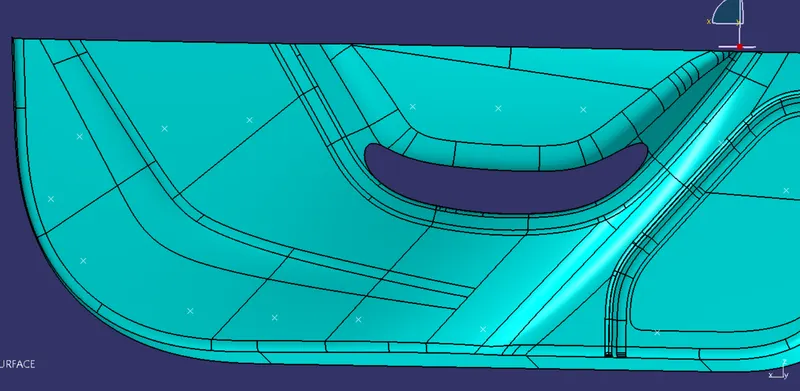

CLASS A SURFACE

THIS IS THE GIVEN CLASS A SURFACS WITH THE POINTS WHERE WE HAVE TO MAKE THE HEAT STOKES.

CREATION OF TOOLING AXIS:

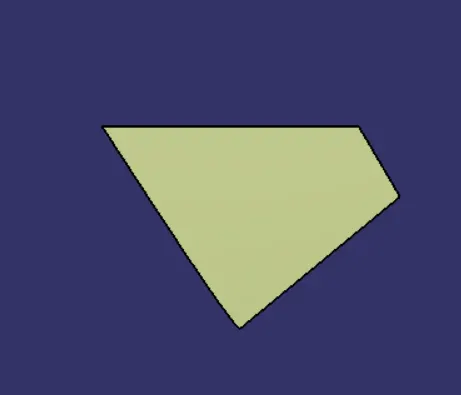

(A) FIRST WE HAVE EXTRACTED THE SURFACE WHERE WE WANT TO CREATE THE TOOLING AXIS

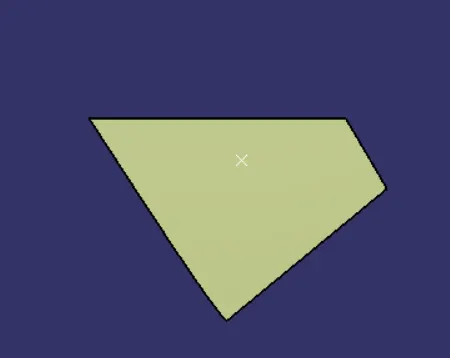

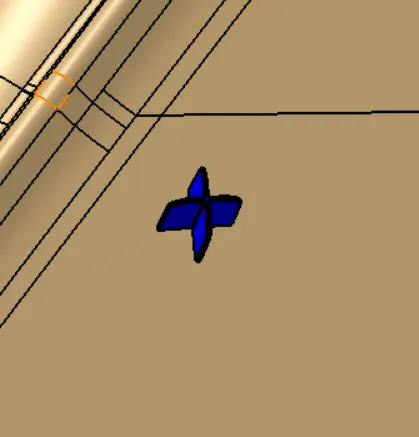

(B) THEN MAKE A POINT IN THE MIDDLE OF THE SIURFACE WHICH I HAVE EXTRACTED.

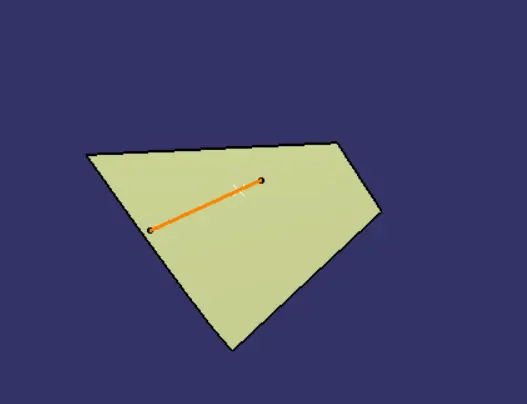

(C) SIMPLY DRAWN A NORMAL LINE TO THE SURFACE FROM THE POINT WE HAVE MADE AS SHOWN BELOW

(D) TOLLING AXIS SHOWN BELOW.

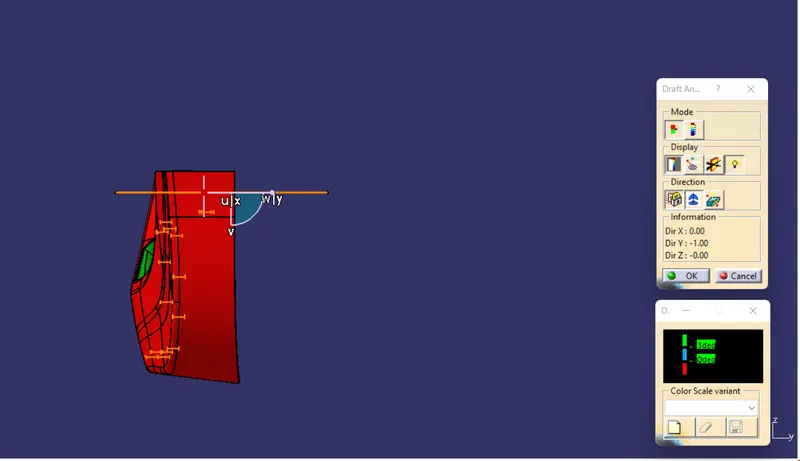

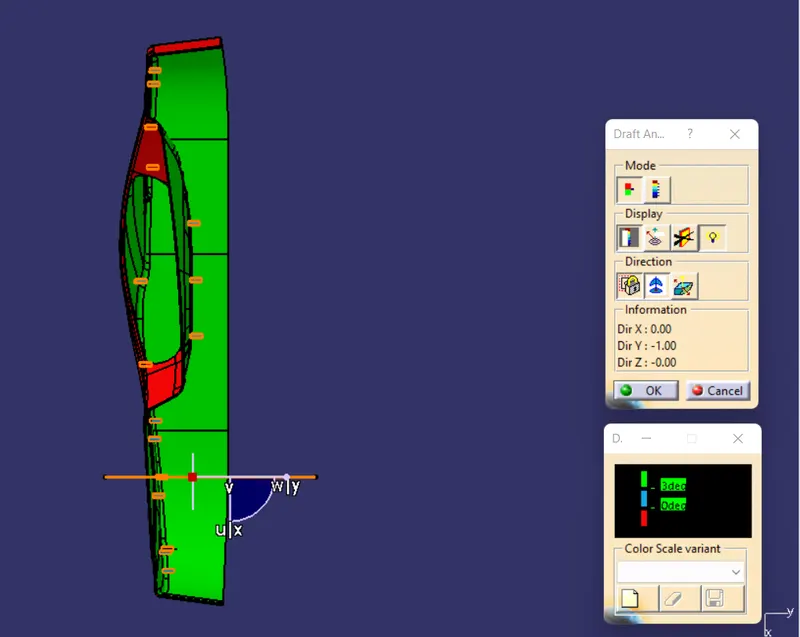

PERFORMING THE DRAFT ANALYSIS:

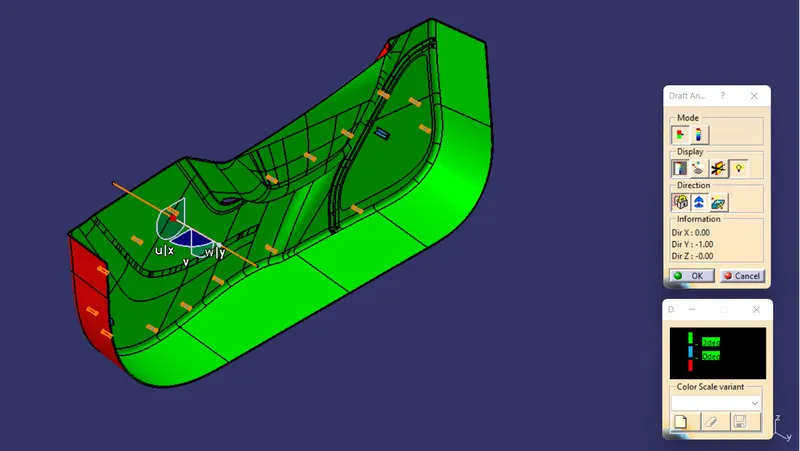

(A) FIRST WE GO THE INSERT AND THEN GO TO THE ANALYSIS AND THEN SEARCH FOT THE DARFT ANALYSIS .

(B) THE THE WINDOW POP UP WINDOW SHOWN IN THE PICTURE SHOWN BELOW .

(C) WE CHOSE THE COMPASS WHICH IS IN THE SECOND ROW OF THE DIRECTION.AND DRAG THE COMPASS ON THE TOOLING AXIS .

(D) AND NOW CLICK ON THE SURFACE .

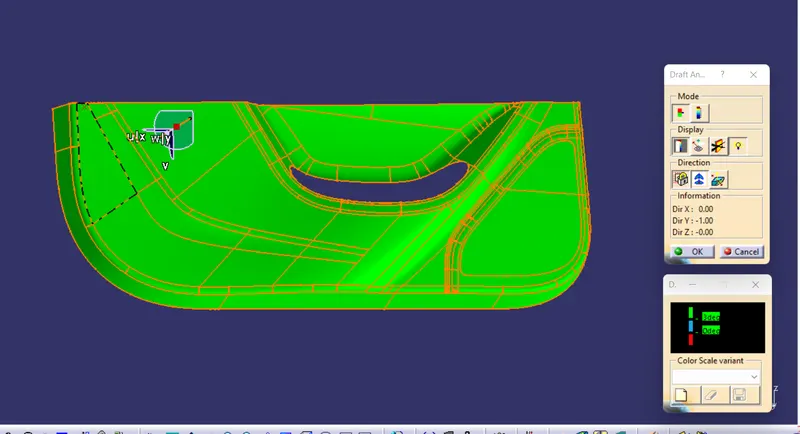

(E) WE GET A COLOR SURFACE  WITH GRREN,RED,BLUE FACES. IF WE GOT ANY RED SURFACES.THEN IT IS CLEAR THAT THE SURAFACE WHICH IS RED IS UNABLE TO CLEAR THE  DRAFT.

 CREATION OF B SURFACE

(A) OFFSETTING THE CLASS A SURFACE

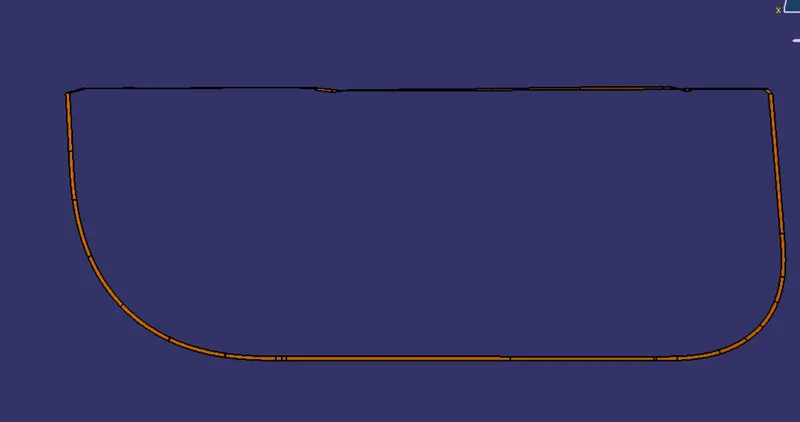

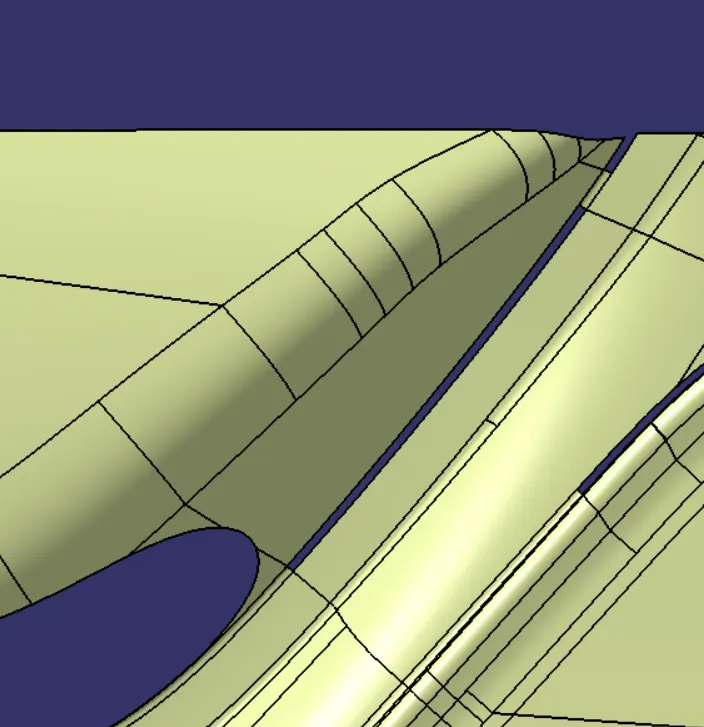

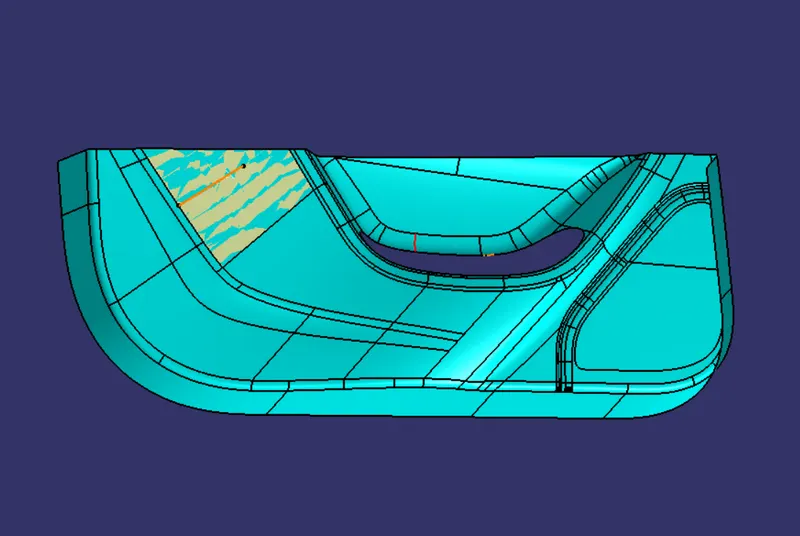

PATCHES WE GET AFTER THE OFFSETTING OF THE  CLASS A SURFACE

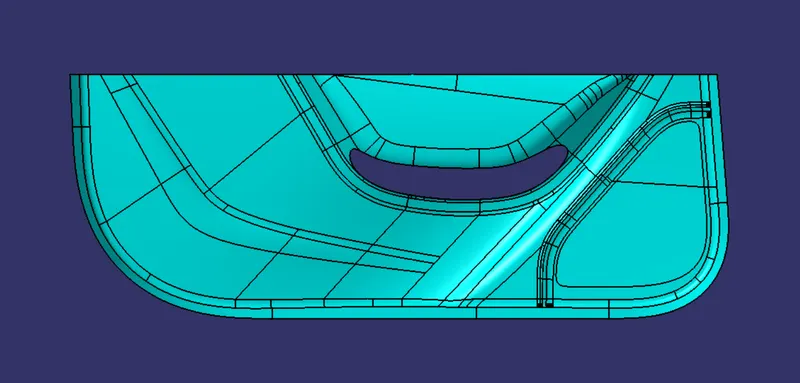

B SURFACE

C SURFACE

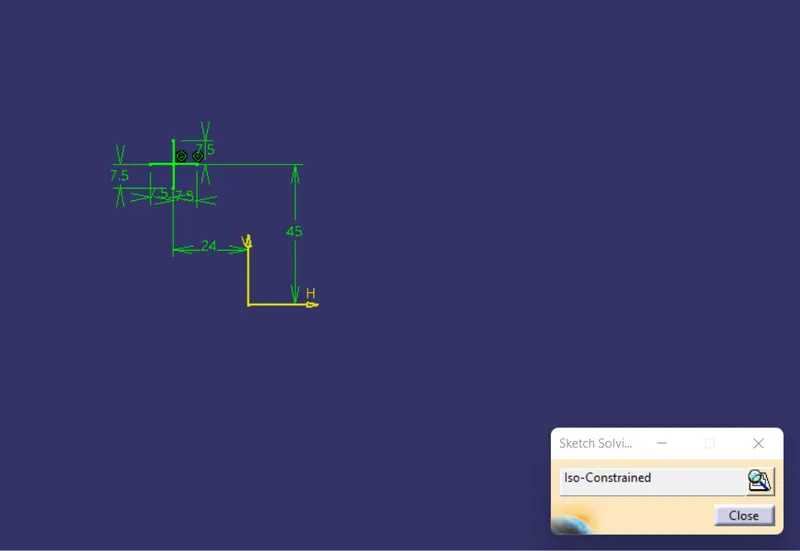

SKETCH FOR THE FOUR WAY LOCATOR

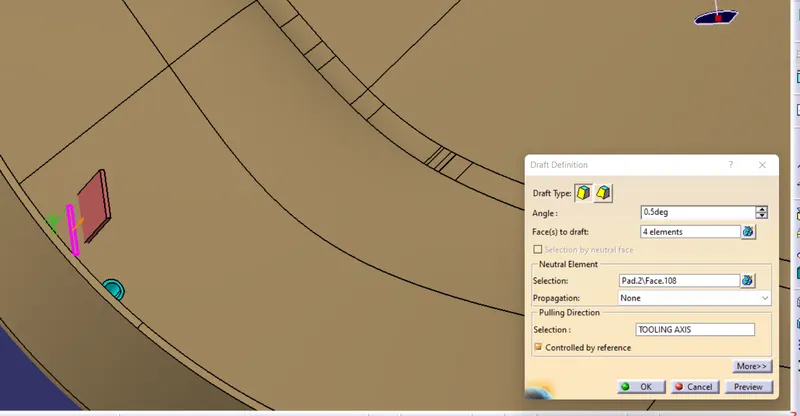

DRAFT GIVEN TO THE FOUR WAY LOCATOR

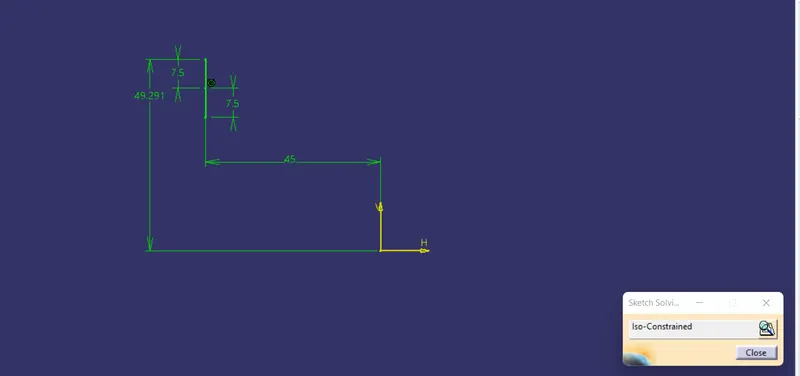

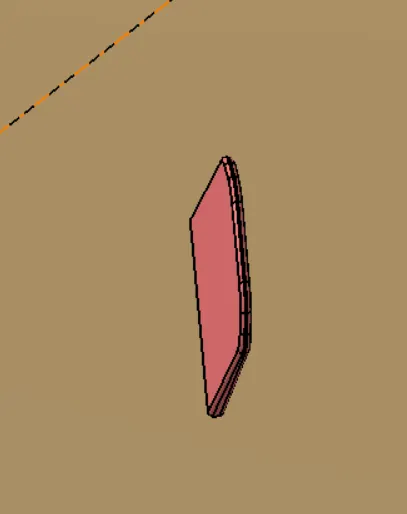

SKETCH FOR THE TWO WAY LOCATOR

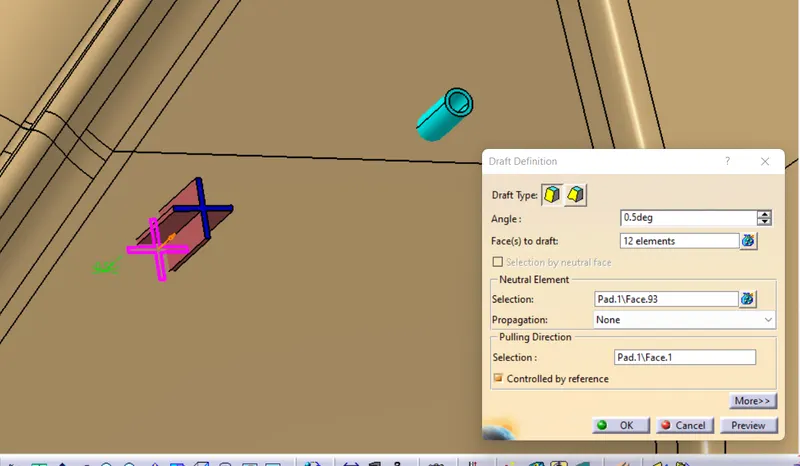

DRAFT FOR THE TWO WAY LOCATOR

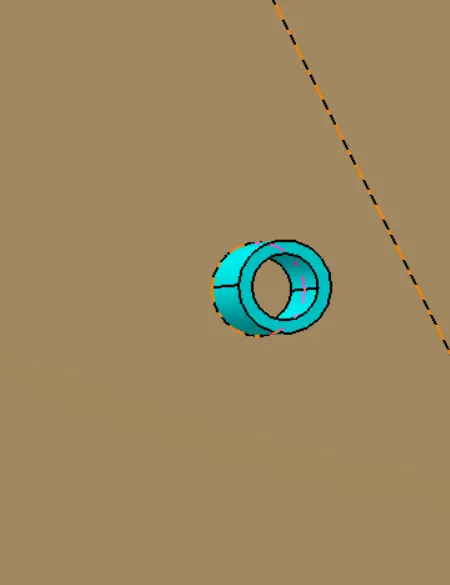

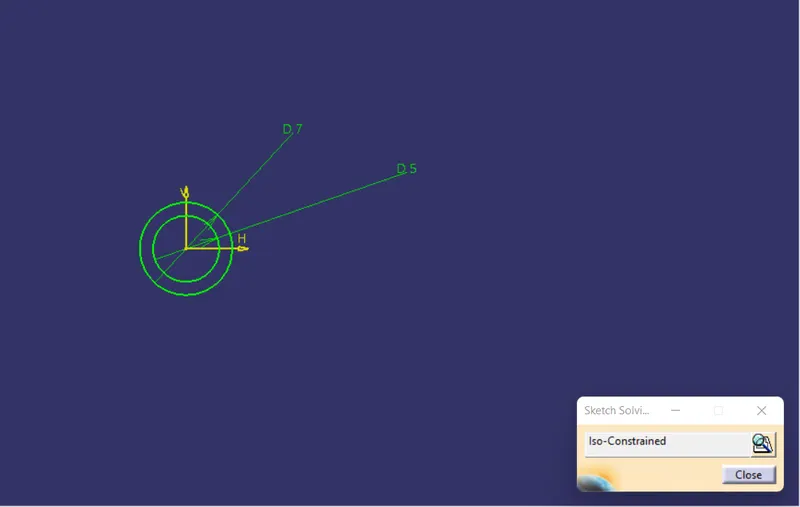

SKETCH FOR THE HEAT STOKES

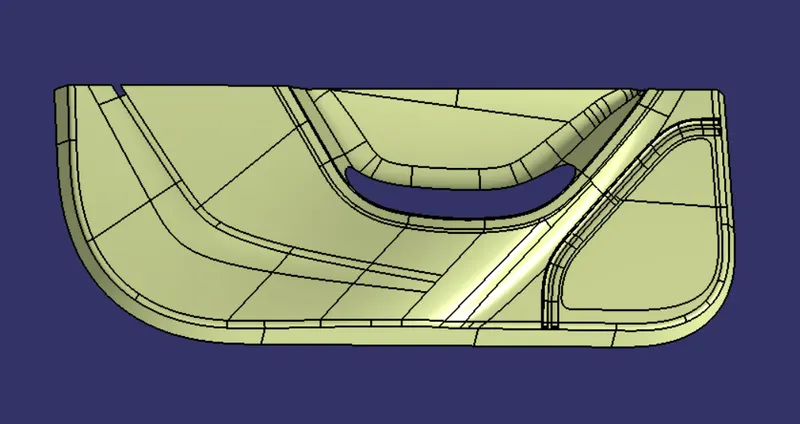

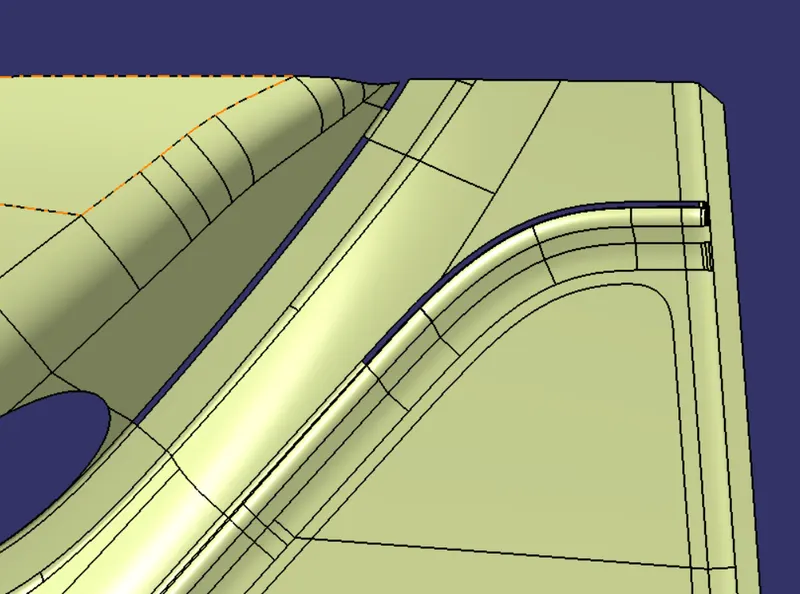

FINISHED PLASTIC COMPONENT

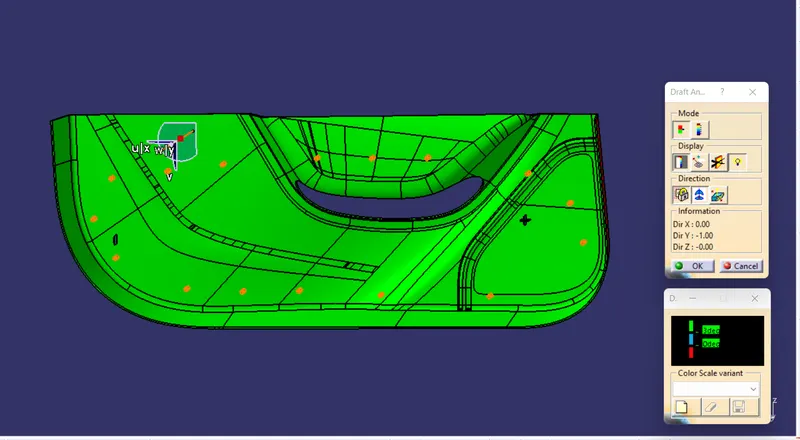

DRAFT ANALYSIS FOR THE FINISHED PLASTIC COMPONENT.
