Assembly of butterfly valve 1. FIRST OF ALL GO TO NX AND SELECT ASSEMBLY NAME BUTTERLFY ASSEMBLY TO THE FILES AND SAVE IT ,WHERE REST OF THE COMPONENT ARE SAVE 2. NOW ADD ALL THE COMPONETS TO THE ASSEMBLY. 3. NOW GIVE CONTRIANTS BETWEEN BUTTERFLY VALVE AND STEM.AXIS ALINE WITH IT AND ONE OF THE SURFACE ALINE WITH VALVE.…

Aim :         To develop the car Backdoor(Tail gate) with the reference of given skin data as per engineering standared by using NX12 Back Door :          The Back door is typically hinged, but sometimes attached by other mechanisms such as tracks, in front of an opening…

Roof Design Explanation An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements.           When it is seeing from outside of the car, it is…

Fender design Fender is part of automobile ,motorcyle or other vehicle body that frame a wheel well .Its primary purpose is to protect sand ,mud ,rocky liquids and other road spray from being into the air or engine compartment by rotating tires It is also used for pedestrian safety. 1. Design Drip Area, 2. Design Sill…

Fender Design - Wheel Arch Challenge Fender is part of automobile ,motorcyle or other vehicle body that frame a wheel well .Its primary purpose is to protect sand ,mud ,rocky liquids and other road spray from being into the air or engine compartment by rotating tires It is also used for pedestrian safety. Wheel Arch is…

Explanation of section modulus It is  defined as the ratio of the moment of inertia of a section about its centroidal axis to the distance of the extreme layer fro neutral fibre  Its a geometric property used to calculate the bending stress in structural member ther geometric properties used in design include areafor tension…

HOOD  DESIGN 1. First download all model and put them in a single folder 2. Now go to nx and open assembly window make new file name it as hood assembly 3. Now add component such as hood outer panel to this assembly. 4. This is the first step , referenig to the outer panel we will going to creat inner panel. 5. Make…

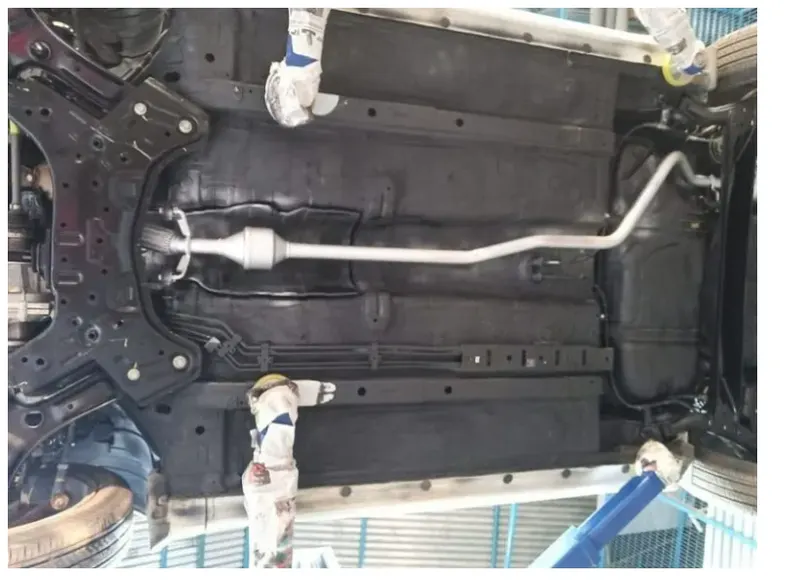

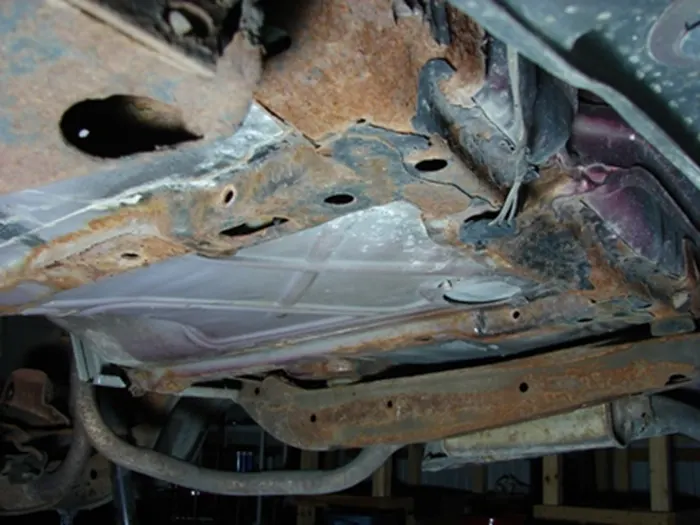

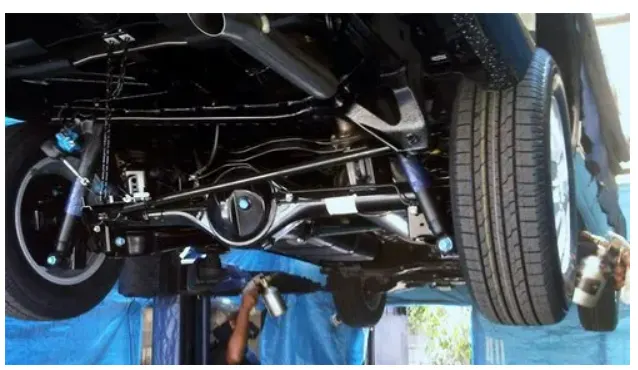

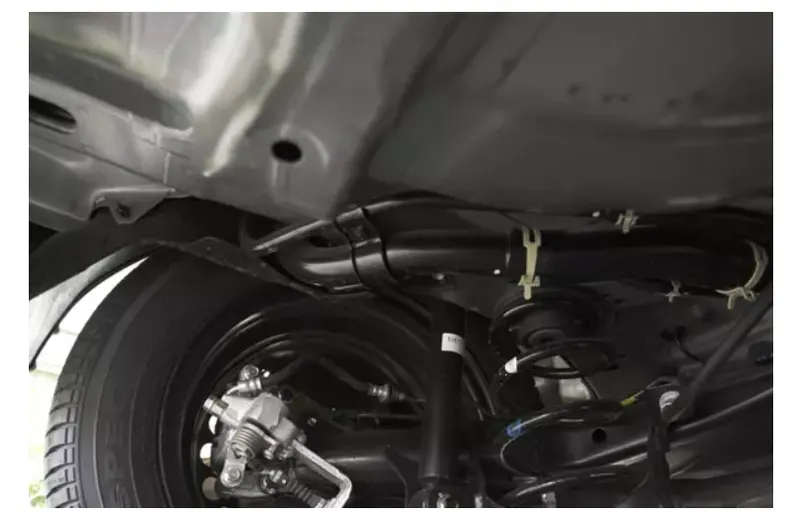

Under body  coating is usually a dense cladding (often based on rubber) applied uniformly to under carriage of automobile.It is normally sprayed or painted.The main purpose of under body coating is to check rust especially in the body componant like frame along with other exposed metals  parts under body coating…

  BENCH MARKING EXPLANATION. It is the process of similar products on some dimensions of performances , its process of analaysing the choices of similar product based on the selection faster and deducing it to fixing coclusion. It involves a structural comparison between similar products , service or process on some…

week 6 1. Firtly export the model to Ansa 2. check the geometry clean up 3. Using topo element geometry breakup. 4. Assign the mesh and quality criterio 5. Find the necessary connection such as bolt, bush coonection that are required to assign. 6. Creat a  3d point in bolt connection in connection manager. 7. For bolt…

Steps followed for meshing of hood model week 3 challenge 1. Fistly down load model and import it to ansa module 2. Divide the model in sub parts . 3. After sub division removing unecessry hot points in topo module of ansa. 4. Using topo command in faces feature make the continuity if there any disconnection present between…

TOOL TEST 2

tool  test

Weekn 5 solid mesh Rear view mirror 1. Firstly import the file to ansa software. 2. Do the geometry cleanup 3. Byusing option topo for geometry connection (cons) 4. Check the geomtry using geomtry option  5. fix the error using right click fix option , try to elements triples cons and other error 5. Now using mesh…

  Steps followed for meshing of hood model week 3 challenge 1. Fistly down load model and import it to ansa module 2. Divide the model in sub parts . 3. After sub division removing unecessry hot points in topo module of ansa. 4. Using topo command in faces feature make the continuity if there any disconnection present…

FINAL PROJECT

REPORT C V JOINT 1 IN PART WORK BENCH AS DRAWING OF DIFFERENT PARTS ARE PROVIDED. 2 DRAW SKECH FOR BODY 1 AS PER DIMENSION PROVIDED AND PAD IT TO DESIRED VALUE 3. SELECTING DIFFERNT PLANE AND DRAW ANOTHER CIRCLE PAD IT TO DESIRED VALUE. 4. FOLLOW THE SAME PROCESS FOR OTHER ALSO . 5 NOW IN ASSEMBLY DRAWING USING INSERT…

WEEK 9 PROJECT DETAILS REPORT 1. A s obtained Class A surface , Offset it  to a suitable distance. 2. Name all geometrical set accordingly .  3. This offest surface to 2.5mm distance is class B surface 4. By using sweep command make class C surface perpendicular to class A  5. Hence class C surface obtained.…

WEEK 9 PROJECT 1   DETAILS REPORT 1. A s obtained Class A surface , Offset it  to a suitable distance. 2. Name all geometrical set accordingly .  3. This offest surface to 2.5mm distance is class B surface 4. By using sweep command make class C surface perpendicular to class A  5. Hence class C surface…

WEEEK 9 CHALLENGE 2   DETAILS REPORT 1. A s obtained Class A surface , Offset it  to a suitable distance. 2. Name all geometrical set accordingly .  3. This offest surface to 2.5mm distance is class B surface 4. By using sweep command make class C surface perpendicular to class A  5. Hence class C surface…

DRWAING 1 CHALLENGE 1 WEEK 9 DETAILS REPORT 1. A s obtained Class A surface , Offset it  to a suitable distance. 2. Name all geometrical set accordingly .  3. This offest surface to 2.5mm distance is class B surface 4. By using sweep command make class C surface perpendicular to class A  5. Hence class C…

DRAWINH 1 CHALLENGE 6 WEEK 8 REPORT 1. A s obtained Class A surface , Extrapolate to a suitable distance. 2. Name all geometrical set accordingly .  3. Trim Class A surface with Class C surface. 4. Trim Obatined surface with class B surface to get cavity part of mould. 5 As the surface trimmed with class B surface…

DRAWING 1 CHALLENGE 4   1. As obtained class A surface , first of all alooted different  colour to differt geomerical surface of base bracket. 2.Than after thinked for best direction of tooling axis ,which is found to be X direction best suitable.As there is no hidden geometry and hole. 3.By using  extrapolte…

 Drawing 3 challeng 3 week 8 1. As obtained class A surface , first of all alooted different  colour to differt geomerical surface of base bracket. 2.Than after thinked for best direction of tooling axis ,which is found to be Z direction best suitable.As there is no hidden geometry and hole. 3.By using …

DRAWING 2 REPORT 1. 1. As obtained class A surface , first of all alooted different  colour to differt geomerical surface of base bracket. 2.Than after thinked for best direction of tooling axis ,which is found to be Z direction best suitable.As there is no hidden geometry and hole. 3.Making another axis system on the…

DRAWING 1 Report 1. As obtained class A surface , first of all alooted different  colour to differt geomerical surface of base bracket. 2.Than after thinked for best direction of tooling axis ,which is found to be Z direction best suitable.As there is no hidden geometry and hole. 3. By using intersection command a…
