Project 2

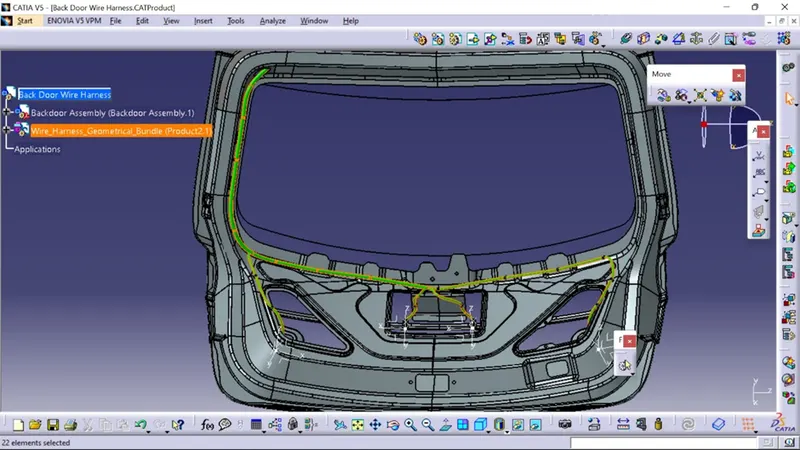

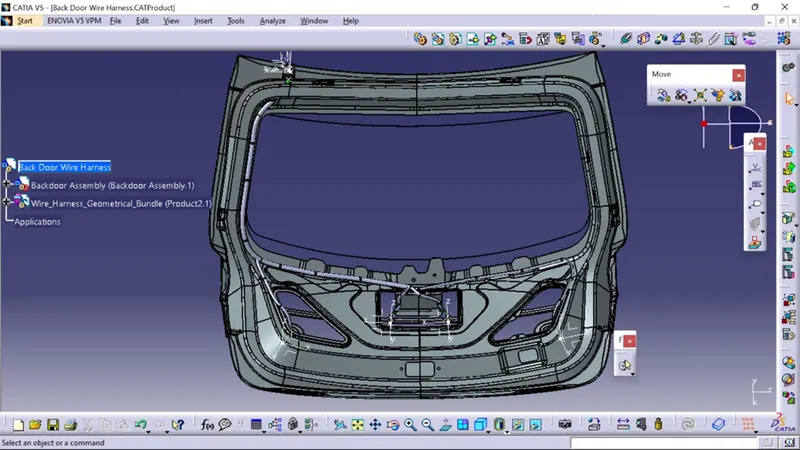

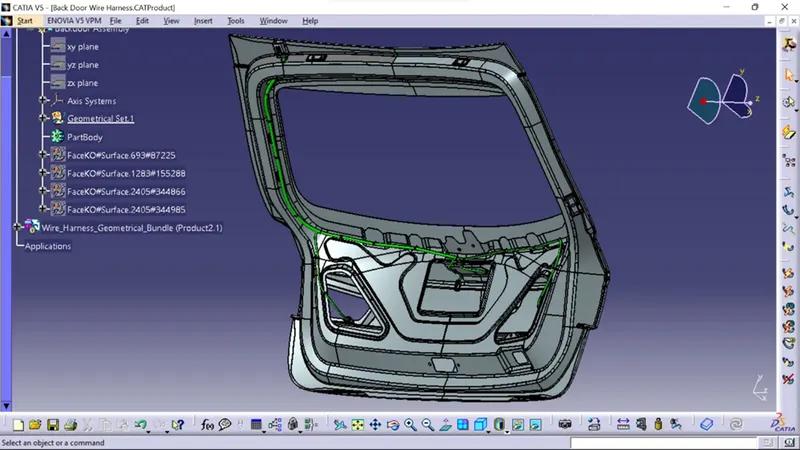

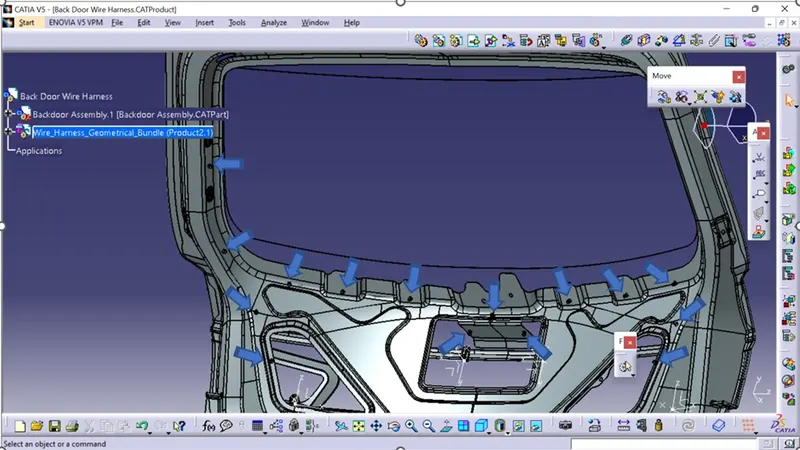

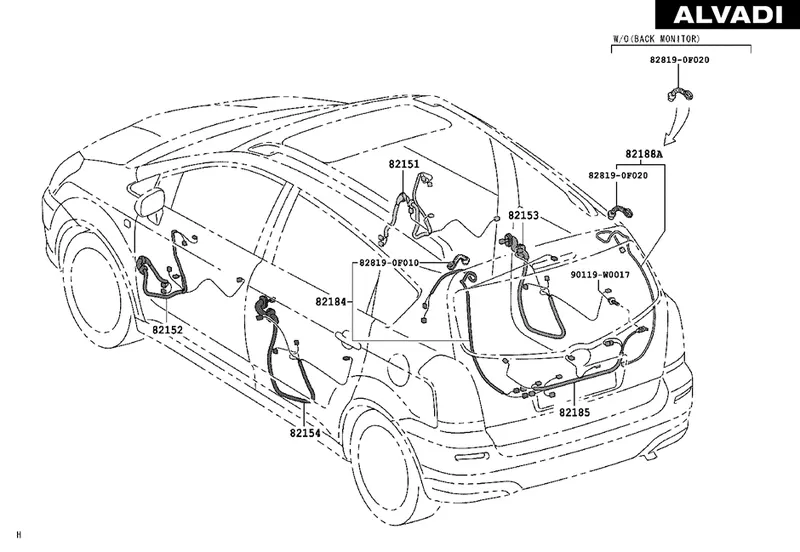

Statement of assignment: Route the Wiring harness on the Given car body and Prepare to flatten the view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used,…

Statement of assignment: Route the Wiring harness on the Given Engine and Prepare to flatten the view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required. Available connector 3D data can be used,…

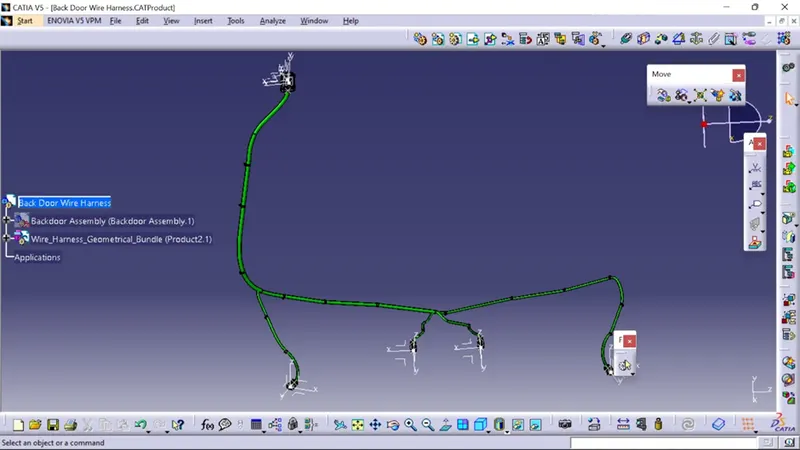

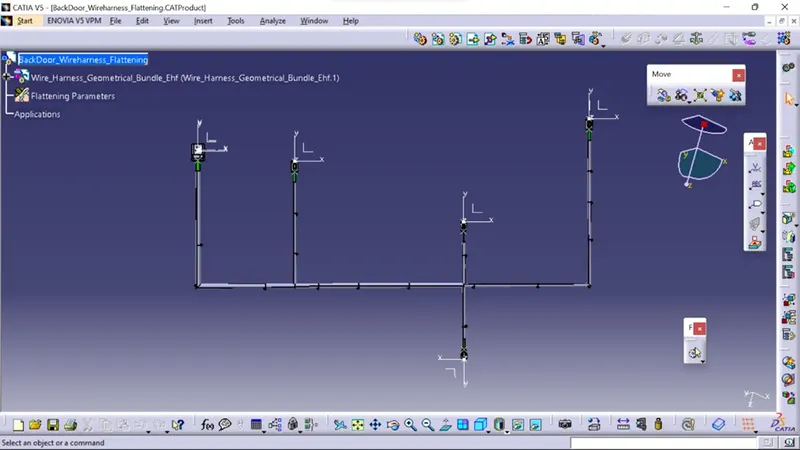

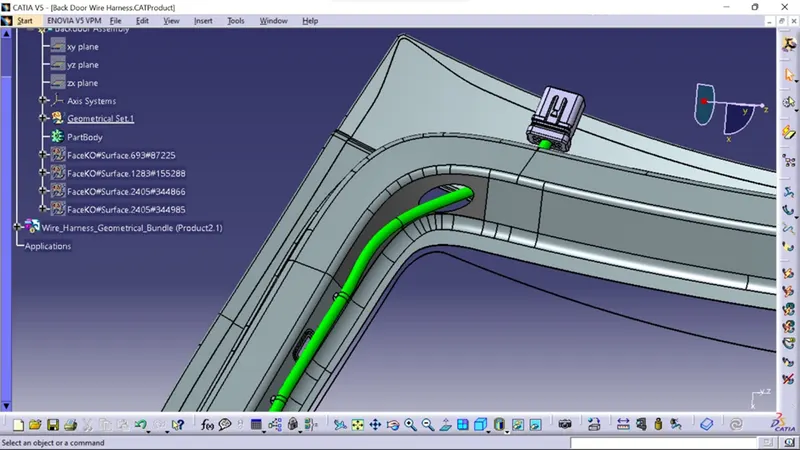

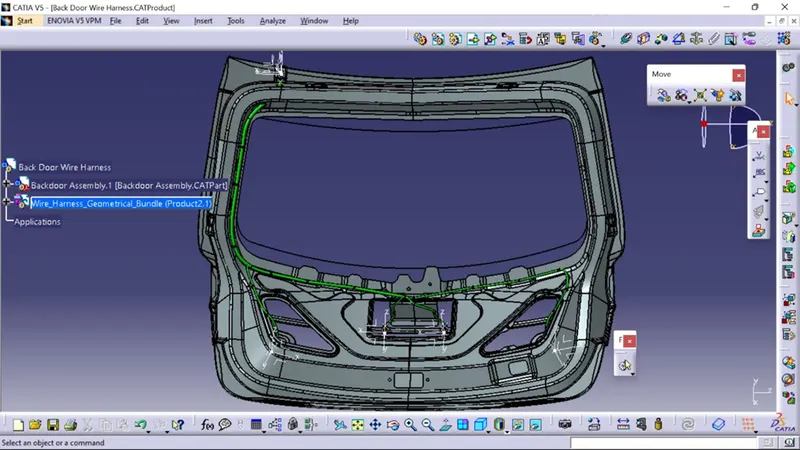

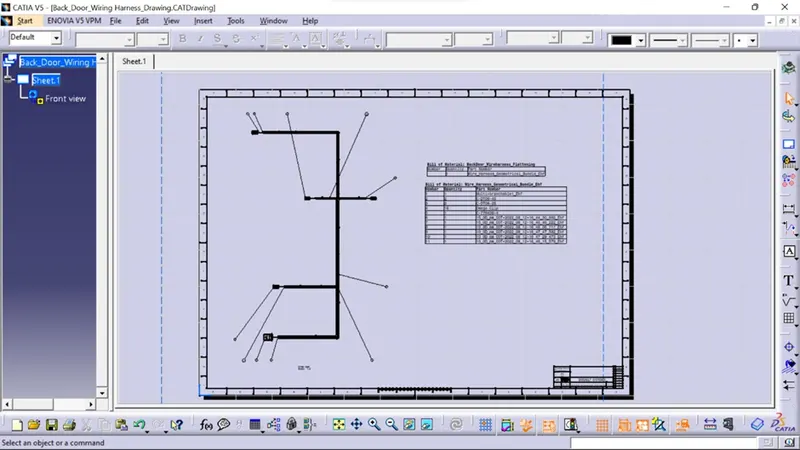

Q1. Flatten the harness assembly completed in the “ week 4 challenge”. Place the flattened view on the drawing sheet. Ensure bundles with protective coverings has different visuals on the drawing view.   OBJECTIVE: To flatten the wire harness assembly completed in the week 4 assignment. To orient the wire…

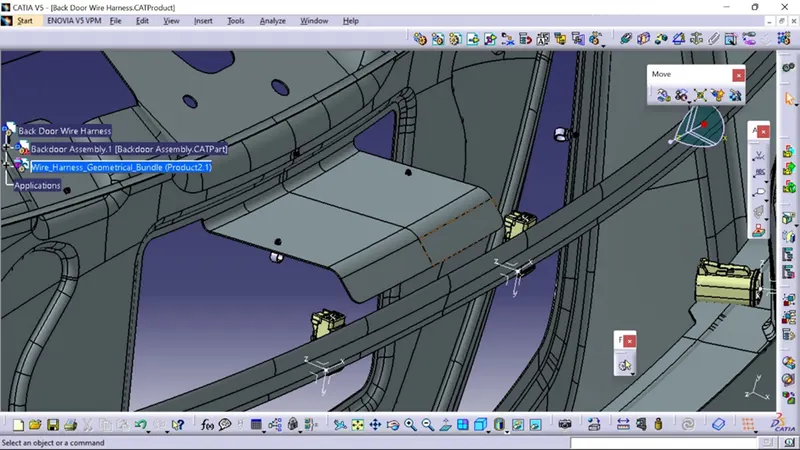

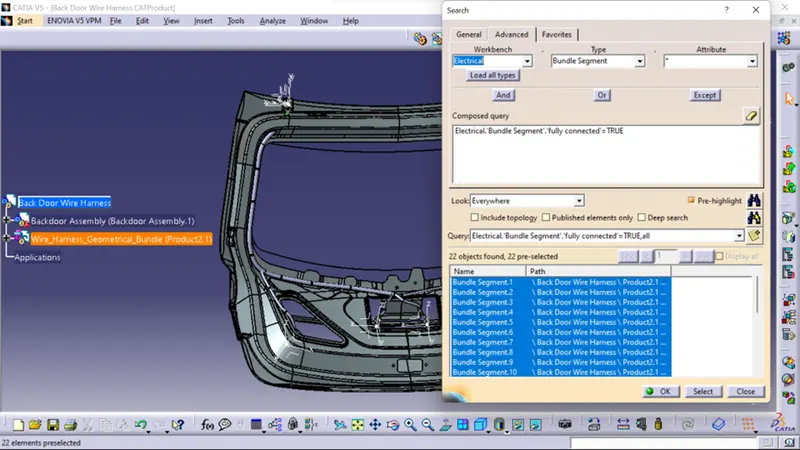

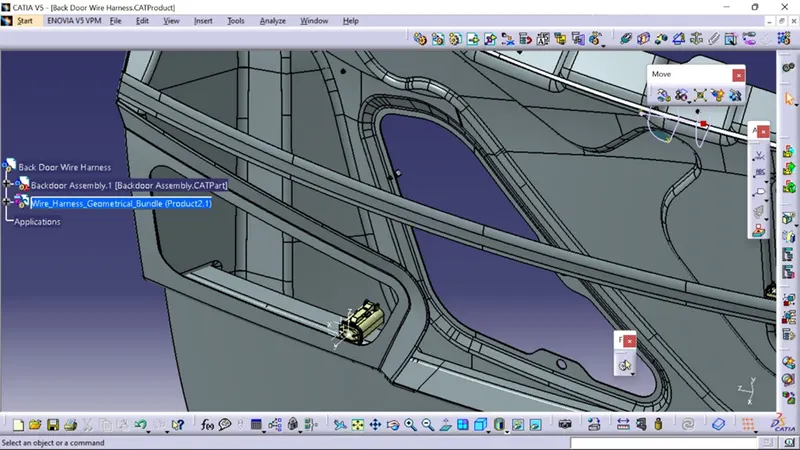

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing, Check the bundle Continuity. Add snap of result in submission Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc…

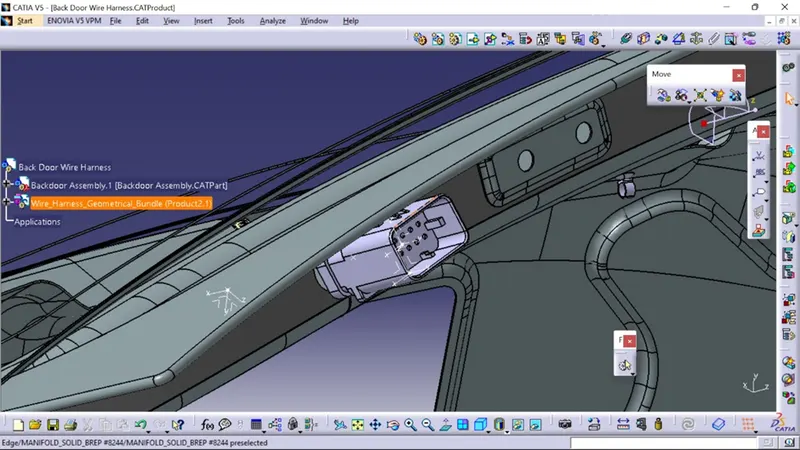

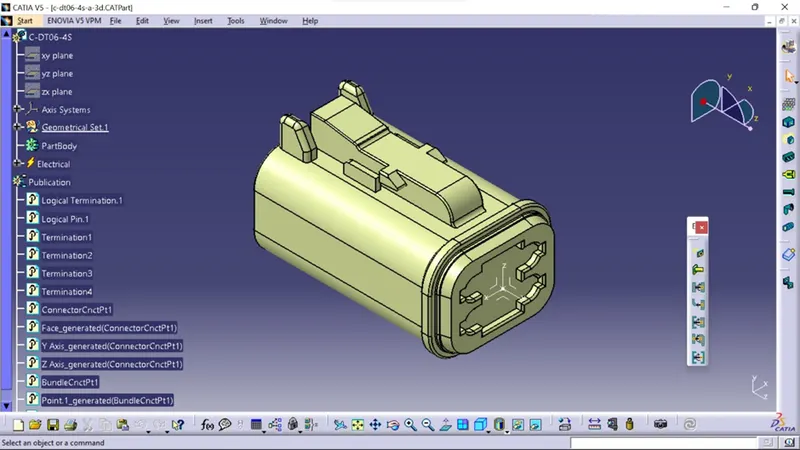

Aim: 1) To Route the following harness layout in the Electrical workbench. 2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Given: CAD data of the following Connectors: DT06-4S DT06-6S DT06-2S DT06-08SA       Steps Download connector 3D data from te.com Converting…

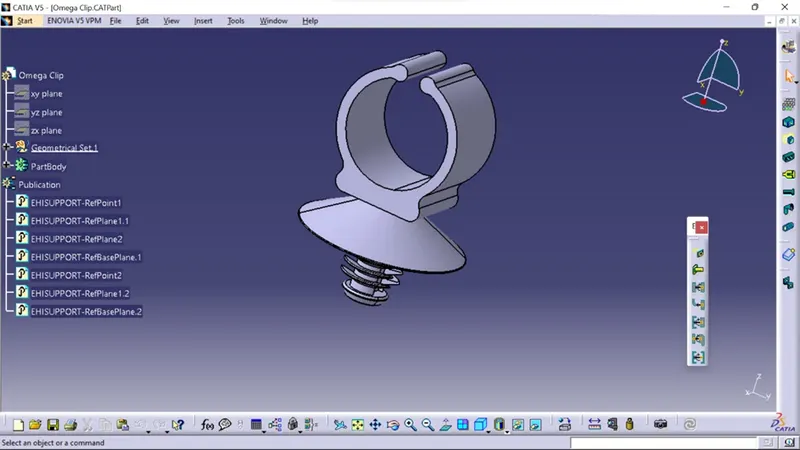

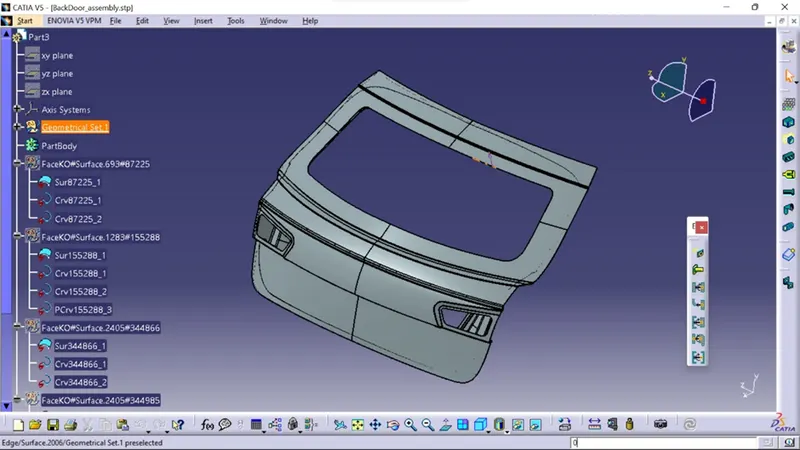

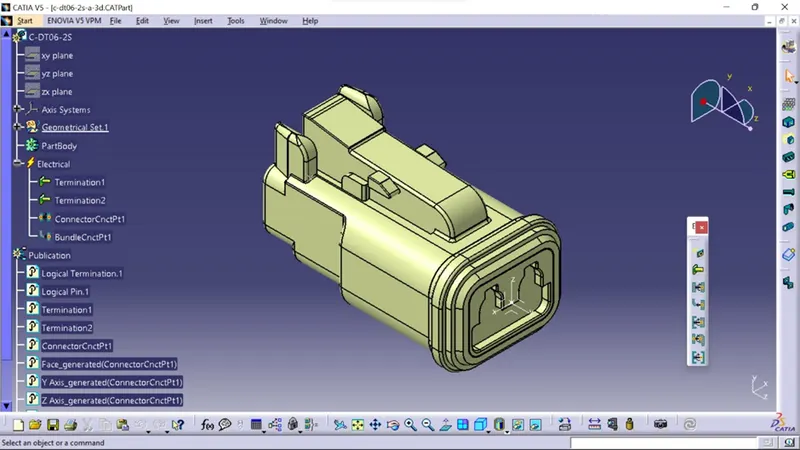

  Q1.  Download the following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties. Steps. Once the File is Downloaded, Open the File Using CATIA V5 Using the Part design model, we define entry, Exit, Base points, and Planes After determining…

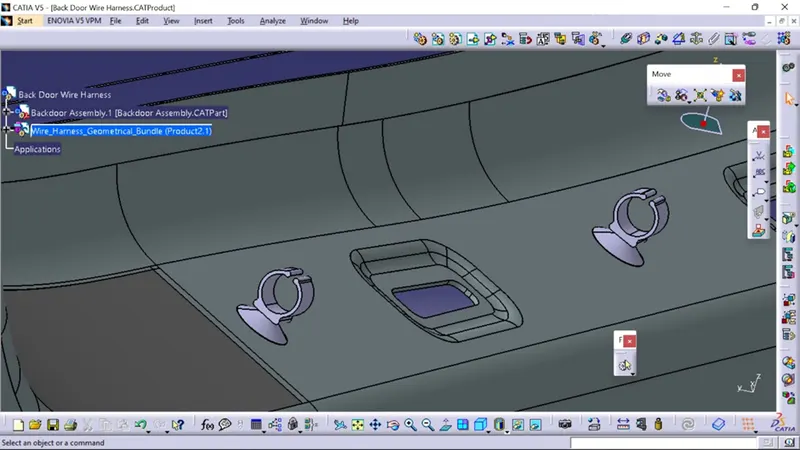

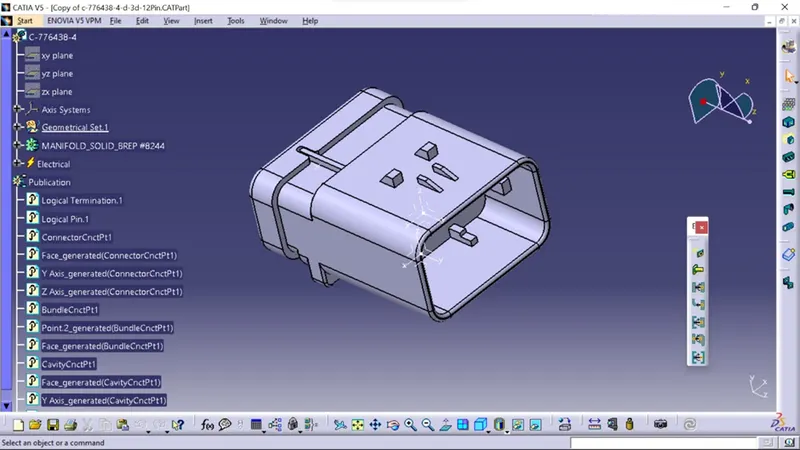

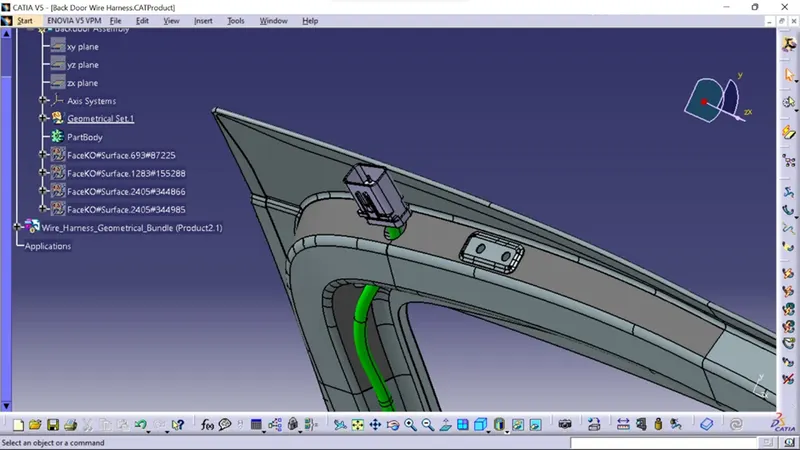

1.Deutsch DT06 – 08SA Connector connection point: Make a midpoint on the contact face for wire bundle insertion. Create an axis system with respect to the point we just made, defining the axis direction as shown below. Bundle connection point: Switch to 'Electric Part Design' In Catia, define the part as a connector…

AIM: Design and develop vehicle interior door trim in Catia V5 with a given class A surface and Master section. Create the side attachment features by the design guidelines. Objective: a) Class A surface b) Nominal thickness: Refer master sections c) Attachment strategy:  Introduction: The door panel serves as a link…

A-Pillar Given surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface, a reference…

Assembly 1 CV Joint Draft Images   Assembly 2 Quick Return Mechanism Drafting

Door Trim Given surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction   Steps followed On the extracted surface, a reference…

Door Trim with Doghouse Design Given Surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted…

Door Handle Design Given Surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface, a…

Switch Bezel Design Given Surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface,…

Bumper Given surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface, a reference point…

Coin Holder Design Given surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface, a…

Switch Bezel Design Given Surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface,…

Base Bracket Design Given surface Tooling axis Creation In injection molding, the Class A surface is first analyzed to determine the axis or tooling direction that separates the molds. Tooling direction is critical for plastic product design because it determines mold direction Steps followed On the extracted surface,…

Backdoor challenge Objective To design a BIW of Backdoor from the given surface design. The inner panel is designed and assembled with Hinge reinforcements, Gas Stay Reinforcements, Wiper Motor Reinforcements, and Latch Reinforcements Introduction A door is a hinged element that allows cars to enter and exit. The backdoor…

Roof Challenge Objective: To develop the essential flanges and reinforcements with appropriate dimensions and check the draft by using draft analysis. Calculating the Heat distortion, Snow load, and section inertia on the roof Introduction An automobile roof is the portion of an automobile that sits above the passenger…

Section Modulus of a Hood The section modulus is a direct measure of its strength. Bending a section that has a larger section modulus than another is stronger and more difficult. The section modulus of a cross-section is a geometric property utilized in the design of flexural members. In simple terms, the section modulus…

OBJECTIVE: Using the Master Section, design the Fender Drip Area, Sill Mounting Area, Bumper Mounting Area, Baffle Mounting Area, and A-pillar Mounting Area of a passenger car. The master portion shown below is utilized to produce the drip area and the rest of the mounting points according to the design requirements. To…

Introduction: What is a Fender? The part of an automobile, motorcycle or other vehicle body that frames a wheel well is referred to as a fender in American English (the fender underside). Its main function is to keep sand, mud, gravel, liquids, and other road spray from being flung into the air by rotating tires. Fenders…

AUTOMOBILE HOOD DESIGN Here, we'll learn about and create the concept of a front-mounted engine hood in accordance with industry requirements. The hood, often known as the bonnet, is a hinged cover that covers the engine and gives access to the engine compartment or trunk for maintenance and repair. On cars with front-mounted…

Underbody coating Automotive underbody coatings are placed to the cars' undersides to give a protective layer of protection against destructive factors such as moisture, corrosion, stone chip damage, and weather resistance. Underbody coatings for automobiles are often applied to regions such as wheel arches, inner wing…

BENCHMARKING What is Benchmarking? In simple words “Improving ourselves by learning from others” Definition of Benchmarking is Benchmarking involves a structured comparison between similar products, services, or processes on some dimensions of performance. For example, it can be used to compare the availability…

INTRODUCTION Through this project, we will learn how to design a Boeing 747 assembly using SOLIDWORKS. First, we will learn how to use the software, then we will draw parts using blueprint sketches, where we can learn the dimensions of the parts, Once the Boeing 747 parts have been designed, we assemble the Boeing 747.…

1. Radar mast       2. Yacht Assembly INTRODUCTION Through this project, we will learn how to design a Sunseeker Predator Yacht assembly using SOLIDWORKS. First, we will learn how to use the software, then we will draw parts using blueprint sketches, where we can learn the dimensions of the parts, Once the…

INTRODUCTION Through this project, we will learn how to design a Sunseeker Predator Yacht assembly using SOLIDWORKS. First, we will learn how to use the software, then we will draw parts using blueprint sketches, where we can learn the dimensions of the parts, Once the Yacht parts have been designed, we assemble the yacht.…

INTRODUCTION Through this project, we will learn how to design an American Chopper assembly using SOLIDWORKS. First, we will learn how to use the software, then we will draw parts using blueprint sketches, where we can learn the dimensions of the parts, Once the chopper parts have been designed, we assemble the chopper.…
