Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

                                          answer

                                                              ENGINE HARNESS  https://drive.google.com/file/d/176J_HFrsD4HK05voe5CXaVNsXd1RFSO0/view?usp=sharing…

                                       WIRE HARNESS IN BACK DOOR CAR  CAR BACK DOOR WIRING HARNESS DESIGN- PROJECT 2 AIM To route the Wiring harness on given car body back door and prepare flatten view drawing in CATIA V5. INTRODUCTION A wire harness, also commonly referred to as a wiring harness, is an exterior sheath…

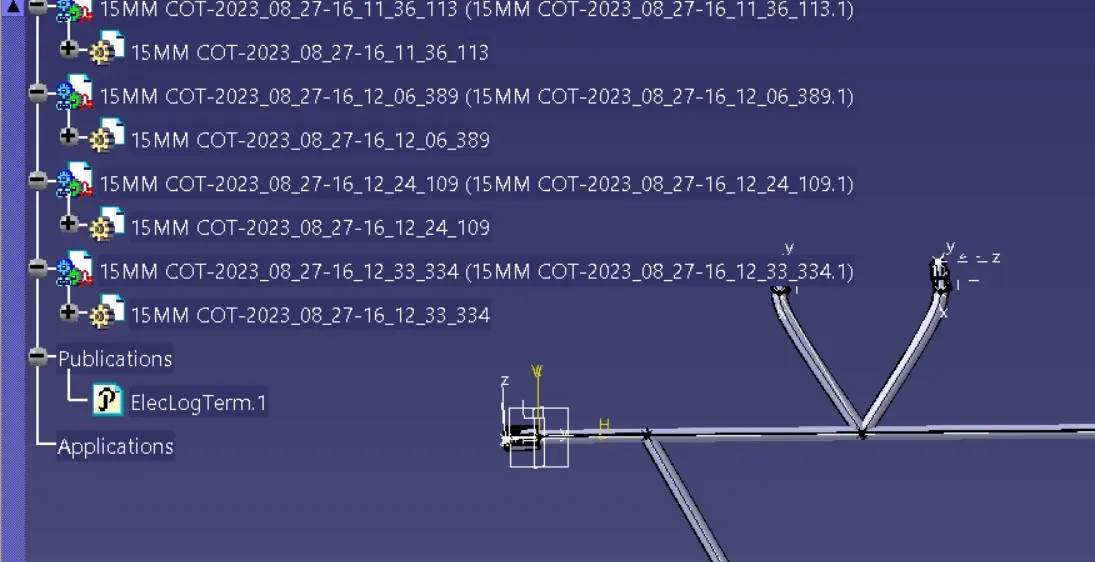

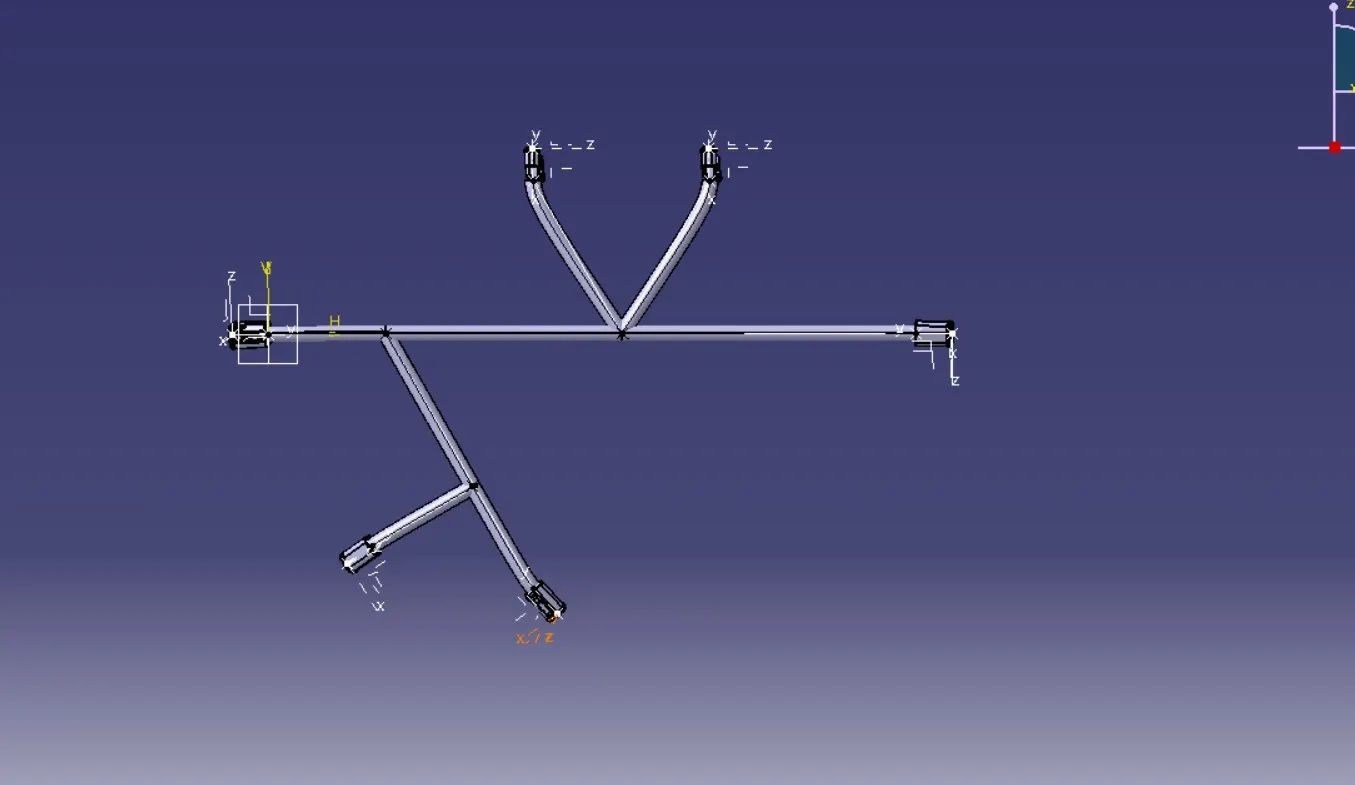

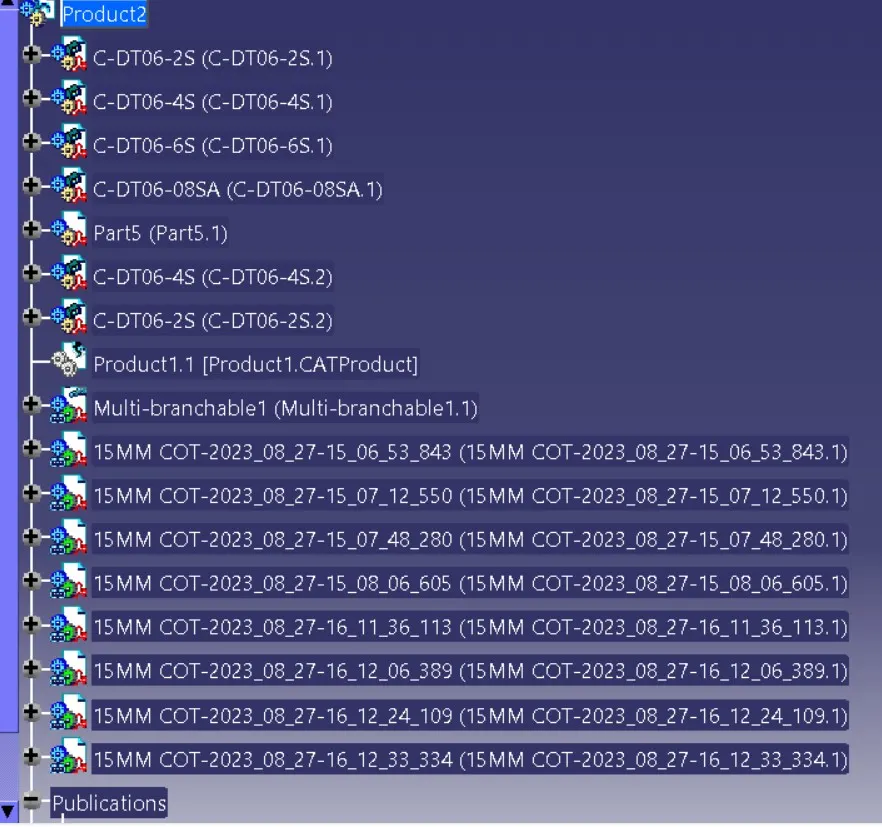

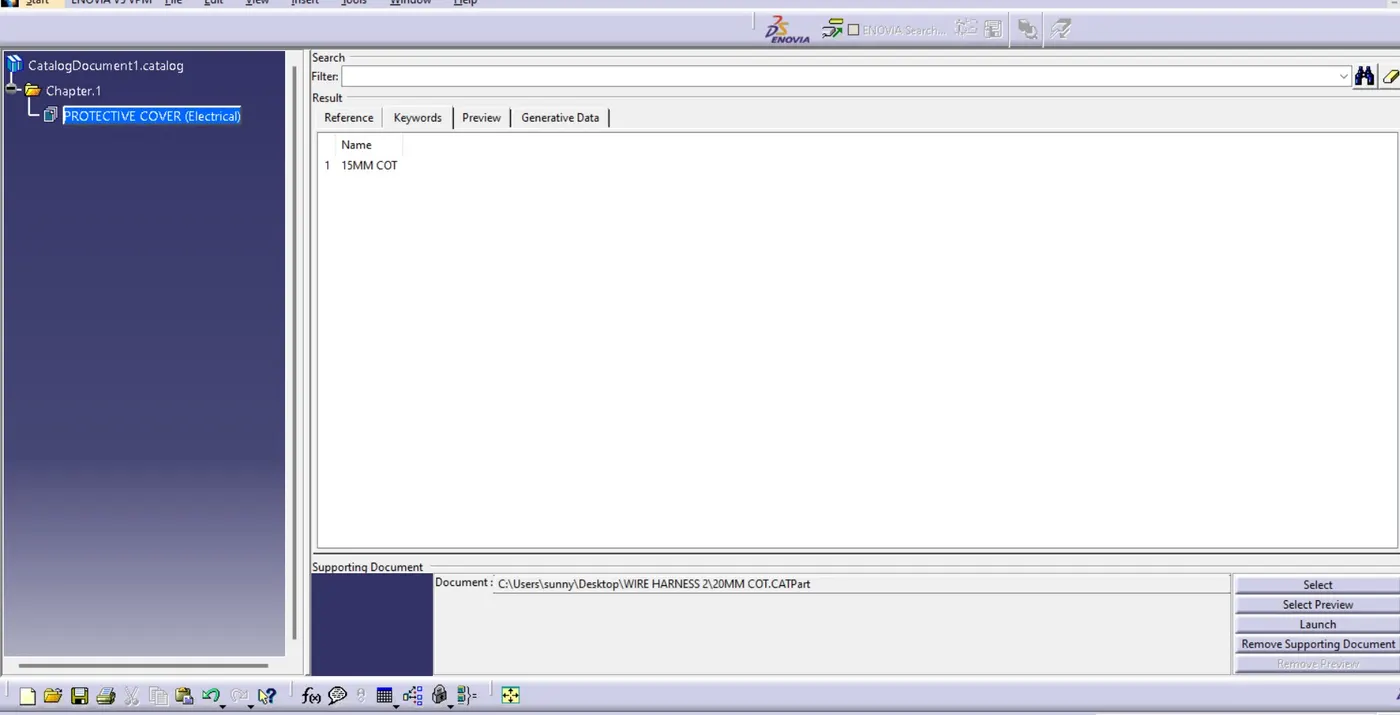

IN THIS CHALLANGE WE HAVE TO USE FLATTEN COMMAND FOR FLATTENING AND ALSO PROVIDE PROTECTING COVER WITH THE HELP OF COT 15MM  FEATURE TREE TOP & ISO VIEW                             DRAWING

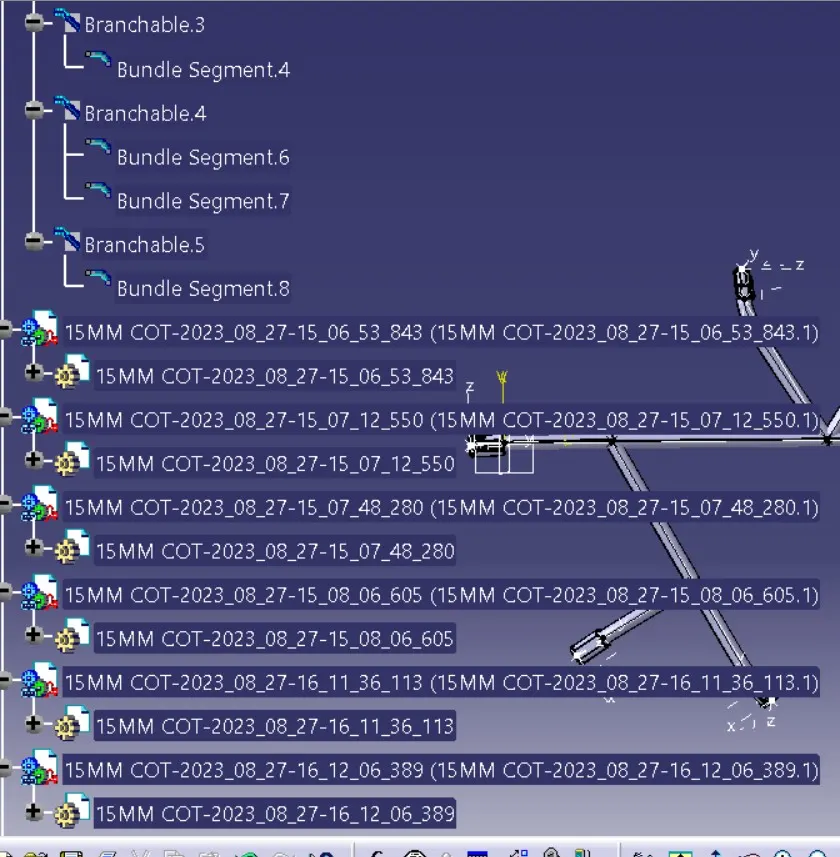

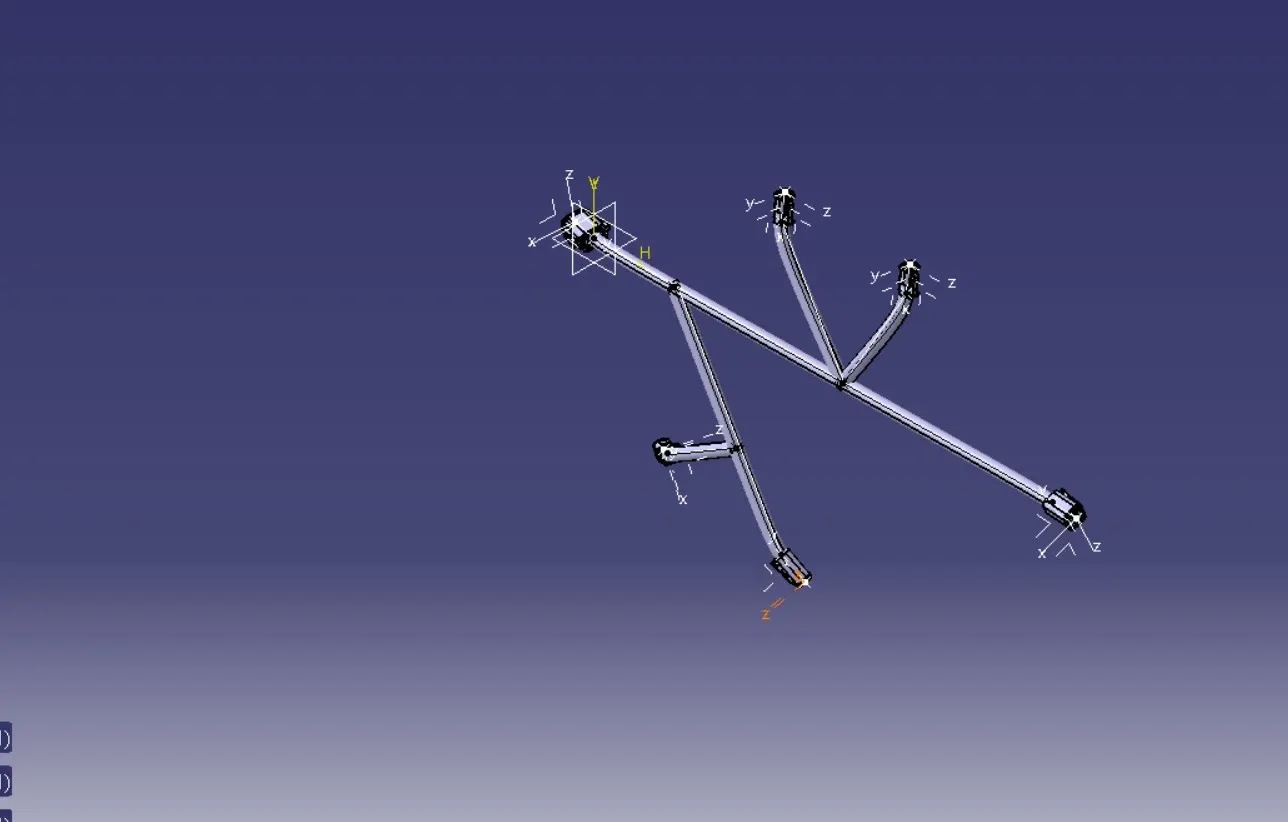

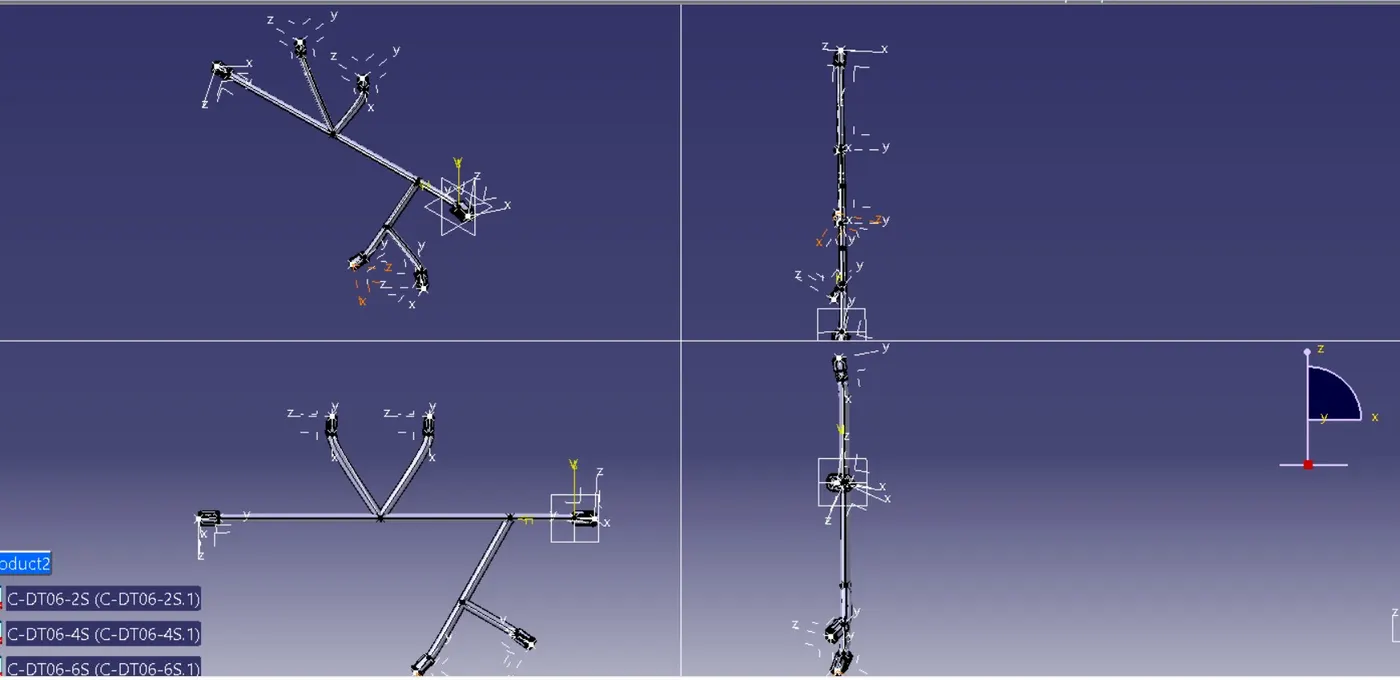

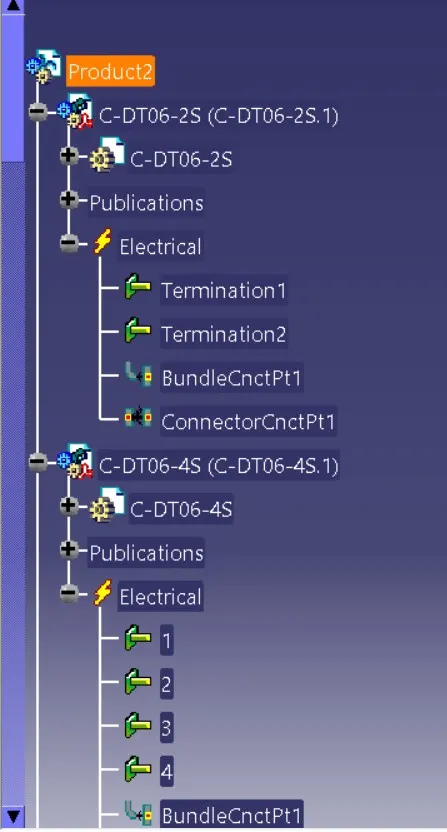

AFTER DEFINING ALL PART IN THIS CHALLANGE FIRST WE CONNECT ALL 1,2,3,4,5 ALL FIVE PART THROUGH A SKETCH BY USING SNAP TOOL AND MANIPULATION.FINALLY CREATE HARNESS B  FEATURE TREE OF HARNESS B         TOP & ISOMETRIC VIEW               SAME LIKE HARNESS B WE DO SAME PROCESS FEATURE TREE OF HARNESS A   FRONT &  ISOMETRIC…

in this challange we have define all component like bundle connection and connector connection point by creating point and axis by axix system. sfter define each component after that we create a sketch in part workbench . and in the electric  harness we have assemble them as per challange and provide protective covering…

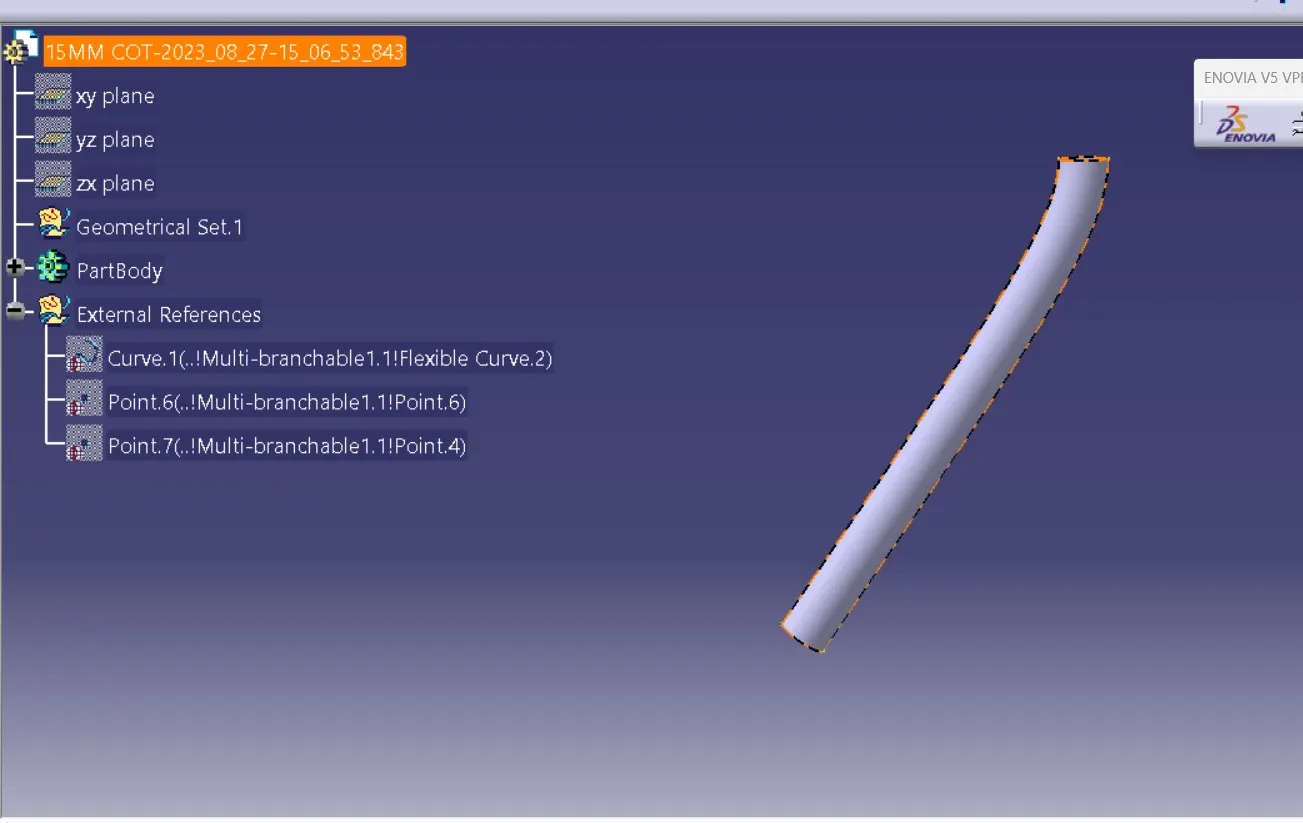

1  IN A P CLAM FIRST WE DOWNLAOD AFTER THAT GO TO THE ELECTRIC PART WORK BENCH AND CREATE TWO POINT AT EXITS AND ENTRY AFTER THAT CREAT A PLAN AT ENTRY AND EXITS POINT . AND CREATE A PLANE AT HORIZENTAL.AND DEFINE THE ENTRY AND EXIXT POINT WITH THE HELP OF ELECTRICAL PART DESIGN.   DIFFERENT TYPE OF VIEW  …

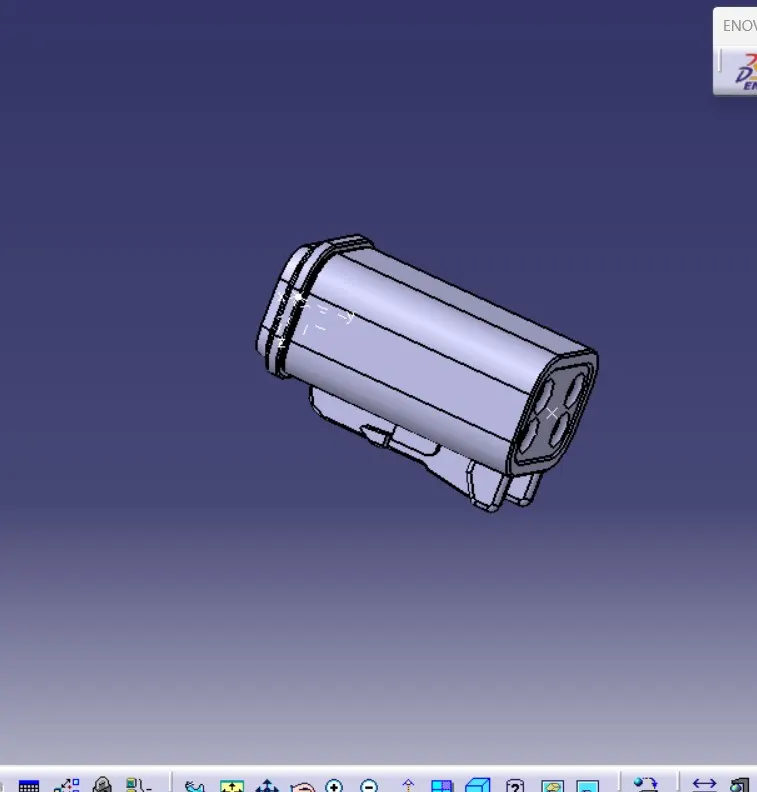

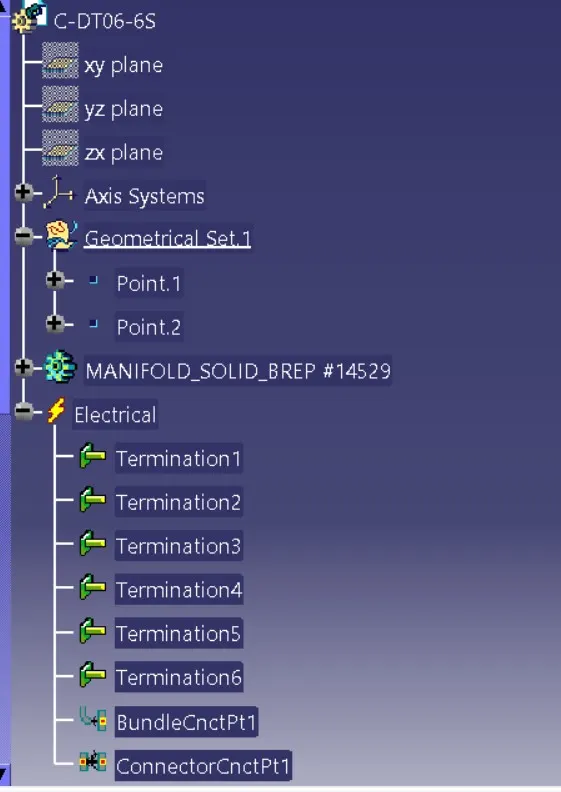

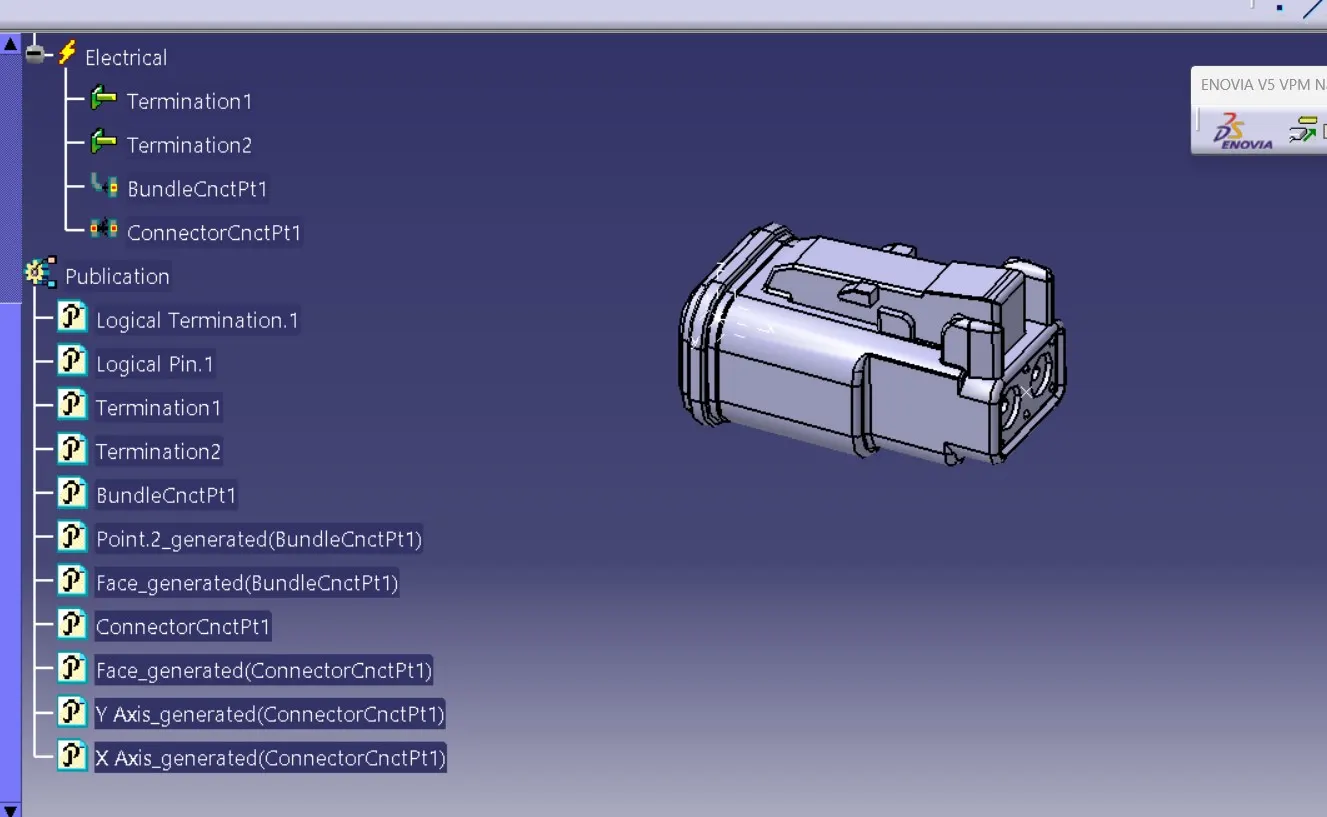

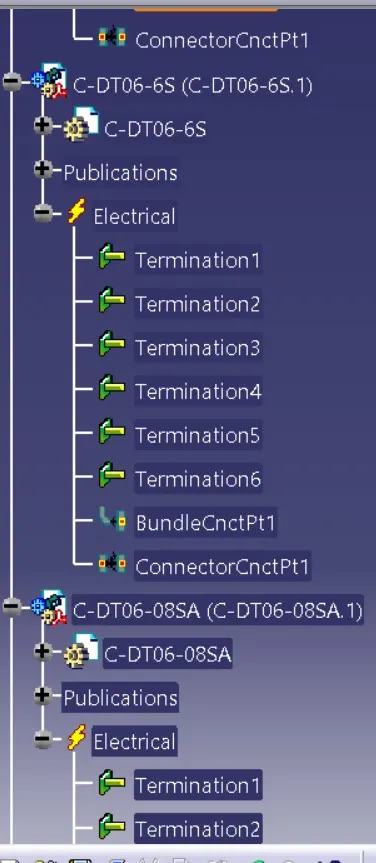

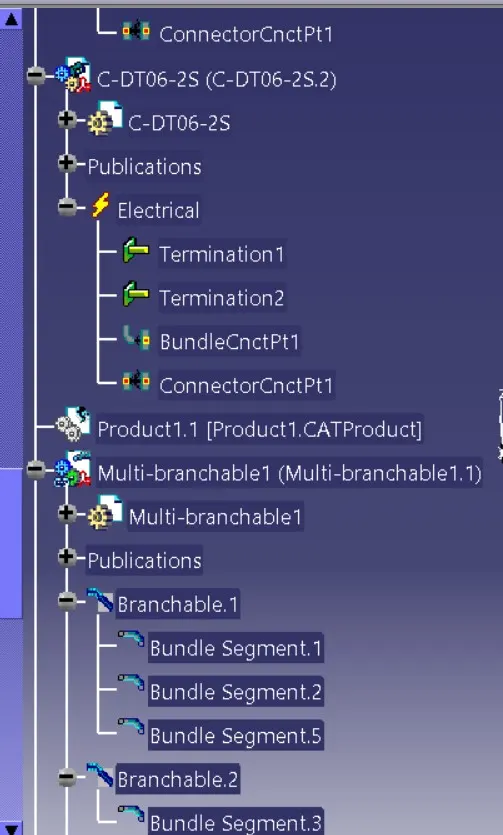

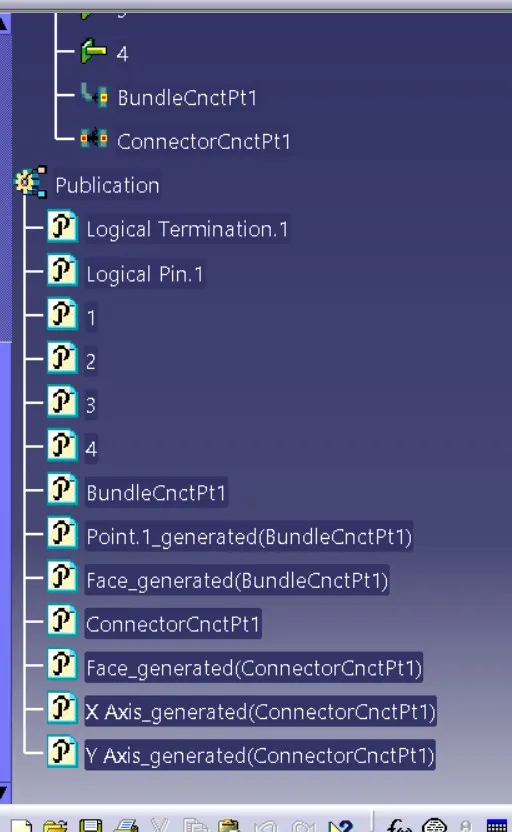

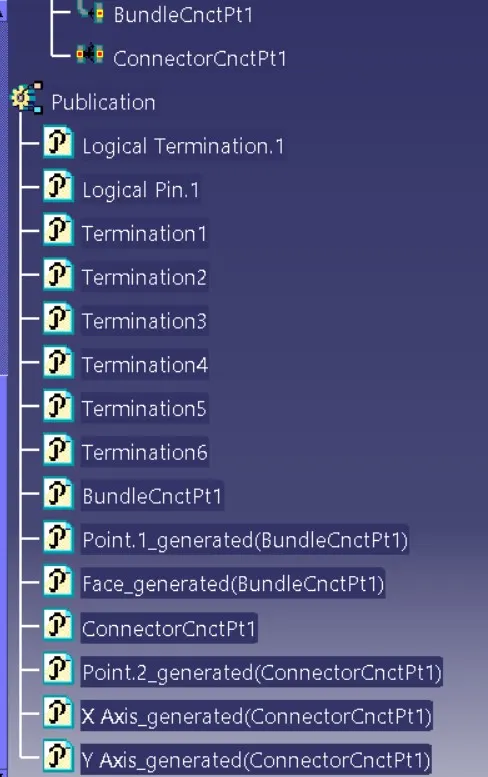

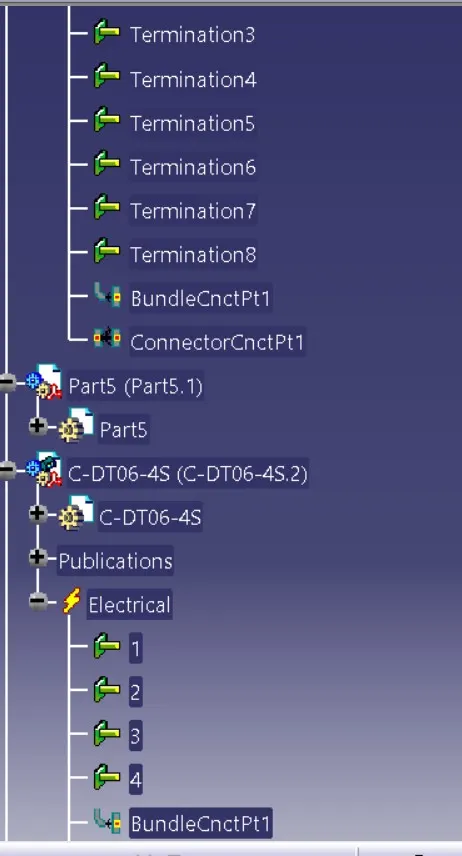

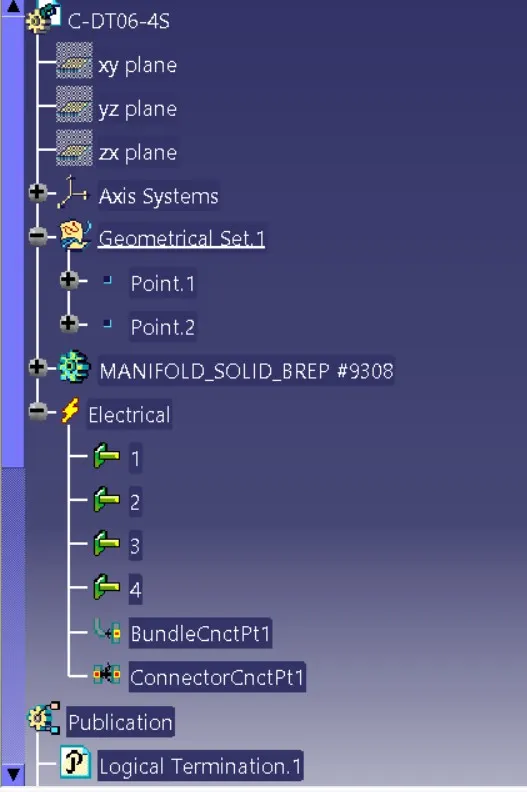

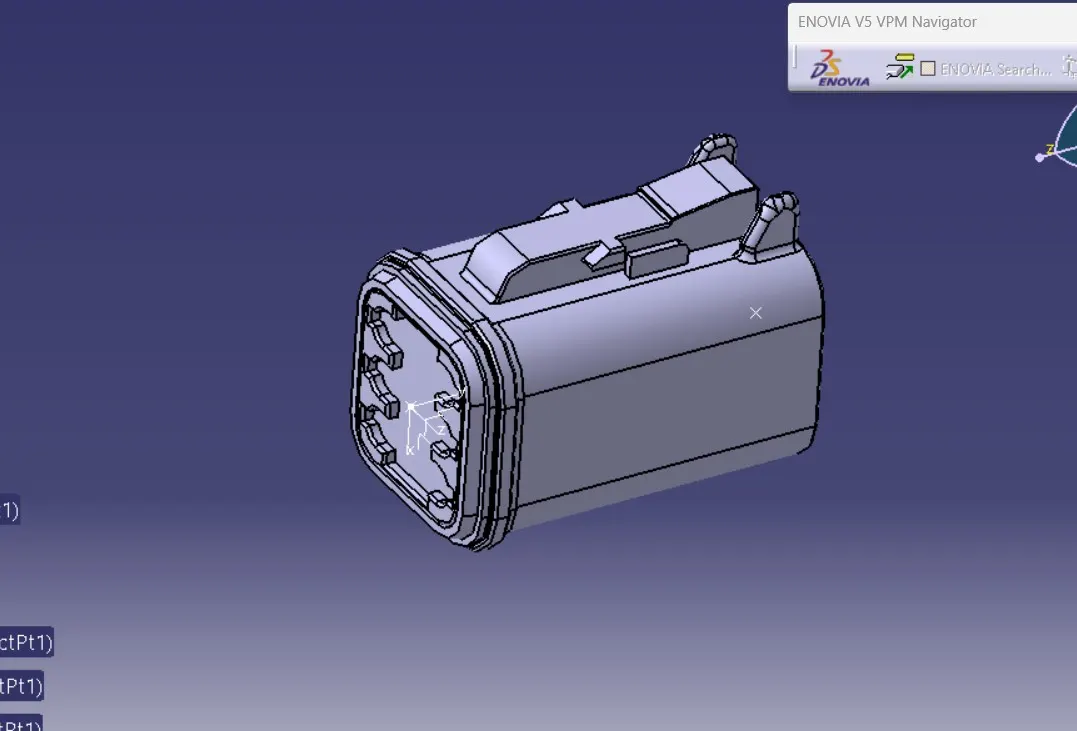

this is feature tree of this component firstly create a point then after create axis by the help of axis analysie command  then after after that cavity is create by use of cavity connector command     feature tree   firstly create a point and create axis by the help of axis analysis command  connector…
