Tooling Axis Creation

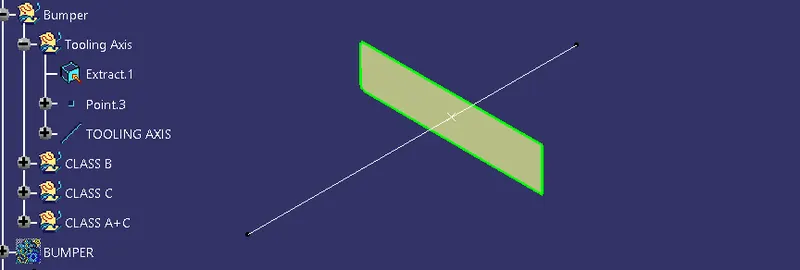

1. Extract a flat surface from the bumper. Create a point on the center of the extracted surface. Draw a normal line to the surface. This line is taken as the tooling axis for the bumper.
Here it is convinient for us to create a tooling axis directly rather than following the bisecting method.
Draft Analysis
1. Change meshing mode to "material" in the view mode dialog box.
2. Click on draft analysis option.
3. Zoom out and locate the compass, drag and drop the compass to coincide the tool axis to define the new current draft direction.
4. Choose the class A surface/ Solid part to perform draft analysis.
5. Under display option, use the colour scale to analyze the dynamic draft of the component.

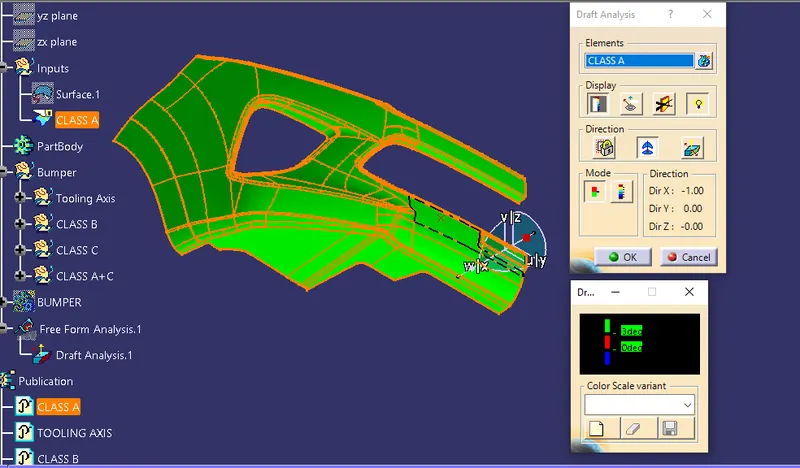

Draft Analysis Class A

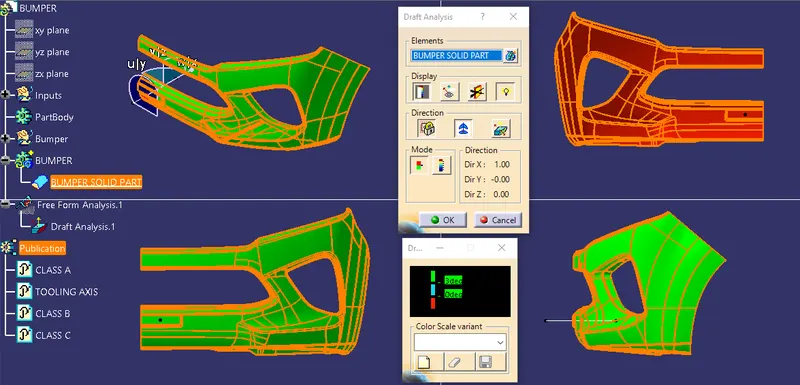

Draft Analysis Solid part
