  3. Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

                                                                                           …

  • CFD
  • MATLAB

  • SHAIK SYDAVALI

    updated on 02 Mar 2021



                                                                                                                   Date:- 01-03-2021



  Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation

  • Same as last week challenge, we do matlab automation for each angle and for each boundary condition wedge and symmetry.
  • we end up with 6 text files for creating block meshes for each cases. Program and matlab code shown at end of this report.

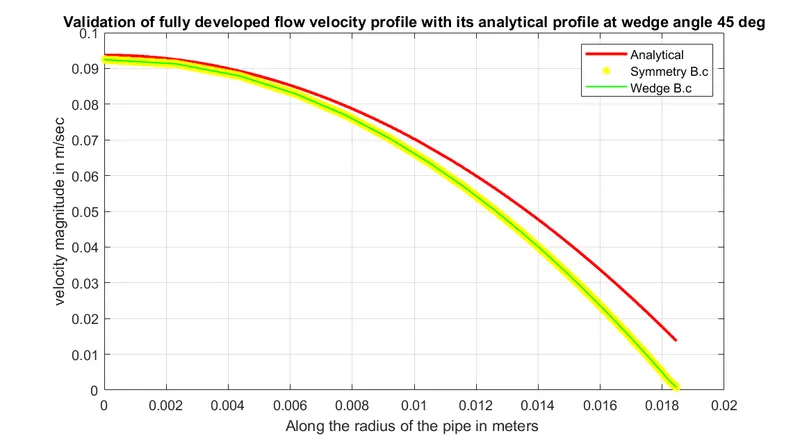

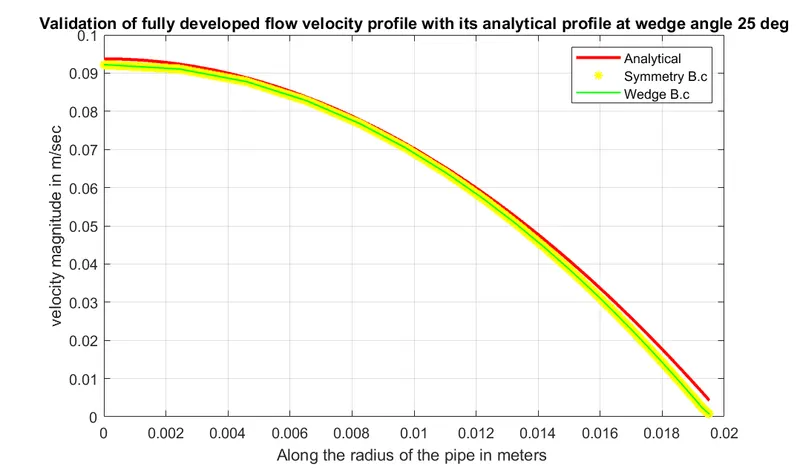

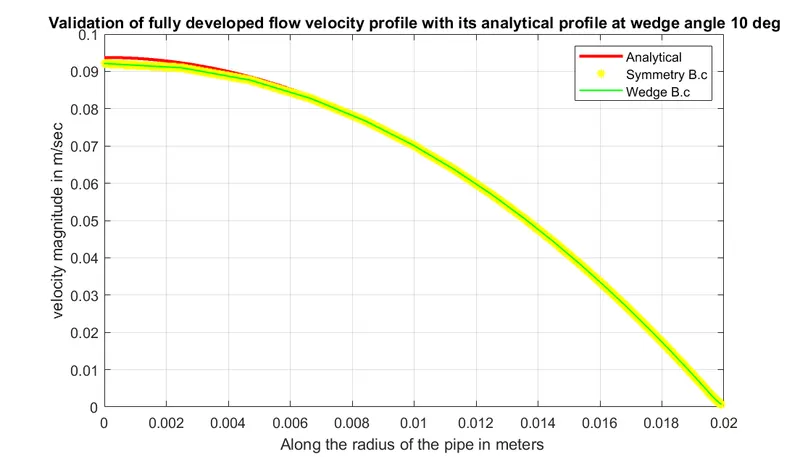

Validation of velocity profiles: -

                                           Fig(1)

                                           Fig(2)

                                          Fig(3)

Conclusion form above figures: -

  • From above plots we can say that by increasing the wedge angle from 10 to 45 accuracy of the numerical solution is decreasing and error with respect to analytical solution is increasing.
  • Error between the numerical solutions of wedge and symmetry boundary conditions is very less or simply more or less both are giving same numerical solutions.

Validation of hydrodynamic entry length: -

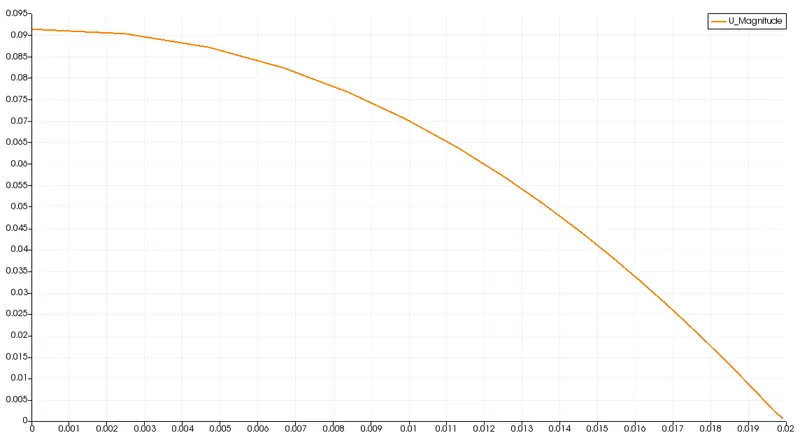

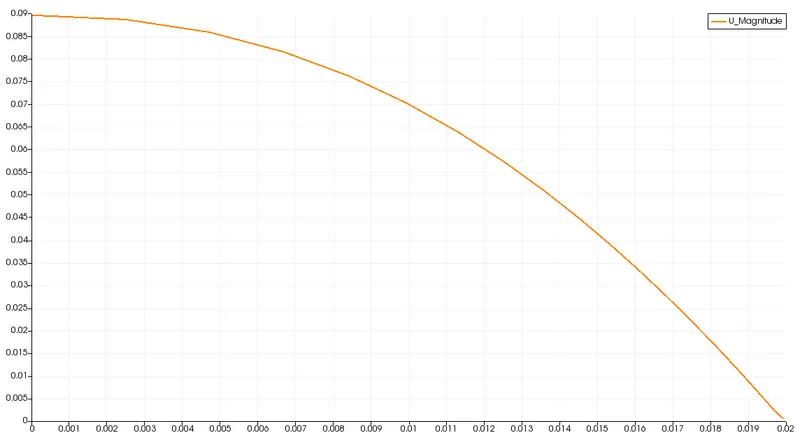

  • These velocity profiles are for theta at 10 degrees
  • Figure 4 at L= 3meters and figure 5 at L=4 meters and figure 6 at L=4.2 meters and figure7 and figure8 at L= 4.3 and 4.5 respectively
  • Form figure 4 to 6 changes in velocity profiles are more.
  • Form 6 to 8 changes in velocity profile is less .
  • From above discussion we can say that length which is more than 4.2 meters we achieve constant velocity profile .then numerical value for hydrodynamic length is 4,2 meters
  • Analytical value of hydrodynamic length form week11 challenge is 4.2 meters.
  • This is true for all different wedge angles .



                               Fig(4)                                                                                 Fig(5)





                                 Fig(6)                                                                                              Fig(7)





                                                                            Fig(8)





Validation of maximum velocity:

  • Form figure 1 and 2 and 3 we can say that numerical value for maximum velocity is nearly equal to 092 m/sec.
  • Form analytical results we can say maximum velocity from week 11 challenge is 093 m/sec.

Pressure drop:-

  • Analytical value of pressure drop is 4.17103 pascals from week 11 challenge .pressure drop is very minimum because we use laminar flow.

Note:- Note that hydrodynamic length and maximum velocity and sher stress are independent on wedge angels so for validating them we took one case on each validation.

Post processing of shear stress:

  • Analytical value for shear stress at wall is constant and value is 0.08342 N/m2.
  • Here in figure 9 we can see that numerical values of shear stress profile alone the radius of pipe. Both analytical and numerical values are nearly matching.

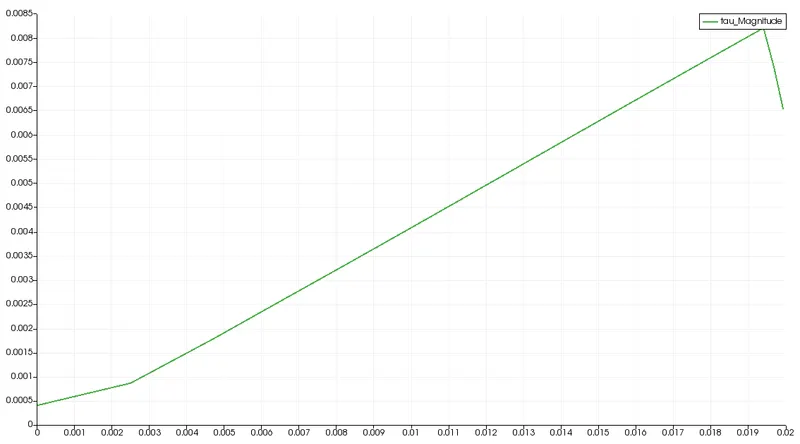

      Fig(9):  shear stress for wedge angle 10o with wedge boundary condition case



 Differences in both boundary conditions: -

  • Theoretically symmetry boundary condition just do mirroring but wedge boundary conditions do axial and spherical symmetry and needs to perform coordinate transformation with given edge angle.
  • That means with wedge boundary conditions we achieve good accuracy compare to symmetry boundary conditions.





MATLAB CODE FOR AUTOMATION FOR BLOCKMESH :-

clc;
clear all;
close all;

%% Inputs
Re = 2100;
D =0.04;
mu =0.00089;
rho =997;
Lh = 0.05*Re*D;
L =Lh+0.8;
r = D/2;
theta=[10,25,45];
%% header text
h1 = '/*--------------------------------*- C++ -*----------------------------------*\';
h2 = '=========                 |';
h3 = '\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox';
h4 =  ' \\    /   O peration     | Website:  https://openfoam.org';
h5=  '\\  /    A nd           | Version:  8';
h6 = ' \\/     M anipulation  |';
h7 = '\*---------------------------------------------------------------------------*/';
h8 = 'FoamFile';
h9 = '{';
h10= 'version     2.0;';
h11 = 'format      ascii;';
h12 =  'class       dictionary;';
h13 = 'object      blockMeshDict;';
h14 ='}';
h15 = '// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //';

%%
for i=1:length(theta)
if i==1
f1= fopen('blockMeshDict_10_symmetry.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
%
f1= fopen('blockMeshDict_10_wedge.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
%
elseif i == 2
f1= fopen('blockMeshDict_25_symmetry.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
%
f1= fopen('blockMeshDict_25_wedge.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
elseif i == 3
f1= fopen('blockMeshDict_45_symmetry.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype symmetry;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
%
f1= fopen('blockMeshDict_45_wedge.txt','w');
fprintf(f1,'%s\n',h1);
fprintf(f1,'%s\n',h2);
fprintf(f1,'%s\n',h3);
fprintf(f1,'%s\n',h4);
fprintf(f1,'%s\n',h5);
fprintf(f1,'%s\n',h6);
fprintf(f1,'%s\n',h7);
fprintf(f1,'%s\n',h8);
fprintf(f1,'%s\n',h9);
fprintf(f1,'\t%s\n',h10);
fprintf(f1,'\t%s\n',h11);
fprintf(f1,'\t%s\n',h12);
fprintf(f1,'\t%s\n',h13);
fprintf(f1,'%s\n',h14);
fprintf(f1,'%s\n\n\n',h15);
fprintf(f1,'convertToMeters 1;\n\n');
fprintf(f1,'vertices\n');
fprintf(f1,'(\n');
fprintf(f1,'\t(%d %d %d)\n',0,0,0);
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',0,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,'\t(%d %d %d)\n',L,0,0);
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),r*sind(theta(i)/2));
fprintf(f1,'\t(%d %f %f)\n',L,r*cosd(theta(i)/2),-r*sind(theta(i)/2));
fprintf(f1,');\n\n');
fprintf(f1,'blocks\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\thex (%d %d %d %d %d %d %d %d) (%d %d %d) simpleGrading (%d %d %d)\n\n',0,3,5,2,0,3,4,1,200,20,1,1,0.1,1);
fprintf(f1,');\n\n');
fprintf(f1,'edges\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tarc %d %d (%d %d %d)\n',1,2,0,r,0);
fprintf(f1,'\tarc %d %d (%d %d %d)\n\n',4,5,L,r,0);
fprintf(f1,');\n\n');
fprintf(f1,'boundary\n\n');
fprintf(f1,'(\n\n');
fprintf(f1,'\tinlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,1,2,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\toutlet\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype patch;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',3,5,4,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n\n');
fprintf(f1,'\tfront\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,4,1);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\tback\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wedge;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,2,5,3);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\taxis\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype empty;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',0,3,3,0);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,'\ttop\n');
fprintf(f1,'\t{\n');
fprintf(f1,'\t\ttype wall;\n');
fprintf(f1,'\t\tfaces\n');
fprintf(f1,'\t\t(\n');
fprintf(f1,'\t\t\t(%d %d %d %d)\n',1,4,5,2);
fprintf(f1,'\t\t);\n');
fprintf(f1,'\t}\n');
fprintf(f1,');\n\n');
fprintf(f1,'mergePatchPairs\n');
fprintf(f1,'(\n');
fprintf(f1,');\n');
fprintf(f1,'// ************************************************************************* //');
fclose(f1);
end
end

%% Analyticl_solution
d = linspace(0,r,1000);
v_avg =(2100*(mu/rho))/D;
v_max = 2*v_avg;
v_anl = v_max*(1-((2*d./D).^2));
%%



For theta 10deg with symmetry boundary condition:-

/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.019924 0.001743)
	(0 0.019924 -0.001743)
	(5 0 0)
	(5 0.019924 0.001743)
	(5 0.019924 -0.001743)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type symmetry;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type symmetry;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

theta 10 deg for wedge b.c:-

/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.019924 0.001743)
	(0 0.019924 -0.001743)
	(5 0 0)
	(5 0.019924 0.001743)
	(5 0.019924 -0.001743)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type wedge;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type wedge;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

Theta 25 deg for symmetry b.c:-

/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.019526 0.004329)
	(0 0.019526 -0.004329)
	(5 0 0)
	(5 0.019526 0.004329)
	(5 0.019526 -0.004329)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type symmetry;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type symmetry;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

Theta 25 deg for wedge b.c :-

/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.019526 0.004329)
	(0 0.019526 -0.004329)
	(5 0 0)
	(5 0.019526 0.004329)
	(5 0.019526 -0.004329)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type wedge;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type wedge;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

Theta 45 deg for symmetry b.c :-



/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.018478 0.007654)
	(0 0.018478 -0.007654)
	(5 0 0)
	(5 0.018478 0.007654)
	(5 0.018478 -0.007654)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type symmetry;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type symmetry;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

Theta 45deg for wedge b.c -

/*--------------------------------*- C++ -*----------------------------------*\
=========                 |
\\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
 \\    /   O peration     | Website:  https://openfoam.org
\\  /    A nd           | Version:  8
 \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
	version     2.0;
	format      ascii;
	class       dictionary;
	object      blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


convertToMeters 1;

vertices
(
	(0 0 0)
	(0 0.018478 0.007654)
	(0 0.018478 -0.007654)
	(5 0 0)
	(5 0.018478 0.007654)
	(5 0.018478 -0.007654)
);

blocks

(

	hex (0 3 5 2 0 3 4 1) (200 20 1) simpleGrading (1 1.000000e-01 1)

);

edges
(

	arc 1 2 (0 2.000000e-02 0)
	arc 4 5 (5 2.000000e-02 0)

);

boundary

(

	inlet
	{
		type patch;
		faces
		(
			(0 1 2 0)
		);
	}

	outlet
	{
		type patch;
		faces
		(
			(3 5 4 3)
		);
	}

	front
	{
		type wedge;
		faces
		(
			(0 3 4 1)
		);
	}
	back
	{
		type wedge;
		faces
		(
			(0 2 5 3)
		);
	}
	axis
	{
		type empty;
		faces
		(
			(0 3 3 0)
		);
	}
	top
	{
		type wall;
		faces
		(
			(1 4 5 2)
		);
	}
);

mergePatchPairs
(
);
// ************************************************************************* //

TransportProperties:-

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  8
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       dictionary;
    location    "constant";
    object      transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

nu              [0 2 -1 0 0 0 0] 8.926780341e-7;


// ************************************************************************* //



pressure initial conditions  for symmetry b.c:-



/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  8
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value       uniform 4.1835892e-3;
    }

    top
    {
        type            zeroGradient;
    }
     axis
    {
        type            empty;
    }
     front
    {
        type            symmetry;
    }
     back
    {
        type            symmetry;
    }
}

// ************************************************************************* //

pressure initial conditions  for wedge b.c:-

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  8
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volScalarField;
    object      p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 2 -2 0 0 0 0];

internalField   uniform 0;

boundaryField
{
    inlet
    {
        type            zeroGradient;
    }

    outlet
    {
        type            fixedValue;
        value       uniform 4.1835892e-3;
    }

    top
    {
        type            zeroGradient;
    }
     axis
    {
        type            empty;
    }
     front
    {
        type            wedge;
    }
     back
    {
        type            wedge;
    }
}

// ************************************************************************* //



velocity initial conditions  for symmetry b.c:-

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  8
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0.0468656 0 0);

boundaryField
{
    inlet
    {
        type            fixedValue;
        value       uniform (0.0468656 0 0);

    }

    outlet
    {
        type            zeroGradient;
    }

    top
    {
        type            fixedValue;
        value       uniform (0 0 0);
    }
     axis
    {
        type            empty;
    }
     front
    {
        type            symmetry;
    }
     back
    {
        type            symmetry;
    }
}

// ************************************************************************* //

velocity initial conditions  for wedge b.c:-



/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  8
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    version     2.0;
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //

dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0.0468656 0 0);

boundaryField
{
    inlet
    {
        type            fixedValue;
        value       uniform (0.0468656 0 0);

    }

    outlet
    {
        type            zeroGradient;
    }

    top
    {
        type            fixedValue;
        value       uniform (0 0 0);
    }
     axis
    {
        type            empty;
    }
     front
    {
        type            wedge;
    }
     back
    {
        type            wedge;
    }
}

// ************************************************************************* //









Leave a comment

Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

Please  login to add a comment

Other comments...

No comments yet!
Be the first to add a comment

Read more Projects by SHAIK SYDAVALI (11)

Week 4 - CHT Analysis on Exhaust port

Objective:

CHT ANALYSIS ON EXHAUST PORT   About CHT analysis: -   CHT means Conjugate Heat Transfer which can tell combination of heat transfer in solids and fluids. This numerical analysis will give brief idea about conduction, convection and radiation or coupling of anyone of these three. The CHT analysis is used in process…

calendar

21 Jun 2021 12:26 PM IST

    Read more

    Week 3 - External flow simulation over an Ahmed body.

    Objective:

    EXTERNAL FLOW SIMULATION OVER AN AHMED BODY   AHMED BODY: -                Ahmed body is a simplified car, used in automotive industry to investigate the flow analysis and find the wake flow around the body. This is made up of round front part, a moveable slant plane in ear…

    calendar

    20 Jun 2021 03:05 PM IST

      Read more

      Week 2 - Flow over a Cylinder.

      Objective:

                                                                                                 …

      calendar

      25 Mar 2021 12:53 PM IST

      • CFD
      Read more

      Week 1- Mixing Tee

      Objective:

                                                                                                 …

      calendar

      17 Mar 2021 02:08 PM IST

      • CFD
      Read more

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      Related Courses

      coursecardcoursetype

      Post Graduate Program in CFD Solver Development

      4.8

      119 Hours of Content

      coursecard

      Introduction to OpenFOAM Development

      4.9

      18 Hours of Content

      coursecardcoursetype

      Post Graduate Program in Battery Technology for Mechanical Engineers

      4.8

      81 Hours of Content

      coursecard

      Simulation and Design of Power Converters for EV using MATLAB and Simulink

      4.9

      22 Hours of Content

      coursecard

      Introduction to Hybrid Electric Vehicle using MATLAB and Simulink

      4.8

      23 Hours of Content

      Schedule a counselling session

      Please enter your name
      Please enter a valid email
      Please enter a valid number

      logo

      Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

      https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

      Our Company

      News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
      map
      EpowerX Learning Technologies Pvt Ltd.
      4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
      mail
      info@skill-lync.com
      mail
      ITgrievance@skill-lync.com

      Top Individual Courses

      Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

      Top PG Programs

      Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

      Skill-Lync Plus

      Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

      Trending Blogs

      Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

      © 2025 Skill-Lync Inc. All Rights Reserved.

                  Do You Want To Showcase Your Technical Skills?
                  Sign-Up for our projects.
