Objective:
Case :1
Design a plate with a hole model similar to what we worked in the class, but with increased thickness.
Determine the maximum deformation and stress developed in the model.
Plate dimensions:
Length=300mm
Height=120mm
Thickness=30mm
Circular Hole at the center:
Diameter=60mm
Case 2:
smaller holes 90mm away from the center:
Diameter=30mm
Boundary Conditions:
Plate fixed at left face.
Load of 500N on the right face.

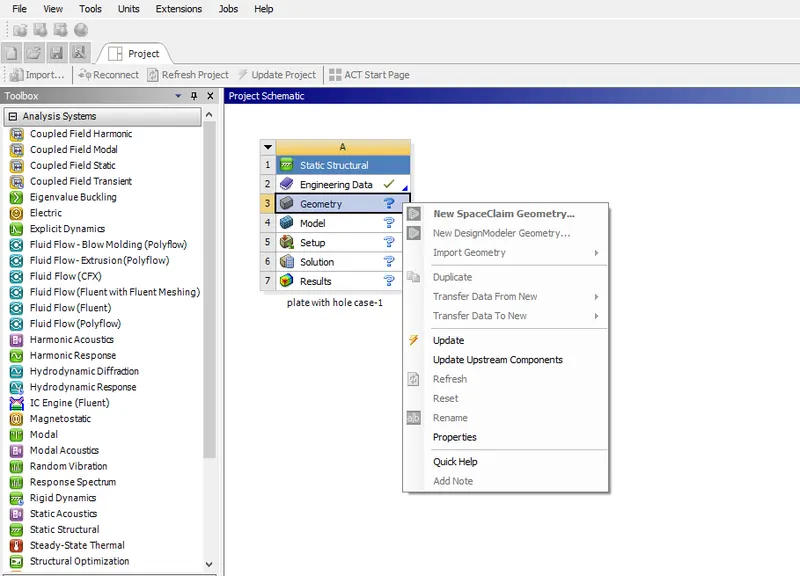

Procedure:

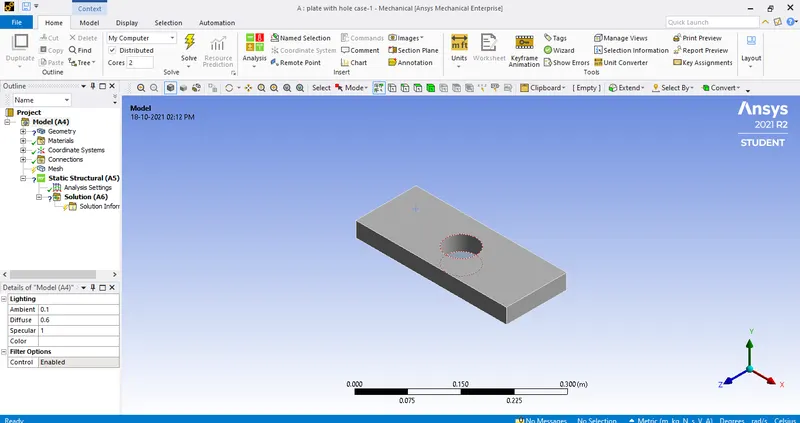

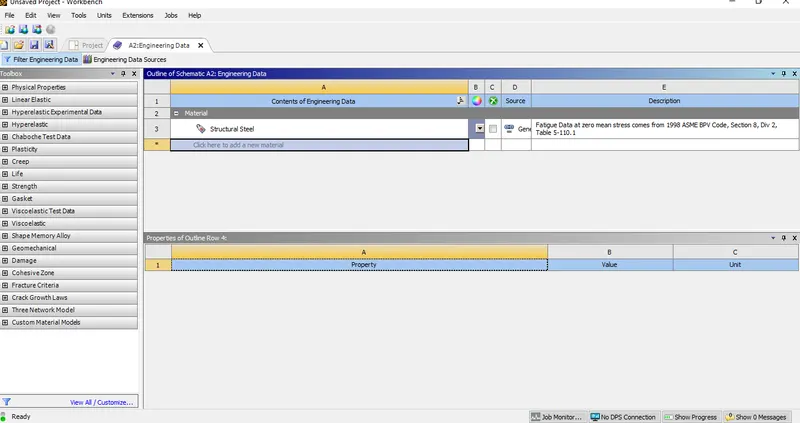

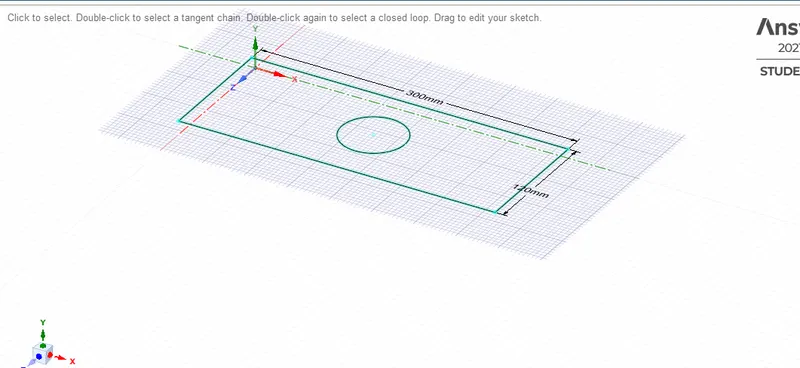

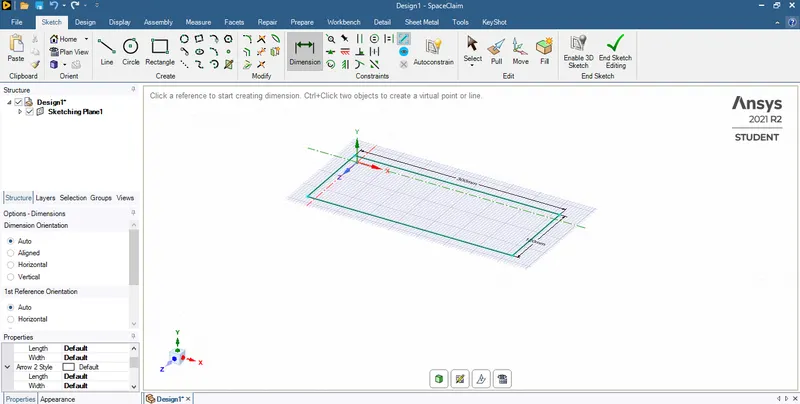

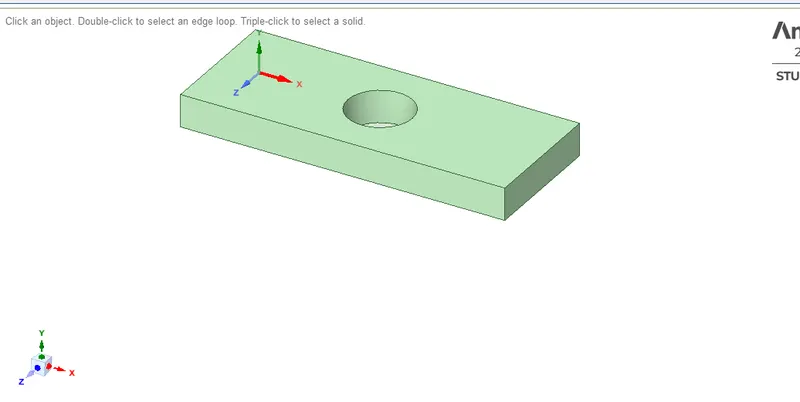

Creating Model:
Generating Mesh:
Defining Boundry conditions:
CASE2:
procedure for case2 is same as case1 except model having two more holes.

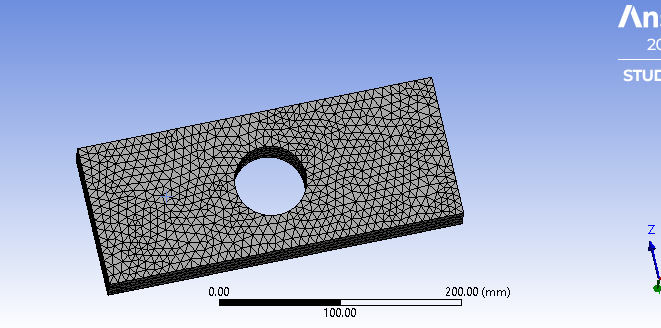

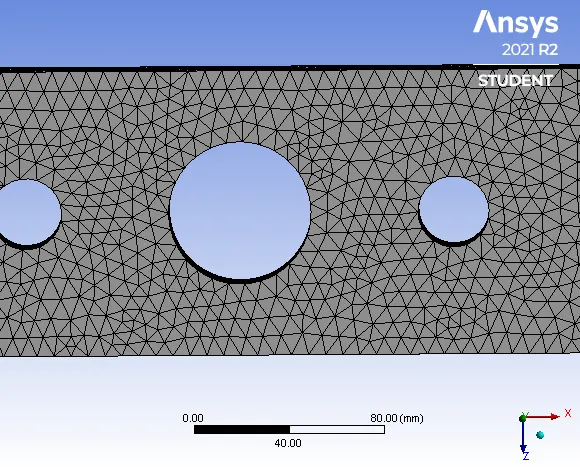

meshed model is

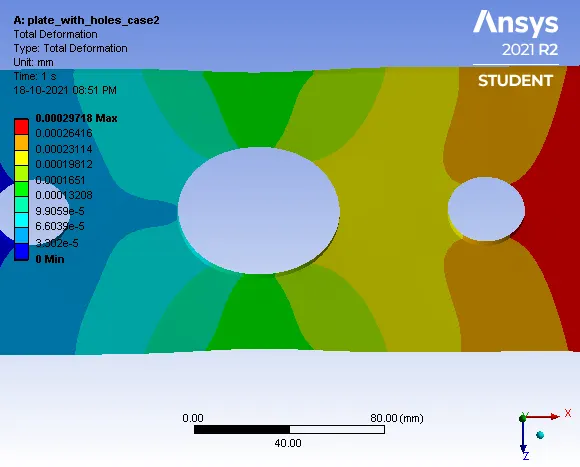

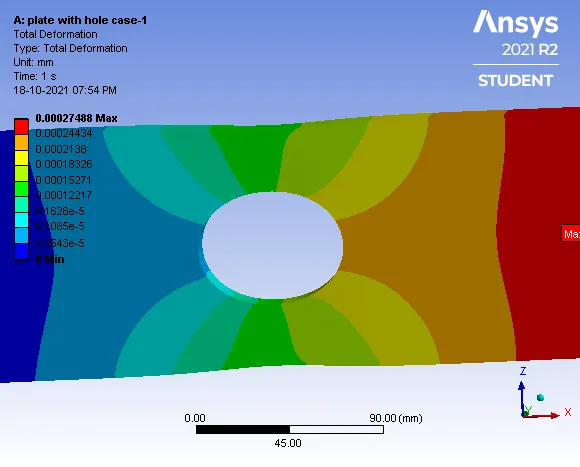

TOTAL DEFORMATION:
case | minimum Deformation(mm) | maximum deformation(mm) |
1 | 0 | 0.00027488 |
2 | 0 | 0.00029178 |

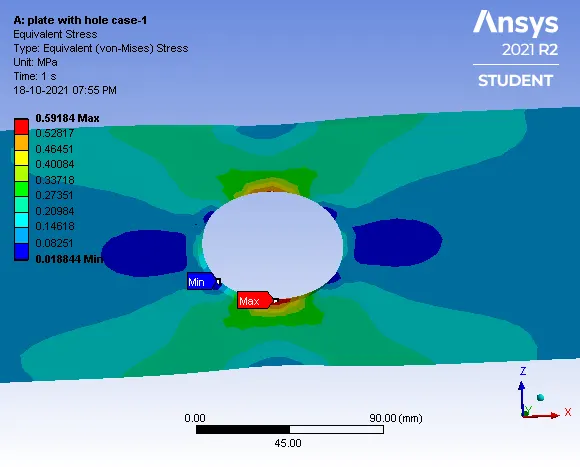

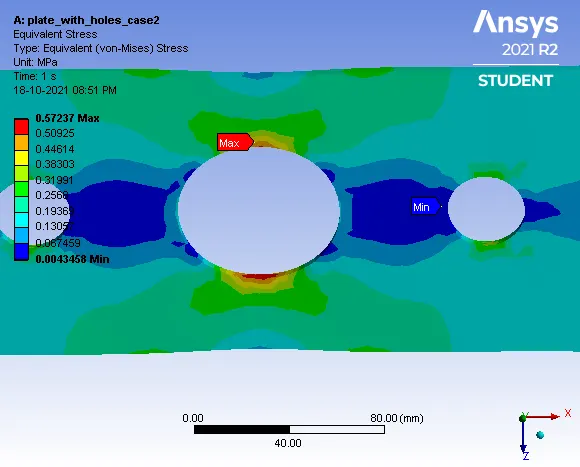

Vonmises stress:
case | minimum stress(Mpa) | maximum stress(Mpa) |
1 | 0.018844 | 0.59184 |
2 | 0.0043468 | 0.57237 |
From manufacturing point of view case-1 is good because it is having 1hole so the manufacturing time is reduced.and due to presence of more holes strength of the component will reduce failing chances will increase thats why case 1 is good ..
From Analysis point of view Case-2 is good because its having 3 holes with symmetrical distance so the stress distribution is same through out the component so less chance of failure.
