Week 9 Machining with Planer Challenge

Objective:

To perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s

Procedure:

open Explicit dynamics and rename as tension test

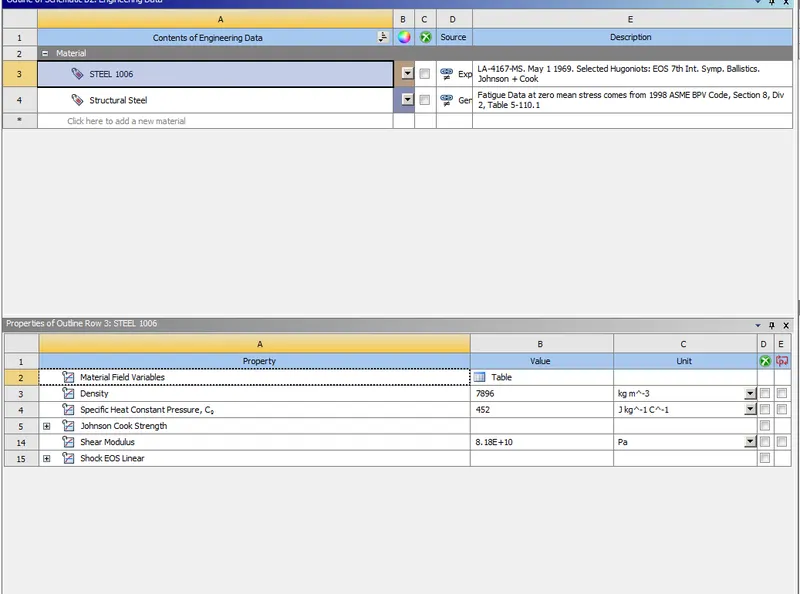

• Add steel 1006 material to the library

• import the geometry
• open model in mechanical apdl
• rename as cutting tool and work piece

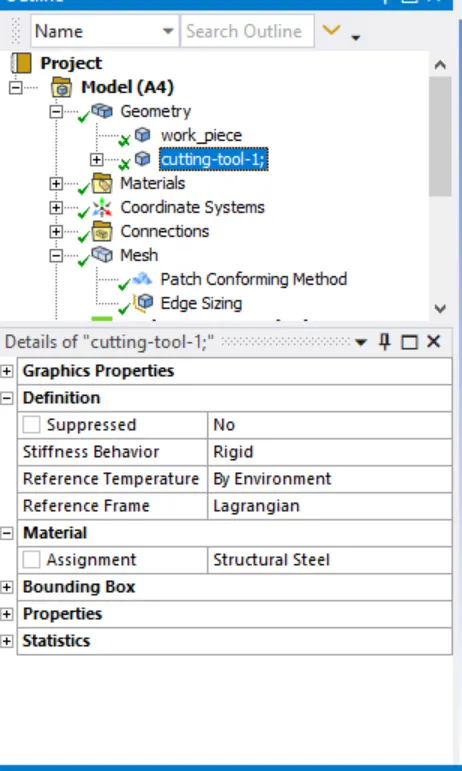

• add steel1006 to the work piece and change stiffness behaviour of tool to be rigid

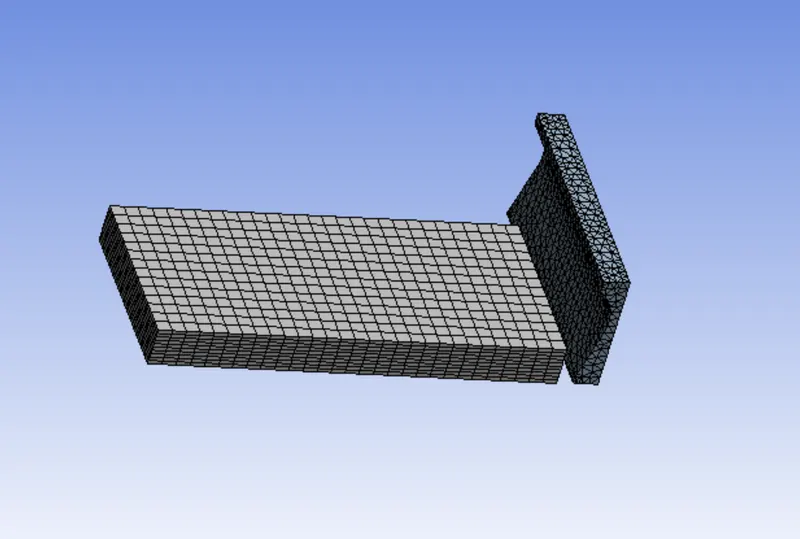

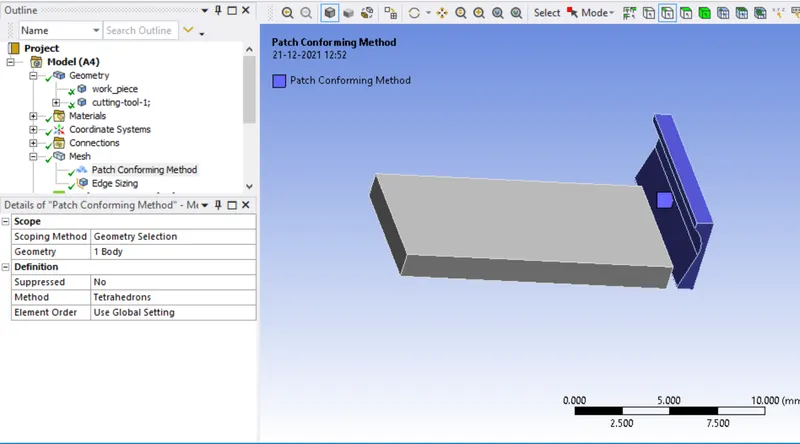

• generate mesh with using method tetra hedral For selecting geometry of tool

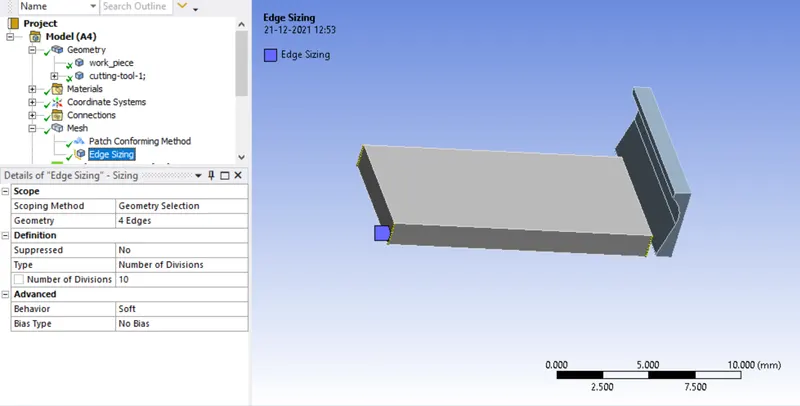

• insert sizing of mesh with edges selecting 4edges with number of divissions are 10

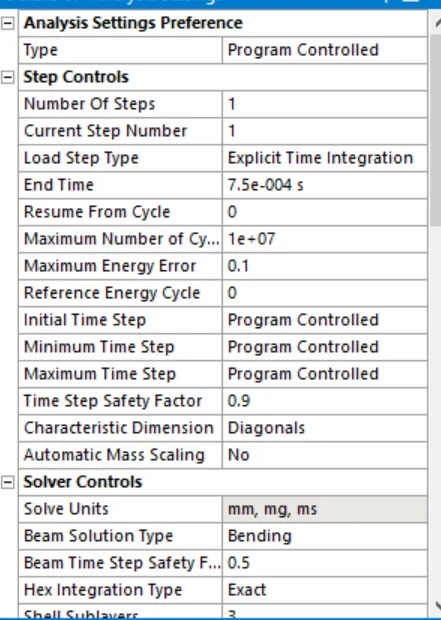

• select analysis settings change end time to be 7e+004

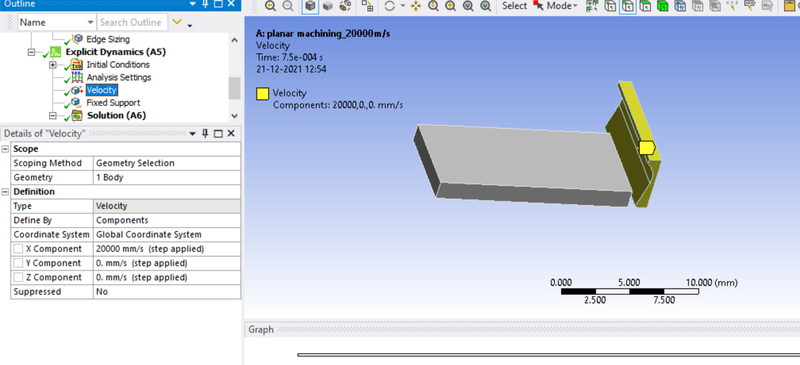

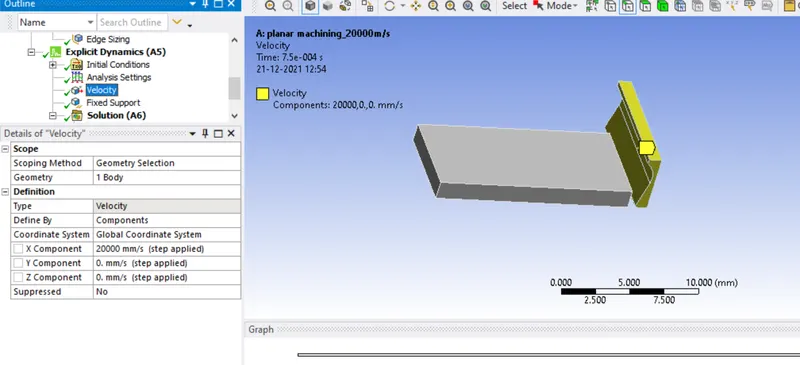

• select solution insert velocity of xcomponent 20000mm/s ycomponent=0 zcomponent+0

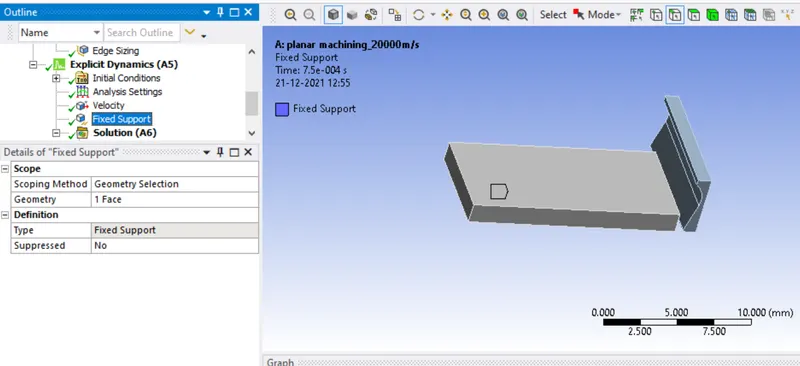

• insert fixed support for workpiece

• run the simulation
• same procedure have to be followed with changing velocity 15000m/s for case2

Results:

Case1:

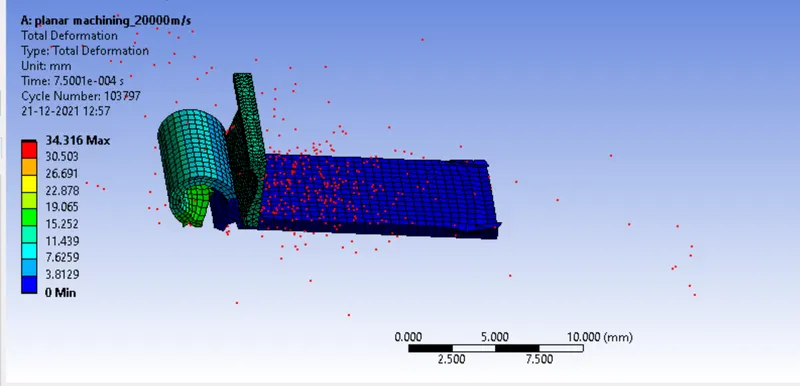

Total Deformation:

Equivalent vonmisess stress:

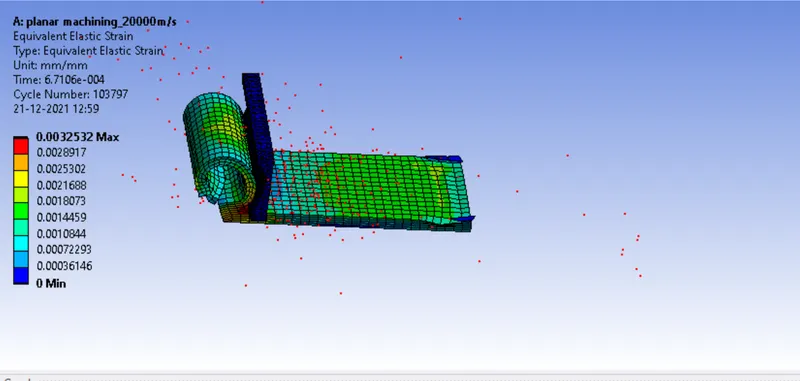

Equivalent vonmisess strain:

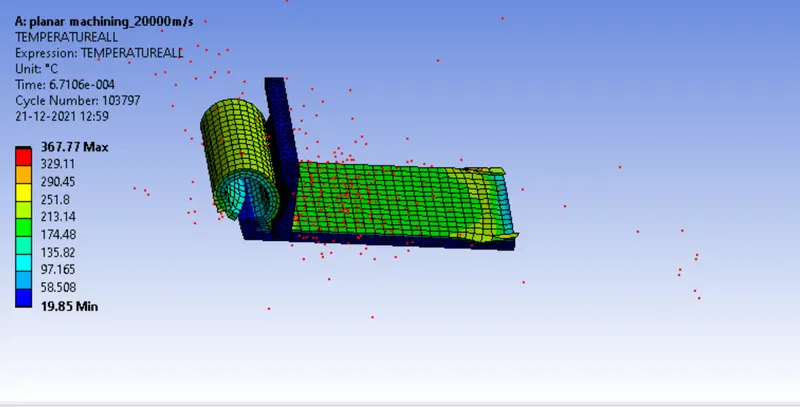

Temperature:

Case2:

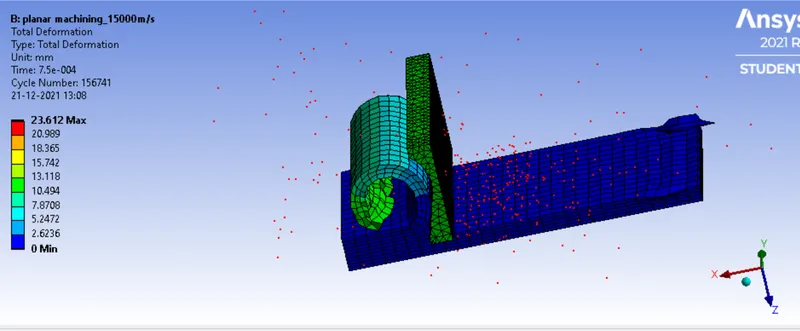

Total Deformation:

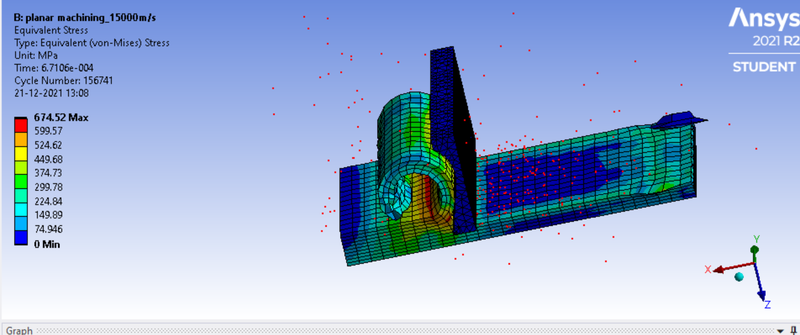

Equivalent vonmisess stress:

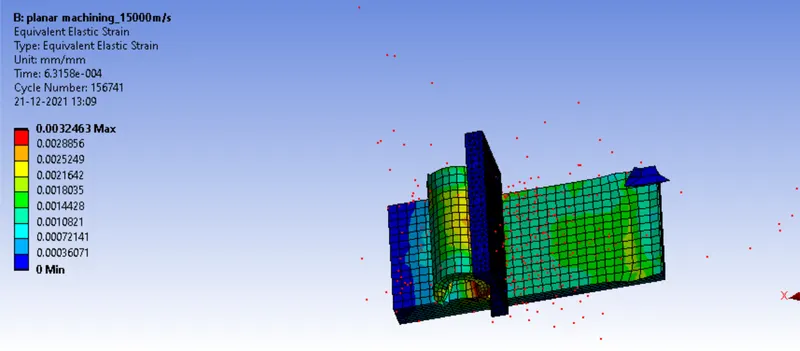

Equivalent vonmisess strain:

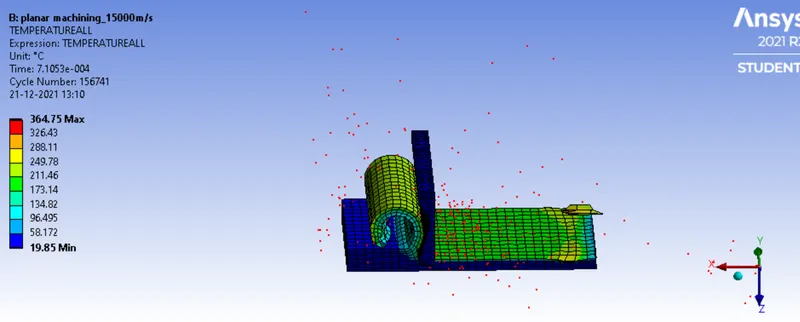

Temperature:

Result comparrison:

	Deformation(mm)	stress(Mpa)	strain	Temperature(c)
case1(20000 mm/s)	34.316	673.99	0.0032532	367.77
case2(15000mm/s)	23.612	674.52	0.0032463	364.75
