Week - 1 - Consistency of Units

Aim-  To convert the given SI unit values of given quantities to all different parameters  & also to prepare a consistent unit system table for the different unit systems.   Objective- To convert the given values of the quantity to different systems of units.  Prepare a table so that while…

    • Sachin Salgar

      updated on 11 Jan 2022

    Aim-  To convert the given SI unit values of given quantities to all different parameters  & also to prepare a consistent unit system table for the different unit systems.



    Objective-

    • To convert the given values of the quantity to different systems of units.
    • Prepare a table so that while performing the various challenges of LS Dyna it can be used frequently.



    Procedure-

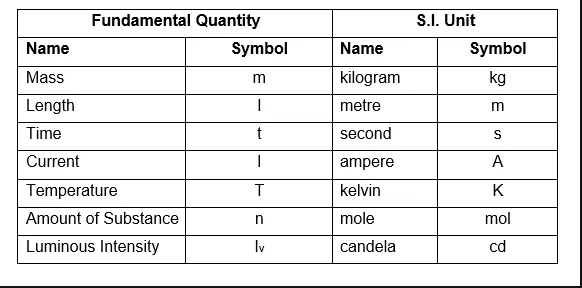

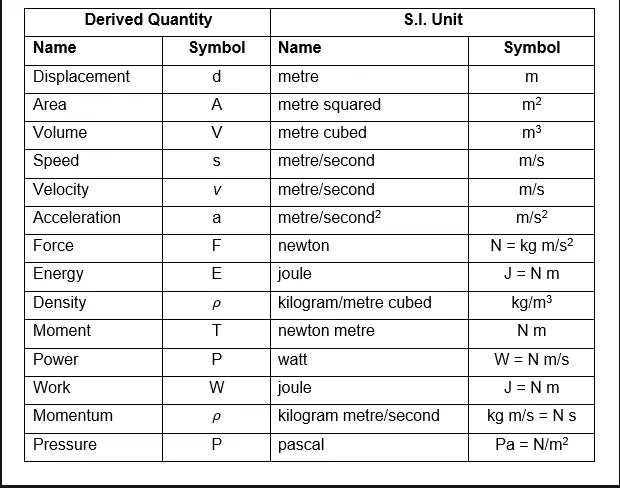

    System of Units-

    A system of units is a set of related units that are used for calculations. For example, in the MKS system, the base units are the meter, kilogram, and second, which represent the base dimensions of length, mass, and time, respectively. In this system, the unit of speed is the meter per second.



    1 Kg = 1000 gm = 0.001 ton = 0.068 slug

    1 m = 1000 mm = 100 cm = 3.28 ft

    1 s = 1000 ms = 106 us

    The parameters to which different units to be assigned are:

    • Mass = 1kg
    • Length = 1m
    • Time = 1s
    • Force = 1N
    • Stress = 1 Pa
    • Energy = 1 Nm
    • Density = 1 Kg/m3
    • Young’s Modulus = 210 GPa
    • Velocity = 56.33 kmph
    • Gravity = 9.88 m/s2

    The units in which the different parameters are to be converted are as follows:

    • Kg cm ms
    • Kg cm s
    • gm mm ms
    • kg m s
    • g cm s
    • g cm us
    • g mm s
    • ton mm s
    • slug ft s
    • kg mm s
    • g cm ms
    • kg mm ms







    1. Conversion of SI unit to kg cm ms

    • Mass = 1 kg

    1 kg

    • Length = 1m

    100 cm

    • Time = 1 sec

    1000 ms

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s^2

    => (1 kg*100cm)/(1000ms)2

    => 10-4 (kg*cm)/ms2



    Conversion factor = 10-4

    • Stress = 1 Pa

    1 Pa => 1N/m^2

    As from the above derived 1N = 10-4 (kg cm)/ms2

    => {10-4 (kg cm/ms2)} / (100 cm)2

    => 10-8 kg/cm ms2

    Conversion factor = 10-8 kg/cm*ms2

    • Energy = 1 Nm
    • 1N *1 m
    • {10-4 kg cm/ms2} * 100 cm
    • 10-2  kg cm2/ms2

    Conversion factor = 10-2

    • Density = 1Kg/m^3
    • 1 kg / (100 cm)3
    • 1 kg/1000000 cm3
    • 10-6 kg/cm3



    Conversion factor = 10-6



    • Young’s Modulus = 210 GPa

    1 Pa = 10-8 kg/cm*ms2

    1 GPa = 109 * 10-8 kg/cm*ms2

    210 GPa = 210 * 10 kg/cm*ms2



    Conversion factor = 10



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 100000 cm = 105 cm

    1 hr = 60min*60sec*1000

    = 3600000

    = 36*105 ms

    1 kmph

    => (105 )/(36*105)

    => 0.0277 cm/ms



    Conversion factor = 0.0278



    • Gravity = 9.88 m/s2

    1 m/s2 = 100 cm/(1000ms)2

    = 10 -4 cm/ms2

    9.8 m/s2 = 9.8*10-4 cm/ms2



    Conversion Factor = 10-4



    2. Conversion of SI unit to kg cm s

    • Mass = 1 kg

    1 kg

    • Length = 1m

    100 cm

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s2

    => (1 kg*100cm)/(1s)2

    => 100 kg cm/s2

    Conversion factor = 100



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 100 kg cm/s2



    => (100 kg cm/s2 )/ (100 cm)2

    => 10-2 kg/cm s2

    Conversion factor = 10-2



    • Energy = 1 Nm
    • 1N *1 m
    • 100 kg cm/s2 * 100 cm
    • 104 kg cm2/s2

    Conversion factor = 104



    • Density = 1Kg/m^3
    • 1 kg / (100 cm)3
    • 1 kg/10000 cm3
    • 10-6 kg/cm3

    Conversion factor = 10-6



    • Young’s Modulus = 210 GPa

    1 Pa = 10-2 kg/cm s2

    1 GPa = 109 * 10-2 kg/cm s2

    210 GPa = 210 * 107 kg/cm*s2



    Conversion factor = 107



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 100000 cm = 105 cm

    1 hr = 60min*60sec

    = 3600

    = 3600 s

    1 kmph

    => (105 )/(3600)

    => 27.77 cm/s



    Conversion factor = 27.77



    • Gravity = 9.88 m/s2

    1 m/s2 = 100 cm/(1s)2

    = 100 cm/s2



    Conversion Factor = 100



    3. Conversion of SI unit to gm mm ms

    • Mass = 1 kg

    1000gm

    • Length = 1m

    1000 mm

    • Time = 1 sec

    1000 ms

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s^2

    => (1000gm*1000mm)/(1000ms)^2

    => 1 (gm*mm)/ms^2

     Conversion Factor = 1



    • Stress = 1 Pa

    1 Pa => 1N/m^2

    As from the above derived 1N = 1(gm*mm/ms^2)

    => {1 (gm*mm/ms^2)} / (1000mm^2)

    => 1*10^-6 gm/mm*ms^2

    Conversion factor = 10-6



    • Energy = 1 Nm
    • 1N *1 m
    • {1 gm*mm/ms^2} * 1000 mm
    • 1000 gm*mm^2/ms^2
    • 10^3 gm mm^2/ms^2

    Conversion factor = 103



    • Density = 1Kg/m^3
    • 1000 gm / (1000 mm)^3
    • 1 gm/1000000 mm^3
    • 10^-6 gm/mm^3



    Conversion factor = 10-6



    • Young’s Modulus = 210 GPa

    1 Pa = 10-6  gm/mm ms2

    1 GPa = 109 * 10 -6 gm/mm ms2

    210 GPa = 210 * 103 gm/mm ms2



    Conversion factor = 103



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000000 mm = 106 mm

    1 hr = 60min*60sec*1000

    = 3600000

    = 36*105 ms

    1 kmph

    => (106 )/(36*105)

    => 0.277 mm/ms



    Conversion factor = 0.278



    • Gravity = 9.88 m/s^2

    1 m/s2 = 1000mm/(1000ms)2

    = 10 -3 mm/ms2

    9.8 m/s2 = 9.8*10-3 mm/ms2



    Conversion factor = 10-3



    4. Conversion of SI unit to kg m s

    • Mass = 1 kg

    1 kg

    • Length = 1m

    1 m

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s2

    => (1 kg*1m)/(1s)2

    => 1 kg m/s2



    Conversion factor = 1



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 1 kg m/s2



    => (1 kg m/s2) / (1 m)2

    => 1 kg/m s2

    Conversion factor = 1



    • Energy = 1 Nm
    • 1N *1 m
    • 1 kg m/s2 * 1 m
    • 1 kg m2/s2

    Conversion factor = 1



    • Density = 1Kg/m^3
    • 1 kg / (1 m)3
    • 1 kg/1 m3
    • 1 kg/m3



    Conversion factor = 1



    • Young’s Modulus = 210 GPa

    1 Pa = 1 kg/m s2

    1 GPa = 109 * 1 kg/m s2

    210 GPa = 210 * 109 kg/m s2



    Conversion factor = 109



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000 m = 103 m

    1 hr = 60min*60sec

    = 3600 s

    1 kmph

    => (103 )/(3600)

    => 0.277 m/s



    Conversion factor = 0.277



    • Gravity = 9.88 m/s2

    1 m/s2 = 1 m/(1s)2

    = 1 m/s2

    9.8 m/s2 = 9.8*1 m/s2

    Conversion Factor = 1



    5. Conversion of SI unit to g cm s

    • Mass = 1 kg

    1000gm

    • Length = 1m

    100 cm

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1000 g * 1m/s2

    => (1000 g*100cm)/(1s)2

    => 105 g cm/s2



    Conversion factor = 105



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 105 g cm/s2

    => 105 g cm/s2/ (100 cm)2

    => 10 g/cm s2

    Conversion factor = 10



    • Energy = 1 Nm
    • 1N *1 m
    • 105 g cm/s2 * 100 cm
    • 107 g cm2/s2

    Conversion factor = 107



    • Density = 1Kg/m^3
    • 1000 g / (100 cm)3
    • 1000 g/1000000 cm3
    • 10-3 g/cm3

    Conversion factor = 10-3



    • Young’s Modulus = 210 GPa

    1 Pa = 10 g/cm s2

    1 GPa = 109 * 10 g/cm s2

    210 GPa = 210 * 1010 g/cm s2



    Conversion factor = 1010



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 100000 cm = 105 cm

    1 hr = 60min*60sec

    = 3600

    = 3600 s

    1 kmph

    => (105 )/(3600)

    => 27.77 cm/s



    Conversion factor = 27.77



    • Gravity = 9.88 m/s2

    1 m/s2 = 100 cm/(1s)2

    = 100 cm/s2

    9.8 m/s2 = 9.8*100 cm/s2

    Conversion Factor = 100



    6. Conversion of SI unit to g cm us(micro-sec)

    • Mass = 1 kg

    1000 gm

    • Length = 1m

    100 cm

    • Time = 1 sec

    106 us

    • Force = 1 N

    F => mass* acceleration

    => 1000 g * 100 cm/(106 us)2

    => (1000 g*100 cm)/(106us)2

    => 10-7 g cm/us2

    Conversion factor = 10-7



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 10-7 g cm/us2

    => 10-7 g cm/us2/ (100 cm)2

    => 10-11 g/cm us2

    Conversion factor = 10-11



    • Energy = 1 Nm
    • 1N *1 m
    • 10-7 g cm/us2 * 100 cm
    • 10-5  g cm2/us2



    Conversion factor = 10-5



    • Density = 1Kg/m^3
    • 1000 g / (100 cm)3
    • 1000 g/1000000 cm3
    • 10-3 g/cm3



    Conversion factor = 10-3



    • Young’s Modulus = 210 GPa

    1 Pa =10-11 g/cm us2

    1 GPa = 109 * 10-11 g/cm us2

    210 GPa = 210 * 10-2 g/cm us2



    Conversion factor = 10-2



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 10000 cm = 105 cm

    1 hr = 60min*60sec*106 us

    = 36*108 us

    = 36* 108 us

    1 kmph

    => (105 )/(36*108)

    => 0.0000278 cm/ us



    Conversion factor = 0.0000278



    • Gravity = 9.88 m/s2

    1 m/s2 = 100 cm/(106 us)2

    = 100 cm/ 1012 us2

    9.8 m/s2 = 9.8*10-10 cm/us2

    Conversion Factor = 10-10



    7. Conversion of SI unit to g mm s

    • Mass = 1 kg

    1000 gm

    • Length = 1m

    1000 mm

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1000 g * 1m/s2

    => (1000 g*1000 mm)/(1s)2

    => 106 g mm/s2

    Conversion factor = 106



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 106 g mm/s2

    => (106 g mm/s2 ) /(1000 mm)2

    => 1 g/mm s2

    Conversion factor = 1



    • Energy = 1 Nm
    • 1N *1 m
    • 106 g mm/s2 * 1000 mm
    • 109 g mm2/s2

    Conversion factor = 109



    • Density = 1Kg/m^3
    • 1000 g / (1000 mm)3
    • 1000 g/1000000000 mm3
    • 10-6 g/mm3



    Conversion factor = 10-6



    • Young’s Modulus = 210 GPa

    1 Pa = 1 g/mm s2

    1 GPa = 109 * 1 g/mm s2

    210 GPa = 210 * 109 g/mm s2



    Conversion factor = 109



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000000 mm = 106 mm

    1 hr = 60min*60sec

    = 3600

    = 3600 s

    1 kmph

    => (106 )/(3600)

    => 277.7 mm/s



    Conversion factor = 277.78



    • Gravity = 9.88 m/s2

    1 m/s2 = 1000 mm/(1s)2

    = 1000 mm/s2

    9.8 m/s2 = 9.8*1000 mm/s2

    Conversion Factor = 103



    8. Conversion of SI unit to ton mm s

    • Mass = 1 kg

    0.001 ton

    • Length = 1m

    1000 mm

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 0.001 ton * 1m/s^2

    => (0.001 ton *1000 mm)/(1s)2

    => 1 ton mm/s2



    Conversion factor = 1



    • Stress = 1 Pa

    1 Pa => 1N/m^2

    As from the above derived 1N = 10-6 (ton mm)/s2

    => {1 ton mm/s2} / (1000 mm)2

    => 10-6 ton/mm s2

    Conversion factor = 10-6



    • Energy = 1 Nm
    • 1N *1 m
    • {1 (ton mm)/s2} * 1000 mm
    • 103 ton mm2/s2

    Conversion factor = 103



    • Density = 1Kg/m^3
    • 0.001 ton / (1000 mm)3
    • 0.001 ton/1000000000 mm3
    • 10-12 ton/mm3



    Conversion factor = 10-12



    • Young’s Modulus = 210 GPa

    1 Pa = 10-6 ton/mm s2

    1 GPa = 109 * 10-6 ton/mm s2

    210 GPa = 210 * 103 ton/mm s2



    Conversion factor = 103



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000000 mm = 106 mm

    1 hr = 60min*60sec

    = 3600

    = 3600 s

    1 kmph

    => (106 )/(3600)

    => 277.78 mm/s



    Conversion factor = 277.78



    • Gravity = 9.88 m/s2

    1 m/s2 = 1000 mm/(1 s)2

    = 10 3 mm/s2

    9.8 m/s2 = 9.8*103 mm/s2



    Conversion Factor = 103



    9. Conversion of SI unit to slug ft s

    • Mass = 1 kg

    0.068 slug

    • Length = 1m

    3.28 ft

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s2

    => (0.068 slug*3.28 ft)/(1s)2

    => 0.223 slug ft/s2



    Conversion factor = 0.223



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 0.223 slug ft/s2



    => 0.223 slug ft/s2 / (3.28 ft)2

    => 0.0207 slug/ft s2

    Conversion factor = 0.0207



    • Energy = 1 Nm
    • 1N *1 m
    • 0.223 slug ft/s2 * 3.28 ft
    • 0.732 slug ft2/s2

    Conversion factor = 0.732



    • Density = 1Kg/m^3
    • 1 kg / (1 m)3
    • 0.068 slug/(3.28 ft)3
    • 0.068 slug/ 35.29 ft3
    • 0.0019 slug/ft3



    Conversion factor = 0.0019



    • Young’s Modulus = 210 GPa

    1 Pa = 0.0207 slug/ft s2

    1 GPa = 109 * 0.0207 slug/ft s2

    210 GPa = 210 * 109 * 0.0207 slug/ft s2

    210 GPa = 207*105 slug/ft s2

    Conversion factor = 207*105



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000 m = 103 m = 103 * 3.28 ft

    1 hr = 60min*60sec

    = 3600 s

    1 kmph

    => (3.28*103 ft)/(3600 s)

    => 0.911 ft/s



    Conversion factor =0.911



    • Gravity = 9.88 m/s2

    1 m/s2 = 3.28 ft/(1s)2

    = 3.28 ft/s2

    9.8 m/s2 = 9.8*3.28 ft/s2 = 32.14 ft/s2

    Conversion Factor = 3.28



    10. Conversion of SI unit to kg mm s

    • Mass = 1 kg

    1 kg

    • Length = 1m

    1000 mm

    • Time = 1 sec

    1 s

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s2

    => (1 kg*1000 mm)/(1s)2

    => 103 kg mm/s2



    Conversion factor = 103



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 1000 kg mm/s2



    => (1000 kg mm/s2 )/ (1000 mm)2

    => 10-3 kg/mm s2

    Conversion factor = 10-3



    • Energy = 1 Nm
    • 1N *1 m
    • 1000 kg mm/s2 * 1000 mm
    • 106 kg mm2/s2

    Conversion factor = 106



    • Density = 1Kg/m^3
    • 1 kg / (1000 mm)3
    • 1 kg/1000000000 mm3
    • 10-9 kg/mm3

    Conversion factor = 10-9



    • Young’s Modulus = 210 GPa

    1 Pa = 10-3 kg/mm s2

    1 GPa = 109 * 10-3 kg/mm s2

    210 GPa = 210 * 106 kg/mm s2

    Conversion factor = 106



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000000 mm = 106 mm

    1 hr = 60min*60sec

    = 3600

    = 3600 s

    1 kmph

    => (106 )/(3600)

    => 277.78 mm/s



    Conversion factor = 277.78



    • Gravity = 9.88 m/s2

    1 m/s2 = 1000 mm/(1s)2

    = 1000 mm/s2

    9.8 m/s2 = 9.8*1000 mm/s2

    Conversion Factor = 103



    11. Conversion of SI unit to g cm ms

    • Mass = 1 kg

    1000gm

    • Length = 1m

    100 cm

    • Time = 1 sec

    1000 ms

    • Force = 1 N

    F => mass* acceleration

    => 1000 g * 1m/s2

    => (1000 g*100cm)/(1000 ms)2

    => 10-1 g cm/ms2

    Conversion factor = 10-1



    • Stress = 1 Pa

    1 Pa => 1N/m2

    As from the above derived 1N = 10-1 g cm/ms2

    => 10-1 g cm/ms2 / (100 cm)2

    => 10-5 g/cm ms2

    Conversion factor = 10-5



    • Energy = 1 Nm
    • 1N *1 m
    • 10-1 g cm/ms2 * 100 cm
    • 10 g cm2/ms2

    Conversion factor = 10



    • Density = 1Kg/m^3
    • 1000 g / (100 cm)3
    • 1000 g/1000000 cm3
    • 10-3 g/cm3

    Conversion factor = 10-3



    • Young’s Modulus = 210 GPa

    1 Pa = 10-5 g/cm ms2

    1 GPa = 109 * 10-5 g/cm ms2

    210 GPa = 210 * 104 g/cm ms2



    Conversion factor = 104



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 10000 cm = 105 cm

    1 hr = 60min*60sec*1000

    = 36*105 ms

    = 36*105 ms

    1 kmph

    => (105 cm)/( 36*105 ms)

    => 0.0278 cm/ms



    Conversion factor = 0.0278



    • Gravity = 9.88 m/s2

    1 m/s2 = 100 cm/(1000 ms)2

    = 10-4 cm/ms2

    9.8 m/s2 = 9.8*10-4 cm/ms2

    Conversion Factor = 10-4



    12. Conversion of SI unit to kg mm ms

    • Mass = 1 kg

    1 kg

    • Length = 1m

    1000 mm

    • Time = 1 sec

    1000 ms

    • Force = 1 N

    F => mass* acceleration

    => 1 kg * 1m/s^2

    => (1 kg*1000 mm)/(1000ms)2

    => 10-3 (kg*mm)/ms2

    Conversion factor = 10-3



    • Stress = 1 Pa

    1 Pa => 1N/m^2

    As from the above derived 1N = 10-3 (kg*mm)/ms2

    => {10-3 (kg*mm)/ms2} / (1000 mm)2

    => 10-9 kg/mm ms2

    Conversion factor = 10-9



    • Energy = 1 Nm
    • 1N *1 m
    • {10-3 (kg mm)/ms2} * 1000 mm
    • 1 kg mm2/ms2
    • 1 kg mm2/ms2

    Conversion factor = 1



    • Density = 1Kg/m^3
    • 1 kg / (1000 mm)3
    • 1 kg/1000000000 mm3
    • 10-9 kg/mm3

    Conversion factor = 10-9



    • Young’s Modulus = 210 GPa

    1 Pa = 10-9 kg/mm ms2

    1 GPa = 109 * 10-9 kg/mm ms2

    210 GPa = 210 * 1 kg/mm ms2

    Conversion factor = 1



    • Velocity = 56.33 Kmph

    Km/h

    1Km = 1000000 mm = 106 mm

    1 hr = 60min*60sec*1000

    = 3600000

    = 36*105 ms

    1 kmph

    => (106 )/(36*105)

    => 0.278 mm/ms



    Conversion factor = 0.278



    • Gravity = 9.88 m/s2

    1 m/s2 = 1000 mm/(1000 ms)2

    = 10 -3 mm/ms2

    9.8 m/s2 = 9.8*10-3 mm/ms2

    Conversion Factor = 10-3



    Comparision Table-



    Unit

    Mass

    Length

    Time

    Force

    Stress

    Energy

    Density

    Young’s modulus

    Velocity 56.33 kmph

    Gravity

    Kg  m    s

    1 kg

    1 m

    1 s

    1 N = 1 kgm/s2

    1 Pa = 1 kg/ m s2

    1 J = 1 Nm= 1 kg m2 /s2

    1 kg/m3

    210 GPa= 210 e9 kg/m s2

    15.647 m/s

    9.8 m/s2

    Kg cm ms

    1 kg

    100 cm

    1000 ms

    10-4 kg cm/ms2

    10-8 kg/cm ms2

    10-2 kg cm2/ms2

    10-6 kg/cm3

    210*10 Kg/cm ms2

    1.566 cm/ms

    9.8*10-4 cm/ms2

    Kg cm   s

    1 kg

    100 cm

    1 s

    102 kg cm/s2

    10-2 kg/cm s2

    104 kg cm2/s2

    10-6 kg/cm3

    210*   10 e+7 kg/cm s2

    1564.84 cm/s

    9.8*102 cm/s2

    gm mm ms

    1000 gm

    1000 mm

    1000 ms

    1 g mm/ms2

    10-6 gm/mm ms2

    103 gm mm2/ms2

    10-6 gm/mm3

    210*10e3 gm/mm ms2

    15.66 mm/ms

    9.8*10-3 mm/ms2

    gm cm   s

    1000 gm

    100 cm

    1 s

    105 gm cm/s2

    10 gm/cm s2

    107 gm cm2/s2

    10-3 gm/cm3

    210*10e10 gm/cm s2

    1564.84 cm/s

    9.8*102 cm/s2

    gm cm us

    1000 gm

    100 cm

    106 us

    10-7 gm cm/us2

    10-11 gm/cm us2

    10-5 gm cm2/us2





    10-3 gm/cm3

    210*10e-2 gm/cm us2

    15.66*10-4 cm/us



    9.8*10-10 cm/us2

    gm mm  s

    1000 gm

    1000 mm

    1 s

    106 gm mm/s2



    1 gm/mm s2





    109 gm mm2/s2

    10-6 gm/mm3

    210*10e9 gm/mm s2

    15647 mm/s

    9.8*103 mm/s2

    Ton mm  s

    10-3 ton

    1000 mm

    1 s

    1 ton mm/s2

    10-6 ton/mm s2

    103 ton mm/s2

    10-12 ton/mm3

    210*10e3 ton/mm s2

    15647 mm/s

    9.8*103 mm/s2

    Slug ft     s

    0.068 slug

    3.28 ft

    1 s

    0.2223 slug ft/s2

    0.0207 slug/ft s2

    0.732 slug ft/s2

    1.93*10-3 slug/ft3

    210*207*10e-5 slug/ft s2

    51.26 ft/s

    9.8*3.28 ft/s2

    Kg mm  s

    1 kg

    1000 mm

    1 s

    103 kg mm/s2

    10-3 kg/mm s2

    106 kg mm/s2

    10-9 kg/mm3

    210*10e6 kg/mm s2

    15647 mm/s

    9.8*103 mm/s2

    gm cm ms

    1000 gm

    100 cm

    1000 ms

    10-1 gm cm/ms2

    10-5 gm/cm ms2

    10 gm cm/ms2

    10-3 gm/cm3

    210*10e4 gm/cm ms2

    1.566 cm/ms

    9.8*10-4 cm/ms2

    Kg mm ms

    1 kg

    1000 mm

    1000 ms

    10-3 kg mm/ms2

    10-9 kg/mm ms2

    1 kg mm/ms2

    10-9 kg/mm3

    210 kg/mm ms2

    15.66 mm/ms

    9.8*10-3 mm/ms2



    Conclusion-

    • Converted the given quantities (such as Mass, Length & Time, etc) within the "SI" system of units into the required system of units.
    • The result table is created.

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Sachin Salgar (23)

    Week - 3 Drop test Challenge

    Objective:

    Aim: To perform a simulation for the "Mobile Drop Test" on the floor and analyze the results in "LS-DYNA". Introduction: A meshed model containing 3 components was provided in the challenge in the '.k' file format. The 3 components were the mobile phone with solid elements, floor with shell elements, and another floor…

    calendar

    17 Feb 2022 09:57 AM IST

    • HTML
    • LS-DYNA
    Read more

    Week - 1 - Consistency of Units

    Objective:

    Aim-  To convert the given SI unit values of given quantities to all different parameters  & also to prepare a consistent unit system table for the different unit systems.   Objective- To convert the given values of the quantity to different systems of units.  Prepare a table so that while…

    calendar

    11 Jan 2022 02:01 PM IST

      Read more

      Roof Crush Analysis on NEON Car Model

      Objective:

      Aim- To perform the roof crash analysis on the Neon car model and study about deformation and stresses developed and energy distribution in the car components.   Objective - To translate the impactor to the desired location as per the question. To create a Type 7 contact interface between impactor and car. To create…

      calendar

      08 Jan 2022 12:29 PM IST

        Read more

        Frontal Crash Simulation on NEON Car Model

        Objective:

        Aim- To perform the frontal crash on Neon car model and study about deformation and stresses developed and energy distribution in the car components.   Objective- First to check the unit system. Create type-7 contact with friction value 0.2 with recommended parameters. To check for penetration and intersections in…

        calendar

        07 Jan 2022 10:53 AM IST

          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
