Boost Converter (CCM):
Vi=20-30V
V0=40V
Vo/Vi=1/1-D
Range of Duty Cycle
if Vi is 20
40/20=2
1-D=0.5
D=0.5
If Vi=30
Vo/vi=4/3
1-D=1.33
D=0.33
Calculation of Load Resistor:
As per given data
P=600W
V0=40V
R=Vo^2/P
R=1600/600
R=2.66 ohm
Calcultion of Inductance:
Assume fs=100khz
current ripple is 20%
Inductor current = IL= Vin/(1-D)^2 R
IL=20/(1-0.5)^2 * 2.66
IL=20/0.25*2.66
IL=30.07A
L>(Vin/fs*Delta`IL)D
Delta IL=0.2*30.07.
Delta IL=6.014.
L>30/(100e3*6.014)*0.5
L>2.4942e-05
L=30microH
Calculation of Capacitor :
Assume 10 % ripple at outpur voltage
C=D/(Rfs(DeltaVo/Vo))
C=0.5/(2.66*100e3*0.1)
C= 1.8797e-05 F
C=18.8 microF

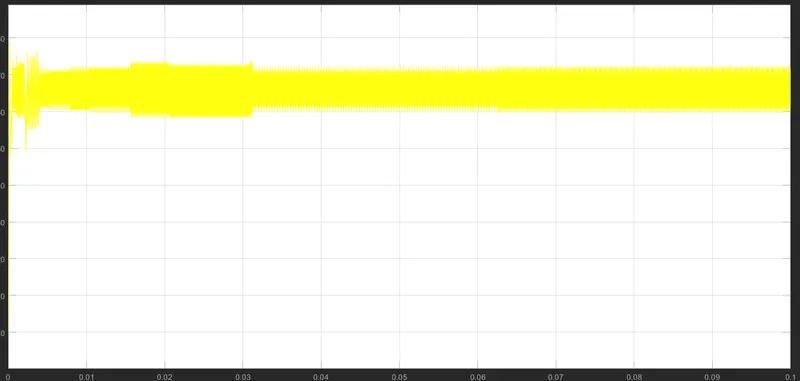

Output Voltage:
