Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

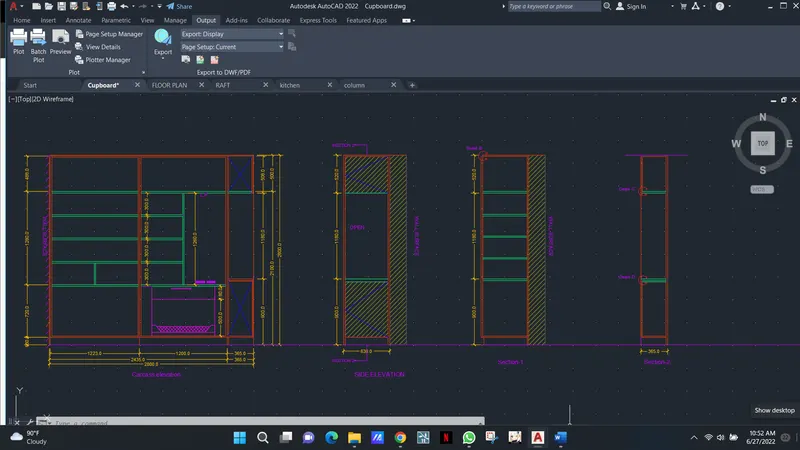

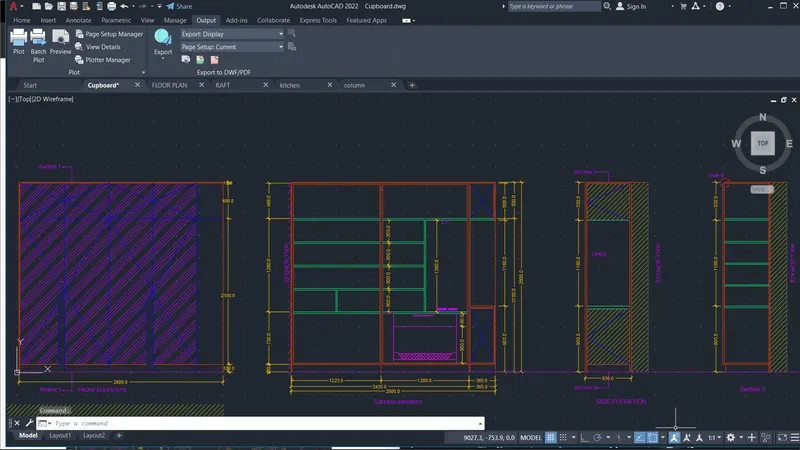

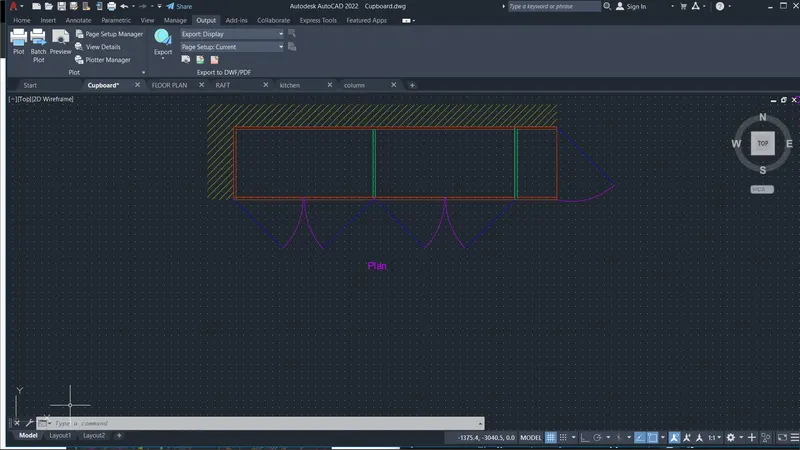

1) AIM: To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers.

PROCEDURE:

STEP 1:

• Units are set to mm
• Limits and lim-max are also set
• Zoom command is also used

STEP 2:

• In the command line type rec>2800, 2600
• In the command line type offset
• Offset from the top of dimensions 12 and 488 mm.

Step 3:

• In the command line type offset.
• Create the offset from the side at the distance of 608.75 and 365.

Step 4:

• In the command line type L and by increasing the transparency to create wall surface.
• By using hatch give the hatch and give scale 20.
• In the command line type qleader to mention the annotations.

Step 5:

• In the command prompt type rect > 630 x 2800.
• In the command prompt type qleeader to give the annotations.

Step 6:

• In the command prompt type rect 2800 x 2600.
• With the help of line command create cabinets and drawers are created.
• For the drawers and cabinets give the grey colour.
• Dimension the drawing.

Step 7:

• In the command prompt type rectangle and dimensions of 520 x 630, 1180 x 630, 900x630 This is repeated 2 times.
• Using line commands, the next of the lines are drawn.

Step 8:

• Place the entire drawing in the respective layers.

Result:

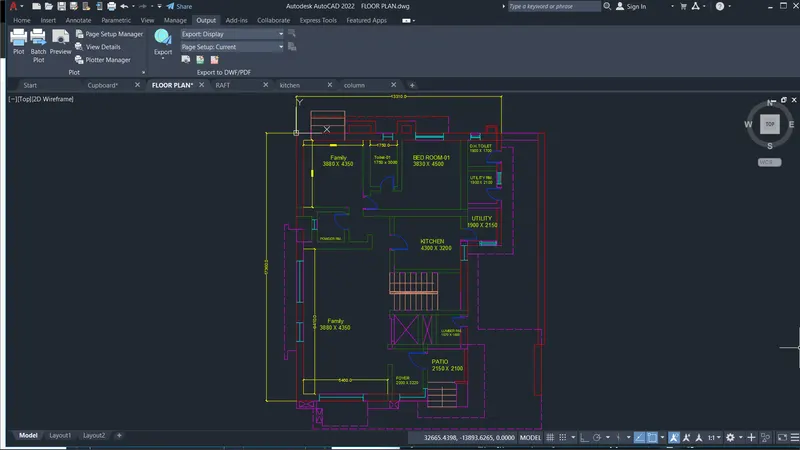

2) Aim: To draw the given floor plan

Procedure:

Step 1:

• Units are set to mm
• Limits and lim-max are also set
• Zoom command is also used

Step 2:

• In the command prompt type XL to draw the infinite lines
• In the command prompt type offset to offset the line for a particular distance
• Using arc command doors are also created.

Doors: 1. DI - 1000 x 2000 mm 2. D2 - 900 x 2100 mm 3. D3 - 800 x 2100 mm 4. D4 - 750 x 2100 mm 5. D5 - 700 x 2100 mm 6. SD - 2256 X2100 mm

Windows: 1. W1 - 2700 x 1500 mm 2. W2 - 2500 x 1500 mm 3. W3 - 900x 1500 mm 4. W5 - 1000 x 1500 mm 5. W9 - 800 x 1500 mm

Ventilators: 1. VI-800 x 500 mm 2. V2 - 750 x 500 mm

Step :3

• Give the dimensions and annotate the drawing with the text wherever required.

Step: 4

• Place all elements of the drawing in the respective layers.

Result:

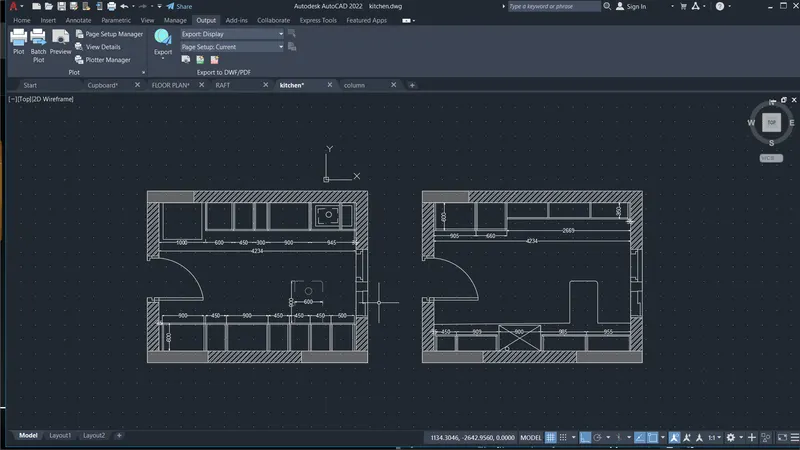

3) Aim: To create the kitchen layout and to also use proper dimension techniques to dimension the kitchen layout. Also insert text wherever required.

Procedure:

Step 1:

• Units are set to mm.
• Limits and lim-max are also set.
• Zoom command is also used.

Step:2

• In the command prompt type rec and the dimensions are 4734 x 3688mm
• In the command prompt type offset and offset it to the distance of 250mm.
• Using arc and lines the door is drawn.
• In the command prompt type hatch to hatch the model.

Step 3:

• In the command prompt type rec > dimensions, to do the fridge.
• In the command prompt type offset and offset it to the desired distance to get the Micro Oven.
• In the command prompt type trim to trim the extras.
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560.
• In the command prompt type offset and offset it to the vertical distance of 600.
• In the command prompt type trim to trim the extras.
• In the command prompt type line type and load the dotted lines.

Step 4:

• In the command prompt type, the text to text the given annotations.
• In the command prompt type dimensions to give the dimensions to your plan.
• In the command prompt even the leader command is used to name the dimensions.

Result:

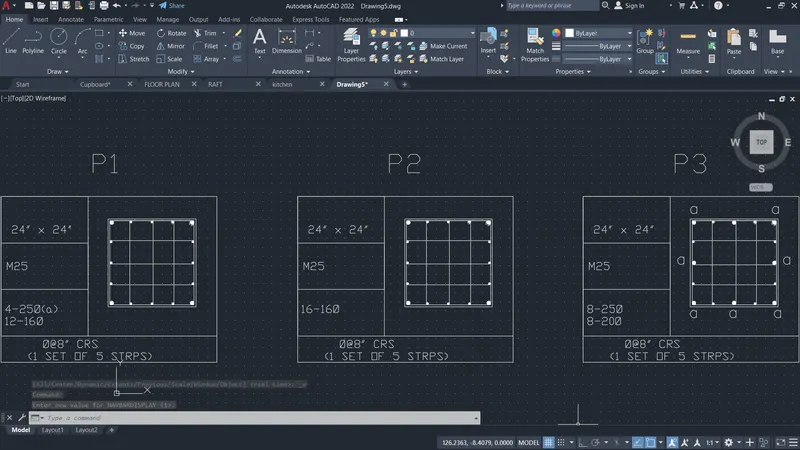

4) Aim: To sketch the column details.

Procedure:

Step 1:

• Units are set to mm.
• Limits and lim-max are also set.
• Zoom command is also used.

Step 2:

• Using the rectangle and line command the tables are drawn.

Step 3:

• Using text command, the text is given.

Step 4:

• In the command prompt type lines to draw the reinforcement.
• In the command prompt type circles to draw the reinforcement.

Result:

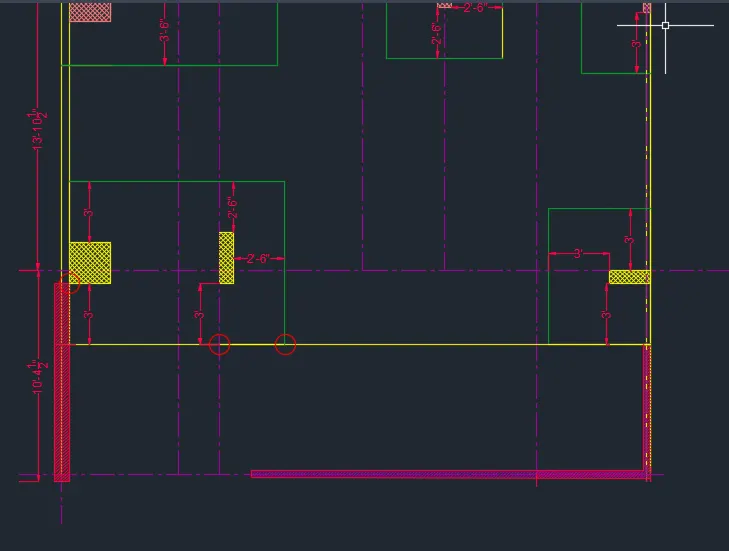

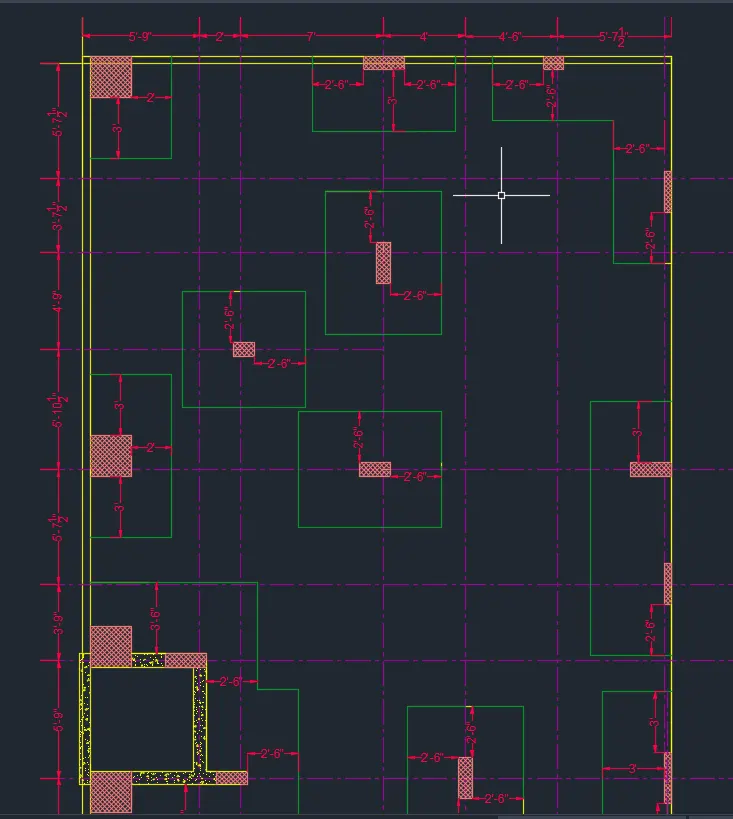

5) Aim: To draw the raft layout.

Procedure:

Step 1:

• Units are set to engineering > inches.
• Limits and lim-max are also set.
• Zoom command is also used.

Step 2:

• In the command prompt type rectangle > dimensions are 29’-7” and 60’.
• To get dotted lines click on line type and load the dotted lines > set current.
• With the help of dotted lines and offset command the grids are drawn.

Step 3:

• In the command prompt offset the distance to 4”
• In the ribbon > hatch > AR-CONC.
• In the command prompt type rec > 2’ x 2’.
• In the command prompt type rec to draft the columns.
• In the ribbon bar select hatch > ANSI37 hatch the columns.
• In the ribbon bar select hatch > ANSI33 to hatch the walls.

Step 4:

• In the ribbon tab > annotate > text > text to text the given annotations.
• In the ribbon tab > Dimensions > to give the dimensions.

Step 5:

• Place all the elements of the drawing in the required layers.

Result:
