Benchmarking

Aim: To optimize the stalagmite function and find out the global maxima of the function by write a program using MATLAB and to plot for the 3 case studies and find time to take running for each case.   Objective:- To write a code in Matlab to optimize the stalagmite function and find the global Maxima Value of…

                                                                                          …

AIM: To develop one specific requirement of the Traffic Jam Assistant algorithm which would predominantly feature in the IPC algorithm.   OBJECTIVE:- This model must be developed in MATLAB Simulink as per MBD guidelines. Code Generation Profile must be in Embedded Coder. Simulink Data Dictionary must be created…

                                                                                           …

AIM: To create a Simulink model of Vehicle Direction Detection as per the Requirement data.   GIVEN: -  Requirement - 1: Steering wheel input as yaw rate (Signal name: SteeringWheel_YawDegreeInput) is the input for this system. This is compared against 3 angular values, one each for a left turn, right…

AIM: To create two assemblies in the assembly workbench by using the 2D drawing provided of the assembly parts and then use the drafting tools to create a 2D drawing similar to the one given in the assignment folder. The two assemblies are QUICK RETURN MECHANISM CV JOINT   PROCEDURES OF ASSEMBLY: In the…

AIM: To create the attachment features such as the screw boss and Dog House for the Centre console coin holder with respect to the design rules. INTRODUCTION: SCREW BOSS Boss features are commonly found in injection moulding designs. They are used to aid in the assembly of moulded parts by providing a channel for…

Aim :         To Create the Rib for the Centre console coin holder considering the design rules. Ribs :         Ribs are added to increase the strength of the material. Since plastic surfaces have; low strength in many places considering their wall thickness, in this case…

AIM: To create a solid body of B pillar cover including ribs and locators using given A-class surface and master section and adding thickness.  INTRODUCTION : B-Pillar   The B-pillar is the central pillar of the car. This pillar is actually a sheet metal part which is welded in the BIW of the car. The B-pillar…

AIM: To create Plastic design and attach the Engineering features and generate the Draft Analysis for the given Door Applique Class A model. INTRODUCTION:- HEAT STAKING : Heat Staking is a pulsed-heat process to join two or more parts out of which one at least is made of plastic. The process is to deform the plastic material…

AIM To create the Core and cavity blocks for the switch bezel designed. Introduction Core and Cavity Cavity and core are used in the injection molding process, where the concave part of the mold is the cavity and the convex part is the core.The cavity and core are used in pairs, with the cavity also referred to as the…

AIM: To Create the Coin Holder Plastic component through the given Class-A surface and to create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. The thickness of the component should be 2.5 mm.   OBJECTIVE Creating Tooling…

Aim - Create the Door Armrest component using the given Class-A Surface of the armrest and the door. Objectives: Create CLASS B and Class C Surface for the Door Armrest using the given Class-A Surface. Use the given Class-A Surface of the Door for reference. Use the Close Surface feature to make a solid body…

Aim: To create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Note :  Offset distance = 2.5mm. Axis system…

1. AIM : To implement control logic of a “washing machine” using Stateflow as per given sequence : If the power supply is available, the system gets activated  If the Water supply is not available, stop the process & indicate through LED Soaking time should be 200s followed by Washing time of…

1) Aim: To make a Simulink model of doorbell using solenoid block with a situation where the switch  is closed for 2 seconds and then released and also to observe the physical movement of the plunger.    Theory:- SOLENOID: A solenoid is a device comprised of a coil of wire, the housing and…

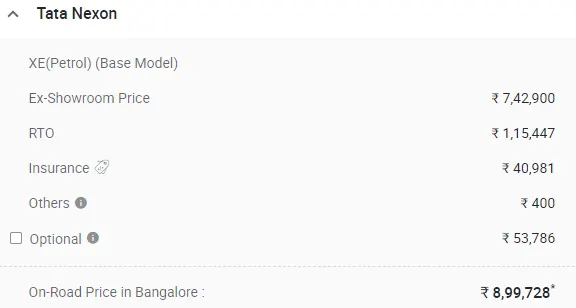

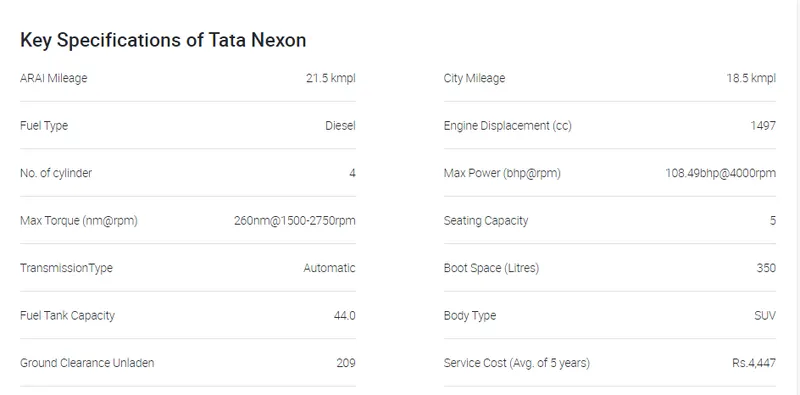

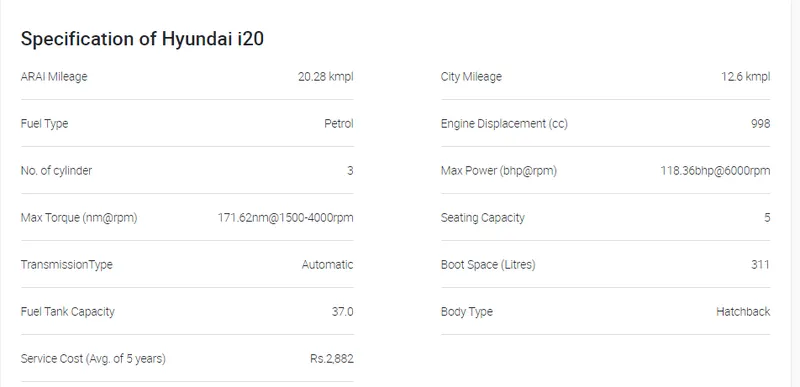

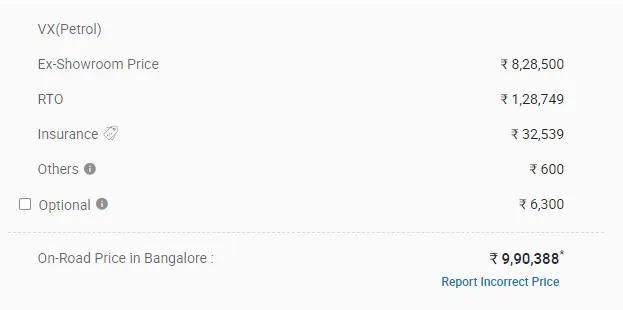

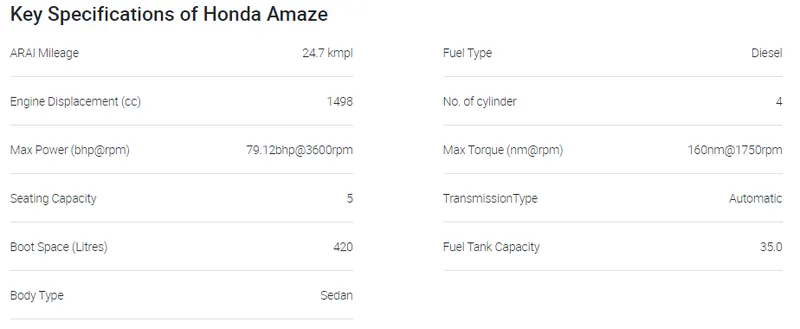

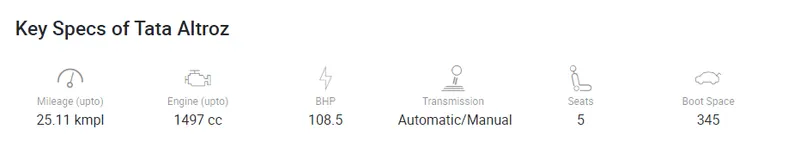

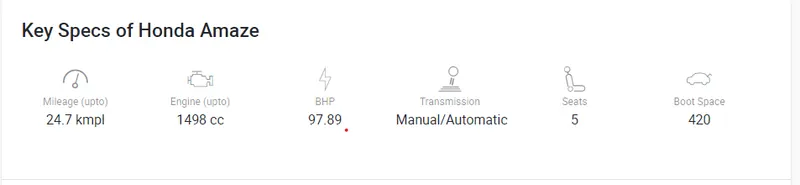

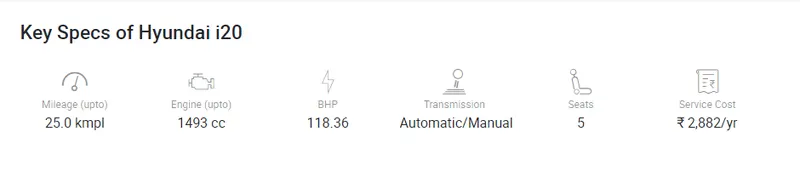

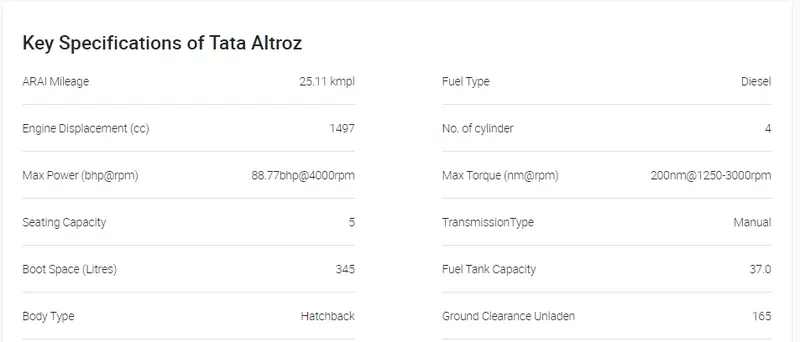

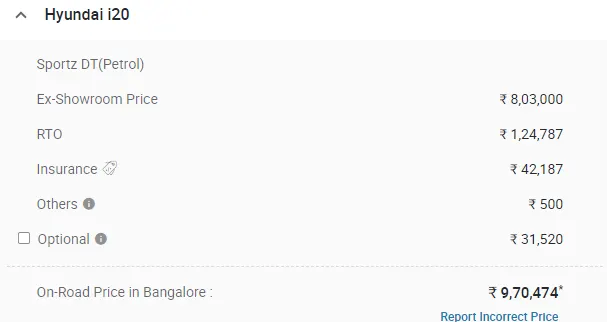

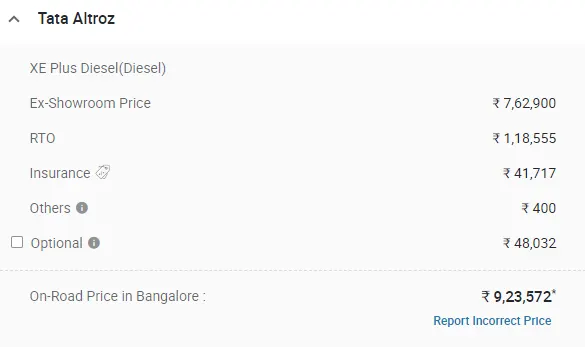

Benchmarking in the automobile industry : Benchmarking has been unanimously accepted as an effective performance and productivity improvement tool by Indian auto companies. However, Indian automobile manufacturers still see benchmarking as a tool to compare product attributes, quality attributes, operations, and processes.…

Underbody Coating : Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating applied after a couple of years,…

AIM: To create the Base Bracket Plastic component through the given Class-A surface and to create tooling axis for class A surface and do draft analysis on both class A and the final closed model. OBJECTIVES:  Creation of tooling axis using bisecting method Creation of class C and Class C surface  Creating a…

 AIM : To create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model. Importance of Draft angle while designing plastic components :- A draft angle refers to that slant applied to the sides of most features of injection molded parts.…

1. The program in Matlab that will simulate the pendulum motion with respect to the inputs given in between 0-20 sec, for angular displacement=0,angular velocity=3 rad/sec at time t=0 is as follows:-    The video link for the simulation of the motion of the pendulum is : https://youtu.be/aS20tNp3XAg…

1. The Matlab program to to simulate the forward kinematics of a 2R Robotic Arm is as follows:-    a. The video link for the animation plot is: https://youtu.be/Mc637pesacw b. % Program to simulate the forward kinematics of a 2R Robotic Arm clear all close all clc % Inputs for the two arms at different…

1. The various major elements in the above automotive wiring diagram are as follows :-   POWERTRAIN + SOURCE MEASURING DEVICES SAFETY DEVICES AND AUXILIARY DEVICES Battery Fuel Tank Unit Current and Voltage Regulator  Ignition Switch  Fuel Guage Fuse  Starter Ammeter Beam lights x4 Ignition coil  …
