Week 9 - Attachment Feature Creation - Challenge 1

Objective:- Objective of this challenge is to Creation of RIB of Coin Holder and add thickness to it using CATIA Software.  Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis.  Phase 1:- In phase 1 we import Class A surface in Catia. That…

  • CATIA

  • Amrit Lal

    updated on 04 Aug 2021

Objective:- Objective of this challenge is to Creation of RIB of Coin Holder and add thickness to it using CATIA Software.

Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis.

Phase 1:- In phase 1 we import Class A surface in Catia. That Class A surface may be in the different part surfaces, so we join them using JOIN Command in CATIA. For confirmation of joining we use BOUNDARY command, If boundary shows no error then we go for phase 2.

Phase 2:- In Phase 2 we create Tooling axis of the product then we do draft analysis of it.

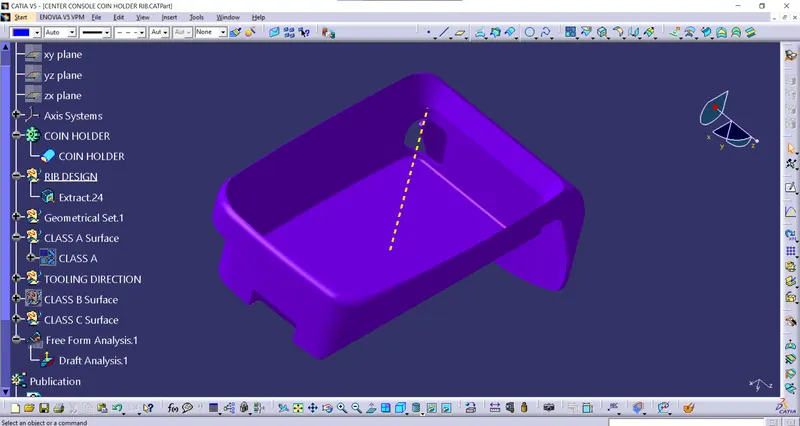

We create a dummy tooling axis by visualizing the product. We choose dummy tooling axis such that product's manufacturing will be easy. In our Base cover along Z axis will be our dummy tooling axis.

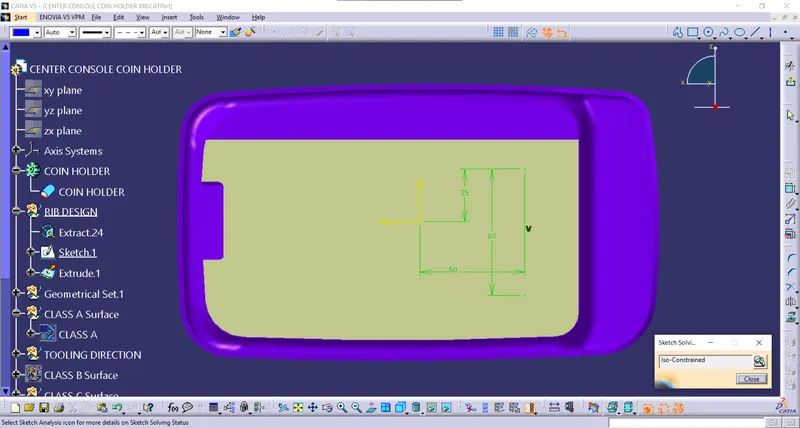

Now we extract the bottom surface and draw a line for rib creation.

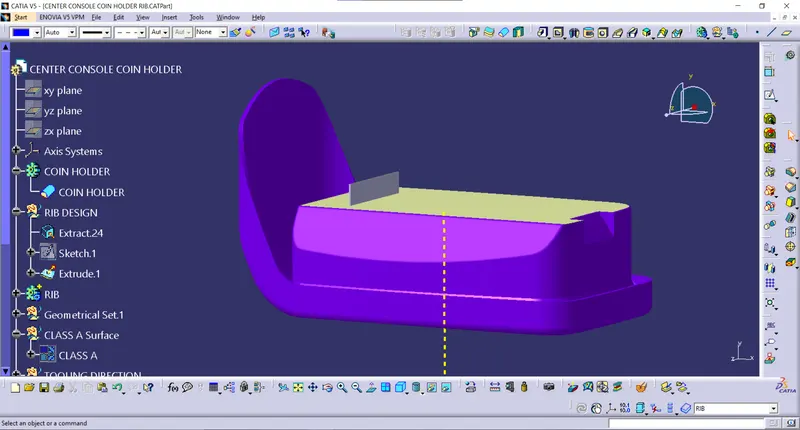

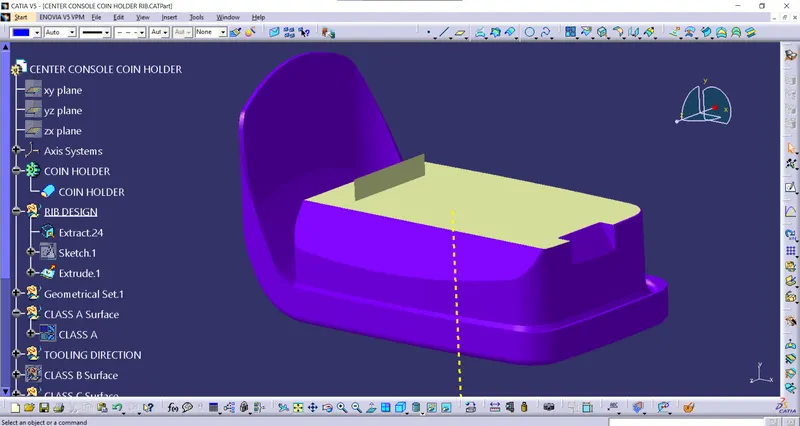

No we extrude that line for 0.5*t distance along tooling axis.

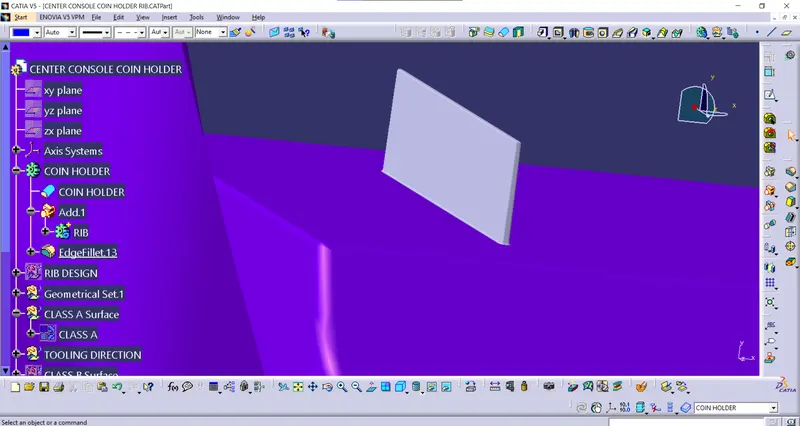

Now we go to part design and thicken the extrude for 0.4*t thickness.

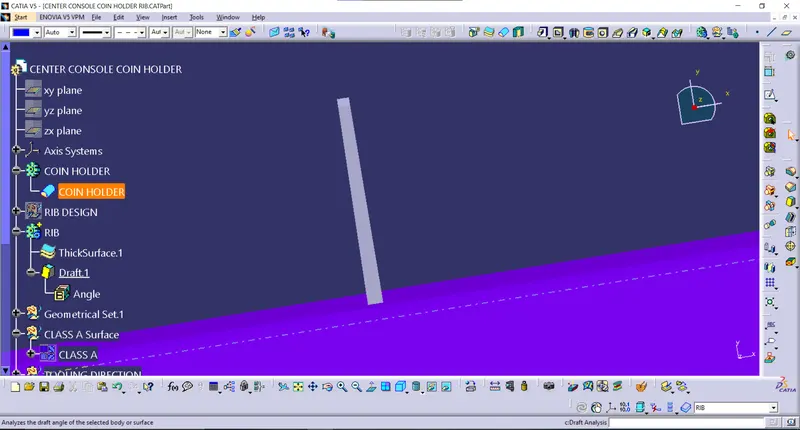

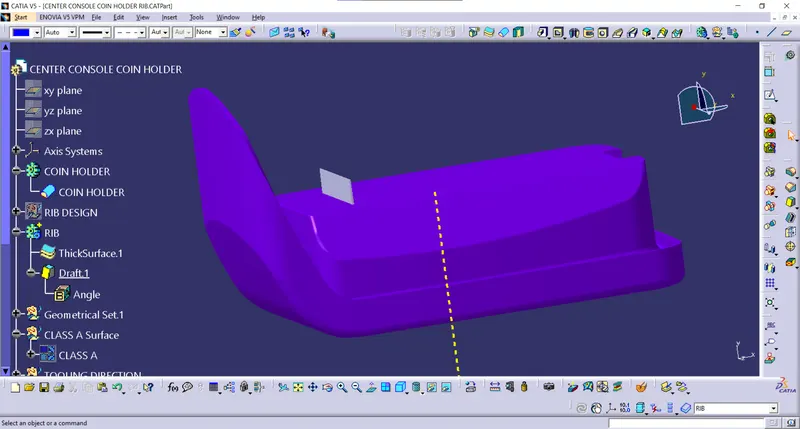

Now we give 0.5 degree draft to all faces

Now we create 0.25mm radius fillet.

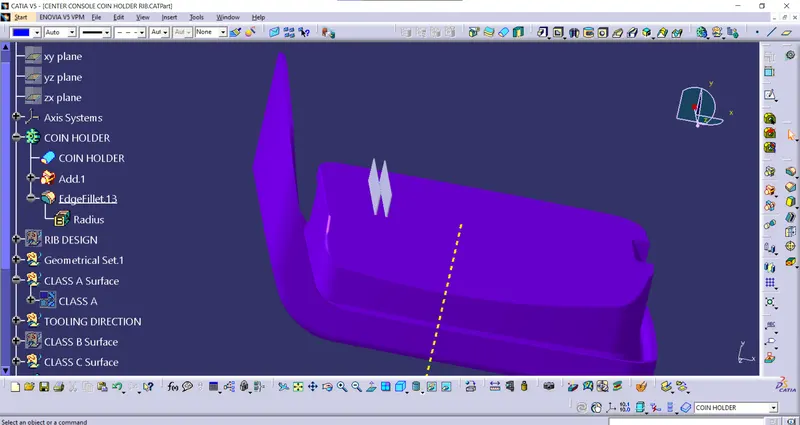

Now we repeat all steps for creation of 2nd rib at a distance of 6mm.

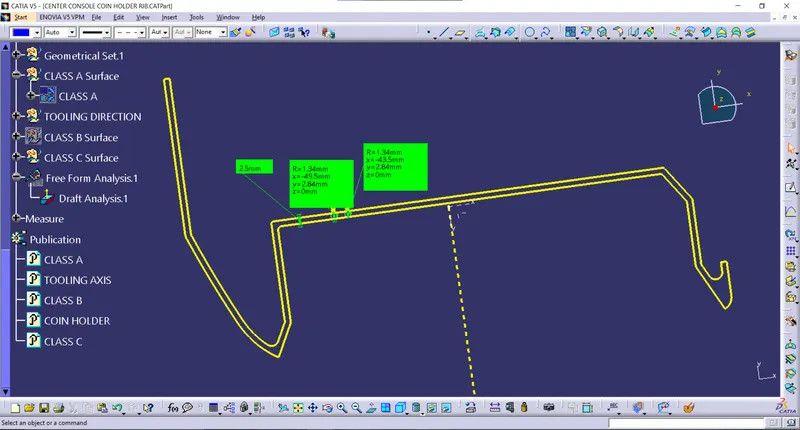

Rib root thickness analysis

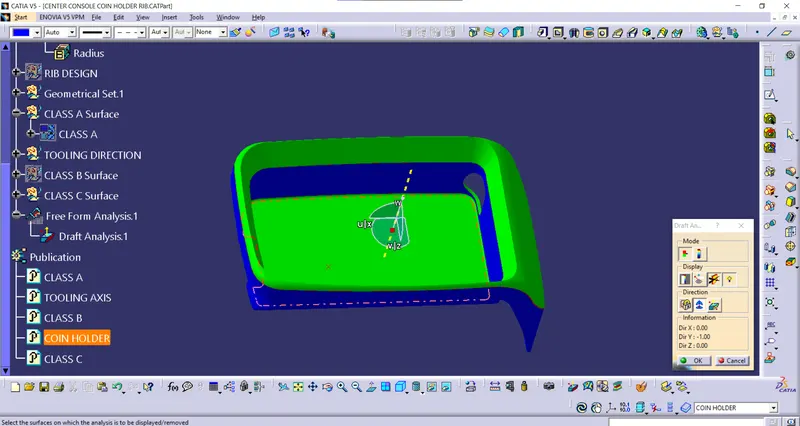

Here is the draft analysis of the product

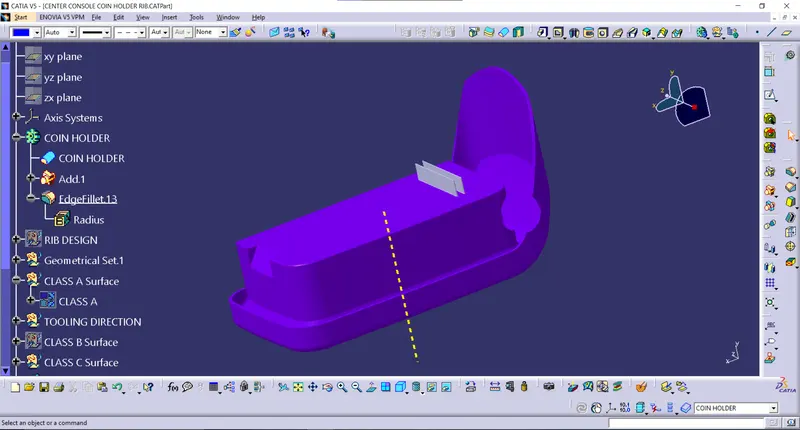

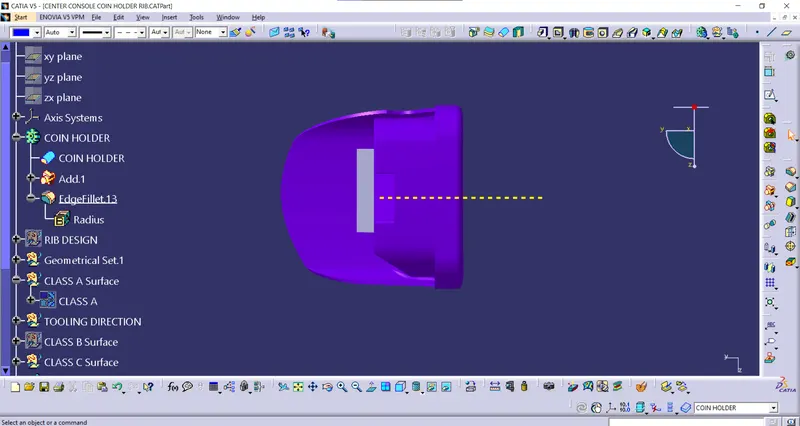

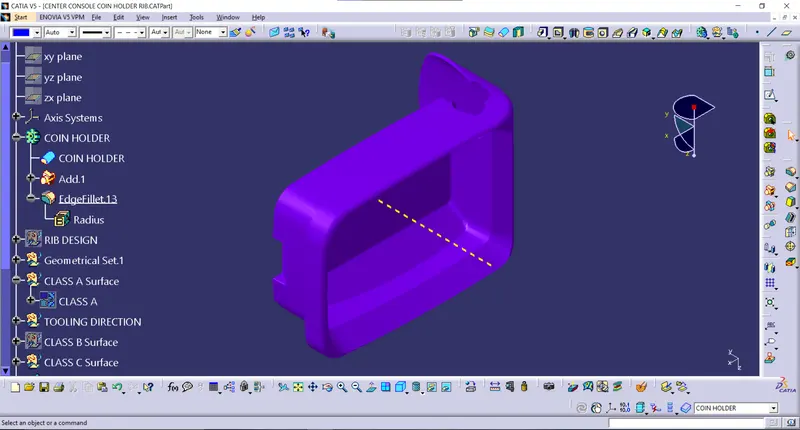

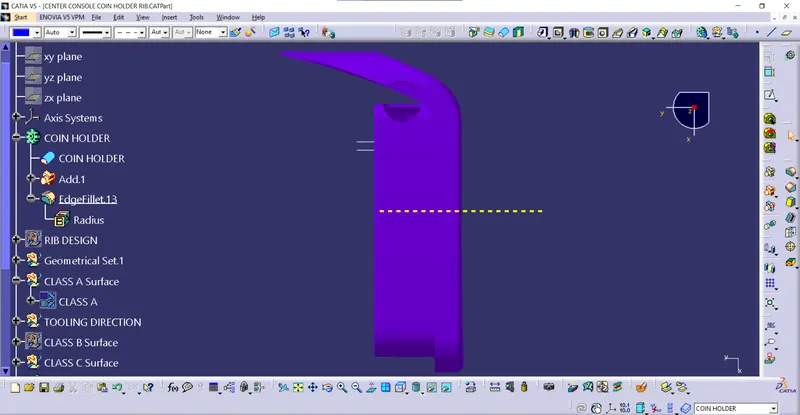

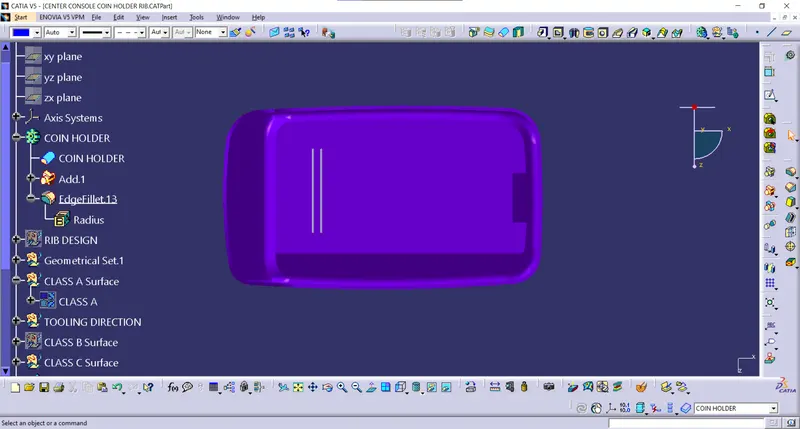

Images of The final product
