Week 9 - Attachment Feature Creation - Challenge 2

Objective:- Objective of this challenge is to Creation of Door Applique Design with Engineering Features and add thickness to it using CATIA Software. And also create Class A surface, Class B surface and Class C surface and Solid Pattern for manufacturing. Tooling Axis:- The direction in which mold opens or Core and cavity…

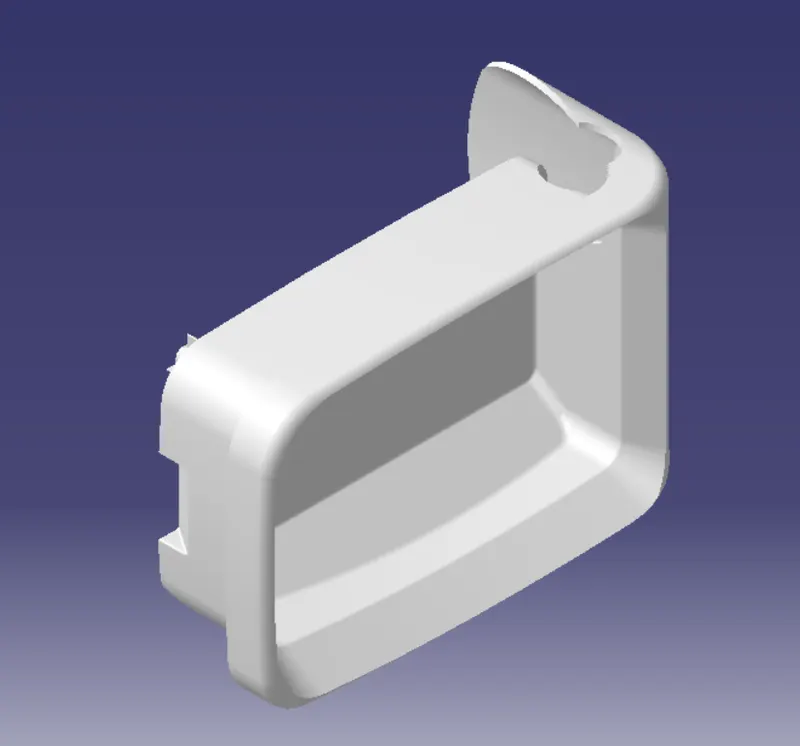

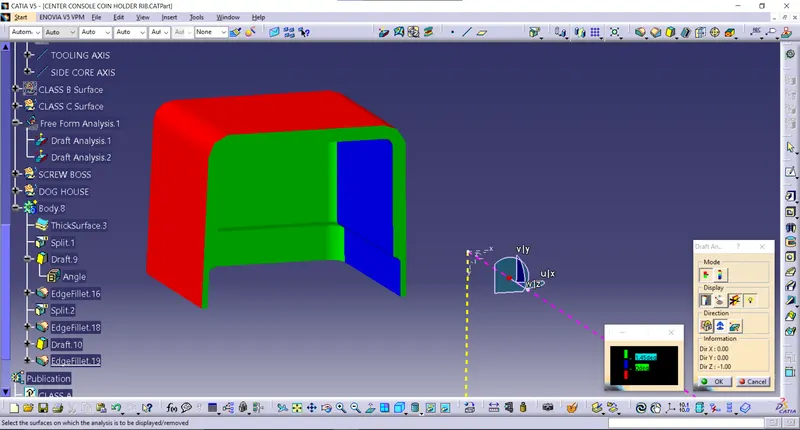

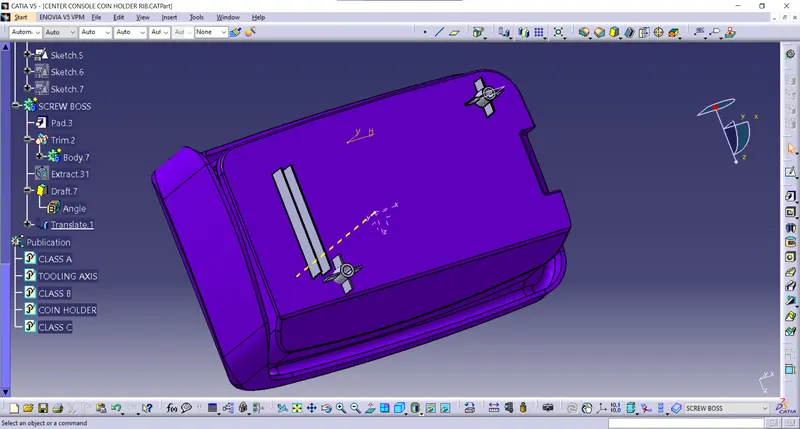

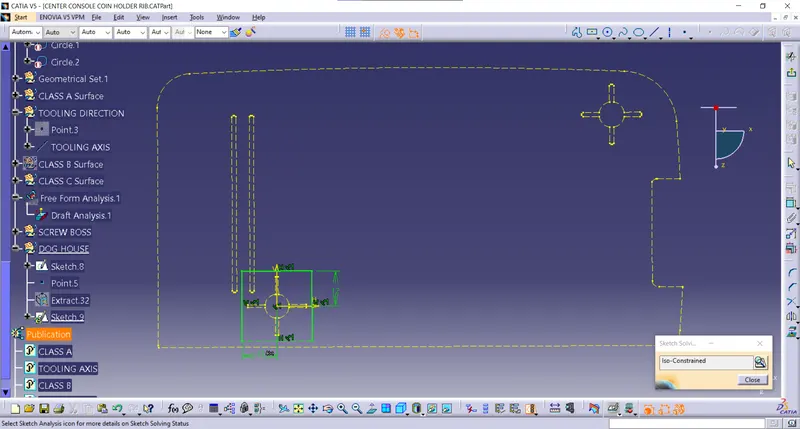

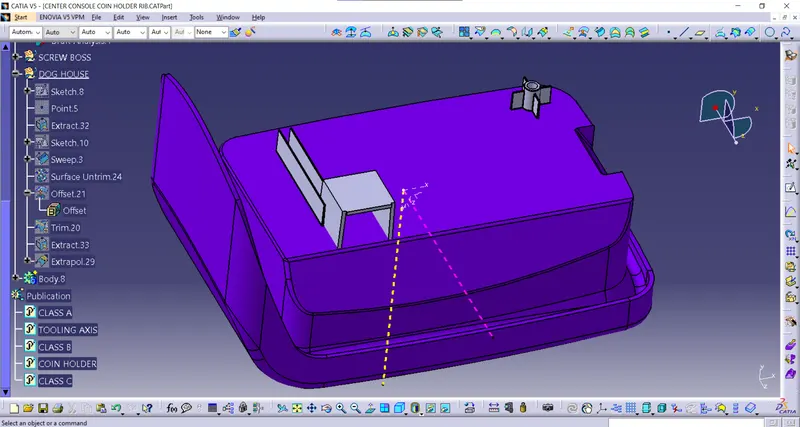

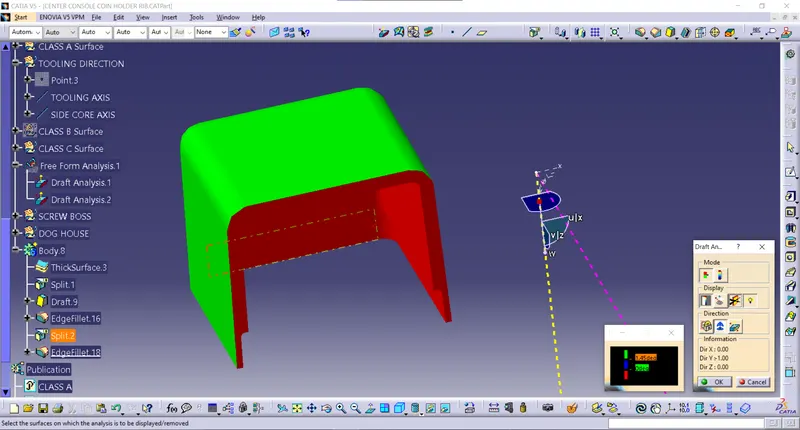

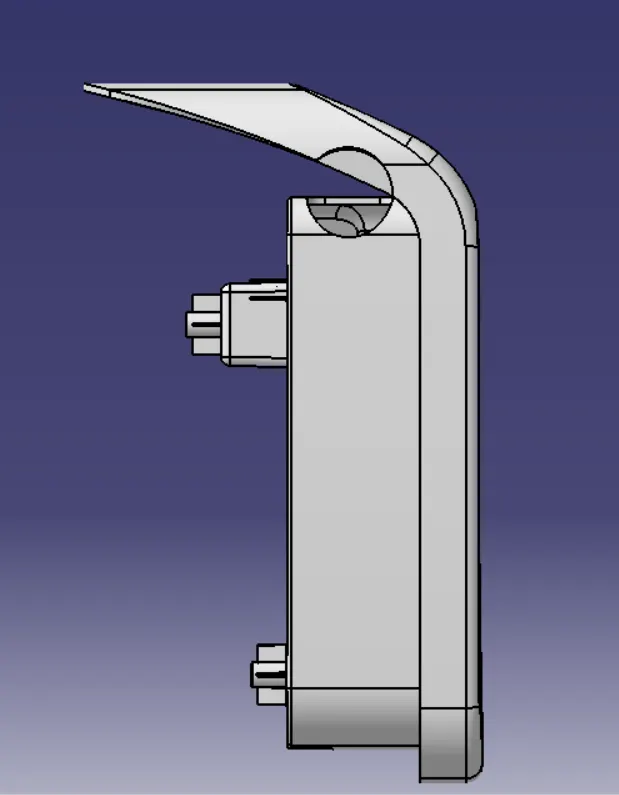

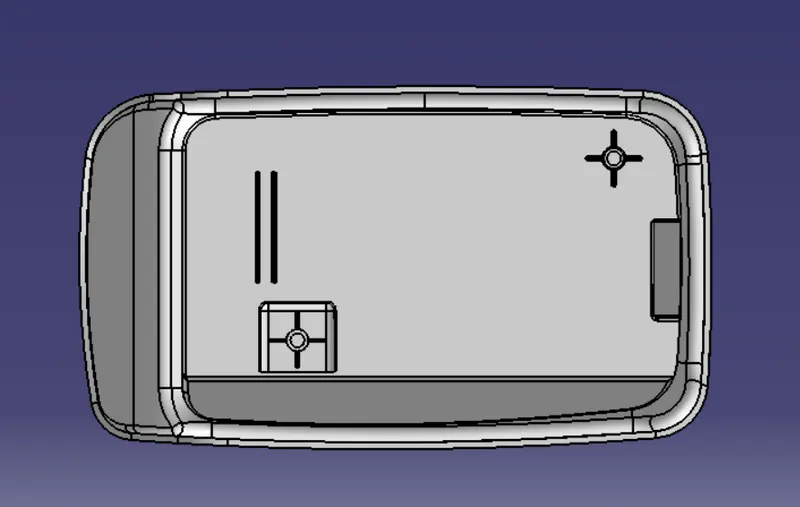

Objective:- Objective of this challenge is to Creation of SCREW BOSS and DOG HOUSE of Coin Holder and add thickness to it using CATIA Software.  Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis.  Phase 1:- In phase 1 we import Class A surface in Catia. That Class…

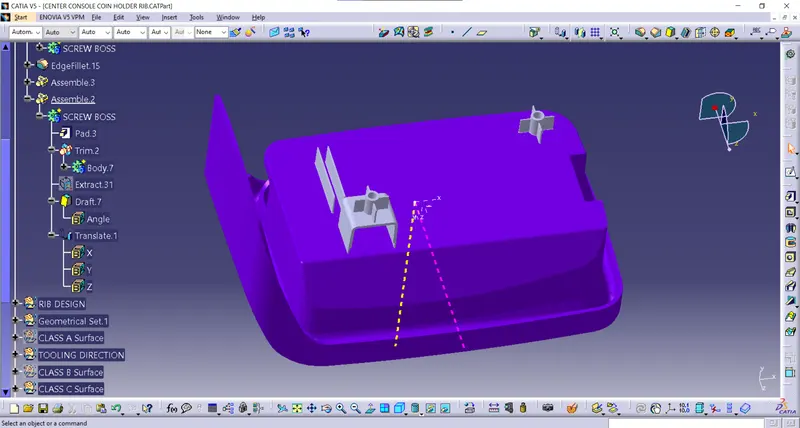

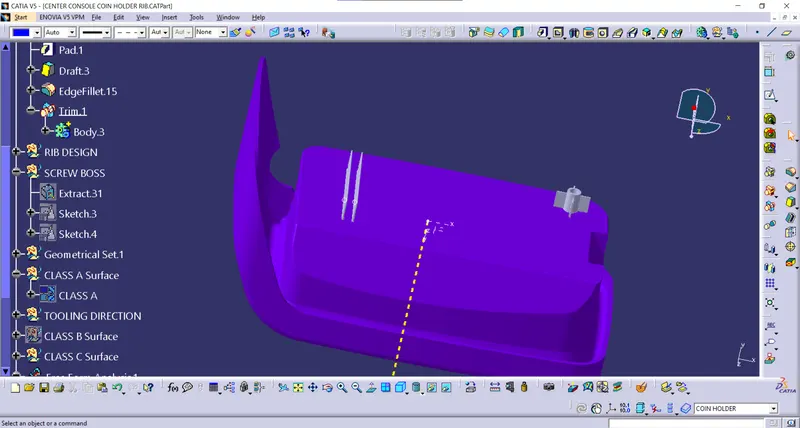

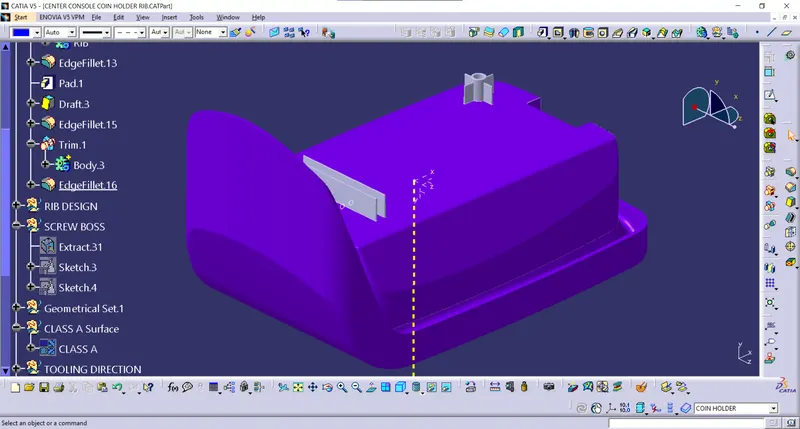

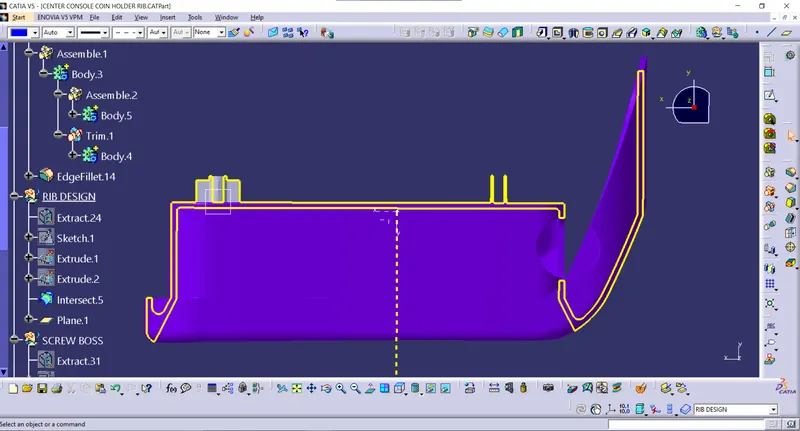

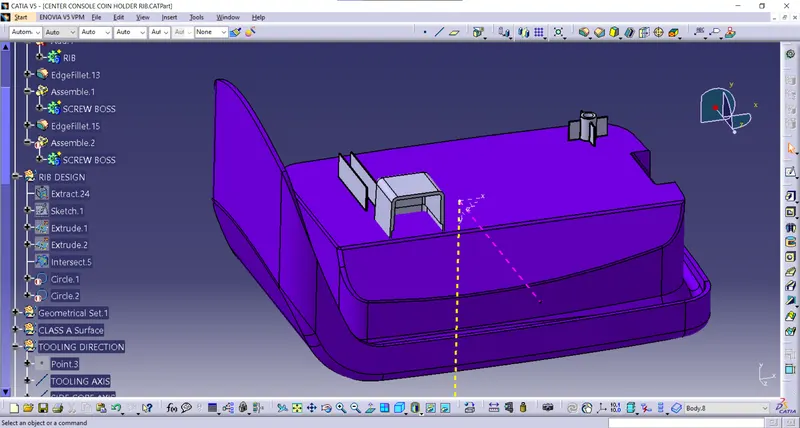

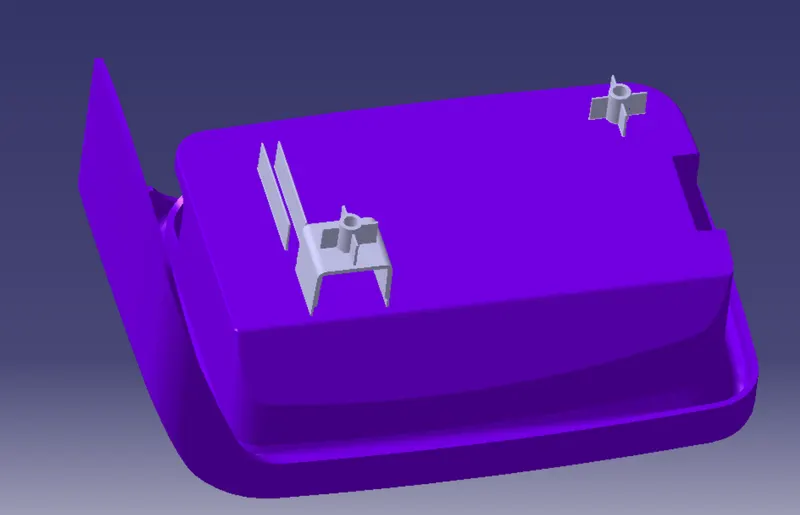

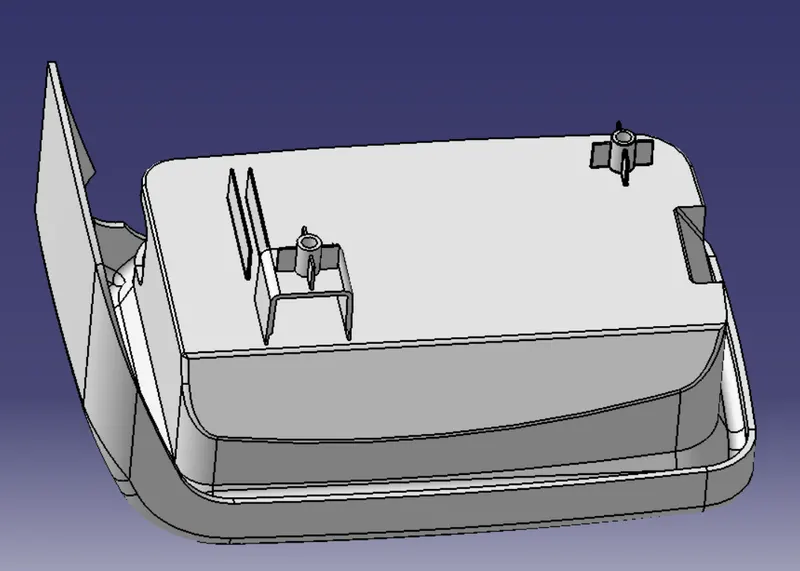

Objective:- Objective of this challenge is to Creation of RIB of Coin Holder and add thickness to it using CATIA Software.  Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis.  Phase 1:- In phase 1 we import Class A surface in Catia. That…

First we create boundary from CLASS A Surface Then we extrapolate that boundary Then we extrapolate CLASS C Surface Then we trim CLASS A and CLASS C Then we trim CLASS A, CLASS B and CLASS C to get parting surface with component Then we create a rectangular sketch and extrude that along tooling axis for core block creation…

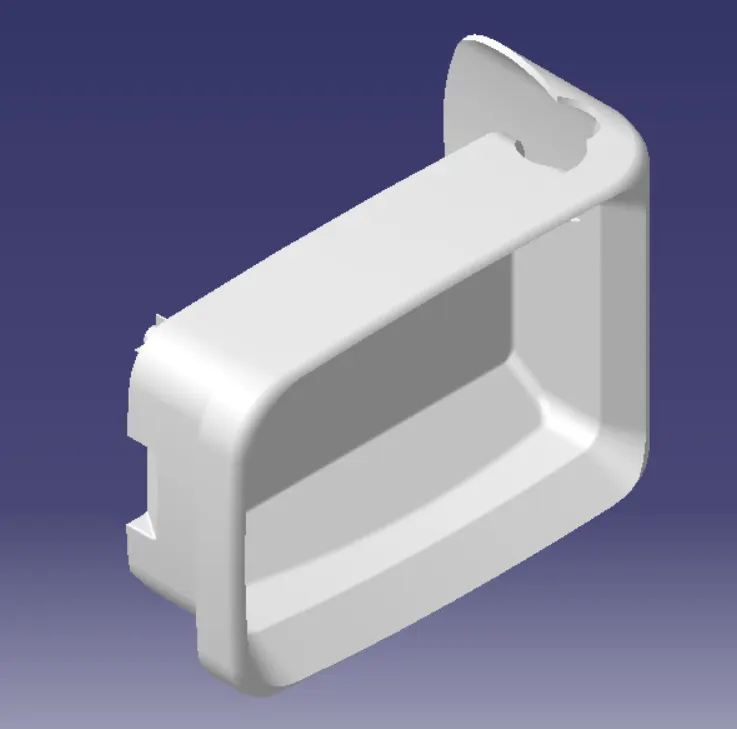

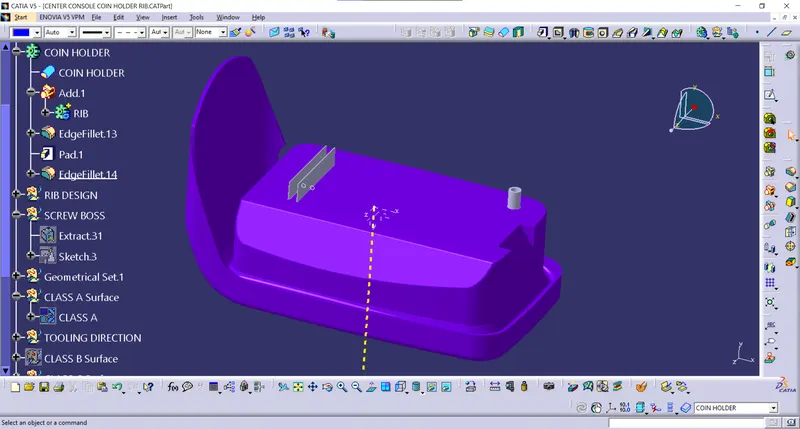

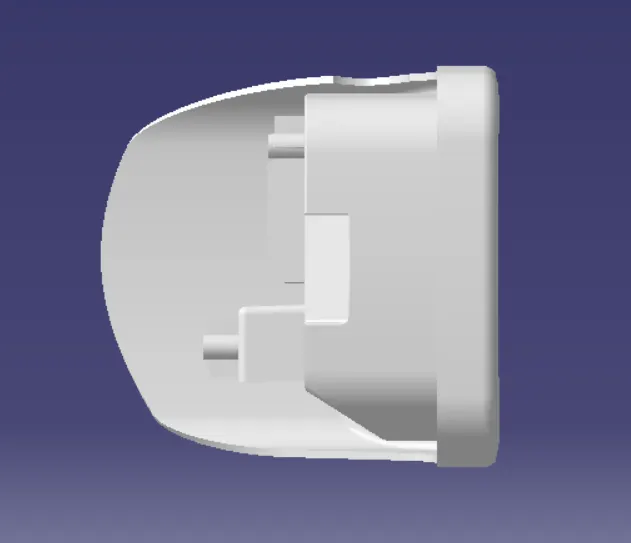

Objective:- Objective of this challenge is to Creation of Coin Holder and add thickness to it using CATIA Software. And also create Class A surface, Class B surface and Class C surface and Solid Pattern for manufacturing. Tooling Axis:- The direction in which mold opens or Core and cavity get separated,…

Objective:- Objective of this challenge is to Creation of Door Arm rest and add thickness to it using CATIA Software. And also create Class A surface, Class B surface and Class C surface and Solid Pattern for manufacturing. Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called…

Objective:- Objective of this challenge is to do a Draft analysis of a SWITCH BEZEL using CATIA Software. And also create Class A surface, Class B surface and Class C surface and Solid Pattern for manufacturing. Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling…

Objective:- Objective of this challenge is to do a Draft analysis of a BASE BRACKET using CATIA Software. And also create Class A surface, Class B surface and Class C surface and Solid Pattern for manufacturing. Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis. …

Objective:- Objective of this challenge is to do a Draft analysis of a Fan Cover using CATIA Software. Tooling Axis:- The direction in which mold opens or Core and cavity get separated, is called the Tooling axis. Phase 1:- In phase 1 we import Class A surface in Catia. That Class A surface may be in the different part…

TITLE:- DESIGN OF A SHEET-METAL BRACKET   OBJECTIVE:- Objective of this project is to study and working on different features of NX CAD for making of a SHEET-METAL BRACKET.   INTRODUCTION:- Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing,…

TITLE:- DESIGN OF A SHEET-METAL BRACKET   OBJECTIVE:- Objective of this project is to study and working on different features of NX CAD for making of a SHEET-METAL BRACKET.   INTRODUCTION:- Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing,…

TITLE:- DESIGN OF A SHEET-METAL ENCLOSURE   OBJECTIVE:- Objective of this project is to study and working on different features of NX CAD for making of a SHEET-METAL ENCLOSURE.   INTRODUCTION:- Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing,…

TITLE:- DESIGN OF A BOX ASSEMBLY   OBJECTIVE:- Objective of this project is to study and working on different features of NX CAD for making BOX ASSEMBLY.   INTRODUCTION:- Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing, punching, cutting,…

TITLE:- DESIGN OF A SHEET-METAL CASING   OBJECTIVE:- Objective of this project is to study and working on different features of NX CAD for making of a SHEET-METAL CASING.   INTRODUCTION:- Sheet Metal is a comprehensive cold working process for metal sheets (usually below 6mm), including shearing, punching, cutting, folding,…

  TITLE:- MODELLING OF SUNSEEKER PREDATOR YACHT OBJECTIVE:- Objective of this project is to model a sunseeker predator yacht. In this project, I will learn about surface modelling. I will use different features and tools like surface extrude, surface swept, surface loft, boundary surface, fill surface, trim surface,…

Title:- Modelling of American Chopper Bike   Objective:- The main objective of this project was to get command on SOLIDWORKS. In this course, I've learnt many basic and advanced command of SOLIDWORKS. Some of the key-points of this project are below mentioned:- To do part Modelling of different parts. To learn the sketching…
