Week 8 - Simulating Cyclone separator with Discrete Phase Modelling

Objective: To calculate Adiabatic Flame Temperature for combustion with variation in equivalence ratio, type of fuel, with heat loss using the Newton-Raphson method and Cantera. Theory: Adiabatic flame temperature(AFT):          The final temperature of the product, When the combustion takes place…

Objective:              To simulate the combustion in Ansys fluent with the parametric study. Theory: Combustion is a chemical process during which heat energy is generated.  During combustion, the Hydro-carbon and Oxygen combined when a spark is introduced chemical reaction takes…

Objective:                 To simulate the Gate valve with different opening positions using parametric study in Ansys fluent. Theory: Flow coefficient: `C_v=Q√((SG)/(∇P))` where,        Q is the rate of flow (expressed in US gallons per minute),…

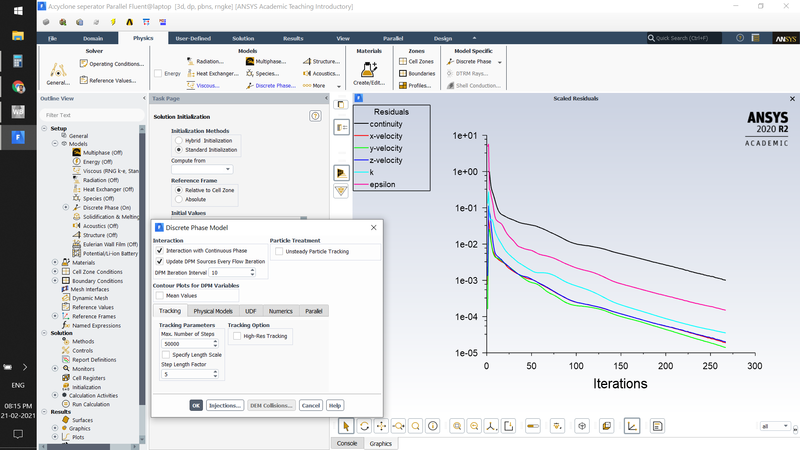

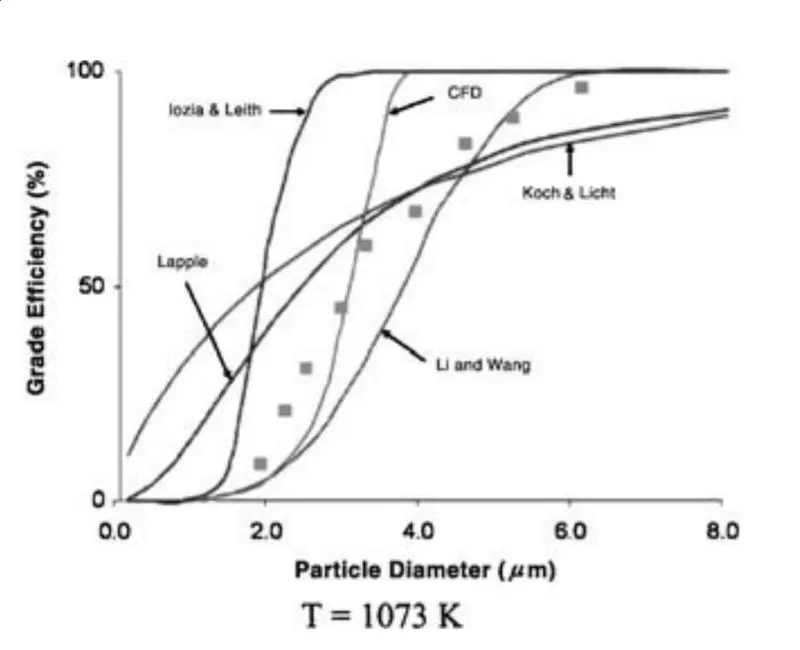

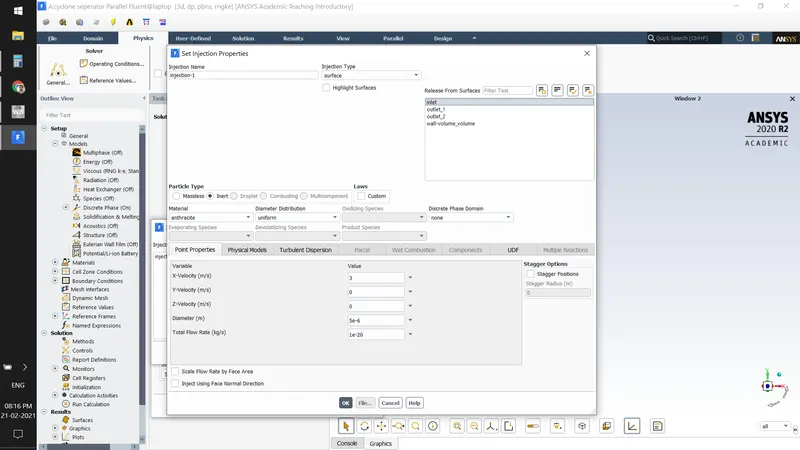

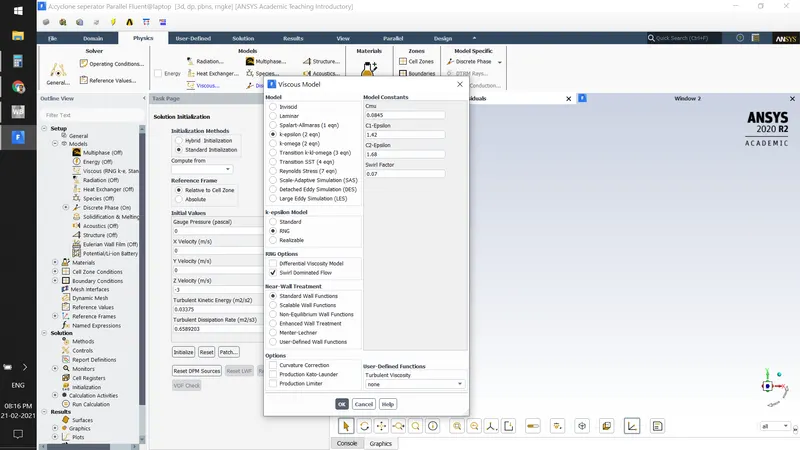

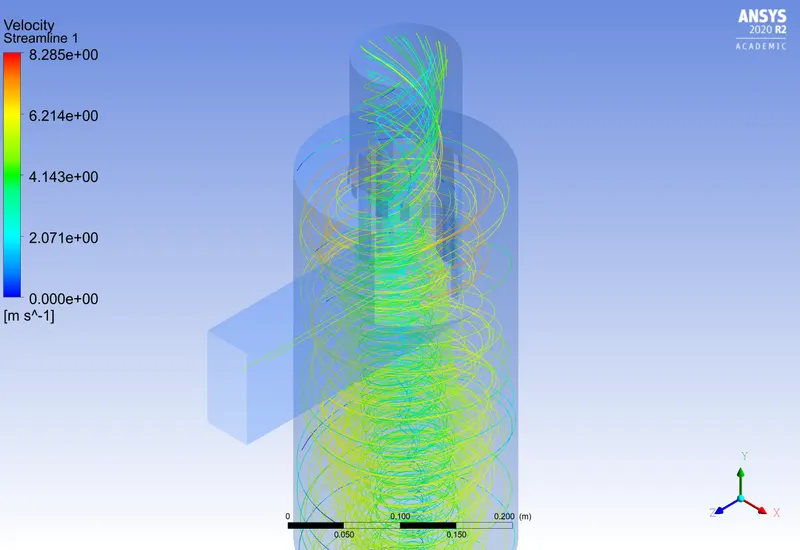

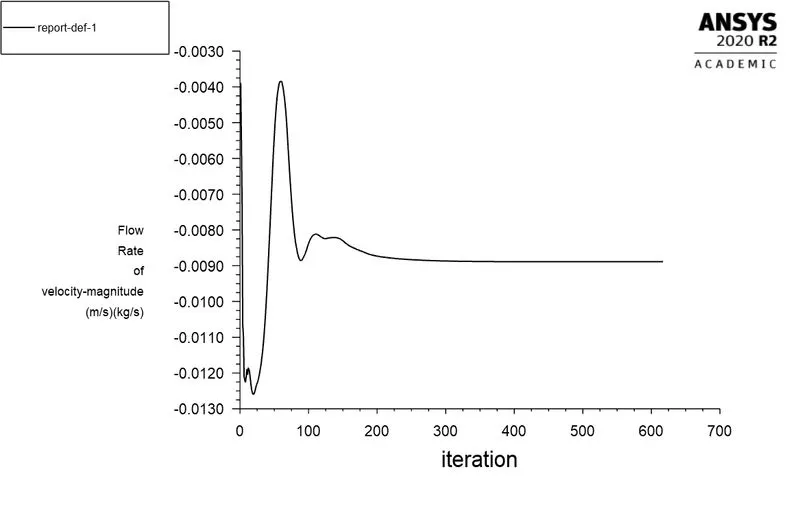

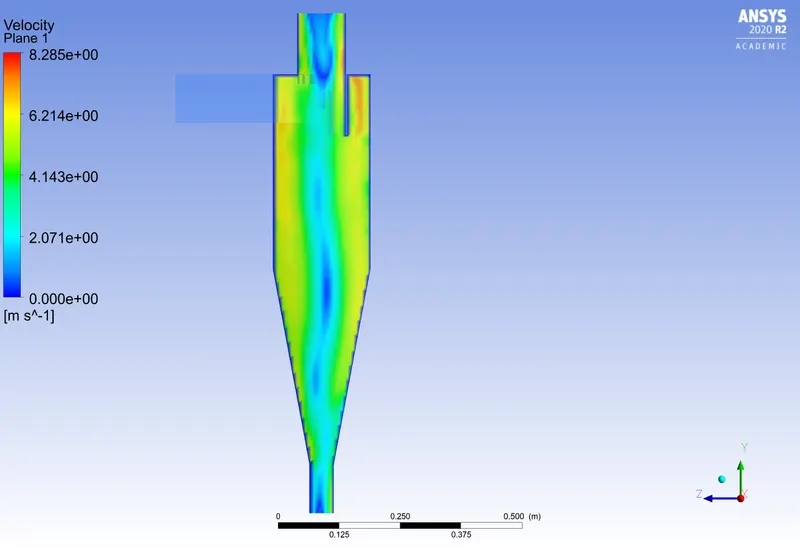

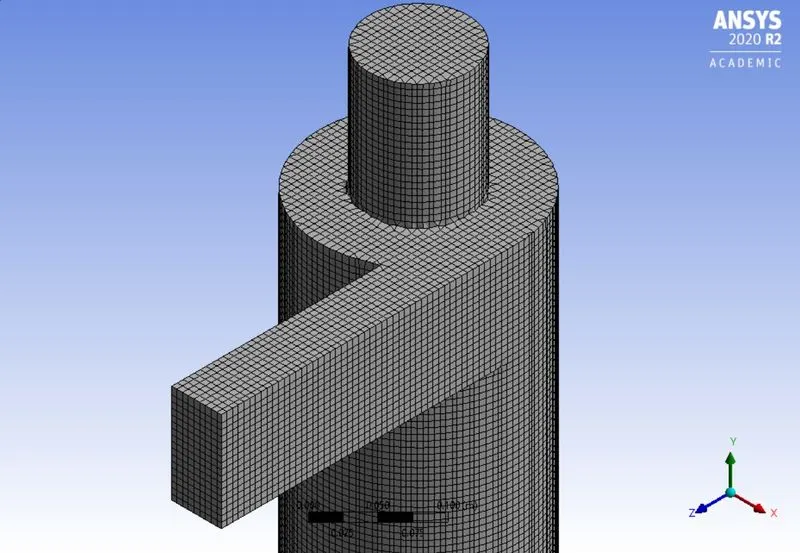

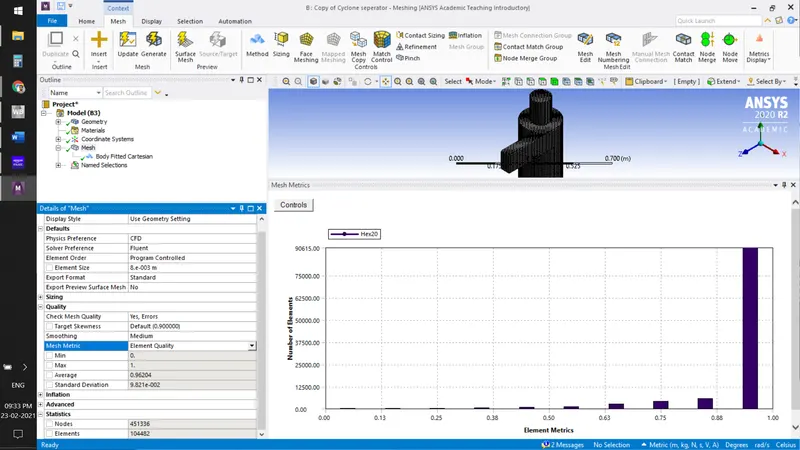

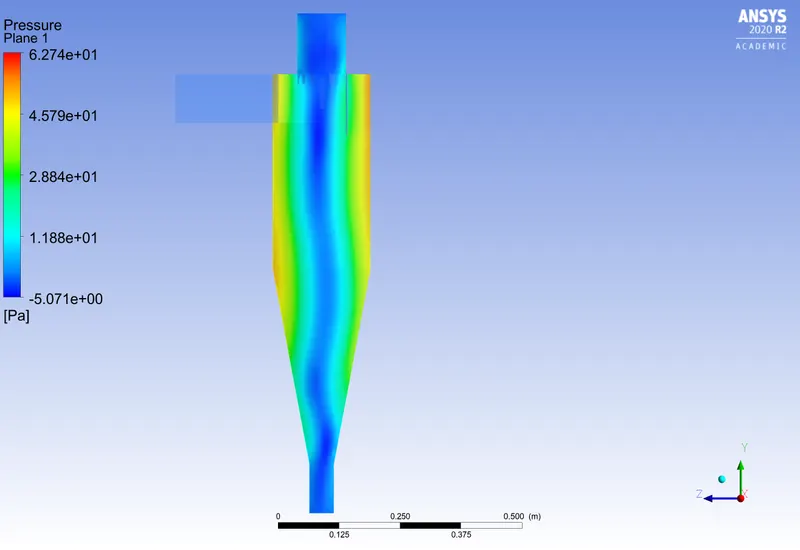

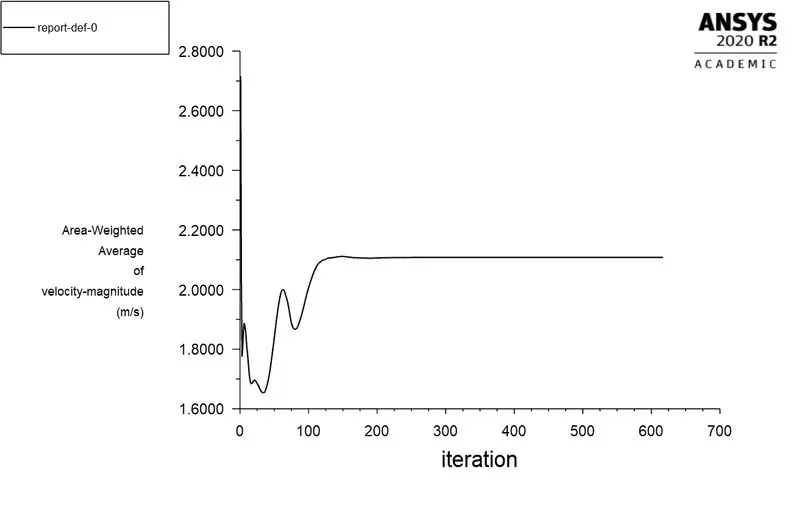

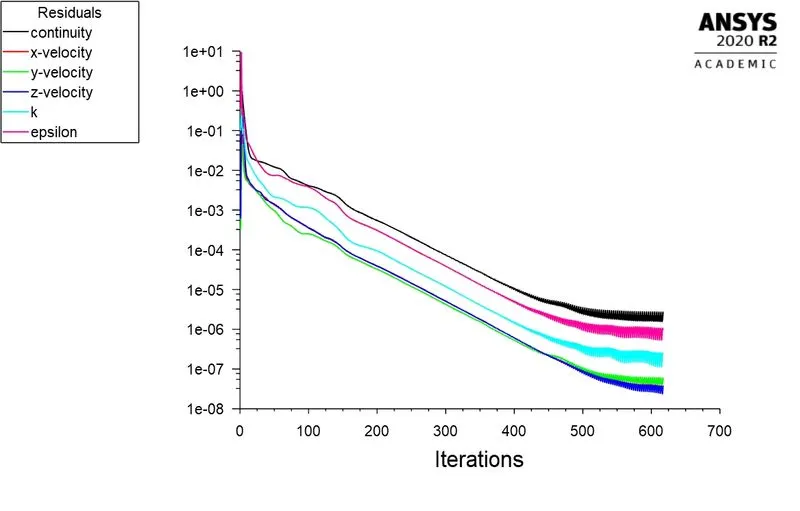

 Objective:                    To simulate cyclone separator with Discrete Phase Modelling in Ansys fluent. Theory: Empirical models used to calculate the cyclone separator efficiency: 1.Iozia and Leith Model Iozia and Leith logistic model is a modified version of…

Objective:            To simulate the steady-state conjugate heat transfer analysis on the model of a  graphics card. Theory: Conjugate heat transfer: The term Conjugate heat transfer is used to describe that when there is a heat transfer between solid to fluid and vice versa. The conjugate…

Objective:                To simulate the Multiphase flow of rayleigh Taylor instability in Ansys fluent. Theory: Multiphase flows take place in nuclear geothermal power plants, food processing industries, and many others. One of the basic examples is Rayleigh Taylor Instability.…

Objective:   To simulate the Exhaust manifold in Ansys fluent for analyzing the heat transfer and the flow of fluid inside. Conjugate heat transfer: The term Conjugate heat transfer is used to describe that when there is a heat transfer between solid to fluid and vice versa. The conjugate heat transfer (CHT)…

Objective:           External flow simulation over an Ahmed body in Ansys fluent. Theory: Ahmed's body and its importance The Ahmed body is a simplified vehicle model or a bluff model body with basic aerodynamic properties of a vehicle and it was developed for investigating the influence of…

Objective: Simulate the flow over a cylinder and explain the phenomenon of Karman vortex street.    Theory: Karman vortex street: It is a repeated pattern of swirl, caused due to vortex shedding. Vortex shedding is an oscillating flow that takes place when a fluid such as air or water flows past a bluff…
