Week 4 Challenge

Define tooling direction

Ans-The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

Write the definition of Parting line

Parting Line - A 'parting line' is the line of separation on the plastic part where the two halves of the plastic injection mold meet.

Prepare a report on how you have created the part and how did you approach creating a parting line and doing draft analysis.

Ans-

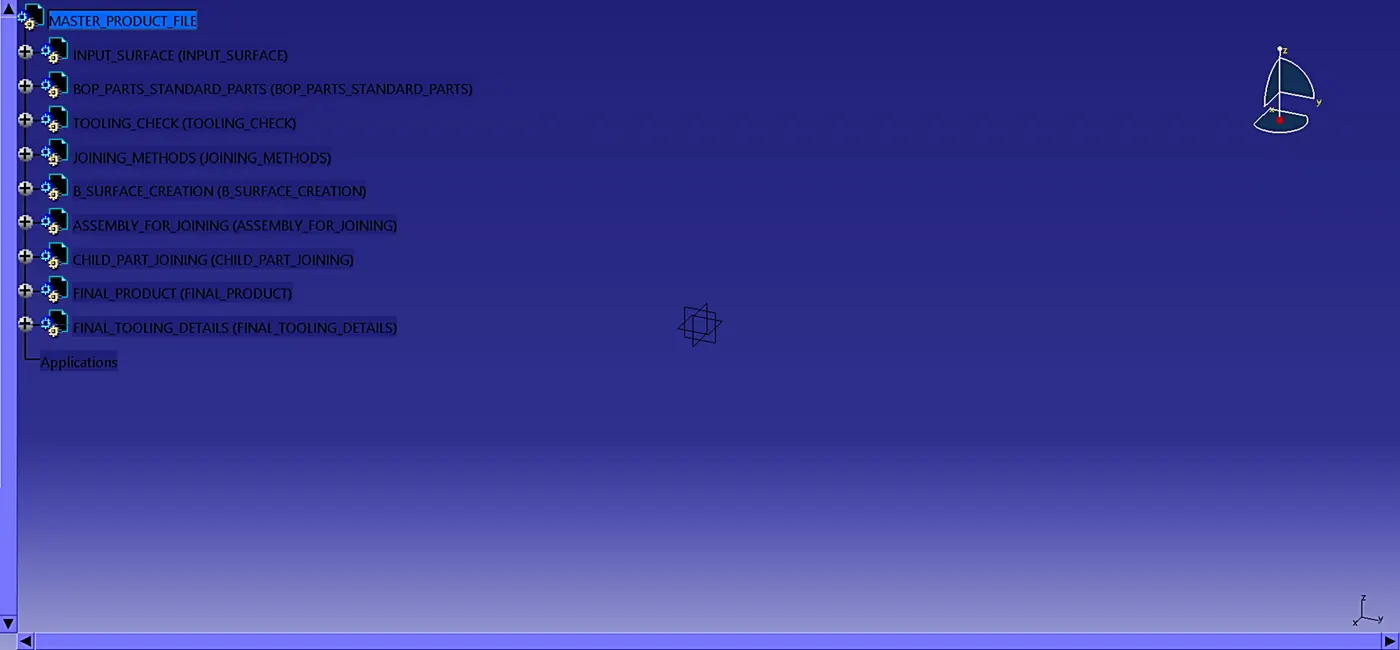

-Firstly I have created the Parametric Structure. So, that in the future model is easy to handle or Update.

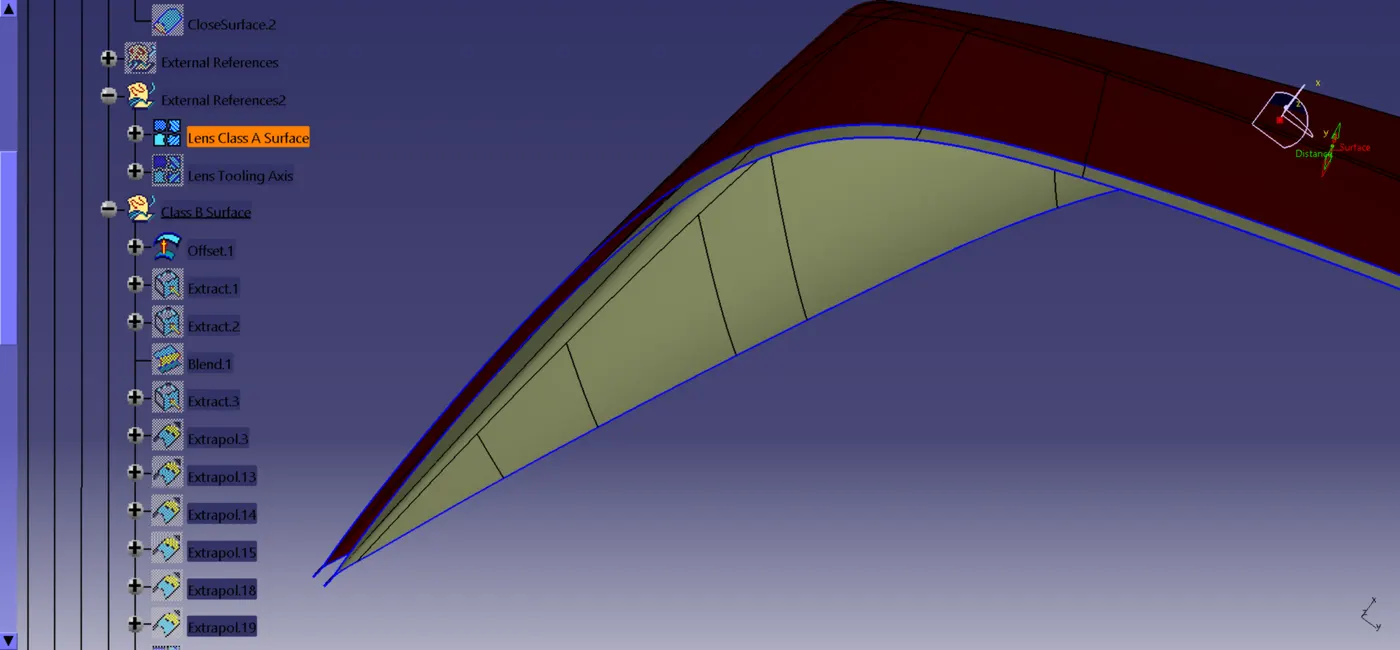

-then I have inserted the lens A-surface in the B-surface Part modeling.

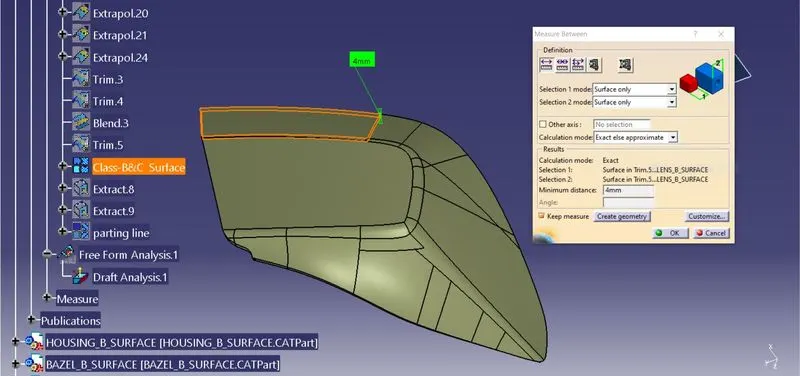

-then, Making an offset of 4mm the given class-A surface.

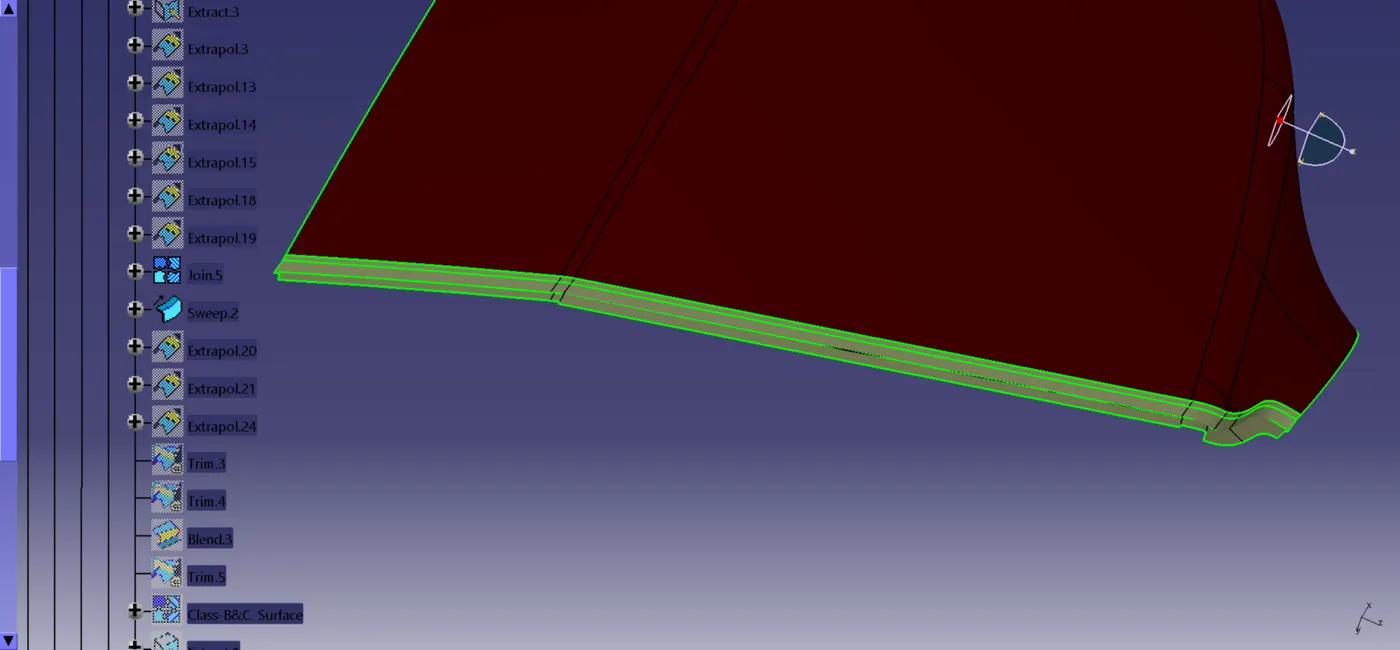

-Extracted the Class- A surface boundary. And having a sweep.

-Then, the offsets Class-B&A Surface is trimmed with the Sweep(Class-C Surface). so, that I will get the Closed Surface.

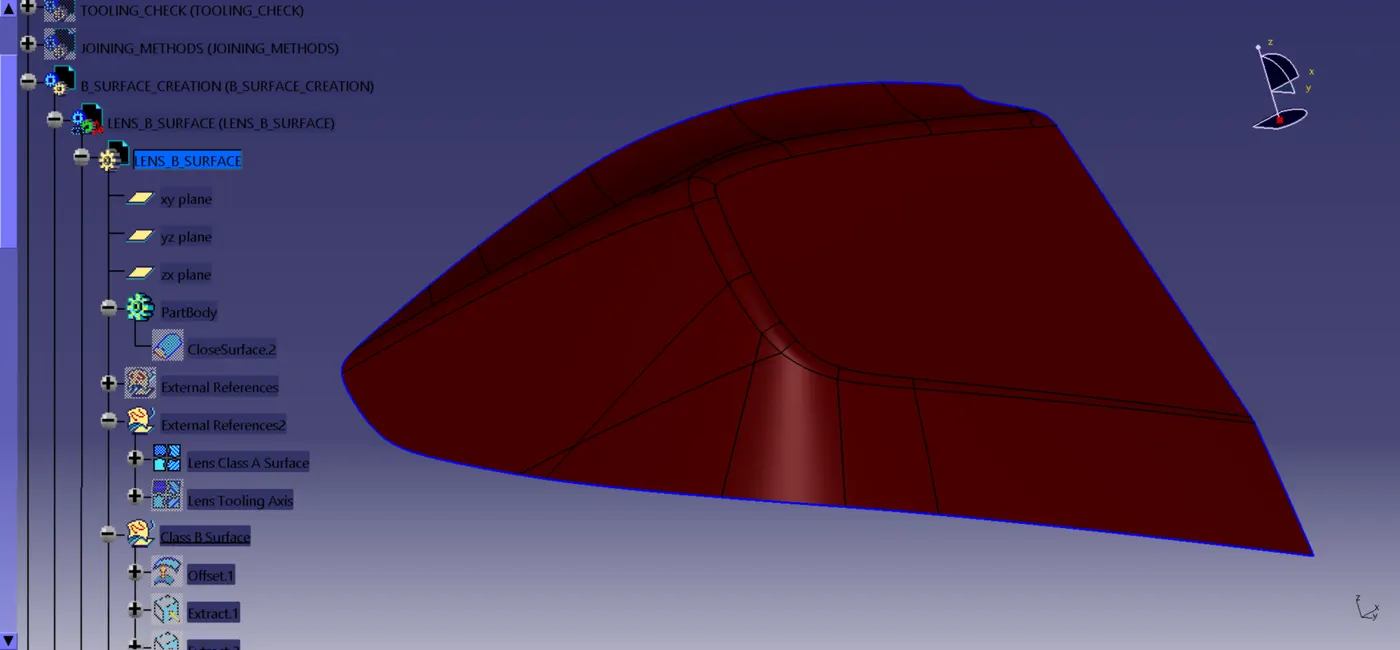

-After Creating the Closed surface.

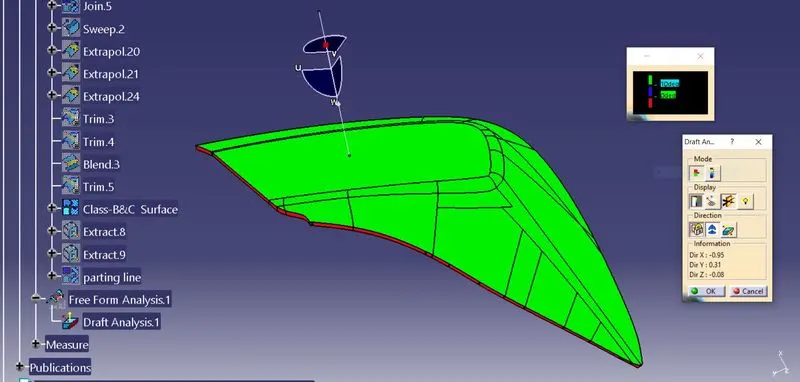

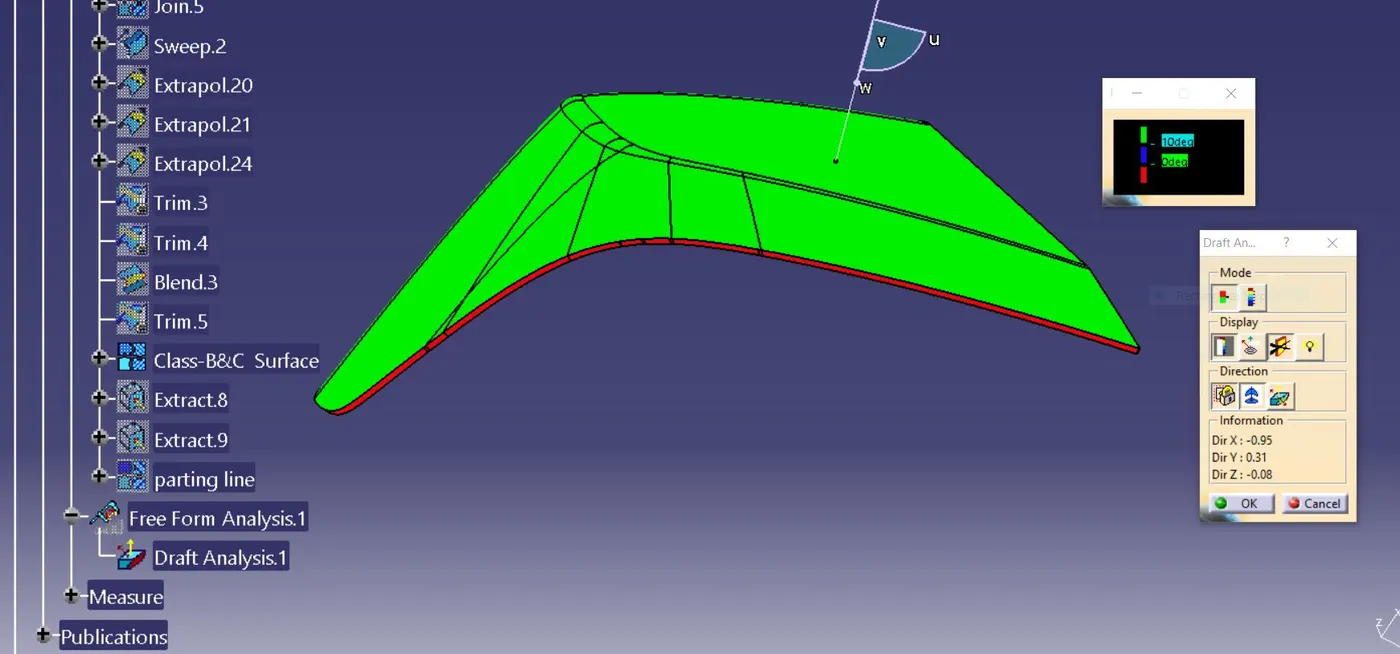

- the Model is going for draft analysis of 10degree along the tooling direction. to check the manufacturability of the product.

.

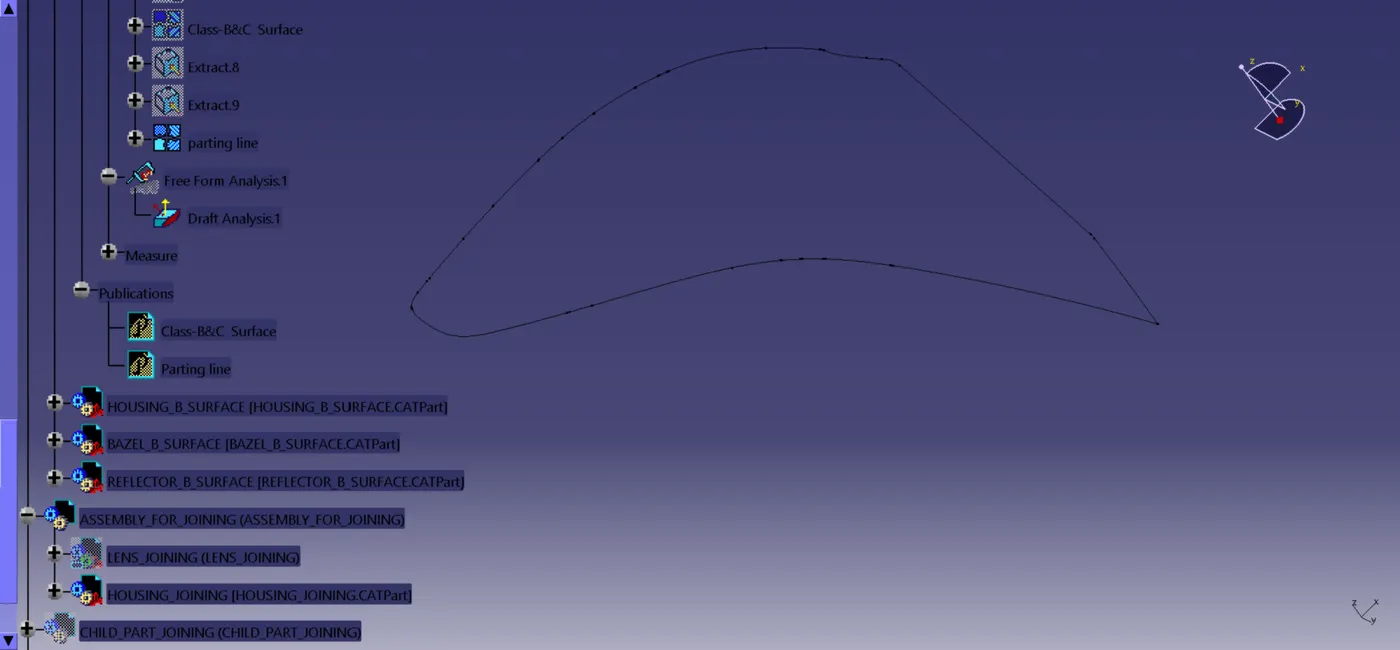

-Here I have extrected the upper boundries of the closed body. so, that i will get parting line of the given product.

-
