Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
*AIM:- -To write the program in matlabthat can generate the computational mesh automatically for any symmetric angle and grading schemes *Introdution:- -Hydrodynamic Entrance Length -Many different enterance lengths exist to describe a variety of flow conditions. The entrance length refers to the length of the entry…
Dhrumit Shah
updated on 04 Jun 2021
*AIM:-
-To write the program in matlabthat can generate the computational mesh automatically for any symmetric angle and grading schemes
*Introdution:-

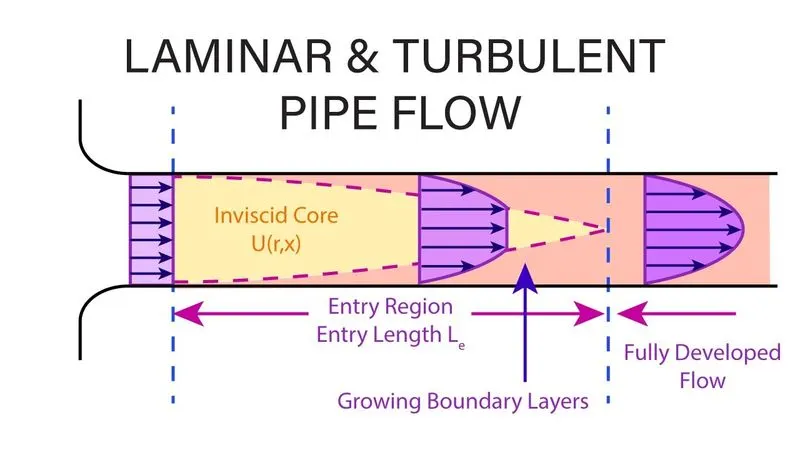

-Hydrodynamic Entrance Length
-Many different enterance lengths exist to describe a variety of flow conditions. The entrance length refers to the length of the entry region where effects from the pipe interior wall spread as an expanding boundary layer in the flow.
-The entrance length describes the distance travelled by the flow after entering the pipe before the flow becomes fully developed.
-Hydrodynamic entrance length describes the formation of a velocity profile caused by viscous forces propagating from the pipe wall.
-After the fluid becomes fully developed the flow characteristics no longer changes with the increased distance along the length of pipe.
-Entrance length for the laminar flow is given below:-
Entrance length=Le=0.06*Re*D
*Data:-
Reynold's number(Re):- 2100
Diameter of the pipe(D)= 0.02m
Radious of the pipe(R)= D/2= 0.01m
Density (rho)= 997 kg/m^3
Kinematic viscocity(v):- 0.00089 n/m^2
*Hagen-poisselus equation:-
- Poiseuille equation is a physical law that gives the pressure drop in an incompressible and newtonian fluid in laminar flow flowing through a long cylindrical pipe of constant cross section.
-Poiseuille's equation describes the pressure drop due to the viscocity of the fluid
-Average velocity:- Vavg=Re∙μρ∙D
-Maximum velocity:- Vmax=2∙Vavg
-Pressure difference:- ∆p=8∙μ∙L∙Vavgr2
-Kinematic pressure difference:- ∆Pk=∆pρ
-Shear stress:-τ=2∙μ∙Vmax∙Rr2
*BlockMeshDict:-
i) For 10 degree:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0) //0
(0 9.9619e-03 8.7155e-04) //1
(0 9.9619e-03 -8.7155e-04) //2
(2.82 0 0) //3
(2.82 9.9619e-03 8.7155e-04) //4
(2.82 9.9619e-03 -8.7155e-04) //5
);
blocks
(
hex (0 3 5 2 0 3 4 1) (500 25 1) simpleGrading (1 0.2 1)
);
edges
(
arc 1 2 (0 1e-2 0)
arc 4 5 (2.82 1e-2 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
top
{
type wall;
faces
(
(1 4 5 2)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //ii) For 25 degree:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0) //0
(0 9.7629e-03 2.1643e-04) //1
(0 9.7629e-03 -2.1643e-04) //2
(2.82 0 0) //3
(2.82 9.7629e-03 2.1643e-04) //4
(2.82 9.7629e-03 -2.1643e-04) //5
);
blocks
(
hex (0 3 5 2 0 3 4 1) (500 25 1) simpleGrading (1 0.2 1)
);
edges
(
arc 1 2 (0 1e-2 0)
arc 4 5 (2.82 1e-2 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
top
{
type wall;
faces
(
(1 4 5 2)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //iii) For 45 degree:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0) //0
(0 9.2387e-03 8.8268e-04) //1
(0 9.2387e-03 -8.8268e-04) //2
(2.82 0 0) //3
(2.82 9.2387e-03 8.8268e-04) //4
(2.82 9.2387e-03 -8.8268e-04) //5
);
blocks
(
hex (0 3 5 2 0 3 4 1) (500 25 1) simpleGrading (1 0.2 1)
);
edges
(
arc 1 2 (0 1e-2 0)
arc 4 5 (2.82 1e-2 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
top
{
type wall;
faces
(
(1 4 5 2)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //2) transportproperties:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.9256e-07;
// ************************************************************************* //3) controlDict:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 0.8;
deltaT 1e-3;
writeControl timeStep;
writeInterval 10;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //4) fvschemes:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object fvSchemes;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
ddtSchemes
{
default Euler;
}
gradSchemes
{
default Gauss linear;
grad(p) Gauss linear;
}
divSchemes
{
default none;
div(phi,U) Gauss linear;
}
laplacianSchemes
{
default Gauss linear orthogonal;
}
interpolationSchemes
{
default linear;
}
snGradSchemes
{
default orthogonal;
}
// ************************************************************************* //5) fvsolutions:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object fvSolution;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
solvers
{
p
{
solver PCG;
preconditioner DIC;
tolerance 1e-06;
relTol 0.05;
}
pFinal
{
$p;
relTol 0;
}
U
{
solver smoothSolver;
smoother symGaussSeidel;
tolerance 1e-05;
relTol 0;
}
}
PISO
{
nCorrectors 2;
nNonOrthogonalCorrectors 0;
pRefCell 0;
pRefValue 0;
}
// ************************************************************************* //6) Pressure:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 5.377;
}
top
{
type zeroGradient;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //7) Velocity:-
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.09373 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.09373 0 0);
}
outlet
{
type zeroGradient;
}
top
{
type noSlip;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //*Geometry:-

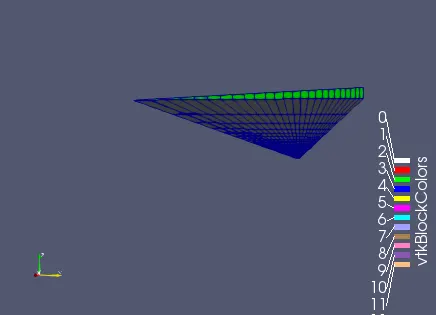

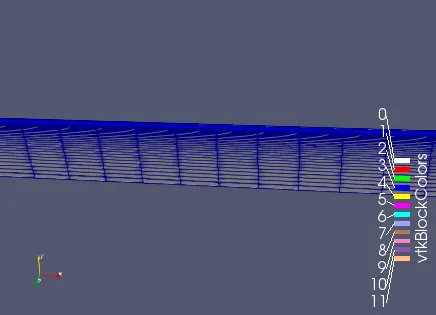

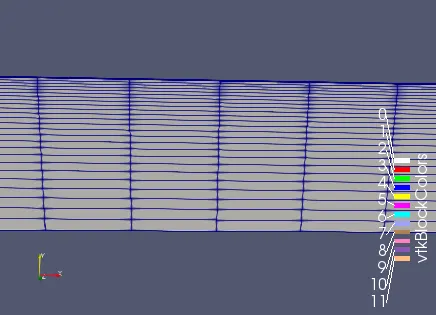

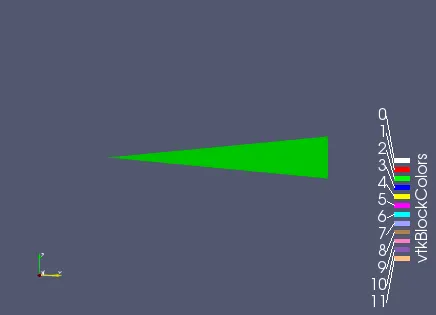

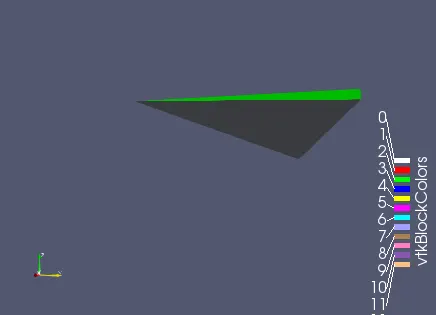

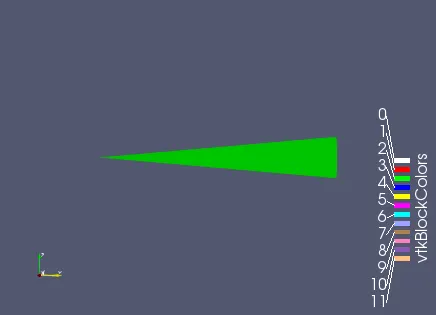

i) For 10 degree:-
ii) For 25 degree:-
iii) For 45 degree:-
*Matlab code:-
clear all
close all
clc
%Reynold's number
Re=2100;
%Diameter of pipe
D=0.02;
%Entry length of pipe
L=0.06*Re*D;
%Total length of pipe
L_P=L+3;
%Radious of pipe
r=D/2;
%Angle of wedge
theta=10;
%theta=25 & 45
%Dynamic viscocity
mu=0.89e-03;
%Density
rho=997;
%Hagen poissuel flow equation
%Average velocity
v_avg=(Re*mu)/(rho*D);
%Maximum velocity
v_max=2*(v_avg);
%Pressure difference
del_p=(8*mu*L_P*v_avg)/(r^2);
%Kinematic pressure
kinematic_p=del_p/rho;
%Calculating shear stress

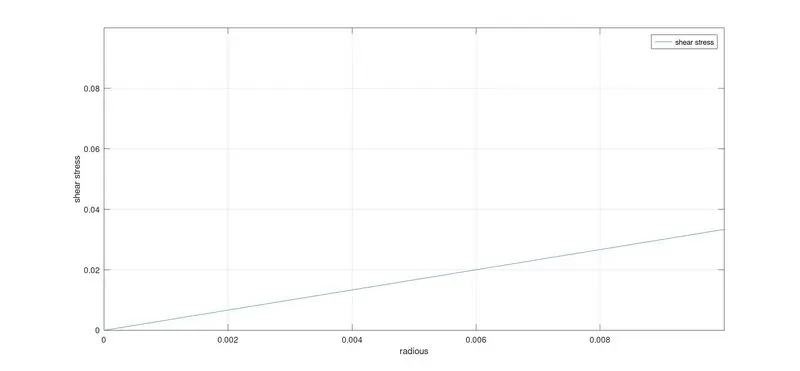

R=linspace(0,(D/2),1000);
for i=1:length(R)
%Shear stress
tau(i)=2*mu*v_max*(abs(R(i)))/r^2;
end
plot(R,tau)
xlabel('radious');
ylabel('shear stress');
axis([0 0.01 0 0.1]);
grid on
legend('shear stress');
header1='/*--------------------------------*- C++ -*----------------------------------*\'
header2=' ========= | '
header3=' \\ / F ield | OpenFOAM: The Open Source CFD Toolbox '
header4=' \\ / O peration | Website: https://openfoam.org '
header5=' \\ / A nd | Version: 8 '
header6=' \\/ M anipulation | '
header7='\*---------------------------------------------------------------------------*/'
f1=fopen('blockMwshdict','w')
fprintf(f1, '%s\n', header1)
fprintf(f1, '%s\n', header2)
fprintf(f1, '%s\n', header3)
fprintf(f1, '%s\n', header4)
fprintf(f1, '%s\n', header5)
fprintf(f1, '%s\n', header6)
fprintf(f1, '%s\n', header7)
fprintf(f1, 'FoamFile\n{\n')
fprintf(f1, '%s \t 2.0;\n','version')
fprintf(f1, '%s \t ascii;\n','format')
fprintf(f1, '%s \t dictionary;\n','class')
fprintf(f1, '%s \t blockMeshDict;\n','object')
fprintf(f1, '}\n')
header8='\*---------------------------------------------------------------------------*/'
fprintf(f1, '%s\n\n', header8)
fprintf(f1, 'conertToMeters 1;\n\n')
fprintf(f1,'vertices\n')
fprintf(f1,'(\n')
fprintf(f1, '\t (%d %d %d)\n',0,0,0)
fprintf(f1, '\t (%d %d %d)\n',0,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, '\t (%d %d %d)\n',0,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, '\t (%d %d %d)\n',L_P,0,0)
fprintf(f1, '\t (%d %d %d)\n',L_P,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, '\t (%d %d %d)\n',L_P,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, ');\n\n')
fprintf(f1,'block\n')
fprintf(f1,'(\n')
fprintf(f1, '\t hex (0 3 5 2 0 3 4 1) (%d %d %d)',500,25,1)
fprintf(f1, 'simpleGrading (1 0.2 1)\n\n')
fprintf(f1, ');\n\n')
fprintf(f1,'edges\n')
fprintf(f1,'(\n')
fprintf(f1, '\t arc %d %d (%d %d %d)\n',1,2,0,r,0)
fprintf(f1, '\t arc %d %d (%d %d %d)\n',4,5,L_P,r,0)
fprintf(f1, ');\n\n')
fprintf(f1,'boundary\n')
fprintf(f1,'(\n')
fprintf(f1, '\t inlet \n')
fprintf(f1, '\t {\n')
fprintf(f1, '\t\t type patch;\n')
fprintf(f1, '\t\t faces \n')
fprintf(f1, '\t\t (\n')
fprintf(f1, '\t\t\t(0 1 2 0)\n')
fprintf(f1, '\t\t);\n')
fprintf(f1, '\t }\n')
fprintf(f1, '\t outlet \n')
fprintf(f1, '\t {\n')
fprintf(f1, '\t\t type patch;\n')
fprintf(f1, '\t\t faces \n')
fprintf(f1, '\t\t (\n')
fprintf(f1, '\t\t\t(3 5 4 3)\n')
fprintf(f1, '\t\t);\n')
fprintf(f1, '\t }\n')
fprintf(f1, '\t top \n')
fprintf(f1, '\t {\n')
fprintf(f1, '\t\t type wall;\n')
fprintf(f1, '\t\t faces \n')
fprintf(f1, '\t\t (\n')
fprintf(f1, '\t\t\t(1 4 5 2)\n')
fprintf(f1, '\t\t);\n')
fprintf(f1, '\t }\n')
fprintf(f1, '\t front \n')
fprintf(f1, '\t {\n')
fprintf(f1, '\t\t type wall;\n')
fprintf(f1, '\t\t faces \n')
fprintf(f1, '\t\t (\n')
fprintf(f1, '\t\t\t(0 3 4 1)\n')
fprintf(f1, '\t\t);\n')
fprintf(f1, '\t }\n')
fprintf(f1, '\t axis \n')
fprintf(f1, '\t {\n')
fprintf(f1, '\t\t type empty;\n')
fprintf(f1, '\t\t faces \n')
fprintf(f1, '\t\t (\n')
fprintf(f1, '\t\t\t(0 3 3 0)\n')
fprintf(f1, '\t\t);\n')
fprintf(f1, '\t }\n')
fprintf(f1,'mergePatchParis\n')
fprintf(f1, '(\n')
fprintf(f1, ');\n')
header9='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //'
fprintf(f1, '%s\n', header9)
fclose(f1)*Plot of shear stress vs Radious:-
Leave a comment
Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.
Other comments...
Be the first to add a comment
Read more Projects by Dhrumit Shah (40)
Photo Realistic Rendering
*Model name:- Design of american chooper *Introdution:- -This report contains brief explanation of designing of american chooper using solid works 3D modelling cad software; from initial sketch to final rendering including solid modeling, surface modeling tools explanation *Objective:- -The main objective of this designing…
23 Jul 2021 08:41 AM IST
Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
*AIM:- -To write the program in matlabthat can generate the computational mesh automatically for any symmetric angle and grading schemes *Introdution:- -Hydrodynamic Entrance Length -Many different enterance lengths exist to describe a variety of flow conditions. The entrance length refers to the length of the entry…
04 Jun 2021 04:49 PM IST
Week 11 - Simulation of Flow through a pipe in OpenFoam
*AIM:- -To write a program in matlab that can generate the computational mesh automatically for any wedge angle and grading schemes -To calculate the length of the pipe using the entry length formula for laminar flow through a pipe -To compare velocity profiles at different positions along the length of the pipe *Introdution:-…
04 Jun 2021 04:49 PM IST
Week 8 - Simulation of a backward facing step in OpenFOAM
*AIM:- -Simulation of a backword facing step in the openfoam software *Objective:- -In this simulation we produce mesh using openFoam software and show the post-processing result just like change in velocity and pressure gradient using paraview. -In this case we use an incompressible-laminar-viscous flow. -Simulate…
02 Jun 2021 01:06 PM IST
Related Courses
Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.
Our Company
4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
Top Individual Courses
Top PG Programs
Skill-Lync Plus
Trending Blogs
© 2025 Skill-Lync Inc. All Rights Reserved.
