Project 2 - Rankine cycle Simulator

Motorcycle Suspension: A motorcycle's suspension serves a dual purpose: contributing to the vehicle's handling and braking and providing safety and comfort by keeping the vehicle's passengers comfortably isolated from road noise, bumps, and vibrations.The typical motorcycle has a pair of fork tubes for…

Aim - To create a 3D Model of a Sunseeker Predator Yacht   Objectives -  To 3D Model Parts of Sunseeker Predator Yacht To create an assembly of a Sunseeker Predator Yacht To create Photorealistic Rendering of Sunseeker Predator Yacht   Introduction -  Solidworks - Solidworks also known as DSS Solidworks,…

DESIGN OF AMERICAN CHOPPER USING SOLIDWORKS OBJECTIVE The objective of the project is to modelon AMERICAN CHOPPER using a CAD (computer aided drafting} soltwore­ SOL/DWORKS and to render it with SOL/OWORKSvisuolize to create a photoreolistic view of it.   INTRODUCTION This project…

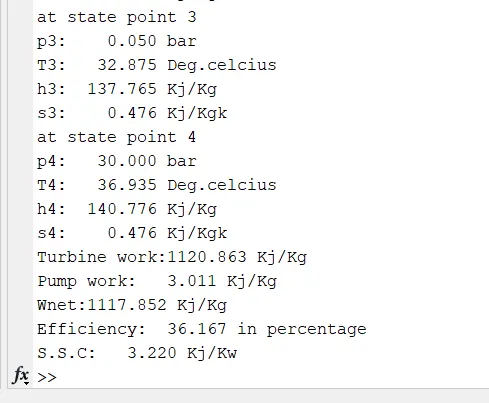

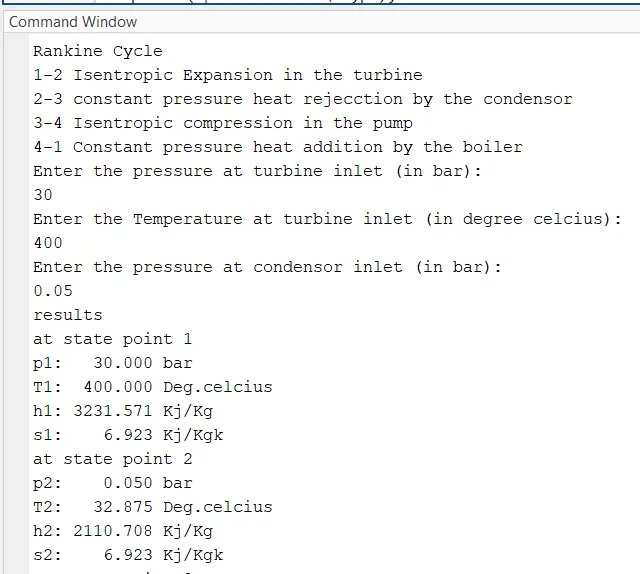

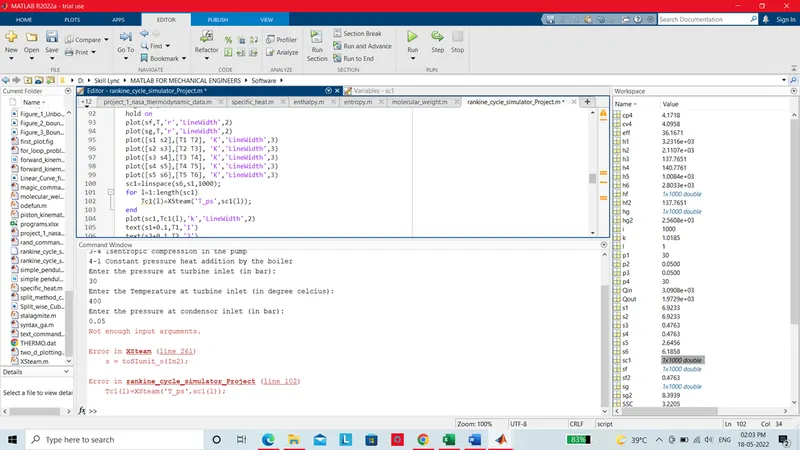

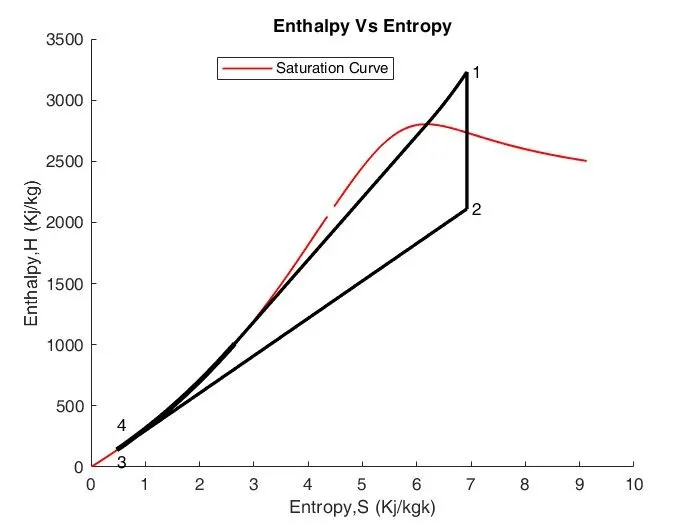

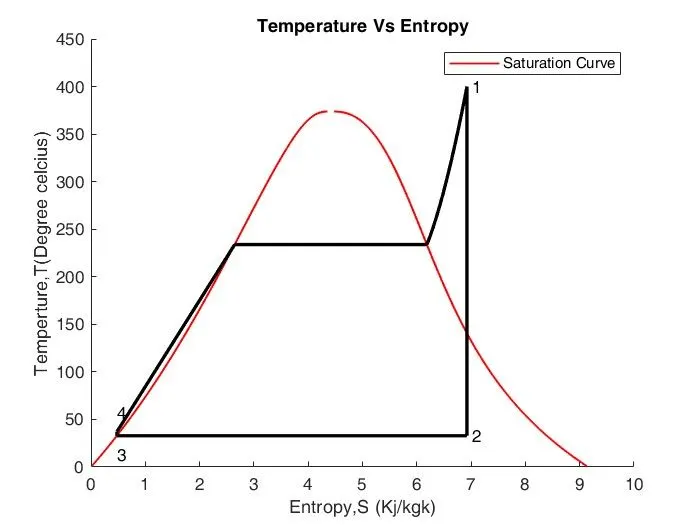

Aim:- Create a Rankine Cycle Simulator using MATLAB.   Objective:- Calculate the state points of the Rankine Cycle (any type of your choice) based on user inputs.  Plot the corresponding T-s and h-s plots for the given set of inputs. To get output in Command Window for all state points.   Theory:- Rankine…

AIM:- Advanced Sheet Metal Design Using NX Cad Metal bracket-II OBJECTIVE:-The Designing of an odd Shaped sheet metal parts using Siemens NX Sheet Metal. The main objectives of this project are conversation a 2D drawing into a sheet metal part, adding odd shapes to the part by using features and tools available in the…

Objective:- To design the bracket by using the sheet metal application. Introduction:-        NX CAD is the most powerful used in Designing software, flexible, and innovative product development solution in the industry. NX used for Design has the features, performance and capabilities to help you get…

TITLE:- Odd shaped enclosure using NX CAD OBJECTIVE:- To design sheet metal part for odd shapes as per the workflow procedure by using NX-CAD software with suitable commands to achieve the final product as per the inputs. Introduction:- NX Sheet Metal provides a set of tools within the NX design environment…

Title:- Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly. Objective:- To design a Box assembly using Siemens NX Sheet metal application. Introduction:- Sheet metal is metal formed by an industrial process into thin, flat pieces. Sheet metal is one of the fundamental forms used in metal working…

  OBJECTIVE   Create a Sheet Metal Casing design using Siemens NX cad software and there by learn the Sheet Metal design process     INTRODUCTION   In manufacturing industry Sheet Metal is one of the most versatile one. The main compositions are steel, aluminum, brass, copper, tin, nickel,…

DESIGN OF BACK DOOR    BACK DOOR:            The back door of a car is the vehicle's main storage or cargo compartment, often a hatch at the rear of the vehicle. It's also called a tailgate.The back door or luggage compartment is most often located at the rear…

Front View:- Top View:- Side View:- Isometric View:- Draft Sheet:-

Objectives:-  Create a car roof model based on the styling surface master sections given for various parts with mastic points & rein forcements.  Determine whether the design is complying with heat distortion criteria through curvature study on the roof.  Check section modulus of front roof rail, rear roof rail ,bow roof…

 FENDER:                Fender is the american english term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well.Early automobile fenders set over the wheels to prevent mud, sand and dust being thrown on to the body and the occupants. Fenders typically became a more integral part of…

 Wheel arch area:-                            The wheel arch is the semicircular part positioned above the wheel of a vehicle.The most important body change was that the front wheel arch was cut higher into the fender.Corrosion had occurred around the splash plate at the back of the wheel arch.The car has big, high-definition…

Section modulus:- For general design, the elastic section modulus is used, applying up to the yield point for most metals and other common materials. The elastic section modulus is defined as S = I / y, where I is the second moment of area (or area moment of inertia) and y is the distance from the neutral axis to any given…

Aim:         Design Hood outer panel, inner panel and the necessary reinforcements by following the Master section mentioned with the design parameters. Given Inputs:  HOOD:             The hood or bonnet is the hinged cover over the engine of …

CV Joint:-Quick Return Motion Mechanism:-

DESIGNING A PILLAR USING MASTER SECTION OBJECTIVES To improvise the Class A surface by resolving bad patches and adding flanges to it.  To create A pillar solid model with the help of  improvised class A surface. To create B side features for the A Pillar using the master section given to us as an input. To create…

 DOOR TRIM LOWER Aim: To Create the Door trim lower component through the given Class-A surface. Objectives: Creation of Tooling axis with appropriate draft angle. Creation of other surfaces (eg, B and C surfaces) for creating a solid component. • Perform Draft analysis on Class A surface and Solid model hence…

 DOG HOUSE DESIGN ON DOOR TRIM:- AIM:- Create the Dog House for the Door Trim considering the design rules. C is where the doghouse contacts the back side of the surface Doghouse wall thickness at the intersection of the part wall (C ) should be 40% or less than the main wall stock (T). Height of (B) should be…

 DOOR HANDLE:- Tooling Axis creation:- It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.By analysing the component the most easily ejectable direction is somewhere close to the Z direction,(might…

AIM:- To create the core and cavity for the switch bezel condering the all design rules. TOOLING AXIS:- IT IS THE AXIS IN WHICH THE DIRECTION CORE AND CAVITY OPEN. THIS IS THE VERY IMPORTANT FOR PRODUCTION OF PLASTIC COMPONENT. MOST OF THE DEFECT WILL DONE IMPROPER TOOLING AXIS CREATION BY THE PLASTI DESIGNER. THERE ARE…

 BUMPER DESIGN:-AIM:- To make a model from the provided class-A surface. INTRODUCTION:- CLASS-A SURFACE:-  a surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surface and the outer most surface. CLASS-B SURFACE:-  a surface below a certain thickness from the class-A…

 AIM:- Creating  the coin holder plastic component through the A-class surface and add thickness to it . Objective : Creating the B and C surface  Creating the tooling axis  Performing the draft analysis on both A surface and final plastic components. Take the Thickness of the component to be 2.5 mm Introduction :- The…

  Objective:- The main objective of this challenge is to create a 3D solid body from the above-given class A surface, with the help of a tooling axis of the class A surface. Perform the draft analysis for the solid part body at the end. Tooling Direction:- In Molding, machine arrangement is given to open the mould along…

OBJECTIVE:- The objective of the project is to design the class B and C surface for the Base bracket with the given class A surface and Draft analysis must be carried out by creating a perfect Tooling direction by using the Bisecting method. INTRODUCTION:- The Draft Analysis command enables you to detect if the part you…

Underbody Coating:- The automobile industry is the most growing industry and economical value is been improoving in INDIA with increase in population. Now a days many people are using car. When people buys a car it is advisable to take care of car through out its life. In Indian road conditions, a car’s underbody is most…

BENCHMARKING:- OBJECTIVE: Picking up cars based on customer requirements with the help of benchmarking  WHAT IS BENCHMARKING? Benchmarking is defined as the process of measuring products, services, and processes against those of organizations known to be leaders in one or more aspects of their operations.…

OBJECTIVE :- PARSING NASA THERMODYNAMIC DATA. clear all close all clc %filereading f1 = fopen('THERMO.dat','r'); for i = 1:5 fgetl(f1) end for j = 1:53 a = fgetl(f1); b = strsplit(a,' '); speciesname = b{1}; %localtempreature low_temp = str2double(b{end-3}); high_temp = str2double(b{end-2}); mid_temp = str2double(b{end-1});…

 OBJECTIVE :- GENETIC ALGORITHM. clear all close all clc %Defining our search space x = linspace(0,0.6,150); y = linspace(0,0.6,150); %creating a 2dimensional mesh [xx,yy] = meshgrid(x,y); %evaluating the stalagmite function for i = 1:length(xx) for j = 1:length(yy) input(1) = xx(i,j); input(2) = yy(i,j); f(i,j) = stalagmite1(input);…

   OBJECTIVE = SECOND ORDER ODE ODE is to describe the transient behavior of a system. A simple example is a pendulum.the pendulum moves depends on the Newtons second law. ODE represents the equation of motion of a simple pendulum with damping. the equation :- (d^2(theta)/dt^2)+b/m(d(theta)/dt)+g/l(sin(theta))=0…

clear all close all clc %input L1 = 1; L2 = 0.5; theta1 = linspace(0,90,30); theta2 = linspace(0,90,30); ct=1; for i = 1:length(theta1) THETA1 = theta1(i); for j = 1:length(theta2) THETA2 =theta2(j); x0=0; y0=0; x1 = L1*cosd(THETA1); y1 = L1*sind(THETA1); x2 = x1 + L1*cosd(THETA2); y2 = y1 + L1*sind(THETA2); %plotting…
