Fender Design - Wheel Arch Challenge

 Wheel arch area:-

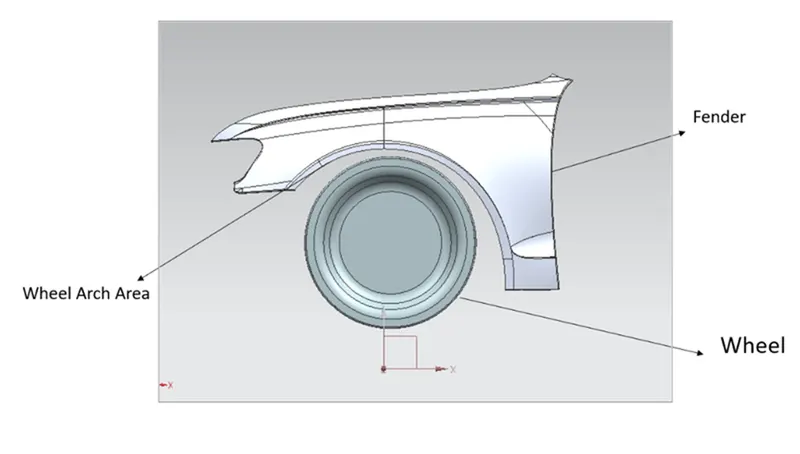

                           The wheel arch is the semicircular part positioned above the wheel of a vehicle.The most important body change was that the front wheel arch was cut higher into the fender.Corrosion had occurred around the splash plate at the back of the wheel arch.The car has big, high-definition headlights that extend to the wheel arch.

Europian Standards of wheel arch:-

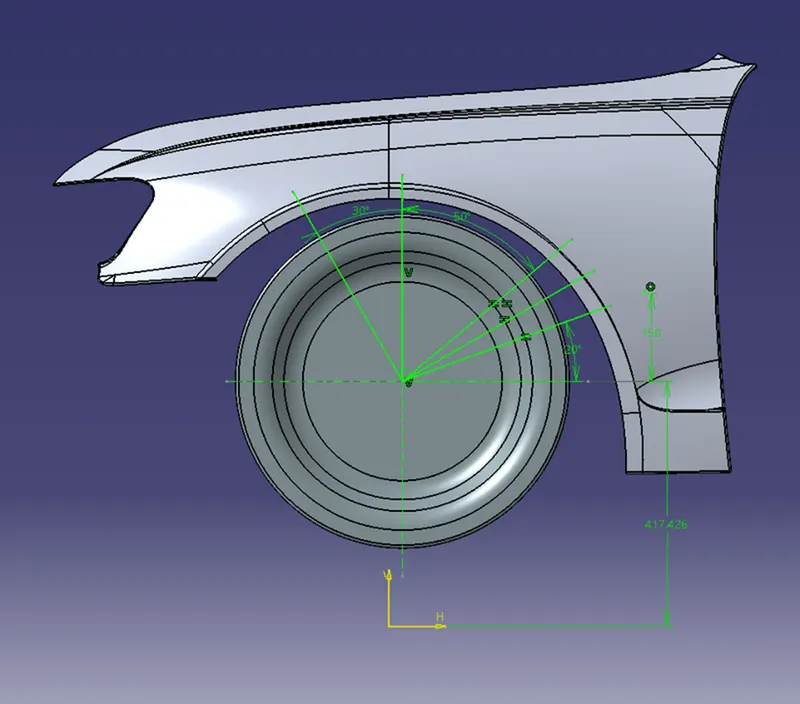

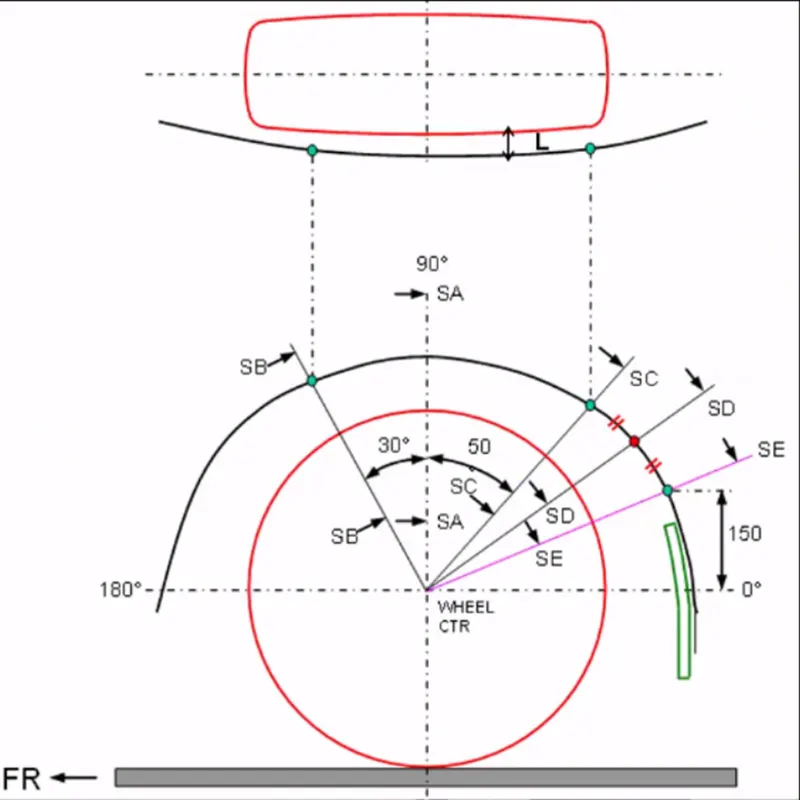

              The clearance value will be more than 10mm at 30 degree at forward and 50 degree at point between 50 degree and line above 150mm.

Measurements:-

SB:-

SA:-

SC:-

SD:-

SE:-

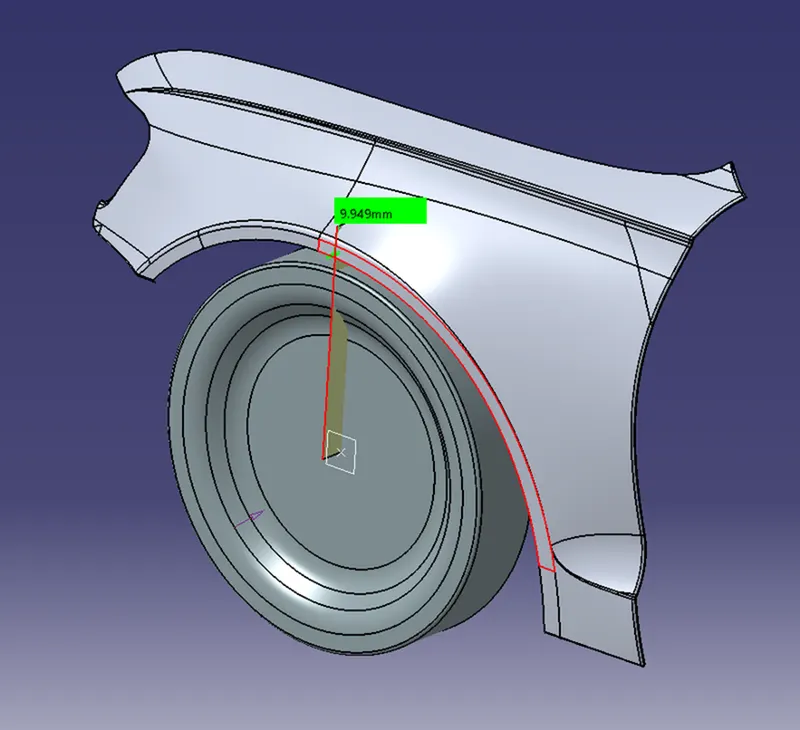

SA 9.949 mm               Fail

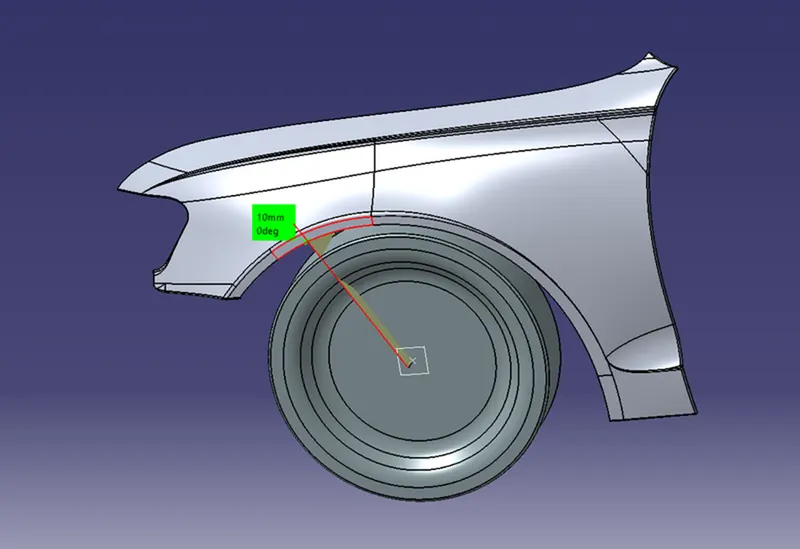

SB 10 mm                    Pass

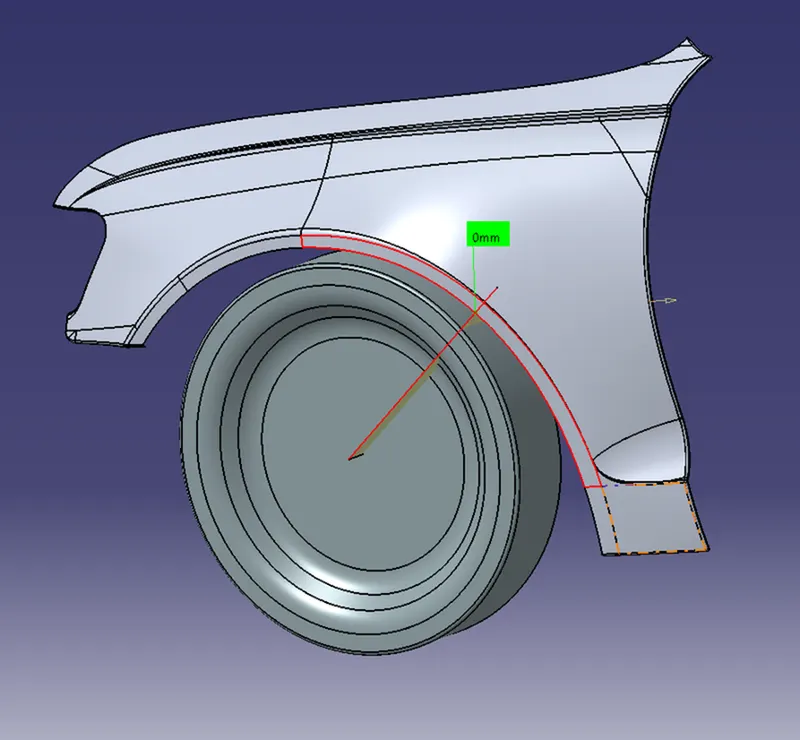

SC 0 mm                      Fail

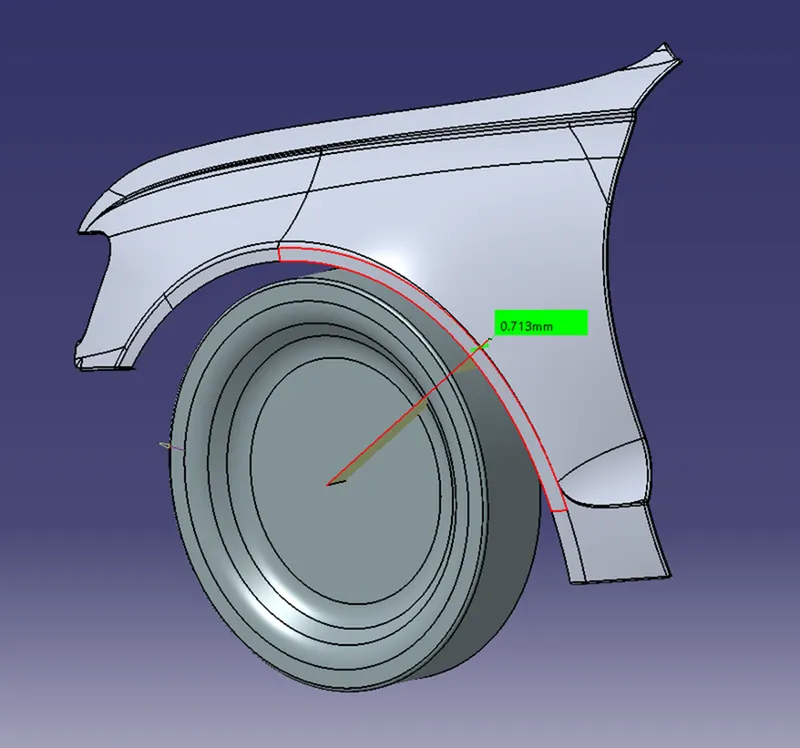

SD 0.713 mm                Fail

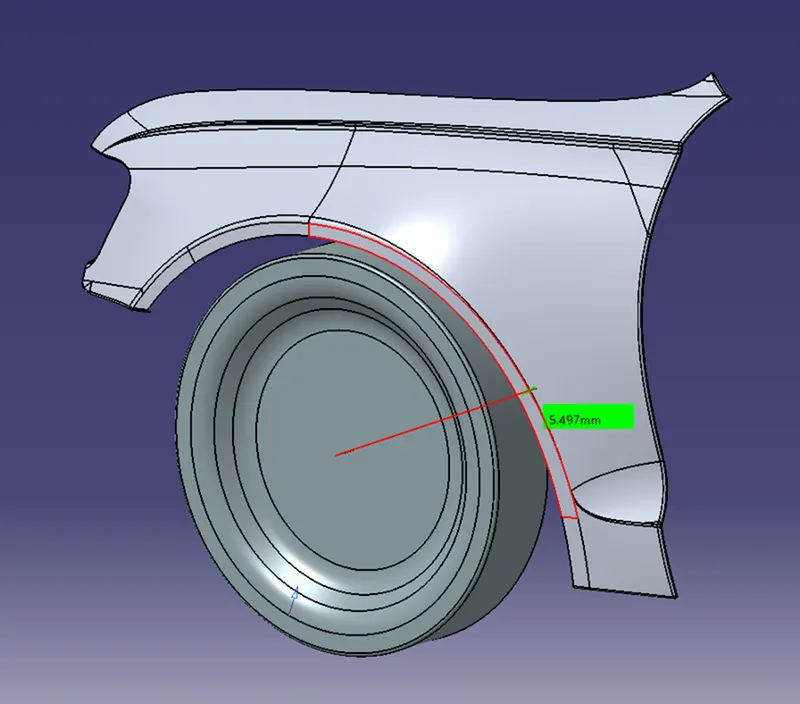

SE 5.497 mm                Fail

Conclusion:-

                   The fender does not pass the European standards and the length L of 10mm is pass only at section SB, curvature at SA SC SD and SE needs to be modified by the styling team.
