Fender Design

 FENDER:

              Fender is the american english term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well.Early automobile fenders set over the wheels to prevent mud, sand and dust being thrown on to the body and the occupants. Fenders typically became a more integral part of overall auto bodies by the mid-1930s.

Types of Fenders

1) Full Bumper Type:-

           These type of Fenders were used earlier which added more weight to the car

2) Hall Bumper Type:-

           These are the most commonly used Fenders these days as it saves the material wastage of scraps and hence reduce the weight of car which results in better performance of the car. Further A Baffle a plastic material added to the sheet metal fender which reduces the overall cost of the product.

 Fender design

1. Drip area
2. A pillar mount
3. Sill mount
4. Cowl mount
5. Bumper mount

Design of Drip area mount:-

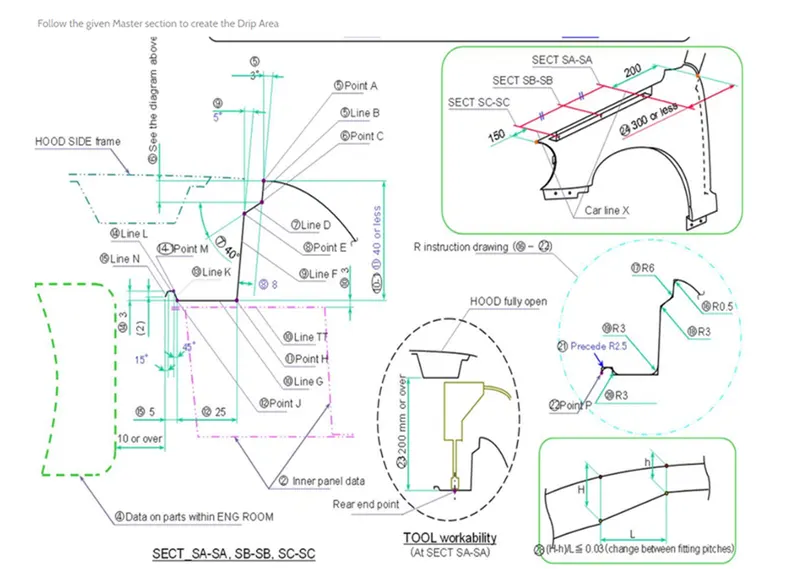

               Master section was followed to create Drip area mount. Embossig and ribs was created on drip area

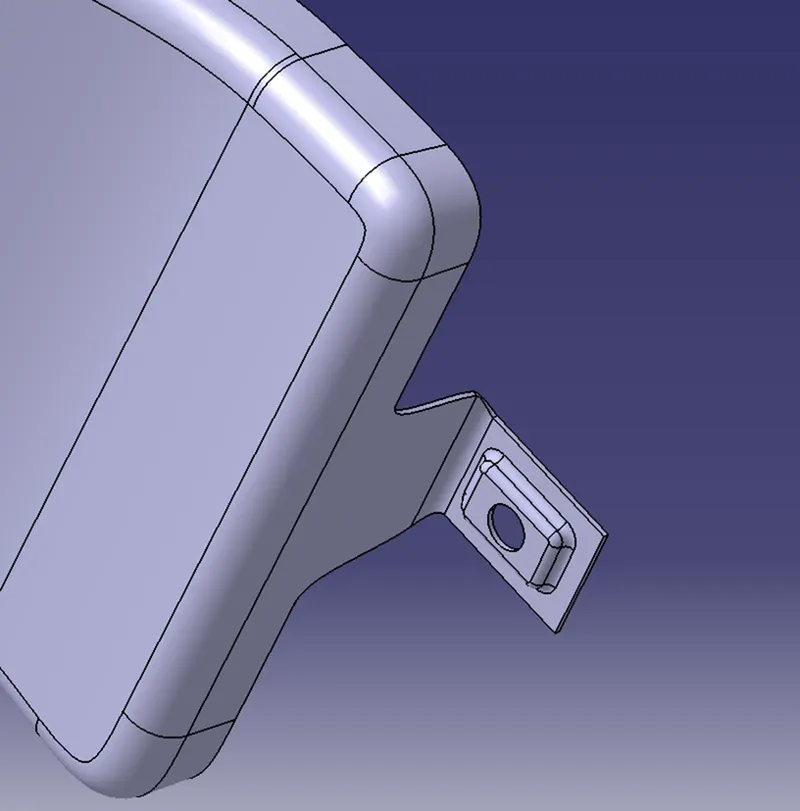

Design of A pillar mount:-

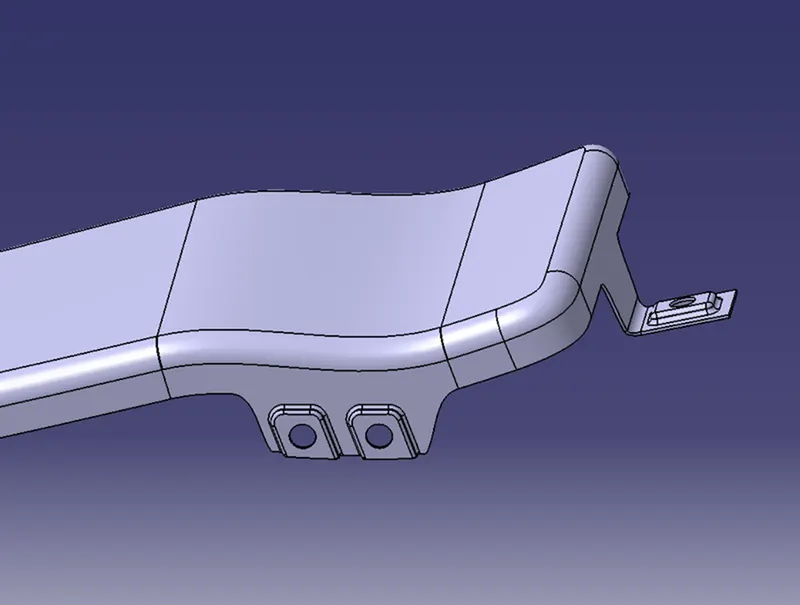

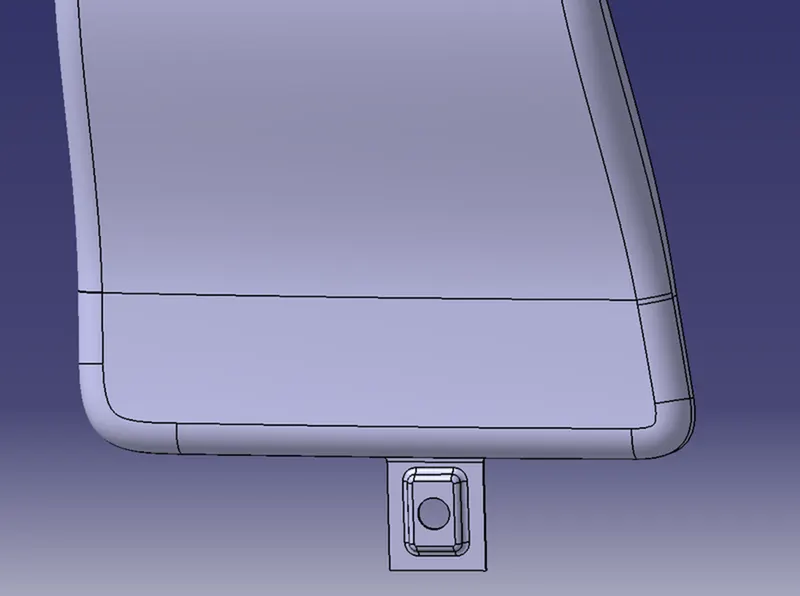

Design of Sill mount:-

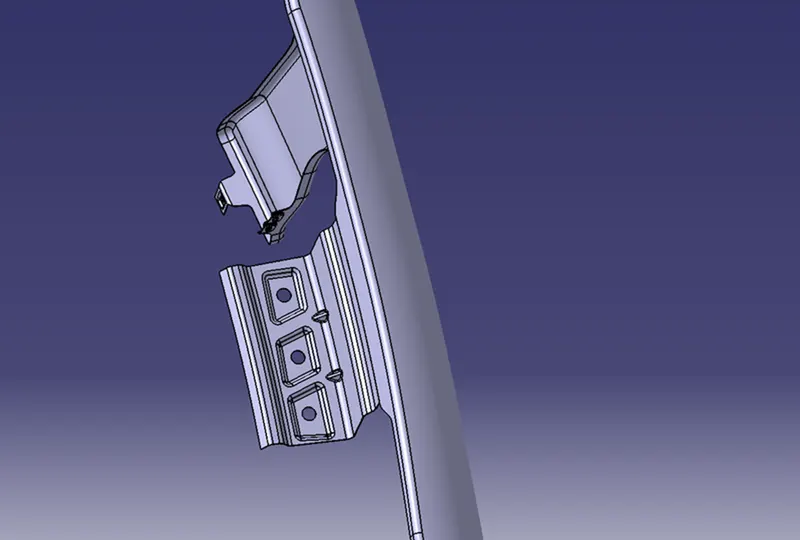

Cowl mount:-

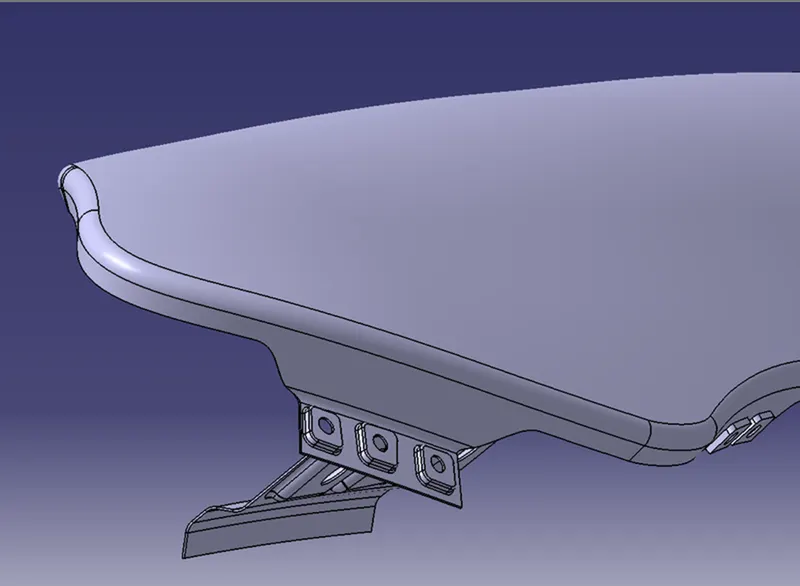

Bumper mount :-

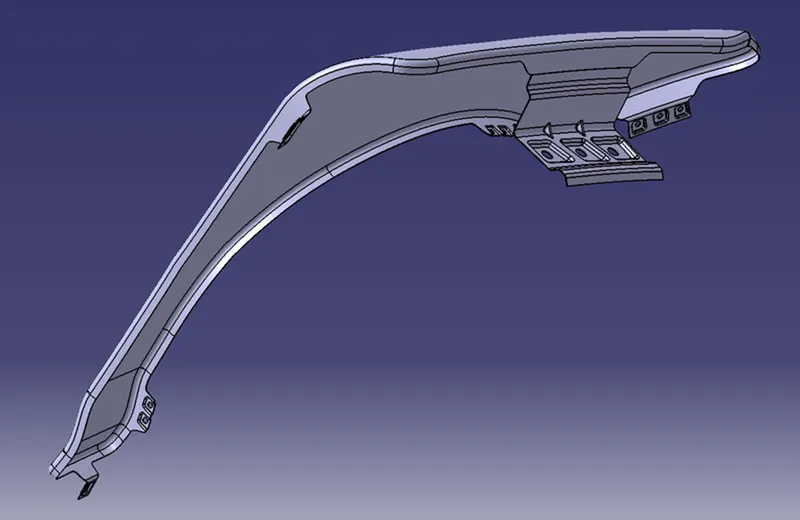

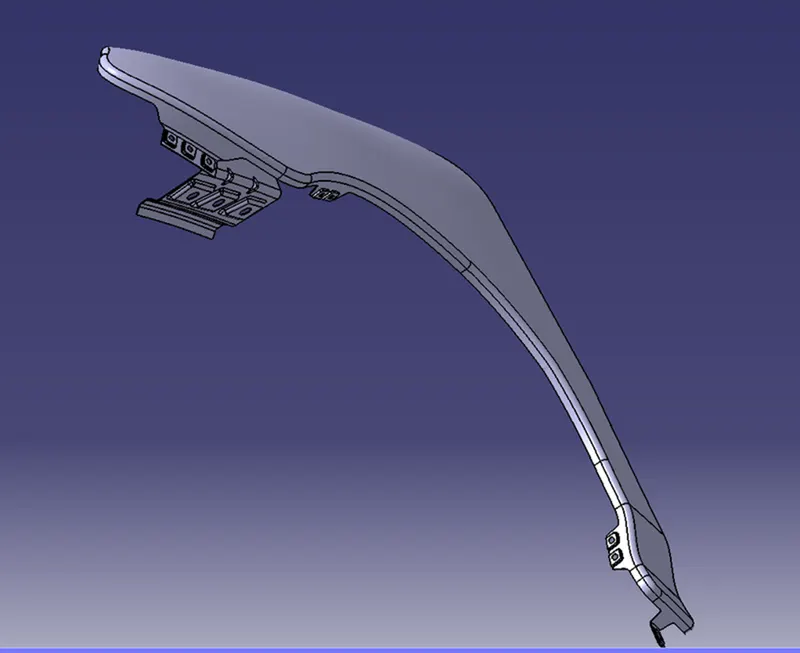

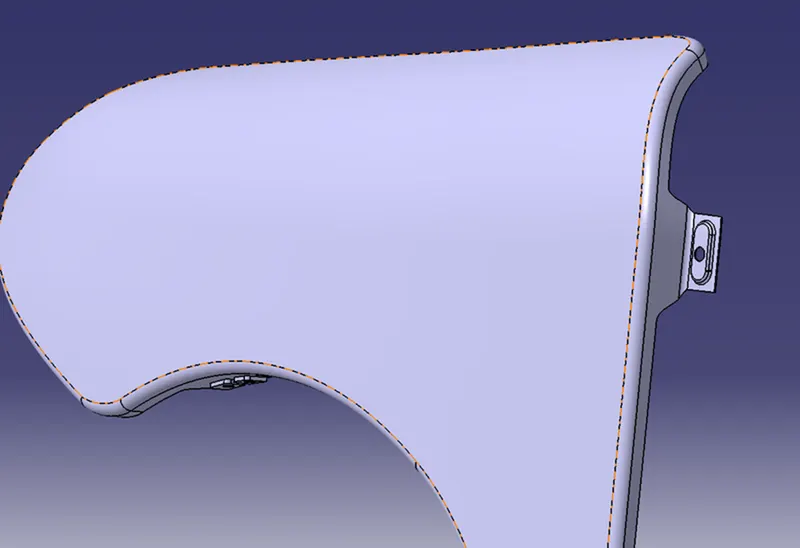

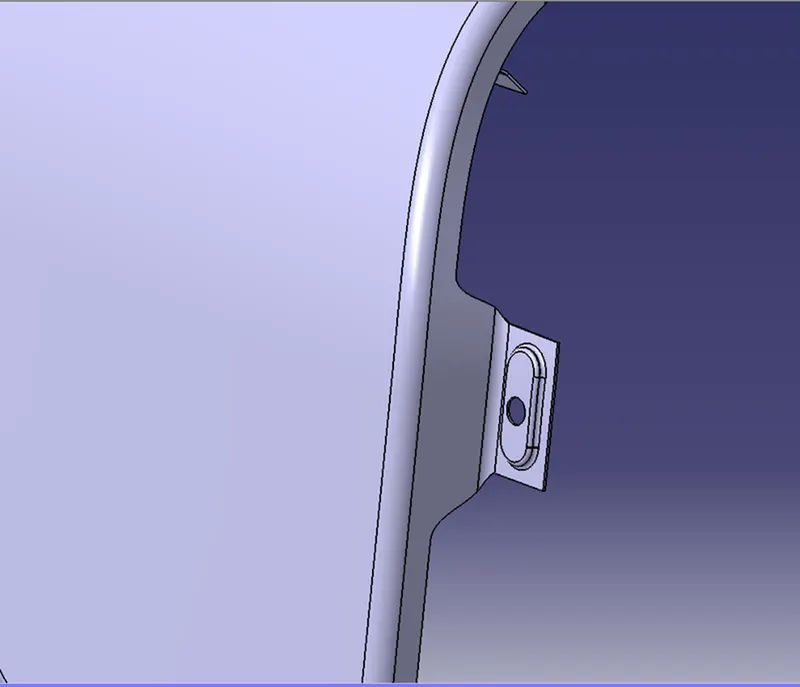

Fender:-
