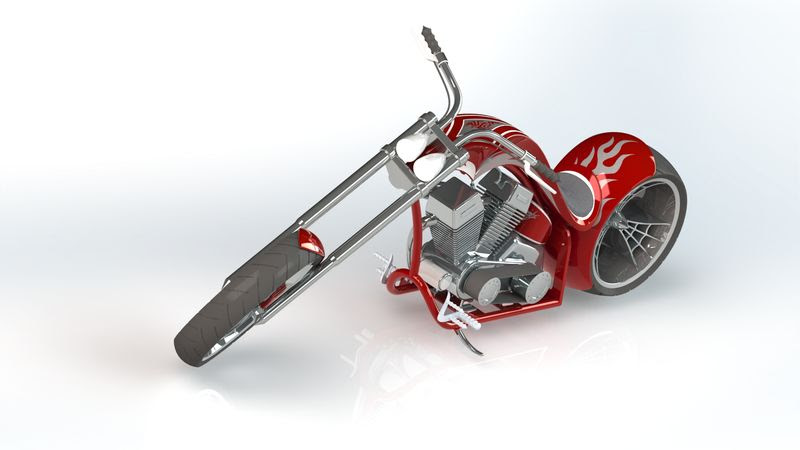

DESIGNING OF AMERICAN CHOPPER WITH PHOTO-REALISTIC RENDERING USING SOLIDWORKS



Introduction:

This report contains a detailed explanation of the design of an American Chopper using Solidworks from part modeling to final rendering of the assembly.

Objective:

The objective of this project is to learn the tools and their operation in Solidworks.

• Design the model of different components.
• Assemble all parts of the chopper in the assembly.
• Finally, render the American chopper.

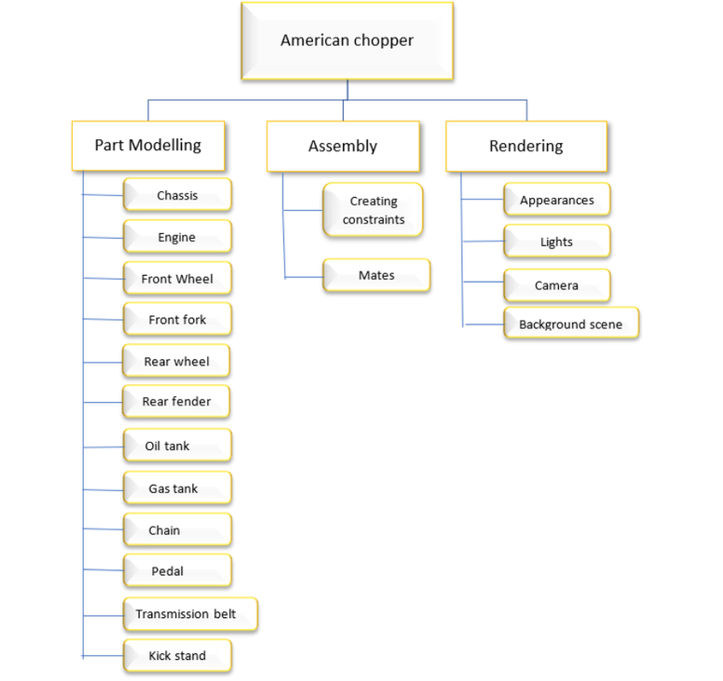

DESIGN APPROACH

DESIGN METHODOLOGY

a.) Transmission Belt:

The transmission belt is one of the mechanicaL elements to transfer the power between two or more rotating shafts. It consists of a flexible strip mostly made of rubber material. The one side of the belt drive is connected to the engine whereas another side is connected to wheeL for transmitting power. It also modifies rotary motion in an easy way. There are nearly five types of beLts, but it is seLected on basis of requirements Like diameter of the wheel, design power, corrected power rating, pitch Length, and center Distance, etc. In some cases, these drives are used to change the speed, either up or down by using different sized puLLeys.

    Commands used in sketch:

    1.Line

    2.Arc

    3.Smart Dimensions

    4.Properties

    5.Offset Entities

   Commands used in Features:

1. Plane
2. Boss Extrude
3. FiLLet
4. Appearance

  steps for Modelling Transmission belt:

• At first appropriate Plane is seLected and by using sketch feature lines, Arc is drawn by giving certain dimensions using Smart Dimensions.
• By using Properties arc and lines are arranged to be Tangent for each other on both sides. The entire sketch can be created once outside using the command Offset
• The required plane is seLected and extrudes the material in between two sketches. The sharpness of edges is reduced using Fillet

      • Appearance feature is used to specify particular material and add to the designed component.





b) Kick Stand:

It is one of the important components that carry the whole body of vehicLes without falling on the ground during rest position. It is usually a piece of metal that can flip out from the frame and makes contact with the ground. MostLy kickstands are Located at the left bottom just like pedaLs and chains for a bicycle. The main reason is due to the Location of exhaust on the right side which can suffer one’s Leg during the opening stand. The main reason that exhaust is Located on the right is that it is the amount from the Left. The kickstand is seLected on basis of the frame and putting gears on the scale to get an estimate of how strong.



 Commands used in sketch:

       1.Line

       2.SpLines

       3.ELLipse

       4.CircLe

       5.Smart Dimensions

  Commands used in Features:

      1. Creating a plane

      2. Loft

      3. Dome

      4. Extrude cut

      5.SpLit

      6. Extrude Boss

      7.FiLLet

steps for Modelling Kick Stand:

• The required pLane is seLected and Ellipse is created by appropriate dimensions. By using Reference geometry another pLane is seLected and the ellipse is created on this pLane. Required SpLine is seLected and joins the two eLLipses.
• The Loft feature is seLected to add materiaL between two eLLipses by adjusting guiding curves. By using the Split command the unwanted material is removed.
• At one edge the appropriate rectangle is drawn and by using extrude cut the material is removed. The circLe is drawn and extrude is used to add material.
• By using Fillet options, the sharpness of edges is removed.

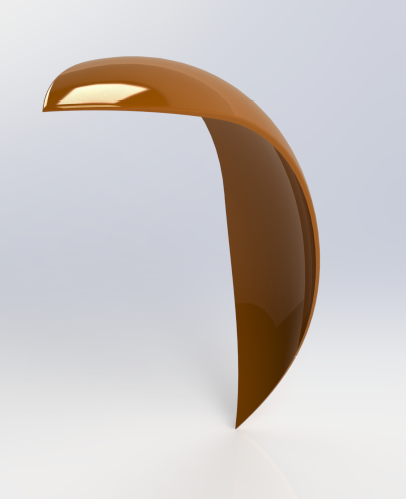

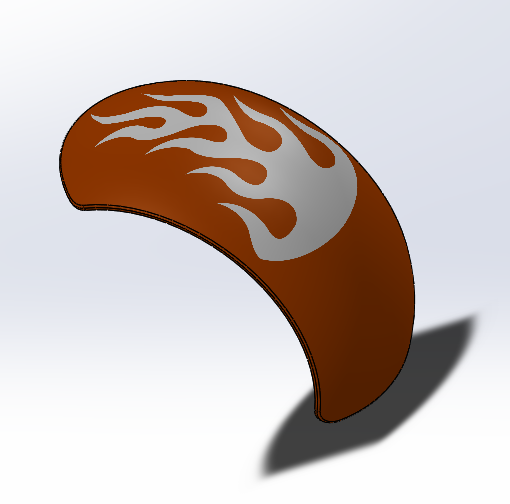

1. c) Front fender:

It is just like a protection Layer which is Located just above the front wheel can protect during rain and heLp protect our Legs from the spray of water during riding. Some of the important parameters for choosing front fenders are at Least 8mm wider than the tire,1O-l2mm better.

  Commands used in sketch:

     1.Lines

     2.Arc

     3.Properties

     4.Smart Dimensions

     5.Offset Entities

     6.Trim

     7.Extend

     8.Splines

 Commands used in Features:

     1. Axis

     2.RevoLve

     3. Split

     4.FiLLet

steps for Modelling Front Fender:

• The appropriate plane is seLected, an arc is created and both edges are made horizontal. The appropriate dimensions are given.
• By using the Offset Entities, the whole sketch is drawn inwards. The edges are extended by using the command Extend. The unwanted line is removed by using the trim option.
• The reference axis created and by using Revolve option the whole sketch is revolved around some angles in both forward and reverse directions.
• The SpLines are drawn at both edges with required dimensions and unwanted material is removed by using Split
• By using Fillet option, the sharpness of edges is removed.

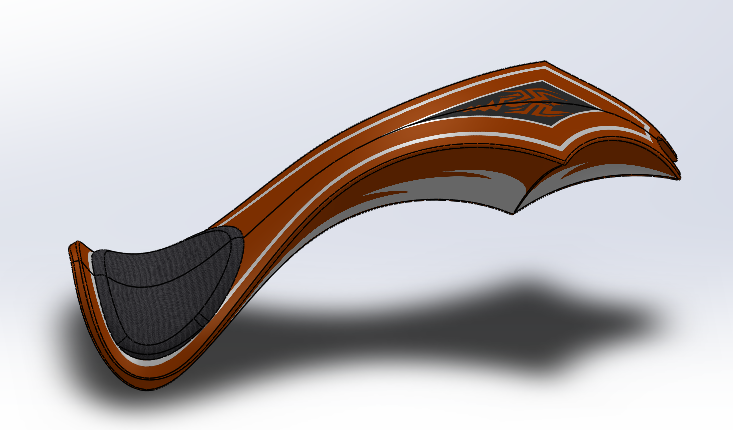

1. d) Rear fender:

The back fender is also the same as the front fender, but the width is more in the back fender as the tire has more width. It stands as protection for avoiding water drops during rain or snowmelt.

  Commands used in sketch:

    1.Lines

    2.Arc

    3.Properties

    4.Smart Dimensions

    5.Offset Entities

    6.Trim

    7.Extend

    8.SpLines

  Commands used in Features:

    1. Axis

    2. Revolve

    3. Fillet

    4. Shell

steps for Modelling rear Fender:

• The appropriate plane is selected, an Arc is created, and both edges are made as horizontal The appropriate dimensions are given.
• By using the Offset Entities, the whole sketch is drawn inwards of the sketch. The edges are extended by using the command Extend. The unwanted Line is removed by using Trim
• The reference axis created and by using RevoLve option the whole sketch is revoLved for some angle in both forward and reverse direction.
• By using the Fillet option, the sharpness of the edges is removed.
• The Shell is used to hollow out the inside face of the fender by using specified thickness.

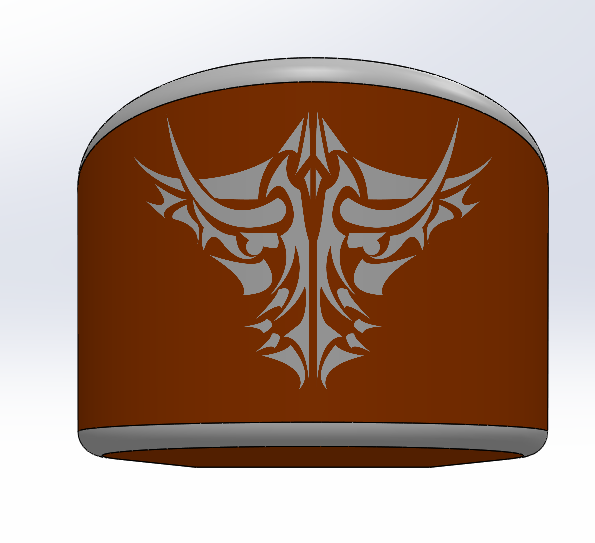

1. e) Oil Tank:

It is a safe container to store fLuids such as petrol and diesel to be maintained without fLaming. It can vary in size from as LittLe as from two-gallon while others big as eight gaLLons. These tanks aLLow the fLuid to flow through the engine and start the ignition. These tanks are mostly used in automobiLe appLications and aerospace industries use for storing high-temperature integraL fLuids. Some fueL tanks like metal are made welded from stamped sheets whiLe others Like pLastic fuel tanks made by using blow moLding.

  Commands used in sketch:

    1.Lines

    2.Properties

    3.Splines

  Commands used in Features:

    1. Boss Extrude

    2. Combine

    3. Fillet

    4. Shell

    5. Appearance

steps for Modelling Oil Tank:

• The required pLane is seLected to draw sketch to draw required geometry Like lines, arc with appropriate dimensions by adding properties.
• Then whoLe is extruded to add material and then the sketch is drawn on the body with the required dimensions.
• Extrude the sketch for adding materiaL on both sides then select the Combine Feature(common)to combine two features of the body.
• FilLet is added to the edges of the body to remove sharpness. The Shell feature is added to the body to remove inside materiaL and thickness the sides of materiaL with required dimensions.
• The required materiaL is added to both Fillet and body separateLy by using Appearance.

1. f) Pedal:

It is one of the parts of the bike to start the vehicle that pushes by a rider on it. It works on rotationaL force as pushing the pedals forward then they turn the gears that are attached to a chain. The best pedal with low weight provides better safety. Some of the types of pedaLs are FLat, Cage and ClipLess.

  Commands used in the sketch:

1. Line
2. CircLes
3. Properties
4. SpLines
5. FiLLet

  Commands used in Features:

1. Boss Extrude
2. FiLLet
3. RevoLve
4. Chamfer
5. Linear pattern

steps for Modelling PedaL:

• The required pLane is seLected for creating sketches with required geometries such as Lines, circles, and spLines. Then fillet is added to the edges portion in the sketch.
• Then Extrude the required sketch to add materiaL.
• Required pLane is seLected to draw sketch then Revolve the whole sketch. The Dome is seLected on one edge to make the shape concave.
• The appropriate edges are seLected to do Fillet for removing sharp edges. Then Chamfer is seLected to convert edges into points.
• The Linear pattern is seLected to make the required bodies at certain positions with required numbers.

1. g) Chain:

It is a roller chain that provides transfer of power from the engine to wheeLs and the power driven by the roller chain is known as a drive chain or transmission chain. It causes the gear that drives a wheel to rotate more than one revoLution. These chains are made of muLtipLe pairs of steeL both outer and inner plates and pins are inserted between them. The roller separates each pair of inner pLates. Most chains are made of materials like plain carbon or alloy steel, but some are nickel-plated to prevent rust.

  Commands used in sketch:

     1.Circle

     2.Lines

     3.Properties

     4.Arc

     5.Trim

     6.Properties

  Commands used in Features:

     1. Boss Extrude

     2. Blocks

     3. Linear pattern

     4. Fillet

     5. Mirror

     6. Appearance

steps for Modelling Chain:

• The required pLane is seLected then the sketch is drawn with appropriate geometries like Lines and Arcs with required dimensions.
• Two chainplates are drawn by using the Blocks command to make them separate in new foLder. Then open the sketch and browse two pLates then place them at required positions by using properties Like Concentric and Coincident.
• Then use linear pattern seLect the pattern curve as required Line with the appropriate number of chainplates. Add FiLlet to edges of pins to remove sharp edges.
• Select other geometry patterns and follow the same as the above steps. Then separate the Pins into one foLder and Chain pLates into other folders for easy selection.
• Then select chain pLates and Mirror it towards the front plane to form chain pLates at another side. By using Appearance add required material to the chain.

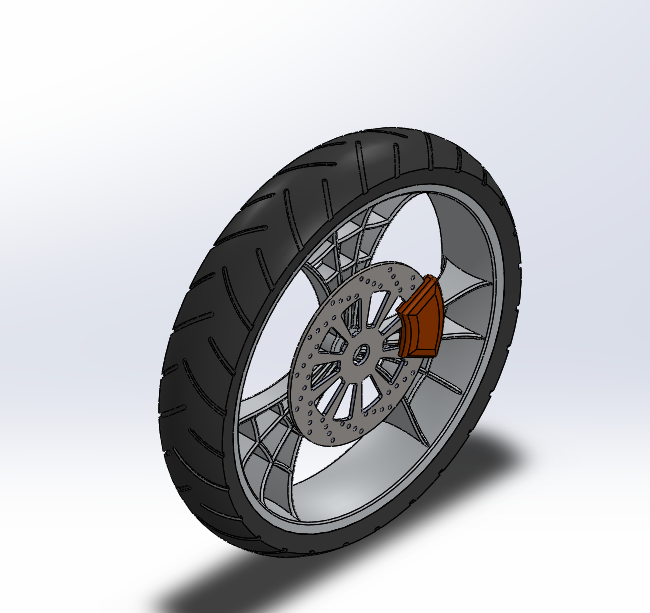

1. h) Front-wheel:

It is a wheeL designed for bikes to support the front body of bikes. In this spider-webbed spokes are used. These spokes are connecting rods between rim and hub. The main work of spokes is to transfer the Loads between rim and hub which causes due to the weight of the rider. The increasing wheel size wiLL decrease the diving force from wheeLs which resuLts in a decrease in the acceleration of wheels.

Procedure for ModeLling Front Wheel:

Rim

It is an outer edge of a wheeL that hoLds the tire on the wheeL. The main function of the rim is to support and sealing the tire to wheeL. It ensures that proper fitting between tire and rim. Rims are important parts as they rotate around rods that are called axles.



 Commands used in the sketch:

1. Line
2. Arc
3. SpLines
4. Properties
5. FiLLet
6. CircLes
7. Convert Entities
8. Mirror Entities
9. Offset
10. Trim

  Commands used in Features:

1. Extrude Bose
2. Extrude Cut
3. RevoLve
4. Linear pattern
5. RevoLve Cut
6. Combine
7. Fillet

steps for Modelling rim:

• The required pLane is seLected and geometries Like Lines and arcs are drawn with appropriate dimensions.
• Then RevoLved Base is seLected to revoLve the whoLe geometry by selecting axis. Then pLane is seLected to draw spokes with an appropriate sketch. By using Mirror required geometries are get copied.
• Then it is extruded to add materiaL. The geometry is seLected and Extrude cut to remove materiaL for spokes. By using Linear Pattern, the spokes are increased around outer circLes. Then required materiaL is added to Rim.



 Rotor

It is a circular disc that is connected to each wheel. These are designed to turn kinetic energy into thermal energy. When the calipers squeeze the brake pads together then the surface area creates friction.

  Commands used in the sketch:

     1.CircLe

     2. Lines

     3. properties

  Commands used in Features:

     1. Extrude Boss

     2. Chamfer

     3. Fillet

     4. Extrude cut

     5. Linear pattern

steps for Modelling Rotor:

• The required pLane is seLected, and circLe is drawn then Extrude it to add material. The circLe is drawn on this phase. To increase this number of circLes Linear Pattern sketch is seLected.
• Then these circLes are got Extrude Cut. Then Linear Pattern is seLected aLong with circuLar shape.



 Caliper

The job of caLipers is to slow down the bike wheeLs by creating friction with brake rotors. Inside each CaLiper, there is a pair of metal pLates known as brake pads.

  Commands used in a sketch:

      1.CircLe

      2. Trim

      3. Properties

  Commands used in Features:

     1. Extrude boss

     2.FilLet

     3. Champers

steps for Modelling caliper:

• Two circles are drawn on the phase of the rotor. Then required Lines are drawn to connect these circles.
• These geometries are selected to get Extrude for adding material and edges are applied to Chamfer and Fillet.



 Tire

The tire is external protection of the rim that touches the ground. It is a strong and flexible rubber casing attached to the rim of a wheel. Natural rubber is a material used for manufacturing tires.

  Commands used in sketch:

     1.Arc

     2.Rectangle

     3.Lines

     4.Properties

     5.Fillet

  Commands used in Features:

    1. Revolve

    2. Extrude Cut

    3. Linear pattern

    4. Fillet

steps for Modelling tire:

• Requires geometry is drawn and fiLLet is drawn at edges. Then the sketch is selected to Revolve.
• Some rectangLes are drawn on phase with required dimensions. Then these are applied Extrude cut. Fillet is applied to Edges.
• Then Linear Pattern selected for circular and all these rectangles are applied around the circular path.

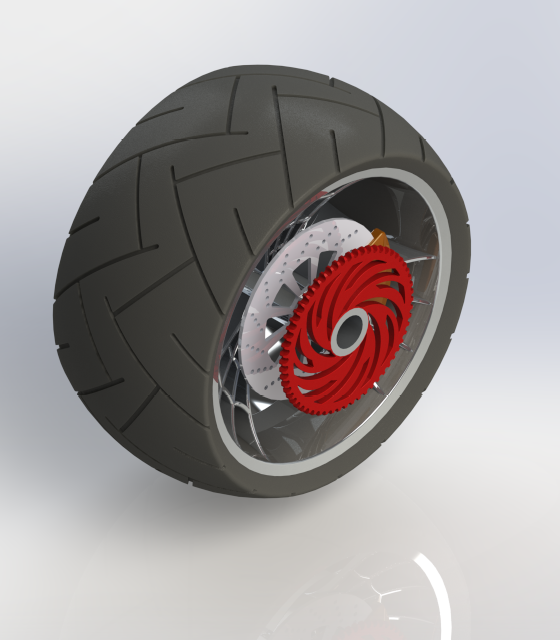

1. i) Rear wheel:

It is a wheeL designed for bikes to support the Rear body of bikes. In this spider-webbed spokes are used. These spokes are connecting rods between rim and hub. The main work of spokes is to transfer the loads between rim and hub which causes due to the weight of a rider. The increasing wheeL size wiLl decrease the diving force from wheeLs which results in a decrease in acceLeration of wheels.

Procedure for ModelLing Rear Wheel:

Rim

It is an outer edge of a wheeL that holds the tire on the wheeL. The main function of the rim is to support and seal the tire to the wheel. It ensures that proper fitting between tire and rim. Rims are important parts as they rotate around rods that are caLLed axLes.

  Commands used in sketch:

    1.Line

    2.Arc

    3.Splines

    4.Properties

    5.FiLLet

    6.CircLes

    7.Convert Entities

    8.Mirror Entities

    9.Offset

    10.Trim

  Commands used in Features:

    1.Extrude Bose

    2.Extrude Cut

    3.RevoLve

    4.Linear pattern

    5.RevoLve Cut

    6.Combine

    7.FiLLet

steps for ModeLLing Rim:

• The required pLane is seLected and geometries Like lines and arcs are drawn with appropriate dimensions.
• Then Revolved Base is seLected to revoLve the whoLe geometry by seLecting axis. Then pLane is selected to draw spokes with an appropriate sketch. By using Mirror required geometries are get copied.
• Then it is Extruded to add materiaL The geometry is selected and Extrude Cut to remove materiaL for spokes. By using Linear Pattern, the spokes are increased around outer circles. Then required material is added to Rim.



Rotor

It is a circular disc that connected to each wheeL These are designed to turn kinetic energy into thermal energy. When the caLipers squeeze the brake pads together then the surface area creates friction.

  Commands used in a sketch:

    1.CircLe

    2. Lines

    3. Properties

  Commands used in Features:

    1. Extrude Boss

    2. Chamfer

    3.FiLLet

    4. Extrude cut

    5. Linear pattern



steps for Modelling Rotor:

• The required pLane is seLected, and circLe is drawn then Extrude it to add materiaL. The circle is drawn on this phase. To increase this number of circLes Linear Pattern sketch is seLected.
• Then these circles are getting Extrude cut. Then Linear Pattern is seLected aLong with a circular shape.



 Caliper

The job of caLipers is to slow down the bike wheels by creating friction with brake rotors. Inside each CaLiper, there is a pair of metal plates known as brake pads.

  Commands used in a sketch:

    1.CircLe

    2. Trim

    3. Properties

  Commands used in Features:

    1. Extrude boss

    2.FiLLet

    3. Champers

steps for Modelling caliper:

• Two circles are drawn on the phase of the rotor. Then required Lines are drawn to connect these circLes.
• These geometries are seLected to get Extrude for adding materiaL and edges are appLies Chamfer and Fillet.



 Sprocket

It is a chain wheel that is profiLed wheeL with teeth around its circular pattern. The chain is attached to this wheeL which for easy transmission of power to Rear wheeL.

  Commands used in sketch:

   1.Line

   2.CircLe .

   3.SpLines

   4.Properties

   5.Trim

  Commands used in Features:

   1. Extrude boss

   2. Linear pattern

   3. Extrude Cut

   4.FiLLet

steps for Modelling sprocket:

• The required profile is selected to sketch the geometry with appropriate dimensions. The circLes are Extruded for adding material.
• The spLines are drawn for the required profile then unwanted geometry is removed by using trim. The profiLe is seLected for Extrude cut to remove material.
• Then Linear Pattern is seLected to get a greater number of profiLes. The FiLLet is applied at the edges to remove sharpness.

 Tire

The tire is external protection of the rim that touches the ground. It is a strong and flexible rubber casing attached to the rim of a wheel. Natural rubber is a material used for manufacturing tires.

  Commands used in sketch:

   1.Arc

   2.RectangLe

   3.Lines

   4.Properties

   5.FiLLet

  Commands used in Features:

   1.RevoLve

   2. Extrude Cut

   3. Linear pattern

   4.FiLLet

steps for Modelling tire:

• Requires geometry is drawn and fillet is drawn at edges. Then the sketch is seLected to Revolve.
• Some rectangLes are drawn on phase with required dimensions. Then these are applied Extrude cut. FiLLet is appLied to Edges.
• Then Linear Pattern selected for circuLar and aLL these rectangles are applied around the circuLar path.

1. j) Front Fork:

It is a part of the bike that holds the front wheel. It consists of two blades which are joined together at the top by a fork crown. It works Like the front suspension on a motorcycle. It absorbs shocks which have springs on it due to this can feel comfortable during traveLLing on uneven roads. It has good benefits during riding on speed breakers, so it is better to have a front fork.

  Commands used in sketch:

      1.Lines

      2.Sptine

      3.CircLe

      4.Properties

      5.Convert Entities

      6.Trim

  Commands used in Features:

      1.Revolve Boss

      2.Extrude Boss

      3.FiLlet

      4.Revolve

      5.Linear Pattern

      6.Extrude Cut

      7.Dome

      8.Revolve Cut

      9.Sweep

     10.Mirror

     11.Combine

     12.Planes

     13.Appearance

steps for Modelling Front Fork:

• The required plane is selected for drawing the sketch with appropriate dimensions. Then by using Revolve command select the required sketch to revolve and add material along its axis.
• Then at one edge required sketch is drawn and it is extruded to add material The sharped edges are removed by using the fillet option. By using Linear Pattern the required part is selected at a required position to form it again.
• At the one edge circle is drawn and Extrude it to add materiaL To create headlights the required geometry is drawn on the selected plane and Revolve around the axis.
• By using Swept Boss, the required path and circle are selected to follow circLe along the path for the required handle to be drawn. To form a gripper at the edge of the handle the geometry with circles is drawn and revoLve it along its base.
• To draw brakes required geometry with linear are drawn with appropriate dimensions then it is extruded to add material Two circles are drawn at two different planes and by using spline thy are connected. The sweep is selected to follow a circle aLong spline to form a wire shape.
• By using Mirror, the whole body is selected and formed again along its side. The required Appearances are added for different parts.



1. k) Chassis:

It is a Like metal frame that forms as a skeleton for mounting components on it. ALL components Like Engine, suspension, fuel tanks, and seats, etc. are attached to this base. On basis of different bikes usage of materiaLs also can change. Some of the materiaLs Like steel, titanium, and magnesium with requirements Like cost, stiffness, and speed are used.

 Commands used in sketch:

    1.Splines

    2.Circles

    3.Lines

    4.Sketch picture

    5.Arc

  Commands used in features:

    1.Sweep

    2.Mirror

    3.Boss Extrude

    4.Extrude cut

    5.Chamfer

    6.FilLet

    7.Plane

    8.Dome

    9.Split

   10.Combine

   11.RevoLve

   12.Curves

   13.Appearance

steps for Modelling Chassis:

•   The required p[ane is selected then by using the sketch picture command required for inserting pictures in Solidworks environment for sketching. Then required positions and dimensions for the picture are set by double-clicking on the photo.
• Then from the lower edge of the chassis sketching is started by creating some circLes. Then Lines are drawn along the chassis that connects concentric circles. These Lines are projected by using Project curves Some geometries are drawn on a top plane by using Splines with appropriate dimensions and it is projected.
• By using Swept Boss these profiLes are selected to follow path certain path and add material along the selected path. Then mirror option is selected to get the same part on another side by choosing the front plane as a reference.
• The above drawn two profiLes are joined back with a pLate which is creating as foLLows. The above profiLe ends at the right plane which is a good reference for starting our new sketch. Then required geometry is drawn on this plane by using some Lines and CircLes with adding appropriate properties and extruding them to add materials. The geometry is drawn on this pLate and selected Extrude Cut to remove materiaL.
• Required chamfers and fillets are added to these pLates. The plane is created to draw a profiLe that connected rear wheeL which is known as Axle. The inside of this axLe circLe is drawn and extruded it that insert into wheeL. Then the dome is seLected to the outside edge of axLe to create a good profile.
• Splines are drawn on the front plane with a good profile along with the chassis in the picture. Then concentric CircLes are drawn by using swept boss materiaL is added aLong this path Like structure to form for chassis. By using the split tool some of the portions that enter into plates are removed by using profiLe of plate and cut profiLe of tubes from axLe.
• In the same way, aLL required structures are drawn by using circLe profiLes and spLines that connect with this circle. Then swept boss is selected to foLLow profiLe on the path.

    • At above the below chassis part some profiles are drawn, and these are extruded to form as a basis for mounting Engine on it. In the same way, some required profiLes are drawn and extruded on basis of the sketch in the picture. FilLets are added at required positions to reduce sharpness. Appearance is seLected and required materiaL is added to chassis.



l) Engine:

It is a machine used to change one form of energy into mechanical energy. It is a complex machine that is built to convert heat from burning gas into force for turning wheeLs. These energies can be in a form of petroL or dieseL where chemicaLs are used to produce energy. The chain of reactions that achieve the objectives is set in motion by spark, which ignites a mixture of petroL vapor and compressed air inside a cyLinder and causes it to burn rapidly. It contains a cyLinder head that contains vaLve-controLLed passage through which air and fuel mixture enters the cylinder. So due to this, the engine must be a robust structure. The overaLL efficiency is around 35 percent. Some of the main parts included in the Engine are piston, Camshaft, fLywheeL, crankshaft, and connecting rods. Different Engines are In-Line Engine, V-8 Engine, and HorizontaLLy opposed Engine.

  Commands used in sketch:

    1.Sketch picture

    2.Circtes

    3.Splines

    4.Lines

    5.Properties

    6.Arc

  Commands used in Features:

    1.Boss Extrude

    2.FiLLet

    3.RevoLve

    4.PLane

    5.CircuLar pattern

    6.Dome

    7.Extrude Cut

    8.Chamfer

    9.FiLLet

   10.Sweep

   11.Mirror

   12.Combine

   13.Curves

   14.Split

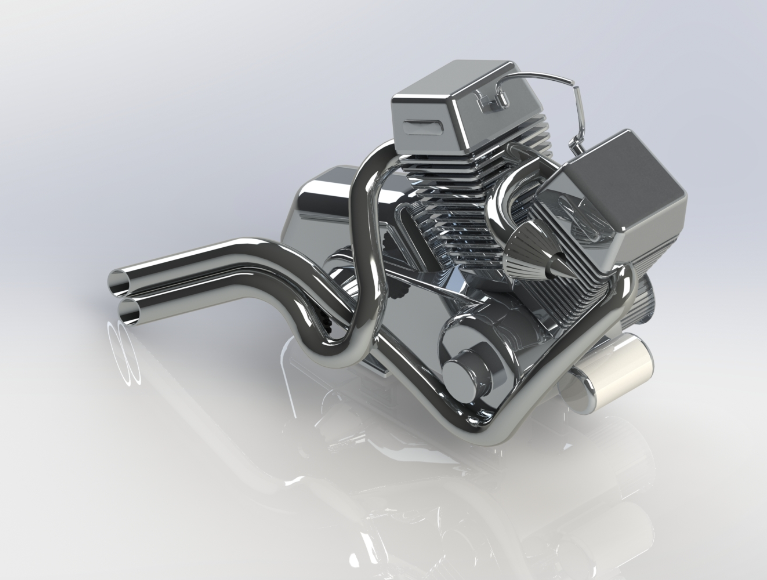

steps for Modeling engine:

• The suitable pLane is seLected, and the picture is inserted by using sketch picture CircLes are drawn at requiring positions based on the picture and both are joined by using lines. Then the whole thing is extruded to add material. The required profile is drawn besides this and extruded with the required dimensions.
• Some geometry is drawn and revoLve it to get the required feature as a reference to the picture. On this profile, some CircLes are drawn and seLected circuLar pattern to increase the number of Circles and extrude cut it to remove materiaL.
• In the same way, other required profiles are drawn and appLied required features. The CyLinder profile is started by drawing rectangLe on the top plane and seLected to Extrude it by giving some draft angLe. Some f files are added to get the required profile.
• To get another CyLinder the earLier cyLinder is seLected, and it is Mirrored aLong front pLane. Some rectangles are drawn on above cyLinder and extruded it by Appling fillet at corners and select dome to this profile. To draw spark, pLug geometry is drawn aLong profiLe and extrude it.
• To modeL Exhaust required profile with splines and arcs are drawn at required pLanes and these are projected by using curves. Then concentric CircLes   are drawn, and these curves are intersecting with pierce
• Then by using Swept Boss the profiLe is created by foLLowing the required path. In the same way, another Exhaust tube from another cyLinder is also modeLLed. The edge of the Exhaust is cut by using some Lines to get a good profile.

m) Gas Tank:

It is a safe container for storing flammabLe fLuids. It is usually placed above the engine and indirect to sunLight, so they are susceptible to fueL expanding with heat which pushes more fuel.

  Commands used In sketch:

    1.lines

    2.Splines

    3.Sketch picture

    4.Convert Entities

    5.Offset

    6.Arc

    7.Trim

  Commands used In Features:

    1. Planes

    2. Mirror

    3. Sweep Cut

    4. Sheet

  Commands used In Surfaces:

    1. Sweep surface

    2. Trim Surface

    3. Surface Loft

    4. Prqected Curve

    5. Boundary surface

    6. Knit

    7. Split Une

    8. Extrude Surface

    9. Fillet

Steps for ModellIng Gas Tank:

• The required plane is selected for inserting the image then a sketch is created on a plane by using the required geometry. Splines are selected and adjusted for the required design by giving dimensions to create a Gas Tank.
• By using Reference Geometry some plane is created at some distance from one end of the sketch. Then splines are created on this plane and some other geometry for reference. The swept surface is selected for creating a surface along the required path.
• The unwanted surfaces are tried by using the trim surface command. By using surface Loft required portion is added for creating surface. By using the plane which is created required sketch is drawn by applying proper dimensions.
• The above sketch is selected and projected by using the projected Curve. Then endpoints are joined using lines by applying to pierce By using boundary surface required space is selected to create surface over it.
• Then mirror is selected along the midplane to form the same part on another side of the Gas Tank Knit is selected to combine all the surfaces together.
• The seat is designed by selecting outer edges then offset is selected to form the same geometry. The arc is drawn by connecting both sides of geometry to form the required shape. The above geometry is selected, and a split line is applied to form on surf act Then Extrude surface is selected to add materiaL     Fillet is applied to reduce sharp edges. The bottom portion of the tank is added surface by using Boundary Surface.
• Some geometry is drawn on the required plane then Cul sweep is used to remove material. Then the shell is applied to remove the inside portion and make a thin material just like the hollow part with the required dimension.

.

AssembLy of Designed Components:

Steps to FoLlow - AssembLy of Chopper:

• Step - 1:  All the Parts/Components which are designed in Part fiLe are to be inserted in AssembLy fiLe one by one as per requirement.
• Step - 2: AppLy Mates to each and every individuaL Part with other parts for proper ALignment.
• Step - 3: AppLy Mates Conditions to WheeLs and Kick Stand with Top PLane to Snap it fLoor.



   Render Image: Photoview 360

side view

front view

back view

top view

Isometric view

 Camera Setup View

Applying Decals, Camera Set-up & Scenes:

Applying Decals: In this section Decals (a design prepared on SpeciaL Paper) are applied to the Gas Tank, Oil Tank & Rear Fender.

Render Image: Photo View 360

Camera Set-up:

Camera Setup is essentia[ for the final rendering of Chopper which heLps in showcasing the reaListic image.

Scenes & Lights:

Check for Appropriate scenes & proper Light setup to make our Chopper realistic in the final rendering.

Final Rendering:

In this, we are going to render our Chopper to make it ReaListic.

Software used: So[idworks Photo visuaLize.

Steps to Follow:

•  Import - Import the Assembly file into the Solidworks Photo VisuaLize.
•  Appearance - Give/Change Appearance to Parts to make it more realistic.
•  Scenes - Add scenes (Environment -3D! Plate - 2D) as a background & choose proper location.
•  Output - Make a fast render & check the output. Ones satisfied with everything go for FinaL quality rendering.





CONCLUSION:
Design, Assembly, and Photorealistic rendering using Solidworks were successfully completed.
