Photo Realistic Rendering

TITLE OF THE PROJECT: Photo Realistic Rendering and Assembly of American Chooper Model.

Software Used : 1. SOLIDWORKS 2019   2. SOLIDWORKS Visulalize 2019

OBJECTIVE:

• Designing the every part with proper dimension.
• Assembly the each and every part of the american chooper.
• Photo Rendering the assembled model of the chooper.

INTRODUCTION:

•  SolidWorks is a Solid Modeling Computer Aided Design (CAD) and Computer Aided Engineering (CAE) Computer Program published by Dassault systems, that runs primarily on Microsoft Windows.
•  Solidworks is used to develop mechatronics systems from beginning to end. At the initial stage, the software is used for planning, visual ideation, modeling, feasibility assessment, prototyping, and project management and The software is then used for design and building of mechanical, electrical, and software elements.
• Solidworks Visualize allows you to leverage your 3D CAD data to create photo-quality content in the fastest and easiest way you can–from images to animations, interactive web content, and immersive Virtual Reality.Bring your products to life. solidworks Visualize is the “camera” for your CAD data.

DESIGN METHODOLOGY:

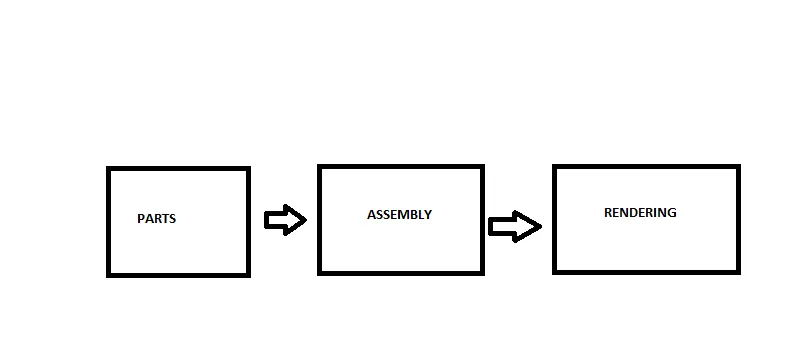

Procedure for Modeling the chopper.

Parts:

While Designing the model in solidwork first option to click is parts . because it Identifies whether you are doing the original part or assembling the parts.

parts option designing area is were the parts of the assembly is designed with proper dimension.

Assembly:

Assembling is the another option available which orients the according to the chassis or frame of the vehicle. these orients are done with mates option available in the toolbar.

Mates option consist of options like coincidents,parallel,perpendicular,tangent,concentric,distance and angle.these mates are adjusted and oriented with proper dimension for adjusting the model.

• STANDARD MATES USED IN MODEL:

• coincidents:

            Positions selected planes, edges, and faces on the same infinite plane. If two vertices are chosen then will position them so that they touch

           A coincident relationship, which tells SolidWorks that two points should always be touching, is a common and useful relationship in design. coincidents relationships can be used in both 2D sketch mode and 3D assembly mode to define your model.

• parallel:

            Keeps selected items at a constant distance from each other.

• perpendicular:

             Places selected items at a 90 degree angle from each other.

• Tangent:

            Places a cylindrical, spherical, or conical face tangent with another component.

• concentric:

            Places two cylindrical, spherical or conical faces of a part so that they share the same centerline.

• lock:

            Keeps two components at the same position and orientation.

• Distance:

            Specify a distance between two components planes, faces, or edges.

• Angle:

            Place components at a desired angle from another component. Can select an edge, face, or plane.

• Mate alignment:

            Select the desired alignment for the components being mated. This will flip the components so that the face, edge, or plane is aligned correctly with its mating component.

• ADVANCED MATES USED IN THE MODEL:

• Distance:

            Add a limiting distance between components by giving it a maximum and minimum distance between components faces, edges, or planes.

• Angle:

           Adds a limiting angle between component faces, edges, or planes by specifying a minimum and maximum angle.

Rendering:

Rendering or image synthesis is the process of generating a photorealistic or non-photorealistic image from a 2D or 3D model by means of a computer program and PhotoView 360 is a visualization and rendering solution included with Solidworks Professional and Solidworks Premium. Providing a highly interactive environment for viewing designs as well as for creating photo-realistic renderings that can be used to showcase your designs.

DESCRIPTION:

SOLIDWORKS - PARTS Selecting the plane and origin to start the design process.

parts consists of tools like feature, sketch and rendering , surface.

Feature:

• Extruded Boss/Base:

An Extruded Boss/Base feature will allow you to take a 2D sketch and add thickness to it in the third dimension and it is one of the oldest command in the solidworks.

• Revolved Boss/Base:

Revolves add or remove material by revolving one or more profiles around a centerline and This feature is used to revolve a 2D sketch along an Axis .

• swept Boss/Base:

Swept boss/base  is one of the useful features which help to sweeps a closed profile through an open or closed path.that means ,when u have closed profile and you have a open or closed path.you can just sweep the profile that you have created to get the desired part.

• lofted Boss/base:

The loft feature creates a shape by making transitions between multiple profiles and guide curves.This tool is very valuable for modeling complex surfaces.

• Extruded cut:

The Cut-Extrude feature will then project the desired shape of cut based on the selected sketch and The Extruded cut operation allows you to easily remove material from a solid by extruding a profile along the normal to its plane.

• Revolved cut:

Revolved cut feature is one of the very useful solidworks feature tool, which helps to remove materials from 3D models possess axis symmetry. Revolved cut removes materials by revolving a closed profile a along an axis.

• Fillets:

Fillet/Round creates a rounded internal or external face on the part. You can fillet all edges of a face, selected sets of faces, selected edges, or edge loops

• Chamfer:



• Mirror Entities:

Create a reflected copy of a desired entity about a centerline or axis. Make sure the entities to mirror box is highlighted in the property manager.

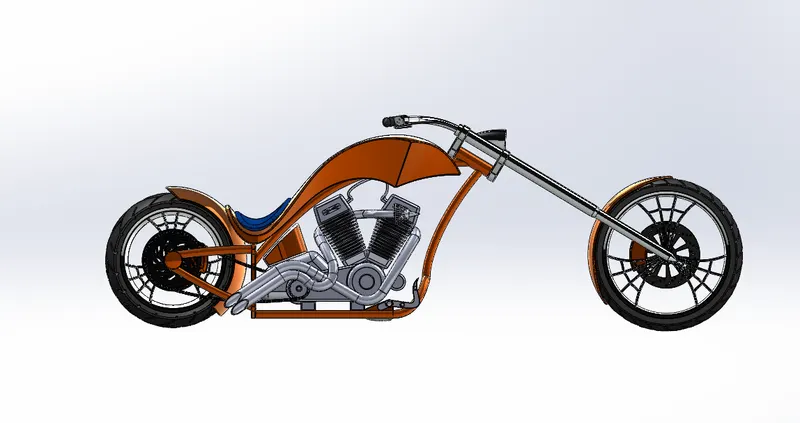

Screenshots Assembly Model:

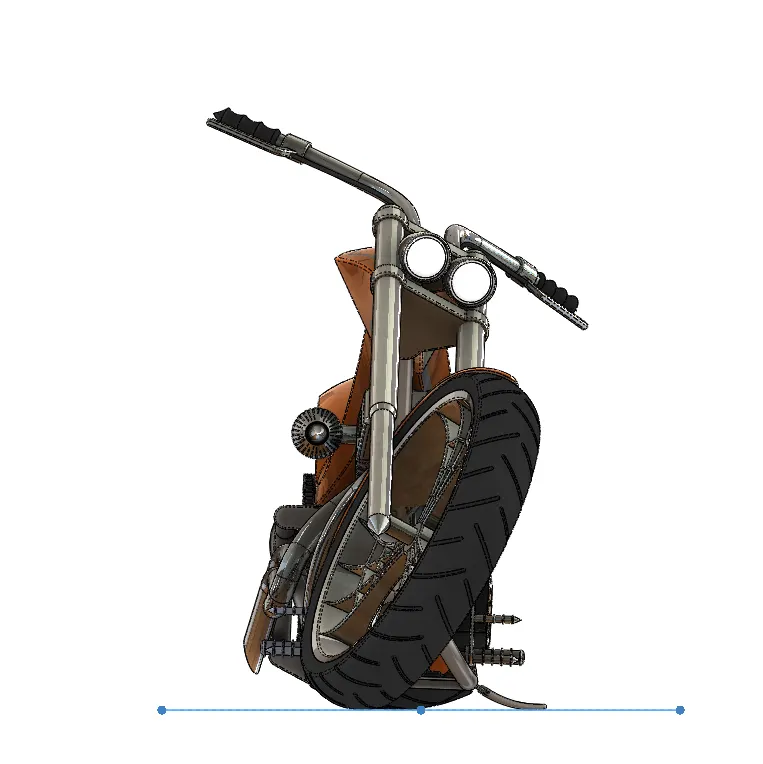

FRONT PLANE:

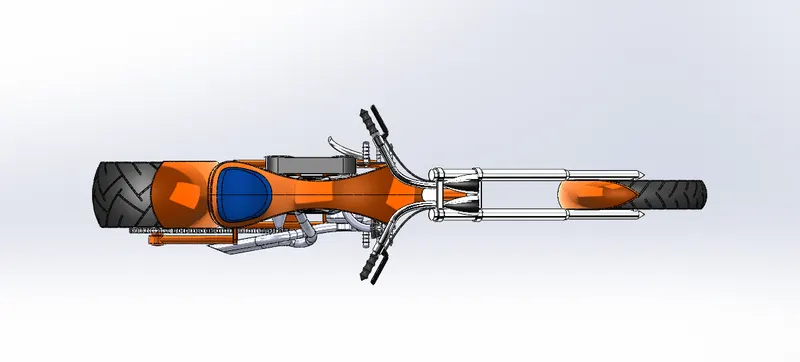

TOP PLANE:

RIGHT PLANE:

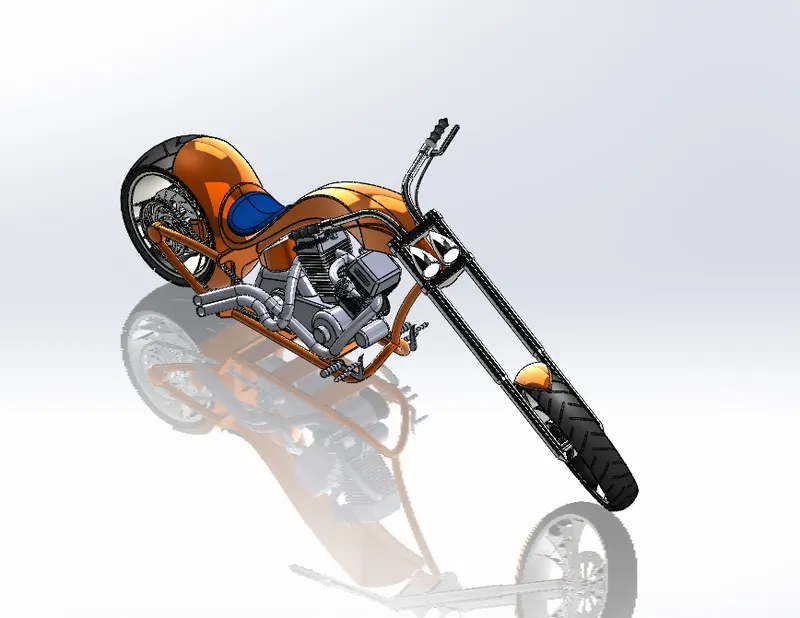

ISOMETRIC VIEW:

Rendering of the assembly chooper before opening the solidwork visualize:(final rendering in rendering tool)

Rendered Front side facing:

Rendered back side facing:

CONCULSION:

Parts of the american chooper model has successfully designed and assembled to make the photo-Realistic rendering of the model with proper apperence and lighting .Images are shown in the above report.
