Modeling and Simulating a Planetary Gear System in SolidWorks

Welcome back to the Multibody Dynamics using SolidWorks blog series! In this blog, we will dive into modeling and simulating the motion of a planetary gear system—also known as an epicyclic gear train—using SolidWorks. These types of gears are commonly found in automatic transmissions and mechanical lathes. A planetary gear system consists of four essential components: the sun gear, ring gear, planetary gears, and an optional carrier.

Let’s walk through the steps of understanding, modeling, and simulating this mechanism.

What is a Planetary Gear System?

 A planetary gear system is a complex mechanical design that involves multiple gears interacting to achieve motion.

Here are the key components:

• Sun Gear: Positioned at the center, the sun gear rotates around its axis.
• Ring Gear: This is the outer gear that houses the entire system and rotates around its axis.
• Planetary Gears: These smaller gears are positioned between the sun and ring gears, and their axis of rotation changes as they rotate.
• Carrier: An optional component that holds the planetary gears in place.

In such systems, power can be provided to or extracted from the sun gear, planetary gears, or ring gear, depending on the system configuration.

Understanding Gear Parameters

Before modeling the system, it's important to understand the parameters that define gears. Gears are classified by their pitch circle diameter, module, and the number of teeth:

• Module: The ratio of the pitch circle diameter to the number of teeth.
• Number of Teeth: If you know the module and pitch circle diameter, the number of teeth can be calculated easily.
• Diameter Pitch: The inverse of the module, often used in inch-based systems.

To ensure proper meshing and power transfer, the pitch circles of gears should be tangent, and the modules of interacting gears must match.

Designing Planetary Gears in SolidWorks

SolidWorks provides a convenient design library that includes pre-built gears, making it unnecessary to model gears from scratch. Follow these steps to import gears for your planetary system:

• Sun Gear: A spur gear positioned at the center of the system.
• Planetary Gears: These are also spur gears and rotate between the sun and ring gear.
• Ring Gear: This is an internal spur gear and forms the outer boundary of the planetary system.

To import these gears:

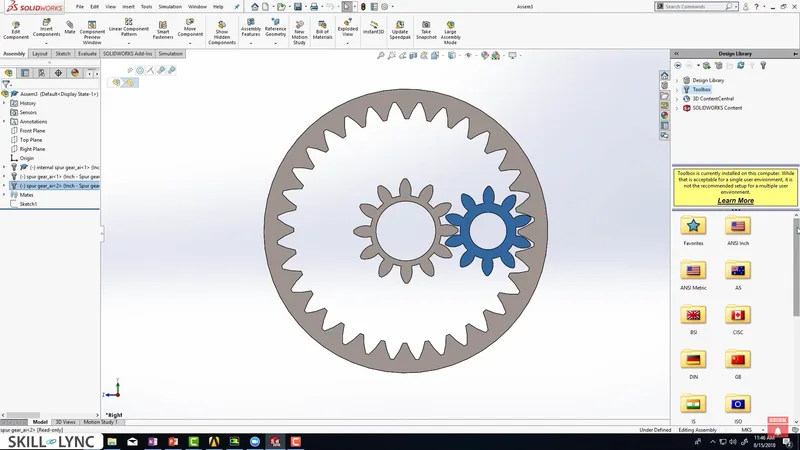

• Go to the Design Library in SolidWorks and click on Toolbox.
• Select Power Transmission Components and choose the appropriate spur gear and internal spur gear types based on your requirements.
• Use the ANSI Inch Standard for selecting gear specifications, which is commonly used in mechanical engineering designs.

Preparing for Motion Simulation

After importing the gears and assembling them:

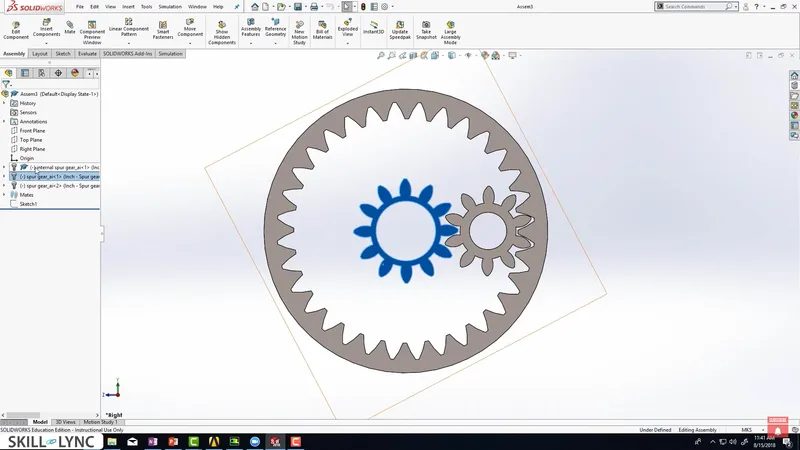

• Use SolidWorks’ assembly tools to properly align the components.
• Ensure that the correct mechanical mates are applied to simulate realistic gear interaction.
• Once assembled, the system can undergo motion analysis to visualize how the gears rotate and transmit power.

In the next video, we will guide you through assembling the components and performing the motion analysis. This step is crucial for understanding how the system behaves under different conditions.

Conclusion

By leveraging SolidWorks’ design library and motion simulation tools, we can efficiently model and simulate the behavior of complex systems like the planetary gear system. Whether you're working on automatic transmissions or machinery, understanding the dynamics of such gears is essential for successful mechanical engineering design.

For more detailed learning, explore Skill-Lync’s Multibody Dynamics course and gain practical knowledge of SolidWorks MBD simulation.

Stay tuned for our next guide, where we’ll cover the assembly and motion analysis of the planetary gear system in SolidWorks!

This blog is part of our ongoing series on Multibody Dynamics.
