Week 8 - Challenge 3 - Coin Holder Design

Aim: To design and document the wiring harness layout for a specified car body in CATIA V5, ensuring adherence to all packaging rules and industry best practices. This includes routing the wiring harness, applying protection coverings where necessary, and preparing a detailed flattened view drawing that demonstrates…

Aim : Craft a wiring harness for the assigned V6 Engine within CATIA V5, ensuring compliance with packaging guidelines and industry standards learned in the course. Exhibit proficiency by integrating optimal practices into the design. Produce a flattened view drawing to document the harness layout accurately.IntroductionA…

  REPORT FOR BUTTERFLY VALVE ASSEMBLY   After completing all parts design time to assemble them in to one product.   Open assembly workbench and add all the parts in it and then adjust them as requirement and constrain them to make assembly.   Add all models     Aline them as requirement     Constrain them and restrict…

open catia and make new product file. rename it as require. open cad file wich we make in week 4 challange. switch to electrical harness flattening workbench. add harness flattening parameters in file wich we created earlier. then click on exract command > product file >file wich we madein week 4 chhalange week 4…

Doownload required cad files of connnectors. define it as electrical part arrange according to given diagram create new product file. file>new>product>ok Rename it as requirement add file wich we created before in it open it in electrical harness assmbly define it as geometrical bundle rout harness according to…

Download required Cad files of cnnectors and clip, equipments required. Define each file as electrical components and give required properties acording to part. then ceate new product file name as assembly wring harness contex and add sub product asgeometrical bundle. add required Connectors in geometrical bundle Definne…

Q-1 Definne Support Part Download CAD File for clip. Open it in part Design and create two ponts for entry and exit. create two plane on on each point wich is created jus before and than create bas plane. open part in electrical pat design and define it as support part. Define two times for entry and exit pints.  …

download cad file for connector. and Create point on connector side and budle connection side. fix axis system on connectoor side. X axis : Towards Loacking Direction Y axis : Towards Metting Direction Z axis : Tpwards Lest & Right. Open Electrical Part Design and define it as electrical Connector   Define Bundle…

Roof Design CAR ROOF: An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Roof is the structure above the wind shield glass having the reinforcements to provide…

Fender Design Fender A fender is the part of a car, truck, motorcycle, or other vehicles that frames or covers a wheel well. Its main purpose is to prevent debris, rocks, mud, liquids, sand, and other road debris from getting thrown in the air while the Tire Rotate. Types of Fender Full Bumper type Half Bumper type  …

Check That Given Design Passes European Standards or not.European Standard:Measure clearance L at section SA-SA, SB-SB, SC-SC, SD-SD & SE-SE and prepare clearance check chart to validate.At all five sections the clearance value should be more Greater than 10mm to satisfy the European standards.Wheel guard requirement:…

Section modulus: Section Modulus is a geometric property used to calculate the bending stresses in a structural member.   Mathematically,   It is defined as the ratio of the moment of inertia of a section about its centroidal axis and to the distance of the extreme layer from the neutral axis.   S =  I…

DESIGN OF CAR HOOD What is Hood? A car hood is the hinged cover that rests over the engine bay of a front-engine vehicle. The car hood protects the engine and connected parts from the elements while providing easy access for repairs and Maintenance. Components Of Hood, Hood Outer Panel Hood Inner Panel Hinge Assembly…

Under Body Coating: Underbody coating is a thick cladding that is placed uniformly to the cars underside. When the automobile is fresh off the lot and spotless, it is usually sprayed or painted on.     Purpose: Protection against corrosion Protection of car vital components like silencer,engine, numerous…

Automotive Benchmarking In industries, its a process of comparison between already available desired products, service or process of some dimensions of Performance. for create new product by eliminating things which are not necessary in compared product and modify things using engineering concepts. Lets Take Case Given…

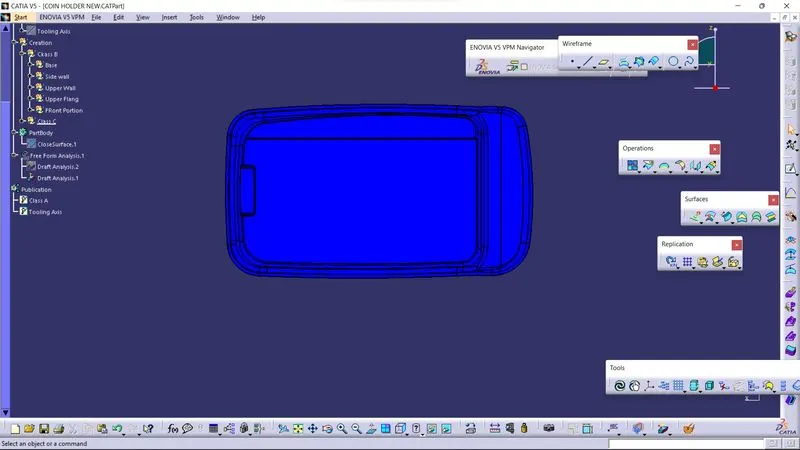

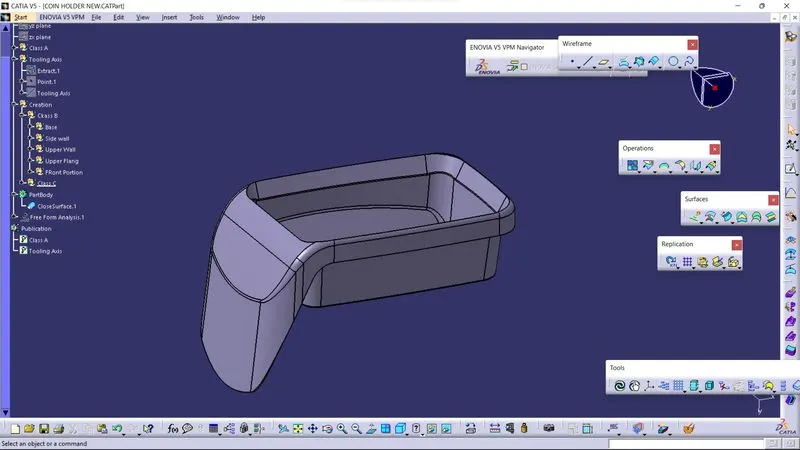

Class Surface Class B SUrface Class C Surface Draft Analysis Of Class A Surface Isomatric View   Draft Analysis Of Final Design    o Before do the Draft Analysis, we have to ensure that, we have kept component into material view mode.o Then click on Feature Draft Analysis tool, so we get two boxes shown…

         o Screenshots of the Draft analysis report for the given Class-A surface. o As we get Tooling Axis, we can do Draft Analysis.o Before do the Draft Analysis, we have to ensure that, we have kept component into material view mode.o Then click on Feature Draft Analysis tool, so we get two…

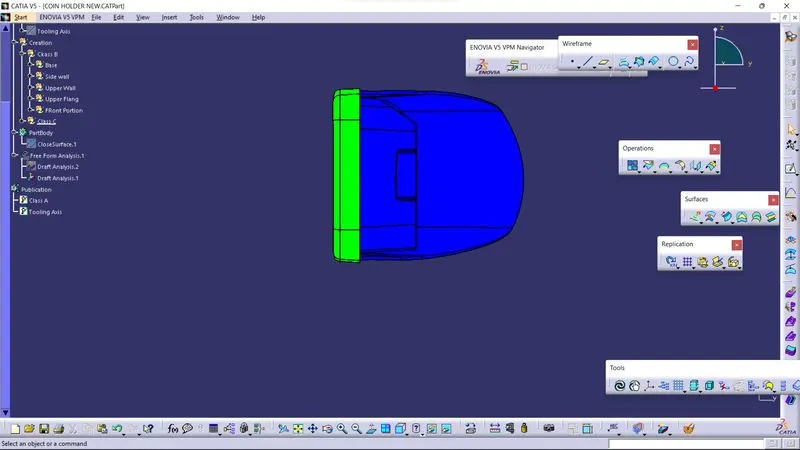

Screenshots of the Draft analysis report for the given Class-A surface.         Drfat Analysis for Final Plastic Component o As we get Tooling Axis, we can do Draft Analysis.o Before do the Draft Analysis, we have to ensure that, we have kept component into material view mode.o Then click on Feature…

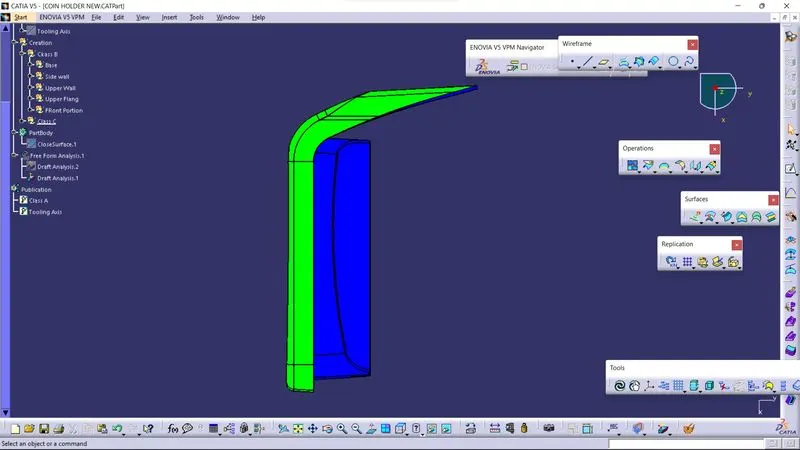

      Screenshots of the Draft analysis report for the given Class-A surface o As we get Tooling Axis, we can do Draft Analysis.o Before do the Draft Analysis, we have to ensure that, we have kept component into material view mode.o Then click on Feature Draft Analysis tool, so we get two boxes shown in…

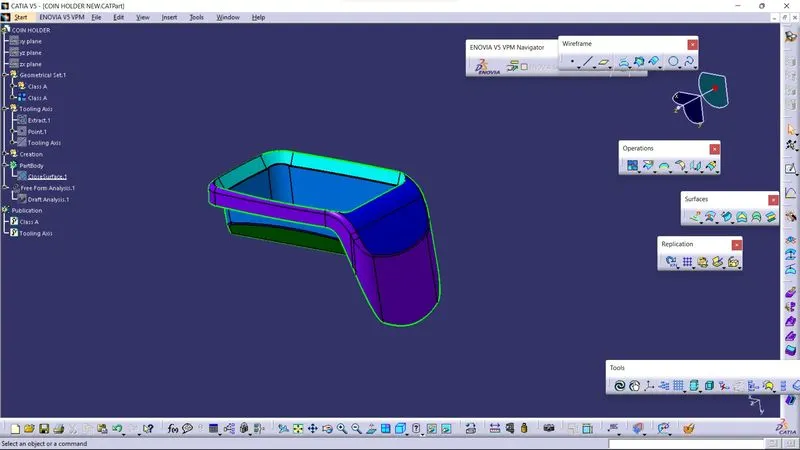

Screenshots of the Draft analysis report for the given Class-A surface.   For Draft Analysis, we need Tooling Axis. So here we will take point at center of the base of the Class A Surface by extracting base. For get respective profile, we take Axis system and by performing in two individual sketches, we will create…

Screenshots of the Draft analysis report for the given Class-A surface.   For Draft Analysis, we need Tooling Axis. So here we will take point at center of the base of the Class A Surface by extracting base. For get respective profile, we take Axis system and by performing in two individual sketches, we will create…

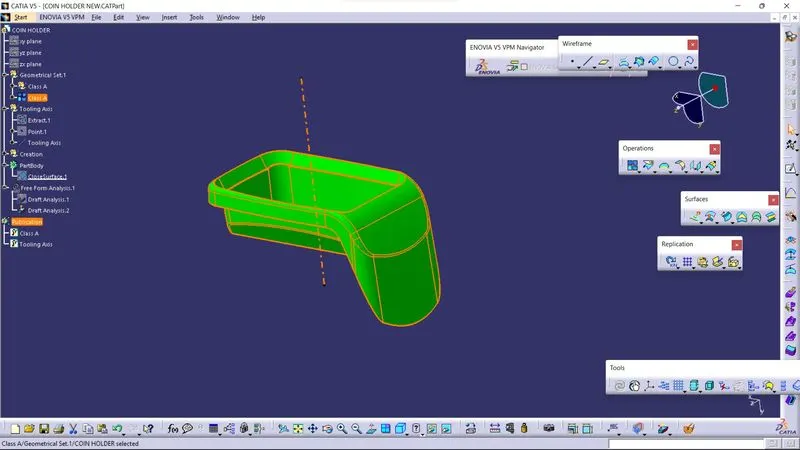

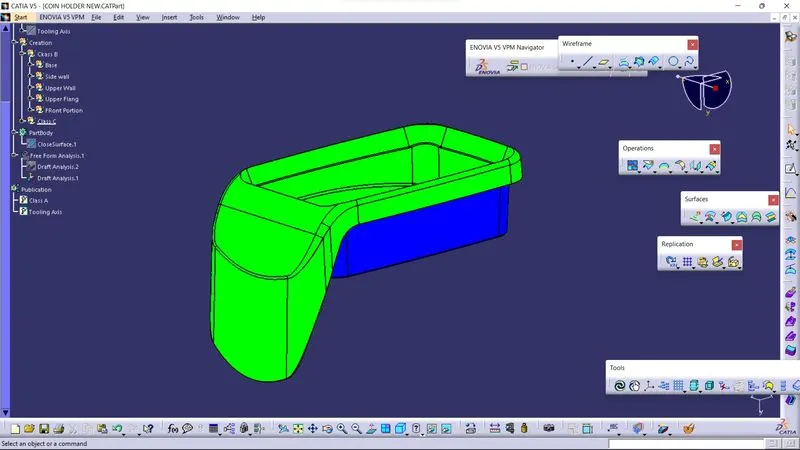

Class A Surface Tooling Axis And Draft Anaylysis o For Draft Analysis, we need Tooling Axis. So here we will take point at center of the base of the Class A Surface by extracting base.o For get respective profile, we take Axis system and by performing in two individual sketches, we will create two bisecting lines, one…

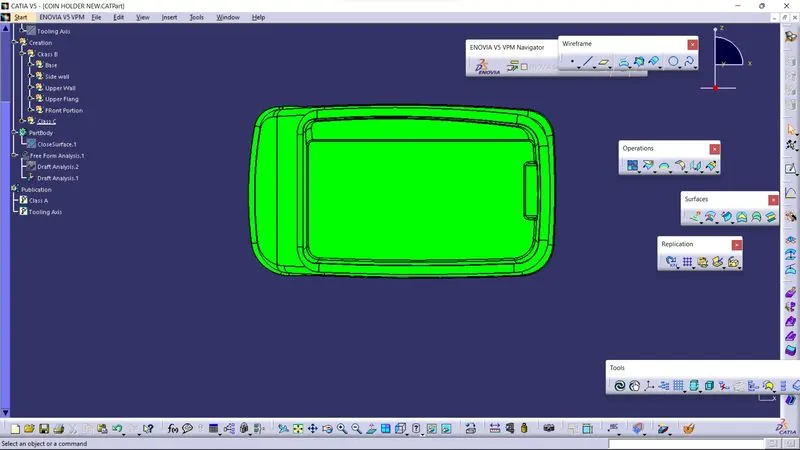

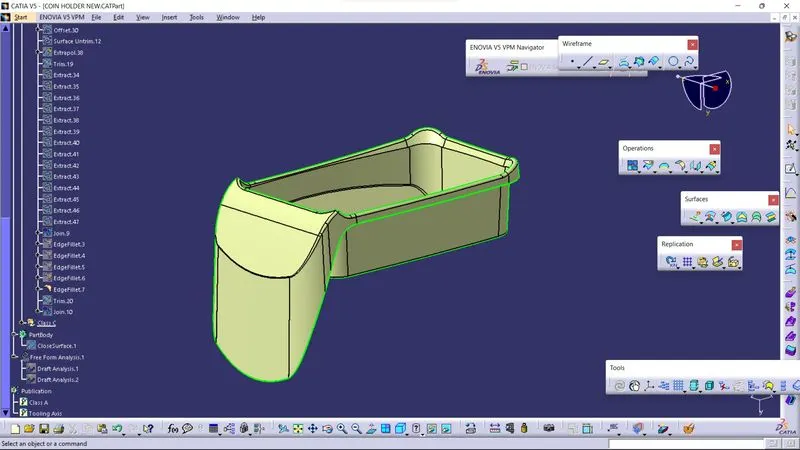

Class A Surface Draft Anaalysis Of Class A Surface o For Draft Analysis, we need Tooling Axis. So here we will take point at center of the    base of the Class A Surface by extracting base.o For get respective profile, we take Axis system and by performing in two individual    sketches, we will create…

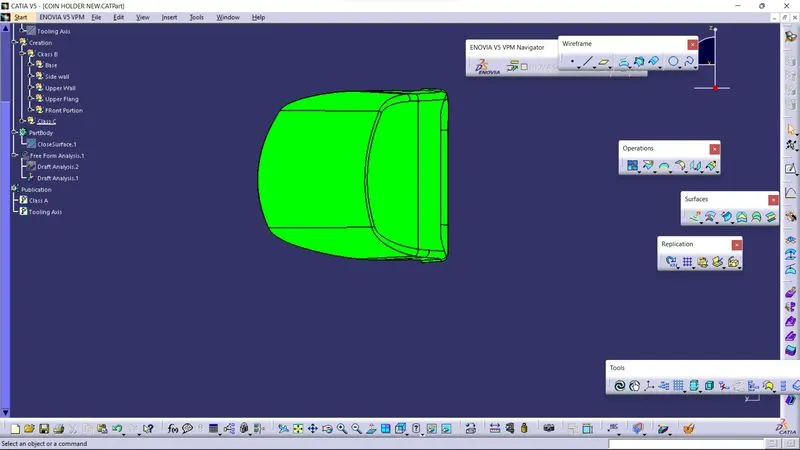

Screenshots of the Draft analysis report for the given Class-A surface. o For Draft Analysis, we need Tooling Axis. So here we will take point at center of the base of the Class A Surface by extracting base. o For get respective profile, we take Axis system and by performing in two individual sketches, we will create two…
