Wiring harness routing & packaging Rules Week 3 Challenge

Q-1 Definne Support Part

Download CAD File for clip.

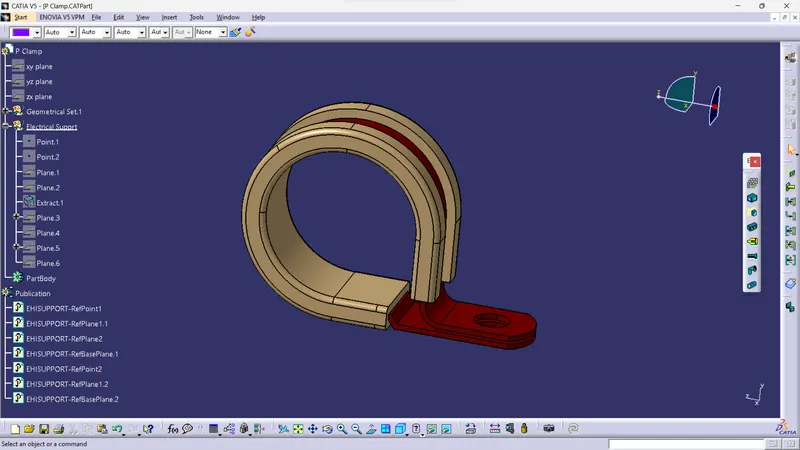

Open it in part Design and create two ponts for entry and exit.

create two plane on on each point wich is created jus before and than create bas plane.

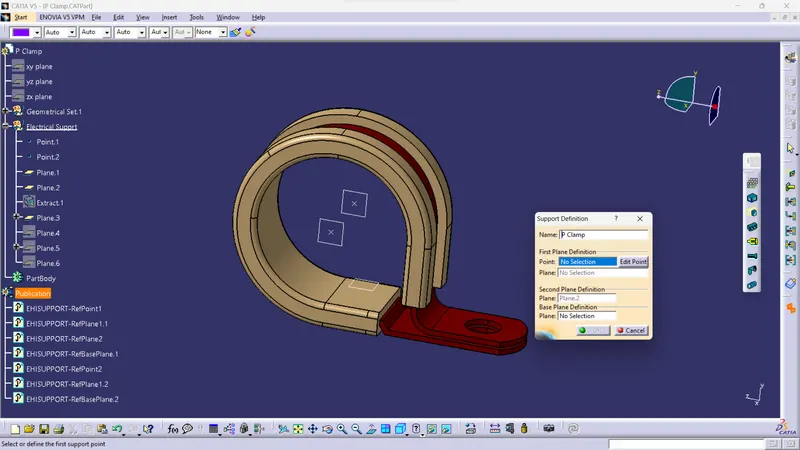

open part in electrical pat design and define it as support part.

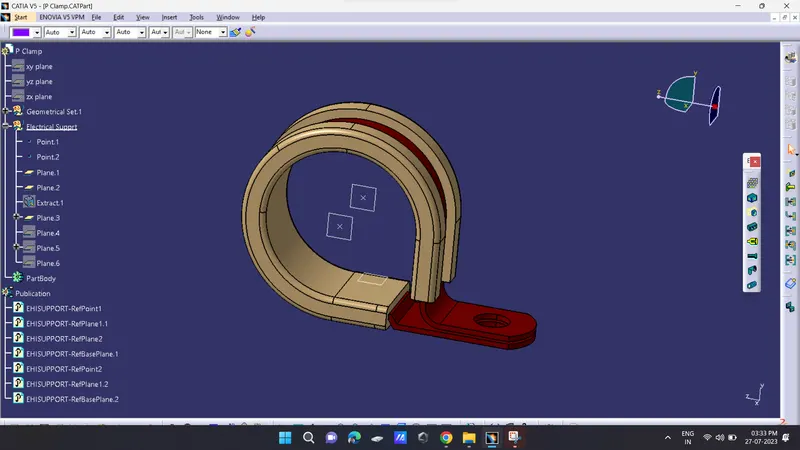

Define two times for entry and exit pints.

Q-2 Definne Electrical back shell

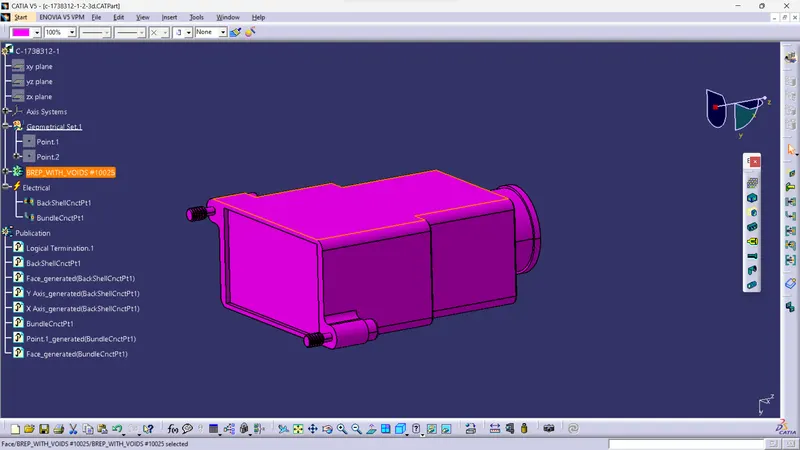

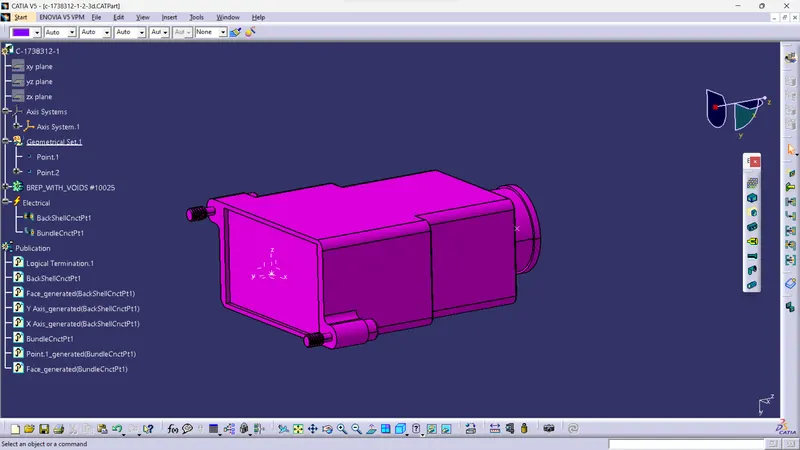

Download Cad file of back shell.

Define parameters like two points and axis system at back shell connection point.

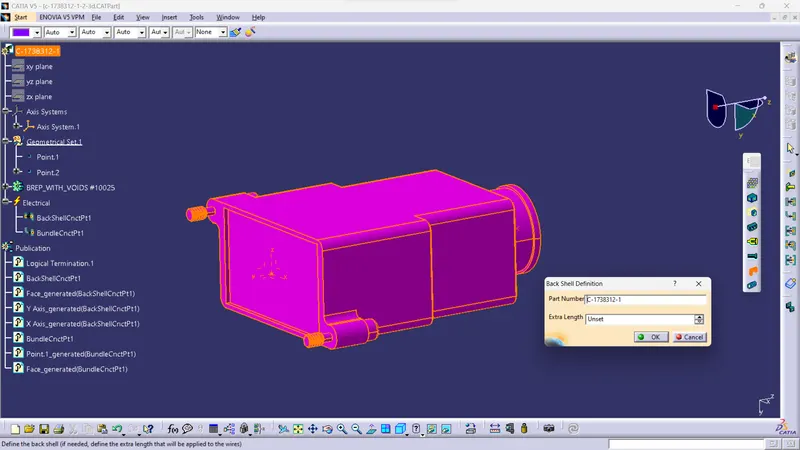

Define part as Back shell.

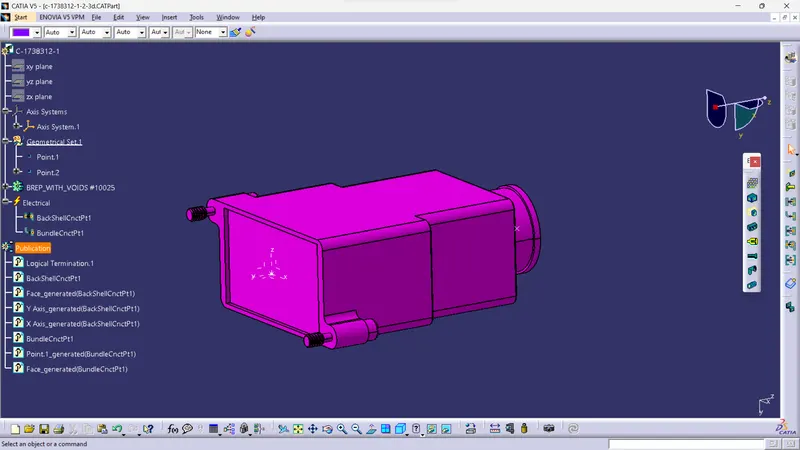

Define back shell connection point

Define Bundle connection point.

save.

Q-3 Create Following Corrugated tubes & Add them in Catalogue

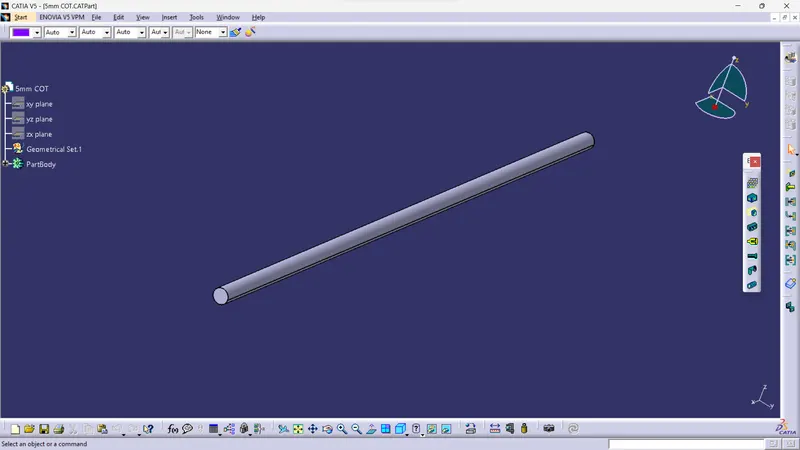

> created Corrugative tubes of differnt sizes and then added it in slit cot family in catalogue

5mm COT

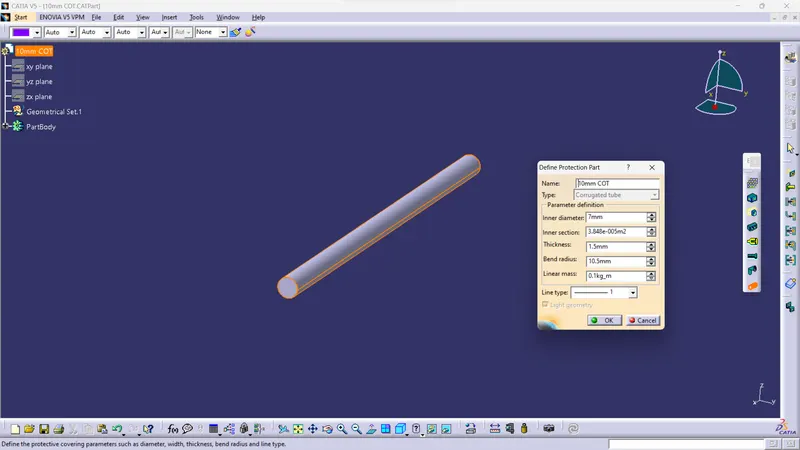

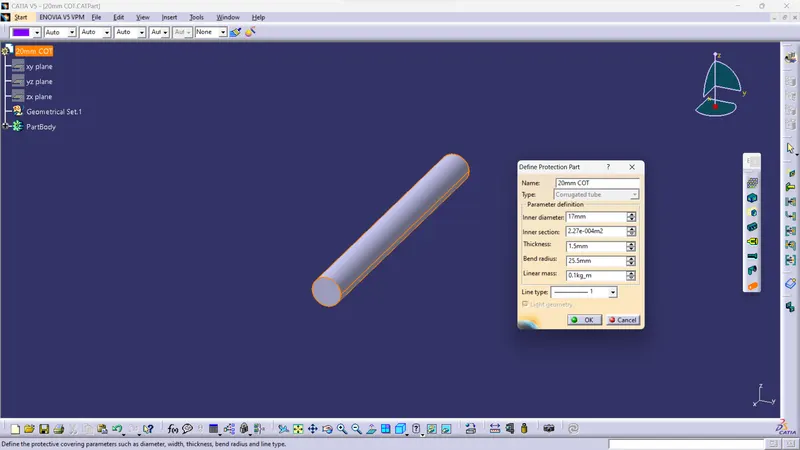

10mm COT

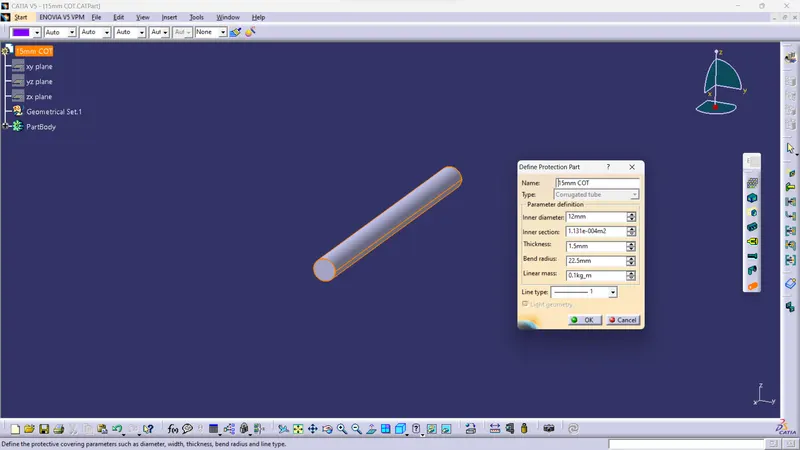

15mm COT

20mm COT

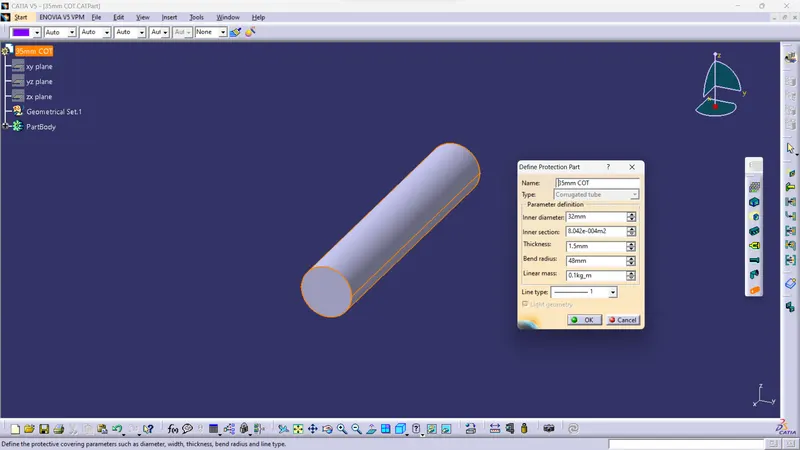

35mm COT
