Week 8:- 3D Finishing Challenge 2

AIM:
Perform 3D finish for all units of Assembly design.
Create Rough locators for Assembly.

3D FINISH:
The 3D finish is the process where design is completely finishing & to be ready for final simulation & 2D detailing
In 3D finishing we perform and ensure the following points:
i. Hole concentricity & hole sizes- All parts Hole concentricity is checked & confirmed while finishing the parts.
ii. Machining Area- The machining area in every part is defined & the machining area is highlighted by using orange colour.
iii. Nominality- All units dimensions are maintained nominal to facilitate easy assembly of the unit.
iv. Holes colouring standard- Color Code standard used in the 3D finishing
Cyan - Simple Hole
Yellow - Threaded Hole
Orange - Machined area
Blue - Dowel pin Hole
v. Fasteners implementation- Fasteners are implemented in all unit as per the requirement & load on the part.
vi. Avoiding clash between different part- Proper gap is maintained between parts to avoid the clash.
vii. Mylar splitting as per panel profile- Mylar splitting are confirmed while finishing the design.
viii. Proper renaming of parts/assemblies as per standard-proper renaming of parts & assemblies are done while finishing the design hence we can identify
each & every part easily with a unique identification.

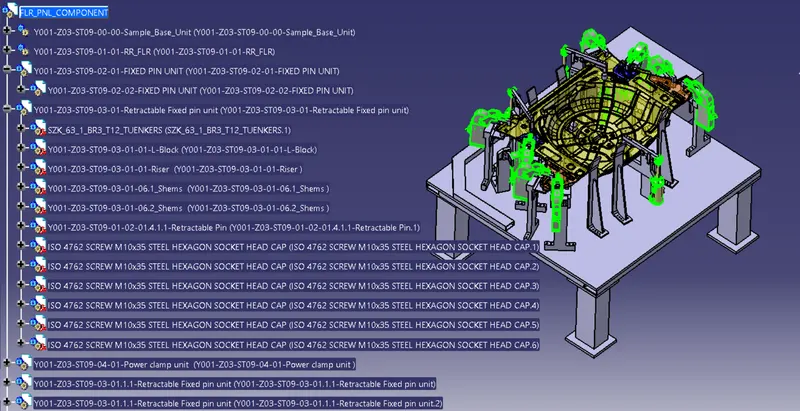

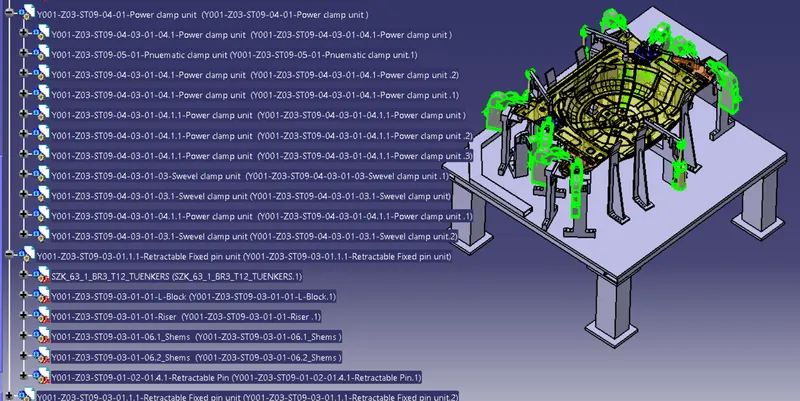

1 Renaming and Structuring of the design tree:
Renaming of the design tree is done. and structuring design tree in way that its simple to identify the units. some units use multiple time those are easy to
identify by its name.

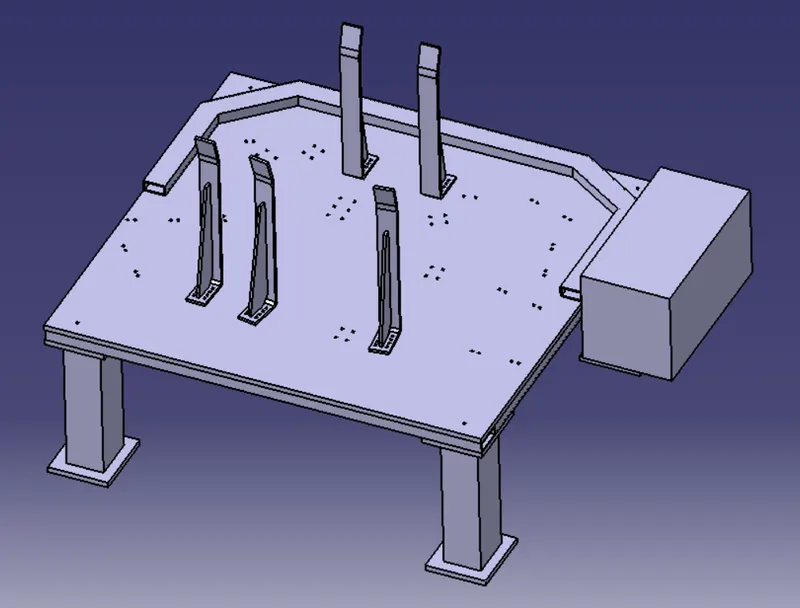

2. Base unit

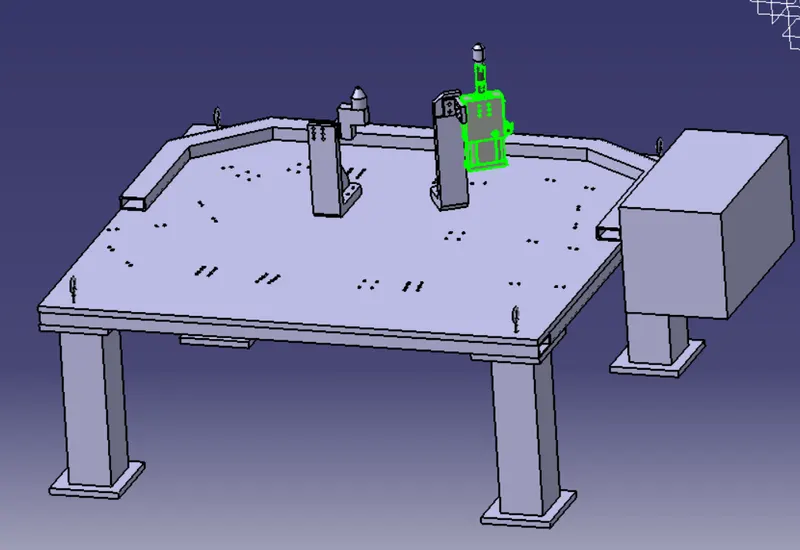

3 Retractable pin unit
Holes are make to the nominal and Concentric to each other.
the open position of retractable pin is shown in yellow colour
The proper butting of the two parts is done.
colour coding is done as per the standards.
structuring design tree renaming of parts is done.

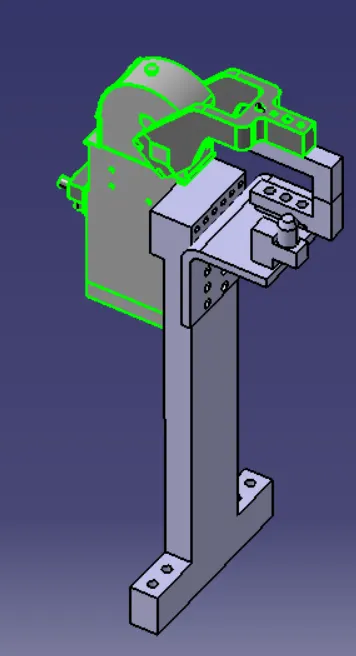

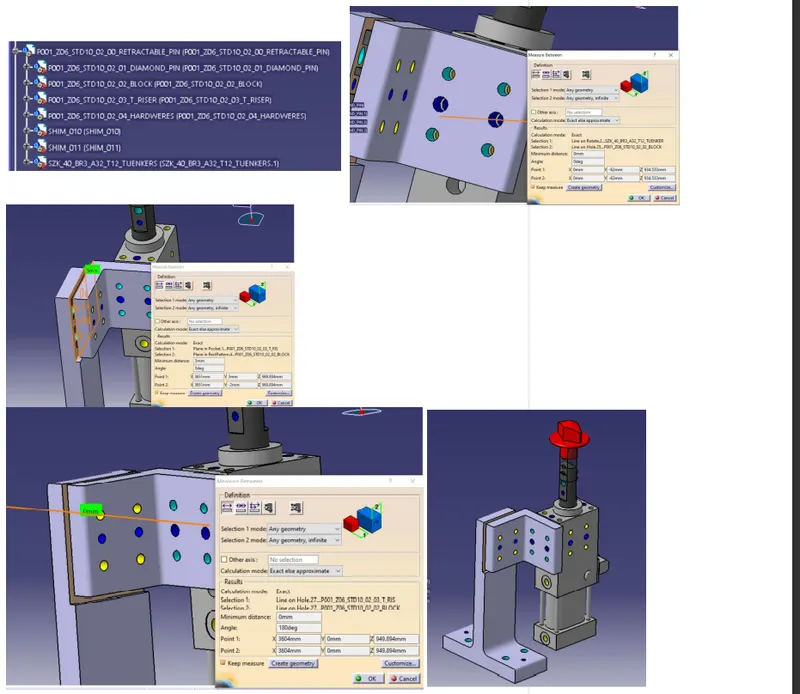

below are some images after 3d finishing done on fixed pin unit.
P001_Z06_STD10_02_00_RETRACTABLE_PIN

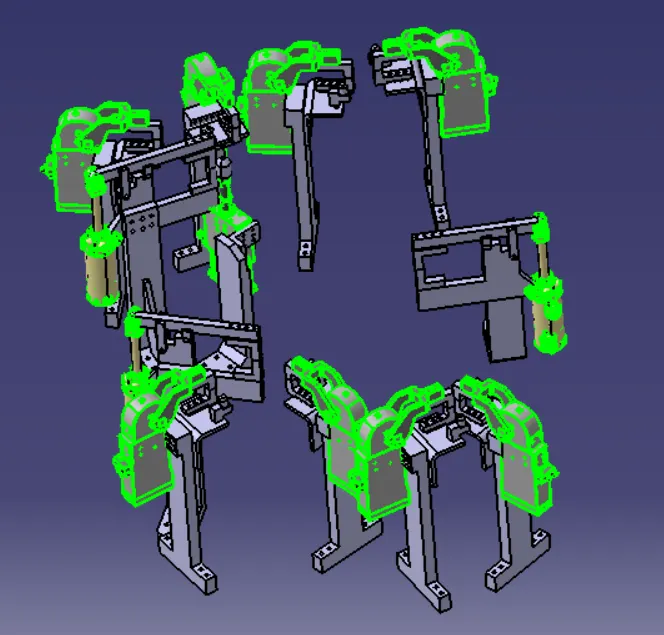

4 Swivel Clamp Unit
Holes are make to the nominal and Concentric to each other.
The proper butting of the two parts is done.
fasteners are implemented.
colour coding is done as per the standards.
structuring design tree renaming of parts is done.
mylar splitting is done.
the open position is shown in yellow colour.

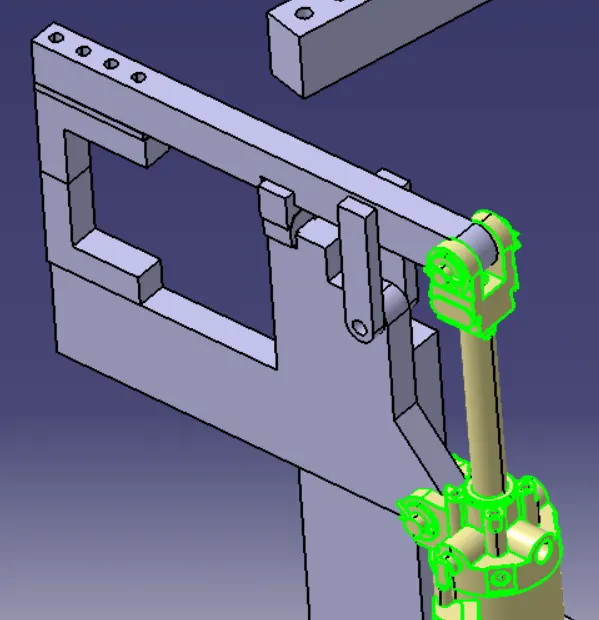

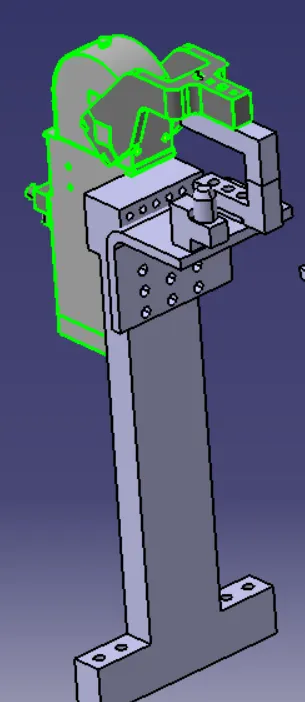

below are some images after 3d finishing done on swivel Clamp unit.

5 Power Clamp Unit
Holes are make to the nominal and Concentric to each other.
The proper butting of the two parts is done.
fasteners are implemented.
colour coding is done as per the standards.
structuring design tree renaming of parts is done.
mylar splitting is done.
the open position is shown in yellow colour.

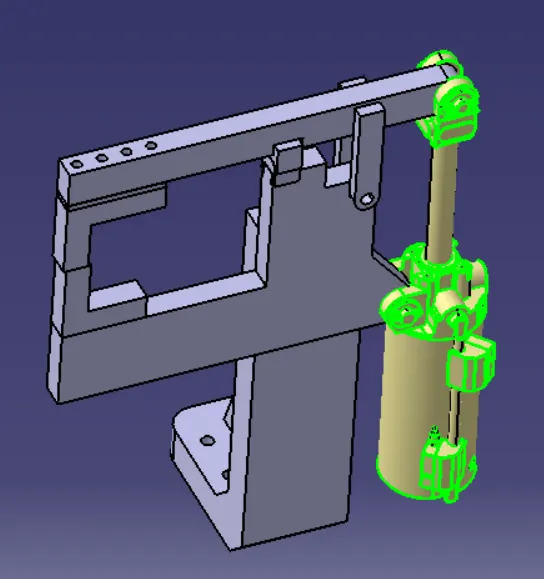

below are some images after 3d finishing done on swivel Clamp unit.

6 Rest Unit
Holes are make to the nominal and Concentric to each other.
The proper butting of the two parts is done.
colour coding is done as per the standards.
structuring design tree renaming of parts is done.
mylar splitting is done.
below are some images after 3d finishing done on swivel Clamp unit.

7 PIN CLAMP UNIT
Holes are make to the nominal and Concentric to each other.
The proper butting of the two parts is done.
colour coding is done as per the standards.
structuring design tree renaming of parts is done.
mylar splitting is done.
below are some images after 3d finishing done on swivel Clamp unit.

8 Rough Locator
Provide locator in 4 direction.
Mention 0 mm gap between rough locator and panel.

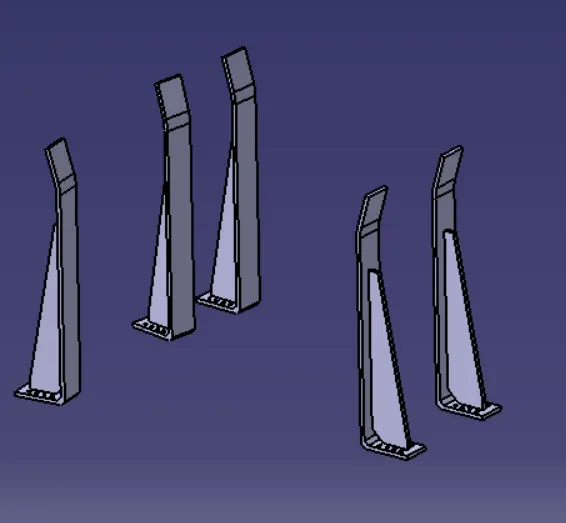

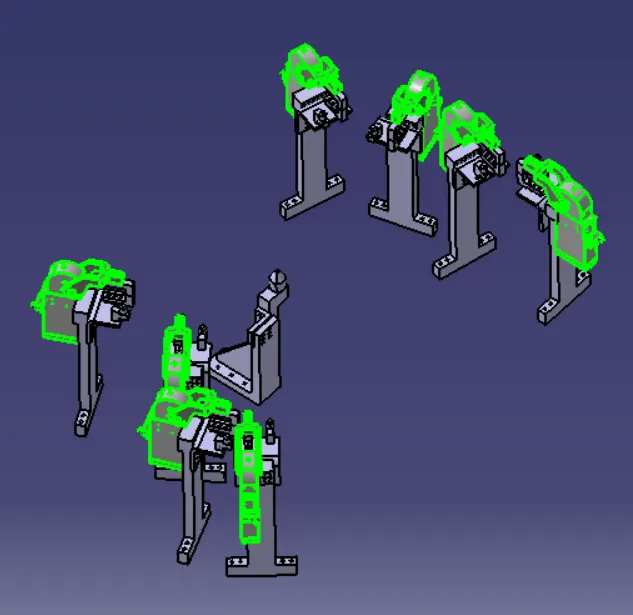

here I use 6 rough locators as shown below
