Aim: To simulate the isentropic flow through a Quasi 1D subsonic nozzle by deriving both the conservation and non-conservation forms of the governing equations and solve them by implementing the MacCormack’s technique using Octave. Problem statement: Determine the steady-state temperature distribution for…
Mohan Babu H
updated on 19 Jan 2022
Aim:
To simulate the isentropic flow through a Quasi 1D subsonic nozzle by deriving both the conservation and non-conservation forms of the governing equations and solve them by implementing the MacCormack’s technique using Octave.
Problem statement:
Determine the steady-state temperature distribution for the flow field variables and to investigate the difference between the two forms of governing equations by comparing their solutions along with plots stated below.
Study-state distribution of primitive variables inside the nozzle.
Time-wise variation of the primitive variables.

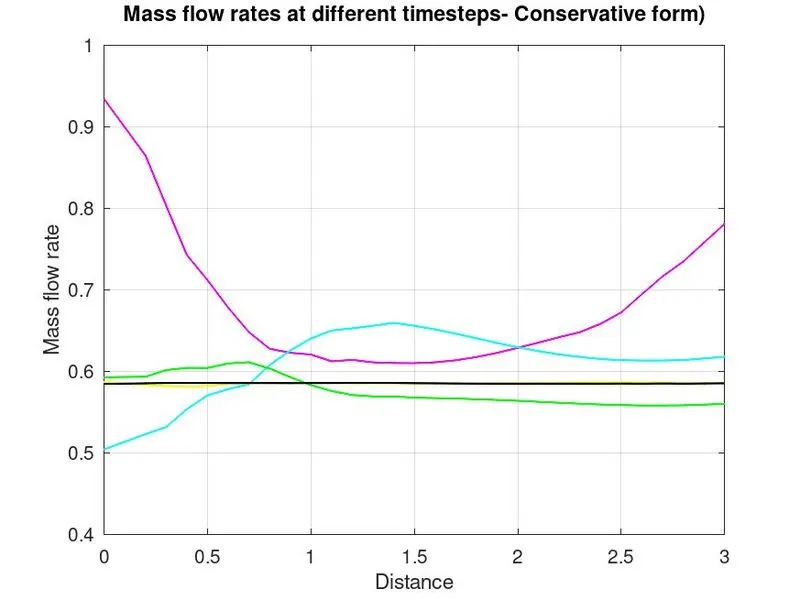

Variation of mass rate distribution inside the nozzle at different time steps during the time marching problem.
Comparison of normalized mass flow rate distributions of both forms
Theory:
Any numerical solutions of isentropic flow through a Quasi 1D subsonic –supersonic nozzle is unreasonable, while analytic solution exists for these kind of problems. However we are trying here to establish the broadened capability of CFD in various streams rather in representing the approximated form of analytic solution. Here we implement the numerical solution with conservative and Non-conservative forms.
Governing Equations are marched in terms of PDE for both forms in order to use Time marching solution for the problem. These forms respect in numerical aspect only, if we analytic all the methods are same.
Non-conservative Form:
Continuity Equation:
Momentum Equation:
Energy Equation:
Conservative Form:
Continuity Equation:
Momentum Equation:
Energy Equation:
Non-Dimensional Quantities:
Also as part of the problem setup we represent quantities in term of non-dimensional quantities.
Temperature:
Density:
Non-Dimensional Distance:
Non-Dimensional Velocity where
is the local sonic velocity
Non-Dimensional Time: where
is the characteristics of time scale
Non-Dimensional Area:
Nozzle Diagram with sections:
Since the problem setup is 1D , we consider only distribution in X-axis Here Nozzle can be spilt into two sections
MacCarmack Method:
To discretize the numerical solution we use the technique called macCarmack method. The MacCarmack method is a variation of the two-step Lax –Wendroff scheme but is much simpler in application.
Non-conservative Form:
Continuity Equation:
Main Program for solving Quasi 1D subsonic & supersonic Nozzle
% main program of solving Quasi 1D subsonic-supersonic nozzle
clear all
close all
clc
% Solving Quasi 1D Supersonic nozzle flow equations
% Inputs parameters
% No.of,grid points
n=31;
gamma=1.4;
x=linspace(0,3,n);
dx=x(2)-x(1);
% No.of Time-step
nt=1400;
% Courant number
c=0.5;
% Function for Non Conservative form
tic;
[Mass_flow_rate_NC,Pressure_NC,Mach_number_NC,rho_NC,V_NC,T_NC,rho_throat_NC,V_throat_NC,T_throat_NC,Mass_flow_rate_throat_NC,Pressure_throat_NC,Mach_number_throat_NC]=Non_conservative_form(x,dx,n,gamma,nt,c);
Time_elapsed_NC=toc;
fprintf('Time Elapsed for Non_conservative_form : %0.4f',Time_elapsed_NC);
hold on
% Plotting

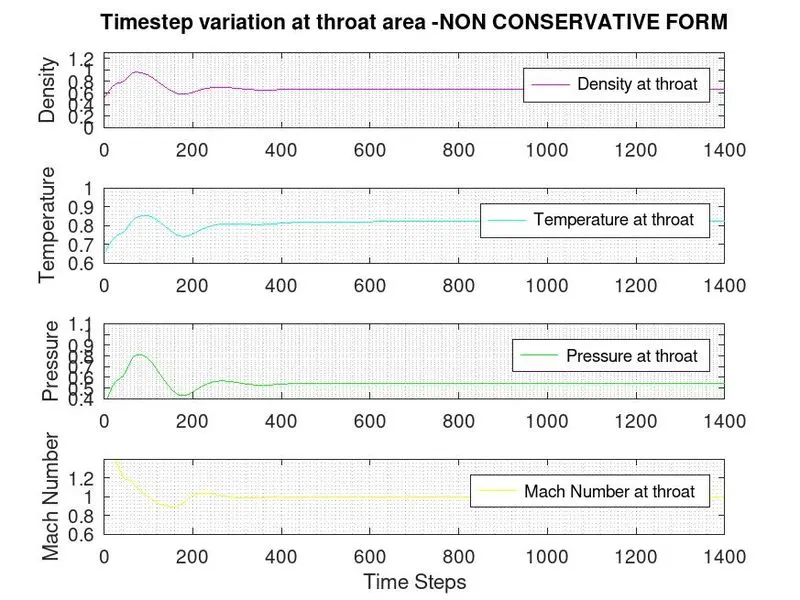

% Time step variaqtion of properties at throat area in Non Conservative form
figure(2)
% Density
subplot(4,1,1)
plot(linspace(1,nt,nt),rho_throat_NC,'color','m');
ylabel('Density')
legend({'Density at throat'});
axis([0 1400 0 1.3]);
grid minor;
title('Timestep variation at throat area -NON CONSERVATIVE FORM')
% Temperature
subplot(4,1,2)
plot(linspace(1,nt,nt),T_throat_NC,'color','c');
ylabel('Temperature')
legend({'Temperature at throat'});
axis([0 1400 0.6 1]);
grid minor;
% Pressure
subplot(4,1,3)
plot(linspace(1,nt,nt),Pressure_throat_NC,'color','g');
ylabel('Pressure')
legend({'Pressure at throat'});
axis([0 1400 0.4 1.1]);
grid minor;
% Mach number
subplot(4,1,4)
plot(linspace(1,nt,nt),Mach_number_throat_NC,'color','y');
xlabel('Time Steps')
ylabel('Mach Number')
legend({'Mach Number at throat'});
axis([0 1400 0.6 1.4]);
grid minor;

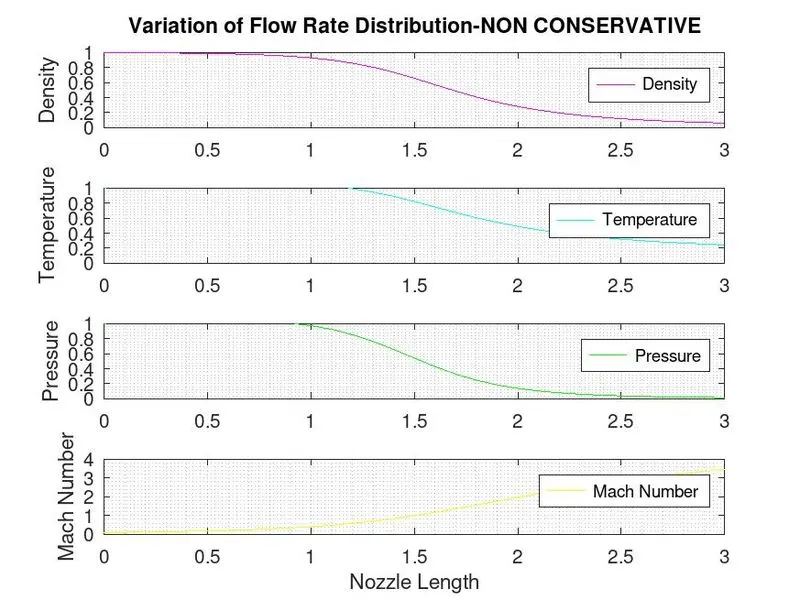

% steady state simulation for primitve values for Non Conservative form
figure(3);
% Density
subplot(4,1,1)
plot(x,rho_NC,'color','m')
ylabel('Density')
legend({'Density '});
axis([0 3 0 1]);
grid minor;
title('Variation of Flow Rate Distribution-NON CONSERVATIVE')
% Temperature
subplot(4,1,2)
plot(x,T_NC,'color','c')
ylabel('Temperature')
legend({'Temperature'});
axis([0 3 0 1]);
grid minor;
% Pressure
subplot(4,1,3)
plot(x,Pressure_NC,'color','g');
ylabel('Pressure')
legend({'Pressure'});
axis([0 3 0 1]);
grid minor;
% Mach number
subplot(4,1,4)
plot(x,Mach_number_NC,'color','y');
xlabel('Nozzle Length')
ylabel('Mach Number')
legend({'Mach Number'});
axis([0 3 0 4]);
grid minor;
% Function for Conservative form
tic;
[Mass_flow_rate_C,Pressure_C,Mach_number_C,rho_C,V_C,T_C,rho_throat_C,V_throat_C,T_throat_C,Mass_flow_rate_throat_C,Pressure_throat_C,Mach_number_throat_C]=conservative_form(x,dx,n,gamma,nt,c);
Time_elapsed_C=toc;
fprintf('Time Elapsed for Conservative_form : %0.4f',Time_elapsed_C);
hold on
% Plotting

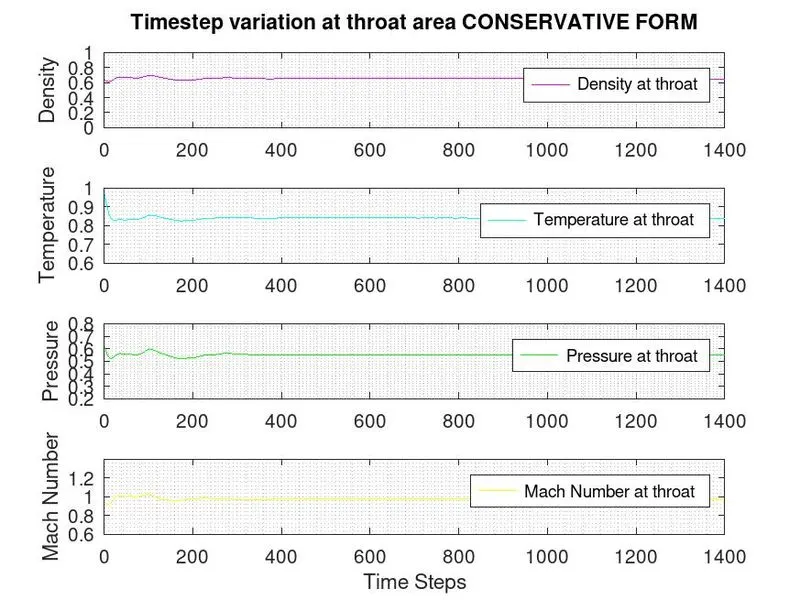

% Time step variaqtion of properties at throat area in Conservative form
figure(5)
% Density
subplot(4,1,1)
plot(rho_throat_C,'color','m');
ylabel('Density')
legend({'Density at throat'});
axis([0 1400 0 1]);
grid minor;
title('Timestep variation at throat area CONSERVATIVE FORM')
% Temperature
subplot(4,1,2)
plot(T_throat_C,'color','c');
ylabel('Temperature')
legend({'Temperature at throat'});
axis([0 1400 0.6 1]);
grid minor;
% Pressure
subplot(4,1,3)
plot(Pressure_throat_C,'color','g');
ylabel('Pressure')
legend({'Pressure at throat'});
axis([0 1400 0.2 0.8]);
grid minor;
% Mach number
subplot(4,1,4)
plot(Mach_number_throat_C,'color','y');
xlabel('Time Steps')
ylabel('Mach Number')
legend({'Mach Number at throat'});
axis([0 1400 0.6 1.4]);
grid minor;

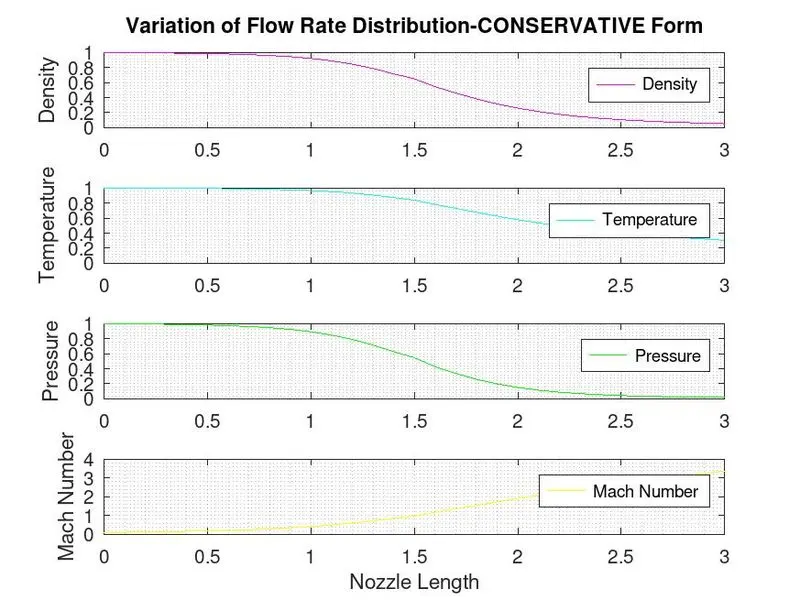

% steady state simulation for primitve values for Conservative form
figure(6);
% Density
subplot(4,1,1)
plot(x,rho_C,'color','m')
ylabel('Density');
legend({'Density '});
axis([0 3 0 1]);
grid minor;
title('Variation of Flow Rate Distribution-CONSERVATIVE Form')
% Temperature
subplot(4,1,2)
plot(x,T_C,'color','c')
ylabel('Temperature')
legend({'Temperature'});
axis([0 3 0 1]);
grid minor;
% Pressure
subplot(4,1,3)
plot(x,Pressure_C,'color','g');
ylabel('Pressure');
legend({'Pressure'});
axis([0 3 0 1]);
grid minor;
% Mach number
subplot(4,1,4)
plot(x,Mach_number_C,'color','y');
xlabel('Nozzle Length');
ylabel('Mach Number')
legend({'Mach Number'});
axis([0 3 0 4]);
grid minor;

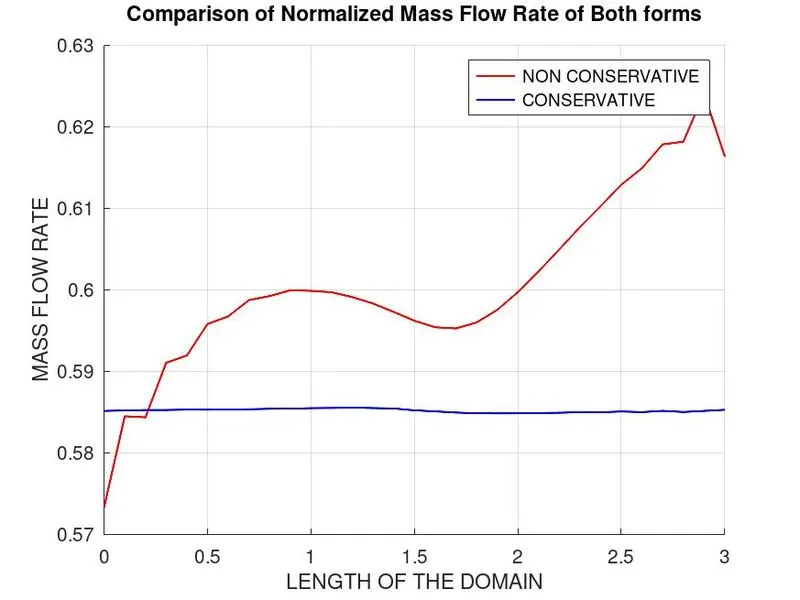

% comparison plot Normalized Mass Flow Rate of Both Forms
figure(7)
hold on
plot(x,Mass_flow_rate_NC,'r','linewidth',1.25)
hold on
plot(x,Mass_flow_rate_C,'b','linewidth',1.25)
hold on
grid on
legend('NON CONSERVATIVE','CONSERVATIVE');
xlabel('LENGTH OF THE DOMAIN')
ylabel('MASS FLOW RATE')
title('Comparison of Normalized Mass Flow Rate of Both forms')
Explanation:
Code is started with clear all, close all and clc to enable a fresh start without the manipulation of previous values.
Input parameters are assigned for the variable x, dx, n, gamma, nt and c.
Non conservative and conservative forms are created as separate functions with the necessary inputs which is detailed below the sections.
tic toc command is used for calculating the time elapsed between the function.
Plotting is done for the following solutions.
1.) Time step variations at throat area for both forms.
2.) Variation of flow rate distribution of both forms.
3.) Comparison of normalized mass flow rate of both forms.
Each plot is computed as subplots of four primitive variables such as Density temperature Pressure and Mach number at throat as well as convergent and divergent section.
Function code for Non Conservative Form:
% Function for Non-conservative format
function[Mass_flow_rate_NC,Pressure_NC,Mach_number_NC,rho_NC,V_NC,T_NC,rho_throat_NC,V_throat_NC,T_throat_NC,Mass_flow_rate_throat_NC,Pressure_throat_NC,Mach_number_throat_NC]=Non_conservative_form(x,dx,n,gamma,nt,c)
%initial boundary conditions
rho_NC=1-0.3146*x;
T_NC=1-0.2341*x;
V_NC=(0.1+1.09*x).*T_NC.^0.5;
% Area of throat profiles
a=1+2.2*(x-1.5).^2;
throat=find(a==1);
% Outer Time loop
for k=1:nt
%Time-step control
dt=min(c.*dx./(sqrt(T_NC)+V_NC));
% saving the copy of old values
rho_old=rho_NC;
T_old=T_NC;
V_old=V_NC;
% predictor methods
for j=2:n-1
% simplifying the equations spatial terms
dv_dx=(V_NC(j+1)-V_NC(j))/dx;
drho_dx=(rho_NC(j+1)-rho_NC(j))/dx;
dT_dx=(T_NC(j)-T_NC(j-1))/dx;
dlog_a_dx=(log(a(j+1))-log(a(j)))/dx;
% continuity equations
drho_dt_P(j)=-rho_NC(j)*dv_dx-rho_NC(j)*V_NC(j)*dlog_a_dx-V_NC(j)*drho_dx;
% momentum equations
dv_dt_P(j)=-V_NC(j)*dv_dx-(1/gamma)*(dT_dx+(T_NC(j)*drho_dx/rho_NC(j)));
% Energy equations
dT_dt_P(j)=-V_NC(j)*dT_dx-(gamma-1)*T_NC(j)*(dv_dx+V_NC(j)*dlog_a_dx);
% solution update
rho_NC(j)=rho_NC(j)+drho_dt_P(j)*dt;
V_NC(j)=V_NC(j)+dv_dt_P(j)*dt;
T_NC(j)=T_NC(j)+dT_dt_P(j)*dt;
end
% corrector methods
for j=2:n-1
% simplifying the equations spatial terms
dv_dx=(V_NC(j)-V_NC(j-1))/dx;
drho_dx=(rho_NC(j)-rho_NC(j-1))/dx;
dt_dx=(T_NC(j)-T_NC(j-1))/dx;
dlog_a_dx=(log(a(j))-log(a(j-1)))/dx;
% continuity equations
drho_dt_C(j)=-rho_NC(j)*dv_dx-rho_NC(j)*V_NC(j)*dlog_a_dx-V_NC(j)*drho_dx;
% momentum equations
dv_dt_C(j)=-V_NC(j)*dv_dx-(1/gamma)*(dT_dx+(T_NC(j)*drho_dx/rho_NC(j)));
% Energy equations
dT_dt_C(j)=-V_NC(j)*dT_dx-(gamma-1)*T_NC(j)*(dv_dx+V_NC(j)*dlog_a_dx);
% solution update
rho_NC(j)=rho_NC(j)+drho_dt_C(j)*dt;
V_NC(j)=V_NC(j)+dv_dt_C(j)*dt;
T_NC(j)=T_NC(j)+dT_dt_C(j)*dt;
end
% compute the average time derivative
drho_dt=0.5.*(drho_dt_P+drho_dt_C);
dv_dt=0.5.*(dv_dt_P+dv_dt_C);
dT_dx=0.5.*(dT_dt_P+dT_dt_C);
% final solution update
for i=2:n-1
rho_NC(i)=rho_old(i)+drho_dt(i)*dt;
V_NC(i)=V_old(i)+dv_dt(i)*dt;
T_NC(i)=T_old(i)+dT_dx(i)*dt;
end
% Applying boundary conditions
% At Inlet
rho_NC(1)=1;
V_NC(1)=2*V_NC(2)-V_NC(3);
T_NC(1)=1;
% At Outlet
rho_NC(n)=2*rho_NC(n-1)-rho_NC(n-2);
V_NC(n)=2*V_NC(n-1)-V_NC(n-2);
T_NC(n)=2*T_NC(n-1)-T_NC(n-2);
% Defining the Mass flow rate,Pressure and Mach number
Mass_flow_rate_NC=rho_NC.*a.*V_NC;
Pressure_NC=rho_NC.*T_NC;
Mach_number_NC=(V_NC./sqrt(T_NC));
% Calculating the variables at throat section
rho_throat_NC(k)=rho_NC(throat);
T_throat_NC(k)=T_NC(throat);
V_throat_NC(k)=V_NC(throat);
Mass_flow_rate_throat_NC(k)=Mass_flow_rate_NC(throat);
Pressure_throat_NC(k)=Pressure_NC(throat);
Mach_number_throat_NC(k)=Mach_number_NC(throat);
% plotting

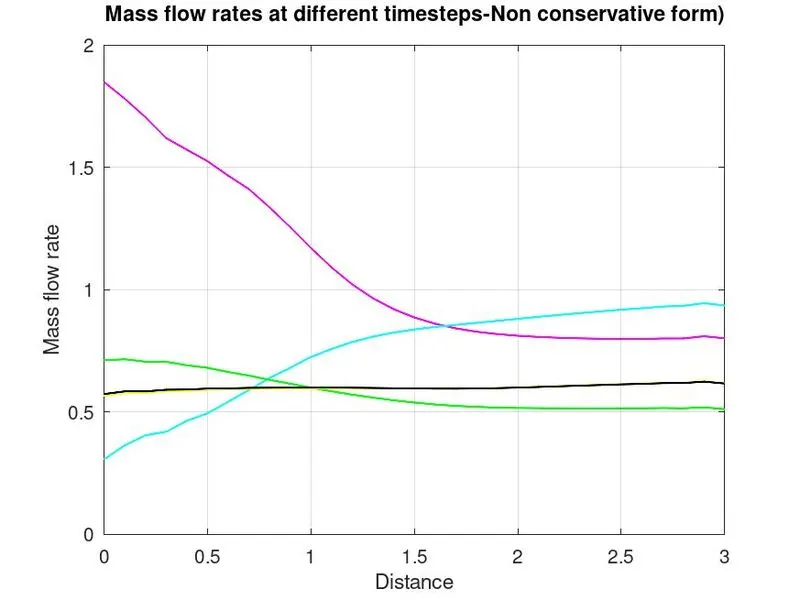

% comparison of non-dimensional mass flow rate atdifferenttime steps
figure(1);
if k==50
plot(x,Mass_flow_rate_NC,'m','linewidth',1.25);
hold on
elseif k==100
plot(x,Mass_flow_rate_NC,'c','linewidth',1.25);
hold on
elseif k==200
plot(x,Mass_flow_rate_NC,'g','linewidth',1.25);
hold on
elseif k==500
plot(x,Mass_flow_rate_NC,'y','linewidth',1.25);
hold on
elseif k==900
plot(x,Mass_flow_rate_NC,'k','linewidth',1.25);
hold on
end
% labelling
title('Mass flow rates at different timesteps-Non conservative form)');
xlabel('Distance');
ylabel('Mass flow rate');
%legend('50^t^h Time steps','100^t^h Time steps','200^t^h Time steps','500^t^h Time steps','900^t^h Time steps');
axis([0 3 0 2]);
grid on
end
end
Explanation:
The purpose of the function is to calculate the values of mass flow rate, pressure ,Mach number, Density, Velocity, Temperature, Density at throat, Velocity at throat, Temperature at throat, Mass flow rate at throat, Pressure at throat, Mach number at throat by knowing equations for all the grid points.
For the initial boundary conditions are established for Density, Temperature and Velocity and profiles for calculating area and throat.
Now Outer time loop is computed for for loop to calculate all the grid points for various formulas inside the loop.
MacCarmack technique is used to solve the numerical solutions of governing equations such as continuity, Momentum and Energy equations.
The technique implies two methods for solving namely predictor method followed by corrector method.
Predictor and corrector method are assigned within the for loop individually for calculating values.
The calculated values are averaged in the next time step and updating the solution with old values.
Boundary Conditions are applied within the for loop and subsequently used for calculating the mass flow rate, Mach number and pressure also calculated at the throat section.
Finally plotting is done for Distance (x) and Mass flow rate for different time steps.
Conclusion
Function code for Conservative form:
%Function for Conservative form
function[Mass_flow_rate_C,Pressure_C,Mach_number_C,rho_C,V_C,T_C,rho_throat_C,V_throat_C,T_throat_C,Mass_flow_rate_throat_C,Pressure_throat_C,Mach_number_throat_C]=conservative_form(x,dx,n,gamma,nt,c)
% Determining initial profile of Density and Temperature
for i=1:n
if (x(i)>=0 && x(i)<=0.5)
rho_C(i)=1;
T_C(i)=1;
elseif (x(i)>=0.5 && x(i)<=1.5)
rho_C(i)=1-0.366*(x(i)-0.5);
T_C(i)=1-0.167*(x(i)-0.5);
elseif (x(i)>=1.5 && x(i)<=3)
rho_C(i)=0.634-0.3879*(x(i)-1.5);
T_C(i)=0.833-0.3507*(x(i)-1.5);
end
end
% Area and throat profiles
a=1+2.2*(x-1.5).^2;
throat= find(a==1);
% Initial Profile for Velocity and Pressue
V_C=0.59./(rho_C.*a);
Presure_C=rho_C.*T_C;
% calculating the initial solution vectors(u)
U1=rho_C.*a;
U2=rho_C.*a.*V_C;
U3=rho_C.*a.*(T_C/(gamma-1))+((gamma/2).*V_C.^2);
% Outer time loop
for k=1:nt
% Time-step control
dt=min(c.*dx./(sqrt(T_C)+V_C));
% saving a copy of old values
U1_old=U1;
U2_old=U2;
U3_old=U3;
% calculating the flux vector(F)
F1=U2;
F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-(gamma/2)*((U2.^2)./U1));
F3=((gamma*U2.*U3)./U1)-(gamma*(gamma-1)*((U2.^3)./(2*U1.^2)));
% Predictor methods
for j=2:n-1
% calculating the source term(j)
J2(j)=(1/gamma)*rho_C(j)*T_C(j)*((a(j+1)-a(j))/dx);
% continuity Equation
dU1_dt_P(j)=-((F1(j+1)-F1(j))/dx);
% MomentumEquation
dU2_dt_P(j)=-((F2(j+1)-F2(j))/dx)+J2(j);
% Energy Equation
dU3_dt_P(j)=-((F3(j+1)-F3(j))/dx);
% Updating new values
U1(j)=U1(j)+dU1_dt_P(j)*dt;
U2(j)=U2(j)+dU2_dt_P(j)*dt;
U3(j)=U3(j)+dU3_dt_P(j)*dt;
end
% Updating the Flux vectors
F1=U2;
F2=((U2.^2)./U1)+((gamma-1)/gamma)*(U3-((gamma*0.5*(U2.^2))./(U1)));
F3=((gamma*U2.*U3)./U1)-((gamma*0.5*(gamma-1)*(U2.^3))./(U1.^2));
% Corrector methods
for j=2:n-1
% calculating the source term(j)
J2(j)=(1/gamma)*rho_C(j)*T_C(j)*((a(j)-a(j-1))/dx);
% continuity Equation
dU1_dt_C(j)=-((F1(j)-F1(j-1))/dx);
% MomentumEquation
dU2_dt_C(j)=-((F2(j)-F2(j-1))/dx)+J2(j);
% Energy Equation
dU3_dt_C(j)=-((F3(j)-F3(j-1))/dx);
end
% Compute average Time derivative
dU1_dt=0.5*(dU1_dt_P+dU1_dt_C);
dU2_dt=0.5*(dU2_dt_P+dU2_dt_C);
dU3_dt=0.5*(dU3_dt_P+dU3_dt_C);
% Final Solution values
for i=2:n-1
U1(i)=U1_old(i)+dU1_dt(i)*dt;
U2(i)=U2_old(i)+dU2_dt(i)*dt;
U3(i)=U3_old(i)+dU3_dt(i)*dt;
end
% Applying boundary conditions
% At inlet
U1(1)=rho_C(1)*a(1);
U2(1)=2*U2(2)-U2(3);
V_C(1)=U2(1)./U1(1);
U3(1)=U1(1)*((T_C(1)/(gamma-1))+((gamma/2)*(V_C(1)).^2));
% At outlet
U1(n)=2*U1(n-1)-U1(n-2);
U2(n)=2*U2(n-1)-U2(n-2);
U3(n)=2*U3(n-1)-U3(n-2);
% Final Primitive value update
rho_C=U1./a;
V_C=U2./U1;
T_C=(gamma-1)*((U3./U1-(gamma/2)*(V_C).^2));
% Defining the Mass flow rate,Pressure and Mach number
Mass_flow_rate_C=rho_C.*a.*V_C;
Pressure_C=rho_C.*T_C;
Mach_number_C=(V_C./sqrt(T_C));
% Calculating the variables at throat section
rho_throat_C(k)=rho_C(throat);
T_throat_C(k)=T_C(throat);
V_throat_C(k)=V_C(throat);
Mass_flow_rate_throat_C(k)=Mass_flow_rate_C(throat);
Pressure_throat_C(k)=Pressure_C(throat);
Mach_number_throat_C(k)=Mach_number_C(throat);
% plotting
% comparison of non-dimensional mass flow rate atdifferenttime steps
figure(4);
if k==50
plot(x,Mass_flow_rate_C,'m','linewidth',1.25);
hold on
elseif k==100
plot(x,Mass_flow_rate_C,'c','linewidth',1.25);
hold on
elseif k==200
plot(x,Mass_flow_rate_C,'g','linewidth',1.25);
hold on
elseif k==500
plot(x,Mass_flow_rate_C,'y','linewidth',1.25);
hold on
elseif k==900
plot(x,Mass_flow_rate_C,'k','linewidth',1.25);
hold on
end
% labelling
title('Mass flow rates at different timesteps- Conservative form)')
xlabel('Distance')
ylabel('Mass flow rate')
%legend({'50^t^h Timestep','100^t^h Timestep','200^t^h Timestep','500^t^h Timestep','800^t^h Timestep'})
axis([0 3 0.4 1])
grid on
end
end
Explanation:
The purpose of the function is to calculate the values of mass flow rate, pressure ,Mach number, Density, Velocity, Temperature, Density at throat, Velocity at throat, Temperature at throat, Mass flow rate at throat, Pressure at throat, Mach number at throat by known equations for all the grid points. To determine the initial profile of density and temperature for loop is used inputting the known conditions with an else –if command.
For the initial boundary conditions are established for Density, Temperature and Velocity and profiles for calculating area and throat.
In Order to simplify and avoid errors, equation is spitted into Solution Vector (U), Flux Vector (F) and Source Vector (J).
Now Outer time loop is computed for for loop to calculate all the grid points for various formulas inside the loop.
MacCarmack technique is used to solve the numerical solutions of governing equations such as continuity, Momentum and Energy equations.
The technique implies two methods for solving namely predictor method followed by corrector method.
Predictor and corrector method are assigned within the for loop individually for calculating values.
The calculated values are averaged in the next time step and updating the solution with old values.
Boundary Conditions are applied within the for loop and subsequently used for calculating the mass flow rate, Mach number and pressure also calculated at the throat section.
Finally plotting is done for Distance (x) and Mass flow rate for different time steps.
Conclusion
PLOTS:
Timestep Variation of Primitive Variable at throat area:
Non-Conservative Form:
Conservative Form:
From the above plot we can conclude that initial variations are observed in Non-conservative form for a period of time takes, it consumes higher amount of time to achieve stable solution when compared to conservative form.
Variation of FlowRate Distribution:
Non-Conservative Form:
Conservative Form:
Here we observe the above plots of both the forms are in same phase giving the exact same solution for all the values
Mass Flowrate at Different Timesteps:
Non-conservative Form:
Conservative Form:
The above plots shows the Mass flow rate of different timesteps along the distance oscillate initially However the solution becomes stable after the 500 th time step for boththe forms from a constant value.
Comparison Plot of Normalized Mass flow Rate of both Non Conservative and Conservative Forms:
Even though the final solution of both the forms are almost similar. The Non conservative form oscillates much when compared toconservative form.The figure also gives almost stable solution along the length.By this we can conclude that conservative form attains stability in lesser number of iterations with earliest time.
GRID DEPENDENCE SOLUTION:
TYPE OF FORMS | Grid Numbers(n) | Density | Temperature | Pressure | Mach Number | Time Elapsed |
Non Conservative Form | n=31 | 0.99796 | 1.0118 | 1.0097 | 0.09635 | 29.456 |
n=61 | 0.99925 | 1.0053 | 1.0046 | 0.10206 | 48.317 | |
Non Conservative Form | n=31 | 0.99874 | 0.99951 | 0.99825 | 0.098341 | 27.551 |
n=61 | 0.99943 | 0.99977 | 0.9992 | 0.10365 | 37.317 | |
Solution | 0.9988 | 1.00409 | 1.00293 | 0.1001 |
Grid dependence is a important factor to determine whether the problem can be solved faster.So here we increased the grid points from 31 to 61 and populated them in a sheet.
Conclusion:
From the above results we observe that Convergence Form converges slightly faster than Non convergence For offering stable solution along the simulation.Yet both the formsare dependable in calculating the solutions.
Leave a comment
Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.
Other comments...
Week 2 : Basic Calibration of Single cylinder SI-Engine
Aim: * The Main objective of this project is to set up and run the model for a single cylinder four stroke SI Engine at 1800 rpm * To run the same model at 3600 rpm and increases the power - output by 10% Introduction: The Spark ignition (SI) engine is an internal combustion engine , where the air fuel mixture…
06 Jan 2023 01:38 PM IST
Week 1 : Exploring the GUI of GT-POWER
Aim: To Explore the GUI of GT-suite and GT-power and explaining the listed the modules in a brief description. GT-Suite: The tool which is used to industry leading simulation tool with capabilities and libraries aimed at a large set of applications in industries. It offers engineering functionalist ranging fast concept…
22 Nov 2022 02:01 PM IST
Week 11: Project 2 - Emission characterization on a CAT3410 engine
Aim: To Perform Emission Characterization on a CAT3410 Engine. Objective: To run a 3D Simulation of a CAT3410 Diesel Engine using two different piston bowl profiles and to understand the effect of Piston Bowl geometry on the Performance ans Emission characteristics of the Engine. Geometry: A tool called Make Engine Sector…
04 Nov 2022 10:55 AM IST
Week 10: Project 1 - FULL HYDRO case set up (PFI)
Aim: To set up a combustion Simulation with the details given in the challenge and to study different properties of combustion by Post Processing the results obtained by the calculation of the full hydrodynamic set up of the given geometry. Objective: * What is the compression ratio of this engine? * Why do…
21 Oct 2022 09:11 PM IST
Related Courses
Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.
© 2025 Skill-Lync Inc. All Rights Reserved.
