Week 3.5 - Deriving 4th order approximation of a 2nd order derivative using Taylor Table method

Object:

Derive the following 4th order approximation of the second-order derivative using:-

1. Central difference
2. Skewed right-sided difference
3. Skewed left-sided difference

Also, prove that your skewed schemes are fourth-order accurate.

Write a program in Matlab to evaluate the second-order derivative of the analytical function exp(x)*cos(x) and compare it with the 3 numerical approximations that you have derived.

1. Provide a plot that compares the absolute error between the above-mentioned schemes
2. Describe why a skewed scheme is useful? What can a skewed scheme do that a CD scheme cannot do?



Answer:

Derivation of the 4th order approximation of the Second-Order Derivative



1)Using the Central Difference method:

Since we’re deriving using central difference; our numerical stencil will look like.

Here, we’re computing 4th order approximation at point (i), where we take information from the four-point surrounding (i); i.e. we’re going to take two points on the left of (i) and two points on the right of (i). Let those points be (i-2), (i-1), (i+1), and (i+2) and the distance between each of them is (Δx).(∆x). Our numerical stencil will look like as shown in the above figure.

Based on the above stencil our hypothesis equation will be:-

`(del^2u)/(delx^2)=af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2).........(1)`

In order to find the values of coefficient(a,b,c,d,e),(a,b,c,d,e),we’re going to use the Taylor table method. Writing Taylor series expansion for each term of equation (1) as:-

 `(a)f(i-2)=(a)f(i)-((a)f'(i)(2)Deltax)/(1!)+((a)f''(i)(2)Deltax)^2/(2!)-((a)f'''(i)(2)Deltax)^3/(3!)+((a)f''''(i)(2)Deltax)^4/(4!)-((a)f'''''(i)(2)Deltax)^5/(5!)+((a)f''''''(i)(2)Deltax)^6/(6!)+....`

`(b)f(i-1)=(b)f(i)-((b)f'(i)Deltax)/(1!)+((b)f''(i)Deltax)^2/(2!)-((b)f'''(i)Deltax)^3/(3!)+((b)f''''(i)Deltax)^4/(4!)-((b)f'''''(i)Deltax)^5/(5!)+((b)f''''''(i)Deltax)^6/(6!)+....`

`(c)f(i)=(c)f(i)`

`(d)f(i+1)=(d)f(i)-((d)f'(i)Deltax)/(1!)+((d)f''(i)Deltax)^2/(2!)-((d)f'''(i)Deltax)^3/(3!)+((d)f''''(i)Deltax)^4/(4!)-((d)f'''''(i)Deltax)^5/(5!)+((d)f''''''(i)Deltax)^6/(6!)+....`

`(e)f(i+2)=(e)f(i)-((e)f'(i)(2)Deltax)/(1!)+((e)f''(i)(2)Deltax)^2/(2!)-((e)f'''(i)(2)Deltax)^3/(3!)+((e)f''''(i)(2)Deltax)^4/(4!)-((e)f'''''(i)(2)Deltax)^5/(5!)+((e)f''''''(i)(2)Deltax)^6/(6!)+....`

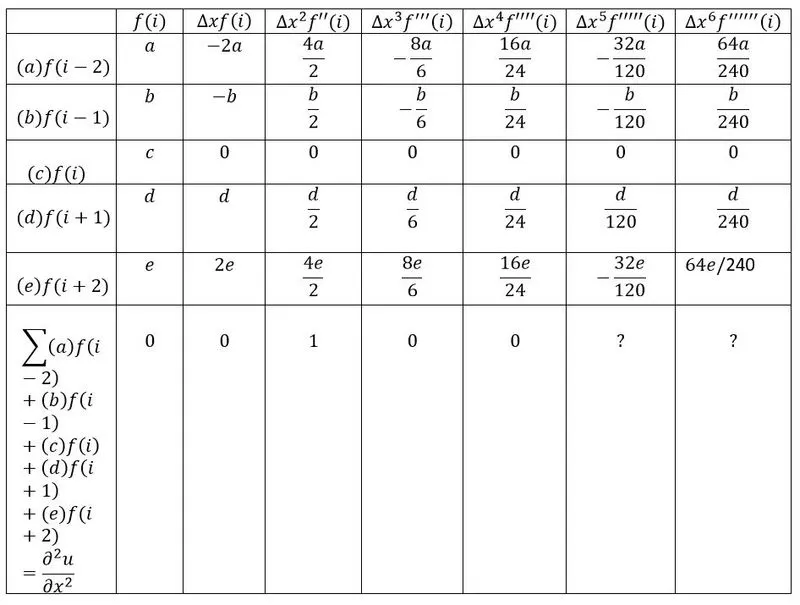

By arranging the above Taylor series expansions in Taylor table; we get:-

Note: Only for the first five terms we assume our hypothesis. That’s why we can’t say about the last two terms.

Here we have five unknowns, so, we have to solve five equations and get values of coefficients (a,b,c,d,e).(a,b,c,d,e). We are going to form these equations by adding terms for the individual columns. The summation of coefficients of `f''(i) is equal to 1, andf(i),f′(i),f′'(i),f′''(i),f′'''(i)f(i),f′(i),f′′(i),f′′′(i),f′′′′(i) are equal to 0; because we want to calculate the second-order derivative, f′'(i).f′′(i).

Therefore, the five equations are:

a+b+c+d+e=0a+b+c+d+e=0 ……….. (I)

−2a−b+0+d+2e=0-2a-b+0+d+2e=0 ……….. (II)

2a+b2+0+d2+2e=12a+b2+0+d2+2e=1 ……….. (III)

−8a6−b6+0+d6+8e6=0-8a6-b6+0+d6+8e6=0 ……….. (IV)

16a24+b24+0+d24+16e24=016a24+b24+0+d24+16e24=0 ……….. (V)

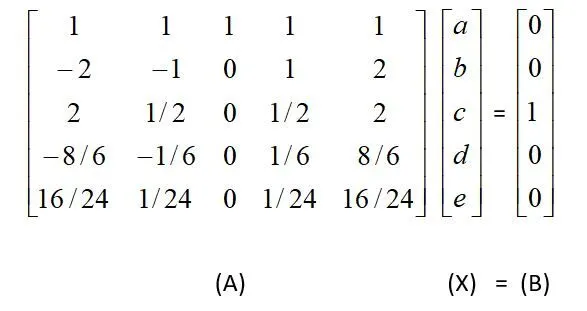

To get the solution of the above equations, we have to solve the above equations in matrix form; AX=B.

After solving the above matrix, we get the values of all the coefficients as:

a=−0.083333a=-0.083333

b=1.333333b=1.333333

c=−2.500000c=-2.500000

d=1.333333d=1.333333

e=−0.083333e=-0.083333

Here, we can easily notice that a=e,a=e, and b=d.b=d.

Now, on dividing both side of my hypothesis equation (1) by (Δx2)(∆x2); we get:

`(del^2u)/(delx^2)=(af(i-2)+bf(i-1)+cf(i)+df(i+1)+ef(i+2))/(Deltax^2)`

Now, on dividing both side of my hypothesis equation (1) by (Δx2)(∆x2); we get:

After putting the values of all the coefficients (a,b,c,d,e)(a,b,c,d,e) in the above equation, we will get the fourth-order central difference approximation for the second-order derivative.

`(del^2u)/(delx^2)=((-0.083333)f(i-2)+(1.3333333)f(i-1)+(-2.500000)f(i)+(1.3333333)f(i+1)+(-0.083333)f(i+2))/(Deltax^2)`

Now, from our Taylor tabel:

`(del^2u)/(delx^2)=(a+b+c+0+d+e)f(i)+(-2a-b+0+d+2e)f'(i)Deltax+(2a+1/2b+0+1/2d+2e)f''(i)Deltax^2+(-8/6a-1/6b+0+1/6d+8/6e)f'''(i)Deltax^3+(16/24a+1/24b+0+1/24d+16/24e)f''''(i)Deltax^4+(-32/120a-1/120b+0+1/120d+32/120e)f'''''(i)Deltax^5+(64/240a+1/240b+0+1/240d+64/240e)f''''''(i)Deltax^6`

To get second-order derivative the coefficient of f''(i)f′′(i) has to be 1. And as we want approximation for the second-order derivative, so, the term f(i),f′(i),f′''(i),f′'''(i)f(i),f′(i),f′′′(i),f′′′′(i) will have to ignore or set to ‘0’ in the above equation. On substituting the values of (I), (II), (IV), and (V) in the above equation; we’ll get:

`(del^2u)/(delx^2)=(2a+1/2b+0+1/2d+2e)f''(i)Deltax^2+(-32/120a-1/120b+0+1/120d+32/120e)f'''''(i)Deltax^5+(64/240a+1/240b+0+1/240d+64/240e)f''''''(i)Deltax^6`

On dividing the above equation by (Δx^2), we get:

`(del^2u)/(delx^2)=(2a+1/2b+0+1/2d+2e)f''(i)+(64/240a+1/240b+0+1/240d+64/240e)f''''''(i)Deltax^4`

In the above equation, the term Δx4∆x4 denotes the truncation error. Here, we can see that the order of the truncation error; [O(Δx4∆x4)] is ‘4’. Since we know that the order of approximation is defined by the truncation error term. Therefore, we can say that our central difference scheme is 4th order accurate.

After putting the value of (a,b,c,d,e)(a,b,c,d,e) in the above equation, the final equation looks like this:

`(del^2u)/(delx^2)=(2(-0.083333)+1/2(1.333333)+1/2(1.333333)+2(0.0833333))f''(i)+(64/240(-0.083333)+1/240(1.333333)+1/240(1.333333)+64/240(0.0833333))f''''''(i)Deltax^4`

2)Using Skewed Right-Sided Difference:

 To derive 4th order skewed right-sided difference at point (i) of function. Since we’re using the skewed right-sided method, here we have to define five points on the right of (i). Let those points be (i+1), (i+2), (i+3), (i+4), and (i+5); with a spacing of Δx∆x each.

The numerical stencil will look.

According to the above stencil, our hypothesis equation will be:

`(del^2u)/(delx^2)=af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5)`

In order to find the values of coefficients (a,b,c,d,e,g),(a,b,c,d,e,g), we’re going to use the Taylor table method.

Writing Taylor series expansion for each term of equation (1) as:-

`(a)f(i)=(a)f(i)`

`(b)f(i+1)=(b)f(i)+((b)f'(i)Deltax)/(1!)+((b)f''(i)(Deltax)^2)/(2!)+((b)f'''(i)(Deltax)^3)/(3!)+((b)f''''(i)(Deltax)^4)/(4!)+((b)f'''''(i)(Deltax)^5)/(5!)+((b)f''''''(i)(Deltax)^6)/(6!)+....`

`(c)f(i+2)=(c)f(i)+((c)f'(i)(2)Deltax)/(1!)+((c)f''(i)(2Deltax)^2)/(2!)+((c)f'''(i)(2Deltax)^3)/(3!)+((c)f''''(i)(2Deltax)^4)/(4!)+((c)f'''''(i)(2Deltax)^5)/(5!)+((c)f''''''(i)(2Deltax)^6)/(6!)+...`

`(d)f(i+3)=(d)f(i)+((d)f'(i)(3)Deltax)/(1!)+((d)f''(i)(3Deltax)^2)/(2!)+((d)f'''(i)(3Deltax)^3)/(3!)+((d)f''''(i)(3Deltax)^4)/(4!)+((d)f'''''(i)(3Deltax)^5)/(5!)+((d)f''''''(i)(3Deltax)^6)/(6!)+...`

`(e)f(i+4)=(e)f(i)+((e)f'(i)(4Deltax))/(1!)+((e)f''(i)(4Deltax)^2)/(2!)+((e)f'''(i)(4Deltax)^3)/(3!)+((e)f''''(i)(4Deltax)^4)/(4!)+((e)f'''''(i)(4Deltax)^5)/(5!)+((e)f''''''(i)(4Deltax)^6)/(6!)+...`

`(g)f(i+5)=(g)f(i)+((g)f'(i)(5Deltax))/(1!)+((g)f''(i)(5Deltax)^2)/(2!)+((g)f'''(i)(5Deltax)^3)/(3!)+((g)f''''(i)(5Deltax)^4)/(4!)+((g)f'''''(i)(5Deltax)^5)/(5!)+((g)f''''''(i)(5Deltax)^6)/(6!)+...`

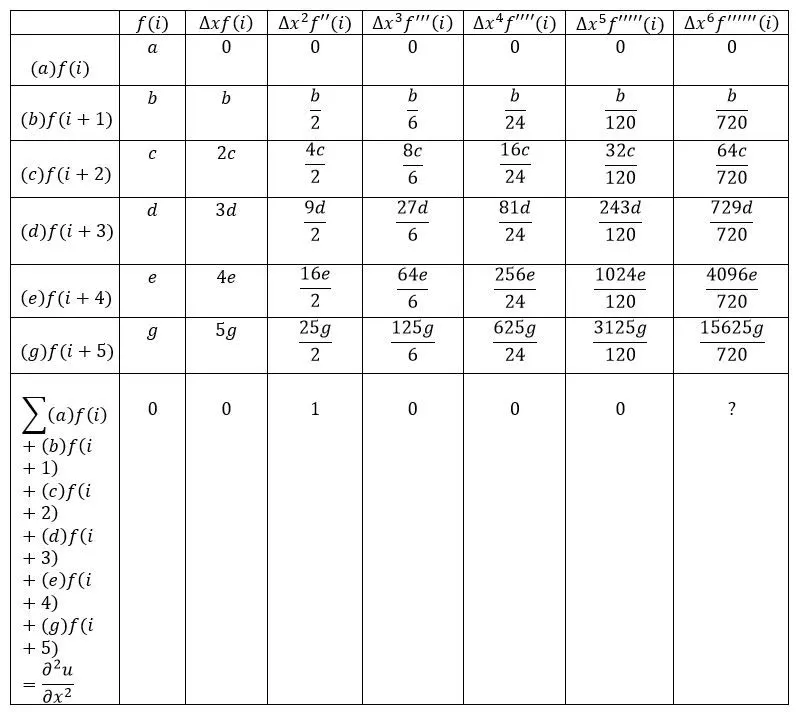

By arranging the above Taylor series expansions in Taylor table; we get:-

Only for the first six terms, we assume our hypothesis. That’s why we can’t say about the last term.

Here we have six unknowns, so, we have to solve six equations and get values of coefficients (a,b,c,d,e,g).(a,b,c,d,e,g). We are going to form these equations by adding terms for the individual columns. The summation of coefficients of f′'(i)f′′(i) is equal to 1, and f(i),f′(i),f′'(i),f′''(i),f′'''(i),f'''''(i)f(i),f′(i),f′′(i),f′′′(i),f′′′′(i),f′′′′′(i) is equal to 0; because we want to calculate the second-order derivative, f''(i).f′′(i).

Therefore, the six equations are:-

a+b+c+d+e+g=0a+b+c+d+e+g=0  ……….. (I)

0+b+2c+3d+4e+5g=00+b+2c+3d+4e+5g=0 ……….. (II)

0+b2+2c+9d2+8e+25g2=10+b2+2c+9d2+8e+25g2=1 ……….. (III)

0+b6+8c6+27d6+64e6+125g6=00+b6+8c6+27d6+64e6+125g6=0 ……….. (IV)

0+b24+16c24+81d24+256e24+625g24=00+b24+16c24+81d24+256e24+625g24=0 ……….. (V)

0+b120+32c120+243d120+1024e120+3125g120=00+b120+32c120+243d120+1024e120+3125g120=0 ……….. (VI)

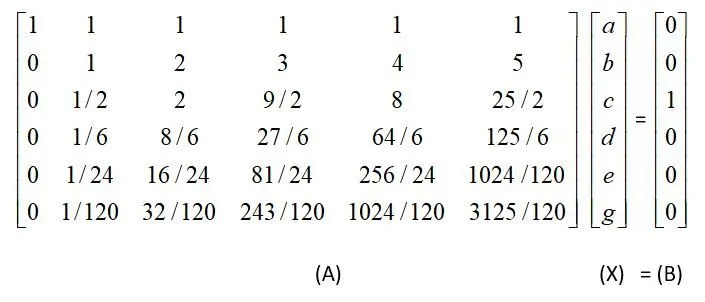

To get the solution of the above equations, we have to solve the above equations in matrix form; AX=B.

After solving the above matrix, we get the values of all the coefficients as:-

a=3.75000a=3.75000

b=−12.83333b=-12.83333

c=17.83333c=17.83333

d=−13.00000d=-13.00000

e=5.08333e=5.08333

g=−0.83333g=-0.83333

Now, dividing both side of my hypothesis equation (1) by (Δx^2); we get:

`(del^2u)/(delx^2)=(af(i)+bf(i+1)+cf(i+2)+df(i+3)+ef(i+4)+gf(i+5))/(Deltax^2)`

After putting the values of all the coefficients (a,b,c,d,e,g)(a,b,c,d,e,g) in the above equation, we will get the fourth-order skewed right-sided difference approximation for second-order derivative.

`(del^2u)/(delx^2)=((3.75000)f(i)+(-12.83333)f(i+1)+(17.83333)f(i+2)+(-13.00000)f(i+3)+(5.083333)f(i+4)+(-0.83333)f(i+5))/(Deltax^2)`

Now, from our Taylor tabel:

`(del^2u)/(delx^2)=(a+b+c+0+d+e)f(i)+(0+b+2c+3d+4e+5g)f'(i)Deltax+(0+b/2+4c/2+9d/2+16e/2+25g/2)f''(i)Deltax^2+(0+b/6+8c/6+27d/6+64e/2+125g/6)f'''(i)Deltax^3+(0+b/24+16c/24+81d/24+256e/24+625g/24)f''''(i)Deltax^4+(0+b/120+32c/120+243d/120+1024e/120+3125g/120)f'''''(i)Deltax^5+(0+b/720+64c/720+729d/720+4096e/720+15625g/720)f''''''(i)Deltax^6`

To get second-order derivative the coefficient of f''(i)f′′(i) has to be 1. And as we want approximation for the second-order derivative, so, the term f(i),f′(i),f′''(i),f′'''(i)f(i),f′(i),f′′′(i),f′′′′(i) will have to ignore or set to ‘0’ in the above equation. On substituting the values of (I), (II), (IV), and (V) in the above equation; we’ll get:

`(del^2u)/(delx^2)=(0+b/2+4c/2+9d/2+16e/2+25g/2)f''(i)Deltax^2+(0+b/720+64c/720+729d/720+4096e/720+15625g/720)f''''''(i)Deltax^6`

On dividing the above equation by (Δx2)(∆x2), we get:-

`(del^2u)/(delx^2)=(b/2+2c+9d/2+8e+25g/2)f''(i)+(b/720+64c/720+729d/720+4096e/720+15625g/720)f''''''(i)Deltax^4`

As we discussed earlier also, the Δx^4 denotes the truncation error. Here we can see that order of the truncation error; [O(Δx^4)] is '4'. Since, we know that the order of approximation is defined by the truncation error term. Therefore, we can say that our skewed right-sided difference scheme is of 4th order accurate.

After putting the values of (a,b,c,d,e,g)(a,b,c,d,e,g) in the above equation, the final equation looks like this:-

`(del^2u)/(delx^2)=(-12.83333/2+2(17.83333)+9(-13.00000)/2+8(5.08333)+25(-0.08333)/2)f''(i)+(-12.83333/720+64(17.83333)/720+729(-13.00000)/720+4096(5.08333)/720+15625(-0.08333)/720)f''''''(i)Deltax^4`

3)Using Skewed Left-Sided Difference:

 To derive 4th order skewed left-sided difference at point (i) of function. Since we’re using the skewed left-sided method, here we have to define five points on the left of (i). Let those points be (i-1), (i-2), (i-3), (i-4), and (i-5); with a spacing of Δx^2 each.

The numerical stencil will look.

According to the above stencil, our hypothesis equation will be:

`(del^2u)/(delx^2)=af(i-5)+bf(i-4)+cf(i-3)+df(i-2)+ef(i-1)+gf(i)`

To find the values of coefficients (a,b,c,d,e,g),(a,b,c,d,e,g), we’re going to use the Taylor table method.

Writing Taylor series expansion for each term of equation (1) as:-

`(a)f(i-5)=(a)f(i)-((a)f'(i)(5Deltax))/(1!)+((a)f''(i)(5Deltax)^2)/(2!)-((a)f'''(i)(5Deltax)^3)/(3!)+((a)f''''(i)(5Deltax)^4)/(4!)-((a)f'''''(i)(5Deltax)^5)/(5!)+((a)f''''''(i)(5Deltax)^6)/(6!)+...`

`(b)f(i-4)=(b)f(i)-((b)f'(i)(4Deltax))/(1!)+((b)f''(i)(4Deltax)^2)/(2!)-((b)f'''(i)(4Deltax)^3)/(3!)+((b)f''''(i)(4Deltax)^4)/(4!)-((b)f'''''(i)(4Deltax)^5)/(5!)+((b)f''''''(i)(4Deltax)^6)/(6!)+...`

`(c)f(i-3)=(c)f(i)-((c)f'(i)(3Deltax))/(1!)+((c)f''(i)(3Deltax)^2)/(2!)-((c)f'''(i)(3Deltax)^3)/(3!)+((c)f''''(i)(3Deltax)^4)/(4!)-((c)f'''''(i)(3Deltax)^5)/(5!)+((c)f''''''(i)(3Deltax)^6)/(6!)+...`

`(d)f(i-2)=(d)f(i)-((d)f'(i)(2Deltax))/(1!)+((d)f''(i)(2Deltax)^2)/(2!)-((d)f'''(i)(2Deltax)^3)/(3!)+((d)f''''(i)(2Deltax)^4)/(4!)-((d)f'''''(i)(2Deltax)^5)/(5!)+((d)f''''''(i)(2Deltax)^6)/(6!)+...`

`(e)f(i-1)=(e)f(i)-((e)f'(i)(Deltax))/(1!)+((e)f''(i)(Deltax)^2)/(2!)-((e)f'''(i)(Deltax)^3)/(3!)+((e)f''''(i)(Deltax)^4)/(4!)-((e)f'''''(i)(Deltax)^5)/(5!)+((e)f''''''(i)(Deltax)^6)/(6!)+...`

`(g)f(i)=(g)f(i)`

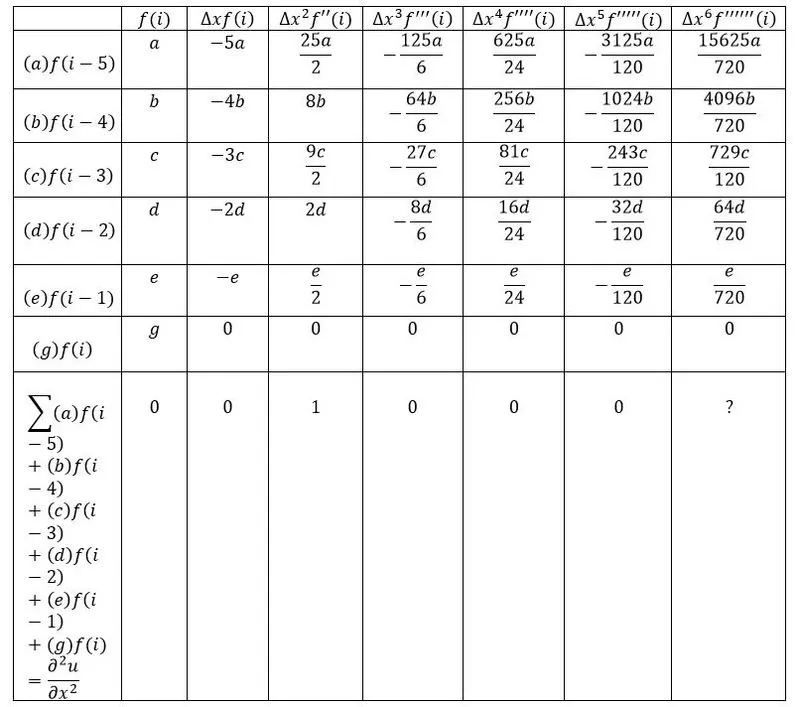

By arranging the above Taylor series expansions in Taylor table; we get:-

Only for the first six terms, we assume our hypothesis. That’s why we can’t say about the last term.

Here we have six unknowns, so, we have to solve six equations and get values of coefficients (a,b,c,d,e,g).(a,b,c,d,e,g). We are going to form these equations by adding terms for the individual columns. The summation of coefficients of f′'(i)f′′(i) is equal to 1, and f(i),f′(i),f′'(i),f′''(i),f′'''(i),f'''''(i)f(i),f′(i),f′′(i),f′′′(i),f′′′′(i),f′′′′′(i) is equal to 0; because we want to calculate the second-order derivative, f''(i).f′′(i).

Therefore, the six equations are:-

a+b+c+d+e+g=0a+b+c+d+e+g=0 ……….. (I)

−5a−4b−3c−2d−e+0=0-5a-4b-3c-2d-e+0=0 ……….. (II)

25a2+8b+9c2+2d+e2+0=125a2+8b+9c2+2d+e2+0=1 ……….. (III)

625a24+256b24+81c24+16c24+e24+0=0625a24+256b24+81c24+16c24+e24+0=0 ……….. (V)

−3125a120−1024b120−243c120−32d120−e120+0=0-3125a120-1024b120-243c120-32d120-e120+0=0 ……….. (VI)

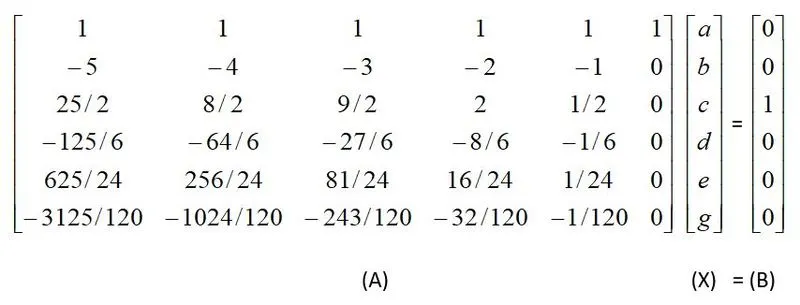

To get the solution of the above equations, we have to solve the above equations in matrix form; AX=B.

After solving the above matrix, we get the values of all the coefficients as:-

a=−0.83333a=-0.83333

b=5.08333b=5.08333

c=−13.00000c=-13.00000

d=17.83333d=17.83333

e=−12.83333e=-12.83333

g=3.75000g=3.75000

Now, dividing both side of my hypothesis equation (1) by (Δx^2); we get:

`(del^2u)/(delx^2)=(af(i-5)+bf(i-4)+cf(i-3)+df(i-2)+ef(i-1)+gf(i))/(Deltax^2)`

After putting the values of all the coefficients (a,b,c,d,e,g)(a,b,c,d,e,g) in the above equation, we will get the fourth-order skewed right-sided difference approximation for second-order derivative.

`(del^2u)/(delx^2)=((-0.83333)f(i-5)+(5.08333)f(i-4)+(-13.00000)f(i-3)+(17.83333)f(i-2)+(-12.83333)f(i-1)+(3.75000)f(i))/(Deltax^2)`

Now,form our Taylor table:-

`(del^2u)/(delx^2)=(a+b+c+0+d+e)f(i)+(-5a-4b-3c-2d-e+0)f'(i)Deltax+(25a/2+8b+9c/2+2d/+e/2+0)f''(i)Deltax^2+(-125a/6-64b/6+27c/6-8d/6-e/2+0)f'''(i)Deltax^3+(625a/24+256b/24+81c/24+16d/24+e/24+0)f''''(i)Deltax^4+(-3125a/120-1024b/120-243c/120-32d/120-e/120+0)f'''''(i)Deltax^5+(15625a/720+4096b/720+729c/720+64d/720+e/720+0)f''''''(i)Deltax^6`

To get second-order derivative the coefficient of f''(i)f′′(i) has to be 1. And as we want approximation for the second-order derivative, so, the term f(i),f′(i),f′''(i),f′'''(i),f'''''(i)f(i),f′(i),f′′′(i),f′′′′(i),f′′′′′(i) will have to ignore or set to 0 in the above equation. On substituting the values of (I), (II), (IV), (V), and (VI) in the above equation; we’ll get:

`(del^2u)/(delx^2)=(25a/2+8b+9c/2+2d/+e/2+0)f''(i)Deltax^2+(15625a/720+4096b/720+729c/720+64d/720+e/720+0)f''''''(i)Deltax^6`

On dividing the above equation byΔx^2,; we get:-

`(del^2u)/(delx^2)=(25a/2+8b+9c/2+2d/+e/2+0)f''(i)+(15625a/720+4096b/720+729c/720+64d/720+e/720+0)f''''''(i)Deltax^4`

On dividing the above equation byΔx^2,; we get:-

As we discussed earlier also, the Δx4∆x4 denotes the truncation error. Here we can see that order of the truncation error; [O(Δx4)][O(∆x4)] is ‘4’. Since, we know that the order of approximation is defined by the truncation error term. Therefore, we can say that our skewed left-sided difference scheme is of 4th order accurate.

After putting the values of (a,b,c,d,e,g)(a,b,c,d,e,g) in the above equation, the final equation looks like this:-

`(del^2u)/(delx^2)=(25(-0.833333)/2+8(5.08333)+9(-13.00000)/2+2(17.83333)+(-12.83333)/2+0)f''(i)+(15625(-0.083333)/720+4096(5.08333)/720+729(-13.00000)/720+64(17.83333)/720+(-12.83333)/720)f''''''(i)Deltax^4`

Program in MATLAB to Evaluate the Second-Order Derivative of the analytical function exp(x)*cos(x) and compare it with the numerical approximation that we have derived above

Firstly we’re going to write programs to develop functions for central, skewed right-sided and skewed left-sided errors at a particular point (x, dx), where dx represents spacing in between each node. These functions will help us to calculate errors over the range of ‘dx’. With the help of code ‘function out’ we’re going to make function; which we save in directory and call according to our need in the main program (make sure to save the main program in the same directory in which your function is saved).

Function for central difference 4th order error at particular spacing ‘dx’:

% Creating function for the 4th order approximation of the second-order; derivative using central difference;
function error_central_differencing = central_difference(x,dx)

% Analytical function f(x) = exp(x)*cos(x);
% f''(x) = -2*exp(x)*sin(x);

analytical_derivative = -2*exp(x)*sin(x);

% values of coefficients calculated from our Taylor table;

a=-0.083333;
b=1.333333;
c=-2.500000;
d=1.333333;
e=-0.083333;

% numerical derivative;
% central differencing =
% ((a*f(x-2*dx))+(b*f(x-dx))+(c*f(x))+(d*f(x+dx))+(e*f(x+2*dx)))/dx^2;
%central difference fourth order approximation;

central_differencing_fourth_order_approx = ((a*exp(x-2*dx)*cos(x-2*dx))+(b*exp(x-dx)*cos(x-dx))+(c*exp(x)*cos(x))+(d*exp(x+dx)*cos(x+dx))+(e*exp(x+2*dx)*cos(x+2*dx)))/dx^2;

error_central_differencing = abs(central_differencing_fourth_order_approx-analytical_derivative);
end

Function for skewed right-sided difference 4th order error at particular spacing ‘dx’:

% Creating function for the 4th order approximation of the second-order derivative using skewed right-sided difference;

function error_skewed_right_sided=skewed_right_sided(x,dx)

% analytical function f(x)=exp(x)*cos(x);
%f''(x)=-2*exp(x)*sin(x);

analytical_derivative=-2*exp(x)*sin(x);

%values of coefficients calculated from our Taylor table;

a=3.75000;
b=-12.83333;
c=17.83333;
d=-13.00000;
e=5.08333;
g=-0.83333;

%numerical derivative;
%skewed right-sided differencing=((a*f(x))+(b*f(x+dx))+(c*f(x+2*dx))+(d*f(x+3*dx))+(e*f(x+4*dx))+(g*f(x+5*dx)))/dx^2;
%skewed right-sided fourth order approximation;

skewed_right_sided_fourth_order_approx=((a*exp(x)*cos(x))+(b*exp(x+dx)*cos(x+dx))+(c*exp(x+2*dx)*cos(x+2*dx))+(d*exp(x+3*dx)*cos(x+3*dx))+(e*exp(x+4*dx)*cos(x+4*dx))+(g*exp(x+5*dx)*cos(x+5*dx)))/dx^2;

error_skewed_right_sided=abs(skewed_right_sided_fourth_order_approx-analytical_derivative);
end

Function for skewed left-sided difference 4th order error at particular spacing ‘dx’:

% Creating function for the 4th order approximation of the second-order derivative using skewed left-sided difference;
function error_skewed_left_sided=skewed_left_sided(x,dx)

% analytical function f(x)=exp(x)*cos(x);
%f''(x)=-2*exp(x)*sin(x);

analytical_derivative=-2*exp(x)*sin(x);

%values of coefficients calculated from our Taylor table;

a=-0.83333;
b=5.08333;
c=-13.00000;
d=17.83333;
e=-12.83333;
g=3.75000;

%numerical derivative;
%skewed left-sided differencing=((a*f(x-5*dx))+(b*f(x-4*dx))+(c*f(x-3*dx))+(d*f(x-2*dx))+(e*f(x-dx))+(g*f(x)))/dx^2;
%skewed left-sided fourth order approximation;

skewed_left_sided_fourth_order_approx=((a*exp(x-5*dx)*cos(x-5*dx))+(b*exp(x-4*dx)*cos(x-4*dx))+(c*exp(x-3*dx)*cos(x-3*dx))+(d*exp(x-2*dx)*cos(x-2*dx))+(e*exp(x-dx)*cos(x-dx))+(g*exp(x)*cos(x)))/dx^2;

error_skewed_left_sided=abs(skewed_left_sided_fourth_order_approx-analytical_derivative);
end



After creating the above functions, we save our main program in the same directory in which we have saved our three functions; central_difference, skewed_right_sided, skewed_left_sided.

For now, we’re going to create an array for the range of ‘dx’. We’ll use ‘for loop’ over the range of ‘dx’ and using the functions central, skewed right-sided and skewed left-sided difference 4th order error at a given point (x, dx), we’ll get the errors for a range of ‘dx’ and also we’re going to plot the graph between ‘error’ vs. ‘dx’ for central, skewed right-sided, and skewed left-sided difference 4th order error.

Program for calculating 4th order error of second-order derivative using central, skewed right-sided, and skewed left-sided scheme using previously developed functions:



%calculating 4th order error of second-order derivative using central, skewed right-sided and left-sided scheme;
clear all
close all
clc

x=pi/3;
dx=linspace(pi/4,pi/40000,40);

%creating 'for' loop;
for i=1:length(dx)
    central_difference_error(i)=central_difference(x,dx(i));
    skewed_right_side_error(i)=skewed_right_sided(x,dx(i));
    skewed_left_side_error(i)=skewed_left_sided(x,dx(i));
end

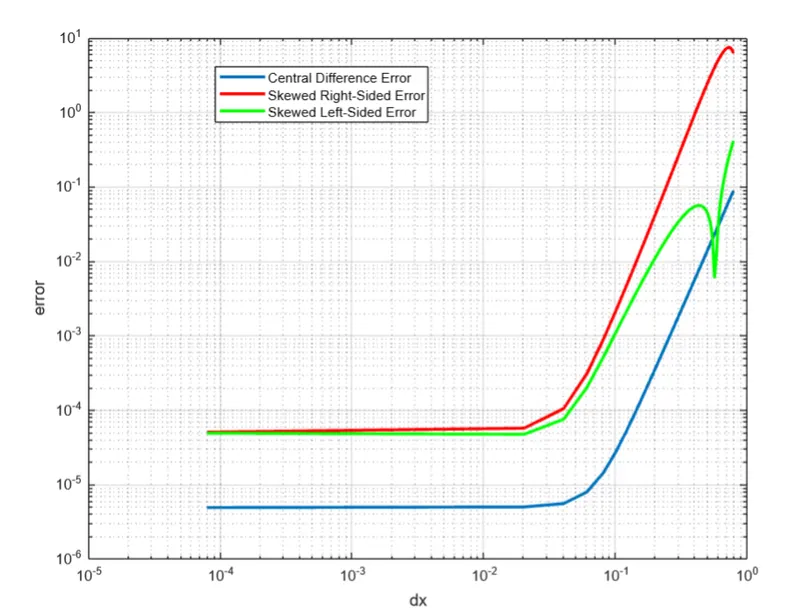

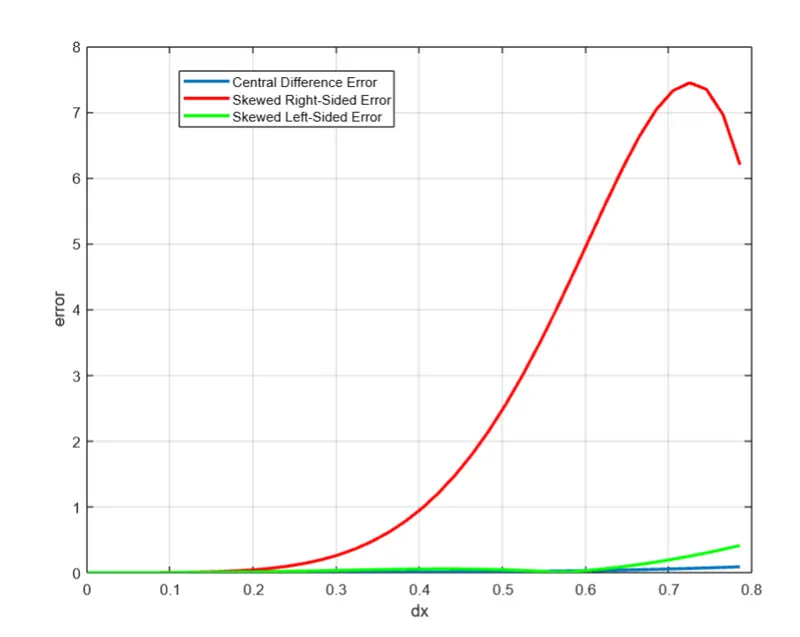

%plotting graphs for dx vs errors for central, skewed right-sided, & skewed left-sided approximations

figure(1)
plot(dx,central_difference_error,'linewidth',2)
hold on
grid on
plot(dx,skewed_right_side_error,'r','linewidth',2)
hold on
plot(dx,skewed_left_side_error,'g','linewidth',2)
xlabel('dx')
ylabel('error')
legend('Central Difference Error','Skewed Right-Sided Error','Skewed Left-Sided Error')

figure(2)
loglog(dx,central_difference_error,'linewidth',2)
hold on
grid on
loglog(dx,skewed_right_side_error,'r','linewidth',2)
hold on
loglog(dx,skewed_left_side_error,'g','linewidth',2)
xlabel('dx')
ylabel('error')
legend('Central Difference Error','Skewed Right-Sided Error','Skewed Left-Sided Error')

 Output:

figure(1)

figure(2)

After analyzing the graph between ‘error’ vs. ‘dx’ for central, skewed right-sided, and skewed left-sided difference 4th order error; we can easily notice that central difference approximation produces more accurate solutions; hence produces lesser errors as compared to right-skewed and left-skewed difference schemes.



In your own words, describe why a skewed scheme is useful? What can a skewed scheme do that a CD scheme cannot do?

Since we can see that the central differencing scheme gives us more immaculate solutions or lesser errors as compared to the skewed difference scheme. But it is not always viable to use the central differencing to evaluate solutions. Suppose, if we want to compute numerical approximations for a function at the boundary or corner node; we cannot use the central difference scheme at this particular situation because it requires data from both sides of the node or boundary. So, in this situation skewed difference method plays a major role; as in the skewed scheme data from one side can be used to compute numerical approximation at a point.
