Simulation of Flow through a pipe in OpenFoam
Aim: To simulate the axe symmetric flow in a pipe through openfoam.
Objective:
Solution:
Consider the water flow through the pipe of 20 mm diameter at velocity of 0.0935m/s of Reynold's number less than 2100, hence laminar flow. Due to the No-slip condition, fluid particles in contact with the pipe stops completely.
Boundary layer theory:

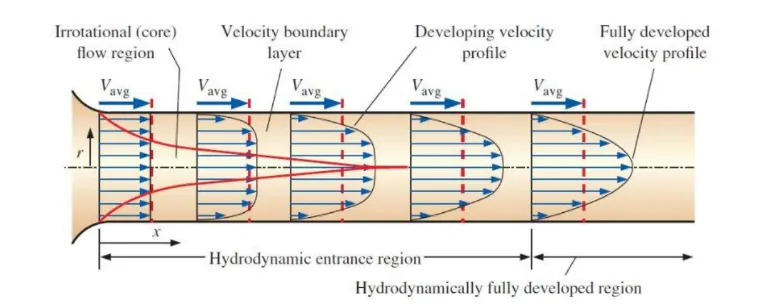

Consider a fluid entering a circular pipe at uniform velocity, with no-slip condition.
The velocity of fluid at mid-section must increase to keep mass flow rate through the pipe constant, resulting in velocity gradient.
Hydrodynamic entrance region is region from inlet to the point at which velocity profile becomes fully developed, and its length is hydrodynamic entrance length.
Reynolds number is the ratio of inertial force to viscous force.
Re=ρ⋅v⋅(Lμ)
Hagen- Poiseuille's flow: It is the pressure drop in incompressible fluid in laminar flow through the long cylindrical pipe of constant cross section. Flow is caused to flow by pressure difference between the points, from higher pressure to lower pressure.
It is assumed to have no acceleration of flow. Flow resistance offered is shear stress.
Shear stress is τ=μ⋅(dudy)
pressure difference is represented as
δp=32⋅μ⋅V⋅LD2
Enterance length
L−ent=0.06⋅Re⋅D
Matlab code:
clear all
close all
clc
D=0.02;
Re=2100;
rho=1000; %density
theta=4;
nu=8.91e-7; %kinematic viscocity
%dynamic vis
mu=rho*nu;
v_avg= mu*Re/(rho*D);
v_max=2*v_avg;
L_w=0.3;
L_entrance= 0.06* Re*D;
L=L_entrance+L_w;
%pressure drop in flow
delta_p= 32*mu*v_avg*L_w/D^2;
r=D/2;
R=linspace(0,r,500);1.
for i=1:length(R)
tau(i)=2*mu*v_max*(abs(R(i)))/r^2;
end
for j=1: length(R)
vel_p(j)=2*v_avg*(1-(abs(R(j))^2/r^2));
end
figure(1)
plot(R,tau)
ylabel('shear stress')
xlabel('Radial length')
figure (2)
plot(R,vel_p)
ylabel('velocity')
xlabel('Radial length')
%blockmeshdict file
v0=[0 0 0];
v1=[0 r*cosd(theta/2) -r*sind(theta/2)];
v2=[0 r*cosd(theta/2) r*sind(theta/2)];
v3=[L 0 0];
v4=[L r*cosd(theta/2) -r*sind(theta/2)];
v5=[L r*cosd(theta/2) r*sind(theta/2)];
f1=fopen('blockMeshDict','w');
fprintf(f1,'\t FoamFile \n')
fprintf(f1,'\t { \n')
fprintf(f1,'\t \t format ascii;\n')
fprintf(f1,'\t\t class dictionary;\n')
fprintf(f1,'\t\t object blockMeshDict;\n')
fprintf(f1,'\t } \n')
%vertices
fprintf(f1,'%s \n','convertToMeters 1 ;')
fprintf(f1,'\n %s \n','vertices')
fprintf(f1,'%s \n','(')
fprintf(f1,'\t(%d %d %d)\n',v0(1), v0(2), v0(3))
fprintf(f1,'\t(%d %d %d)\n',v1(1), v1(2), v1(3))
fprintf(f1,'\t(%d %d %d)\n',v2(1), v2(2), v2(3))
fprintf(f1,'\t(%d %d %d)\n',v3(1), v3(2), v3(3))
fprintf(f1,'\t(%d %d %d)\n',v4(1), v4(2), v4(3))
fprintf(f1,'\t(%d %d %d)\n',v5(1), v5(2), v5(3))
fprintf(f1,'%s \n',');')
%blocks
fprintf(f1,'%s \n','blocks')
fprintf(f1,'%s \n','(')
fprintf(f1,'\t hex(0 3 4 1 0 3 5 2) (%d %d %d) simpleGrading (%d %d %d)\n', 200,20,1,1,0.1,1)
fprintf(f1,'%s \n',');')
%edges
fprintf(f1,'\n %s \n','edges')
fprintf(f1,'%s \n','(')
fprintf(f1,'\t arc 1 2 (%d %d %d) \n',0,r,0)
fprintf(f1,'\t arc 1 2 (%d %d %d) \n',L,r,0)
fprintf(f1,'\n %s',');')
%boundary
fprintf(f1,'\n %s \n','boundary')
fprintf(f1,'%s \n','(')
fprintf(f1,'\n %s \n','axis')
fprintf(f1,'{ \n \t type empty; \n')
fprintf(f1,'\t faces \n( \n')
fprintf(f1,'\t (%d %d %d %d) \n',0,3,3,0)
fprintf(f1,'\t ) ; \n }\n')
%wall
fprintf(f1,'\n %s \n','wall')
fprintf(f1,'%s \n','{')
fprintf(f1,'\t type wall; \n')
fprintf(f1,'\t faces \n ( \n')
fprintf(f1,'\t (%d %d %d %d) \n',1,4,5,2)
fprintf(f1,'\t ) ; \n }\n')
%inlet
fprintf(f1,'\n %s \n','inlet')
fprintf(f1,'%s \n','{')
fprintf(f1,'\t type patch; \n')
fprintf(f1,'\t faces \n ( \n')
fprintf(f1,'\t (%d %d %d %d) \n',0,1,2,0)
fprintf(f1,'\t ) ; \n }\n')
%outlet
fprintf(f1,'\n %s \n','outlet')
fprintf(f1,'%s \n','{')
fprintf(f1,'\t type patch; \n')
fprintf(f1,'\t faces \n ( \n')
fprintf(f1,'\t (%d %d %d %d) \n',3,5,4,3)
fprintf(f1,'\t ); \n }\n')
%front
fprintf(f1,'\n\t front \n { \n')
fprintf(f1,'\t type wedge ; \n')
fprintf(f1,'\t faces \n ( \n')
fprintf(f1,'\t (%d %d %d %d) \n',0,3,4,1)
fprintf(f1,'\t ) ; \n \t }\n')
%back
fprintf(f1,'\n\t back \n { \n')
fprintf(f1,'\t type wedge ; \n')
fprintf(f1,'\t faces \n ( \n')
fprintf(f1,'\t (%d %d %d %d) \n',0,2,5,3)
fprintf(f1,'\t ) ; \n \t }\n')
fprintf(f1,');')
Explanation:
Create BlockMeshDict file by using write function:
Procedure to simulate the flow:
BlockMeshDict file:
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
convertToMeters 1 ;
vertices
(
(0 0 0)
(0 9.993908e-03 -3.489950e-04)
(0 9.993908e-03 3.489950e-04)
(2.820000e+00 0 0)
(2.820000e+00 9.993908e-03 -3.489950e-04)
(2.820000e+00 9.993908e-03 3.489950e-04)
);
blocks
(
hex (0 3 4 1 0 3 5 2) (200 20 1) simpleGrading (1 0.1 1)
);
edges
(
arc 1 2 (0 1.000000e-02 0)
arc 4 5 (2.820000e+00 1.000000e-02 0)
);
boundary
(
axis
{
type empty;
faces
(
(0 3 3 0)
) ;
}
wall
{
type wall;
faces
(
(1 4 5 2)
) ;
}
inlet
{
type patch;
faces
(
(0 1 2 0)
) ;
}
outlet
{
type patch;
faces
(
(3 5 4 3)
);
}
front
{
type wedge ;
faces
(
(0 3 4 1)
) ;
}
back
{
type wedge ;
faces
(
(0 2 5 3)
) ;
}
);
ControlDict file:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 5;
stopAt endTime;
endTime 15;
deltaT 0.05;
writeControl runTime;
writeInterval 0.1;
purgeWrite 10;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
Explanation:
p and U files:
p file:
(Code: cd..
code: cd 0)
code for p:
-------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
outlet
{
type fixedValue;
value uniform 0;
}
inlet
{
type zeroGradient;
}
axis
{
type empty;
}
wall
{
type zeroGradient;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //
Open file U file (code: gedit U)
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.0936 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0936 0 0);
}
outlet
{
type zeroGradient;
}
axis
{
type empty;
}
wall
{
type noSlip;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //
Explanation:
Transient properties as:
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 9
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.91e-7;
// ************************************************************************* //
Open preview:
Results and discussion:
Paraview:

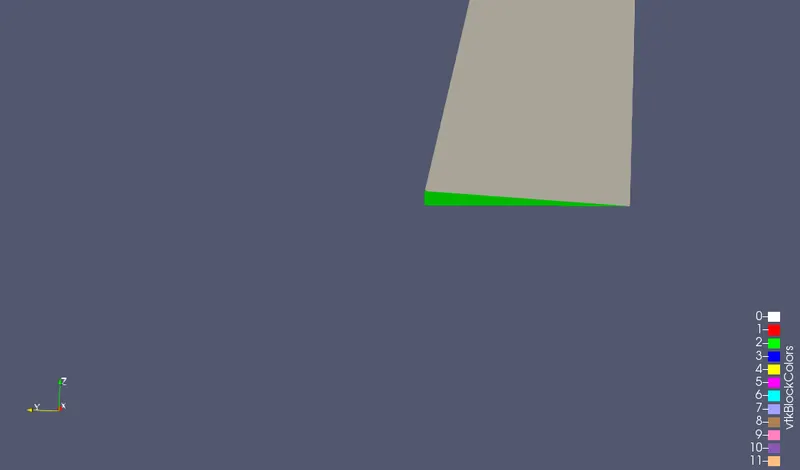

Geometry of wedge:

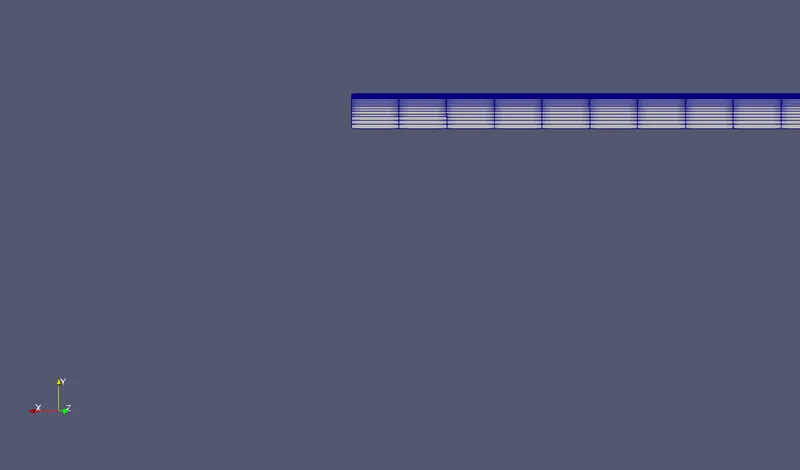

Blockmesh:
Select options 'surface with edges' and 'solid color'

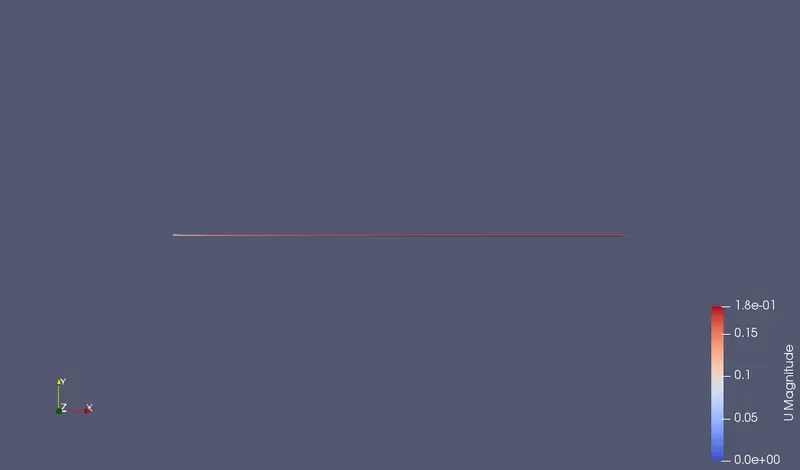

Geometry velocity profile:
Select option 'U'
Plots generated at different points:

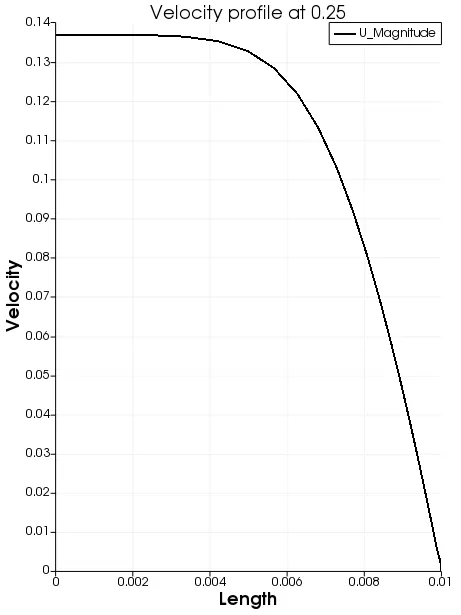

Velocity profile at 0.25

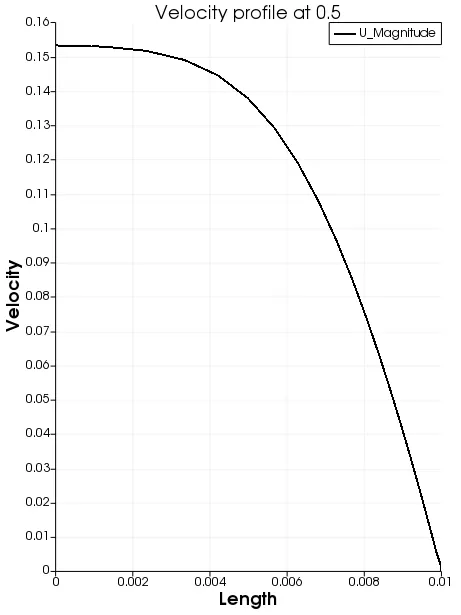

Velocity profile at 0.5

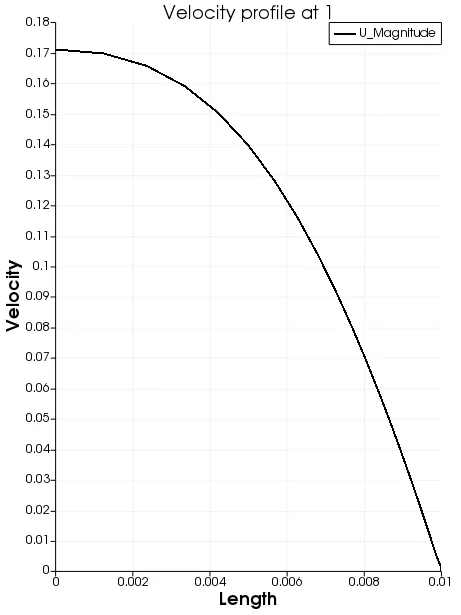

Velocity profile at 1

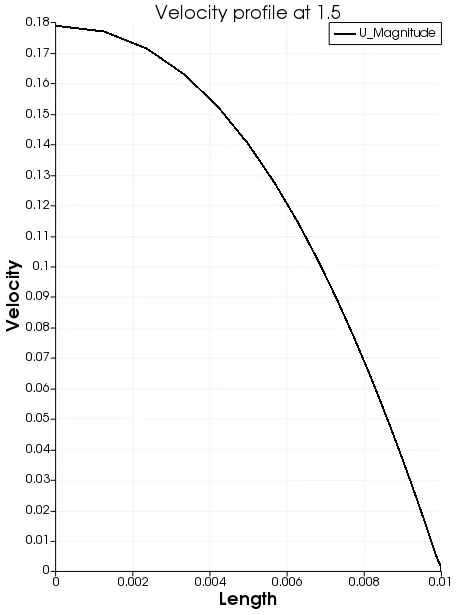

Velocity profile at 1.5

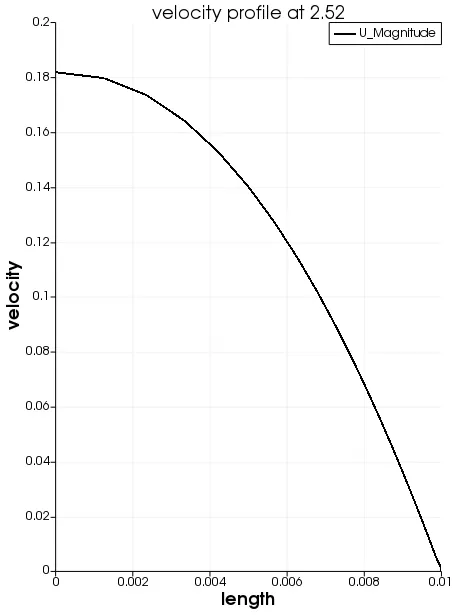

Velocity profile at entrance length (2.52)

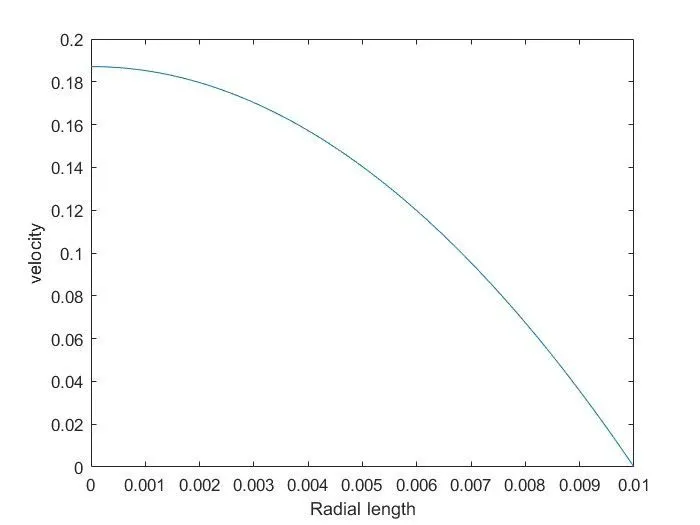

The Analytical velocity profile obtained from the Matlab :
Shear stress:
Shear stress is deformation of material by slippage along a plane.
Mathematical expression: τ=μ⋅(dudy)

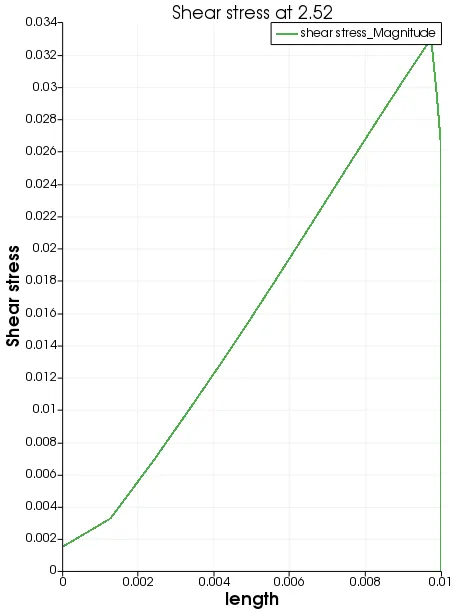

Shear stress graph of fully developed flow:

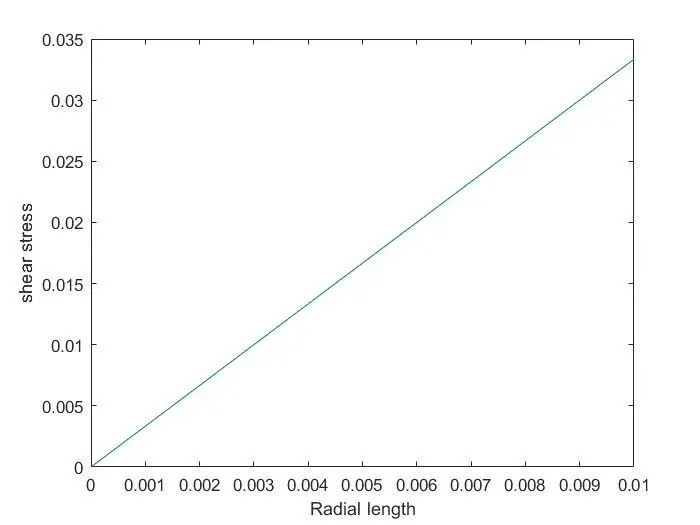

Analytical shear stress graph obtained by MATLAB:
Pressure drop:

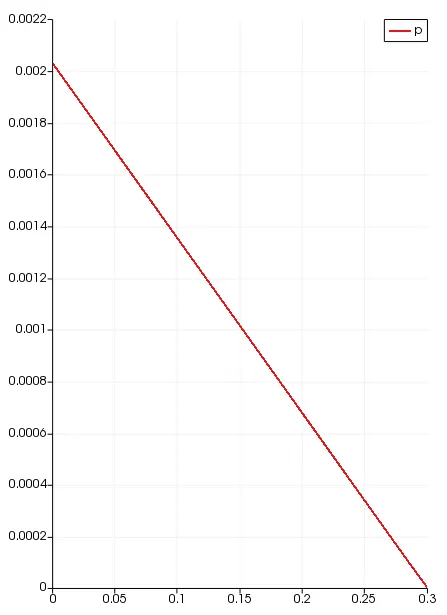

Pressure drop graph of fully developed region.
The value of point at 2.52 is 0.002031
The value of point at 2.82 is 4.53e-6
Difference between them is ∇p=0.002030547, obtained from the graph,
analytical value of pressure drop ∇p=2.006 in mm.
Conclusion:
Hydro dynamic length is obtained to be 2.52 units, where velocity profile is fully developed.
The velocity profile gradually increases from inlet to outlet. It remains constant after the flow is fully developed.
Analytical velocity profile and velocity obtained in openfoam matches very well, where velocity is maximum at center and parabolically decrease toward wall.
Shear stress is zero at center of pipe and increases linearly toward the wall, graph obtained from openfoam is close to analytical result.
Maximum velocity and pressure drop value is obtained for fully developed flow.
