Week 10- Assembly Workbench

Route the following harness layout in Electrical workbench OBJECTIVE:- Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Download connector 3D data from www.te.com INTRODUCTION A wire harness, also commonly referred to as a wiring harness, is an exterior sheath used to cover…

Route the following harness layout in Electrical workbench OBJECTIVE:- Route the Wiring harness on Given Engine and Prepare flatten view drawing in CATIA V5. Download connector 3D data from www.te.com INTRODUCTION A wire harness, also commonly referred to as a wiring harness, is an exterior sheath used to cover some…

Route the following harness layout in Electrical workbench  OBJECTIVE:- Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view. Download connector 3D data from www.te.com…

Route the following harness layout in Electrical workbench   OBJECTIVE:- Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing. Check the bundle Continuity. Add snap of result in submission Add annotation to…

Route the following harness layout in Electrical workbench   OBJECTIVE:- Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram. Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep…

Butterfly Valve Assembly ISOMETRIC VIEW   FRONT VIEW   LEFT SIDE VIEW   RIGHT SIDE VIEW   DRAFTING   Report & PDF Drawing Attached

BACK DOOR DESIGN   OBJECTIVE:-  Design Back Outer Panel, Inner Panel and the necessary reinforcements by following the class A surfaces Provided.                                                        Complete Back Door Assembly  INPUTS Back Door Class A Surface Design Procedure Design of Inner Panel from outer panel surface…

HOOD DESIGN   OBJECTIVE:-  For the Given Roof styling, create an ASSEMBLY by developing the essential flanges for the outer roof and creating the reinforcements.   Complete Roof Assembly   INPUTS Outer Panel Thickness     = 0.75mm Rear Roof Rail Master Section Rear…

Fender It is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air…

Fender It is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air…

Section modulus  Section modulus is a geometric property for a given cross-section used in the design of beams or flexural members. Other geometric properties used in design include area for tension and shear, radius of gyration for compression, and second moment of area and polar second moment of area for stiffness.…

HOOD DESIGN   OBJECTIVE:-  Design Hood Outer Panel, Inner Panel and the necessary reinforcements by following the Master Section mentioned with the Design parameters. INPUTS Outer Panel Thickness     = 0.75mm Inner Panel Thickness      = 0.75mm Reinforcement Thickness = 1.5mm Hemming Data We have to follow the hemming…

Benchmarking Benchmarking is the process of measuring products, services, and processes against those of organizations known to be leaders in one or more aspects of their operations. Benchmarking provides necessary insights to help you understand how your organization compares with similar organizations, even if they are…

Under-Body Coating Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile to provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are…

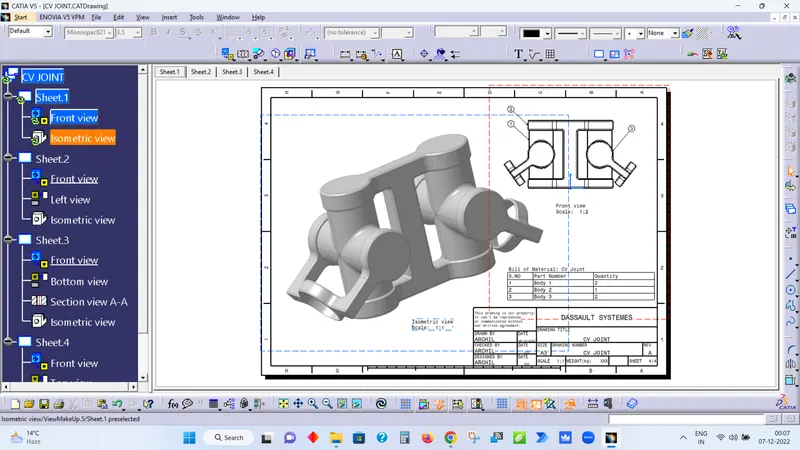

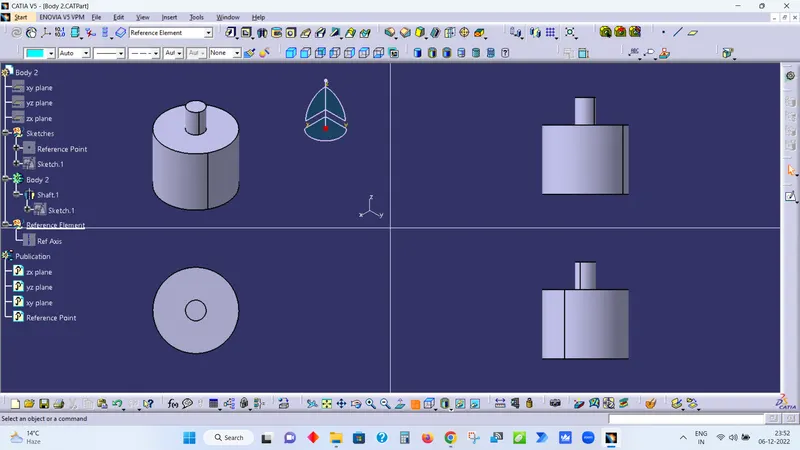

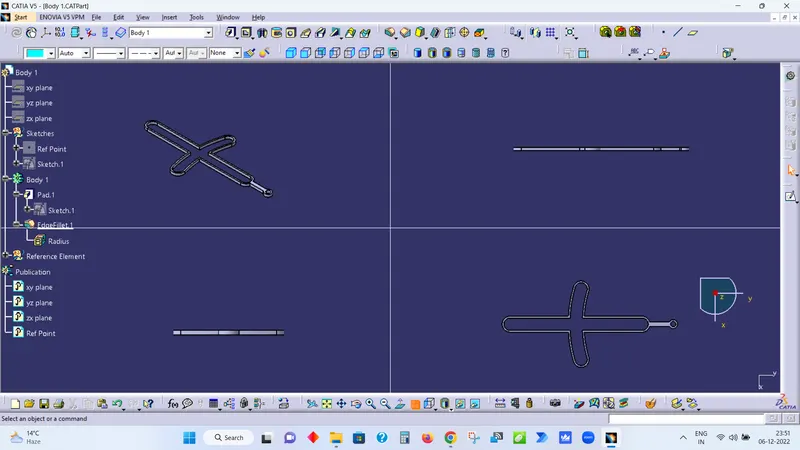

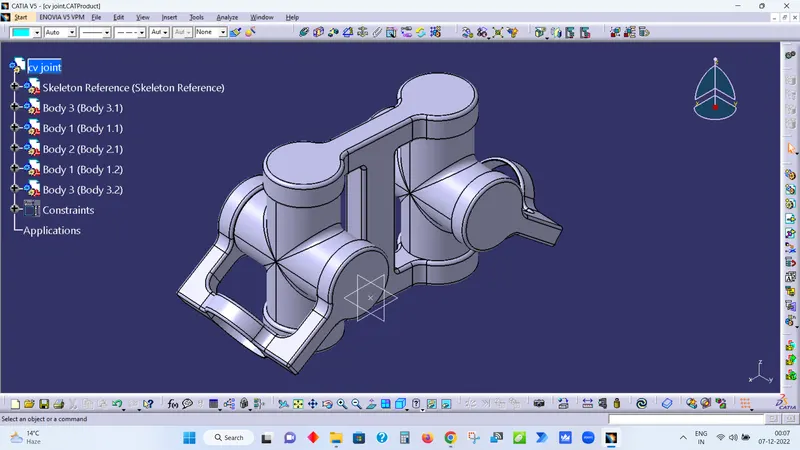

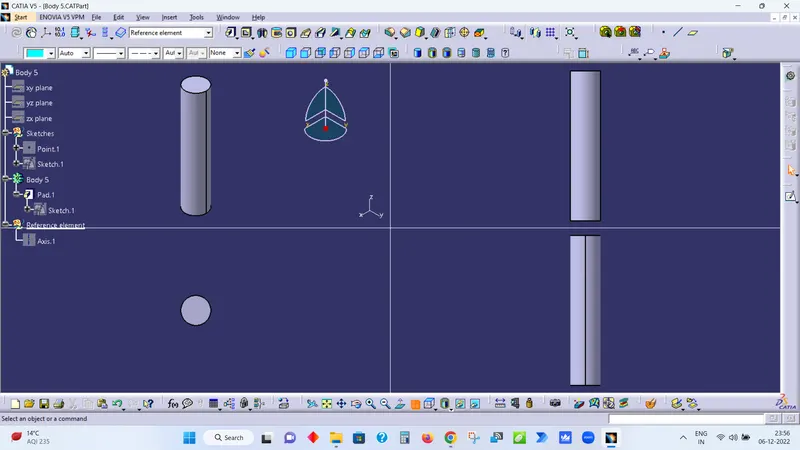

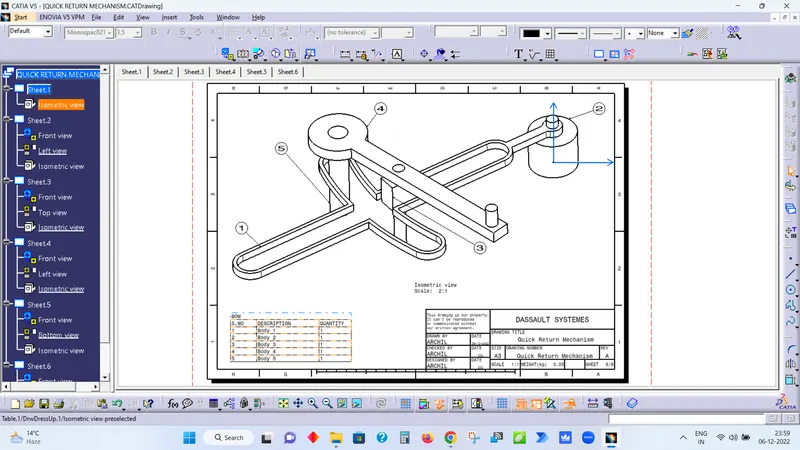

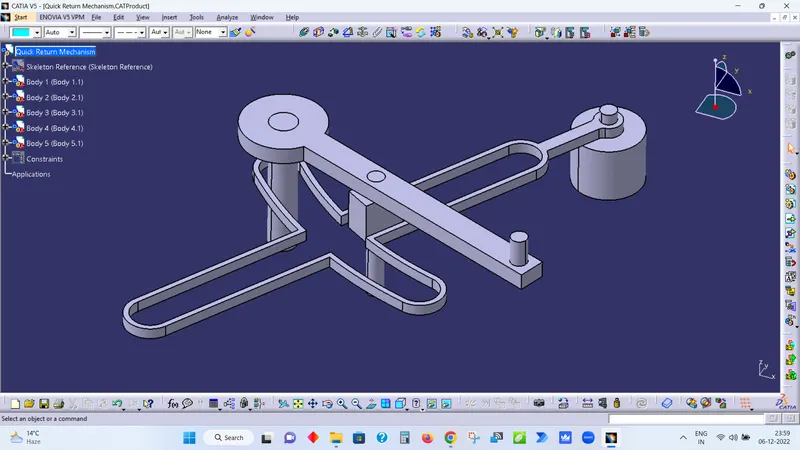

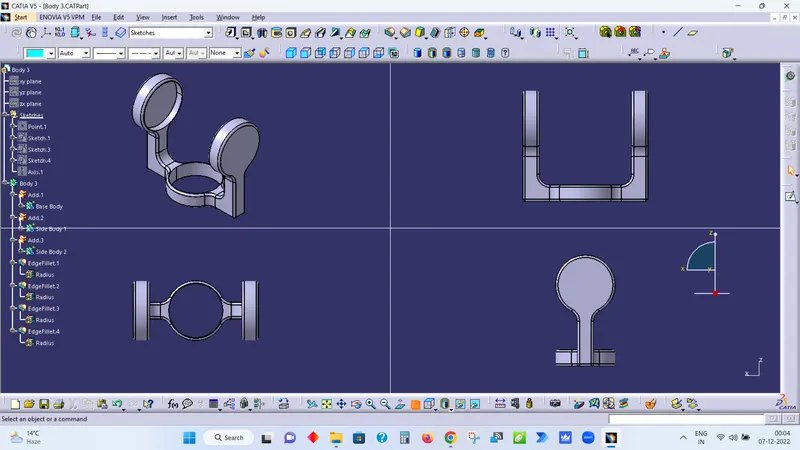

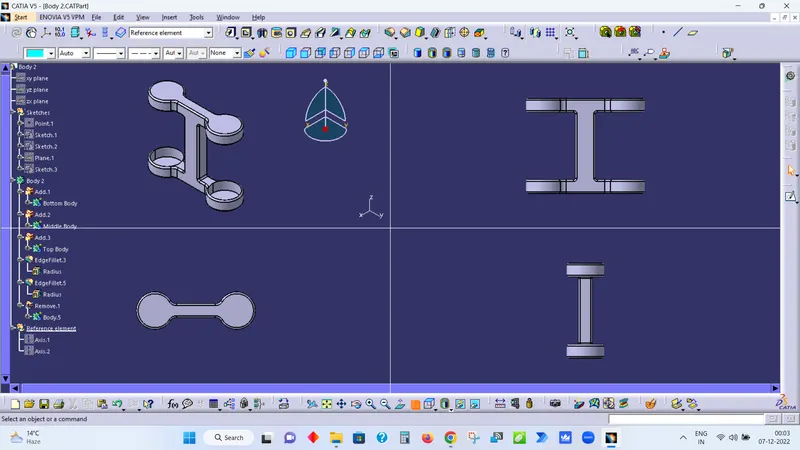

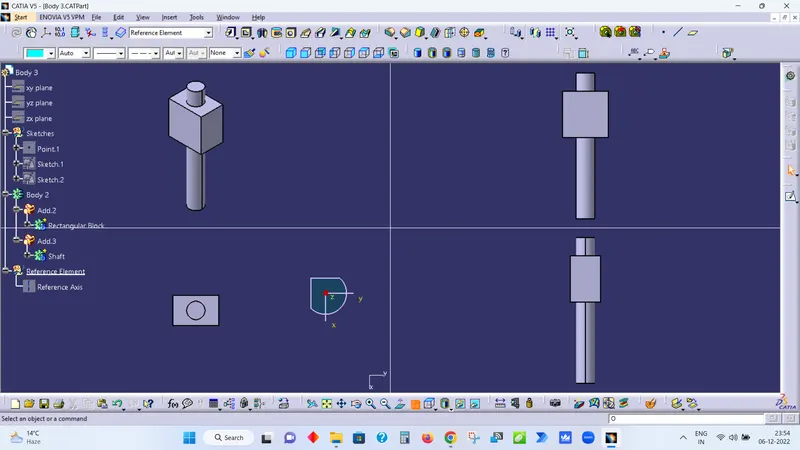

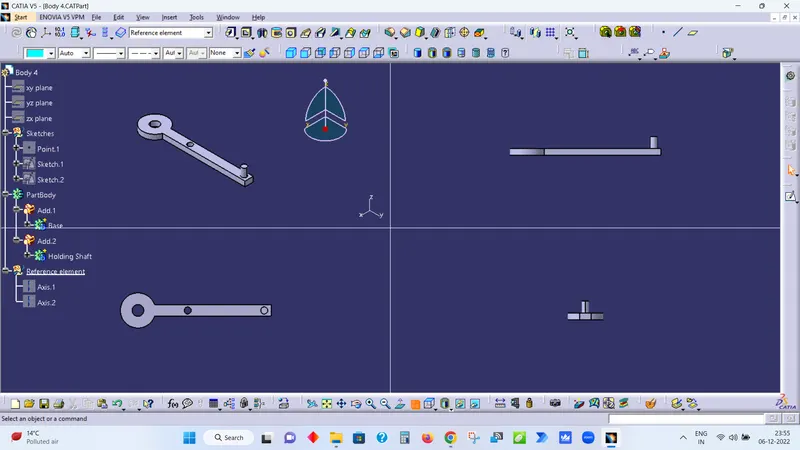

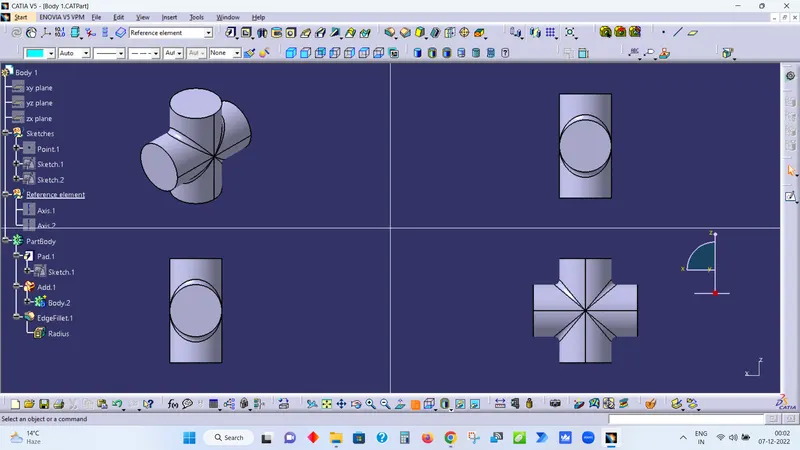

Procedure followed to create Assemblies  Quick Return Mechanism Assembly First of all create all the parts required for assembly as per the given 2D drawings using Boolean operation. Body 1 Body 2 Body 3 Body 4 Body 5 Quick Return Mechanism Assemble all the parts created, using required constraints. Drafting   CV Joint…

PPT & CAD FILE ATTACHED

creenshots of the completed design in various orientations (Isometric, Front, Side, and Top View) Draft Analysis Report attached

Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View) Draft Analysis Report Attached

Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View) Draft Analysis Report Attached

Switch Bezel Plastic component Creating the Core and cavity blocks for the switch bezel designed in the earlier challenge.  Tooling Axis Tooling Axis is the direction in which mold opens. if there is very big flat Surface or hole in the surface, Direction Normal to big flat surface or hole is generally tooling axis…

Bumper Plastic component Creating Bumper Plastic Component from Given Class A Surface. Tooling Axis Tooling Axis is the direction in which mold opens. if there is very big flat Surface or hole in the surface, Direction Normal to big flat surface or hole is generally tooling axis direction as holes must be clear in main…

Coin Holder Plastic component Creating Coin Holder Plastic Component from Given Class A Surface. Tooling Axis Tooling Axis is the direction in which mold opens. if there is very big flat Surface or hole in the surface, Direction Normal to big flat surface or hole is generally tooling axis direction as holes must be clear…

Switch Bezel Plastic component Creating Switch Bezel Plastic Component from Given Class A Surface. Tooling Axis Tooling Axis is the direction in which mold opens. if there is very big flat Surface or hole in the surface, Direction Normal to big flat surface or hole is generally tooling axis direction as holes must be clear…

Base Bracket Plastic component Creating Base Bracket Plastic Component from Given Class A Surface. Step 1 Design Check. To check the Continuity & Quality of Class A Surface, There should be no gaps between the two surfaces.  Created boundry of Class A Surface & Then Disassembled, after Disassembly gets only three curves…
