Project 1- Traffic Jam Assistant Feature

                                                           Traffic Jam Assistant Feature

Aim: - Development of a single feature of Traffic Jam Assist Model using MATLAB & Simulink.

Objective: -

• Model Development as per MBD guidelines.
• Creation of Simulink Data Dictionary (.sldd) File.
• Generation of Code using Embedded coder.
• Generating the Model Advisor Report.

Traffic Jam Assistance Feature:

Driving can be a lot of fun, but also tiring at times. Especially in traffic jams, after a long workday, when your concentration is no longer optimal, and it takes effort to continuously monitor all traffic around you. At moments like these, it’s very helpful if you can rely on intelligent technology for extra peace of mind and safety, such as Traffic Jam Assistance.

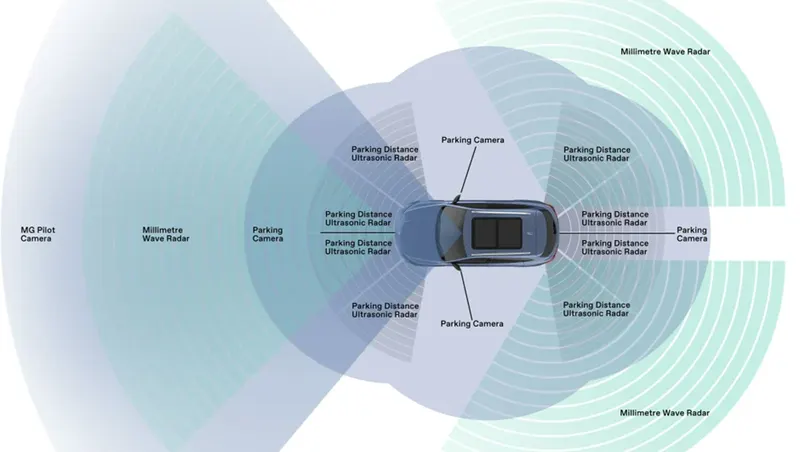

Traffic Jam Assistance is an active safety system as part of the comprehensive range of intelligent assistance systems. These are grouped together under the name MG Pilot. These so-called Advanced Driver Assistance Systems (ADAS) are standard for all MG models and includes 12 to 15 different features, depending on the model.

These MG Pilot safety systems warn the driver of potential hazards and even intervene if necessary. Think of Lane Keep Assistance, Rear Traffic Alert, Blind Spot Monitoring, Drowsiness Warning System and Front Collision Warning with Automatic Emergency Braking. The purpose of this is to make driving easier, more enjoyable and above all, safer. But MG Pilot also includes driver assistance systems which partly take over driving, like Traffic Jam Assistance.

Basic Working Principle: -

How does it work?

Traffic Jam Assistance (TJA) is an advanced driver assistance system that continuously measures the speed of the surrounding vehicles when Adaptive Cruise Control is switched on. That speed is compared with your own driving speed. If Traffic Jam Assistance detects many surrounding vehicles at speeds below 60 km/h – and you are therefore very likely to be in a traffic jam – the driver can activate Traffic Jam Assistance. With this, your MG partly takes over the driving.

With Traffic Jam Assistance switched on, the car automatically follows the vehicle in front. It accelerates and brakes all by itself, at all speeds below 60 km/h to a standstill and further. In addition, the intelligent technology continuously keeps the distance you set to the vehicle in front of you. But there is more: with Traffic Jam Assistance, your MG also steers automatically to stay neatly in the middle of the lane. Even in gentle corners! Very comfortable, carefree and safe driving, regardless the visibility, the weather conditions and the amount of traffic on the road.



Signal & Calibration Data List: -

Input Signals: -

Name of the Signal	Data Type	Range
Input_Voltage	Uint8	0-255
Enable_Display	Uint8	0-255
Input_Switch	boolean	0-1





Output Signals: -

Name of the Signal	Data Type	Range
Output_Display	Uint8	0-255





Local Signals: -

Name of the Signal	Data Type	Range
Optimum_Voltage	boolean	0-1





Calibration Signals: -

Name of the Signal	Data Type	Range	Initial Values
Voltage_MINIMUM_RANGE	Uint8	0-255	30
Voltage_MAXIMUM_RANGE	Uint8	0-255	50
NO_DISPLAY	Uint8	0-255	0
ON_MODE	Uint8	0-255	1
OFF_MODE	Uint8	0-255	2
STANDBY_MODE	Uint8	0-255	3
INTERRUPT_1	boolean	0-1	1
INTERRUPT_2	boolean	0-1	1



Requirements: -

Procedure: -

Creation of Simulink model

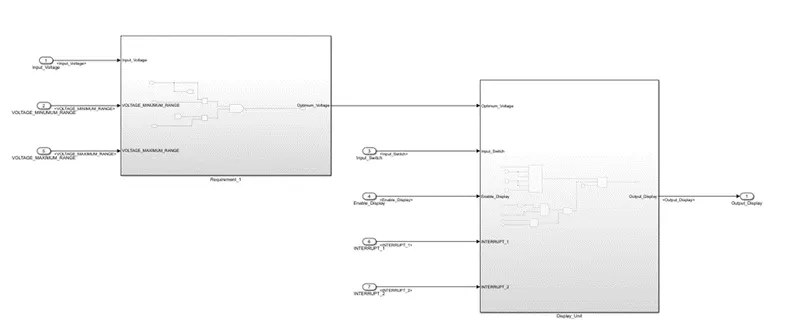

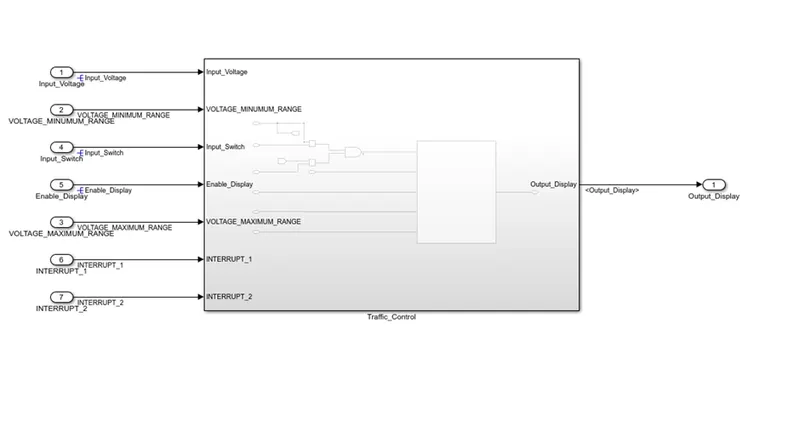

MAIN SUB SUBSYSTEM of Traffic Control:

When we open main subsystem there is requirement_1 & requirement_2





Requirement 1:

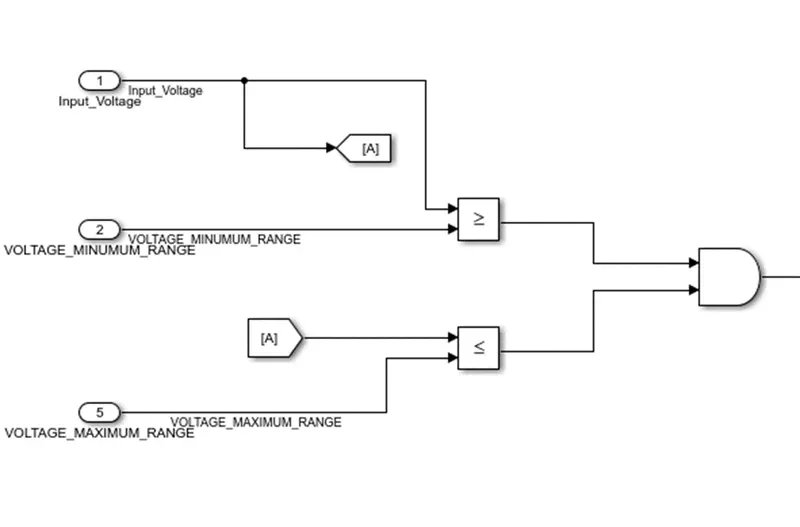

As per Requirement input voltage is compared against VOLTAGE MINUMUM RANGE & VOLTAGE MAXIMUM RANGE with the help of relational operator blocks

The outputs of 2 relational operator blocks are given to AND block and output of AND block is optimum voltage and it is given as one of the input to Requirement 2 i.e. display unit subsystem

Requirement 2:

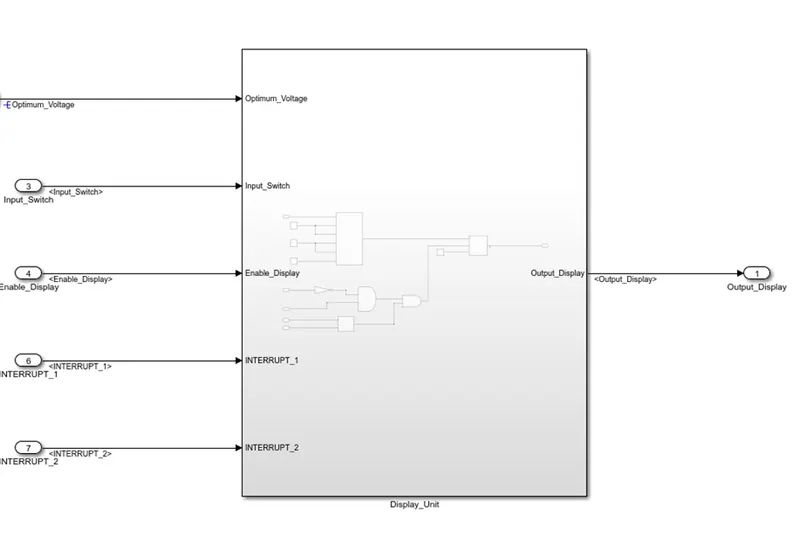

Here we have to create a separate subsystem and name it as Display unit the subsystem should have 3 Simulink input signals and 2 calibration input signals

3 Simulink signals are optimum voltage, input switch and enable voltage

And calibration signals are INTERRUPT 1 & INTERRUPT 2

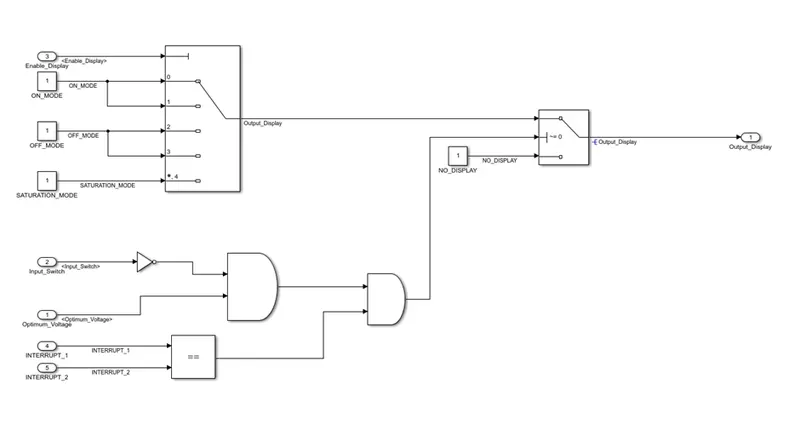

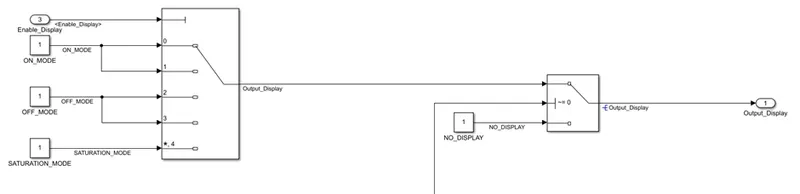

Input Signal Enable Display is connected to multiport switch with 5 inputs the input 1 & 2 are connected to calibration Signal ON mode & inputs 3 & 4 connected to OFF Mode & input 5 is connected to SATURATION Mode output from multiport switch is connected to first input of the switch block

Third input of switch block is connected to calibration parameter NO DISPLAY

Here input signal input switch with Not gate is compared against Optimum voltage by using AND gate and output from the AND is given to again AND gate.

Calibration signals INTERRUPT_1 & INTERRUPT_2 are equal and compared against output signal from the above AND gate by using AND gate and output of these AND gate is given as second input to switch block

Output of switch block is Output_Display

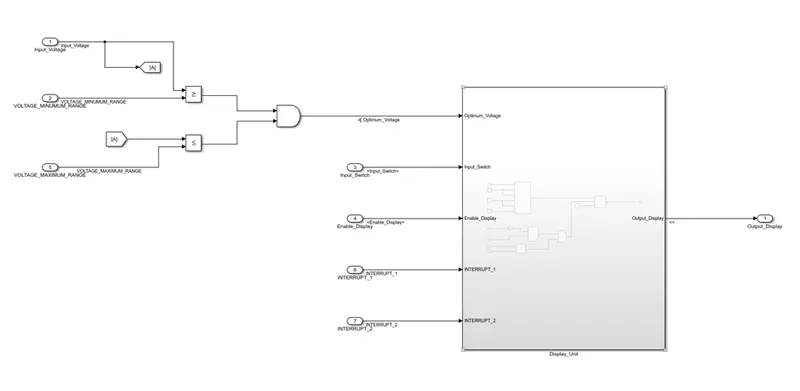

Above fig: is showing MODEL IS DEVELOPED as per the Requirement_1 & Requirement_2



Creation of Simulink Data Dictionary (Sldd File:):

First we have link the Simulink data dictionary with our model to link the sldd we have to select Modelling in that select down Arrow select Link to data dictionary next select New option name the required sldd file then click on ok it will automatically have linked to our required Simulink model

Next to add signals in Sldd file we have to add signals and calibration data in these Simulink signals for input signals

To add signals, we have to select Simulink signals in Add option

Here in input signals select storage Import External

Output signal Select Storage Class Export to file in same output signal we have to give header file name and definition file name

For local signals select Storage class as localizable

To add Calibration data, we have to select Simulink parameters in in same Add option











Generation of C Code for the model: -

/*

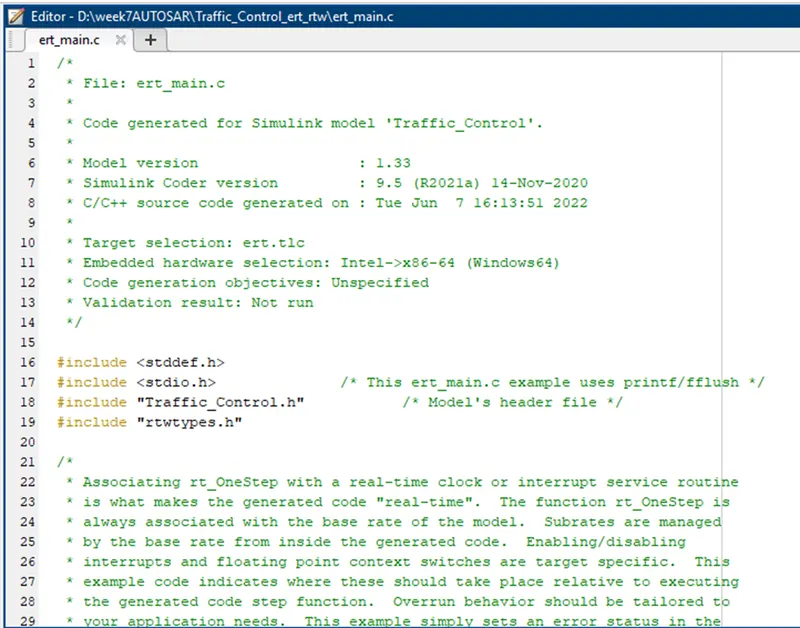

 * File: ert_main.c

 *

 * Code generated for Simulink model 'Traffic_Control'.

 *

 * Model version                  : 1.33

 * Simulink Coder version         : 9.5 (R2021a) 14-Nov-2020

 * C/C++ source code generated on : Tue Jun  7 16:13:51 2022

 *

 * Target selection: ert.tlc

 * Embedded hardware selection: Intel->x86-64 (Windows64)

 * Code generation objectives: Unspecified

 * Validation result: Not run

 */



#include

#include               /* This ert_main.c example uses printf/fflush */

#include "Traffic_Control.h"           /* Model's header file */

#include "rtwtypes.h"



/*

 * Associating rt_OneStep with a real-time clock or interrupt service routine

 * is what makes the generated code "real-time".  The function rt_OneStep is

 * always associated with the base rate of the model.  Subrates are managed

 * by the base rate from inside the generated code.  Enabling/disabling

 * interrupts and floating point context switches are target specific.  This

 * example code indicates where these should take place relative to executing

 * the generated code step function.  Overrun behavior should be tailored to

 * your application needs.  This example simply sets an error status in the

 * real-time model and returns from rt_OneStep.

 */

void rt_OneStep(void);

void rt_OneStep(void)

{

  static boolean_T OverrunFlag = false;



  /* Disable interrupts here */



  /* Check for overrun */

  if (OverrunFlag) {

    rtmSetErrorStatus(Traffic_Control_M, "Overrun");

    return;

  }



  OverrunFlag = true;



  /* Save FPU context here (if necessary) */

  /* Re-enable timer or interrupt here */

  /* Set model inputs here */



  /* Step the model */

  Traffic_Control_step();



  /* Get model outputs here */



  /* Indicate task complete */

  OverrunFlag = false;



  /* Disable interrupts here */

  /* Restore FPU context here (if necessary) */

  /* Enable interrupts here */

}



/*

 * The example "main" function illustrates what is required by your

 * application code to initialize, execute, and terminate the generated code.

 * Attaching rt_OneStep to a real-time clock is target specific.  This example

 * illustrates how you do this relative to initializing the model.

 */

int_T main(int_T argc, const char *argv[])

{

  /* Unused arguments */

  (void)(argc);

  (void)(argv);



  /* Initialize model */

  Traffic_Control_initialize();



  /* Attach rt_OneStep to a timer or interrupt service routine with

   * period 0.2 seconds (the model's base sample time) here.  The

   * call syntax for rt_OneStep is

   *

   *  rt_OneStep();

   */

  printf("Warning: The simulation will run forever. "

         "Generated ERT main won't simulate model step behavior. "

         "To change this behavior select the 'MAT-file logging' option.\n");

  fflush((NULL));

  while (rtmGetErrorStatus(Traffic_Control_M) == (NULL)) {

    /*  Perform other application tasks here */

  }



  /* Disable rt_OneStep() here */



  /* Terminate model */

  Traffic_Control_terminate();

  return 0;

}



/*

 * File trailer for generated code.

 *

 * [EOF]

 */





Report: -



Generation of Model Advisory Report:



Conclusions: -

• Fully developed a model of single feature of traffic Jam Assistance as per the MAAB guidelines.
• Created Simulink Data Dictionary file with detailed description.
• Generated a C Code using the Embedded Coder as well as MA Report.
