Project 1

AIM:-



Problem statements:

Part A:

The three-phase diode rectifier is supplying approximately 2.2 kW load with VLL=208V at 60 Hz, Ls=1 mH and Cd=1100 μF, where Cd is the DC side capacitor. Design the circuit in one of the simulation platforms (MATLAB or Ltspice/Simetrix) and obtain the circuit waveforms. Based on their simulation studies find out the following:

Average dc voltage output, peak-to-peak ripple, the input current THD, DPF and PF and average dc current. Also give the selected devices with justification



Part B:

A three-phase thyristor converter is supplied by 480V (line-line), 60 Hz source. Its internal inductance Ls1=0.2 mH. The converter has a series inductance Ls2=2.0 mH. The load is represented as RLE load with Ld=5 mH, rd=0 and Ed=600V and the delay angle is α=20°. Using the simulation obtain vs, is and vd waveforms and calculate Is1, Is, DPF, PF and % THD. Also give the selected thyristor based on the simulated studies with proper justification.





1.

    The three-phase diode rectifier is supplying approximately 2.2 kW load with VLL=208V at 60 Hz, Ls=1 mH and Cd=1100 μF, where Cd is the DC side capacitor. Design the circuit in one of the simulation platforms (MATLAB or Ltspice/Simetrix) and obtain the circuit waveforms. Based on their simulation studies find out the following:

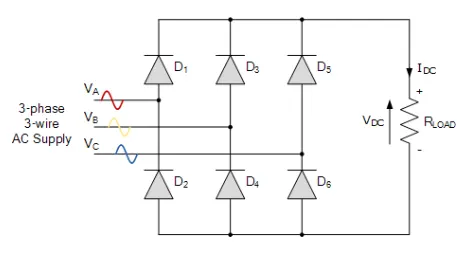

 Circuit diagram;-





In 3-phase power rectifiers, conduction always occurs in the most positive diode and the corresponding most negative diode. Thus as the three phases rotate across the rectifier terminals, conduction is passed from diode to diode.

Then each diode conducts for 120^o (one-third) in each supply cycle but as it takes two diodes to conduct in pairs, each pair of diodes will conduct for only 60^o (one-sixth) of a cycle at any one time as shown above.

Therefore we can correctly say that for a 3-phase rectifier being fed by “3” transformer secondaries, each phase will be separated by 360^o/3 thus requiring 2*3 diodes.

Note also that unlike the previous half-wave rectifier, there is no common connection between the rectifiers input and output terminals. Therefore it can be fed by a star connected or a delta connected transformer supply.

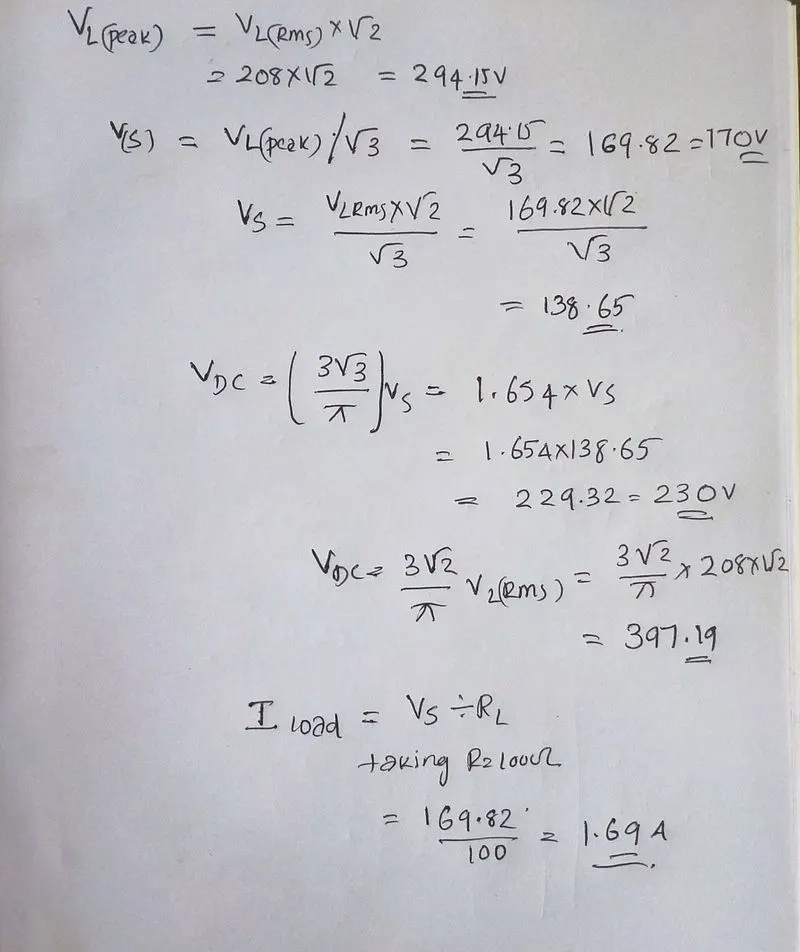

Calculations:-

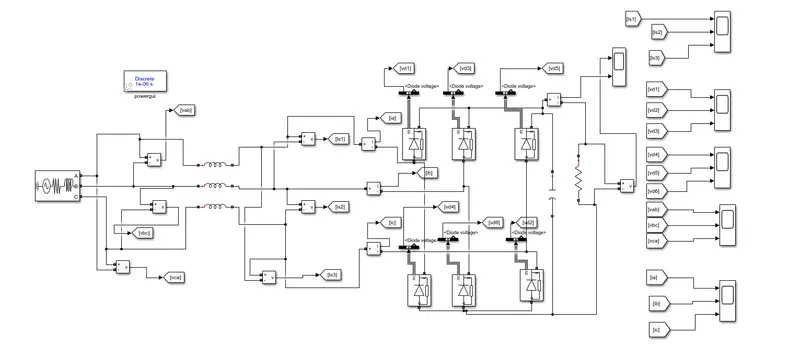

Simulink model:-

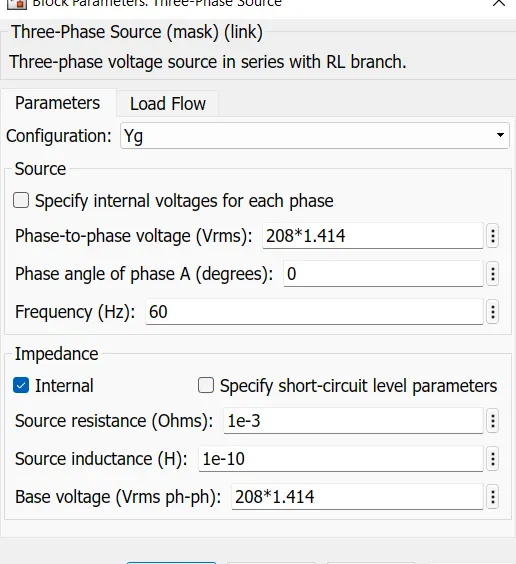

3 phase ac source

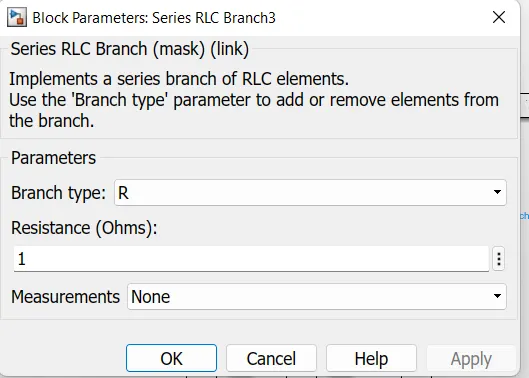

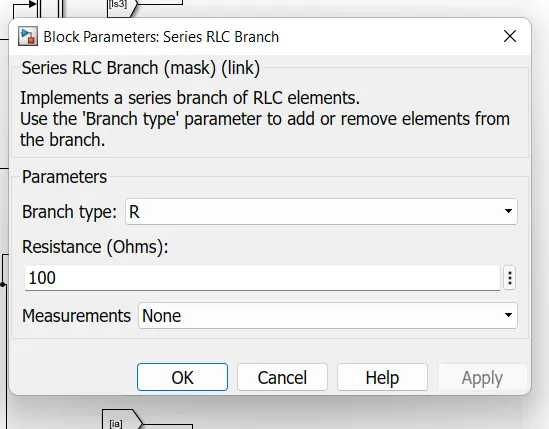

load



Capacitor

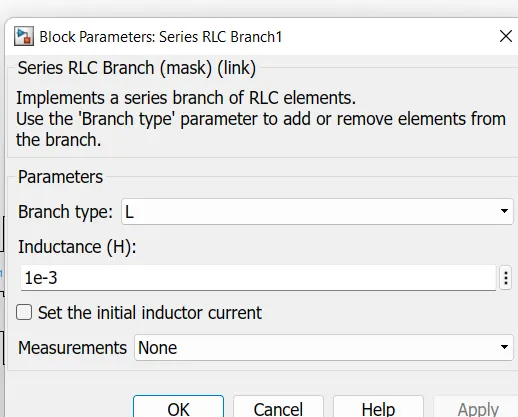

Ls





Results:-

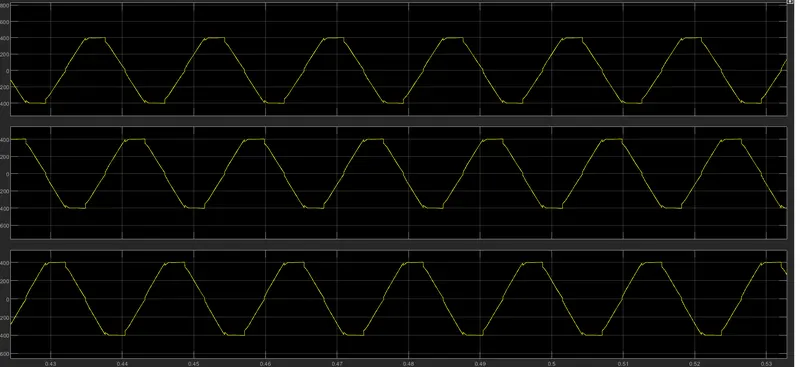

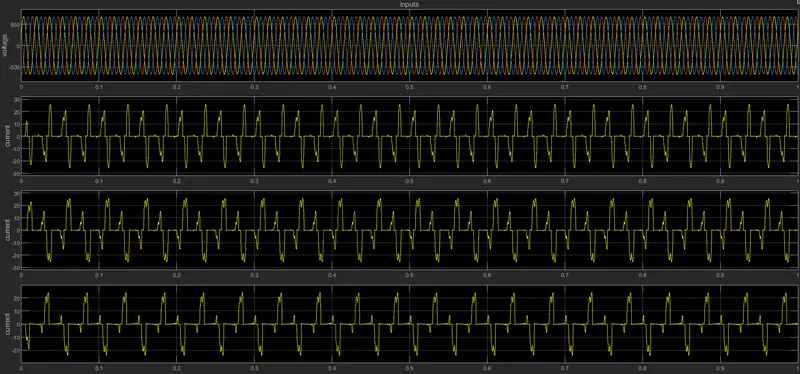

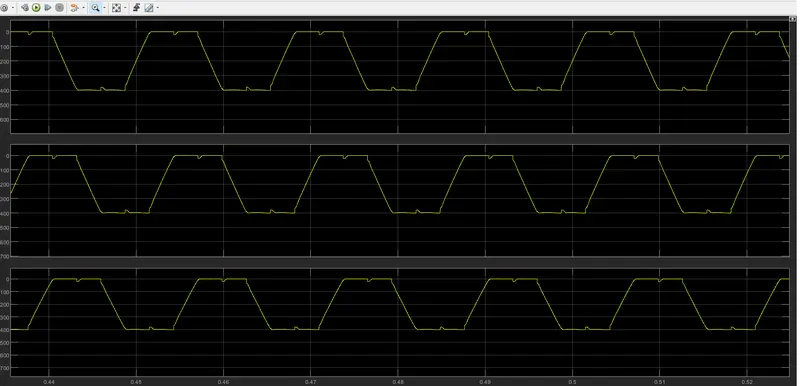

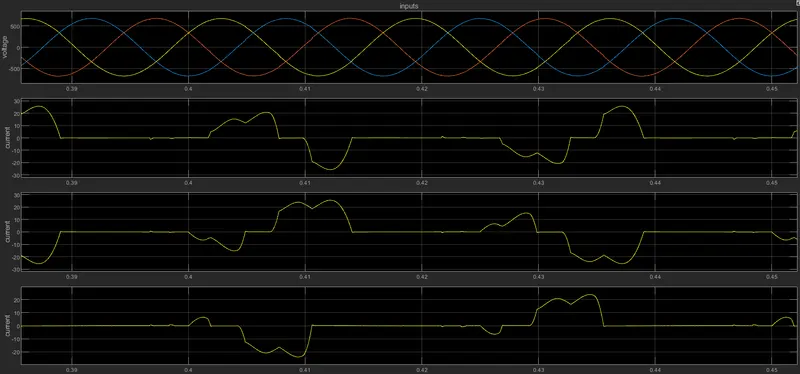

       input voltage and current

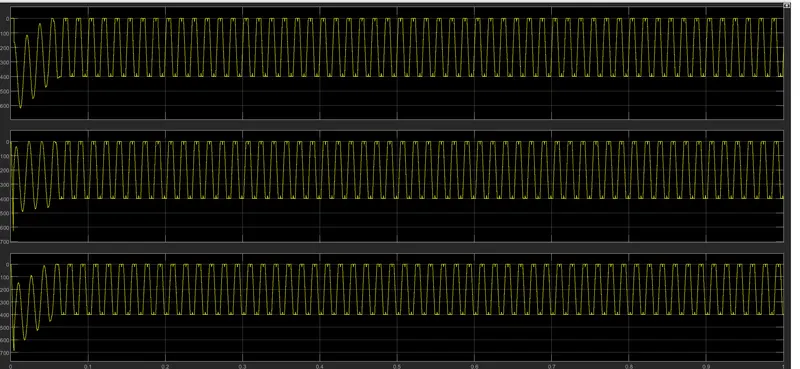

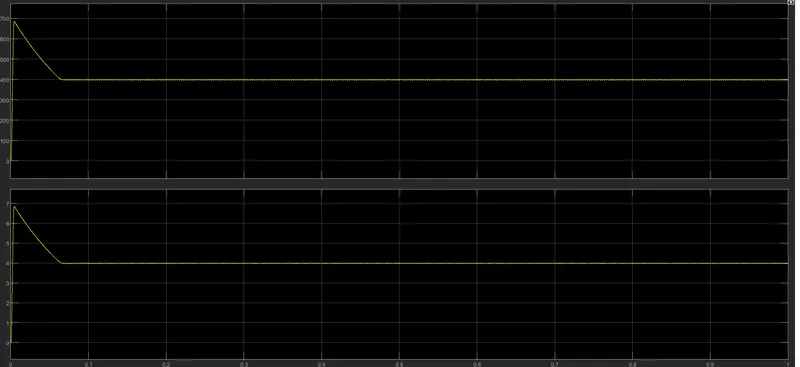

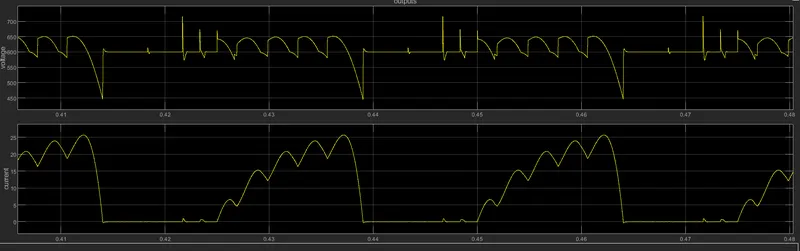

         output voltage and current





current

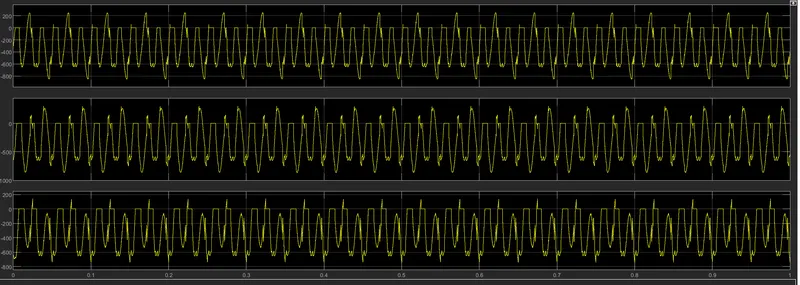

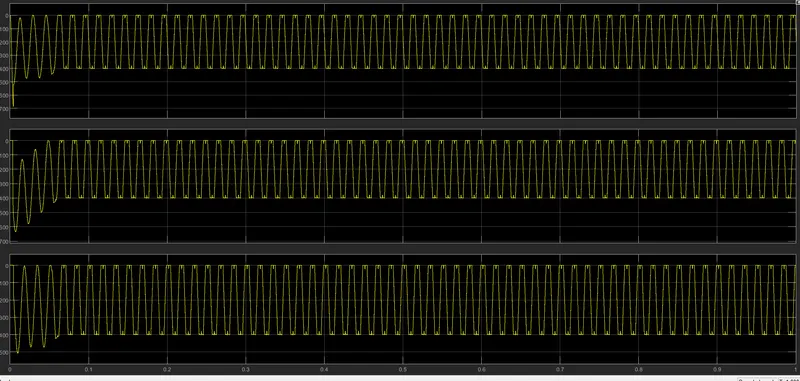

diode voltages

           vd1,vd2,vd3







vd4,vd5,vd6







next we need to move on FFT ANALYSIS

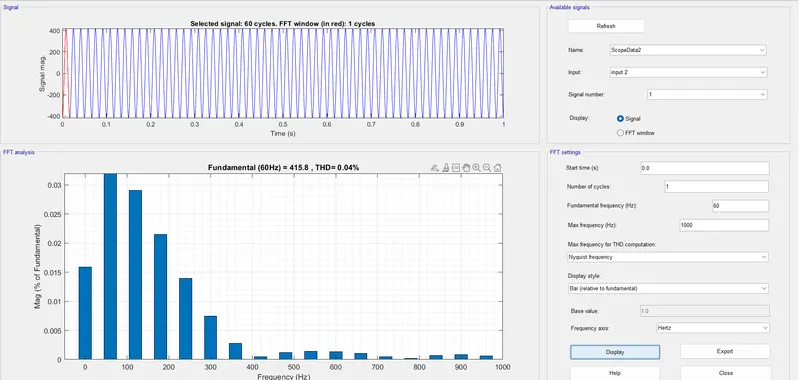

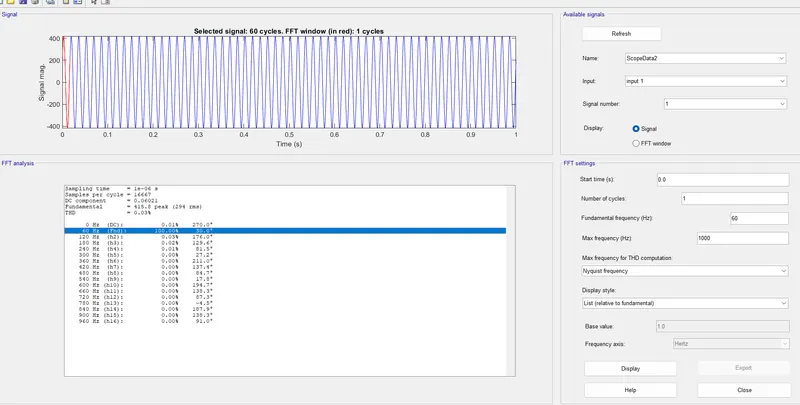

     FFT ANALYSIS

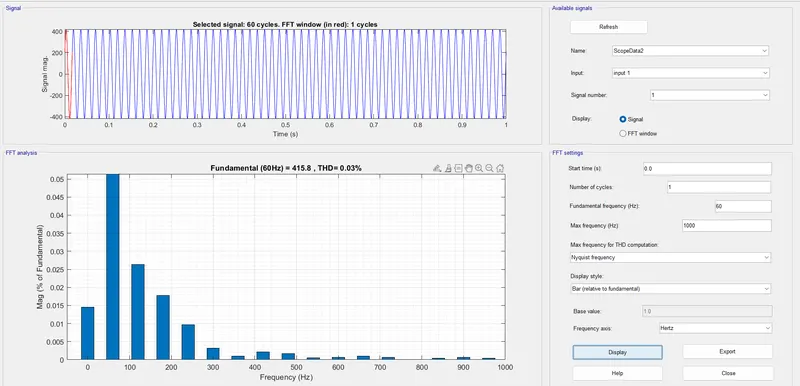

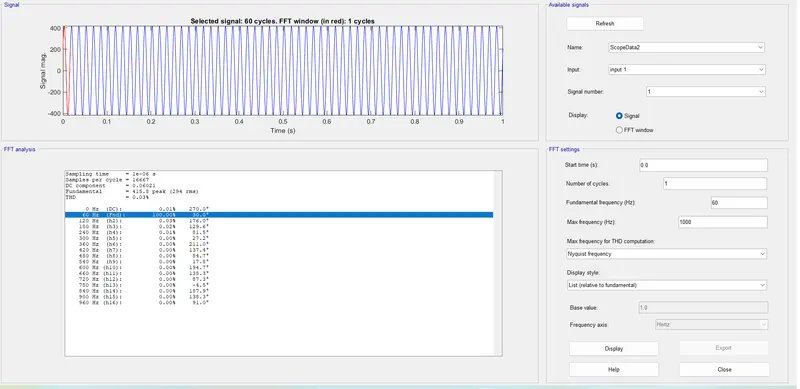

            Input voltage



here

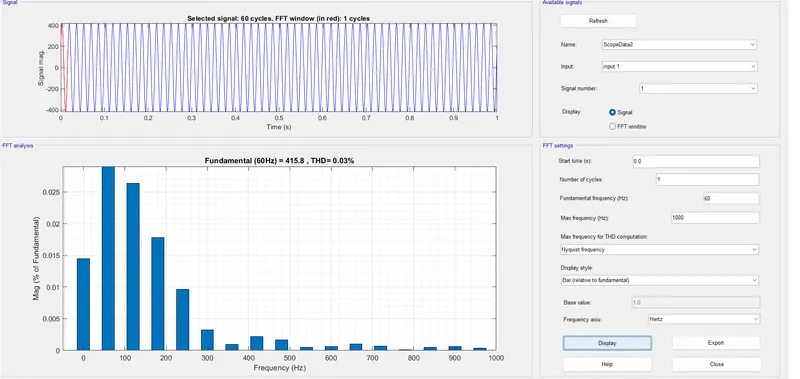

THD=0.03%

and fundamental 60hz=415.8



list for 60 hz



for 60hz it is 30 degree



output

input 1



it is 30 deg

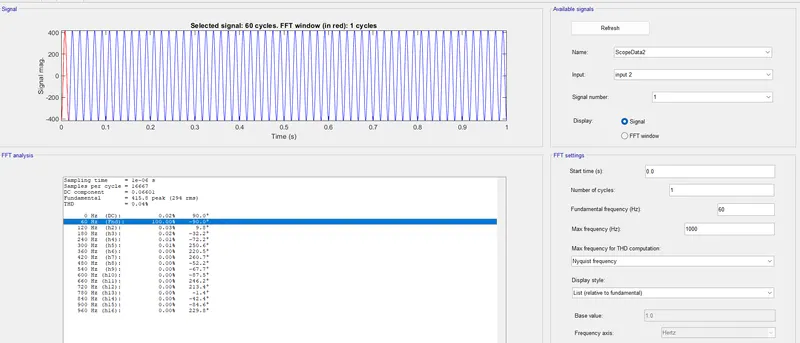

 input 2



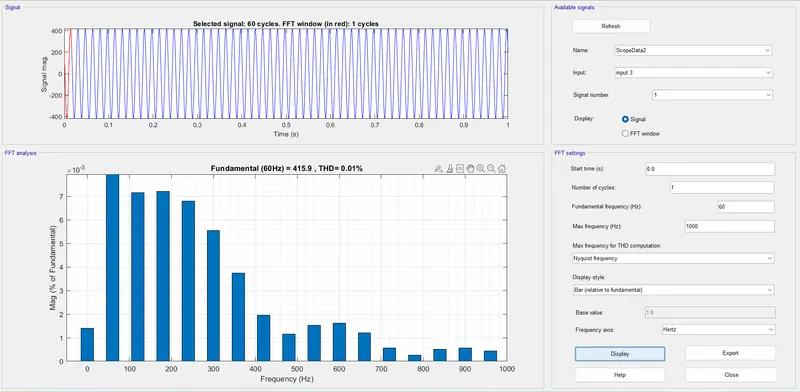

here

THD =0.04%

list





for 60 hz

    it is -90 degree



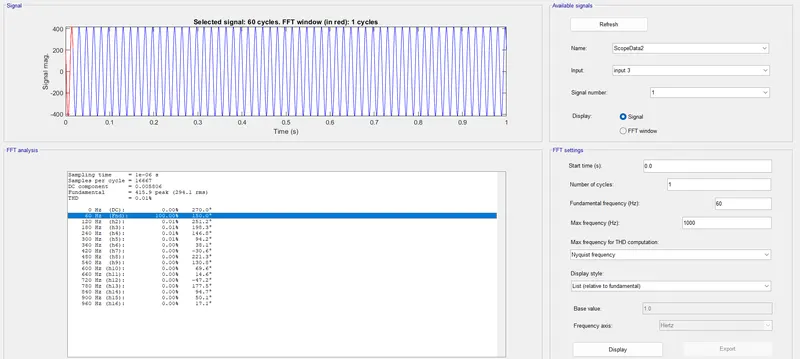

input 3





it showing 150 degree





showing THD=0.01%

fundamental=60hz







2.

  A three-phase thyristor converter is supplied by 480V (line-line), 60 Hz source. Its internal inductance Ls1=0.2 mH. The converter has a series inductance Ls2=2.0 mH. The load is represented as RLE load with Ld=5 mH, rd=0 and Ed=600V and the delay angle is α=20°. Using the simulation obtain vs, is and vd waveforms and calculate Is1, Is, DPF, PF and % THD. Also give the selected thyristor based on the simulated studies with proper justification.



Circuit diagram:-





 waveform

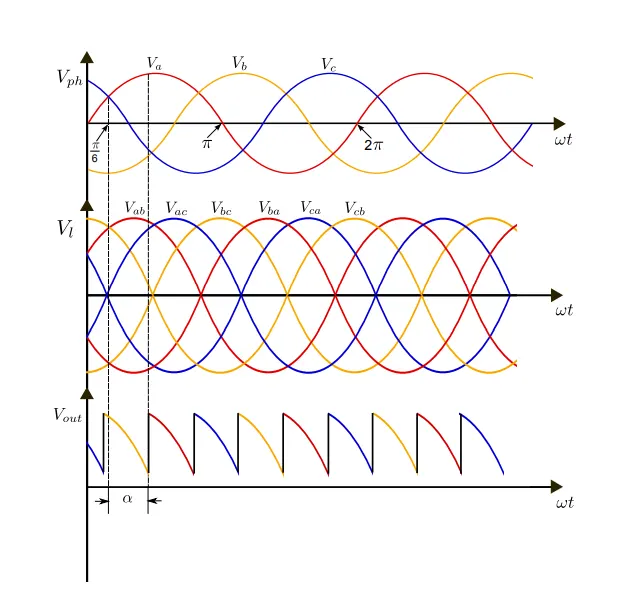

  For a 3 - phase full wave controlled rectifier shown in Fig. 1, the output voltage is alwaysdifference between two phase voltages. At any instant of time two thyristors of differentlegs conduct. Let us consider the instant at which T1 and T6 conduct. Solving KVL, the output voltage Vout is equal to the difference between Va and Vb. Similarly this appliesfor every other combination of conduction of thyristors. The output waveform forcontinuous conduction is shown in Fig

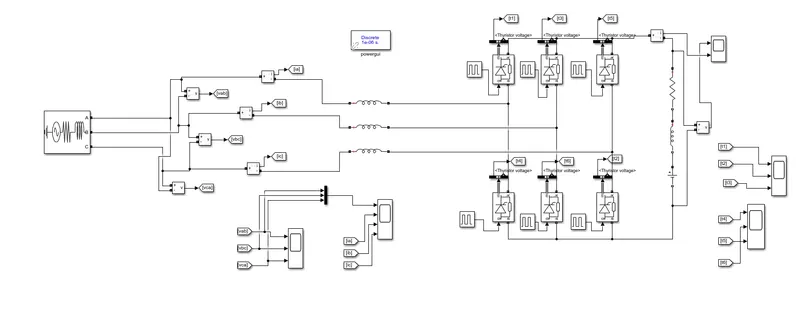

Simulink model:-

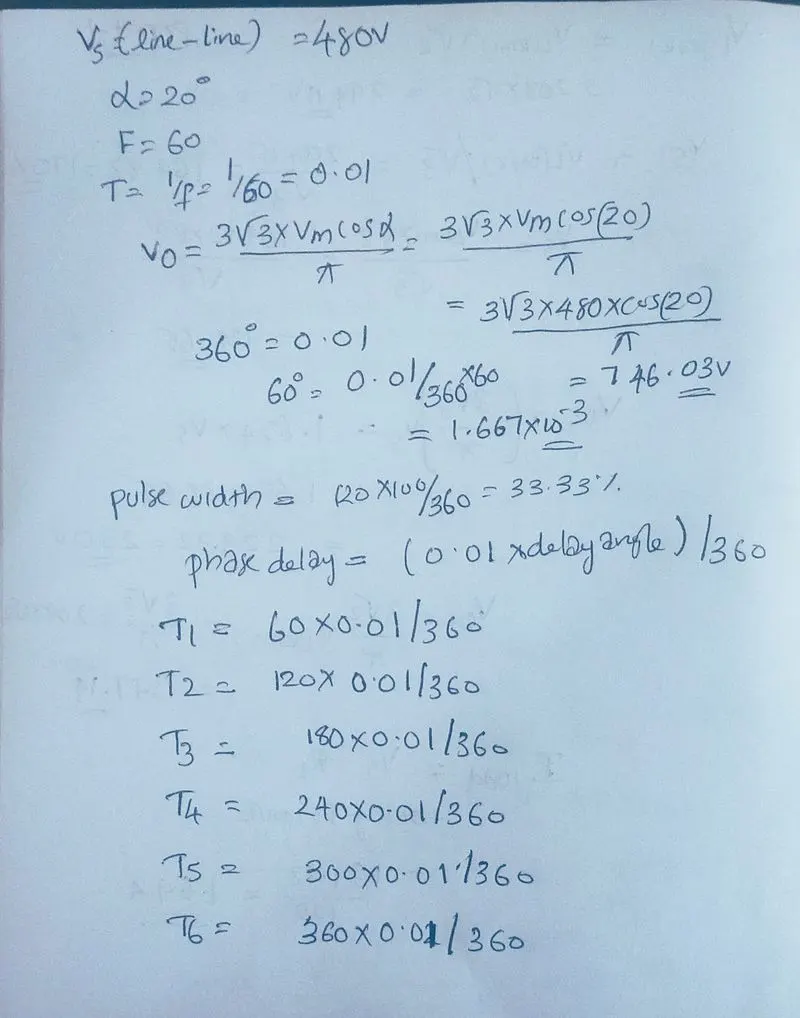

Calculation:-

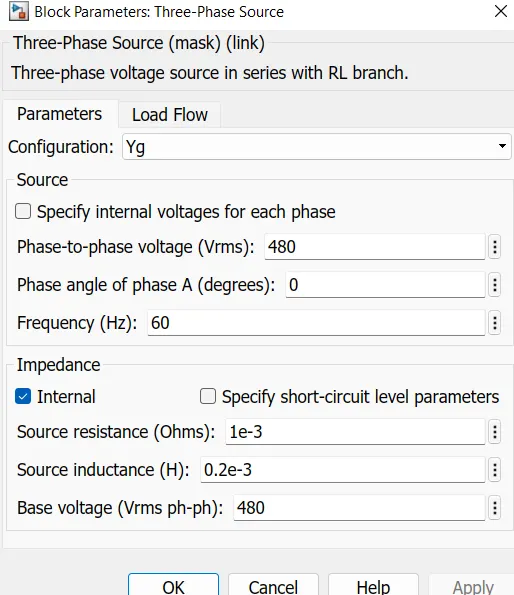

Ac source

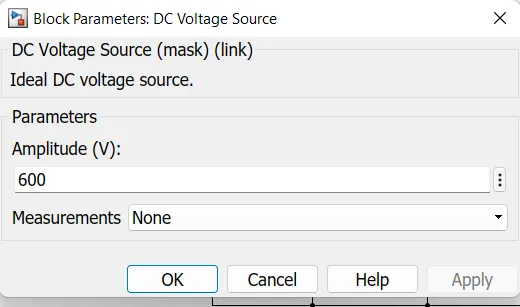

R,L,Vdc

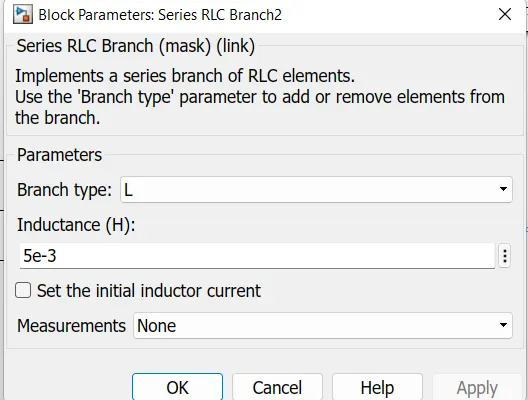

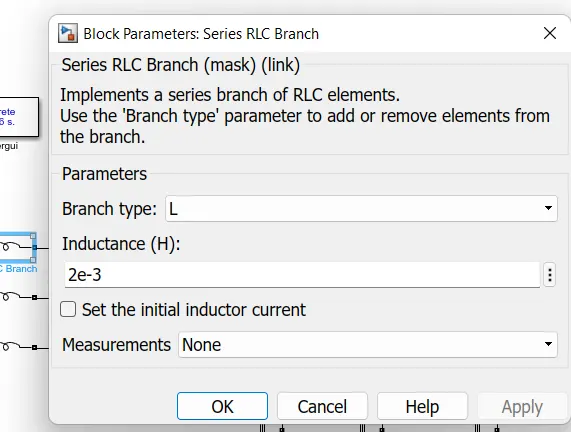

Ls





Results:-

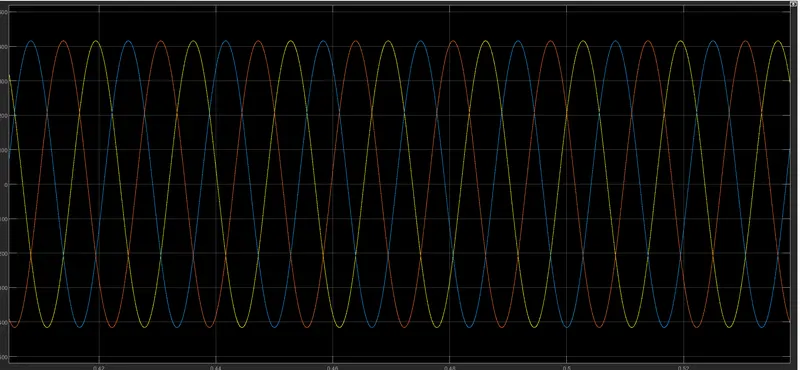

      input voltage and current

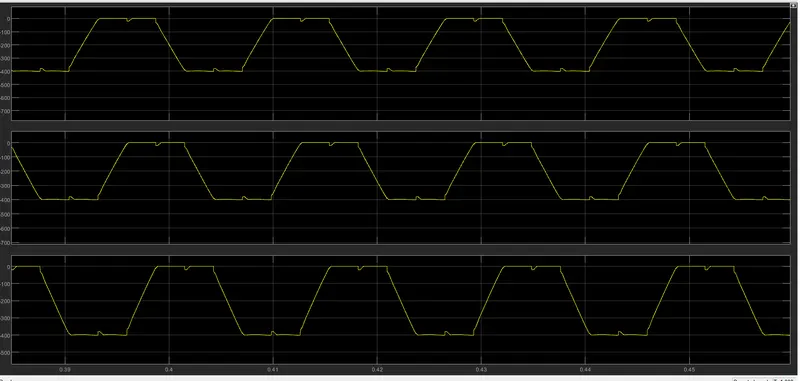

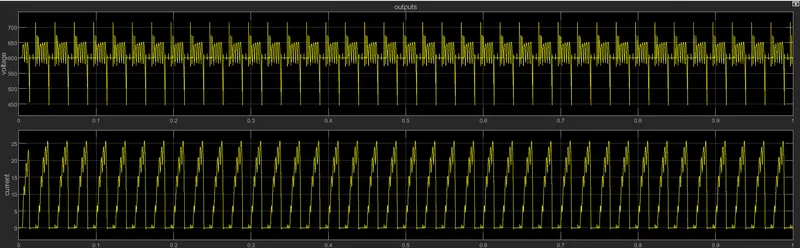

output voltage and current

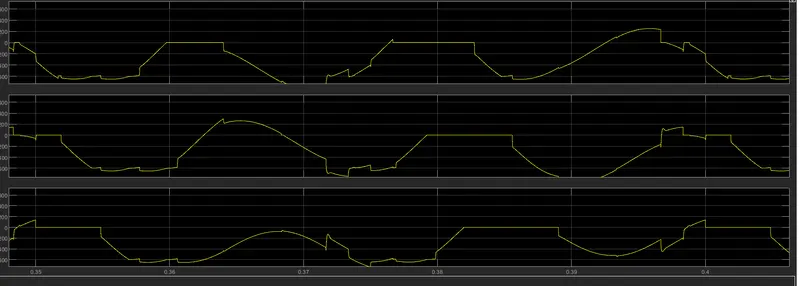

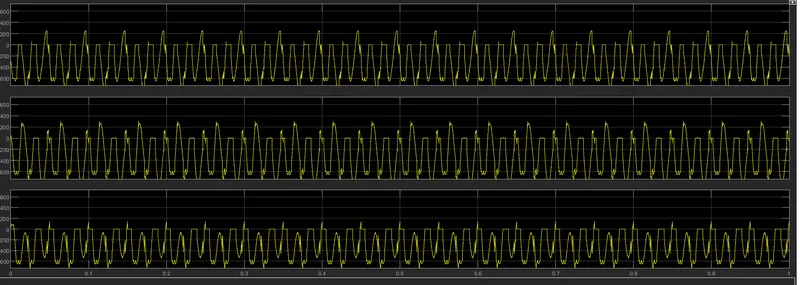

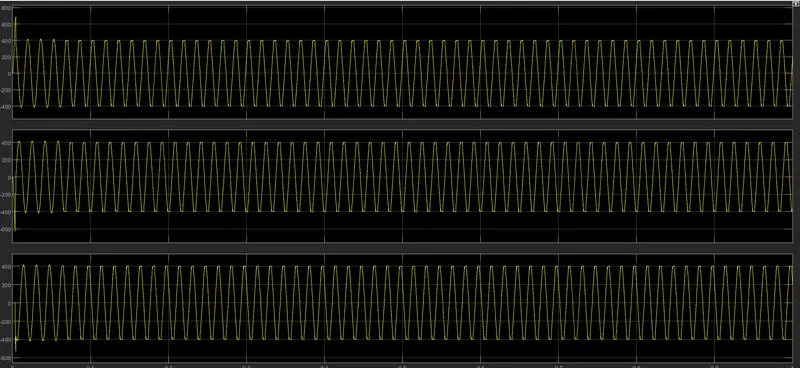

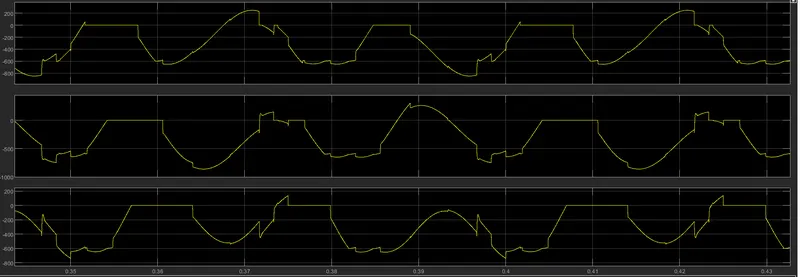

Thyristor voltages

t1,t2,t3







t4,t5,t6







FFT analysis

         input analysis

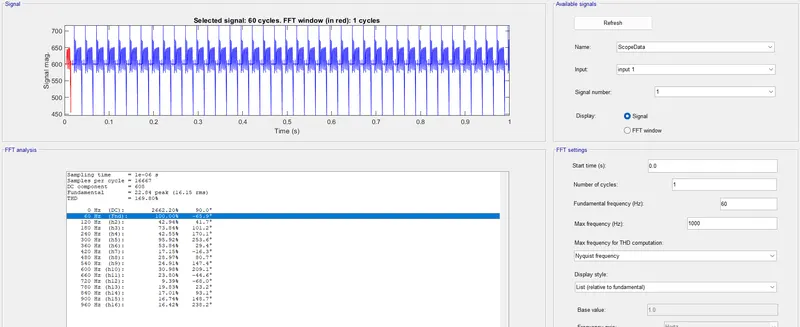

          input1

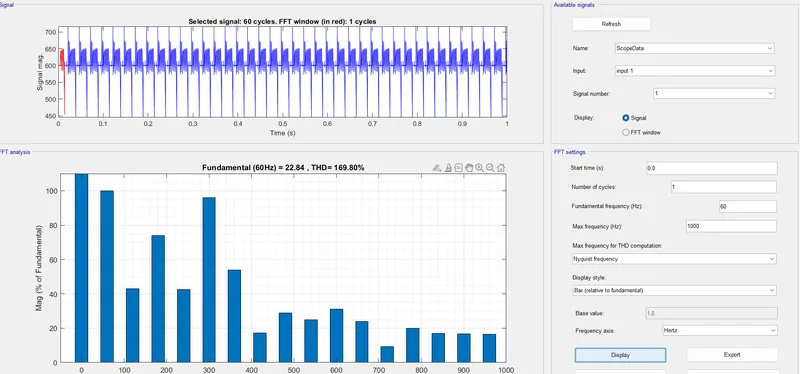

here ,

 fundamental 60hz=22.84

and THD=169.80

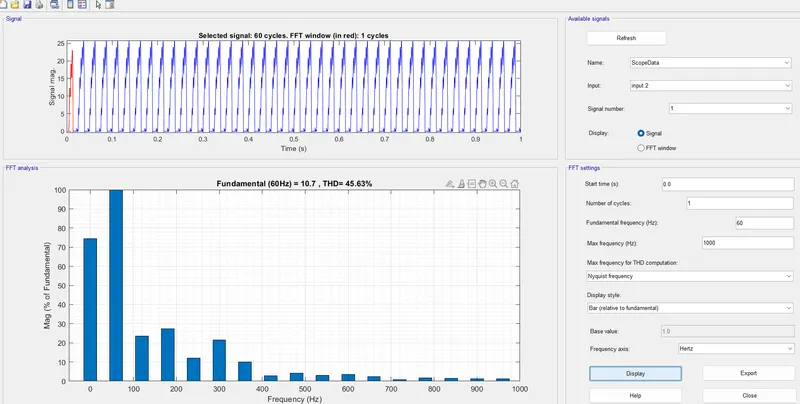

LIST





60HZ= -69.5 DEGREE

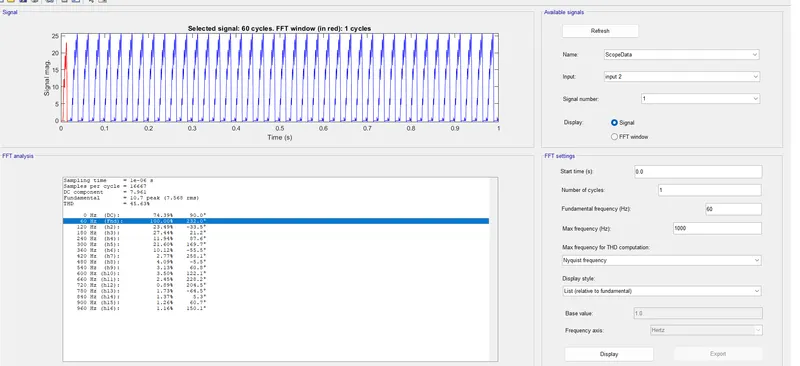

        INPUT2



for 60hz

    232.0 degree



 fundamental 60hz=10.7

and THD =45.63
