OBJECTIVE: The purpose of this project is to select a river which is having it's length greater than 10 km.Then to enter it's crosssections and use toposheet for catchment area calculations and to use Unit Hydrograph method for catchment area calculations.To run the river model for different profiles by considering…
Mahareddy Lavanya
updated on 21 Nov 2021
OBJECTIVE: The purpose of this project is to select a river which is having it's length greater than 10 km.Then to enter it's crosssections and use toposheet for catchment area calculations and to use Unit Hydrograph method for catchment area calculations.To run the river model for different profiles by considering steady flow analysis.

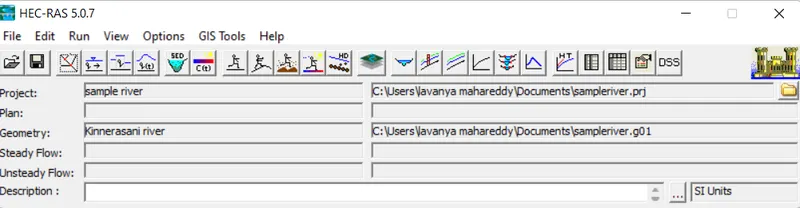

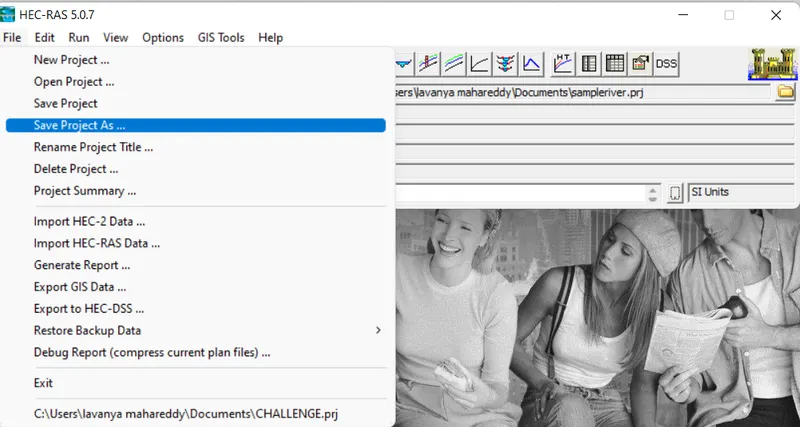

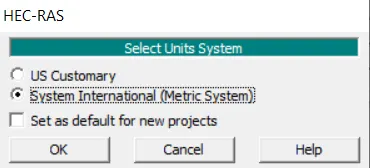

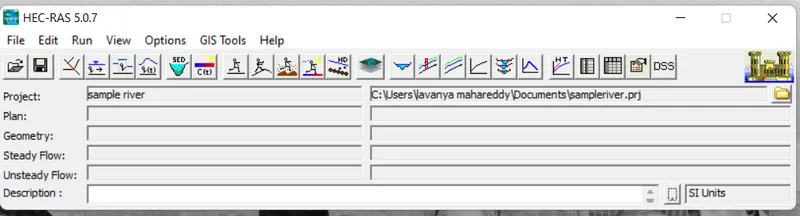

STEP 1:Create and Name a new project in HEC-RAS and change the units to SI units ,then save that project as shown.

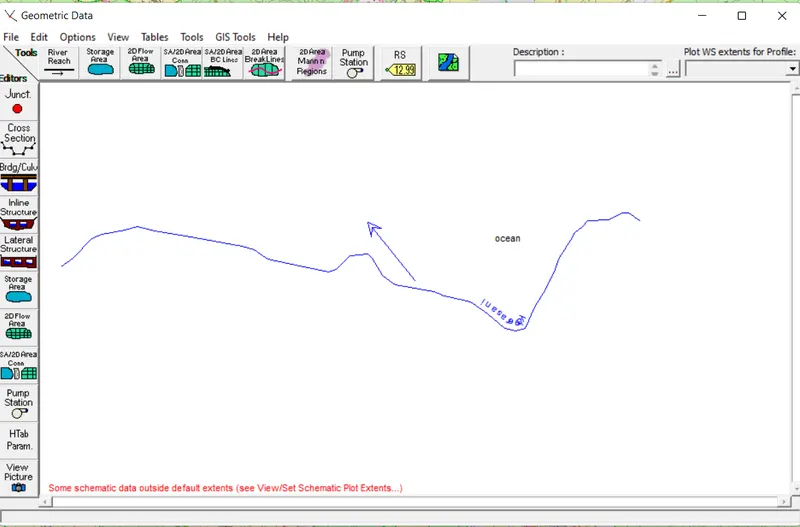

STEP 2:Now draw the considered river in geometric editor using river reach option in HEC-RAS as shown and save the geometric data.then the main
main window will appear as shown.
After completion of drawing the river,double click at the end then a pop up will appear and mention the river name and reach name.

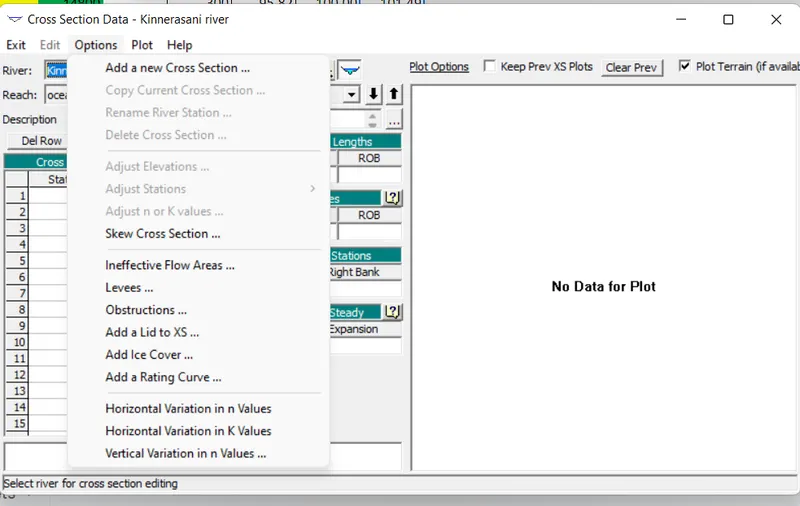

STEP 3:CLICK ON CROSS SECTION ICON AND GO TO OPTIONS AND SELECT ADD A NEW CROSSECTION THEN NAME A NEW CROSSECTION AS SHOWN.

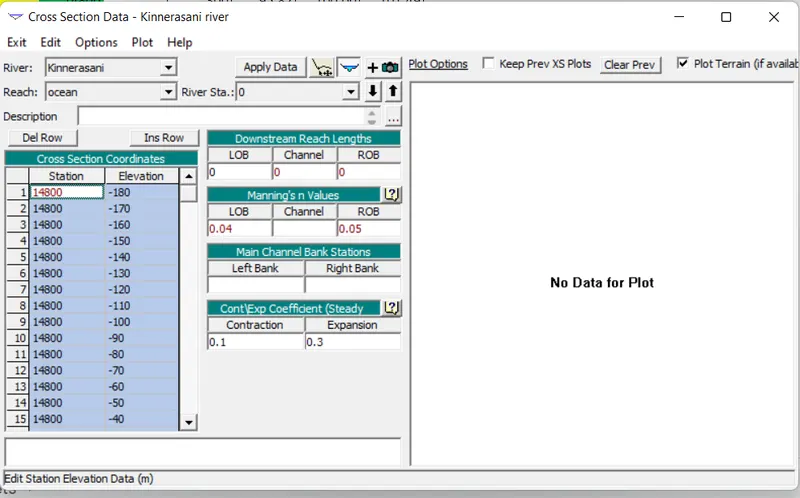

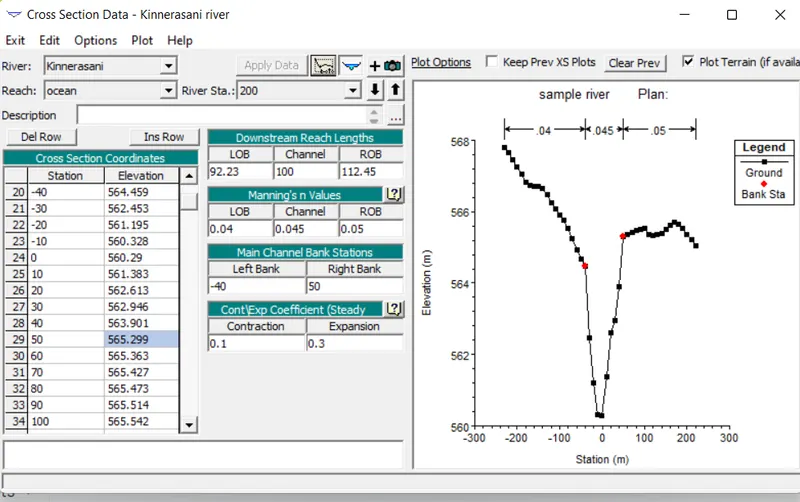

STEP 4:THEN PLACE THE REFERRED MANNINGS VALUES AND REACH LENGTHS FOR THE PARTICULAR CROSSECTION FROM THE ATTACHMENT

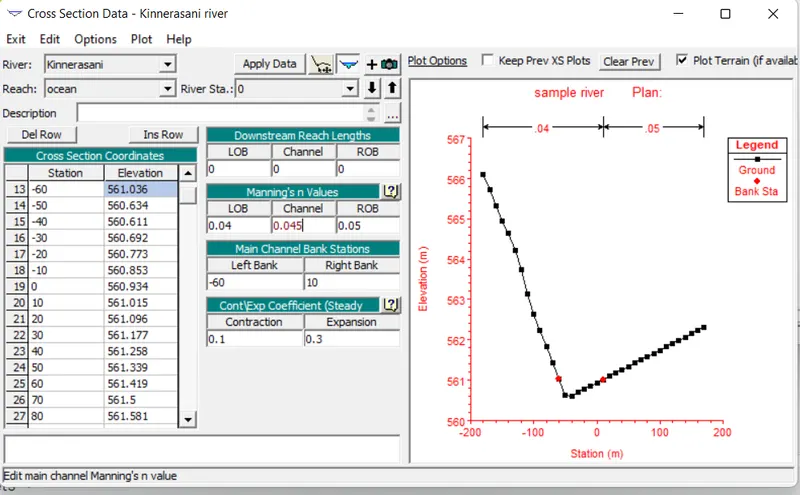

Then click on apply data then data will be projected in the plot as a graph and then place main channel bank stations from the graph as shown and click apply data.

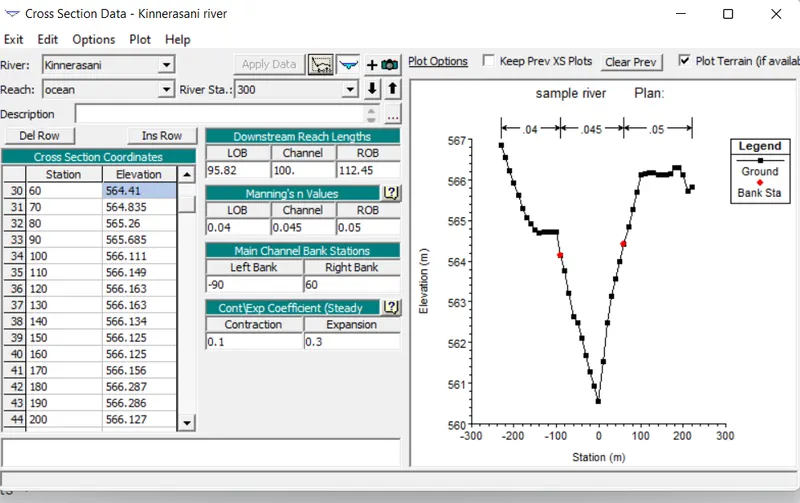

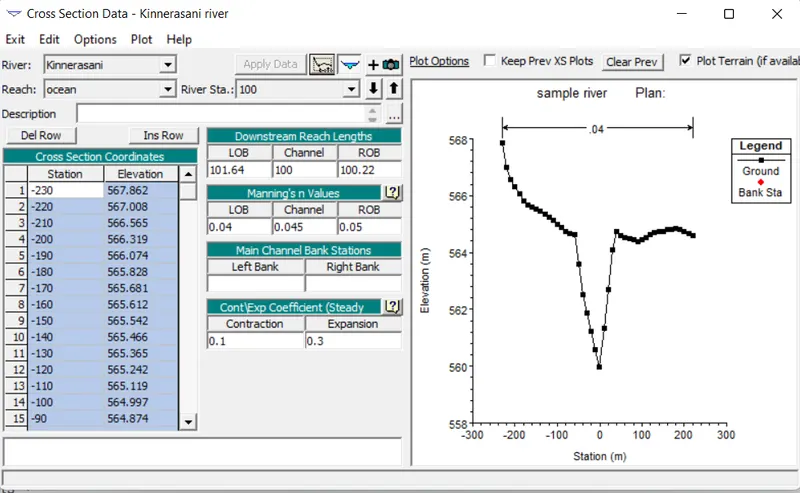

then enter various crosssection data and apply that data

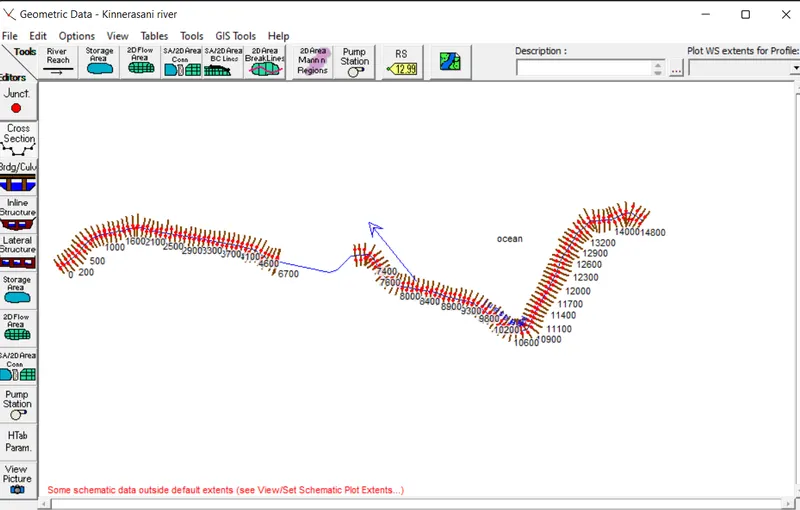

after entering all the croosection data the geomertic data will appear as shown.
then save the geometric data.
STEP 5:to find catchmenent area

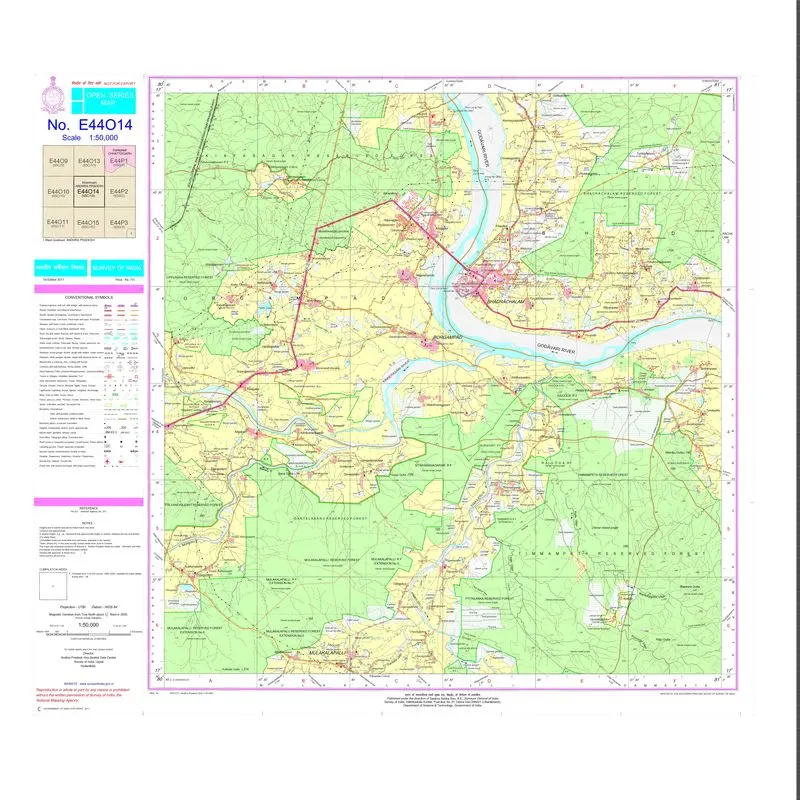

Download the required toposheet from SOI Nakshe from google

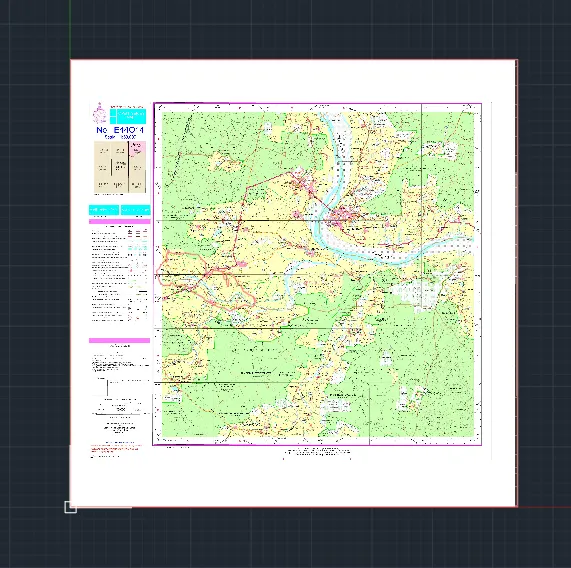

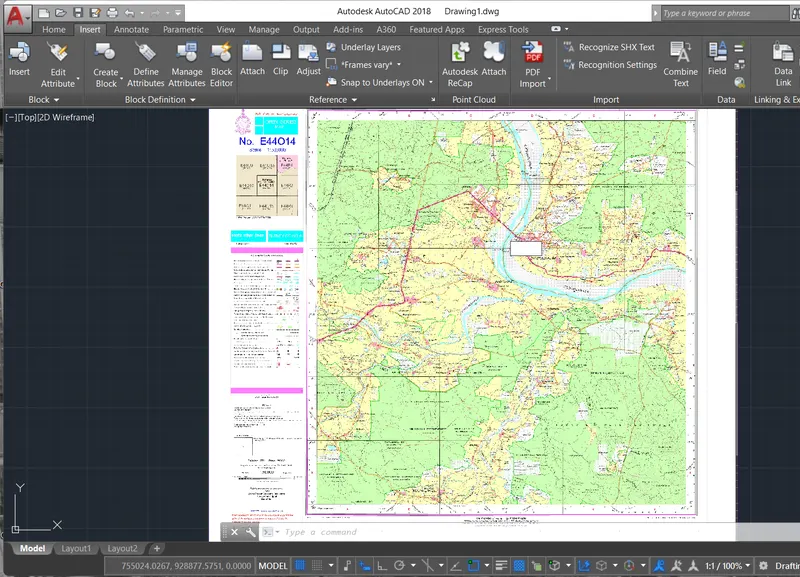

Open autocad and draw the shape of catchment area by inserting the toposheet as shown below

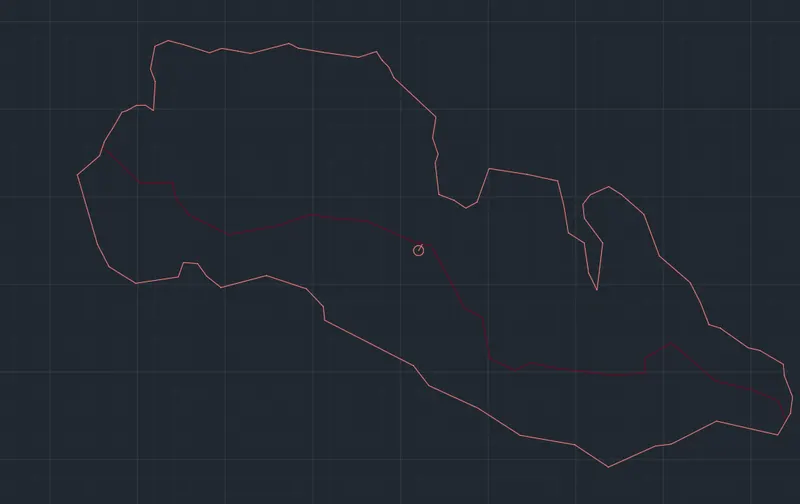

Then draw a catchment around the river using line command in autocad as shown

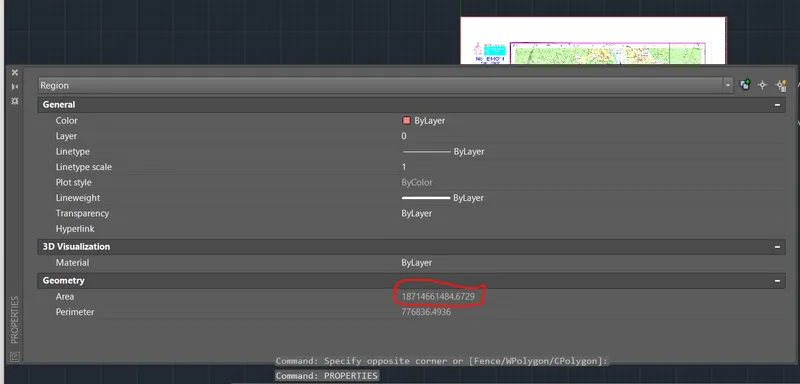

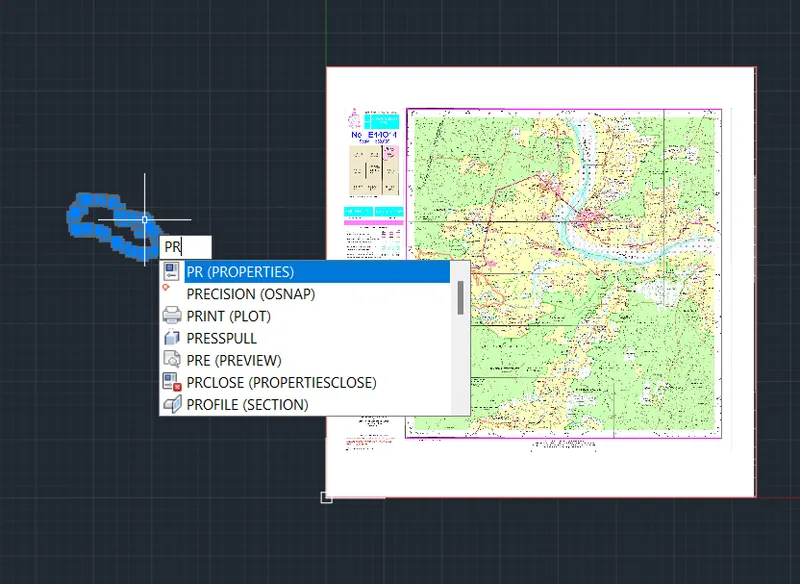

Now copy the catchment area and select the copied catchment area and see its properties as shown
then find its catchment area as shown
here the catchment area is 18714661484.6729 square meters

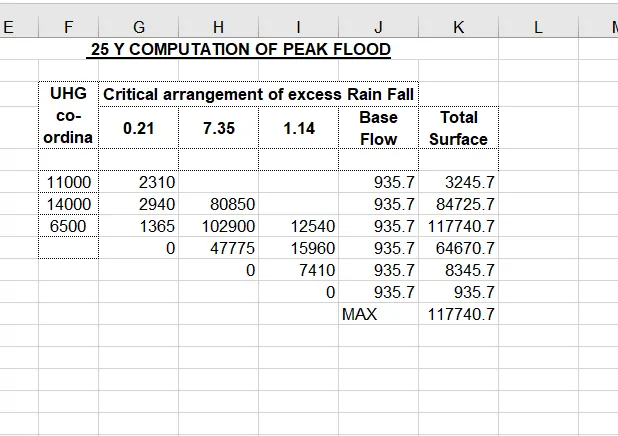

STEP 6:find the 25 year flood calculations as shown

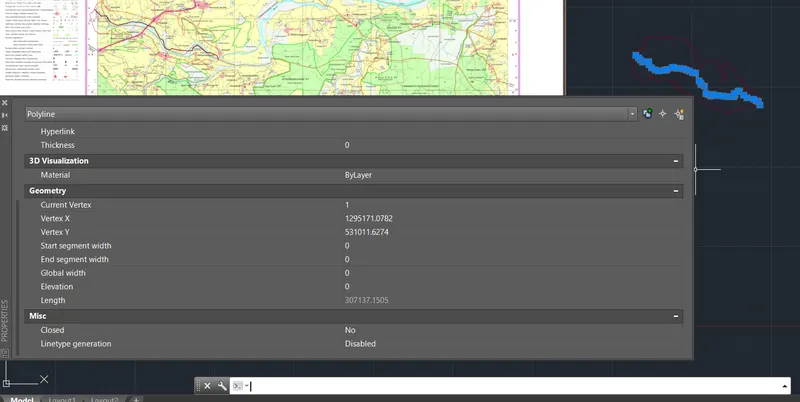

find the Length of Stream from origin To Site i.e.,draw the length of river and click on its properties and find it's length as shown
here the length of stream to site is 301137.1505 meters

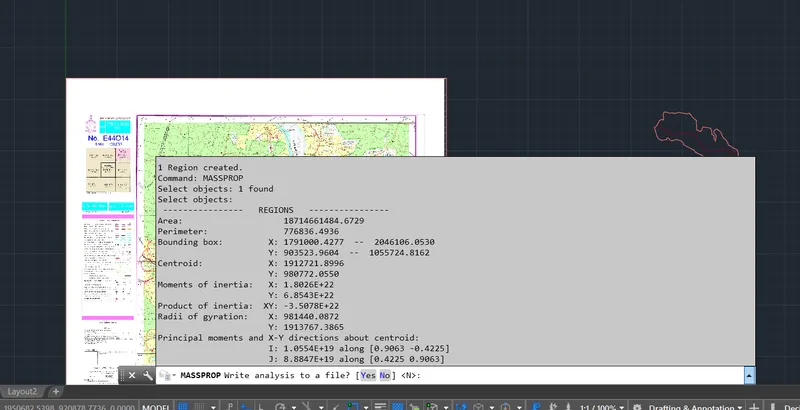

Now find the centroid of the catchment area using massprop command in autocad to get Length of Stream from perpendicular on centroid to site as shown below
here centroid is X: 1912721.8996
Y: 980772.0550
now draw a perpendicular from centriod to the length of river as shown

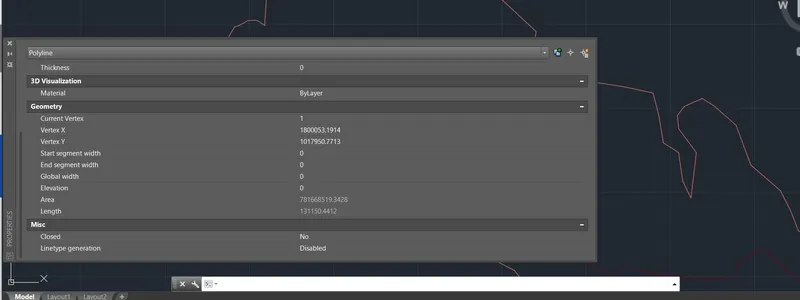

Now find the Length of Stream from perpendicular on centroid to site as shown
here
Length of Stream from perpendicular on centroid to site is 131150.4412 meters

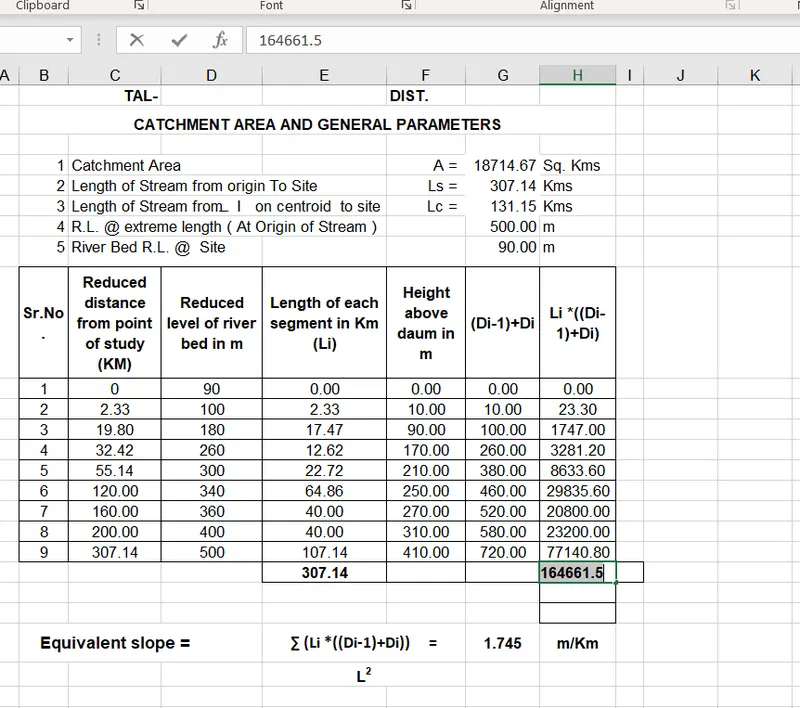

Now find the catchment area and general parameters of river kinnerasani

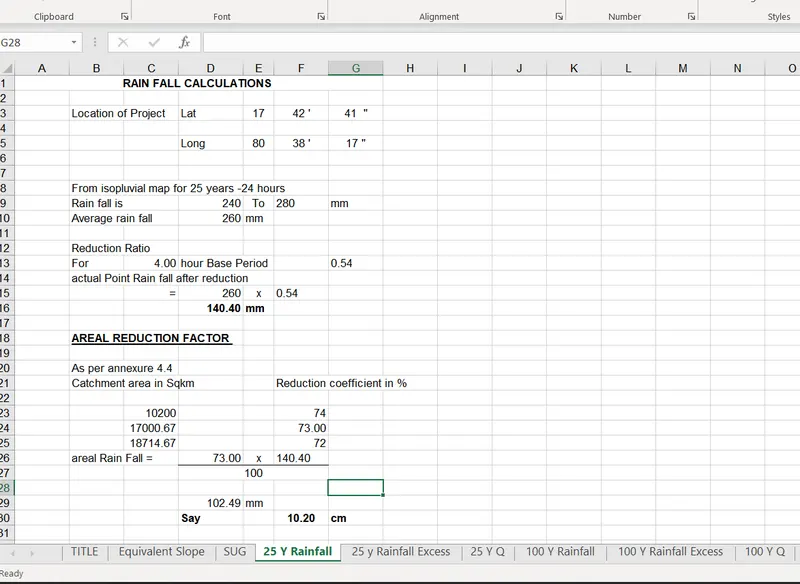

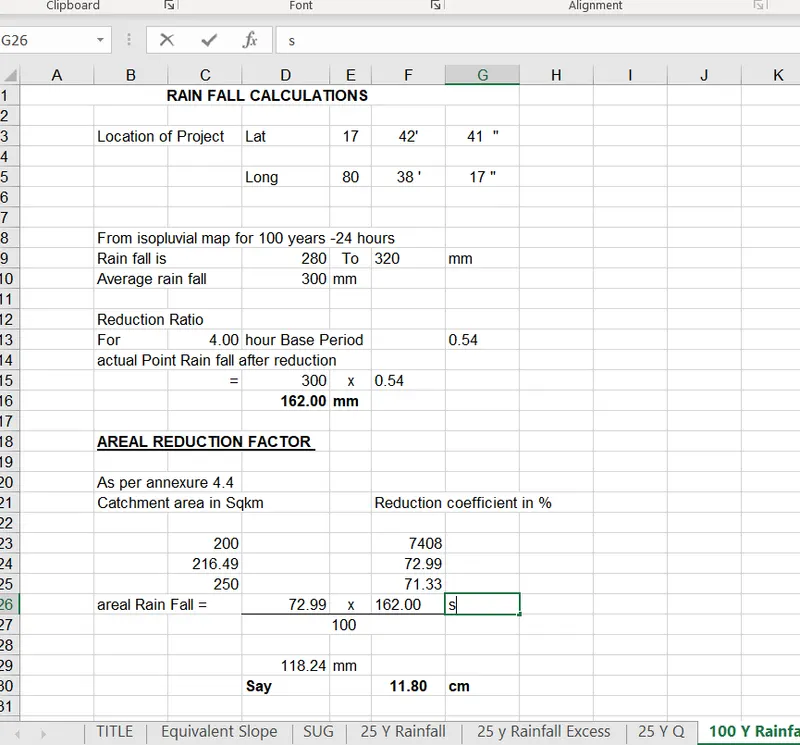

Find rainfall calculations:
in this ,find location of project using goolge earth pro
and find rainfall from isopluvial maps of that particular location
and find reduction factor from flood estimation report

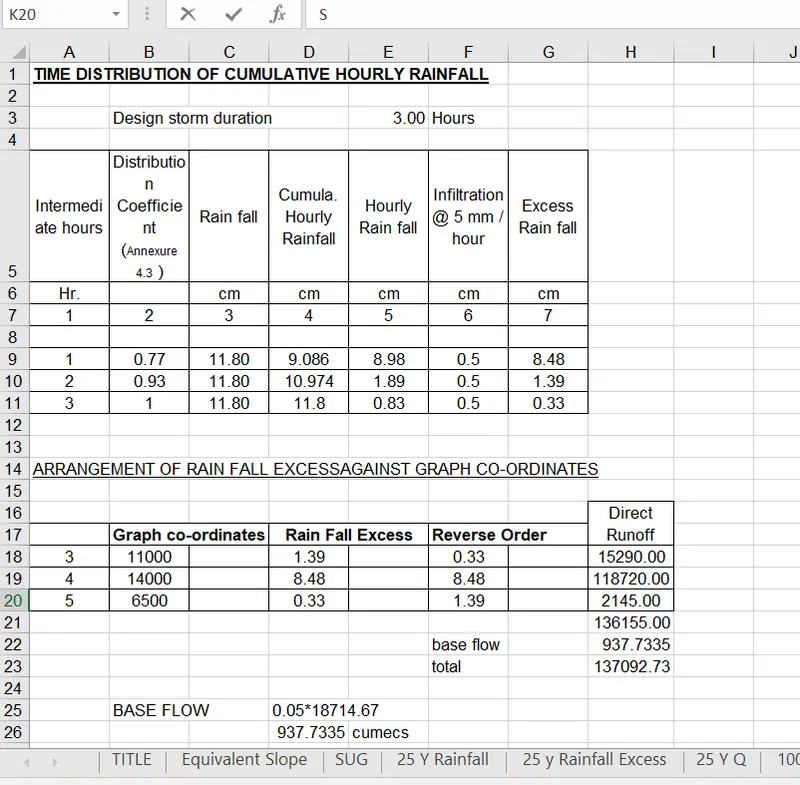

TIME DISTRIBUTION OF CUMULATIVE HOURLY RAINFALL | |||||
Design storm duration | 3.00 | Hours | |||

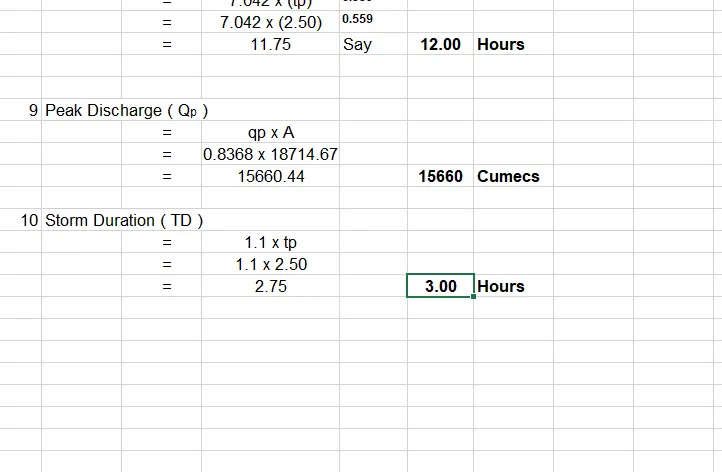

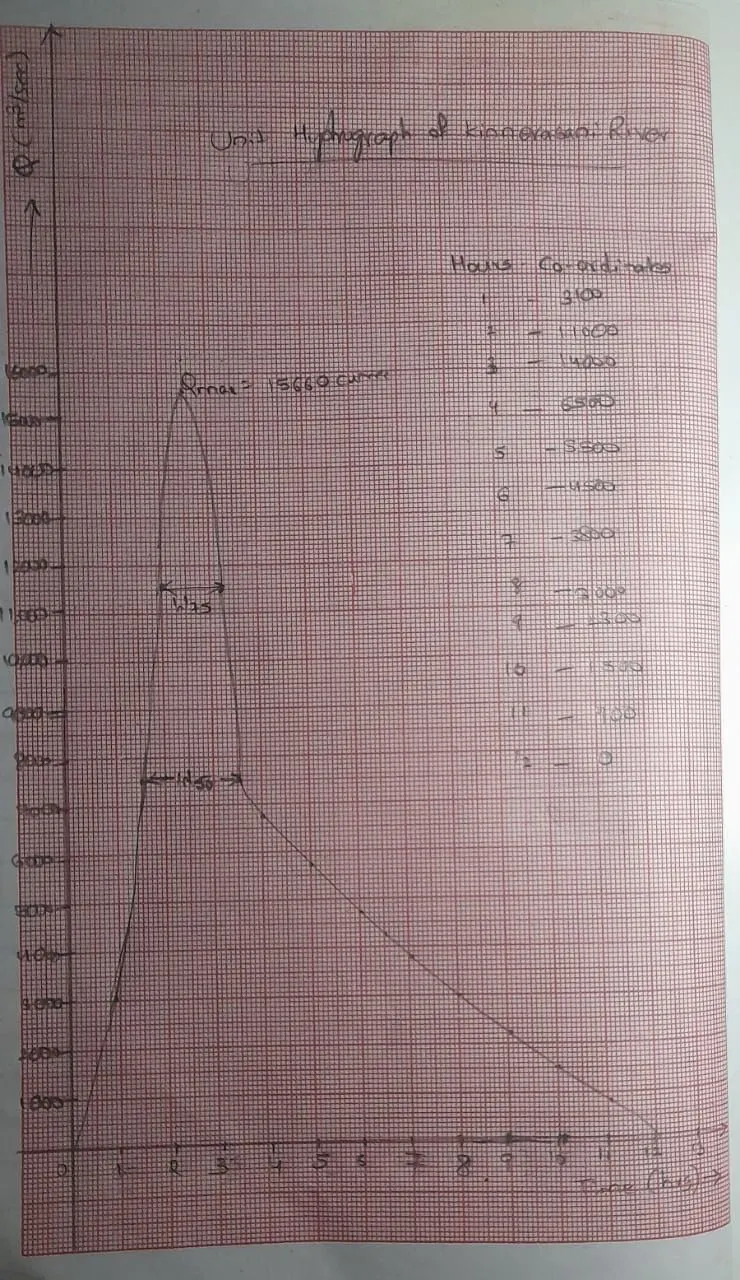

unit hydrograph is as shown
STEP 7:FIND 100 YEAR FLOOD CALCULATIONS

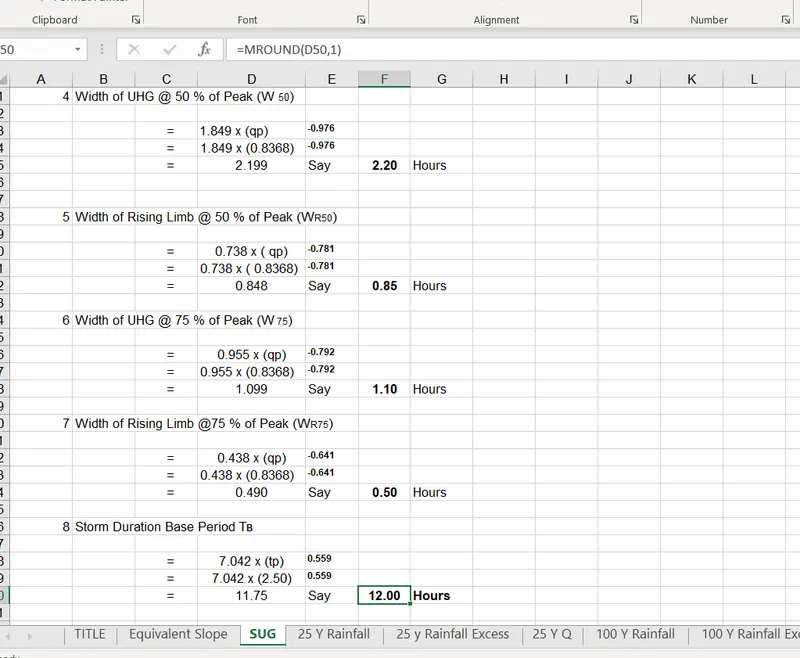

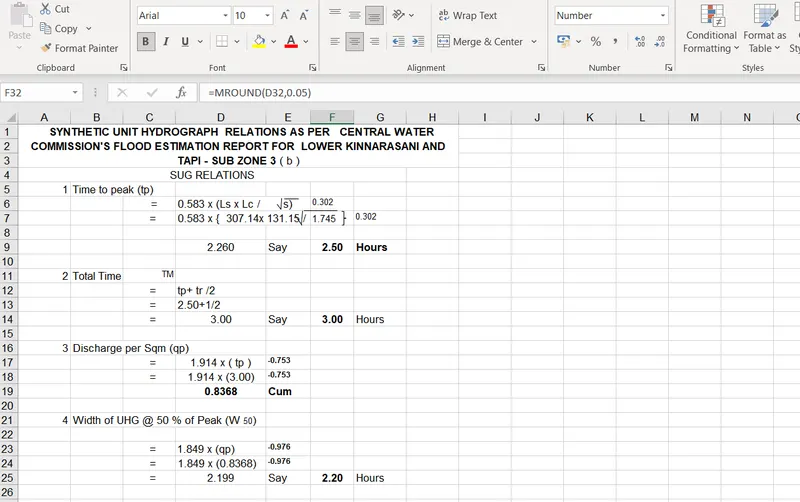

Find th synthetic unit hydrograph as shown above and find respective ordinates with respect to time on x axis.
Find the location of project using google earth pro

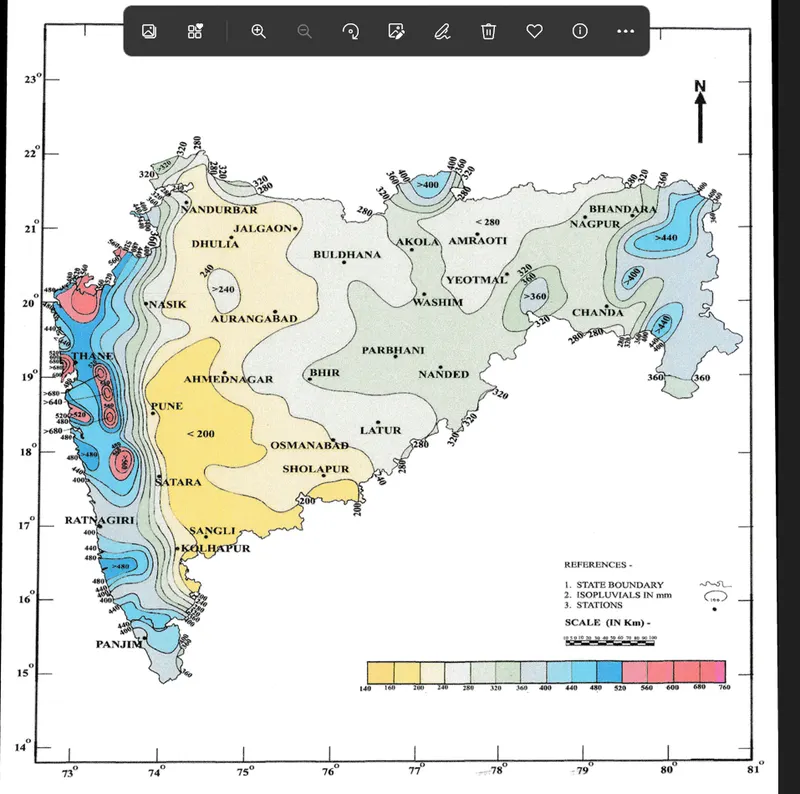

find the rainfall from isopluvial maps as shown in figure

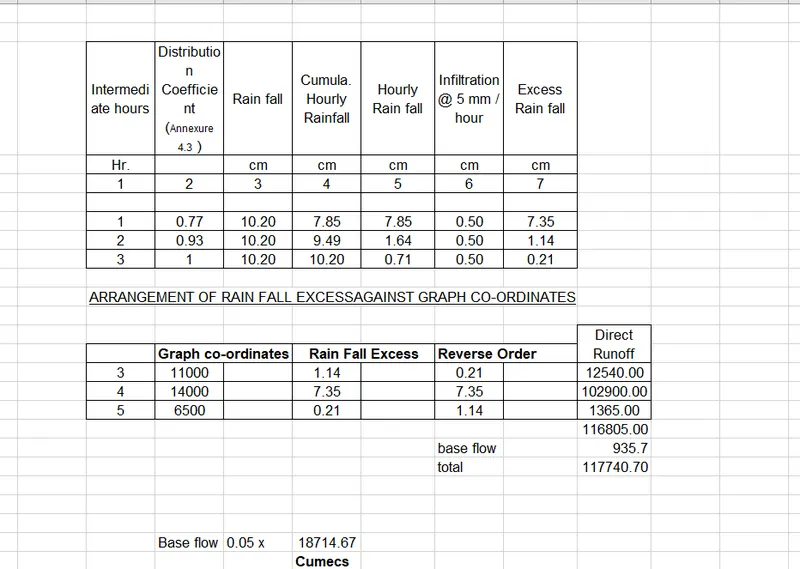

now find the time distribution of cumulative hourly rainfall.
find the distribution coefficients from annexture 4.3 of flood estimation report .

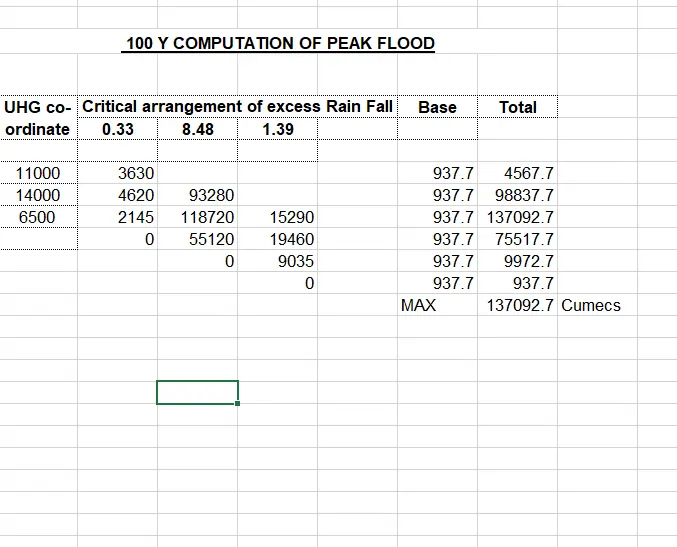

the 100 year computation of peak flood is

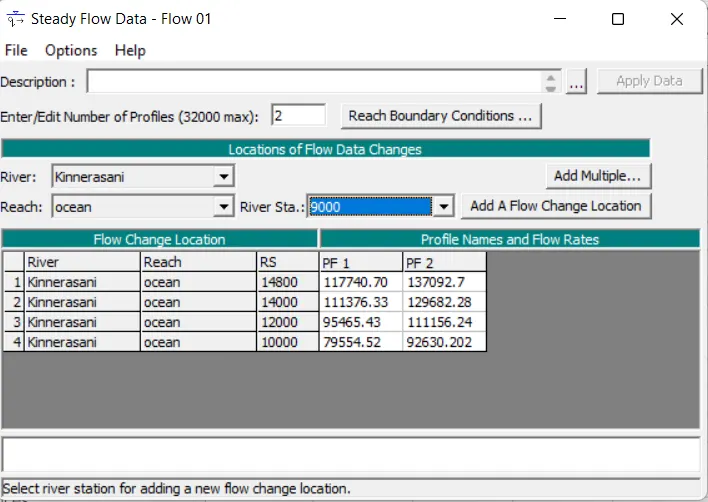

STEP 7:Add 25 year profile data and 100 year profile data in steady flow data by entering 2 profiles in edit number of profiles option.
now add different river stations by clicking add a flow change loacation and calculate profile data for the river stations by interpolating them.

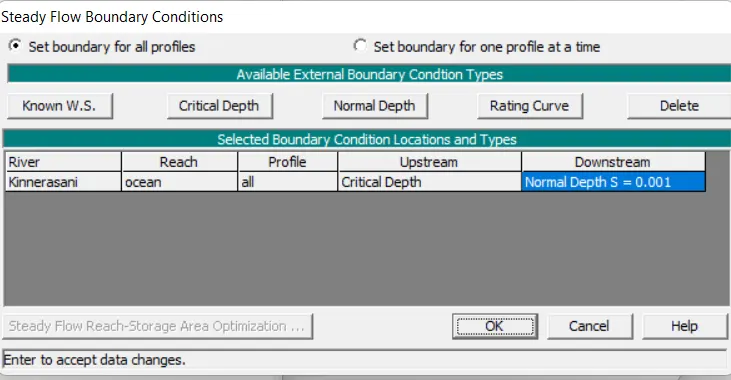

STEP 8:Now click on reach boundary conditions and enter upstream and downstream boundary locations and types as shown ,if normal depth is entered then a particular slope has to be selected.

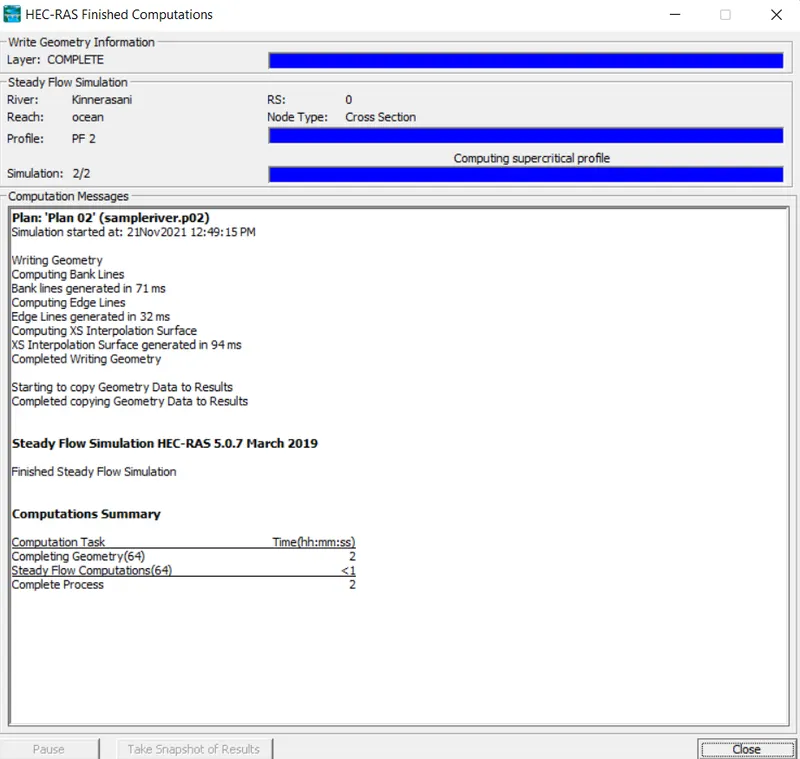

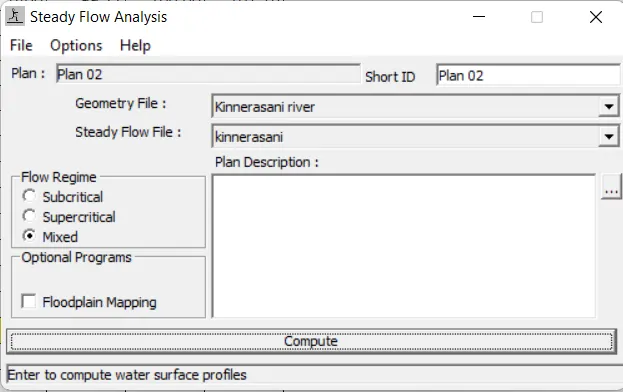

STEP 9:Now carry on the steady flow analysis as shown and compute

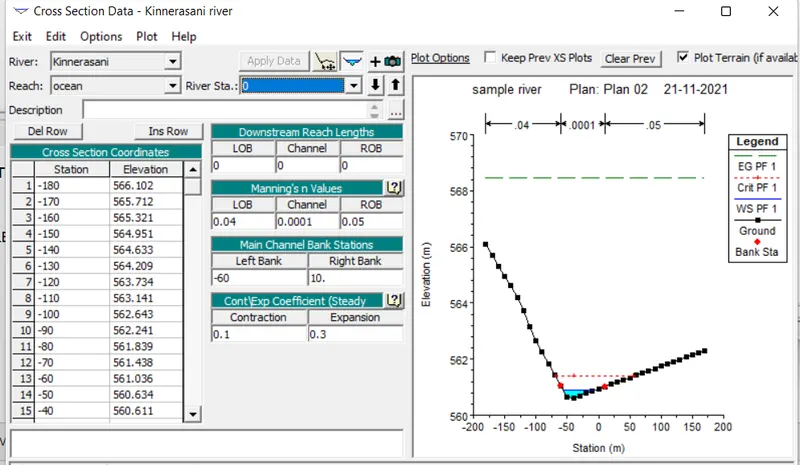

STEP 10:after computation the cross sections will appear as shown
RESULT:HENCE STEADY FLOW COMPUTATION IS DONE AND STEADY FLOW STIMULATION IS DONE
