Part Workbench

PART-WORKBENCH

OBJECTIVE: To create the Solid CATparts from the 2D-Drawings.

1. DRAWING ONE:





GEO-SET TREE STRUCTURE(IT IS EXPANDED FOR EACH PART INDIVIDUALLY LATER IN THE REPORT):



SKETCHER WORKBENCH:

1. SKETCH FOR MAIN SECTION:



2. SKETCH FOR SUPPORTING SECTION:





3. SKETCH FOR HOLES IN SUPPORTING SECTION:





PART WORKBENCH:

1. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '100MM':



2. FEATURE USED: 'POCKET' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '20MM'.



3. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '6MM' AND USED 'MIRROR EXTEND' COMMAND:



3D PART MODEL IN VARIOUS ORIENTATIONS:

FRONT VIEW:



TOP VIEW:



ISOMETRIC VIEW:



2. DRAWING TWO:

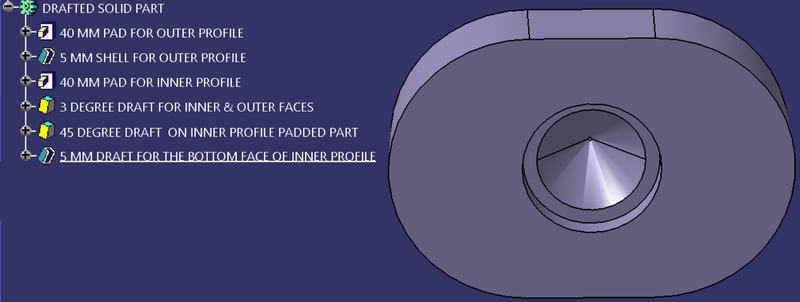

GEO-SET TREE STRUCTURE(IT IS EXPANDED FOR EACH PART INDIVIDUALLY LATER IN THE REPORT):



SKETCHER WORKBENCH:

SKETCHES USED ARE GIVEN BELOW:

1. SKETCH FOR THE OUTER PROFILE:





2. SKETCH FOR THE INNER PROFILE:





PART WORKBENCH:

1. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR VALUE OF '40MM':



2. FEATURE USED: 'SHELL' FROM DRESS-UP FEATURES FOR VALUE OF '5MM':



3. FEATURE USED: 'PAD' FROM SKETCH=BASED FEATURES FOR A VALUE OF 40MM:



4. FEATURE USED 'DRAFT' FROM DRESS-UP FEATURES FOR THE VALUE OF 3 DEGREES:



5. FEATURE USED 'DRAFT' FROM DRESS-UP FEATURES FOR THE VALUE OF 45 DEGREES:





6. FEATURE USED: 'SHELL' FROM DRESS-UP FEATURES FOR VALUE OF '5MM':



3D PART MODEL IN VARIOUS ORIENTATIONS:

FRONT VIEW:



TOP VIEW:

ISOMETRIC VIEW:





3. DRAWING THREE:

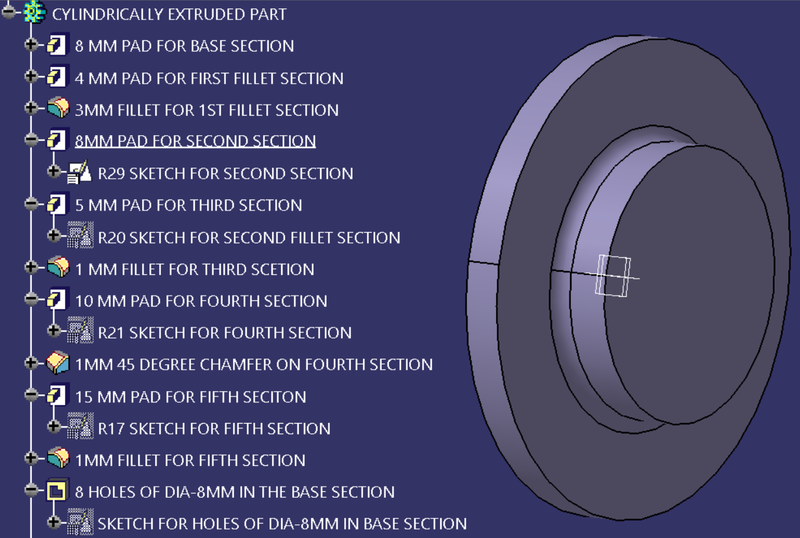

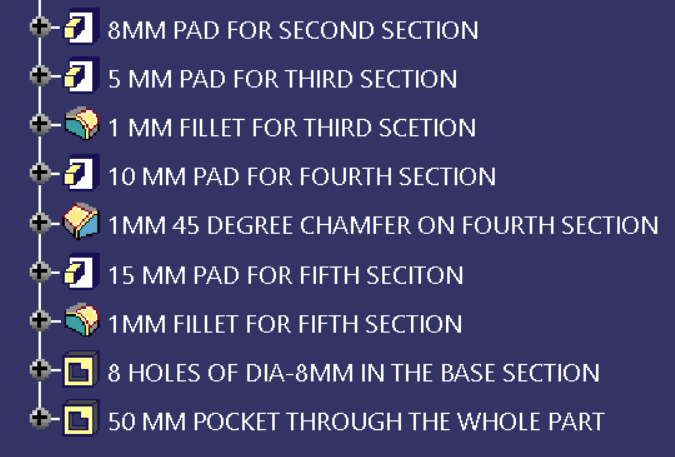

GEO-SET TREE STRUCTURE(IT IS EXPANDED FOR EACH PART INDIVIDUALLY LATER IN THE REPORT):





SKETCHER WORKBENCH:

SKETCHES USED ARE GIVEN BELOW:

1. SKETCH FOR CYLINDRICAL EXTRUSION:



2. SKETCH FOR FIRST FILLET SECTION:



3. SKETCH FOR SECOND SECTION:



 4. SKETCH FOR SECOND FILLET SECTION:



5. SKETCH FOR FOURTH SECTION:



6. SKTECH FOR FIFTH SECTION:



7. SKETCH FOR HOLES:



8. SKETCH TO POCKET THROUGH THE WHOLE SECTION:



9. SKETCH TO POCKET UPTO 12MM FROM BASE SECTION:



PART WORKBENCH:

1. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '8MM':



2. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '4MM':



3. FEATURE USED: 'EDGE-FILLET' FROM DRESS-UP FEATURES FOR THE VALUE OF '3MM':



4. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '8MM':



5. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '5MM':



6. FEATURE USED: 'EDGE-FILLET' FROM DRESS-UP FEATURES FOR THE VALUE OF '1MM':



7. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '10MM':



8. FEATURE USED: 'CHAMFER' FROM THE DRESS-UP FEATURES FOR THE VALUE OF 1MM AT 45 DEGREES:

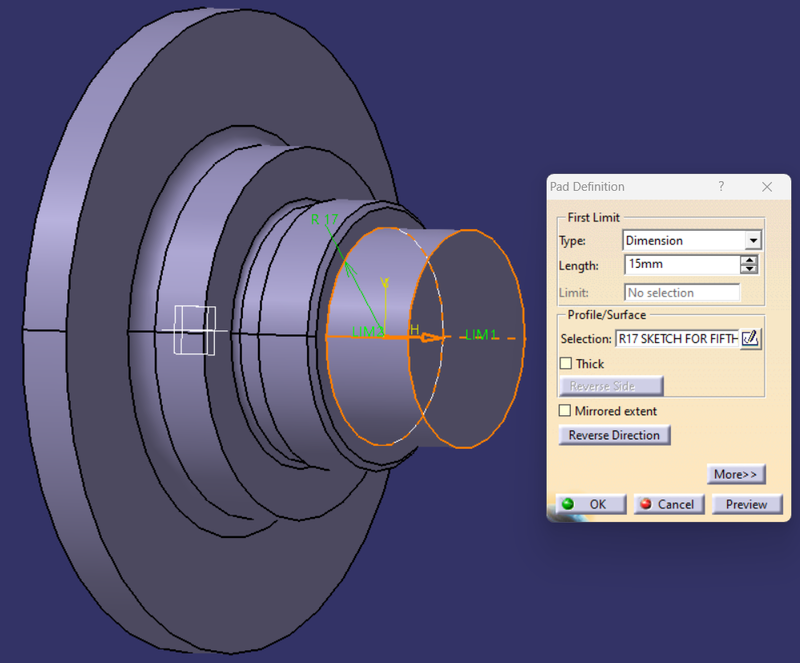

9. FEATURE USED: 'PAD' FROM SKETCH-BASED FEATURES FOR THE VALUE OF '15MM':

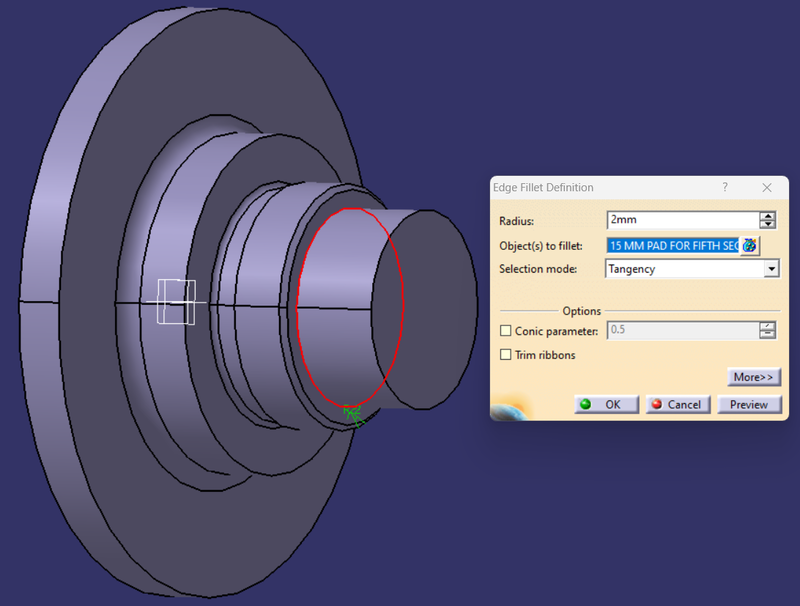

10. FEATURE USED: 'EDGE-FILLET' FROM DRESS-UP FEATURES FOR THE VALUE OF '2MM':



11. FEATURE USED: 'POCKET' FROM SKETCH-BASED FEATURES FOR THE VALUE OF 8MM:



12. FEATURE USED: 'POCKET' FROM SKETCH-BASED FEATURES FOR THE VALUE OF 50MM:



13. FEATURE USED: 'POCKET' FROM SKETCH-BASED FEATURES FOR THE VALUE OF 12MM:



3D PART MODEL IN VARIOUS ORIENTATIONS:

FRONT VIEW:



TOP VIEW:



ISOMETRIC VIEW:
