AIM: Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCAD. INTRODUCTION: The main objective of this project to get in touch with various applications of blocks, like creating a block, inserting a block and editing a block. The various tools which was used for doing…
KRISHNADAS K DAS
updated on 10 Jul 2021
AIM:
Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCAD.
INTRODUCTION:
The main objective of this project to get in touch with various applications of blocks, like creating a block, inserting a block and editing a block. The various tools which was used for doing this project work is as follows.
Line: The line object is the most basic and common object in AutoCAD drawings of any discipline. Each segment is a line object that can be edited separately, assigning properties such as layer, line type, and line weight.
Polygon: A polygon is a figure formed by the finite number of line segments connected to form a closed circuit. The categories of the polygon are triangle, quadrilateral, pentagons, hexagon, heptagon (or septagon), octagon, etc. The triangle is a figure with three sides, and an octagon is a figure with eight sides. The polygon command is used to create polygons in AutoCAD. We need to specify the number of sides to create a polygon. The maximum number of lines available to create a polygon is 1024 The shortcut command to create a polygon is 'pol'.
Rectangle: When using the RECTANGLE command, absolute or relative coordinate values are used to define the size of the rectangle. Actual dimension values are preferred to create the length and width of the rectangle. Command used- REC
Circle: Created a circle Command used - CIRCLE or C
Erase: The erase command is used to remove or delete objects from the drawing. The selected objects can also be removed with the help of the 'Delete' button on the keyboard. We can also delete faces, vertices, and meshes in 3D with the help of Erase command.
Copy: Copies objects a specified distance in a specified direction. With the COPYMODE system variable, you can control whether multiple copies are created automatically.
Trim: Trims objects to meet the edges of other objects. Command used: TR
Mirror: The mirror command in AutoCAD is used to create a copy (mirror copy) of the selected object. We can also delete the source object after mirroring the object. The objects that represent the same as the half of their object can be mirrored across a center line to create the other half of the object.Command used MI
Offset: Creates concentric circles, parallel lines, and parallel curves. Command used: OFFSET.
Extend: Extends objects to meet the edges of other objects. To extend objects, first select the boundaries. Then press Enter and select the objects that you want to extend. To use all objects as boundaries, press Enter at the first Select Objects prompt. Command used: EX
Array: Creates copies of objects arranged in a pattern. We can create copies of objects in a regularly spaced rectangular, polar, or path array.
Move: The move command in AutoCAD is used to move objects at a specified distance and direction.
To move the objects with precision, we can use object snaps, grid snaps, coordinates, etc. Command used M
Rotate: Used to rotate objects in our drawing around a specified base point. To determine the angle of rotation, we can enter an angle value, drag using the cursor, or specify a reference angle to align to an absolute angle. Command used: ROTATE
Dimension: Creates multiple dimensions and types of dimensions with a single command. We can select objects or points on objects to dimension, and then click to place the dimension line. When we hover over an object, the DIM command automatically generates a preview of a suitable dimension type to use.
Text: We can use single-line text to create one or more lines of text, where each text line is an independent object that you can move, format, or otherwise modify. Right-click in the text box to select options on the shortcut menu.
Fillet: The fillet tool helps form round corners between any two entities that form a sharp vertex. Command used: FILLET
Blocks: A block is a combination of AutoCAD object types that make up a real-world object. For example, it could be a chair, manhole, door, utility pole etc.
Insert a Block: Typically, each of these blocks is an individual drawing file, perhaps saved in a folder with similar drawing files. When you need to insert one into your current drawing file, you use the INSERT command (or enter I in the Command window).
Create a Block Definition: Instead of creating a drawing file to be inserted as a block, you might want to create a block definition directly in your current drawing. Use this method if you do not plan to insert the block into any other drawing. In that case, use the BLOCK command to create the block definition.
TASK 1:
Create the templates as shown in Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock, respectively.
|
Type UN and press enter Under Drawing Units, select Metric. Now the lower limit is set to 0, 0 and upper limit to 420, 297. Type Z enter to zoom and A enter to all |
|
| STEP 1: Custom1_titleblock | |
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as TABLE by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. Using the line command a table was drawn as shown in figure. |
 |
|
A new layer is now created, named as texts and a suitable colour is selected and this layer is made as the default. Type ST to open the TEXT STYLE manager, TEMPUS SANS ITC font was selected and height was set to 40 and this was set as the current one Now using the MULTI LINE text all the text was entered at the positions as required |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name. Now, you need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects you want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. Creation of Custom1_titleblock is now completed. |
 |
|
STEP: Custom2_titleblock
|
|
|

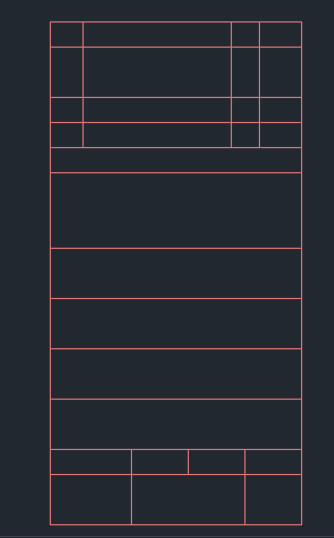

The TABLE layer which was created was made default layer. Using the line command a table was drawn as shown in figure. |
 |
|
The TEXTS layer which was created was made default layer. Now using the MULTI LINE text all the text was entered at the positions as required |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name. Now, you need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects you want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. Creation of Custom2_titleblock is now completed. |
 |
|
RESULTS OF TASK IS AS FOLLOWS. Custom1_titleblock and Custom2_titleblock was created, made into block and is as given below:
|
|
TASK 2:
Create the doors type for warehouse as shown in the Figure. You need to create each door type as per standard size or given dimensions. Create the blocks of this door type after creating them.
|
STEP 1: DOOR1
|
|
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as DOOR FRAME by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. Using the Line command, offset, trim, extend, fillet command and the dimensions given in figure the following portion of door was created. |
 |
|
A new layer is now created, named as PANELS and a suitable colour is selected and this layer is made as the default. Using REC command a rectangle of size 310x640 mm was created. This rectngle was offsetted to the inside by 20 and 70 mm respectively. The corners of all the rectangles was joined using a line. Select the Rectangular Array from the ribbon panel. Select the object( rectangular panel) with the small square cursor and Press Enter. The default rectangular array will be created. Now in the top select the number of rows and columns required. |
 |
|

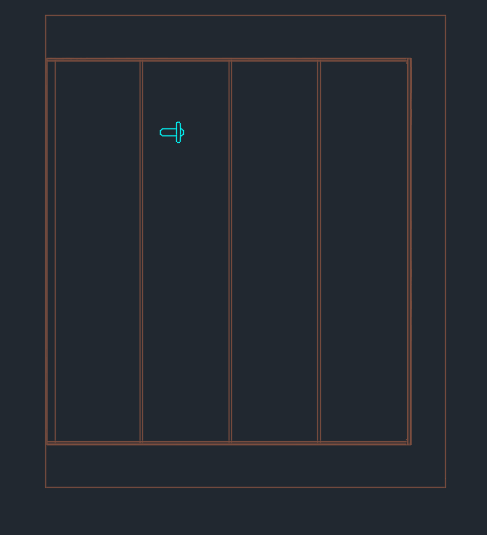

The handle of the door was created using the line command. A new layer is now created, named as DIMENSIONS and a suitable colour is selected and this layer is made as the default. The dimensioning is done using the DIMLIM command and the final image of door is as follows |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name. Now, we need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects(door) we want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. Creation of DOOR 1 is now completed. |
 |
|
STEP 2: DOOR 2
|
|
|
The DOOR FRAME layer which was created was made default layer. Using the Line command, offset, trim, extend, fillet command and the dimensions given in figure the following portion of door was created. |
 |
| The handle of the door was created using the line command. |  |
|
The DIMENSIONS layer which was created was made default layer. The dimensioning is done using the DIMLIM command and the final image of door is as follows |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name. Now, we need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects(door) we want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. Creation of DOOR 2 is now completed. |
 |
|
RESULTS: Door 1 and Door 2 was created and made into a block and is as shown below
|
|
TASK 3:
Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as ElECTRICAL LEGENDS by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. Now all the electrical legends was drafted using the line, rectnagle,circle, and Hatch command. All of these are simple geometries and can be made easily. |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name as SINGLE GANG SWITCH. Now, we need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects(legend ) we want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. |
 |
| In the similar manner as above all the other electrical legends was converted into blocks and the names of these are as shown in the block defenition window. |  |
|
The TABLES layer which was created was made default layer. Using the line and rectangle command a table appropriate for filling filling details was drawn as shown. |
 |
|
The TEXTS layer which was created was made default layer. Now using the MULTI LINE text all the headings was entered at the positions as required |
 |
|
Type I and press enter to insert the blocks. Select the first block which you want to enter and place it under the plan column as shown |
 |
|
Now in the Insert tab select the field option. Select object under field names. Select the object from the screen and then select name under property tab and in format tab title case was selected and then click ok. |
 |
|
Now the name of the block will be places at the particular position as required as shown. The b comes with a white frame, it means that it is still linked to the blocks and if any changes are made to blocks name it will be updated here by just clicking update field option in Insert tab |
 |
| In the similar manner as above all the other blocks was placed and their feilds was also made as shown |  |
| Now type X and explode the field names, so that the white frame box goes and the names are no longer connected to field option. |  |
|
RESULTS: All the symbols was created and made to blocks and their legends was allso prepared as shown.
|
|
TASK 4:
Create each shape as a block as shown in the Figure. Save the block and insert them on the table as shown in the Figure.
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as BEAMS by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. The beams was cretaed easily by using the line,start end direction arc, rectangle and fillet command as shown |
 |
|
The TEXTS layer which was created was made default layer. Now using the MULTI LINE text all the texts was entered at the positions as required The DIMENSIONS layer which was created was made default layer. Using the DIMLIM command all the required dimensions was marked as shown. |
 |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block a name as TYPE A 200MM.. Now, we need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects(legend ) we want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. In the similar way all the other beam layouts was also converted into blocks. |
 |
|
The TABLES layer which was created was made default layer. Using the line and rectangle command a table appropriate for filling filling details was drawn as shown. |
 |
|
The TEXTS layer which was created was made default layer. Now using the MULTI LINE text all the headings and all text was entered at the positions as required. Also all the beams was placed under shape-size column using the insert block option.
|
 |
| This shows all the layers which was used for doing these drawings till now. |  |
|
RESULTS: All the beams was created, converted to blocks and was inserted in the table as shown.
|
|
TASK 5:
Create the door type for residential building as a block. Save the name of the blocks as type. Use given dimensions or assume dimensions as per industry standards.
|
Type UN and press enter Now the lower limit is set to 0’,0’ and upper limit to 75’, 75'. Type Z enter to zoom and A enter to all |
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as DOOR FRAMES by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. The door frames was cretaed easily by using the line,start end direction arc, rectangle, offset, trim,eraze and fillet command as shown. |
|
To create a Layer In the Layer Properties Manager, click New Layer. A layer name is added to the layer list. Enter a new layer name as DOOR DESIGNS/PANELS by typing over the highlighted layer name. Select a suitable colour for that layer and set this layer as the default layer. In doors 1 and 3 the door handles was made first easily by the line command itself. Door 1 is now completed In door 3 a small rectangular opening was made with rectangle and offset command In door 2,4,5 and 6 designs was made using the rectangle and offset command and also a small cirlce was drawn at the bottom portion. |
|
Door 3 was hatched using the particular hatch pattern and the door 3 drafting is now completed. In door 2,4,5 and 6 a small rectangle was made as shown and was then offsetted to the inside. |
|
Select the Rectangular Array from the ribbon panel. Select the object( rectangular panel) with the small square cursor and Press Enter. The default rectangular array will be created. Now in the top select the number of rows and columns required. This step was done in door 2,4,5 and 6. All the door drafting is now completed. The DIMENSIONS layer which was created was made default layer. Using the DIMLIM command all the required dimensions was marked as shown. |
|
Type “B” in the command line to open the Block Definition dialog box. Starting from left to right, give the block DOOR 1. Now, we need to tell AutoCAD what the insertion point(Pick point) should be. In other words, when you place the block, the point about which the block appears at your cursor. Click the Select Objects button and select the objects(legend ) we want to be stored in the block I selected convert to block and scale uniforly option as per my convenience and thgen click OK. |
|
In the similar manner as above all the other door was also made into blocks named as DOOR 2, DOOR 3, DOOR 4, DOOR 5, and DOOR 6 as shown. |
|
RESULTS: All the 6 types of doors was drafted and converted in blocks as shown
|
RESULTS:
TASK 1:
Custom1_titleblock and Custom2_titleblock was created, made into block and is as given below:
TASK 2:
Door 1 and Door 2 was created and made into a block and is as shown below
TASK 3:
All the symbols was created and made to blocks and their legends was allso prepared as shown.
TASK 4:
All the beams was created, converted to blocks and was inserted in the table as shown.
TASK 5:
All the 6 types of doors was drafted and converted in blocks as shown.
